GENERAL INFORMATION
i. Copyright
The entire contents in this user manual, including any future updates, revisions, and modifications, shall remain
the property of NSR at all times. Unauthorized copies or reproduction of this manual, either in part or whole, in
any form of print and electronic media, is prohibited. The contents herein can only be used for the intended
purpose of this manual.
ii. Disclaimer
NSR is devoted to publish and maintain this user manual. As we continue to improve our products to satisfy
customers’ needs, information in this document is subject to change without prior notice. NSR does not make any
representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document
and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to
special, incidental, consequential, or other damage.
iii. Warning
Any attempt to install or execute software not supplied by NSR on this device will result in the warranty being
void. Any attempt to modify the software on this device in a way not specified by NSR will result in the warranty
being void.
iv. Notice
Please read this manual carefully to ensure proper use before installation and operation of the NVR-3000.

NVR-3000 OM.E 20210412-02
MODIFY RECORD
No.
Modify by
Date
Paragraph
Version
Reason
1
Q/A
2020/10/21
01
First edition
2
Q/A
2021/04/12
all
02
General modification

NVR-3000 OM.E 20210412-02
TABLE OF CONTENTS
1. OVERVIEW..........................................................................................................................................................6
1.1 Outline.........................................................................................................................................................6
1.2 Product Features.......................................................................................................................................6
1.3 System Configuration ...............................................................................................................................6
2. BASIC OPERATION........................................................................................................................................... 8
2.1 Panel Button Description..........................................................................................................................8
2.2 Power On/Off .............................................................................................................................................8
2.3 Main Screen...............................................................................................................................................9
2.4 Channel Watch Scan Screen...................................................................................................................9
2.4.1 Dual Watch Scan............................................................................................................................ 9
2.4.2 All Channel Scan..........................................................................................................................10
2.5 Brightness adjustment............................................................................................................................ 11
2.6 Main Speaker On/Off.............................................................................................................................. 11
2.7 Auto Acknowledgement Setting............................................................................................................. 11
2.8 System Setting......................................................................................................................................... 12
2.8.1 Language ......................................................................................................................................12
2.8.2 Print................................................................................................................................................12
2.8.3 Audio.............................................................................................................................................. 12
2.8.4 Display Setting.............................................................................................................................. 14
2.8.5 Date/Time Setting ........................................................................................................................ 15
2.8.6 Position Setting.............................................................................................................................16
2.8.7 Timeout Setting.............................................................................................................................17
2.8.8 Port Setting................................................................................................................................... 18
2.9 Address List.............................................................................................................................................. 18
2.9.1 View an address...........................................................................................................................19
2.9.2Add an address.............................................................................................................................19
2.9.3 Delete an address........................................................................................................................ 21
2.9.4 Call to an address........................................................................................................................21
2.10 Diagnostics.............................................................................................................................................22
2.10.1 Program Version........................................................................................................................22
2.10.2 LCD Test...................................................................................................................................... 23
2.10.3 Key Test....................................................................................................................................... 23
2.10.4 Audio Test....................................................................................................................................23
2.11 User Manager........................................................................................................................................ 24
2.11.1 Private Channel..........................................................................................................................25
2.11.2 Alert list ........................................................................................................................................26
2.11.3 User Test......................................................................................................................................27
2.11.4 DSC Log...................................................................................................................................... 27
3. VOICE OPERATION.........................................................................................................................................28
3.1 Channel Region Selection ..................................................................................................................... 28

NVR-3000 OM.E 20210412-02
3.2 Channel Setting.......................................................................................................................................28
3.3 Transmit.................................................................................................................................................... 30
3.4 Receive.....................................................................................................................................................31
4. DSC OPERATION.............................................................................................................................................33
4.1 DSC Description...................................................................................................................................... 33
4.1.1 DSC Message...............................................................................................................................33
4.1.2 Audio Alarms................................................................................................................................. 34
4.1.3 DSC Call Screens........................................................................................................................35
4.2. DSC Distress Operation........................................................................................................................37
4.2.1 Send a Distress Call....................................................................................................................37
4.2.2 Receive a Distress Call...............................................................................................................42
4.2.3 Relay a Distress Call...................................................................................................................46
4.2.4 Cancel a Distress Call.................................................................................................................50
4.3. DSC GENERAL CALLS........................................................................................................................51
4.3.1 Individual Call ...............................................................................................................................52
4.3.2 Group Call..................................................................................................................................... 59
4.3.3 All Ships Call.................................................................................................................................62
4.3.4 Position Call..................................................................................................................................65
4.3.5 Test Call......................................................................................................................................... 70
4.3.6 Polling Call.................................................................................................................................... 74
5. INSTALLATION..............................................................................................................................................76
5.1 VHF Antenna............................................................................................................................................76
5.2 Transceiver...............................................................................................................................................76
5.3 CONNECTION.........................................................................................................................................76
5.3.1 POWER SUPPLY.........................................................................................................................76
5.3.2 GNSS DATA INPUT..................................................................................................................... 76
5.3.3 CONNECT TO PRINTER............................................................................................................76
5.3.4 CONNECT TO (S)VDR...............................................................................................................77
5.3.5 CONNECT TO INS/BAM.............................................................................................................77
5.4 MMSI &ATIS ID Setting.........................................................................................................................77
6. MAINTENANCE................................................................................................................................................ 79
6.1 Maintenance.............................................................................................................................................79
6.2 Simple Troubleshooting.......................................................................................................................... 79
6.3 Error Messages.......................................................................................................................................79
APPENDIX 1 TECHNICAL SPECIFICATIONS................................................................................................ 80
APPENDIX 2 MENU TREE..................................................................................................................................82
APPENDIX 3 CHANNEL TABLES.....................................................................................................................83
APPENDIX 4 SENTENCE DISCRIPTION.........................................................................................................89
APPENDIX 5 INSTALLATION DRAWINGS......................................................................................................98

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
6
1. OVERVIEW
1.1 Outline
NVR-3000 is a ship borne radiotelephone equipment on VHF FM and designed for marine mobile service which
provides function of VHF radiotelephone and digital selective calling (class A).
NVR-3000 conforms to the regulations of ITU-R M.493-15, IEC 61097-3:2017, IEC 61097-7:2018, IEC
62923-1:2018, IEC 62923-2:2018, IEC 60945.
It contains a VHF radio transceiver and a digital selective calling system and a dedicated digital selective calling
receiver to comply with the ITU Radio Regulations. Channel numbers can be 2-digit or 4-digit to meet the latest
regulation of IMO and ITU.
1.2 Product Features
NVR-3000 is the new generation of NSR VHF Radio. The main features of the NVR-3000 include:
Large 7-inch color LCD with touch screen operation.
Knob & touch screen operation.
4-digital channels available.
DSC watching receiver integrated.
Channels are scanned to sample any signal to be received.
Audio interface to VDR.
Data interface to INS (BAM System).
Handset to be used.
1.3 System Configuration
No.
Name
Type
Q’ty
Remarks
Standard
1
Transceiver Unit
NVR-3000
1
2
Handset
NHS-200
1
3
Accessories
1
4
User Manual
1
Optional
1
Power Supply Unit
PS-10
1
2
VHF Antenna
NVA100
2
3
Thermal Printer
NPT-100
1
4
External Speaker
NSK-100
1
5
Microphone
MC100
1
6
Flush Mount Brackets
NFB700
1
The below figure is for the system diagram.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
7

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
8
2. BASIC OPERATION
2.1 Panel Button Description
NVR-3000 can be operated by key & knob on panel or touch-screen operation.
When operating with knob, rotate to select an item on screen and press the knob to confirm the selection.
No.
Panel Button
Function
①
Adjust the volume of main speaker and handset (Clockwise:
volume up, Anti-clockwise: volume down). Press to mute the
audio of main speaker.
Press to turn the power on or off.
②
DIM
Dimmer key for LCD brightness control.
③
PUSH TO ENTER
Press to switch the volume adjustment object between main
speaker and handset in Main screen.
Rotate to select menu items, select channel or SQL level. Push to
confirm a selection.
④
DISTRESS
Press and hold down the button 3 seconds to transmit the distress alert.
Note: The DISTRESS button is covered to prevent false alarm.
⑤
Handset socket
⑥
Main speaker
⑦
LCD
2.2 Power On/Off
Power On:
Press the PUSH TO PWR knob to turn on the power.
Power Off:
Press and hold down the PUSH TO PWR knob until
the screen goes blank, approx. three seconds.
VOLUME
PUSH TO PWR
⑦
②
③
⑥
④
⑤
①

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
9
2.3 Main Screen
No.
Indication
Meaning
1
MMSI
Own ship's ID (9 digits)
Note:Request service to set your MMSI.
2
RX Signal Level
The signal level of receiving
3
Handset Volume
The volume of handset
4
Speaker Volume
The volume of speaker
5
Connection Icon
Connection status of Transceiver. Green: OK.
6
EPFS /EPFS (OFFLINE)/
EPFS (OVER 4H)/
MANUAL/
NO INFO
[EPFS]: The position and time data from EPFS;
[EPFS (OFFLINE)]: Indicate no position data from EPFS for 15 minutes;
[EPFS (OVER 4H)]: Indicate no position data from EPFS for 4 hours;
[MANUAL]: Set the position and time manually;
[NO INFO]: No position and time data.
7
DSC MSG
Compose DSC message.
8
CH16
Switch to the Main (radiotelephone) screen and set to CH16.
Note: This function is not available for PRIV (private) channel region.
9
MENU
Open the Main Menu.
10
WX
Switch to WX (Weather) Channel.
11
MULTI
Set SCAN or DW (Dual Watching).
12
TASK
Back to the DSC task menu.
13
CH
Channel setting
14
REGION
Select channel region.
15
POWER
Power (LOW/HIGH) setting
16
SQL
Squelch (OFF/ON-SQL value) setting
2.4 Channel Watch Scan Screen
2.4.1 Dual Watch Scan
In Dual Watch, CH16 and an additional channel will be scanned for watching.
Generally, CH16 will be sampled for 0.15s while the additional channel is sampled for 1.85s.
When a signal is detected on CH16 during sampling, the scanning will stop and the receiver will stay on CH16
4
2
3
9
7
8
10
12
1
13
14
15
16
5
6
11

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
10
for receiving. As soon as the signal disappears on CH16, the scanning between two channels will restore.
If a signal is detected on the additional channel during sampling, the transceiver will continue the sampling of
0.15s on CH16 every 2s when receiving on the additional channel. Whenever a signal is detected on CH16
during sampling, the transceiver will stay on CH16 for receiving, by ignoring the signal on the additional
channel.
Procedures:
①Set the additional channel to be watched (for example CH18). Refer to Section 3.2 Channel Setting.
②Click [MULIT] - [DW]to start the scanning. The screen alternately switches between CH 16 and CH 18.
③To stop scanning, click [MULIT] - [DW]again or click any other button on the screen.
2.4.2 All Channel Scan
InAll Channel Scan, CH16 and all other channels will be scanned alternatively in a cycle of 0.15/1.8 seconds.
Click [MULIT] - [SCAN] to start the scanning of all channels cyclically, click again to stop the scanning.
Note: Transmitting is disabled during scanning.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
11
2.5 Brightness adjustment
There are two ways to adjust the brightness of screen.
①Press the DIM button on panel to adjust the brightness by ten steps, or
②Click [MENU] and adjust the brightness in the
[MAIN MENU]:[SYSTEM]-[DISPLAY]-[LCD
DIMMER]. Click [LCD DIMMER] knob by 1 ~
10 steps.
Note: When the power is turned off, the last status of
brightness is stored. Therefore, when the power is
turned on, the screen will display with the last
brightness before powered off.
2.6 Main Speaker On/Off
There are three ways to turn on/off the main speaker (except in DSC communication, alarming and key buzzing).
①Rotate the VOLUME knob anti-clockwise to mute
the main speaker;
②At any screen, shortly press the VOLUME knob
to mute the main speaker, and press again to
resume;
③While [AUDIO] - [OFF HOOK SPK] in
[SYSTEM SETTING] is set as ON, the main
speaker keeps on no matter the handset is on/off
the hook. While [OFF HOOK SPK] is set as OFF,
the main speaker will be muted if the handset is off
the hook. Refer to Section 2.8.3.3.
2.7 Auto Acknowledgement Setting
Individual, position, polling and test calls can be acknowledged automatically. This is to set on [ACK SETTING]
in the [MAIN MENU]-[DSC] menu.
Note: When own ship's communication is in high priority, set to manual acknowledgement.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
12
The auto acknowledgement is not sent in the following cases:
•There are DSC communications (for individual call).
•Channel is in use.
Note: The auto acknowledgement for the individual call is sent only when the proposed channel or
communication mode is available. “REASON”area gives the reason ofAUTO-UNABLE correspondingly.
2.8 System Setting
Click [SYSTEM] on the [MAIN MENU] screen. The following [SYSTEM SETTING] screen appears：
2.8.1 Language
The default menu language is English.
Click [LANGUAGE] to change the menu language.
2.8.2 Print
The [PRINT] menu enables/disables automatic printing of all transmitted and received calls and the results of the
self-test.
①Click [PRINT] in [SYSTEM SETTING].
②Click [TX MESSAGE] to select MANUAL or
AUTO.
③Set [RX MESSAGE] and [SELFTEST INFO]
similarly.
④You can also set the printer type and port baud
rate here.
2.8.3 Audio
Click [AUDIO] in [SYSTEM SETTING] to set the key buzzer and alarm buzzer etc.

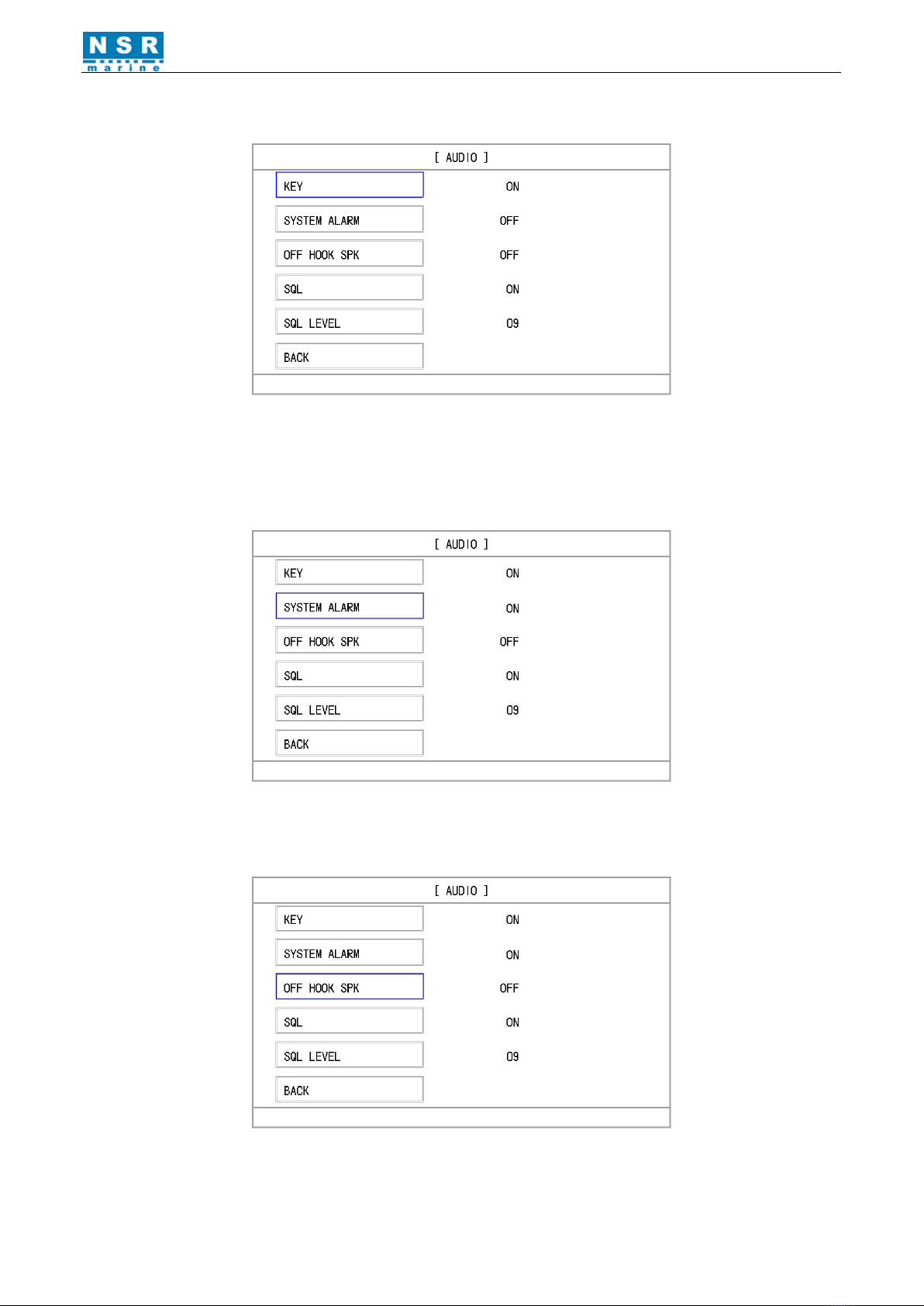

2.8.3.1 KEY BUZZER

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
13
Click [KEY] to switch the buzzer on or off.
2.8.3.2 ALARM BUZZER
Click [SYSTEM ALARM] to switch the alarm buzzer on or off.
By setting the [SYSTEM ALARM], alarm that sounds against system faults and message receiving may be
enabled or disabled.
2.8.3.3 OFF HOOK SPK
Click [OFF HOOK SPK] to switch the main speaker on or off when the handset is off-hook.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
14

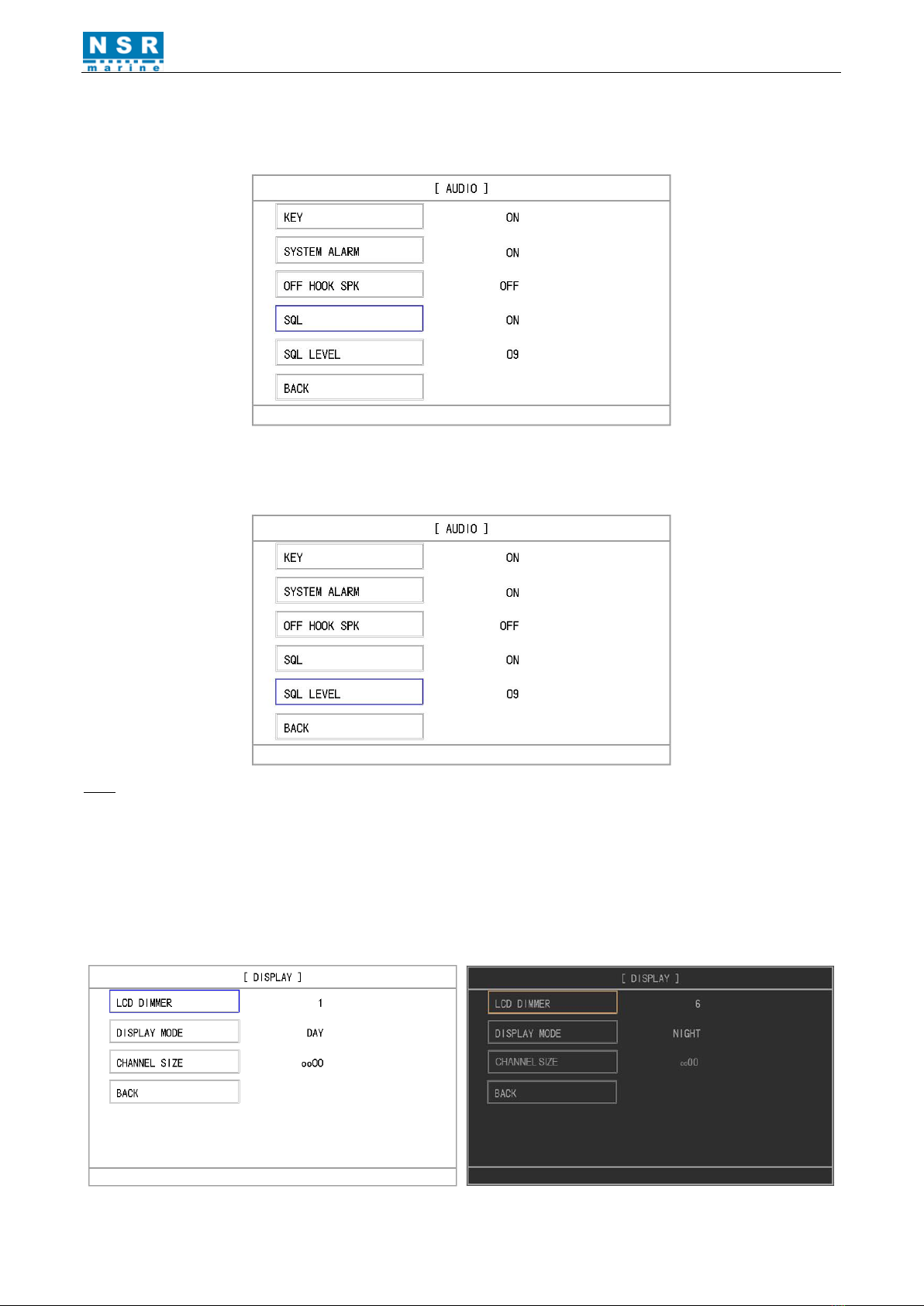

2.8.3.4 SQL
Click [SQL] to switch the SQL on or off.
2.8.3.5 SQL LEVEL
Click [SQL LEVEL] to select the threshold value between 1~10.
Note: SQL can also be set on main screen.
2.8.4 Display Setting
2.8.4.1 DISPLAY MODE
Set the display mode (DAY or NIGHT) in the [SYSTEM SETTING]-[DISPLAY]-[DISPLAY MODE] by
clicking.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
15
2.8.4.2 CHANNEL SIZE
There are two kinds of size can be selected. Click [CHANNEL SIZE] to change the size.
2.8.5 Date/Time Setting
This is to set the date and time for the system.
Click [DATE/TIME] in [SYSTEM SETTING] to open the [DATE/TIME SET] screen. There are four items can
be set: MODE, DATE-UTC, TIME-UTC and ZONE.
Date or time cannot be adjusted when they are input from GNSS navigator.
If date or time is not input from GNSS navigator, click to enter date and time with the numeric keys in
the pop-up window. For example:

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
16
Note: When manually enter date and time, use UTC (Universal Time Coordinated). Do not use local time (LMT).
If LMT is selected, it will be showed on the bottom right of Main screen.
2.8.6 Position Setting
This is to set a position used for DSC operations only when GNSS input is not available.
Do the following to set your position:
①Click [POSITION] in [SYSTEM SETTING]. The following screen appears:
②Click [SOURCR] to select [EPFS] or [MANUAL].
[EPFS]: The position data from EPFS. The system will display “EPFS LOST POSITION”if no any data.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
17
When [EPFS] is selected, position data will be input and updated from GNSS navigator connected.
[MANUAL]: Set the position data manually.
For [MANUAL], go to next step.
③For manual input, click [POS&TIME], use the numeric keys to enter latitude/longitude of your position, and
UTC time. To change coordinate, click 1for North or East; 2for South or West.
After entering each data, click OK.
Note: When the setting of POSITION input type is [MANUAL], and the message "WARNING: Position data is
not updated! " is shown, the Position data was older than 4H. Please update it.
2.8.7 Timeout Setting
This is to set the time out parameters for some operations.
Click [TIMEOUT] in [SYSTEM SETTING]. The following screen appears:

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
18
[MENU BACK]:
Back to the upper menu screen automatically.
[TELEPHONE]:
Close the inactive communications for VHF telephone.
[GENERALDSC]:
Close the inactive communications except the distress call.
[DISTRESS RX]:
Close the inactive communications for the receiving distress call.
Click to select the item and its time interval desired.
[OFF] leaves the menu screen and/or the inactive communications open until you close them manually.
2.8.8 Port Setting
This is to set the baud rate of I/O ports.
Click [PORT] in [SYSTEM SETTING]. The following screen appears. Click [INS], [GNSS] or [ALARM] until
the desired baud rate appears.
2.9 Address List
This is to build up a list of regularly used stations.
Click [ADDRESS] in the [MAIN MENU]-[DSC] menu, you can do the following operations.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
19
2.9.1 View an address
①Click to select the address in list.
②Click [VIEW] to see the details of the address.
The address can be edited in this menu.
2.9.2 Add an address
①Click [ADD] to add an address. For example, add a group MMSI.

NVR-3000 OPERATION MANUAL & INSTALLATION MANUAL
NVR-3000 OM.E 20210412-02
20
②Click [MMSI], enter the MMSI with the numeric keys in [INPUT].
③Click OK to confirm. The [TYPE] is automatically changed to GROUP if you enter the group MMSI.
④Click [NAME] to add a group name by using keys in [INPUT] and rotating the PUSH TO ENTER knob.
⑤Click OK to confirm the editing.
⑥Click [SAVE] and select YES . The address is added in the list.
