NSV NSV-R8000 User manual

1
Table of Contents
1-1. Description of parts................................ 3
1-2. Getting Started...................................... 4
1-3. Return to the previous Menu..................... 4
1-4. Screen Off........................................... 4
1-5. Volume control..................................... 5
2-1. Display............................................... 7
2-2. Speaker.............................................. 8
2-3. Information......................................... 8
3-1. Photo Mode Window Components............ 9
3-2. Photo Mode Basic Actions...................... 9
3-3. Slide show..........................................
10
1-6. Wireless headphone operation................... 5
1-7. Choosing the File from the File List........... 6
Part 1. Basic Operations
Part 2. Setup
Part 3. Photo
4-1. Music Mode Window Components........... 11
4-2. Music Mode Basic Actions..................... 12
Part 4. Music
5-1. Movie Mode Window Components...........13
5-2. Movie Mode Basic Actions.....................14
Part 5. Movie
Part 6. HDMI...........................................
15
Part 6. HDMI
Part 9. Optional AUX mode......................... 22
Part 9. Optional AUX mode
Part 10. Manual mode............................... 22
Part 10. Manual mode
Specifications........................................ 23
Specifications
7-1. Dual Link Connection..........................16
7-2. Dual Link Disconnection.......................19
Part 7. Dual Link
Part 8. Dual Screen Mode
3
 Main Controller Screen.................................
3
 Display Only Screen....................................
4
 Top Menu Screen.......................................
16
 How to connect Android phone......................
17
 How to connect iOS phone...........................
20
 Dual Screen (Main-Support)........................
20
 Dual Screen (Video)..................................
21
 Dual Screen (Music)..................................
21
 Dual Screen (Photo)..................................

2
Precautions
Please do not insert a separate USB device which supplies power to the multimedia
USB port.
Warning
 The product is subject to change without notice
The Screens Shown in the examples may differ from actual screens, which may be changed
without notice for performance and function improvement.
 Monitor Protection
To protect the monitor from damage, do not operate the monitor using a ball point pen
or similar tool with the sharp tip.
 Cleaning
When cleaning the touch screen, turn off the unit and use the soft cleaning cloth.
Please do not use cloths such as those made with hard, chemical, or oiled materials
(alcohol, benzene, etc.) This may damage or distort the surface of the unit.
 Do not disassemble or repair the system. If problem exists, please contact your local dealer
for advice.
 If the vehicle was parked in a very cold or very hot place, you may see a blank screen,
distorted picture.
The system will return to normal after the unit temperature returns to a normal operating
range. This may take more than an hour depending on the temperature.

3
1-1. Description of parts
Part 1. Basic Operations
Main Controller Screen
Display Only Screen
SD SLOT
3.5Ø Audio
output
USB
HDMI
Brightness
Power
Home
Power
Basic Control Buttons
1) Power
Press to turn on power of the unit
Press and Hold the Power button to switch to off mode.
2) Home
 Press to display the Top Menu Screen.
3) Reset
Press Power and Home Button together.
1) Power
Press to turn on power of the unit
Press to decrease LCD Brightness (LCD Brightness - button)
Basic Control Buttons
2) Brightness
Press to increase LCD Brightness (LCD Brightness + button)
3) Reset
Press Power and Brightness Button together.
4) Brightness
Press home button for 3 seconds (long key), LED will change from Green to Red,
and you can adjust brightness levels.
Press the Power Button to decrease the brightness, and the Home button to increase
the brightness.
If you don’t press home button within 5 sec, the LED will change back to Green
and the button control returns to normal.
3.5Ø Audio
output

4
1-2. Getting Started
1-3. Return to the previous Menu
1-4. Screen Off
Part 1. Basic Operations
Top Menu Screen
Press Button at the upper Left-hand corner of Screen to move to the previous Menu.
System Start
1. To start the system, the vehicle ignition key switch must be in the ACC or engine ON position
2. Press “Power” button to turn on power of the unit.
3. After Logo image display, Main Menu will appear on Main Controller Screen.
1) The Main Controller Screen can send the same screen to the Display Only Screen, but the
Display Only Screen cannot pass the same display to the Main Controller Screen.
3) For more details, please refer ”Part 8. Dual Screen Mode” from the manual.
2) The picture of the Main Controller Screen will be displayed on the Display Only Screen while
the main control screen is playing a Movie, Music or photos.
In certain menu operations, the Display Only screen will intentionally be blank.
Press the button at the upper right-hand corner of the screen to turn the screen off.
The audio of AV keeps playing while the screen is turned off.
Touch the screen to turn the screen on again.

5
Part 1. Basic Operations
1-5. Volume control
1-6. Wireless headphone operation
※Notice
1.Press the SETUP button on the Main menu
screen.
2. Control the Main Volume by pressing -,+
button.
Power
LED
Headphone A/B
Power
ON/OFF
VOLUME
IR Receiver
Left Right
For best audio performance, the headphones must be worn correctly,
with the headband over the top of the head.
The right way to wear a headphone.

6
Part 1. Basic Operations
1-7. Choosing the File from the File List
Headphone ON/OFF
To turn the headphones on, toggle the ON/OFF switch to the on position.
To turn the headphones off, toggle the ON/OFF switch to the off position.
If no signal has been received within 3 minutes, POWER will automatically turn off for battery
saving.
To turn the headphones on again, cycle the power switch to the Off then On position again.
Headphone A/B
Main Controller Screen: A channel, Display Only Screen: B channel
LED
LED will be illuminated when the headphone is ON.
Headphone volume
Turn the volume dial to adjust volume to desired level.
Move to the file list
Touch the screen and drag upwards or downwards to scroll through a file list.
Move to a folder in the file list
Touch a folder from the file list.
Return to Previous Folder icon to move to
the upper level folder.

7
Part 2. Setup
2-1. Display
Press the SETUP button on the Main menu screen.
Language
Press English or Arabic to change the main menu language.
Brightness
Set the Brightness of the screen to your desired level.
 Press button to restore system settings to factory default.
Info

8
Part 2. Setup
2-2. Speaker
2-3. Information
Radio Transmitter
Press On/Off button to turn Radio Transmitter On/Off.
Radio Frequency
Press the , button to select the desired Radio Frequency.
(88.0~90.7MHz, 0.3MHz step)
Press the Information button on the Setup mode screen.
This will display version numbers of the Firmware and applications.
Press the Back Button to move back to the previous mode.
 For best results, select a station with minimal background noise or existing broadcasts in your
area. The best method to do this is to first turn the FM Transmitter feature OFF, and then check
the following stations one by one to look for the one with least interference or existing
broadcasts - 88.0, 88.3, 88.6, 88.9, 89.2, 89.5, 89.8, 90.1, 90.4, 90.7. Ideally you should find a
station with a clean "white noise".
Set this as one of your presets on the car's stereo, then turn ON the transmitter and adjust the
frequency on the Rear Seat Entertainment to match this number.
Info

9
Part 3. Photo
1
3
2
5
3-1. Photo Mode Window Components
Press the Photo button on the Main menu screen.
Previous button: Select previous photo.
Next button: Select next photo.
Slide show button: Sets the slide show.
Photo Title Display: Displays the title of the photo.
File List Button: Enters the media file list.
1. Press the File List Button. 2. Choose the storage device (SD/USB) that
contains the files you require.
3. Choose a photo file from the file list.
3-2. Photo Mode Basic Actions
1
2
3
4
5
4

10
Part 3. Photo
1. Press the slide show button.
3. Touch screen to stop the slide show.
2. Setup the show time.
The next photo will be automatically
displayed after the set time is reached.
3-3. Slide show
4. Selected photo file will be displayed. 5. Each time you touch the screen, the screen
will move back and forth between full screen
and previous menu screen.

11
Part 4. Music
4-1. Music Mode Window Components
Press the Music button on the Main menu screen.
Repeat Button : Turns the Repeat function ON / OFF.
Shuffle button: Turns the Shuffle function ON / OFF.
Album art: Displays the album image of the current file that is playing.
Play Time: Displays the play time of the current file.
Total Time: Displays the total play time of the file.
Previous Button: Select previous track.
Play/Pause Button: Play or pauses the file.
Next Button: Select next track.
File List Button: Enters the media file list.
1
3
6
4 57 8
2
9
1
2
3
4
5
6
7
8
9

12
Part 4. Music
1. Press the File List Button. 2. Choose the storage device (SD/USB) that
contains the files you require.
3. Choose a music file from the playlist.
4. The selected music file will be displayed.
4-2. Music Mode Basic Actions
5. Press the album art icon to switch screen to
Music info display.
Press the Music info display to move to the
previous mode.

13
Part 5. Movie

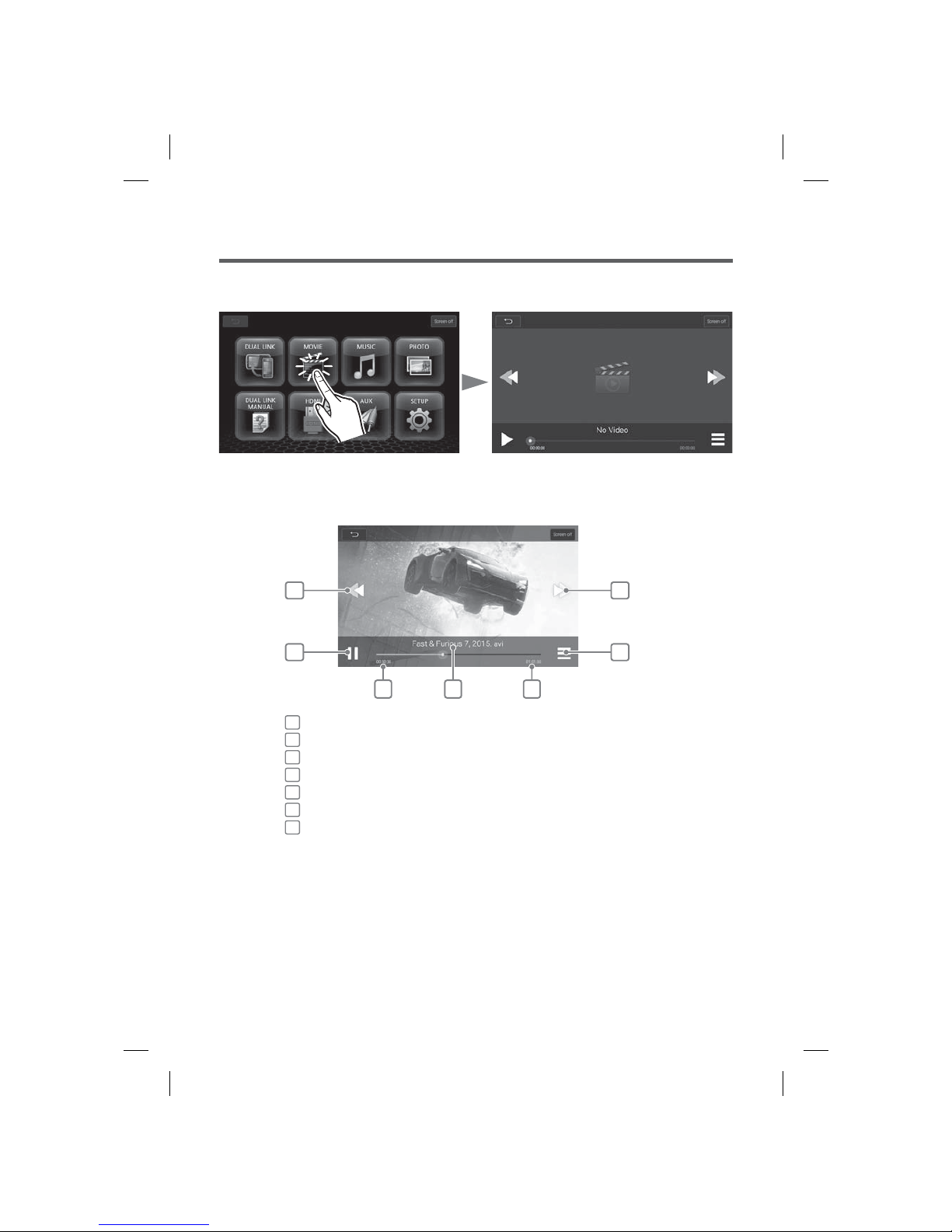

5-1. Movie Mode Window Components
Press the Movie button on the Main menu screen.
Previous Button: Select previous video file.
Next Button: Select next video file.
Play/Pause Button: Play or pauses your video.
Play Time: This displays the play time of the video.
Total Time: This displays the total play time of the video.
Title: Displays the title information of the current file.
File List Button: Enters the media file list.
1
3
4 56
2
7
1
2
3
4
5
6
7

14
Part 5. Movie

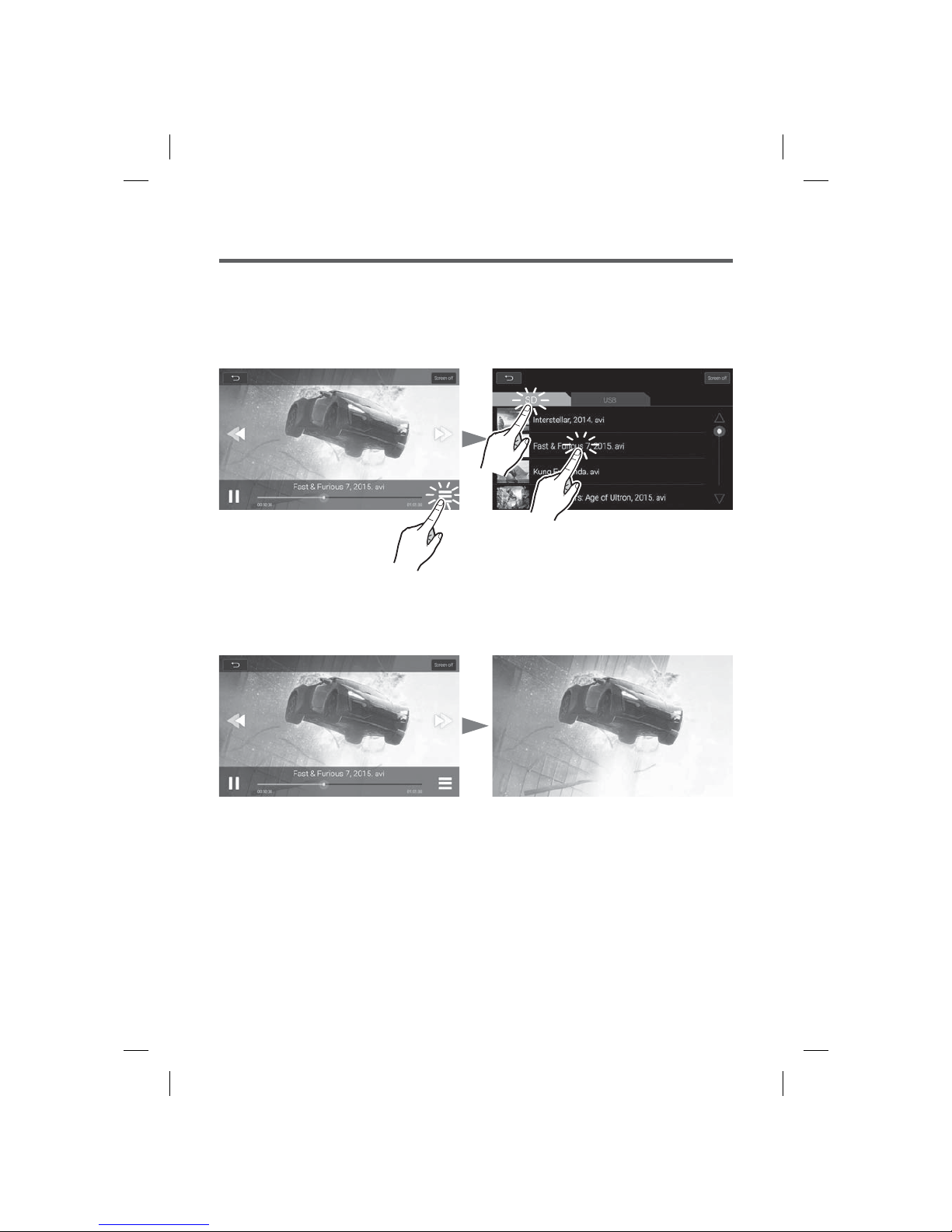

5-2. Movie Mode Basic Actions
1. Press the File List Button. 2. Choose the storage device (SD/USB) that
contains the files you require.
3. Choose a video file from the file list.
4. Selected movie file will be displayed. 5. Each time you touch the screen, the screen
will move back and forth between full screen
and previous menu.

15
Part 6. HDMI
Connect the AV equipment and the Rear seat entertainment with HDMI cable.
1. Press the HDMI button on the Main menu
screen.
2. Video and Audio Output from connected AV
device will be played by RSE.

16
7-1. Dual Link Connection
How to connect Android phone
Part 7. Dual Link
Dual Link is a feature that allows you to enjoy music stored on mobile devices, your videos or
pictures through Rear seat entertainment system.
1) Mirroring Function with Android Phones OS software version has to be minimum 4.2 onwards.
2) iPhone Mirroring/AirPlay OS will function from iOS 7.1 onwards.
3) Operation will vary depending on the Android device and SW version of the Android OS.
4) Compatibility with all Android devices is not guaranteed.
1. Press the Dual link button on the Main
menu screen.
3. The device name and the operating system
will appear on the screen.
2. Press the Android Button.
4. Press the (Screen mirroring, Miracast) button
from your smartphone when the search is
completed, select the "RSE".
 Some Android phones might support Mirroring function from 4.1.2 Version.
Please check with the manufacturer.
Info

17
Part 7. Dual Link
4. Turn on the "Hotspot" of your device.
Enter the wifi Password "12345678".
3. Press HDMI or continue button to
proceed to next function.
2. Press the iOS Button.
5. Click the "Accept" button when search is completed.
1. Press the Dual link button on the Main
menu screen.
How to connect iOS phone
12345678

18
5. Searching connectible Device.
A. Press Scan button.
B. Select your device from the list.
C. Press Start button.
Part 7. Dual Link
6. The device name and the operating system
will appear on the screen.
7. Press the "AirPlay" button on the iPhone. 8. Select RSE in AirPlay mode.
Mirroring set to "ON"
A
B
C
When connected with AirPlay on and mirroring function off, IOS is able to play videos on the RSE
and will still allow you to use your phone's other functions on the iPhone itself.
Info

19
7-2. Dual Link Disconnection
Part 7. Dual Link
1. Turn off (Screen mirroring, Miracast, Airplay) from your smartphone to disconnect dual link mode.
2. Press power button to disconnect Dual Link mode.

20
 Users can enjoy the same files on both rear seat monitors.
The rear seat entertainment system is divided into the Main Controller Screen and Display Only
Screen.
The Main Controller Screen can send the same screen to the Display Only Screen, but the Display
Only Screen cannot pass the same display to the Main Controller Screen.
Dual screen mode info
Dual Screen (Main-Support) Dual Screen (Video)
Part 8. Dual Screen Mode
1. Press the Power button on the Display Only
Screen to start dual screen mode.
2. Media will only appear on the Display Only
Screen when a Movie, Music or Photo file is
played from the main controller screen.
Main menu on main controller screen does
not appear on Display only screen.
Video list does not appear on Display only screen.
Main controller screen sends video image
only when the video is playing.
