Ntec MATMASSIG IKGC-S313S User manual

Gas Range
Human-centered Kitchenware Maker(MATMÄSSIG IKGC-S313S)
User’s Manual

1. What is service? 2
2. Safety Precautions
A. Warning
- Check earth 3
- No children’s access and operation 3
- Prevention of Gas Accidents 4
- Fire Precautions 5
- Others 6
B. Caution
- How to use [anti-superheating burner] 9
3. Parts’ Name 13
4. How to Assemble Top Burner 14
5. How to Use 15
6. Installation Place 16
7. Installation and gas hose connection 17
8. Cleaning and inspection 18
9. Checklist before reporting troubles 19
10. Specifications 21
11. Warranty Card 22
Table of Contents

02
Warning
Warning
Safety Precautions
Serious injuries or death unless it is kept.
This symbol means that a user should carefully handle the situation
and read the directions.
•Please read the manual carefully to avoid unexpected accidents and the resultant
damages and to use safely and correctly.
•The safety cautions are classified as follows, depending on the risk and damage
unless they are kept.
◆ Check earth
◆ No children’s access and operation
※ It may cause a fire or burn.
•Do not insert many plugs into
an outlet at once.
•Do not attempt to use match
or lighter for ignition.
• Never try to insert or pull out
plug with wet hands.
※ It may cause an electric
shock or a fire.
• Check whether power cable
or cord is rusty or damaged.
•
The product is suitable for
DC 3V or 220V. Please check
your voltage before connection.
Caution
Injuries or damages on product unless it is kept.
• Make sure that a child should not
access or operate the product.

Warning
Safety Precautions
◆ Prevention of Gas Accidents
• Check any gas leakage from
connections such as hose connection
and middle valve with soapy water.
• Do not let gas hose touch with
exhaust or other heating sources.
• Available gas type is indicated on
the bottom plate of the gas range.
• Gas hose should be prevented from
bending or being pressed.
• It should be installed in a
well-ventilated place.
• Make sure to use a ventilator or open
windows for ventilation.
• Please check extinguishment
after use.
• Remember to close the gas valve
before going out or sleeping.

Warning
◆ Fire Precautions
04
Anti-superheating
senor

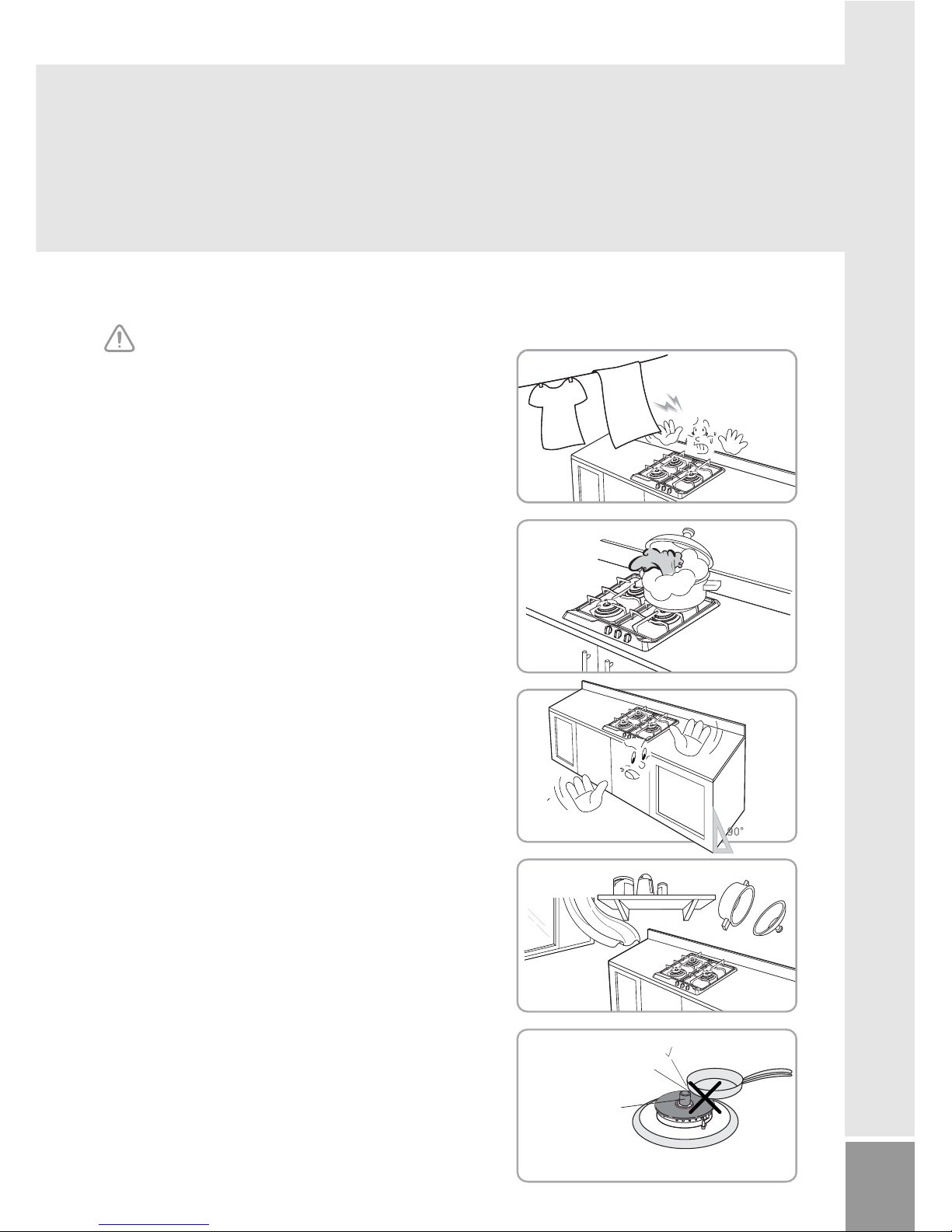

•Do not use the product for drying
clothes or heating except for cooking.
•Do not make clothes or apron close
to heating source.
•Do not use cookware larger than
necessary
•Do not leave while cooking.
•Do not use a container not standing
the heat or bad auxiliary tools.
•Do not leave flammable materials
close to the product.
•Install the product on the even
and firm floor.
•If any bad ignition is detected,
do not try it repetitively and instead,
call the service center.
•Do not install the product close to
combustible articles such as curtain.
•Do not apply impact on the
anti-superheating senor. Impacting
it may cause safety function
malfunction(it may cause a trouble).
- Unnecessarily larger cookware may cause
deformation or malfunction.

Safety Precautions
Warning
◆ Others
Anti-superheating
senor

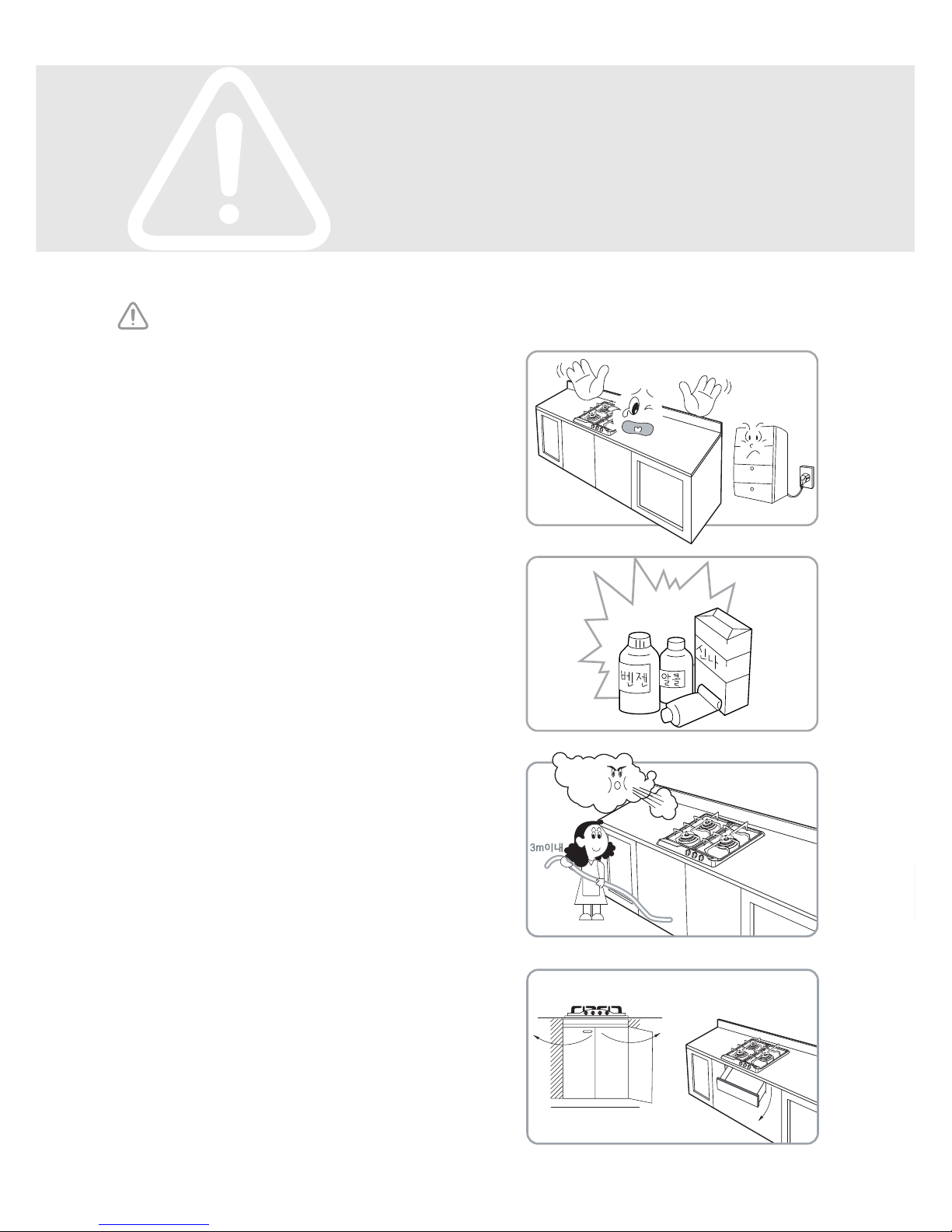

•Locate a grate(trivet) on the center
while cooking.
•Do not try to insert chopsticks, pin or
fingers into a vent.
•Do not use it in a place with
flammable gas.
•Never try to disassemble or alter
the product.
•Using other parts may cause incomplete
combustion or a fire, so make sure to
use genuine parts only.
•Check the gas in case of moving out
and do not change gas type without
permission.
•Do not use the product without any
vessel or with empty vessel.
•Place burner cap, grate(trivet) and other
accessories on the right locations
before use or after cleaning.
•Always clean up the anti-superheating
sensor. Any water drop or soup stained
on the sensor may stop the safety
function and make sure to clean it up as
it may extinguish during use. Remove
any water on the bottom of a vessel.
Abnormal combustion or malfunction
may cause injuries.

06

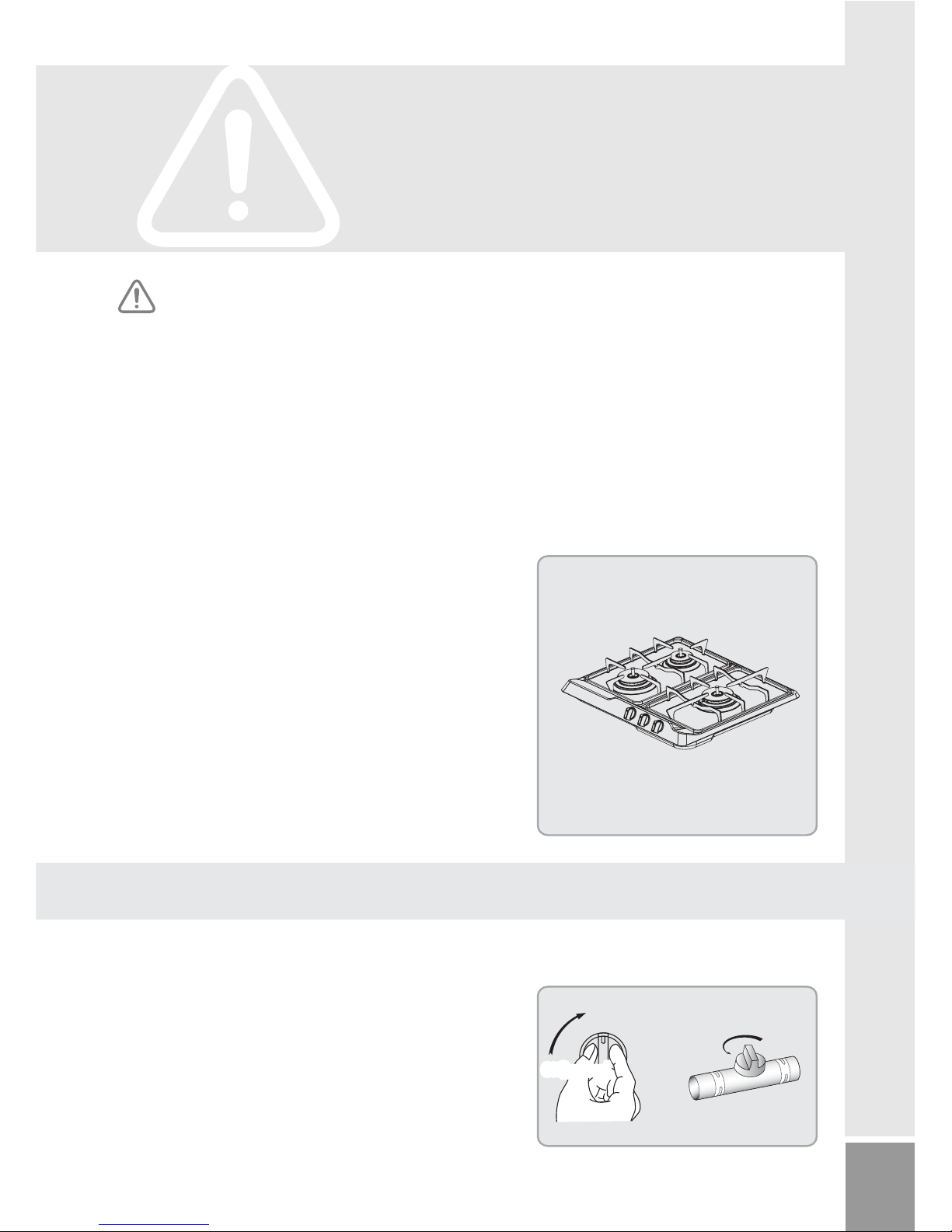

Safety Precautions
Warning
◆ Measures while gas is leaking

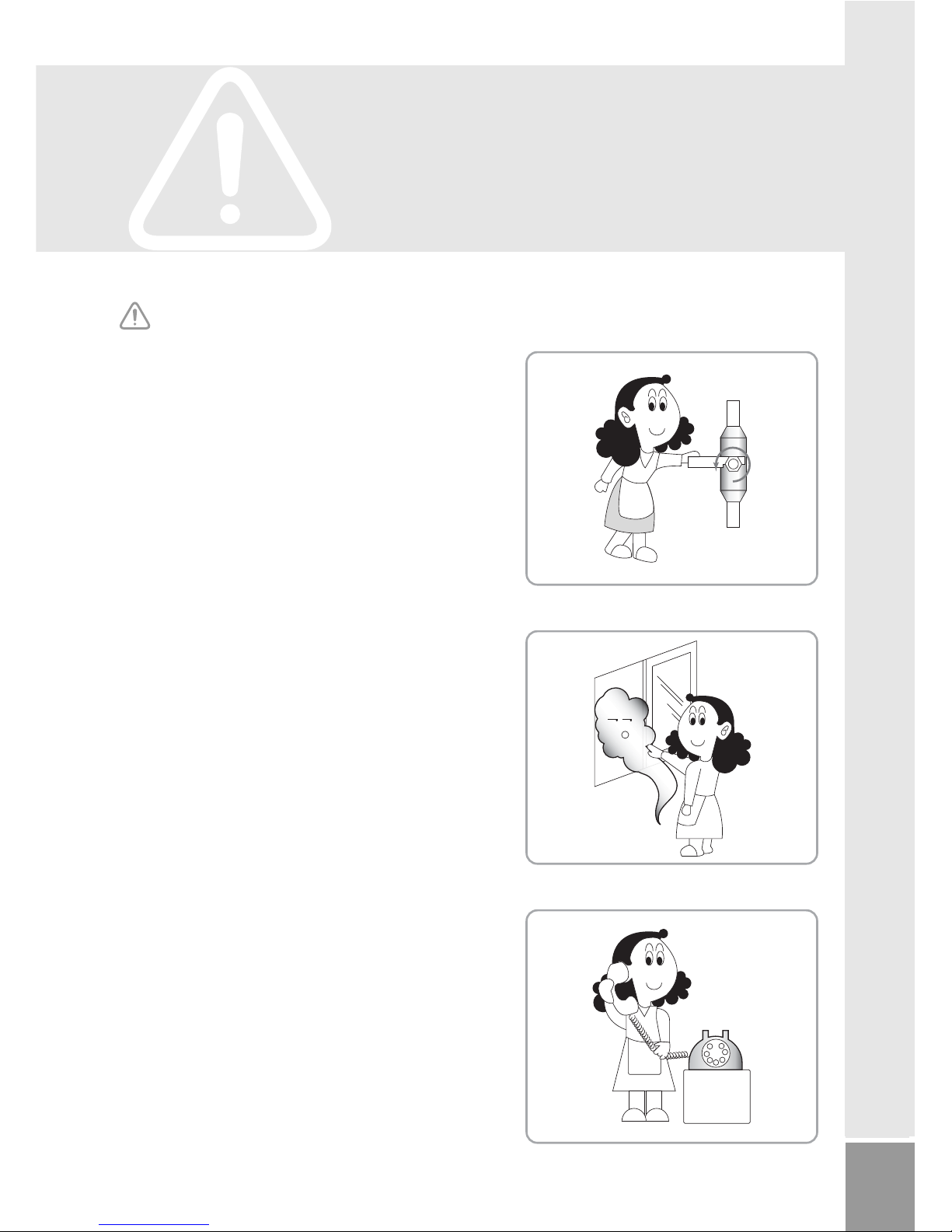

• Shut off the middle valve,
• Open the windows for ventilation,
• Contact an officially certified gas
company.
※ Never handle any switches
(fluorescent lamp, TV and ventilator).
Operating them may cause sparks,
probably exploding.

Safety Precautions
Warning
•Maintain a distance from the product
to electricity and home appliances.
- It may cause noise.
•Do not use thinner, benzene or wax
for cleaning.
- It may cause discoloration, peeling and
other damages on the appearance.
• If suddenly closing or opening doors or
drawers of a sink, it may change air
stream, starting safety devices and
extinguishing.
- It does not mean a trouble. Please try
it again.
•Do not let food burning.
•Do not install the product at a
windy place.
•Do not use the product with auxiliary
tools(net) on it.
•Locate the gas hose as short as
possible(shorter than 3m).

08
How to use [anti-superheating burner]
Caution
◆ Features of anti-superheating burner
◆ Automatic extinguishing safety device
•This new burner adding a temperature sensor detecting the temperature of pot, which is
the most efficient safety device, can measure the temperature of the bottom of pot during
cooking, reinforcing the existing safety function preventing superheating.
•Except for automatic fire-extinguishing device as well known, the burner is also equipped with
anti-superheating function and fire accident preventive function, assuring your safe cooking.
Especially, a home with kids or the elderly may use it safely and conveniently.
•Overflowing soup during cooking or extinguished
burner by wind may automatically stop gas supply,
preventing any leakage.
◆ Pot fire prevention
◆ Take the measures as follows if the anti-superheating function starts.
•Have you ever forgot turning it off while you were
heating soup? The anti-superheating burner may
automatically detect overheat before a fire, shutting
off gas.
◆ Oil superheating prevention
•The anti-superheating burner measures the
temperature of a pot during cooking and shut off the
gas before reaching the risky temperature. Especially,
during frying, which is more dangerous cooking, it may
shut off the gas before spontaneous combustion,
preventing a fire.

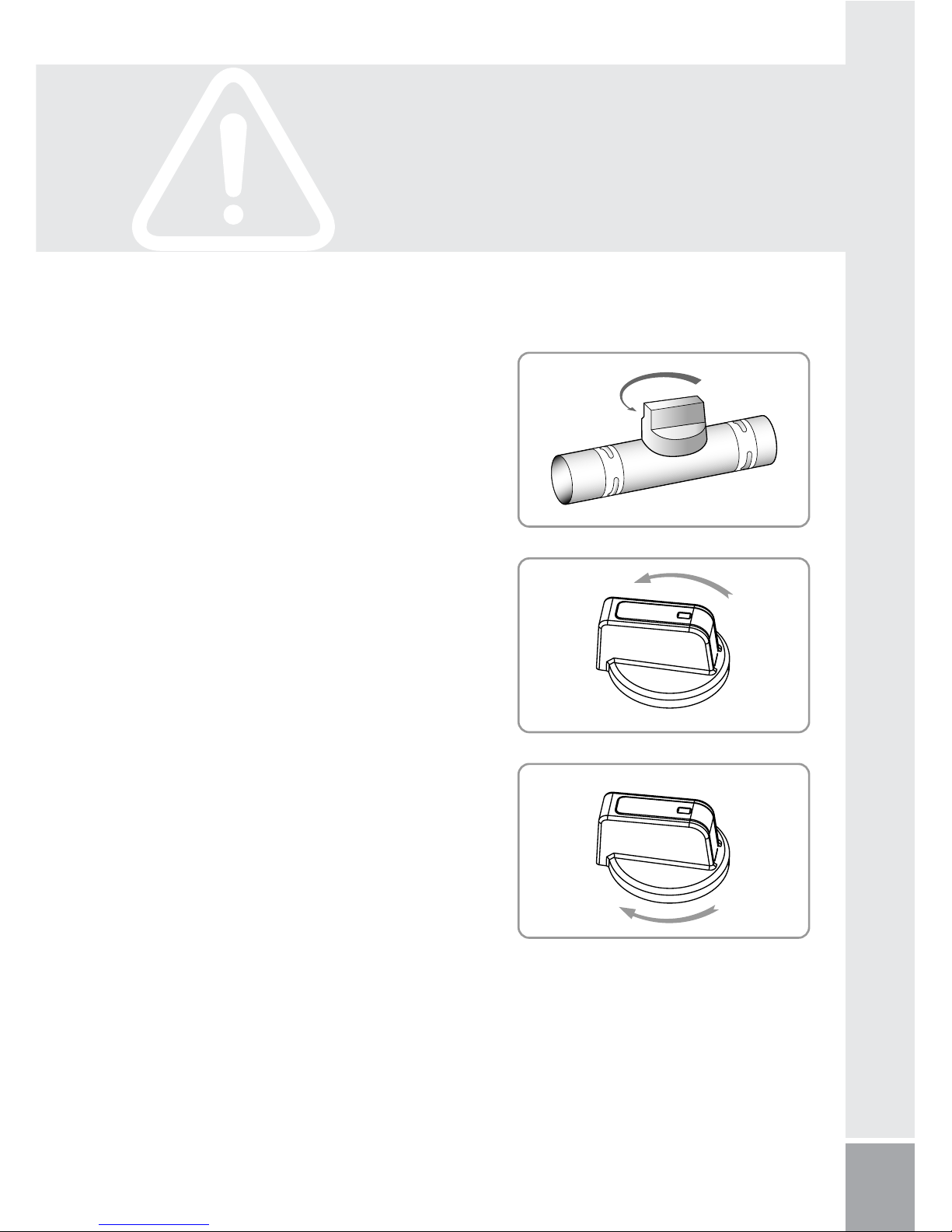

① First, turn the knob to “OFF(extinction)” and
shut off the middle valve.
② As a pot may be overheated, carefully lift a pot.
② After cooling down a burner and surroundings
(especially, anti-superheating sensor), you can
use it again(the residual heat may interrupt
ignition.
OFF[extinction]
middle valve closed
※The anti-superheating burner does not cook automatically. Also, it does not prevent food burning. Anyone can
make a cooking mistake and it prevents a fire accident.
ON[ignition]ON[ignition]

How to use [anti-superheating burner]
Caution

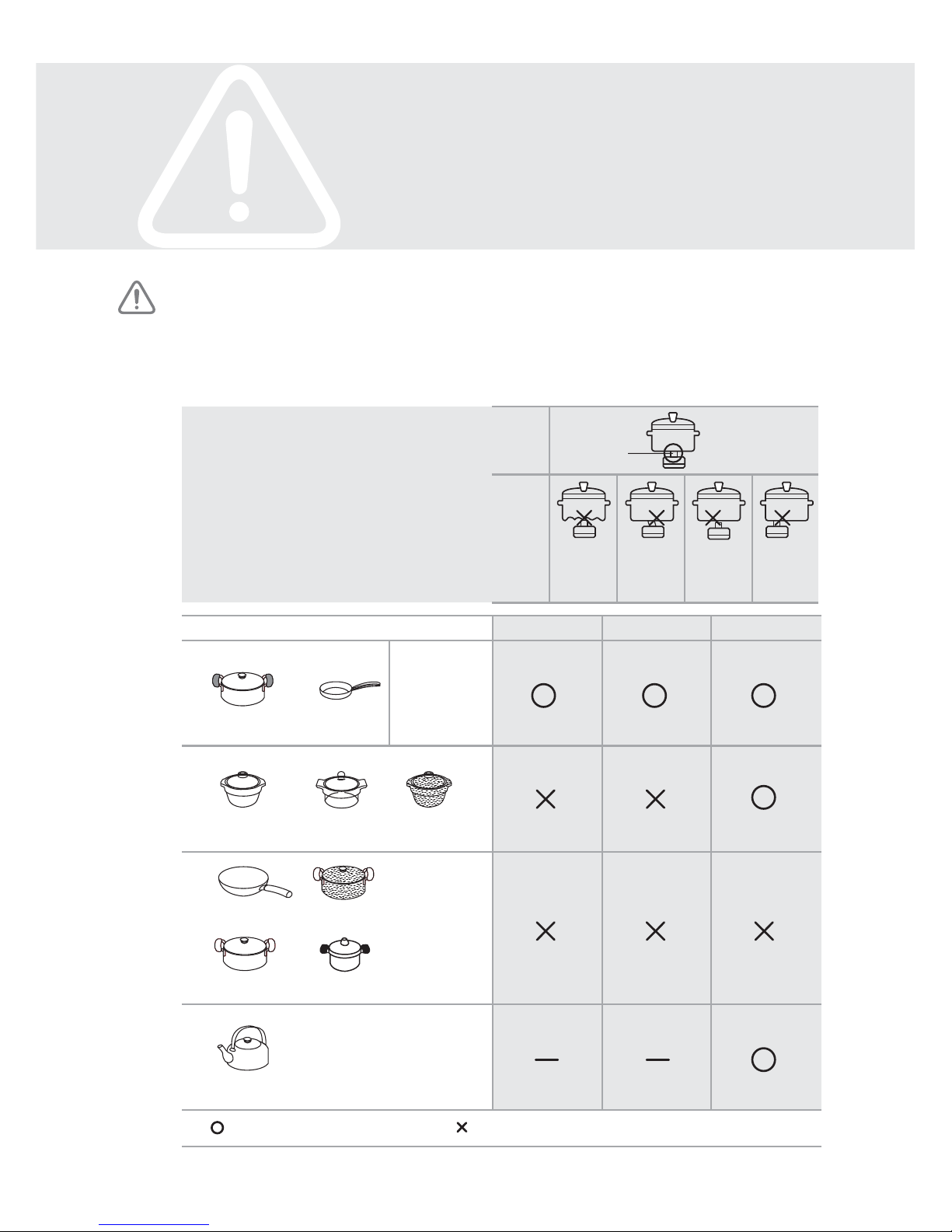

◆ How to use cookware
• Regarding the safety function of the anti-superheating burner, the relation between
anti-superheating sensor and cookware is very important. The top of anti-superheating sensor
and the bottom of cookware should be stuck together.
•Oil volume for frying should
be 300cc at least.
•The center of cookware should be
aligned to the center of the
anti-superheating sensor.
•The bottom of cookware should be flat.
•Insufficient volume of cooking oil may
cause a fire.
Anti-superheating
sensor
the bottom of cookware
stuck on the center.
Appropriate
Pot frying pan
Earthenware heat-resisting
container
direct fired pot
Kettle
iron pot
Round pot
(Chinese food)
stone pot
uneven pot
Enamel,
copper,
iron,
nickel-silver,
aluminum,
stainless steel
Type of cookware Frying Stir-frying Others
: proper cookware : improper cookware for anti-superheating device
Sensor
may
not work
properly If cookware
is prominent
If
anti-superheating
sensor
is inclined
If cookware
is not stuck
on the sensor
If cookware
is not
placed on the
center of the
sensor

10
◆ Precautions of using anti-superheating burner
■ Cooking
•It may be extinguished if cooking while moving with cookware.
•When re-heating curry or stew, put some water and cook with it set to “Low”.
■ Anti-superheating burner is intended for safe cooking.
•The anti-superheating burner can shut off any gas leakage by the anti-superheating sensor and
prevent a fire but it does not automatically cook. The product is a more convenient and
safe burner.
■ If automatically extinguished while cooking
• The reason of automatic extinguishment during cooing
is due to safety function operated and improper cookware.
•In addition, if the sensor is cooled down suddenly in a time,
it may recognize abnormal sensor, automatically
extinguishing it.
■ Do not alter the anti-superheating sensor without
permission
•It may cause a fire from overheat.
■ Do not apply excessive impact on the sensor.
•The sensor may not work properly due to deformation and inclination.
■ Check whether it moves up and down properly during cleaning.
•If not, a pot may be inclined, boiling over and getting burned.
•Repair or inspect it if it does not work normally.
•Often check whether it combusts during use.
•Boiling or heating thick soup such as curry and meat source or bean paste soup may cause
bumping suddenly.
◆ Safety Cautions of anti-superheating burner

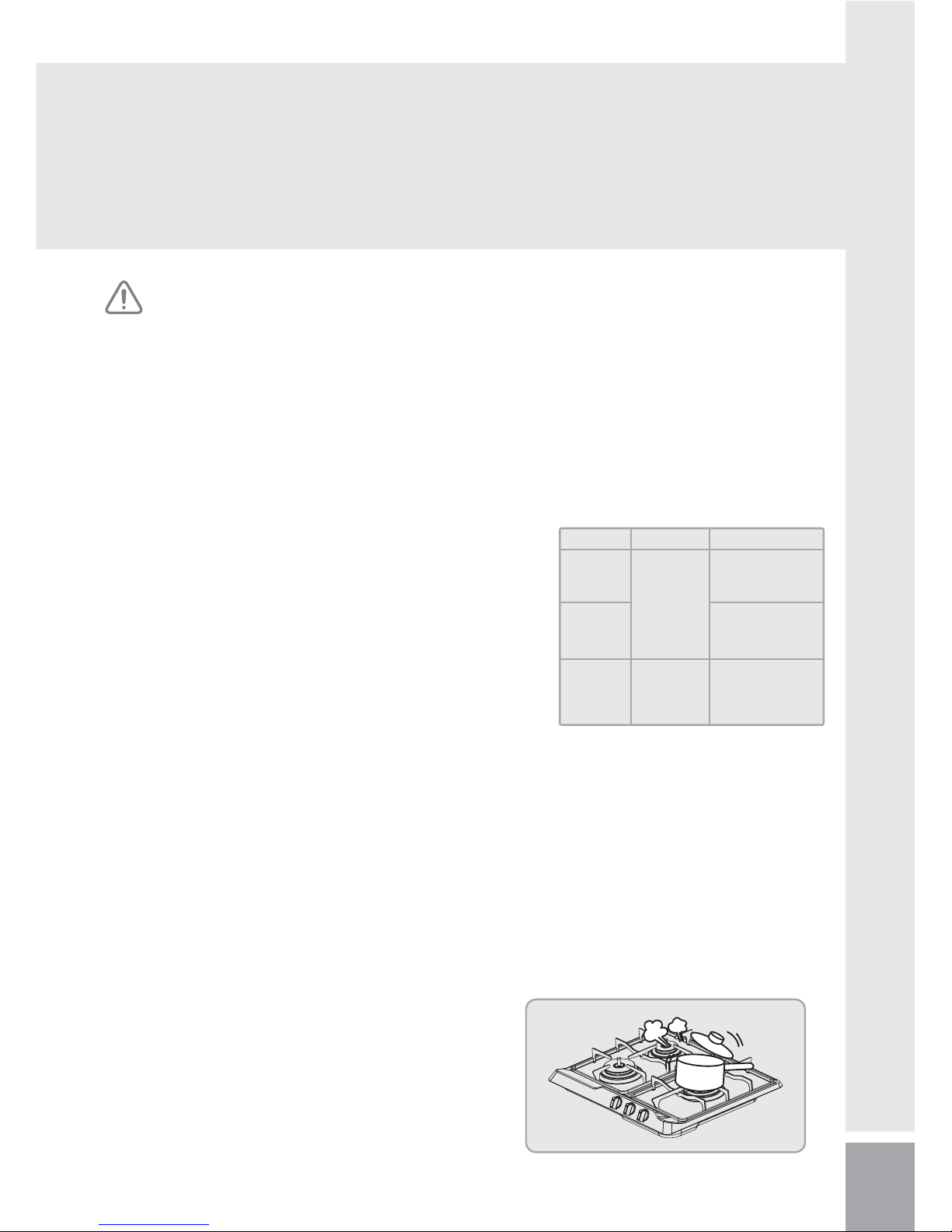

Bumping means the symptom that liquid is heated over a
specific temperature and boils over. When heating water,
milk, soya milk, liquor, soybean paste soup, coffee and
other liquid, it may happen due to minor reason
(shaking or adding salt or sugar). If it occurs actually while
cooking, it boils over, resulting in burn or injuries.
◆ About bumping
Measures
If
extinguished
while
cooking Turn the
knob to be
placed on
OFF(ignition)
After checking the
cooking state, ignite it
again if keeping cooking
Since the cookware and
oil are very hot, ignite it
again after cooling down.
Defrost and cook.
If
extinguished
while frying
If
extinguished
while cooking
frozen food
Same
as above
If keeping cooking
Caution

◆ How to avoid bumping
◆ Read it carefully to operate the anti-superheating sensor
■ Do not use it unless the top of the sensor is not stuck on the bottom of a pot.
• When heating thick soup such as curry and meat source or bean paste soup, use low fire while
stirring(do not use high fire).
To add seasonings such as salt or sugar to hot soup, wait for a while until it is cooled down slightly.
Heat it with a fire suitable for a pot.
• As the sensor may not detect the temperature correctly, it may cause a fire from overheat,
extinguishment or damage of cookware.
• Using a grate(trivet) for Chinese food may cause the sensor not stuck on the bottom of a pot.
◆ Precautions of Frying
■ Do not try to fry frozen food as the food is stuck on the center of a pot.
• If frying as frozen food is located on the center of a pot, the sensor may not detect the temperature,
probably resulting in a fire.
■ Do not use cooking oil several time for frying.
• Brown oil by several uses, murky oil or oil with residue of frying may cause easy ignition.
■ Do not fry food excessively
• Especially be careful when frying food like croquette with batter and more moisture.
■ Pour oil until frying food to be dipped into oil enough(300cc and more)
• Insufficient or reduced volume of cooking oil may be dangerous. Especially, frying with wide and
thin pot may cause ignition as the food is not dipped enough.

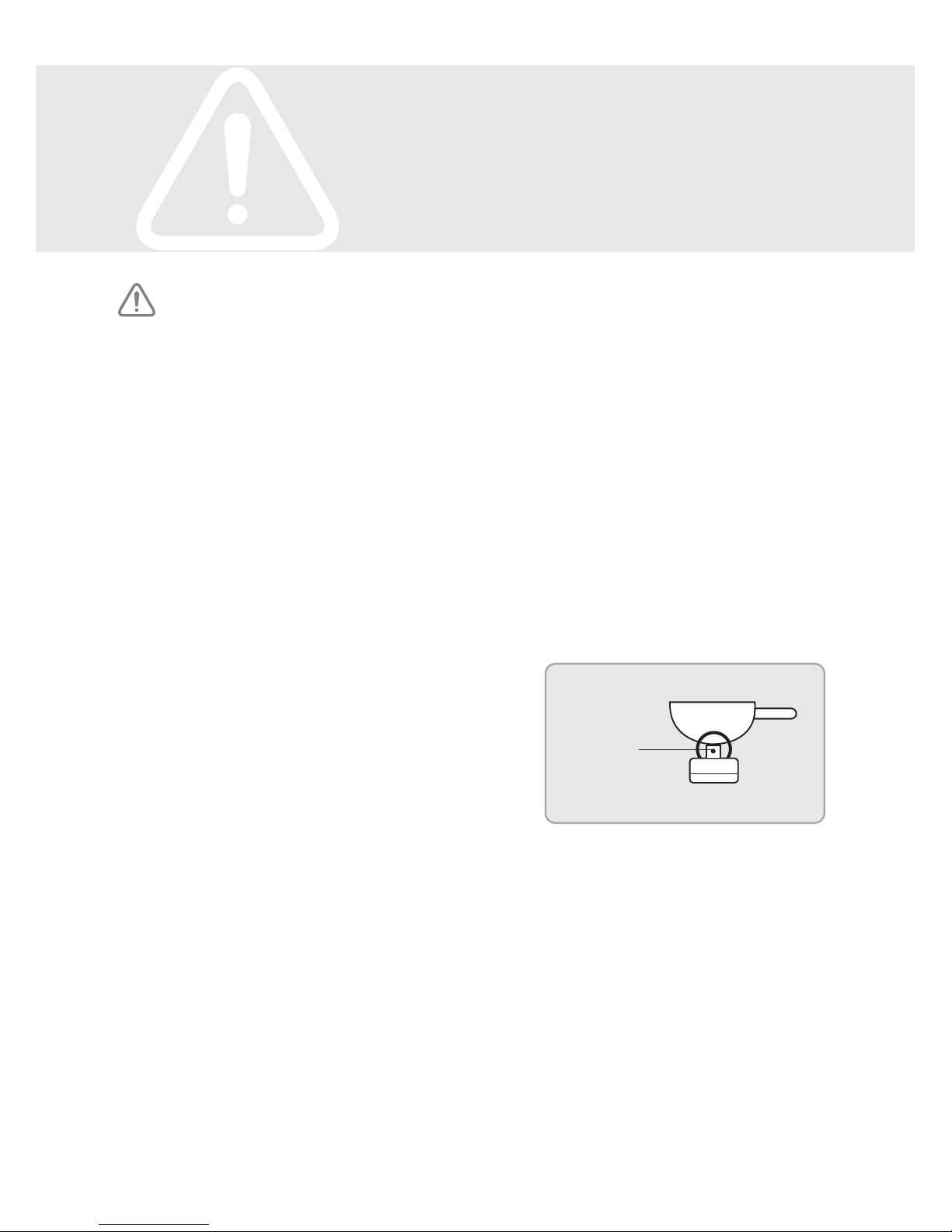

◆ Precautions of using round bottom pot
with one handle
■ Make sure to cook with handle held
■ Check whether the bottom of a pot is stuck
onto the sensor.
• The anti-superheating sensor may not work unless
a pot is stable, depending on a type.
■ Do not try frying cook in a pot of heat-resisting glass or earthenware, or deep and wide pot.
How to use [anti-superheating burner]
Caution
Anti-superheating
senor

12
① Trivet(grate) ② Top ③ Large burner(Llt.) ④ Large burner(Rt.)
⑤ Middle burner ⑥ Large burner knob(Lt.) ⑦ Middle burner knob ⑧ Large burner(Rt.)
⑨ Related only to power cord(220V) A.C.
Parts’ Name
※Accessories
User’s manual Installation description Batteries
D.C. 1.5V(R20) battery x 2
※ Batteries can be bought from shops.
①⑤
③
④
⑨
⑧
⑦
⑥
※ Anti-superheating sensor
Prevention of superheating oil and pot
②

How to exchange batteries
※ Completely pull out the lower drawer of a sink or open the lower door o exchange
batteries(only for D.C. product). If the lower is blocked, lift up the cook top and
exchange the batteries in the center of the product(make sure to wear gloves
as you may be hurt while lifting it up).
Battery exchange here
Caution

14
How to use
◆ Before use
◆ Turning it on
◆ Turning it off
◆ Safety device operating
•Check whether the middle valve is shut off
and whether the knob is turned to
OFF(extinguishment)
•Turn the knob on.
•Turn the knob to the direction.
•Make sure to cut the middle valve off.
•When it is extinguished by wind or as soup boils over, it may take a time and
generate leakage gas. Therefore, make sure to extinguish it and ventilate enough
to ignite it again.
•Note that if the heat detection part of automatic gas shutdown device is stained
with impurities or the gap is changed, the automatic shutdown time may be
delayed.
•Regulate the fire level.
•Checking ignition, stay it for 2 or 4
seconds with the knob held.
•Release the main gas valve and the
middle valve.
•Place cookware onto the product.

Installation Place
◆ Installation precautions
◆ Installation
•Do not install the product under shelves
dropping articles or close to inflammable
articles such as curtain or furniture
•Make sure to avoid any inflow of
inflammable materials into the bottom.
•Install it at a well-ventilating place.
•Install it at a place with low humidity
for longer use.
•Install the product about 20cm away
from wall if it is inflammable.
•The product should be away from ceiling
or any combustible articles such as shelves.
•Power cord and gas hose should be
connected to the rear bottom of the
product.
•It should be firmly fixed to a sink without
any movement.
More than 20cm More than 20cm
More than 20cm
More than 100cm

16
Installation and gas hose connection
◆ How to install
※ Make sure that a hose should not be contact with the product.
※ Gas appliance should be installed by a certified personnel
Gas hose
for gas supply
Red line
Hose
end cap
Hose
fixing ring
•Connect the gas hose.
◆ Gas Hose Connection
•Remove the Hose end cap
•Tighten it with hose fixation ring.
•Insert the hose until the red line.

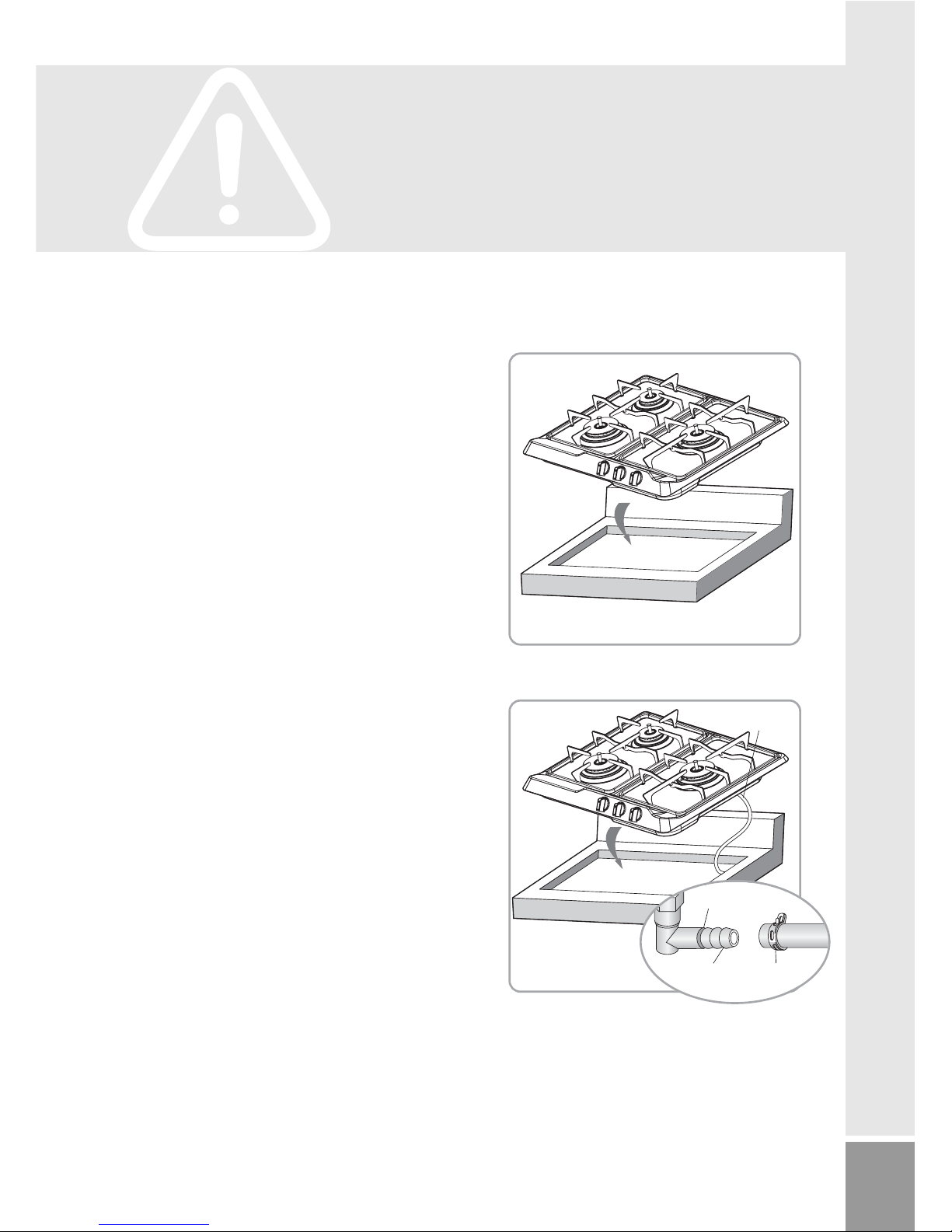

•Settle the product onto the top of a sink.
•Check whether a trivet(grate), burner
cap and burner body are well assembled.
•Connect to the power.

burner
body
Temperature
detecting part
Cleaning and inspection
◆ General inspection

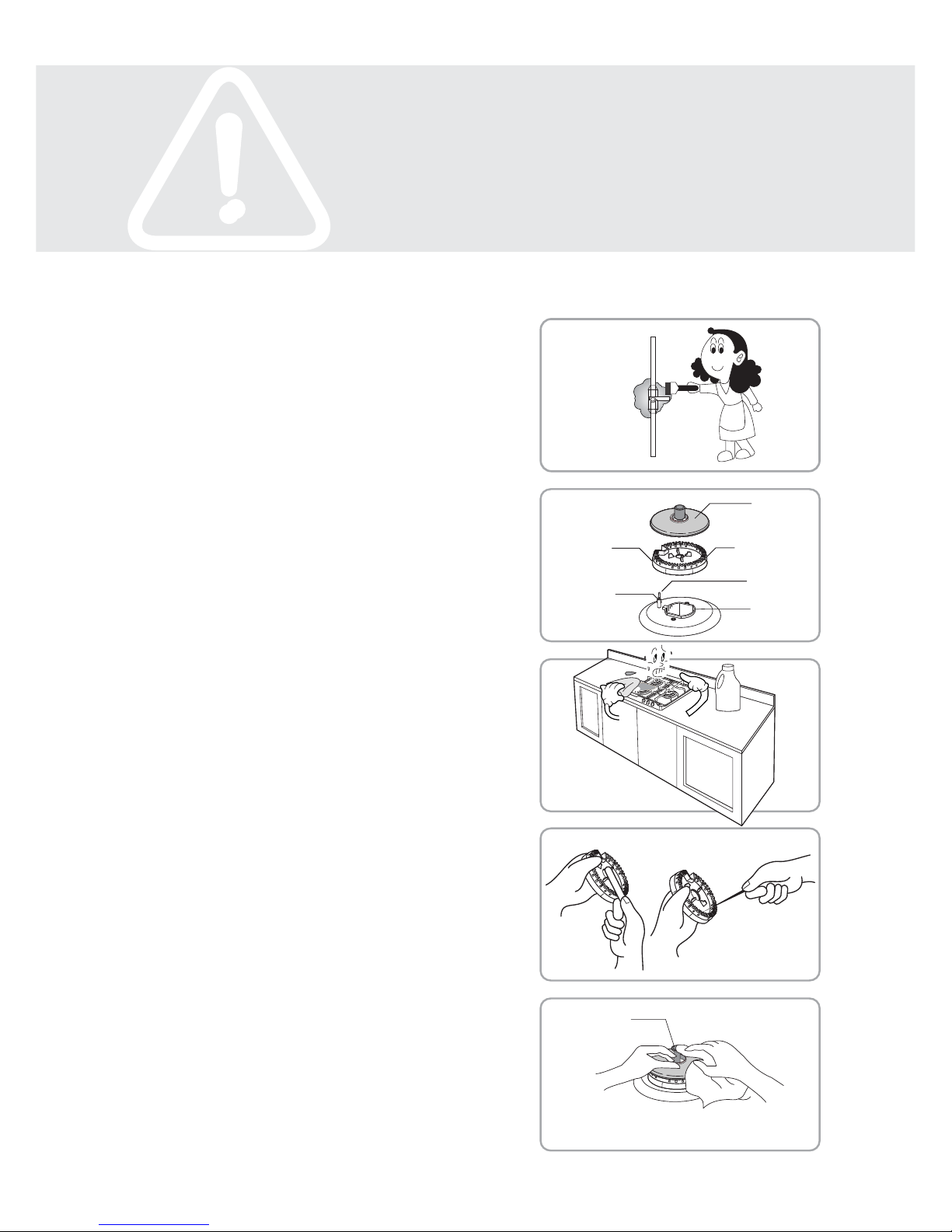

◆ Cleaning
Holes
burner
cap
burner head
heat
detecting rod
Ignition
plug
※ Applying excessive impact on it may cause the
sensor inclined, interrupting the bottom of a pot stuck on it.
•Apply soapy water to check gas leakage
from middle connections and valves.
Any leakage can be detected by bubbles.
•Please check whether the fixation ring is
firmly tightened onto the hose connections.
•Check whether burner head and burner
cap are correctly placed.
•Check whether ignition knob is correctly
located.
- Wipe it out with smooth dry cloths and do
not let any scrap on it.
•Ignition plug and safety devices(heat detecting)
- Wipe it with water mixed with neutral detergent
and remove the residual moisture with dry cloths.
•Support and top
- Holding the part with one hand, wipe out any
contaminants around the top and side with
wet cloths.
•Temperature detecting part
•Burners may have permanent stain unless any
impurities are left. If stains are not removed,
please purchase new one.
- Clean them with brush and remove any
impurities on flame ball with thin pin. If wet, it
may not be ignited properly. After water
cleaning, wipe it out with dry cloths.
•Burners(burner cap, burner cap)

18

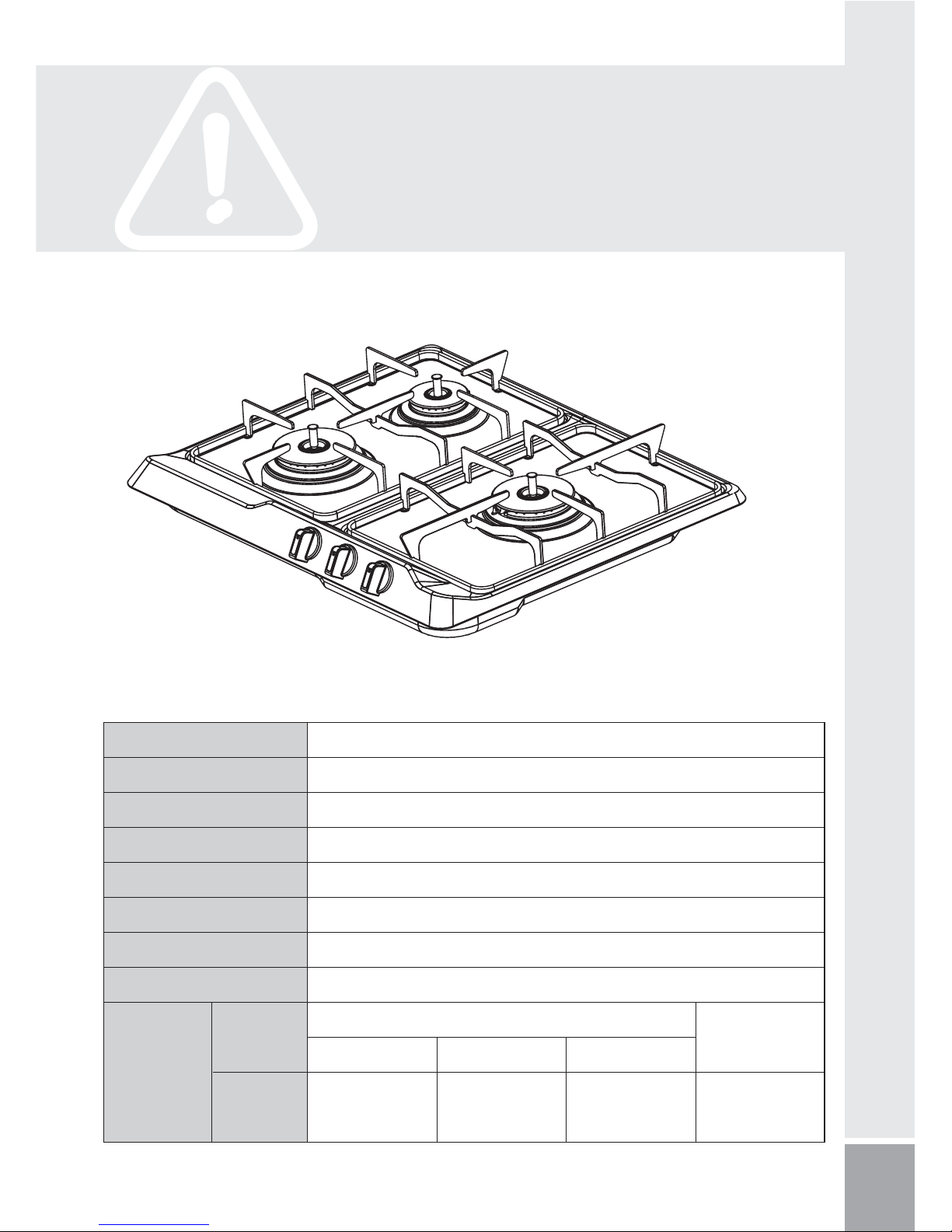

Specifications
4.0 4.0 1.6 10
Gas consumption per anti-superheating burner
Large(Rt.) Large(Lt.) Medium
Product description Gas Range(3 burners)
Model
Ignition type
Power
Hose connection
Dimensions(mm)
Weight(kg)
Top material
Gas
consumption
Gas type
LNG(kW)
MATMÄSSIG IKGC-S313S
Continuous spark ignition
DC 1.5V X 2 =3V
Ø11.5mm(9.5 hose)
W 580× D480× H88mm
Product: 6.6 kg, Including package: 8.5 kg
Stainless steel
Total consumption

Checklist before reporting troubles
Please check the followings and call the customer center if it continues without
troubleshooting.
Gas smell
Not ignition
Gas smell
Symptoms Checkpoints Troubleshooting
• Immediately stop using it. Shut off the middle
valve and main valve, ventilate it and call your
dealer or customer center. Abnormal noise
• whack sound as it ignites
under the burner
• Are burner head and burner
cap incorrectly assembled?
• Don’t the holes of burner
head and burner cap
blocked?
• Warning sound once(when
the anti-superheating sensor
working)?
• Isn’t the power cord pulled
out(power cord type)?
• Aren’t the batteries dead
(battery type)?
• Is there any impurities
between ignition plug
and burner?
• Connect the power cord to an outlet.
• Exchange batteries(see page 14).
• Clean up around the ignition plug.
• Warning sound shortly
3 times?(beep~)
• Turn it off and try it later. If it still continues,
call the service center(see page 7).
• Correctly assemble the burner head and
burner cap(see page 14)
• Clean up the burner head and burner cap
(see page 18).
• Cool it down for 10 minutes after
extinguishment and try ignition again. If it
continues, call the service center.
• Exchange batteries, which are bad or dead.
