NU WDR-041 User manual

- 1 -
Copyright
© Copyright 2004 All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of our
company. All brand and product names are trademarks and/or registered trademarks of
their respective holders.
Disclaimer
We make no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Any software described in this manual is sold or licensed “as is”.
Should the programs prove defective following their purchase, the buyer (and not our
company., its distributor, or its dealer) assumes the entire cost of all necessary servicing,
repair, and any incidental or consequential damages resulting from any defect in the
software. Further, we reserve the right to revise this publication and to make changes
from time to time in the contents hereof without obligation to notify any person of such
revision or changes.

- 2 -
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class B device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
yConsult the dealer or an experienced radio / TV technician help.
FCC Warning
Changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
INFORMATION TO USER:
The users manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
LASER KLASSE 1
LOUKAN 1 LASERLAITE
PRODUIT LASER
CATEGORIE 1

Specification English
- 3 -
Table of Contents
1. Before You Start ...............................................................4
1.1. Safety Cautions ............................................................................................4
1.2. Things you must know of the player.............................................................5
1.3. Macrovision ..................................................................................................7
1.4. DOLBY DIGITAL ..........................................................................................7
2. Introduction.......................................................................8
2.1. Overview ......................................................................................................8
2.2. Main Features ..............................................................................................8
2.3. Format Compatibility ....................................................................................9
2.4. The Handling of Disc....................................................................................9
3. Enjoy the movie with no pain ........................................10
3.1. First Contact ...............................................................................................10
3.2. Know more about your DVD player............................................................11
3.3. Remoter Control .........................................................................................16
4. Advanced Settings .........................................................18
4.1. System Setup .............................................................................................18
4.2. Language Setup .........................................................................................21
4.3. Audio Setup................................................................................................23
4.4. Karaoke Setup ...........................................................................................24
5. Accessory........................................................................25
5.1. Accessory Checklist ...................................................................................25
5.2. Accessory Installations...............................................................................26
6. Technical Support ..........................................................28
6.1. Specification...............................................................................................28
6.2. Troubleshooting .........................................................................................29

Specification
- 4 -
1. Before You Start
Thank you very much for purchasing this portable DVD player. These
precautions explain how to use the player correctly and safely, thereby
preventing you or others from injury. This section relates to your personal
safety, and also helps minimize the risk of damaging the device. To ensure
proper use of this product, please read carefully before proceeding and retain
this user manual for further reference.
1.1. Safety Cautions
yKeep the device away from fire or electric shock.
yDo not open the device or attempt to disassemble it.
yDo not insert fingers or foreign objects into the device.
yDo not expose the device to rain, use it near water or in damp or wet
conditions or place containers on it that contain liquids which might
spill into any openings.
yIf liquids enter the device, switch the device off immediately and
unplug it from the power outlet.
yMake sure the power outlet is electrically grounded, and do not touch
the plug with wet hands.
yFollow the Operation Manual carefully. Follow the correct procedures
when setting up the device.

Specification English
- 5 -
1.2. Things you must know of the player
Transportation
Although this portable player comes with high excellent suspension design, it’s
highly recommended to remove the disc from the device during transportation
to prevent the disc from scratching. The power should be turned off and the
power cord should be unplugged if you’re going to transport the player.
Installation
A stable platform is better for the player reading data from discs; do not settle
the player on top of a TV nor a CRT monitor. Magnetic force is also what you
have to take into consideration when finding a proper portion, any devices with
magnetism may affect the function and operation of the player.
Placement
Do not place any object on the player, the TFT panel is extremely fragile and
any pressure may cause unrecoverable damage to it.
Power
It would be better to turn off the power of player when it’s not in use; it’s
helpful to extend the lifespan of the player and prevent interference to TV
image especially when they are connected.
Safety
It is strongly recommended not using the player while driving.
Some countries and states have laws to prohibit or severely restrict the use of
the player in vehicles, airplanes, and hospitals.
Do not leave the player or the battery pack in places with extremely high (60ºC
and above) or extremely low (-10 ºC and below) temperature. This kind of
extreme environment may seriously damage the quality of the player such as
warping the outer case or reducing the lifespan of battery pack.

Specification
- 6 -
Cleaning
Mostly you just need to clean the player with a soft and dry cloth; for tough dirt,
just get some neutral detergent diluted in 5 or 6 parts water to a soft cloth and
wring out thoroughly, wipe out the dirt and then wipe the player again with a
dry cloth immediately.
Note that alcohol, thinner, benzene, insecticides, etc., may cause failure to the
coating and printing on the surface. Please also avoid leaving rubber or plastic
stuffs in contact with the player for long periods, as this may damage the
cabinet.
Last but not least, always unplug the power cord from the power outlet before
cleaning the player.

Specification English
- 7 -
1.3. Macrovision
Please be aware of that any unauthorized copying may be subject to claims for
damages and to penalties. This product incorporates copyright protection
technology that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
1.4. DOLBY DIGITAL
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright 1992-1997
Dolby Laboratories. All rights reserved.

Specification
- 8 -
2. Introduction
2.1. Overview
Thank you for purchasing this Portable DVD Player. This Portable DVD Player
goes with excellent reading capabilities and supports various CD/DVD formats
widely. It allows you to enjoy watching your favorite movies in a much
luxurious way. In this manual, we will explain how to have it work correctly and
properly. Please read this manual carefully before using the player.
2.2. Main Features
Excellent Compatibility
This portable player supports almost all major CD/DVD formats you can ever
find. It also offers full compatibility to your former CD discs. What’s more, this
player even supports JPEG CD for you to share your happy memories with your
friends and family.
Rock-solid Reliability
An improved anti-shock design theatrically increases the reliability. Optimum
power control continually monitors signal levels during reading data from discs
and adjusts laser power to compensate for those discs in bad condition. This
improvement ensures a stable data flow read of discs, significantly enhancing
the reliability.
Compact size
Outstanding ID design accomplishes the compact size. And the nice portability
also makes it convenient to enjoy the movies anytime and anywhere. A home
theater or even a personal theater is no longer a dream.
Slot-In Design
This portable player is designed with an outstanding slot-in loading mechanism,
which is more convenient for your usage and take less space during operating.
Unlike classic tray-type DVD player, no any tray or laser will pop-up in front of
you, which also means no part of this device is potentially damaged.
Silent Operation
Most of the time, a DVD-ROM or DVD players generate annoying noise while
reading discs. The special design of this portable player operates in a silent
way during the playback. No more disagreeable noise occurs when you enjoy
the movies in the still of night.

Specification English
- 9 -
2.3. Format Compatibility
This Portable device is compatible with the following formats:
Disc Type Support
DVD-5 / DVD-9 9
DVD-10 / DVD-18 9
DVD Video 9
DVD±R 9
DVD±RW 9
VCD (MPEG-1) 9
CD-DA 9
CD-R 9
CD-RW 9
MP3 / JPEG on CD-ROM 9
**Discs other than 12cm are not acceptable and cannot be loaded; however, for
8cm discs there is an adapter (not included) to transfer 8cm size to 12cm style.
**Discs cannot be playback:
DVD-RAM
2.4. The Handling of Disc
Please read the following regarding the handling of CD/DVD discs.
yDo not expose the discs to excessive heat such as in direct sunlight or
near a heater. Also avoid keeping them in a humid place.
yDo not touch disc surfaces. When handling a disc, hold it by its edges.
yRemove dust and dirt from disc surfaces. Use air-based dust removers.
The surfaces may be scratched if wiped with a dry cloth. Do not clean
discs with chemicals or detergents.
yDo not bend or drop discs, nor stick labels on disc surfaces.

Specification
- 10 -
3. Enjoy the movie with no pain
It cannot be easier to enjoy the DVD video with this portable DVD player. With
this portable DVD player, all the complex setting and steps could be skipped
and cast behind your back; the only thing you have to do is just slot the disc
into the player and throw yourself down to the couch.
3.1. First Contact
First of all, plug the
adapter to an outlet.
Secondly, connect the other
side of the power cord to the
jack marked “DC-IN” at the
left side of the player, and
turn the power on.
Finally, put your DVD
disc into the slot at
right side and that’s it!

Specification English
- 11 -
3.2. Know more about your DVD player
Front View
yLCD ON/OFF (Standby Mode)
This button is used for turning ON/OFF the LCD power of the player;
press this button continuously for 3 seconds, the player will be
switched to standby mode, press it for 3 seconds again to resume.
yPower Indicator
When you found static red light on indicator, it is in standby mode.
When the indicator is in static green, the player is playing some
sources.
yVolume Up/Down
Turn up/down the volume when playing the video/audio.
yAdjust Key
Display the setup menu, allowing users to adjust the parameters;
When a TV tuner module is installed, this button would be TV scan
selection button. Press the adjust key for over one time, the quick
adjust function would rotate in the order of:
Brightness>Contrast>Reverse>Wireless Earphone module.
**Depend on the real configuration of your purchase.
Volume Up
LCD ON/OFF
Volume Down
Power Indicator
Adjust Key
Display Area
Operation Pad
Speaker
Speaker

Specification
- 12 -
Operation Pad
Input Source 1. Switch source from Video-> DVD->
Tuner-> Ext ernal
2. While tuner does not exist, the stage
would be skipped.
Play/Pause 1. Play/ Pause Video.
Stop/Eject 1. While video playback, use STOP key to
stop DVD playback
2. While video stop, use STOP key to eject
DVD playback.
Next/FF/
Channel Up
1. Video fast Forward (continue press),
Skip to Next.
2. Tuner Channel Up
Previous/REW/
Channel Down
1. Video Fast Backward (continue press),
Skip to Previous.
2. Tuner Channel Down
INPUT
Combination Key (“Adjust” continue pressed )
:Behaviors as Arrow key
Input: Enter Key
Volume up: Audio DVD for DVD sound track select
Volume down: Subtitle key
Power: Display Play back Information.
INPUT

Specification English
- 13 -
Left Side
y
y
yDC-IN
Connect the power cord to the outlet and the other side to this jack.
yPower Button
Switch the button to left to turn on the main power of the player; vise
versa, pull the button to right to turn it off.
yAV/IN and SPDIF
This jack allows you to connect an external audio/video device, such
as VCR, DVD player, camcorder, or video game player etc.
With Special SPDIF cable to connect to Amplifier to decode Dolby
digital、DTS、PCM Digital sound.
yAV/OUT
This jack allows you to connect this DVD player to your TV, speaker, or
even amplifier with Dolby Surround for further sound effects.
Right Side
yDisc Slot
This is the slot for the disc. Place the disc on the open of disc tray and
then slightly push the disc. The disc would be drawn in and loaded
automatically.
Disc Slot
DC-IN
AV
/
OUT
Power
AV/IN and
SPDIF

Specification
- 14 -

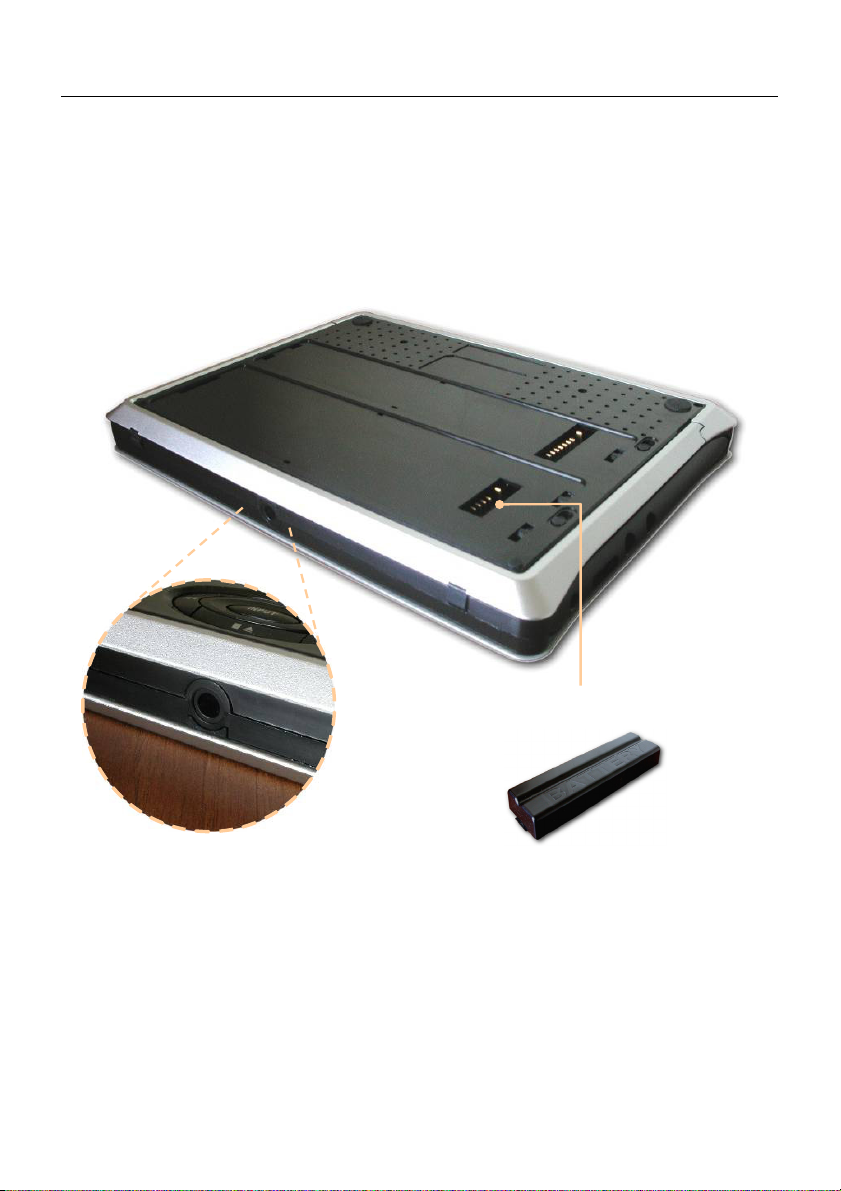

Rear View
yBattery Pack
This DVD player is born to be portable and can be very easily used
outside with its specialized battery pack and the extension dock. And
its duration is about 3.5hrs. For the installation steps of the battery,
please refer to chapter 5.
Tripod
Socket
Extension Dock
Battery Pack

Specification English
- 15 -
Stand-alone DVD Player
Tear the stand-alone
frame off the
module.
Place it horizontally
on a stable platform
with proper angle.
T
urn it around, and
starts enjoy the
movie!

Specification
- 16 -
3.3. Remoter Control
It’s easy for you to execute most of the major functions from the remote
control unit.
DVD Audio Selection
Resumed to where
disc stopped last time
Disc Eject
Mute the Sound
Play video in slow motion
Volume Up/Down
Display Info
Standby
Play/Pause
Next CH/Track
Repeat a selection
Repeat whole trac
k
Numbers Keypad
System Setup
DVD Viewin
g
An
g
le
DVD Main Menu
Stop Playback
Arrow Keys
DVD Subtitle Selection
Pro
g
ram disc
Into chapters
Fast Forward
Fast Rewind
Previous CH/Trac
k
Zoom IN/OUT
Root Menu
Adjust LCD Setting
Change Input source

Specification English
- 17 -
yChange Battery
Changing battery is as easy as changing your alarm clock battery. It
needs no complicated steps.
First of all, please flip the
remote control over. You
may see that the battery
container is at the bottom
and its push-open locker
is at its right side.
Secondly, press the
push-open locker and
pull the container out
downwardly at the same
time.
Finally, put the newly full battery onto the container, and lock
the container back will do.
Push-open
locker
Battery
Container

Specification
- 18 -
4. Advanced Settings
After powering on, you will be prompted with a crispy welcome screen. And
after that you will find all interfaces are designed with practical settings that
are useful to you.
4.1. System Setup
To enter settings just simply press the Setup button on remote control,
you may find SYSTEM SETUP at the first page.
Within the system setup, you may find settings as follow. These are the most
frequently adjusted and practical functions, let me introduce them in sequence
here.
T
V STSTEM
SCREEN SAVER
SCREEN TYPE
PASSWORD
RATING
DEFAULT
EXIT SETUP

Specification English
- 19 -
TV system is what you have to adjust
when you are living in different
countries and get different local disc
format. The default setting is AUTO
and mostly you don’t have to change.
To do the settings manually, you have
these selections:
NTSC
PAL60
PAL
AUTO
You may decide how long before the
system starts playing the screen saver
when no title is playing. Choices are:
1 MIN
5 MIN
10 MIN
30 MIN
OFF.
Screen TYPE decides how your screen
be viewed during playback. For
examples, they are 3 types here:
4:3PS
4:3LB
16:9
TV SYSTEM
SCREEN SAVE
R
SCREEN TYPE

Specification
- 20 -
Password is quite a considerate
function. You may decide the rating of
a specific movie and set password for
it. For movies that are inappropriate
for children to watch, you may set
password to lock them up.
(DEFAULT ****)
This item allows you to set the
permission level of your password.
NO ADULT
KID SAFE
VIEW ALL
You may restore all your previously set
configurations to its original setting by
choosing this item.
PASSWORD
RATING
DEFAULT
