Fluid 9" dual screen portable dvd player User manual

User Manual

8005897

Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.

9” Dual Screen Portable DVD Player

CONTENTS

FCC AND SAFETY INFORMATION .................................................. 2

IMPORTANT SAFETY INSTRUCTIONS........................................... .2

PACKAGE CONTENTS...................................................................... 3

PRODUCT OVERVIEW..................................................................... 3

MONITOR PANEL ILLUSTRATION.................................................... 4

CONNECTING TO THE MONITOR ................................................... 4

CONNECTING TO A TV SET............................................................. 4

CONNECTING TO USB ..................................................................... 5

USB Interface ................................................................................ 5

USING IN THE CAR........................................................................... 5

Mounting in a Car .......................................................................... 5

Installation Guide........................................................................... 5

REMOTE CONTROL......................................................................... 6

Set up of the Remote Control........................................................ 6

Using the Remote Control ............................................................. 6

Playing DVD Discs ........................................................................ 6

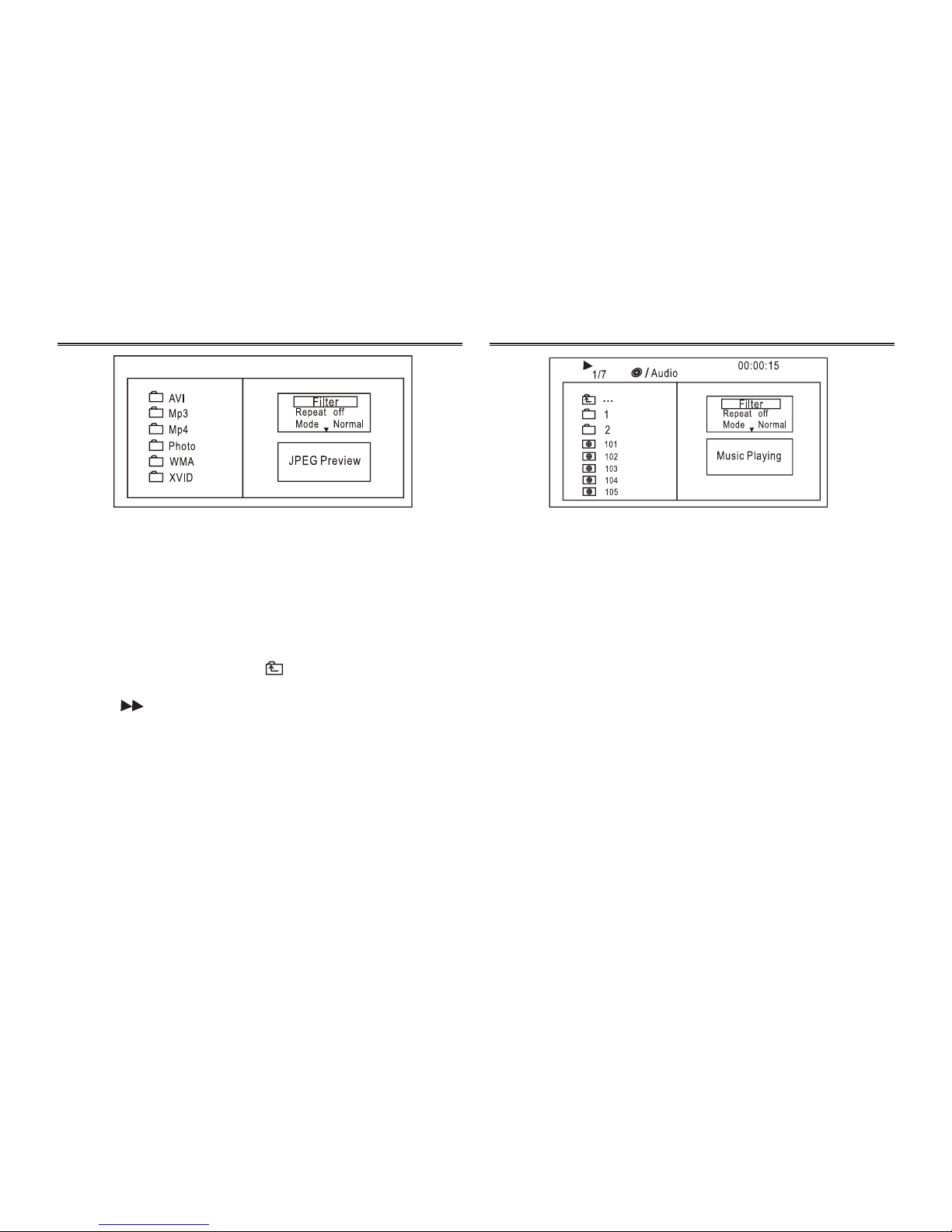

MP3 PLAYBACK ................................................................................ 7

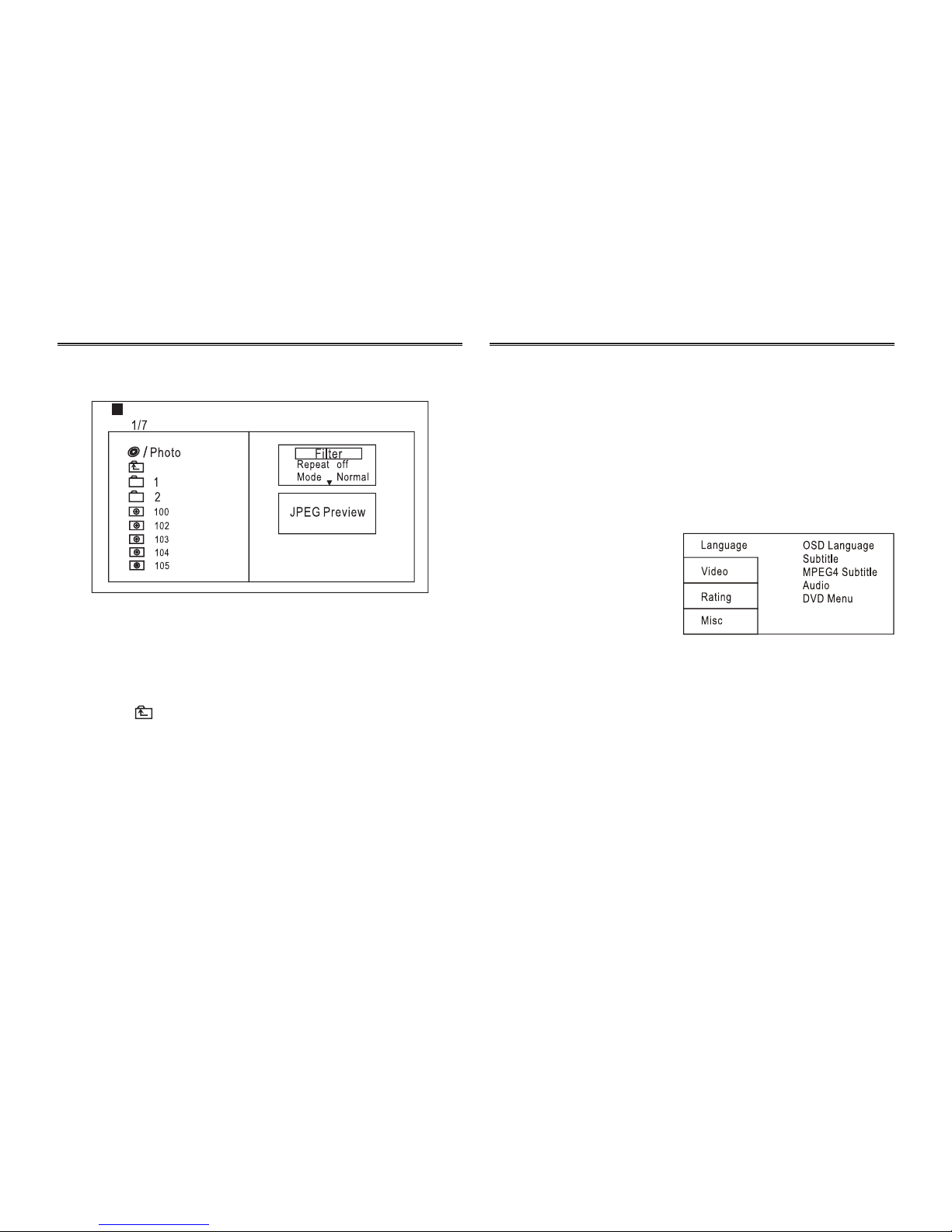

PICTURE CD PLAYBACK.................................................................. 8

SYSTEM SETUP............................................................................. 8-9

Menu Operation............................................................................. 8

Language Setup ............................................................................ 8

DVD Menu..................................................................................... 9

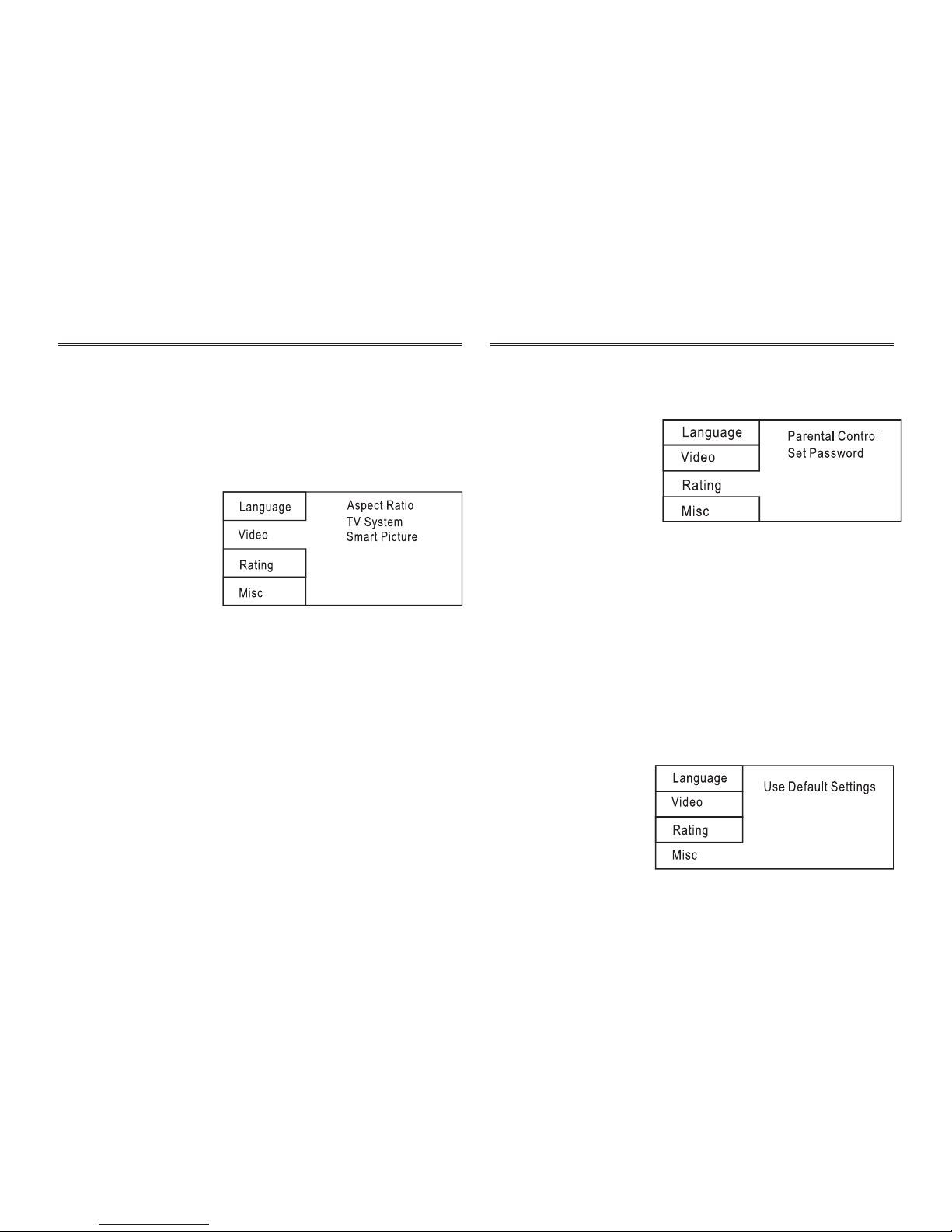

Video Setup................................................................................... 9

Rating Setup.................................................................................. 9

Misc Setup..................................................................................... 9

TROUBLESHOOTING ..................................................................... 10

SPECIFICATIONS.............................................................................11

WARRANTY ......................................................................................11

CAUTION:

This unit employs a laser. Due to possible eye

injury, only qualified service personnel should

remove the cover or attempt to service this

device. Use of controls, adjustments, or the

performance of procedures other than those

specified herein may result in hazardous

radiation exposure.

THE FCC WANTS YOU TO KNOW

This equipment has been tested and found

to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide

reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful

interference to radio or television reception,

which can be determined by turning the

equipment off and on, the user is encouraged

to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/

TV technician for additional suggestions.

Any changes or modifications not expressly

approved by the party responsible for

compliance could void the user’s authority

to operate the equipment. Where shielded

interface cables have been provided with the

product or specified additional components

or accessories elsewhere defined to be used

with the installation of the product, they must

be used in order to ensure compliance with

FCC regulation.

• WARNING: To reduce the risk of electric shock, do not remove the cover or back.

There are no user-serviceable parts inside. Refer servicing to qualified personnel.

• WARNING: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

• Do not expose the Adapter and product to water (dripping or splashing) and no objects filled

with liquids, such as vases, should be placed on the unit

• Keep the product away from direct sunlight and heat source such as radiators or stoves.

• Do not block the ventilation openings. Slots and openings on the unit are provided for

ventilation. The openings should never be blocked by placing your product on a cushion, sofa

or other similar surface.

• Do not place the product on an unstable cart, stand, tripod, bracket or table. The unit may fall,

resulting in possible damage or injury.

• Never place heavy or sharp objects on the LCD panel or frame.

• Only use the AC adapter included with product. Use of any other adapter will void the warranty.

• Unplug the power from the outlet when the unit is not in use.

• Attention should be drawn to the environmental aspects of battery disposal.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive

heat such as sunshine, fire or the like.

• WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

• WARNING: Only use attachments/accessories specified provided by the manufacturer. The

product is supplied with an AC adapter, the AC adapter is used as a disconnect device, the

disconnect device shall remain readily operable.

• WARNING:The USB memory stick should be plugged into the unit directly. USB extension

cable should not be used to avoid failure of data transference and possible interference.

• In the event of an electrostatic discharge (ESD) turn the unit off then back on to resume normal

operation.

Important Battery Information

• Rechargeable batteries are only to be charged under adult supervision.

• The battery will only recharge when the battery temperature is below 40°C (104°F).

• Do not attempt to replace the battery without technical support.

• Danger of explosion if battery is incorrectly replaced.

• Replace only with the same or equivalent type.

• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with the

local regulations.

• To reduce the risk of electric shock, do not expose to rain, moisture, dripping or splashing.

• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

• Do not install this equipment in a confined space such as book case or similar unit.

FCC AND SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS

This Class B digital apparatus complies

with Canadian ICES-003.

FOR DVD PLAYERS WITH

PROGRESSIVE SCAN OUTPUT:

Consumers should note that not all high

definition television sets are fully compatible

with this product and may cause artifacts to be

displayed in the picture. In case of progressive

scan picture problems, it is recommended that

the user switch the connection to the “Standard

Definition” output.

Since it is usual for DVD movies to be released

at different times in different regions of the

world, all players have region codes and

disc can have an optional region code. If you

load a disc of a different region code to your

player, you will see the region code notice on

the screen. The disc will not play, and should

be unloaded.

(Possible region codes:)

There are 6 regions (also called “locals”).

Each DVD player and disc will be played in

one region ONLY.

1.Canada, U.S., U.S. Territories

2.Japan, Europe, South Africa, Middle East

(including Egypt)

3. Southeast Asia, East Asia (including Hong

Kong)

4.Australia, New Zealand, Pacific Islands,

Central America, Mexico, South America,

Caribbean

5.Former Soviet Union, Indian Subcontinent,

Africa (also North Korea, Mongolia)

6.China

Never make or change connections with the

power switched on.

CAUTION

INVISIBLE LASER

RADIATION WHEN

OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CLASS1

LASER PRODUCT

PACKAGE CONTENTS

PRODUCT OVERVIEWPRODUCT OVERVIEW

• DVDPlayer

• Monitor

• RemoteControl

• CarAdapter

• PowerAdapter

• A/VCable

• LinkUpCable

• MountingStrapx2

• CarryBag

• UserManual

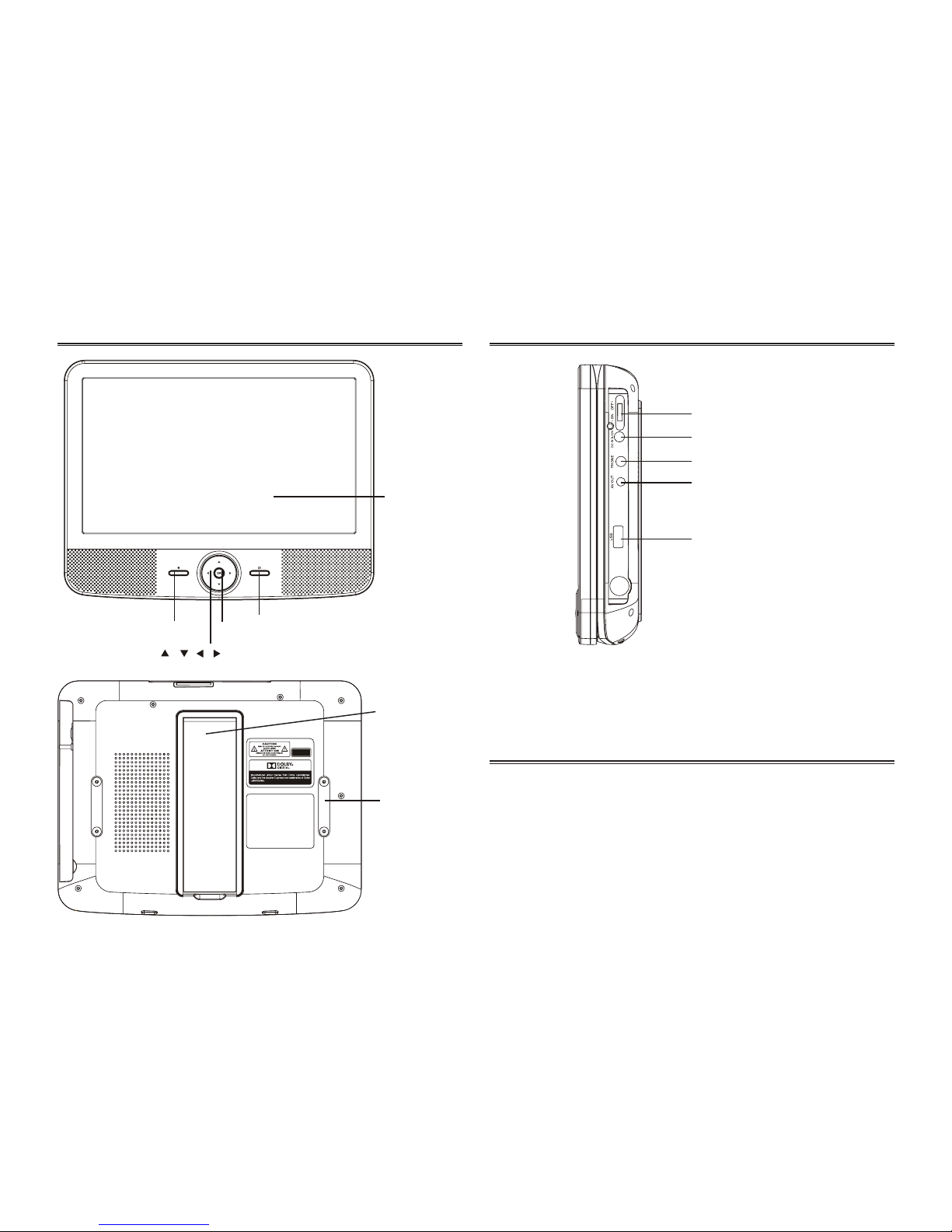

POWER ON/OFF

DC 12V INPUT

(power supply)

HEADPHONE

AV OUTPUT

USB IN

TABLE

STAND

FOUR

SCREW

SOCKET

STOP SOURCE

LCD DISPLAY

MOVE ( , , , )

MONITOR PANEL ILLUSTRATION CONNECTING TO THE MONITOR

LINK UP CABLE

AC ADAPTER

CAR ADAPTER

: Adjusts the cursor position

: Adjusts the volume

MENU : Sets the monitor setting

(Ex: 4:3/16:9/PAL/NTSC)

USB

STANDBY MUTE

LCD DISPLAY

MOVE ( , , , )

AV IN

HEADPHONE

DC 9-12V INPUT JACK

(POWER SUPPLY)

POWER (ON/OFF)

Press SOURCE on the remote control to enter USB mode.

USB INTERFACE

This unit has a USB IN jack to play MP3 music or JPEG files.

Press the SOURCE button to choose USB IN mode.

All the functions are the same as used to play a disc.

Note: The USB IN port is only compatible with flash

memories.

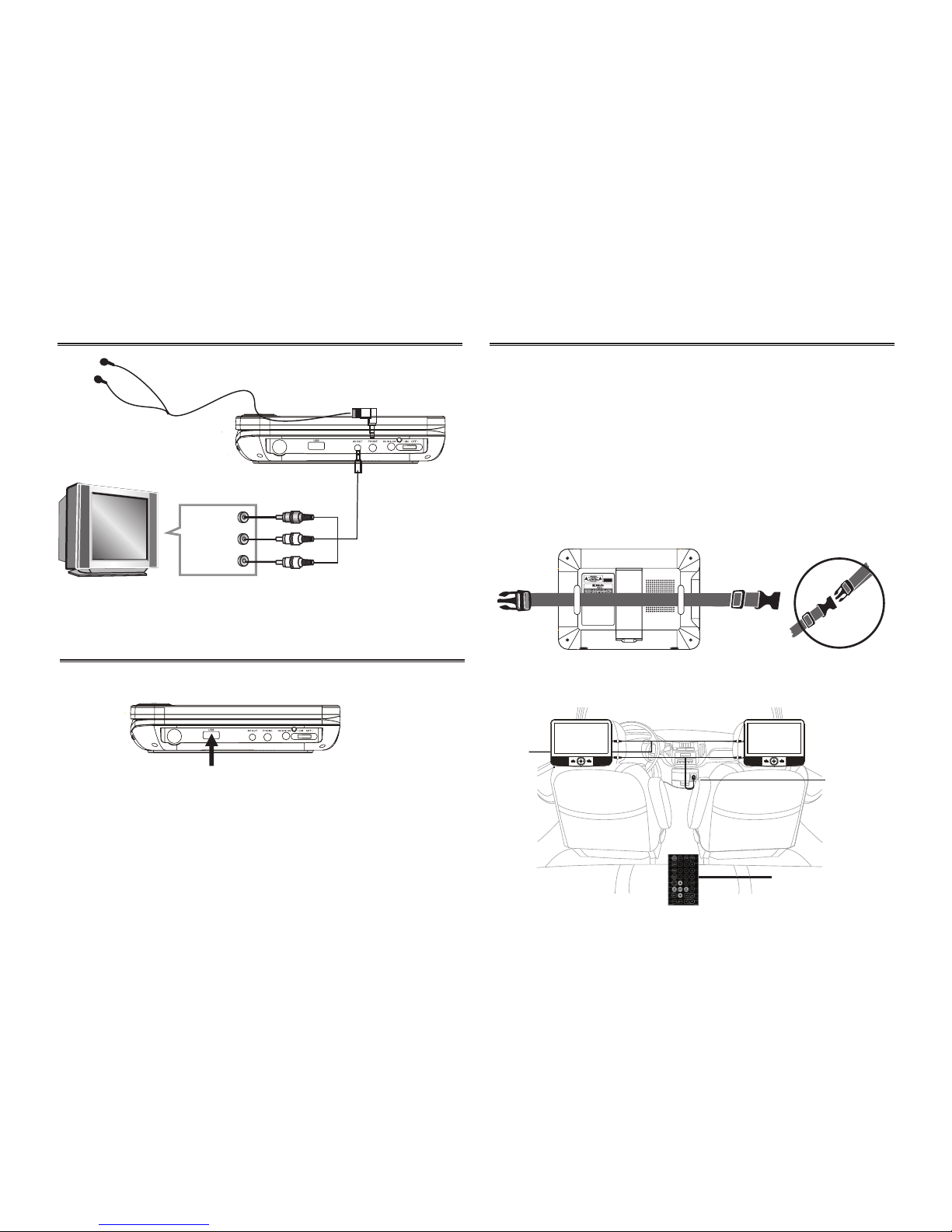

MOUNTING IN A CAR

1. Thread both strap ends through the strap eyelets.

Note:

Ensure the buckles are properly assembled to avoid

accidental loosening.

2. Loop the straps around the head-rest, with the DVD Player

facing the rear seat, then fasten the straps with the clip.

Note:

Always remember to lock the clips and tighten the straps

to ensure the safety of your passengers.

INSTALLATION GUIDE

CONNECTING TO USB

USING IN THE CAR

CONNECTING TO A TV SET

EARPHONE

DVD PLAYER MONITOR

CAR POWER

ADAPTER

REMOTE

CONTROL

LINK UP

CABLE

USB

Yellow

White

Red

CVBS

VIDEO IN

AUDIO IN

REMOTE CONTROL

SETUP OF THE REMOTE CONTROL

Place the remote control on an even surface and insert the

supplied button cell into the remote control as follows.

1. Push the button tab to the left.

2. Pull the battery loader out.

3. Insert the battery into the receptacle.

Make sure the polarity matches the

marks inside the compartment.

4. Insert the receptacle into the remote control.

Battery type: 1 x CR2025, 3 V

Service life: Approximately 1 year

USING THE REMOTE CONTROL

Point the remote control towards the main unit when

operating. The remote control works best at a distance less

than 5 m and at an angle of up to 30˚ to the front of the unit.

No obstacles should stand between the remote control and

infrared sensor. Do not place the remote control in direct

sunlight. If the remote control unit fails to work even when it is

operated near the player, replace the battery.

PLAYING DVD DISCS

Turn on the unit and insert the DVD disc. The disc will

automatically begin to play when the CD door is closed.

NOTES ON BATTERIES

If the remote control is not used for a long period of time,

remove the battery from the compartment.

Do not heat batteries or dispose of them in fires.

Do not dismantle, deform or modify batteries.

1. REPEAT A-B

 Pressonceforthebeginningofthe

chosenscene(setA);thenpressa

second time at the end of the chosen

scene(setB),Theselectedscene

automatically plays. Press a third time

to disable the Repeat function.

2. PROG/REPEAT:Oneshortpresswill

gotoRepeatChapter,asecondshort

presswillgotoRepeatTitle,athird

shortpresswillgotoRepeatOFF.

OnelongpresswillaccesstheProg

by input title number buttons of the

Title & Chapter.

3. 0-9 NUMBER KEYS: Used to select

channel numbers or input numbers

in menus.

4. SETUP: Goes to the Setup menu.

5. GOTO:Goestoaspecictimeindex/

title/chapter

6. NEXT:Goestothenextchapteror

le.

7. PREVIOUS: Goes to previous

chapterorle.

Note:Whenusingtheskipbackfunction,

theplayergoestothebeginningofthe

previouschapter,nottothebeginningof

the current chapter.

8. FAST FORWARD:

 Skipsforward,consecutiveshort

presses increases the speed

 (X2->X4->X8->X16->PLAY).

9. FAST REWIND:

 Skipsbackwards,consecutive

short presses increases the speed

 (X2->X4->X8->X16->PLAY).

10. POWER : switcheson,orswitches

the unit to standby mode.

11. DISPLAY: Displays detailed

informationofthecurrentleordisc.

12. AUDIO/ANGLE:

 Shortpress:Changestheaudio

mode selection (if different modes are

available),Longpress:Changesthe

viewingangle

 (ifdifferentmodesareavailable).

13. SUBTITLE/TITLE: Short press:

Changessubtitlemode(ifchoices

ofsubtitlesareavailable),

 Longpress:DVDTitlemenu.

14. MENU / ZOOM: Short press to

accesstheMenu;Longpressto

usetheZoomFunction.Holding

thepressedbuttonwillselectthe

Zoomlevel:Q1,Q2Q3,OFF.

15. STOP / SLOW:

 Shortpress:toStop;

 Longpress:forSlowmotion.

Consecutivelongpressesslowsthe

spped(1/2,1/4,1/6,1/8,PLAY).

16. Direction keys :

 ,Navigates(Up/Down)themenu

screenstoselectthele.

Increases the volume.

Decreases the volume.

17. ENTER:Conrmsandenters

optionsortoplayles.

18. PLAY / PAUSE:Starts,pausesor

resumes media play.

19. SOURCE:Presstoswitchbetween

DiscorUSB.

20. MUTE: DisablesAudiooutput.

Note:Pressapproximately2seconds

forfunctionsrequiringalongpress.

MP3 PLAYBACK

The MP3/WMA/MPEG4 disc has a directory structure as

shown in the picture.

Press the Direction button to choose the root directory and

then press the ENTER button to enter into the sub directory.

Press the Direction button to choose the desired track and

then press ENTER or PLAY to enjoy the music or movie.

If you want to return to the previous menu, press the

Direction button to choose the icon and press the ENTER

button. With the picture in STOP mode, press the Fast

Forward button to access the following menus:

Filter: Allows selection of the categories of files displayed

in the browser list.

This selection is done among the 3 categories:

Audio, Photo and Video

Repeat: To switch to a different repeat playing mode

Mode: Select different playing mode

Normal: Shuffle mode is cancelled by toggling to a different

Mode option.

Shuffle: Shuffle mode enabled. When playback reaches the

end of the current chapter/track, playback jumps

to a random chapter/track. When the end of each

chapter/track is reached, another random chapter/

track will be played until all tracks/chapters have

been played or the Shuffle mode is cancelled by

toggling to a different Mode option.

Music Intro: In this mode, the media will play for 10 seconds

then skip to next media.

Edit Mode: To enable programmed playback mode. When

you select the mode, press LEFT Direction button

to directory and press ENTER to choose the

desired track then press Add to program to add in

programmed playback.

Program view: Display program track.

Browser view: Display track directory.

Add to program: Choose the track then press Add to program

to add the track of the program to the play directory.

Clear program: In the complete stop state (press the STOP

button twice), choose the track, then press Clear

program to delete the track from the program play

directory.

MENU OPERATION

Press the SETUP button on the remote control, the SETUP

MENU (main) will be displayed.

After accessing the setup menu, press the direction buttons to

select desired option, then press the ENTER button to confirm.

Press the LEFT direction button to return to the previous menu.

To exit setup, press the SETUP button again. In the SETUP

MENU, you may choose any of the following options.

LANGUAGE SETUP

Select Language in the

setup menu, and display

the Language submenu:

OSD Language

Use this feature to select the

language of the setup menu and screen display.

Subtitle

This option provides the preset subtitle language.

Follow the operating instructions stated in DVD MENU

SETUP along with the desired option.

MPEG4 Subtitle

Choice of different MPEG4 subtitle encoding options.

Audio

Follow the operating instructions stated in DVD MENU

SETUP along with the desired option.

This option provides built-in disc dubbing language options.

PICTURE CD PLAYBACK SYSTEM SETUP

The PICTURE CD disc has a directory structure as shown

below.

Press the Direction button to choose the root directory and

then press the ENTER button to enter into the sub directory.

Press the Direction button to choose the desired picture and

then press ENTER or PLAY to enjoy the picture.

To return to the previous menu, press the Direction button to

choose the icon and press ENTER.

Image Rotation

In picture play mode, press the Direction button to rotate

the picture, press the ANGLE button to change the picture

scan mode.

RATING SETUP

Select Rating in the setup menu. The Rating submenu is displayed:

Note: Not all DVDs support ratings.

Parental Control

Selecting a Rating

allows the user to set the

parental control feature

on the player. Select

Parental Control, and

press ENTER to change to a different mode.

Note: Unlock the password before setting Parental Control.

Set Password

Use the 0-9 keys to input four digits (password), then press

ENTER to confirm.

Note: The master password is provided on a separate card.

Please keep in a safe place for future reference.

MISC SETUP

Select MISC in the setup menu, and the submenu is displayed:

* Use Default Settings

Reset setup data to factory default and re-load disc.

DVD MENU

This option provides the film’s menu language options.

Follow the operating instructions stated in DVD MENU

SETUP along with the desired option.

VIDEO SETUP

Select Video in the setup menu, to display the Video submenu:

Aspect Ratio

The image display ratio

is related to the recorded

disc format. Some discs

cannot display images

in the aspect ratio you

choose. If you play a disc

recorded in 4:3 format on a widescreen TV, black bars will appear

on the left and right side of the screen. You must adjust the

screen setting depending on the type of the television you have.

TV System

This DVD player supports output of various systems, including

NTSC, PAL. If your TV set has only NTSC or PAL system, the

screen will blink and become blank when the wrong system is

selected.

Note: For more information of output format, refer to the

instructions of your TV set.

Smart picture

Adjust display effect for video output:

Standard: default effect.

Bright: internal setting for bright view effect.

Soft: internal setting for soft view effect.

Dynamic: user adjust brightness, contrast, colour, etc.

SYSTEM SETUP

TROUBLESHOOTING

Refer to the problem-solving guidelines described in the

following section before contacting a repair technician.

Turn off the DVD player immediately as soon as you suspect a

malfunction. Unplug the power plug and check if DVD player is

unusually warm or if smoke is rising from it.

PROBLEM POSSIBLE CAUSE SOLUTION

The DVD player

does not work Disc tray is not closed Close disc tray

No disc inserted Insert disc

Disc inserted incorrectly Insert disc with label

facing up

Disc dirty or deformed Clean disc, or insert

other disc

Regional code of the

player does not match the

regional code of the DVD

Purchase DVD with

corresponding regional

code

Moisture on lens Remove disc and turn off

DVD player for at least

two hours

No sound Device not properly

connected Check connections and

connect device in the

correct way

Headphones connected

(loudspeaker off) Remove the headphone

plug

DVD sound settings

incorrect Check sound settings and

set sound correctly

Disc dirty or deformed Clean disc, or insert

other disc

Popular Portable DVD Player manuals by other brands

Insignia

Insignia NS-P10DVD11 Guide de l'utilisateur

Philips

Philips PD7042/12 user manual

Sylvania

Sylvania SDVD8727 Product features

NextBase

NextBase SDV185-SD operating instructions

Akai

Akai ACVDS950 user manual

Emprex

Emprex PD-7001 user manual

Hyundai

Hyundai PDP 993SU instruction manual

Sylvania

Sylvania SDVD1566 instructions

RCA

RCA DRC6331 - Portable DVD Player Manual de usuario

Insignia

Insignia NS-P10DVD user guide

GPX

GPX PD908B user guide

Sony

Sony DVP-FX750 Specifications

Reflexion

Reflexion DVD1013 user manual

Philips

Philips PET702/77 user manual

THOMSON

THOMSON DTH600 user manual

LG DP351 PMFL56732878 manual

Philips

Philips PET719 Service manual

Venturer

Venturer PVS8380 owner's manual

Fluid 9" Dual Screen Portable DVD Player User manual

Popular Portable DVD Player manuals by other brands
