Nubeo CURIOSITY User manual

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
CHRONOGRAPH
VOL.1.49 EN/DE
NUBEOWATCHES.COM

Curiosity is a car-sized Mars rover designed to explore Mars as part of NASA’s
Mars Science Laboratory (MSL) mission.
The MSL mission founded in 1993 was formed to help determine whether Mars
could ever have supported life, as well as determining the role of water, and to
study the climate and geology of Mars.
The work of MSL is to perhaps best described as helping to set the stage for the
human exploration of Mars.
The rover, which is about the size of a MINI Cooper, landed on Mars on August 6,
2012 equipped with 17 cameras and a robotic arm containing a suite of specialized
laboratory-like tools and instruments.
Curiosity’s scientic tools found chemical and mineral evidence of past habitable
environments on Mars. Today, it continues to explore Mars beaming down captivat-
ing images and further evidence of the potential for a human mission to take place
in the near future.

4
EN
This watch is equipped with a screw down crown . Do not pull the crown
unless it is unscrewed rst.

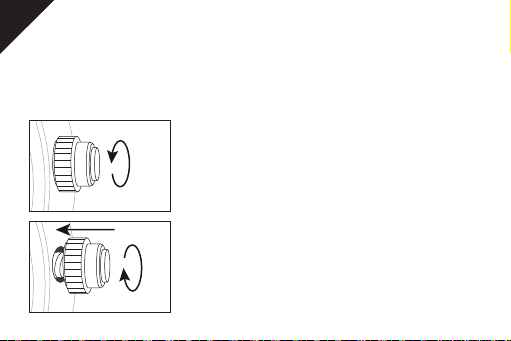

PLEASE READ THE FOLLOWING BEFORE UNSCREWING THE CROWN
TO UNSCREW: Turn the crown anti-clockwise until it
turns freely without tension. Gently pull the crown out
to the other desired positions for watch setting (see
specic operating instructions on the following pages).
SCREW-DOWN CROWN
TO SCREW: Push the crown all the way in (towards the
watch) then begin to turn clockwise until it is securely
screwed down.
Note: Failure to securely screw down the crown after
setting the watch may affect its water resistance.
0
1

EN
5
Crown
Positions
Screwed
Down Position
Open
Cover
Chronograph
Second Hand
Hour Hand
Second Hand
Chronograph
Minute Hand
Date
Inner Turning Bezel
0 1 2 3
MinuteHand
Push Button A
Push Button B
Crown for Inner
Turning Bezel
CHRONOGRAPH WITH DATE
As your watch has a screw down crown feature, release the watch from the
screw-down position before setting.

6
EN
DATE SETTING
1. Unscrew the crown by turning it anti-clockwise untill it turns freely.
2. Pull the crown out to position 2.
3. Turn the crown clockwise to set the date.
4. Push the crown back and screw it tight by turning clockwise.
* Do not set the date between 9:00 P.M. and 1:00 A.M, otherwise the day may not* Do not set the date between 9:00 P.M. and 1:00 A.M, otherwise the day may not
change properly.change properly.
TIME SETTING
1. Unscrew the crown by turning it anti-clockwise untill it turns freely.
2. Pull out the crown to position 3.
3. Turn the crown to set the time.
4. Push the crown back to position 1 and screw it tight by turning clockwise.
* Make sure AM/PM is set correctly* Make sure AM/PM is set correctly
* When the crown is at the position 3, do not press any button.* When the crown is at the position 3, do not press any button.
Otherwise the chronograph hands will move.Otherwise the chronograph hands will move.

EN
7
STOPSTART
A A
B
RESET
HOW TO USE THE CHRONOGRAPH
* The measurement time is indicated by the chronograph hands that move
independently of the center hands.
* The chronograph can measure up to 60 minutes.
Standard measurement (e.g. 100m race)
Press the buttons in the following order :

8
EN
RESTART
START
RESET
STOP
STOP
A A A
B
A

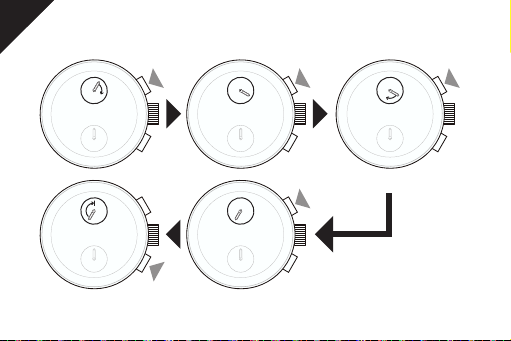

Accumulated elapsed time measurement (e.g. basketball game)
Restart and stop of the stopwatch can be repeated by pressing the button A.

EN
9
SPLIT RELEASE
START
RESET
SPLIT
STOP
A
B
B B
A

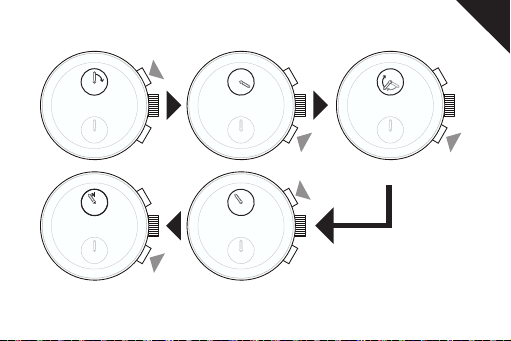

Split time measurement (e.g. 5,000m race)
* Measurement and release of the split time can be repeated as many times
as necessary by pressing button B.

10
EN
ADJUSTING THE CHRONOGRAPH HANDS POSITION
* Before setting the time, check if all the chronograph hands - second and
minute - are at the “0”position (12 o’clock position).
* If the chronograph is in use, press the buttons in the following order to
reset it, and then, check if the hands return to “0” position.
* If the chronograph is counting : Button A Button B
* If the chronograph is stopped : Button B
* If the split time is displayed : Button B Button A Button B
12 o’clock12 o’clock
positionposition

EN
11
* The chronograph minute hand moves correspondingly with the* The chronograph minute hand moves correspondingly with the chronographchronograph
second hand.second hand.
* Pressing and holding the respective buttons moves the hands quickly.* Pressing and holding the respective buttons moves the hands quickly.
4. Once the chronograph hands are adjusted, push the crown back and
screw it tightly.
If either of the chronograph hands are not in the “0”
position, reset them following the procedure below.
1. Unscrew the crown by turning it anti-clockwise until
it turns freely.
2. Pull the crown out to position 3.
3. Press button A or B to reset all chronograph hands
to “0” position.
3
Button A
Button B

12
EN
All Nubeo timepieces are designed with a minimum water resistance rating
of 5 ATM (50m). The water-resistance of a timepiece protects the movement
from dust, moisture, and risk of damage to the movement should it be
immersed in water.
Please see chart for guidelines for the recommended exposure of various
water ratings. It is important not to attempt to adjust the position of the
crown while the timepiece is in contact with water. Water can enter the case
causing damage to the movement.
For timepiece with screw-down crowns, it is important to ensure the crown
is in the proper position and completely locked before contact with water.
For timepieces with chronograph functions, do not engage the chronograph
under water, as water may leak in the case and cause damage to the
movement.
WATER RESISTANT

EN
13
USE PRECAUTIONS - RESISTANCE TO WATER
All Nubeo timepiece are designed to withstand use as indicated on the following
chart. Always make sure the crown is screwed-down completely before use.

14
EN
Each Nubeo timepiece is designed and manufactured to exceed the highest
of standards. In order to ensure optimal performance and longevity from
your timepiece, please review the simple guidelines for care and precautions
of your new Nubeo timepiece.
CARE AND PRECAUTIONS
Your timepiece should be cleaned with a soft cloth and water only. Your
timepiece should be rinsed clean and dried with a soft cloth after any
saltwater use. In order to maintain the ‘new look’ of metal bracelets, we
recommend periodic cleanings of the bracelet. Dip a soft brush in warm
soapy water and gently rub bracelet clean. We advise having your timepiece
serviced every 18-24 months to ensure long use and trouble-free operation.
CARE

EN
15
TWO (2) YEAR INTERNATIONAL WARRANTY
Your Nubeo watch is warranted for a period two (2) years from the original
date of purchase under the terms and conditions of the warranty. The Nubeo
warranty covers materials and manufacturing defects. A copy of the receipt
or dealer stamp in the warranty booklet is required for proof of purchase.
During the warranty period the watch movement, hands and dial are the
only components covered under this warranty. A covered component will be
repaired or the watch will be replaced free of repair charges, if it proves to
be defective in material or workmanship under normal use.

16
ENNOT COVERED BY WARRANTY
- Damage to lens or strap.
- Normal wear and tear.
- Malfunction and deterioration from accident, negligence or tampering.
- Water damage resulting from improper usage.
- The content of the warranty has been altered.
- There is no presentation of the warranty.
This warranty is void if the watch has been damaged by accident, negligence
of persons other than authorized Nubeo sales or services agents, unauthorized
service, or other factors not due to defects in materials or workmanship.

EN
17
REQUESTING WARRANTY AND OTHER WATCH
REPAIR
Should you require work under warranty, please send in your watch, a copy
of your sales receipt and/or the warranty booklet with dealer stamp and a
description of the problem to the authorized international watch service
center closest to you.
For service work that is not covered under this warranty, the service center
may perform the services you request for a charge dependent on watch style
and type of work requested. These charges are subject to change.
For repairs of your Nubeo watch, we recommend that you contact an
authorized Nubeo dealer or the authorized international watch service center
closest to you.
For details, please refer to our website at:
WWW.NUBEOWATCHES.COM

18
EN
BEDIENUNGSANLEITUNG
(DEUTSCH)

DE
19
BITTE LESEN SIE DIE FOLGENDEN PUNKTE, BEVOR SIE
DIE KRONE ABSCHRAUBEN
Zum Lösen: Drehen Sie die Krone gegen den
Uhrzeigersinn, bis sie sich ohne Spannung frei
dreht. Ziehen Sie die Krone zur Einstellung der Uhr
vorsichtig in die anderen gewünschten Positionen
heraus (siehe spezielle Bedienungsanleitung auf
den folgenden Seiten).
VERSCHRAUBTE KRONE
Zum Verschrauben.: Drücken Sie die Krone ganz
hinein (in Richtung der Uhr) und drehen sie dann
im Uhrzeigersinn, bis sie fest verschraubt ist.
Hinweis: Wenn die Krone nach dem Einstellen
der Uhr nicht sicher verschraubt wird, kann die
Wasserdichtigkeit der Uhr beeinträchtigt werden.
Diese Uhr ist möglicherweise mit einer verschraubten Krone ausgestattet.
Ziehen Sie die Krone nur dann heraus, wenn sie zuvor gelöst wurde.
0
1

20
DE
Krone
Positionen
Verschraubte
Krone
Offene
Abdeckung
Chronograph
Sekundenzeiger
Stundenzeiger
Sekundenzeiger
Chronograph
Minutenzeiger
Datum
Innen Drehen Bezel
0 1 2 3
Minutenzeiger
Druckknopf A
Druckknopf B
Krone Für
Innen Drehen
Bezel
QUARZ CHRONOGRAPH MIT DATUM
Wie Ihre Uhr über eine verschraubte Krone verfügt, lösen Sie die verschraubte
Position.
