Numark CDMIX3 User manual

MODEL NO.:CD MIX-3
Contents
Caution 1-2
Specification 3-5
Block Diagram 6
Packing View 7
Packing View Part List 8
Point To Point Wiring Diagram 9
Exploded View 10
Exploded View Part List 11-13
Electrical Part List 14-27
Schematic Diagram 28-38
Printed Circuit Board Diagram 39-47
IC Block Diagram 48-66
Trouble Shooting 67
SERVICE MANUAL
CD MIX-3

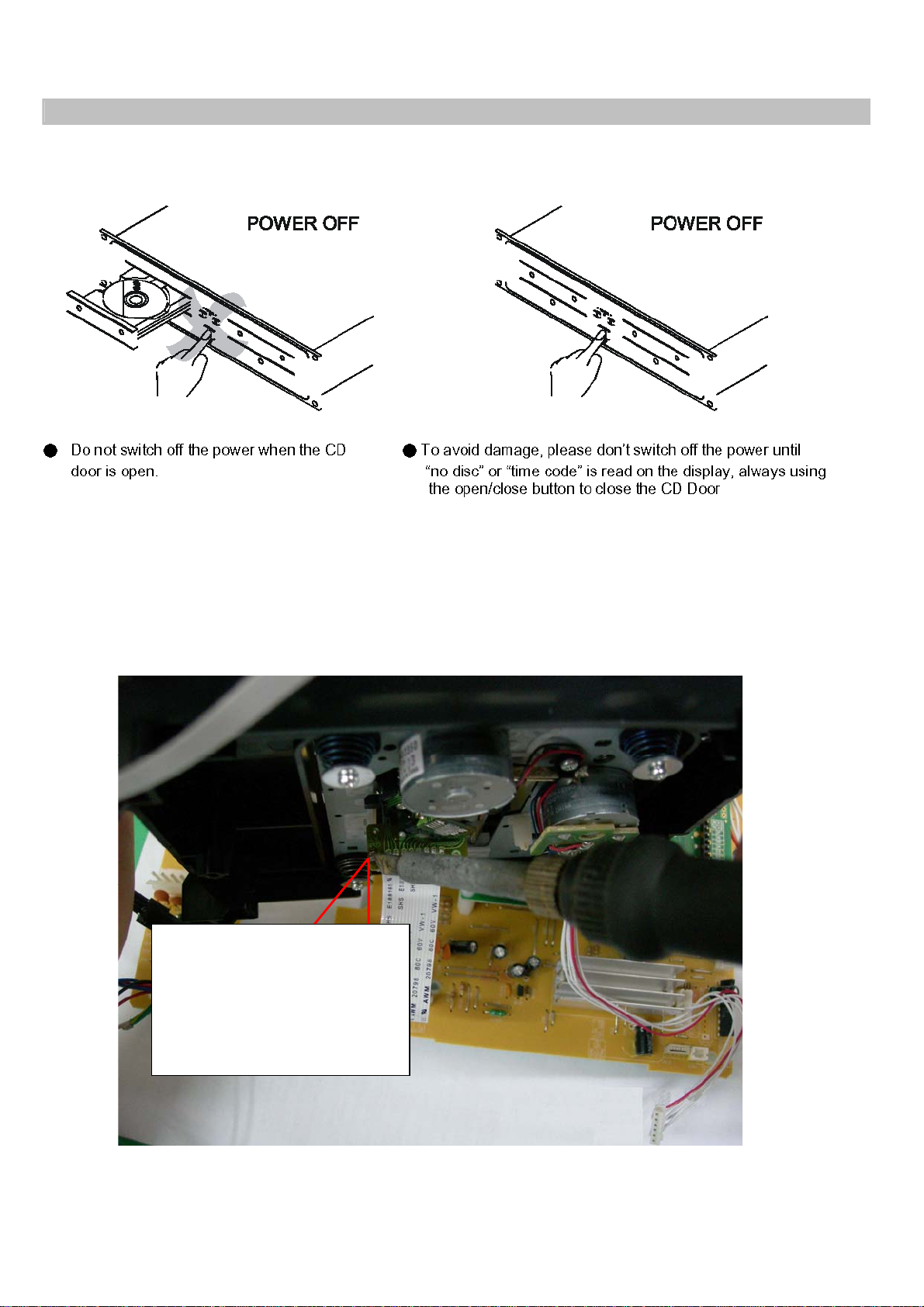

Caution
1: Do not forcibly close the CD door when the power is off.
2: To prevent destroying the anti-static protection for the mechanism, please kindly be noted of the
following important instruction for installing/disassembling the mechanism:
a. When disassembling the mechanism, please make sure to turn off power and short the Anti-static
protection welding point before removing the FFC cable.
b. When assembling the mechanism, please make sure to connect the FFC cable and PCB before
removing the Anti-static welding point, then, turn on the power.
FFC cord should be inserted in
PCB before pushing the static
solder protection aside. And
FFC cord won t be took off till
shorten static protection when
taking Mecha apart.
1

Caution
3: 3-1. Please be aware of wearing an anti-static ring before repairing
3-2. It is forbiddance to adjust the laser pick up VR.
3-3.To protect the mechanism; always short the Anti-static protection welding point before removing
the mechanism.
2

General Specification
1. APPLICATION Model CD MIX-3, Twin front loading CD/MP3 player with mixer.
2. POWER SOURCE DC 12V, 3.0A
3. DIMENSIONS 445(W) x258(D) x156(H)
4. WEIGHT 5.5Kgs
5. FEATURES
(1) Electronic Anti-shock CD player System.
(2) Seamless Loop play.
(3) Quick Start.
(3) Super wide viewing angle display.
(4) Cross Fader Start.
6.
6-1 CD PLAYABILITY
ITEM NORMAL LIMIT CONDITION
(1) Interruption 1000um 800um TCD-725
(2) Black dot 1000um 600um TCD-725
(3) Finger prints 75um 65um TCD-725
(4) Eccentricity 140um 140um TCD-712
(5) Vertical deviation 1mm 500um TCD-731R
6-2 MP3(TEST DISC:TCD-MP3,LOAD=47KOHM)
ITEM NORMAL LIMIT CONDITION
(1) S/N(*2) 101dB 80dB TCD-MP3 NO.2
(2) R CHANNEL SEPARATION(*2) 100dB 60dB TCD-MP3 NO.3
(3) L CHANNEL SEPARATION(*2) 100dB 60dB TCD-MP3 NO.4
(4) THD+N(*1) 0.03% 0.065% TCD-MP3 NO.1
Note: *1:WITH 20KHz LOW PASS FILTER.*2:WITH 20KHz LOW PASS FILTER AND “IHF-A” WEIGHTED.
*3:0dBV=1Vrms. Master is set to 0dBV output.
7. CD ACCESS TIME (TEST DISC: TCD-792)
ITEM NORMAL LIMIT CONDITION
(1) Short access time 1.7sec 4sec Play next track
(2) Long access time 3sec 6sec Track 1 ->Track 20
8. AUDIO CHARACTERISTICS (LOAD=47K OHM FOR MASTER OUTPUT<RCA>)(LOAD=600Ω(XLR)
8-1 INPUT TERMINAL (INPUT LEVEL/IMPEDANCE):
CD -14dBV/5K OHM +/-2dB TCD-782 (Track 16)
LINE1 -14dBV/10K OHM +/-2dB
LINE2,3 -14dBV/47K OHM +/-2dB
PHONO -50dBV/47K OHM +/-2dB
MIC -53dBV/2.2K OHM +/-2dB
NOTE: 0dBV=1Vrms. Master is set to 0dBV output.
8-2 OUTPUT TERAINAL (OUTPUT LEVEL/IMPEDANCE):
ITEM OUTPUT
MASTER OUT (RCA) 0dBV(1.0V)/600 OHM
MASTER OUT (XLR) -2.2dB(815mV)/940 OHM +/-2dBV
PHONES (LOAD=32 OHM) -6dBV(0.5V)/33 OHM +/-2dBV
8-3 Max. OUTPUT (THD=10%)
MASTER MORE THAN +17dBV (7V)
PHONES (LOAD=32 OHM) MORE THAN +5dBV (1.8V)
8-4 CHANNEL BALANCE WITHIN 3dB
3

General Specification
8-5 FREQUENCY RESPONSE:
CD/LINE 20-20KHz +1, -1.5dB TCD-782 (Track 3,7)
PHONO 20-20KHz +2, -2.5dB/RIAA
MIC 20-20KHz +1, /-3dB
8-6 OUTPUT NOISE (W/ 20KHz LPF AND IEC-A WEIGHTED)
LINE LESS THEN –75dB
PHONO LESS THEN –60dB
MIC LESS THEN –55dB
8-7 CD S/N RATIO MORE THAN 80dB TCD-782 (Track 8)
NOTE:CD 0dB OUTPUT, MASTER IS SET TO 0dBV OUTPUT. TCD-782 (Track 2)
8-8 TOTAL HARMONIC DISTORTION:
FROM MASTER OUT
CD/LINE LESS THAN 0.05% TCD-782 (Track 2)
PHONO/MIC LESS THAN 0.13%
FROM
PHONES OUT (LOAD=32 OHM) LESS THAN 0.25%
NOTE:
OUTPUT=0dBV,1KHz. TCD-782 (Track 2)
WITH 20KHz LPF AND 200Hz HPF.
8-9 CROSSTALK:
CD MORE THAN 60dB AT 1KHz TCD-782 (Track 9.11)
LINE/PHONO MORE THAN 55dB AT 1KHz
PHONO WITH 20KHz LPF AND 200Hz HPF
NOTE:
OUTPUT=0dBV,1KHz. TCD-782 (Track 2)
(W/ 20KHz LPF AND IEC-A WEIGHTED)
8-10 EQUALIZER: TCD-782 (Track 15,16,17 or S.G)
CHANNEL:
LOW +6 +/- 1dB LESS THAN –5dB AT 100Hz
HI +6 +/- 1dB LESS THAN –5dB AT 10KHz
MIC1:
LOW +12 +/- 1.5dB LESS THAN –10.5dB AT 100Hz
HI +12 +/- 1.5dB LESS THAN –10.5dB AT 10KHz
MASTER:
LOW +10 +/- 1.5dB LESS THAN –8.5dB AT 100Hz
MID +10 +/- 1.5dB LESS THAN –8.5dB AT 1KHz
HI +10 +/- 1.5dB LESS THAN –8.5dB AT 10KHz
9. CD PICK-UP (KSM-213CLCM)
(1) System Object lens drive system optical pick-up
(2) Object lens drive system 2 dimensional paralled drive
(3) Tracking detection 3 spot beam detection
(4) Optical source Semiconductor laser
(5) Wave length 780nm
10. GENERAL
(1) CD Player System Compact Disc Digital Audio
(2) Disc loading Front loading
(3) Display 11 Digital LCD Display
4

General Specification
11. ENVIRONMENTAL CONDITION
(1) Operating Temperature 5 to 35 deg. C
(2) Humidity 25 to 85% RH (non-condensing)
(3) Storage Temperature -20 to 60 deg. C
12. ACCESSORIES
(1) Operating Instruction 1 pc
(2) AC to DC power adaptor 1 pc
13. NOTES
(1) The specifications are subject to change to any improvement by negotiations in advance.
(2) The parts are subject to change to any improvement within the range of the specifications.
14. MP3 FORMAT
Applicable file extensions mp3 . MP3 . mP3 . Mp3
Level 1(max. 8”/8.3” character style)
ISO9660 Level 2(max. 31/30 character style)
Joliet max. 64/64 character style
CD-ROM sector format mode-1 only
Max. number of Folders 255
Disc Format
Max. number of files max. 999 files (* note #1)
MPEG 1 Layer 3 standard (ISO/IEC
11172-3), which provides for single
channel (‘mono’) and two-channel
(‘stereo’) coding at sampling rates of
32, 44.1 and 48kHz.
MPEG 2 Layer 3 standard (ISO/IEC
13818-3), which provides for similar
coding at sampling rates of 16, 22.05
and 24 kHz.
MP3 Format
MPEG 2.5 Layer 3 standard, which
provides for similar coding at
sampling rates of 8, 11.025 and 12
kHz.
Disc at Once and Track at Once
Disc Writing Method Multi Session
If the 1st session is CDDA, you can playback
Only CDDA track, If the 1st session is
MP3, you can playback only MP3 file.
Note #1: max.255 files each folder
5

1234
A B C D
4
321
D
C B ATitle
Number RevisionSize
A4
Date: 28-Sep-2005 Sheet of File: D:\ \CD\CDMIX3\CDMIX3 .DDB
俞錦華專檔 方塊圖Drawn By:
FUSE
POWER
SW
RIPPLE FILTER
REGULATOR
DC TO DC
CONVERTER
BA08
REGULATOR
7805
RESET
CIRCUIT
+12V
+8V
-12V
+5V
POWER PCB
6.4mmJK 3.5mmJK
HEADPHOME PCB
MAX003
LCD
DISPLAY
LCD DRIVE
IC
ST7066U
LED
SW
29C011 ROM
PITCH
VR
JOG
SHUTTLE
DXA3068
CD DSP
DRIVER
BA5979 CD ASP
CXA2581
DRIVER BA6218
SERVO CPU
SM8952
FX DSP
MCF5249
CPLD
XC9536
RAM
4641632
ROM
29LV160
DAC
PCM1716
CD PICK UP
TRACKING
FOCUS
M
- +
SLED
M
- +
DISC
M
- +
LOADING
SWITCHES
DRIVE UNIT
LOADER CONTROL PCB
BUFFER PCB
SERVO PCB
PHONO2/LINE2
PHONO3/LINE3
AUX1 IN
LINE
AUX2 IN
CH2 CH3
SEL SEL
MIC EQ IC304 AMP
CH3 FADER
CH2 FADER
CH1
FADER
CH2 EQ CH3 EQ
CROSS FADER
CUE1 CUE2 CUE3
MC1
FADER
PGM
CUE
IC307 AMP
EQ ST/MONO MUTE
MASTER
VOLUME IC310 AMP
MUTE
IC312AMP
IC314 AMP
IC311 LPF IC313 LPF
TRE
TRE BAS
BAS
IC301 AMP
IC302 AMP
IC303B AMP IC303A AMP
MIC2 LINE1
CH1 SEL
IC306 AMP CUE
LEVELMIXNG
CUE
MID TREBAS
IC308 AMP MASTER
OUT PUT
OUT PUT PCB
LEVEL METER
DRIVE
MUTE
MUTE
BLANCED
OUT PUT
BLANCED OUTPUT PCB
INVERTER
LEVEL
METER
C.F POSITION
DETECTOR
IC305 AMP
CD2
CD1
MIC1 IN
MIC2 IN
LEVEL METER PCB
CD1
DC
JACK
MIXER PCB
CD2

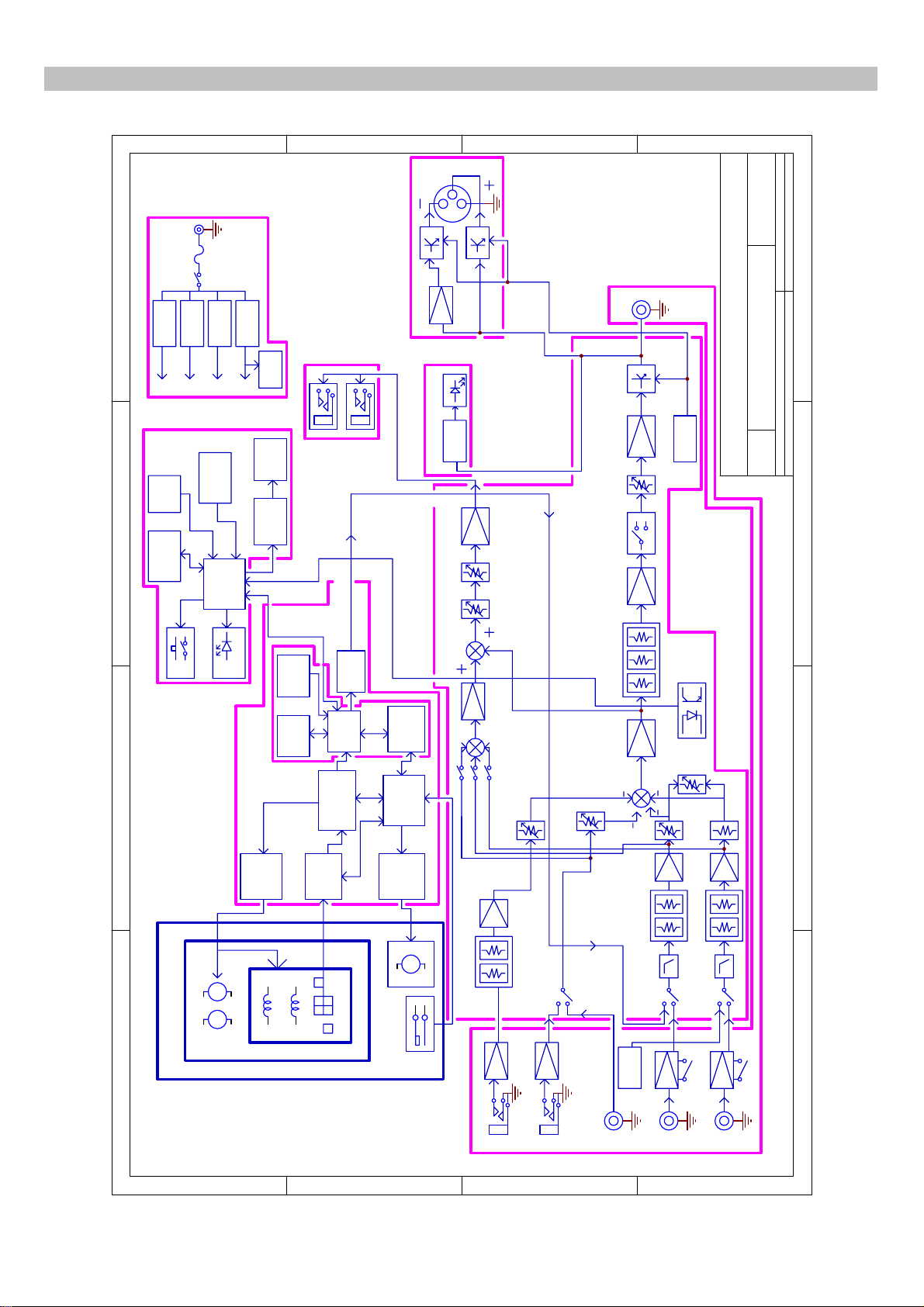

Block Diagram
CD MIX-3 BLOCK DDIAGRAM
6

Packing View

11
3
2
6
1
10
9
44
CD MIX-3
Numark
CD MIX-3
Numark
4
CD MIX-3
Numark
Numark
CD MIX-3
4
44
CD MIX-3
Numark
CD MIX-3
CD MIX-3
Numark
5
Numark
4
78
7

Packing View Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
1 POLYFAOM L 506-CDMIX1-223LA 1
2 POLYFAOM R 506-CDMIX1-223RB 1
3 SOFT BAG 509-CDMIX1-107 1
SWITCHING TRANSFORMER(100~240V/50-60HZ,DC12V/3000mA,UL TYPE) 411-X1G-478 1 American
SWITCHING TRANSFORMER(100~240V/50-60HZ,DC12V/3000mA,VDE TYPE) 411-X1G-479 1 Europe
SWITCHING TRANSFORMER(230V/50HZ,DC9V/200mA,BS TYPE) 411-X1G-480 1 United kingdom
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,SAA TYPE) 411-MX3-488 1 Australia
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,K TYPE) 411-MX3-489 1 Korea
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,T TYPE) 411-MX3-490 1 Japan
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,IRAM TYPE) 411-MX3-491 1 Argentina
5 LABEL FOR REANSFORMER 501-KMX01-1355 1
6 POLYFAOM 506-KMX01-438 . 1
7 APPENDAGE LABEL 501-CDMIX1-1190 1
8CAUTION LABEL FOR POLYFOAM(90*48mm,t=0.1mm) 501-CDMIX1-1845 1
701-MIX3A-3482 1 American,Europe,United
kingdom,AustraliaKorea,Ja
pan
701-MIX3G-4035 1 Argentina
10 UNIT CD MIX-3A~G 1
11 GIFT BOX 507-MIX3A-2625 1
4
9 I/B ASS’Y
8

Point to Point Wiring Diagram
CN502
CN107
CN05
CN09
CN08
CN507
CN05 CN05
W106
W506
CN04
CN302
OUTPUT PCB
POWER PCB
CN307
CROSS FADER PCB
SWITCH PCB
TO MECHA ASS'Y
CN310 CN311
CN312
CN301
MIXER PCB
HEADPHONE PCB
CN314
CN05A
LEVER METER PCB
W315
BALANCE OUTPUT PCB
CONTROL PCB
CN315
TO POWER S.W.
TO MIX PCB CN309
W204
CN306
TO MIX PCB W304 CN310
BUFFER PCB
CN101 CN501
TO MECHA ASS'Y
BUFFER PCB
W11W12
CN12 CN11
MIC PCB
CN301A
CN301B
SERVO PCB
CN103
CN102
CN07A
CN07B
CN503
CN01
W505
CN01
W105
W401
CN401
9

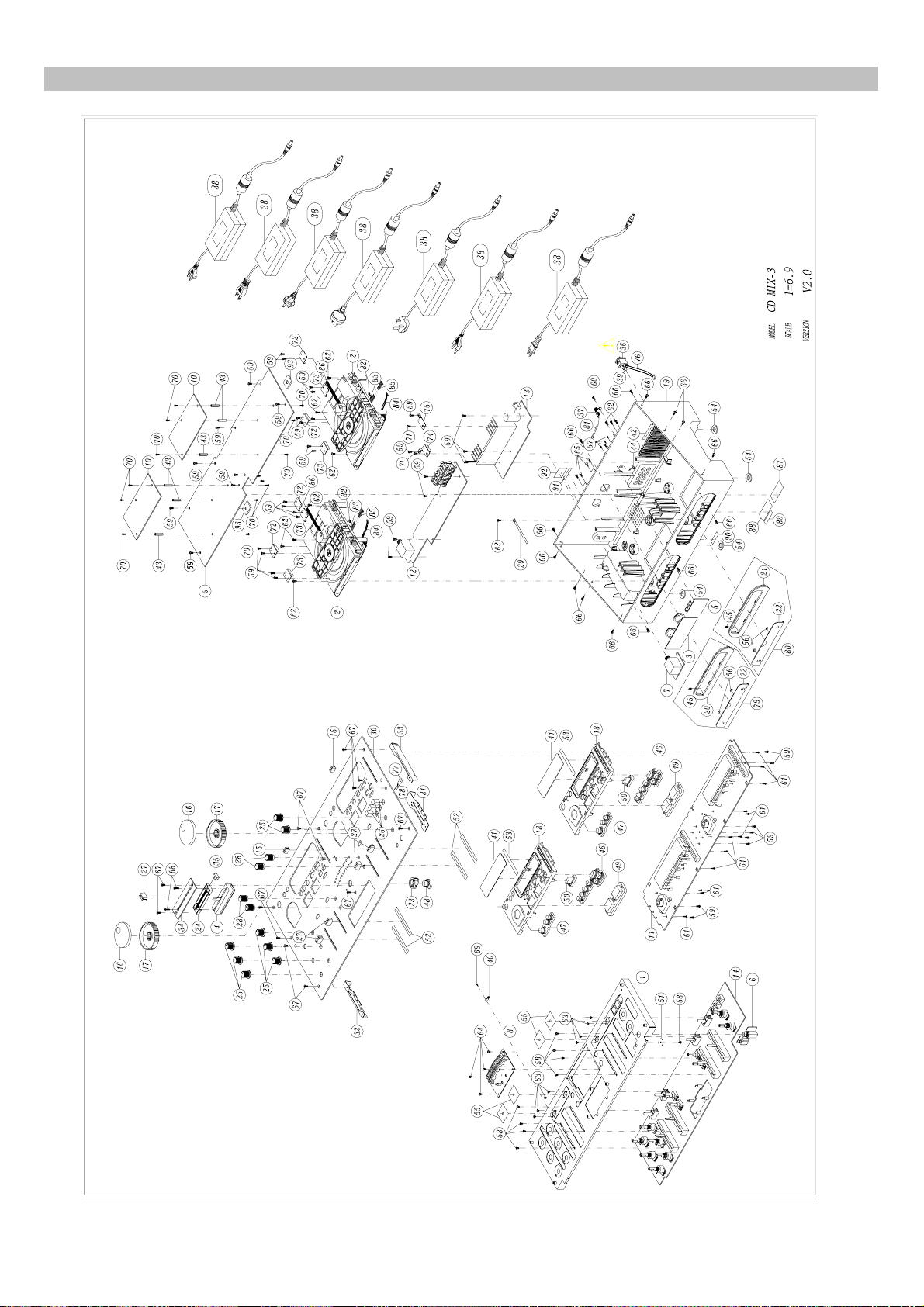

Exploded View
Japan
Numark
CD MIX-3
Korea
CD MIX-3
Numark
Australia
CD MIX-3
Numark
United kingdom
Numark
CD MIX-3
Europe
CD MIX-3
Numark
Argentina
Numark
CD MIX-3
CD MIX-3
American
Numark
10

Exploded View Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
1 FRONT CHASSIS ASS'Y 703-CDMIX2-533 1
2 MECHA ASS'Y 704-HDJ201-162 2
3 BALANCE OUTPUT PCB ASS'Y 704-KMX01-5873 1
4 CROSS FADER PCB ASS'Y 704-CDMIX1-2283 1
5 SW PCB ASS'Y 704-CDMIX2-3179 1
6 HEADPHONE PCB ASS'Y 704-CDMIX2-3180 1
7 MIC PCB ASS'Y 704-CDMIX2-3181 1
8 LEVER METER PCB ASS'Y 704-MX3-7813 1
9 SERVO PCB ASS'Y 704-MX3-8248 1
10 BUFFER PCB ASS'Y 704-MX3-5627 2
11 CONTROL PCB ASS'Y 704-MX3-5628 1
12 OUTPUT PCB ASS'Y 704-MX3-5865 1
POER PCB ASS’Y 704-MX3-5936 1 American, Japan
POWER PCB ASS'Y 704-MX3-5866 1 Europe,United
kingdom,Australia,Kore
a, Argentina
14 MIXER PCB ASS'Y 704-MX3-7818 1
15 CONTROLER PITCH KNOB 100-MIX3A-985 2
16 SHUTTLE TUNING KNOB 100-MIX2U1-1228 2
17 JOG TUNING KNOB 100-CDMIX2-1229A 2
18 FRAME PLASTIC(ABS) 100-MIX3-1280B 2
19 BUTTOM BASE 100-MIX3A-1540C 1
20 CD FRAME ( CD A ) 100-MIX2U1-1541A 1
21 CD FRAME ( CD B ) 100-MIX2A1-1541A 1
22 CD DOOR 100-MIX1A1-1542A 2
23 KNOB BASE 100-CDMIX1-1544 1
24 VR BASE(LONG) 100-CDMIX1-1545 1
25 ROTATE KNOB(ABS) 100-MIX3A-1547 8
26 SOUARE KNOB 100-Q2221-1662 3
27 PUSH KNOB(ABS) 100-MIX3A-1736 5
28 KNOB ASS'Y 701-MIX3A-4183 4
29 WINDING FIXTURE(WC-1A) 300-HM510B-224 1
30 FRONT PANEL 300-MIX3A-611B 1
31 CNTER BRACKET 300-CDMIX1-613 1
32 LEFT BRACKET 300-CDMIX1-614 1
33 RIGHT BRACKET 300-CDMIX1-615 1
34 SMALL PLATE 300-MIX3A-616 1
35 GROUNDING SHIELD 300-CDMIX1-652 1
36 POWER SW 403-DJ1-107A 1
37 BOLT TERMINAL(BT01-A) 404-CDMIX1-970 1
SWITCHING TRANSFORMER(100~240V/50-60HZ,DC12V/3000mA,UL TYPE) 411-X1G-478 1 American
SWITCHING TRANSFORMER(100~240V/50-60HZ,DC12V/3000mA,VDE TYPE) 411-X1G-479 1 Europe
SWITCHING TRANSFORMER(230V/50HZ,DC9V/200mA,BS TYPE) 411-X1G-480 1 United kingdom
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,SAA TYPE) 411-MX3-488 1 Australia
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,K TYPE) 411-MX3-489 1 Korea
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,T TYPE) 411-MX3-490 1 Japan
SWITCHING TRANSFORMER(AC100~240V,47~63Hz,+12V,-+,∮5.5*2.5,IRAM TYPE) 411-MX3-491 1 Argentina
13
38
11

Exploded View Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
39 CERAMIC CAPACITOR(0.01uF/50V,Z,TAPING 6,Z5V) 413-3113-028 1
40 TRANSISTOR(2SB1274) 416-HC1421FR-056 1
41 DECORATIVE PLATE 501-MIX3A-1120 2
FUSE LABEL 501-MIX1NS-1298 1 American, Japan
FUSE LABEL(46*6mm,t=0.08mm) 501-CDMIX1-1298A 1 Europe,United
kingdom,Australia,Kore
a, Argentina
43 SPACER SUPPORT(H-17,WHITE,H=17.1,∮5.5) 504-SPANDMK2-156 6
44 NUT(M3*P0.5) 601-A100-004 1
45 CD SPRING 603-PRODJ2-224A 2
46 KNOB ( SILICA GEL 7PCS ) 604-MIX3A-126A 2
47 KNOB ( SILICA GEL 3PCS ) 604-MIX3A-127 2
48 KNOB(SILICA GEL) 604-MIX3A-130 1
49 CUE/PLAY KNOB 604-MIX2U1-173 2
50 RELOOP KNOB 604-MIX2U1-183 2
51 FIXED CENTER WASHER 606-C426-066 1
52 HIMILON 612-HDJ100-045 4
53 VR CUSHION(75.5*8.5*0.3t) 612-HDJ7000-056A 2
54 FOOT 612-DCM370-067 4
55 HIMILON(30*30mm) 612-CDMIX1-078 4
56 SHEET 612-PRODJ2-082 4
57 SCREW 602-F200-004 4
58 SCREW(SAE1018,ISOP,∮3*L5*P0.5) 602-B300-041 9
59 SCREW(3*8mm BTP) 602-2002-077 39
60 SCREW(M3*8,P=0.5,BLACK) 602-2002-085 1
61 SCREW(SAE1018,PTP,M2.6*L8) 602-SL24F-099 12
62 SCREW((PTP,M3*10) 602-MK7-131 12
63 SCREW(SAE1018,WJMP,∮2.6*L4*P0.45,CAP∮6.5) 602-MK7-134 8
64 SCREW(3*5mm,BLACK) 602-KE200-145 4
65 SCREW (M3*8 BTF) 602-KMD510-161 4
66 SCREW(3*L8) 602-HP1010K-175 14
67 SCREW(SAE1018,ISO,∮3*L8*P0.5,NI) 602-CDN34A-262 13
68 SCREW(M3*P0.5*12L) 602-CDMIX1-302 2
69 SCREW (BTB 3*6ES ,BLACK) 602-CDC2050-345 1
70 PLASTIC SCREW(S-306-N66) 602-SPANDMK2-536 12
71 SCREW 602-HDJ7000-353 2
72 MECHA.FIXER 300-CDMIX1-1278A 4
73 MECHA.FIXER 300-CDMIX1-1278 4
74 HEAT.SINK.FIXER 300-CDMIX2-1302L 1
75 HEAT.SINK.FIXER. 300-CDMIX2-1302R 1
76 2P 2.5CONNECTOR WIRE(L=100mm,AWM1007 AWG26) 404-CDMIX1-945 1
77 GROUNDING SHIELD 300-F202-001 1
78 1P LEAD WIRE(L=50mm,AWM1007 AWG26,BLACK) 406-HDJ2100-414 1
79 CD FRAME ASS'Y(CD A) 701-MIX2U1-2802 1
80 CD FRAME ASS'Y(CD B) 701-MIX2U1-2803 1
42
12

Exploded View Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
81 GROUND WIRE(L=100mm,AWM1007 AWG24.BLACK) 406-CDMIX1-486 1
82 GROUNDING SHIELD 300-F202-001 2
83 1P LEAD WIRE(L=60mm,AWM1007,AWG28,TS,BLACK) 406-CDMIX2-701 2
84 5P CONNECTOR WIRE(L=230mm,AWM1007 AWG26,P=2mm) 404-DJ1-906 2 LEFT MECHA TO
CN103,RIGHT MECHA
TO CN503
85 6P CONNECTOR WIRE 404-CDMIX2-1717 2 LEFT MECHA TO
CN102,RIGHT MECHA
TO CN502
86 16P RIBBON WIRE(L=170mm,P=1mm,AWM2096 S TYPE) 406-DJ2-515 2 LEFT MECHA TO
CN101,RIGHT MECHA
TO CN501
RATING LABEL 501-MIX3A-1325 1 American,Europe,Unite
d
kingdom,Australia,Japa
n,Argentina
VFS LABEL(55*45mm,t=0.1mm) 501-CDN34D1-1400 1 Korea
88 STICKER(CLASS 1) 501-1420SRD-867 1
89 BAR CODE 701-MIX3A-3314 1
90 C-TICK LABEL 501-CDN88D-1505 1 Australia
91 DATE LABEL 501-DV300-1067
92 FCC LABEL 501-SA12-1667B 1 American
93 DECORATION(t=0.3mm) 501-CDMIX2-1867 2
87
13

Servo PCB Ass'y Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
SERVO PCB ASS'Y 704-MX3-8248 1
FIXED (SECC 1.2t) 300-9700-1246 2
CN103,CN503 5P SOCKET(CKM2001WV-5P 180°WHITE) 404-1210S-094A 2
CN102,CN502 6P SOCKET(CKM2001WV-6P 180°WHITE) 404-3113-052A 2
CN04 26P FFC CONNECTOR 404-CDMIX2-1153 1
CN07A 9P SOCKET(CKM2001WV-9P 180°WHITE) 404-CDMIX2-1200A 1
CN104,CN504 12P SERIES FEMALE PCB CONNECTOR(H=8.42mm,180DEGREE 404-CDN22A-679 2
W105,W505 8P2.5 CONNECTOR WIRE(L=70mm,AWM1007 AWG26) 404-HPM11-1590 2
CN08 5P SOCKET(CKM2501-WV-5P,180° WHITE) 404-HV3500K-622A 1
CN05,CN507,CN09 4P SOCKET(CKM2501WV-4P 180°WHITE) 404-HV3500K-629A 3
CN07B 8P SOCKET(CKM2001WV-8P 180°WHITE) 404-KT300-079A 1
R.G.W 3P LEAD WIRE 404-MX3-2192 1
CN101,CN501 16P FFC CONNECTOR(P=1mm) 404-PRODJ2-866 2
CN107 4P SOCKET(CKM2501WV-4P 180°BLUE) 404-QSPAND-1183A 1
R170,R570 CARBON FILM RESISTOR(2.2 OHM,1/2W,J,T-52) 412-CDG9-408 2
RB101,RB501 THICK FILM RESISTOR NETWORKS(10K OHM,1/8W J,RA TYPE,7R8P) 412-DJ1-420 2
L105,L510,L511 CHOKE COIL(14*6mm,100MHZ,750ohm) 415-205-279 3
L110,L111 CHOKE COIL(BC 0610R6H-Y7(2.5)) 415-KM280A-021 2
IC106,IC506 IC(BA5979S,DIP-32) 417-DCM280-596 2
IC107,IC507 REVERSIZLE MOTOR DRIVER(BA6218/BA6418N) 417-KC720-049 2
HEAT SINK(16*16.5*45mm) 425-810-085 2
X102,X502 QUARTZ CRYSTAL(24MHz) 427-DRM120-095 2
X101,X501 CRYSTAL(33.8688MHZ) 427-DV330-043 2
SPACER SUPPORT 504-SPANDMK2-156 6
SCREW(JMP,2*5,NI) 602-9700-561 4
PLASTIC SCREW(S-306-N66) 602-SPANDMK2-536 6
R110,R134,R510,R534 CHIP RESISTOR(150K OHM,1/8W,0805,J,TP ,150V) 412-AMC110D-5079 4
R132,R532 CHIP RESISTOR(30K OHM,1/8W,J,TP 0805,150V) 412-CDMIX2-485 2
R124 CHIP RESISTOR((150 OHM,1/8W, 0805 ,J,TP,150V) 412-CDN88-032 1
R181,R581 CHIP RESISTOR(220K OHM,1/8W,0805,J,TP ,150V) 412-DFX1-569 2
J9,J183,J22,J38,J139,J151 CHIP RESISTOR(0 OHM,1/8W,1206,J,TP ,150V) 412-DJ3000-414 6
R185,R186,R187,R188,R1
89,R190,R191,R192,R193,
R194,R195,R196,R585,R5
86,R587,R588,R589,R590,
R591,R592,R593,R594,R5
95,R596
CHIP RESISTOR(100 OHM,1/8W,J,0805,150V) 412-DV330-304 24
R118,R518 CHIP RESISTOR(1K OHM,1/8W, 0805,J,TP 150V) 412-DV330-305 2
R119,R121,R138,R171,R1
78,R519,R521,R538,R571,
R578 CHIP RESISTOR(10K OHM,1/8W,0805,J,TP 150V) 412-DV330-306 10
R112,R122,R131,R522,R531 CHIP RESISTOR(100K OHM,1/8W, 0805,J,TP 150V) 412-DV330-307 5
R139,R539,R116,R516 CHIP RESISTOR(1M OHM,1/8W, 0805,J,TP 150V) 412-DV330-308 4
R105,R505 CHIP RESISTOR(120K OHM,1/8W, 0805,J,TP,150V) 412-DV330-310 2
R109 CHIP RESISTOR(27K OHM,1/8W,0805,J,TP 150V) 412-DV330-315 1
R117,R517 CHIP RESISTOR(3.3K OHM,1/8W, 0805,J,TP,150V) 412-DV330-317 2
14

Servo PCB Ass'y Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
R111,R511 CHIP RESISTOR(33K OHM,1/8W,0805,J,TP 150V) 412-DV330-318 2
R135,R136,R137,R536,R5
37,R130,R530,R535 CHIP RESISTOR(47K OHM,1/8W,0805,J,TP 150V) 412-DV330-321 8
R101,R102,R501,R502 CHIP RESISTOR(12K OHM,1/8W, 0805,J,TP,150V) 412-DV330-330 4
R113,R114,R129,R529 CHIP RESISTOR(15K OHM,1/8W,0805,J,TP 150V) 412-DV330-331 4
R584,R123,R125,R126,R1
73,R174,R175,R176,R184,
R198,R573,R574,R575,R5
76,R598 CHIP RESISTOR( 220 OHM,1/8W,0805,J,TP 150V ) 412-DV330-333 15
R142,R542 CHIP RESISTOR(10 OHM,1/8W, 0805,J,TP,150V) 412-DV330-344 2
R103,R503 CHIP RESISTOR(15 OHM,1/8W,J,TP 0805,150V) 412-HDJ11-711 2
R120,R520 CHIP RESISTOR(820K OHM,1/8W,0805,J,TP ,150V) 412-HDJ11-712 2
R161,R162,R561,R562,J75 CHIP RESISTOR (0 OHM,1/8W,0805,J,TP 150V) 412-HV3500K-367 5
R106,R506 CHIP RESISTOR(4.3K OHM,1/8W, 0805,J,TP,50V) 412-M5-667 2
R179,R579 CHIP RESISTOR (1.5K OHM,1/8W, 0805,J,TP,150V ) 412-QMX1-035 2
R183,R583,R115,R182,R5
15,R582 CHIP RESISTOR((470K OHM,1/8W, 0805,J,TP 150V) 412-QMX2-120 6
R104,R180,R580 CHIP RESISTOR (470 OHM,1/8W, 0805,J,TP,150V) 412-VCDG3-395 3
C110,C112,C123,C523 CHIP CAPACITOR(220pF/50V,J,0805 TYPE,NPO) 413-AMC110D-5104 4
C139,C539 CHIP CAPACITOR(100pF/50V,J,0805 TYPE,NPO) 413-DV330-310 2
C115,C515 CHIP CAPACITOR(1000pF/50V,J,0805 TYPE,NPO) 413-DV330-311 2
C125,C525 CHIP CAPACITOR(0.01uF/50V,K,0805 TYPE,X7R) 413-DV330-312 2
C111,C138,C183,C518,C5
36,C538,C529,C103,C105,
C106,C113,C114,C116,C1
17,C118,C127,C128,C129,
C134,C136,C141,C144,C1
45,C163,C164,C176,C184,
C503,C513,C514,C516,C5
17,C527,C528,C531,C534,
C541,C543,C544,C545,C5
63,C564,C576,C583,C584
CHIP CAPACITOR(0.1uF/ 50V,Z,0805 TYPE,Y5V) 413-DV330-313 45
C174,C175,C574,C575 CHIP CAPACITOR(20pF/ 50V,J,0805 TYPE,NPO) 413-DV330-315 4
C520 CHIP CAPACITOR(5pF/50V,J,0805 TYPE,NPO) 413-DV330-325 1
C532 CHIP CAPACITOR(3300pF/50V,K,0805 TYPE,X7R) 413-DV330-329 1
C121,C521 CHIP CAPACITOR(0.047uF/50V,K,0805 TYPE,X7R) 413-HDJ9500-458 2
C122,C522 CHIP CAPACITOR(1500pF/50V,K,0805 TYPE,X7R) 413-PRODJ2-465 2
C133,C533 CHIP CAPACITOR(0.068uF) 413-SMX701-755 2
D101,D102,D501,D502 SWITCHING DIODE(1SS355,UMD2,SMD,TAPING) 414-CD1000-075 4
IC105,IC505 IC(BA033FP-E2,TO-252-3) 417-CTB200-500 2
IC104,IC504 IC(PCM1716E,28PIN,SOP) 417-DCM270X-327A 2
IC502,IC102 IC(CXD3068Q,QFP-80,SMD) 417-DCM280-587 2
IC101,IC501 IC(CXA-2581N,SSOP-30,SMD) 417-DCM280-588 2
IC103,IC503 SERVO IC ASS'Y(CHECK SUM:DED0/31) 704-M510-5514 2
IC(SM8952AC25J,PLCC-44) 417-HDJ2450-693C 1
C510,C512 CERAMIC CAPACITOR(220pF/50V,K,TAPING,Y5P) 413-3113-032 2
15

Servo PCB Ass'y Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
C143,C505,C131,C506,C511 CERAMIC CAPACITOR(0.1uF/50V,Z,TAPING,Y5V) 413-3113-035 5
C101,C102,C104,C108,C1
09,C126,C130,C146,C179,
C501,C502,C504,C508,C5
09,C526,C530,C546,C579
ELEC. CAPACITOR(100uF/10V,M,105℃,TAPING 5*11)(Cd,Pb,Hg,Cr) 413-3113-046 18
C140,C540,C161,C165,C1
66,C181,C182,C561,C565,
C566,C581,C582 ELEC. CAPACTIOR(10uF/25V,M,105℃,TAPING 5*11) 413-3113-052 12
C162,C562 ELEC. CAPACITOR(470uF/10V,M, 105℃,TAPING 8*12)(Cd,Pb,Hg,Cr) 413-HT8015-169 2
C135,C137,C535,C537 ELEC. CAPACITOR(220uF/10V,M,105℃,TAPING 6.3*11)(Cd,Pb,Hg,Cr 413-KC220-119 4
C132 CERAMIC CAPACITOR(3300pF/50V,K,TAPING,Y5P) 413-KMD510-151 1
C120 CERAMIC CAPACITOR(5pF/50V,C,TAPING,NPO) 413-KT350-092 1
C124,C524 ELEC. CAPACITOR(0.47uF/50V,M,105℃,TAPING 5*11)Cd,Pb,Hg,Cr) 413-KT350-093 2
Q101,Q501 TRANSISTOR( 2SA933SR TAPING OR 2SA608G) 416-3113-008 2
Q102,Q502 TRANSISTOR(DTA124ESTP TAPING OR 2SA1346) 416-KC710-038 2
SERVO PCB 405-MX3-2309 1
R512 CARBON FILM RESISTOR(100K OHM,1/6W,J,T-26) 412-3113-047 1
R513,R514 CARBON FILM RESISTOR(15K OHM,1/6W,J,T-26) 412-3113-053 2
R509 CARBON FILM RESISTOR((27K OHM,1/6W,J,T-26) 412-3113-054 1
R504 CARBON FILM RESISTOR(470 OHM,1/6W,J,T-26) 412-3113-056 1
R577,R523,R525,R526,R177 CARBON FILM RESISTOR(220 OHM,1/6W,J,T-26) 412-3113-058 5
R169,R569 CARBON FILM RESISTOR(22 OHM,1/4W,J,T-52) 412-3113-089 2
R524 CARBON FILM RESISTOR(150 OHM,1/6W,J,T-26) 412-KE200S-137 1
L105,L109,L505,L509 BEAD CORE(TB36-863445NP T-26mm) 415-HV3500K-090 4
L109,L509,L101,L104,L10
8,L501,L504,L508,L103,L1
07,L503,L507 INDUCTOR(10uH T-26mm) 415-MPG100-047 12
L102,L502 MICRO INDUCTOR(33uH) 415-RCC955A-094 2
16

Control PCB Ass'y Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
CONTROL PCB ASS'Y 704-MX3-5628 1
TONEARM TUBE 300-CD3000-474A 2
JOG201,JOG202 SRGP SW(SRGPHJ-A-3-1,8PIN) 403-HDJ7000-086 2
W506 3P 2.5CONNECTOR WIRE(L=340mm,AWM2468,AWG26) 404-MX3-2216 1
W106 3P 2.5CONNECTOR WIRE(L=270mm,AWM2468,AWG26) 404-MX3-2217 1
CN05A 4P 2.5 CONNECTOR WIRE(L=220mm,AWM2468,AWG26,BLACK/WHITE) 404-MX3-2940 1
CN204 4P 2.5 CONNECTOR WIRE(L=80mm,UL2547/1007,#28*2C/26,GRAY/RED) 404-MX3-2941 1
D210,D208,D206,D216,D2
18,D219 LED (6224-10ID-A,RED ) 410-CD6000-122 6
D209,D207,D215,D214 LED ( YELLOW ) 410-CD6000-123 4
D211,D217 LED ( GREEN ) 410-CD6000-124 2
LED201,LED202 BACKLIGHT( BCC-052503YN ) 410-HDJ7000-106A 0
LED201,LED202 BACKLIGHT(FTEC-LB10329AYG-7056-3,103.6*28.7mm ) 410-HDJ7000-106B 2
LCD201,LCD202 LCD(SV-NS293AGMP) 410-MX3-281A 2
RB203 THICK FILM RESISTOR NETWORKS(10K OHM,1/8W J,RA TYPE,4R5P) 412-HDJ200-264 1
R211,R212 CARBON FILM RESISTOR(22 OHM,1W,J,T-73) 412-HV3363K-350 2
RB201,RB202 THICK FILM RESISTOR NETWORKS(10K OHM,1/8W J,RA TYPE,6R7P ) 412-KMD280-165 2
CERAMIC CAPACITOR(0.1uF/50V,Z,TAPING,Y5V) 413-3113-035 1
C201,C203,C223,C225 ELEC. CAPACITOR(100uF/10V,M,105℃,TAPING 5*11)(Cd,Pb,Hg,Cr) 413-3113-046 4
FERRITE CORE(T22*6.4*13.7) 415-VP9812-221 2
VR201,VR202 SLIDE RESISTOR(10KB*2) 418-CD1000-052 2
X201 CRYSTAL(18.432MHZ) 427-DV330-042 1
D206,D207,D208,D209,D2
10,D211,D214,D215,D216,
D217,D218,D219 LED HOLDER(LED-7,H=7mm,WHITE) 504-CDN34A-042 12
R210,R213 CHIP RESISTOR(10K OHM,1/8W,J,TP 1206,150V) 412-810-967 2
R208,R238 CHIP RESISTOR(180 OHM,1/8W, 0805,J,TP 150V) 412-CTB200-573 2
J1,J2,J11,J12,J13,J16,J17,
J20,J23,J28,J30,J35,J37,J
38,J40,J48,J50,J51,J54,J6
3,J71,J74,J75,J76,J79,J88,
J93,J96,J98,J102,J104,J11
1,J120,J121,J122,J126,J12
7,J135,J136,J137,J138,J14
9,J150,J154,J15,J25,J125,
J61,J62,J90,J129,J155
CHIP RESISTOR(0 OHM,1/8W,1206,J,TP ,150V) 412-DJ3000-414 52
R246,R245,R224,R225 CHIP RESISTOR(10K OHM,1/8W,0805,J,TP 150V) 412-DV330-306 4
R203,R204,R205,R206,R2
07,R234,R235,R236,R237,
R239,R241,R242,R243,R2
44 CHIP RESISTOR( 2.2K OHM,1/8W,0805,J,TP 150V ) 412-DV330-313 14
R251,R252,R253,R254 CHIP RESISTOR( 220 OHM,1/8W,0805,J,TP 150V ) 412-DV330-333 4
R221 CHIP RESISTOR(560 OHM,1/8W, 0805,J,TP,150V) 412-DV330-336 1
R202,R240 CHIP RESISTOR(91K OHM,1/8W,J,TP 0805,150V) 412-HDJ9700-669 2
C210,C211,C215,C216 CHIP CAPACITOR(220pF/50V,J,0805 TYPE,NPO) 413-AMC110D-5104 4
C221,C217,C218,C219,C220 CHIP CAPACITOR(1000pF/50V,J,0805 TYPE,NPO) 413-DV330-311 5
17

Control PCB Ass'y Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
C222,C204,C205,C209,C2
08,C213,C212,C214 CHIP CAPACITOR(0.1uF/ 50V,Z,0805 TYPE,Y5V) 413-DV330-313 8
C207,C206 CHIP CAPACITOR(20pF/ 50V,J,0805 TYPE,NPO) 413-DV330-315 2
Q201,Q202 TRANSISTOR(DTC124EKAT146/DTC124EKA) 416-CDN88-044 2
Q203,Q204 TRANSISTOR(2SA1037AKT146R/2SA1037AKR) 416-CDN88-045 2
IC201 IC(HD6413008F25V,FP-100B) 417-DJ5500-578 1
IC203,IC204 IC(ST7066-0B-QG,QFP-80) 417-MX3-743 2
SW201,SW202,SW203,S
W204,SW205,SW206,SW2
07,SW208,SW209,SW210,
SW211,SW212,SW213,S
W214,SW215,SW216,SW2
17,SW218,SW219,SW220,
SW221,SW222,SW223,S
W224,SW225,SW226
TACT SW(H=5mm,TAPING) 403-DCM270X-101A 26
C202,C224 CERAMIC CAPACITOR(0.1uF/50V,Z,TAPING,Y5V) 413-3113-035 2
CONTROL PCB(ETL-XPC-204,94V0,120*424*1.6t) 405-MX3-1504A 1
R215,R217,R219,R220,R2
16,R218 CARBON FILM RESISTOR(270 OHM,1/6W,J,T-26) 412-3113-049 6
R102,R101 CARBON FILM RESISTOR(10K OHM,1/6W,J,T-26) 412-3113-068 2
D212,D213,D202,D203,D2
05,D204 SWITCHING DIODE(1SS133,300mw,55V,T-77) 414-3113-005 6
L201,L202 BEAD CORE(TB36-863445NP T-26mm) 415-HV3500K-090 2
IC202 CONTROL IC ASS'Y 704-MX3-5631C 1
IC(AT29LV010A-15JC,PLCC-32) 417-HDJ2000-413C 0
IC(AT29C010A-90JU,PLCC-32) 417-HDJ2000-413D 1
18

Mixer PCB Ass'y Part List
REF NO. DESCRIPTION PART NO. Q'TY REMARK
MIXER PCB ASS'Y 704-MX3-7818 1
SW303,SW304,SW305,SW307 LEVER SW(LBC22B-20K,6PIN) 403-CDMIX1-114 4
SW308,SW309,SW310 PUSH SW(SPEA12MC06-HF) 403-QMX1-056 3
W304 TO F/B 5P 2.0-2.5RIBBON WIRE(L=100mm,AWM2468 AWG26*5C) 404-CDMIX1-958 1
MIXER/B W315 6P CONNECTOR WIRE(L=220mm,AWM2547 AWG28*2C,P=2.5mm)(Cd,Pb) 404-CDMIX1-960 1
CN309 4P SERIES FEMALE PCB CONNECTORS 404-CDMIX1-971 1
CN302 26P FFC CONNECTOR(SMD) 404-CDMIX2-1143 1
CN310 3P SOCKET(CKM2501WR-3P 90°WHITE) 404-KMD3500-609A 1
3P WIRE(L=360mm) 404-MX3-2123 1
CN308 2P 2.5CONNECTOR WIRE(L=70mm,UL2468#26*2C,BLACK/WHITE) 404-MX3-2942 1
J66 JUMPER 406-3113-175 1
26P FFC CABLE(L=230mm,P=1mm) 406-CDMIX2-584 1
D303,D305 INFRARED EMITTONG MODULE( LTE-302-M ) 410-CDMIX1-147 2
C409,C410 ELEC. CAPACITOR(22uF/25V,M,105℃,TAPING 5*7,MINI)(Cd,Pb,Hg,C 413-CDMIX2-631 2
C394,C392 POLYESTER CAPACITOR(0.047uF/50V,J,TAPING) 413-KT300-099 2
C553 ELEC. CAPACITOR(220uF/16V,M,105℃,TAPING 6.3*11)(Cd,Pb,Hg,Cr 413-KT300-102 1
C339 ELEC.CAPACITOR(100uF/16V,M,105℃,TAPING 5*11) 413-PXE90-109 1
C370 ELEC. CAPACITOR(10uF/25V,M,105℃,TAPING 4*7,MINI)(Cd,Pb,Hg,C 413-SPPW3-235 1
W315 FERRITE CORE(T22*6.4*13.7) 415-VP9812-221 1
Q305,Q306 TRANSISTOR((2SC2878-B TO-92 (TE2.M) 416-AMC110A-5017 2
D304,D306 PHOTO TRANSISTOR(LTR-301) 416-DCM270X-120 2
Q308 TRANSISTOR(DTA124TS/2SA1589/DTA124TSATP,TAPING) 416-KE200S-024 1
IC304,IC305,IC306,IC308,I
C310,IC311,IC312,IC313,I
C314 IC(BA15218N,SIP8) 417-KT300-026 9
IC307 IC(NJM4556AL,SIP-8) 417-Q2221-180 1
VR301,VR302,VR303,VR311 SLIDE VR(10KA*2,RS45Y12G3060-HF) 418-CDMIX1-064 4
VR313,VR314,VR316,VR317 VR(50KB*2,RV112BC-40-325A-B54-0C) 418-CDMIX2-109 4
VR306 VR(10KB,RK16K1140034-10KB(HF)) 418-CDMIX2-110 1
VR307,VR308,VR309 VR(50KB*2,RK16K124A060-50KB*2(HF)) 418-CDMIX2-112 3
VR310,VR312 VR(50KB*2,RK16K12D0063-50KB*2(HF)) 418-CDMIX2-113 2
VR304,VR305 VR(50KB,RK16K1140051-50KB(HF)) 418-CDMIX2-126 2
D303,D304,D305,D306 LED HOLDER(LED-10.6,H=10.7mm,WHITE) 504-CDMIX1-059 4
J101,J102 CHIP RESISTOR(0 OHM,1/8W,1206,J,TP ,150V) 412-DJ3000-414 2
R502 CHIP RESISTOR( 3.9K OHM,1/8W, 0805,J,TP 150V) 412-DRM120-568 1
R353,R354 CHIP RESISTOR( 2.2K OHM,1/8W,0805,J,TP 150V ) 412-DV330-313 2
R359,R348,R349 CHIP RESISTOR(15K OHM,1/8W,0805,J,TP 150V) 412-DV330-331 3
C337 CHIP CAPACITOR(47pF/50V,J,0805 TYPE,NPO) 413-AMC110D-5094 1
C401,C402 CHIP CAPACITOR ( 680pF/50V,J,0805 TYPE,NPO) 413-CDN20-082 2
C403,C404 CHIP CAPACITOR(180pF/50V,J,0805 TYPE,NPO) 413-STR880-619 2
C381,C382 CERAMIC CAPACITOR(33pF/50V,J,TAPING,NPO) 413-3113-029 2
C362 CERAMIC CAPACITOR(220pF/50V,K,TAPING,Y5P) 413-3113-032 1
C547,C548 CERAMIC CAPACITOR(0.1uF/50V,Z,TAPING,Y5V) 413-3113-035 2
C371,C372,C369 ELEC. CAPACTIOR(10uF/25V,M,105℃,TAPING 5*11) 413-3113-052 3
C395,C397,C398,C396 POLYESTER CAPACITOR(0.01uF/50V,J,TAPING) 413-3113-057 4
19
