Numark Harrington SP-I-139NDG-BK User manual

1
Hardware
Harrington padded sling double glider
ASSEMBLY INSTRUCTIONS
SP-I-139NDG-BK & SP-I-139NDG-BN
Fb x 4
M6 x 25L Bolt
Fc x 2
M6 x 30L Bolt
Nut
Fe x 26
Metal Washer
Fa x 12 + 1 spare
M6 x 18L Bolt
Fd x 5
M6 x 50L Bolt
Ff x 4
Open Hex Wrench
Fh x 1
Plastic Washer
Fg x 4
Allen Wrench
Fi x 1
Questions, problems, missing parts with this product? Please contact us
at www.numarkcustomerservice.com

2
Parts
Back
Seat
A1 Left Arm
A2 Right Arm
B
C
D Base Leg
E Base Leg Connector
1
1
1
1
2
2
Assembly instruction
1
Don’t tighten completely.
Repeat procedure for the other arm.
Fc x 2
M6 x 30L Bolt
Fe x 6
Metal Washer
Fa x 4
M6 x 18L Bolt
A2 A1
B
C
D
D
E
E
A1
A2
B
Fa
Fe
Fe
Fc

3

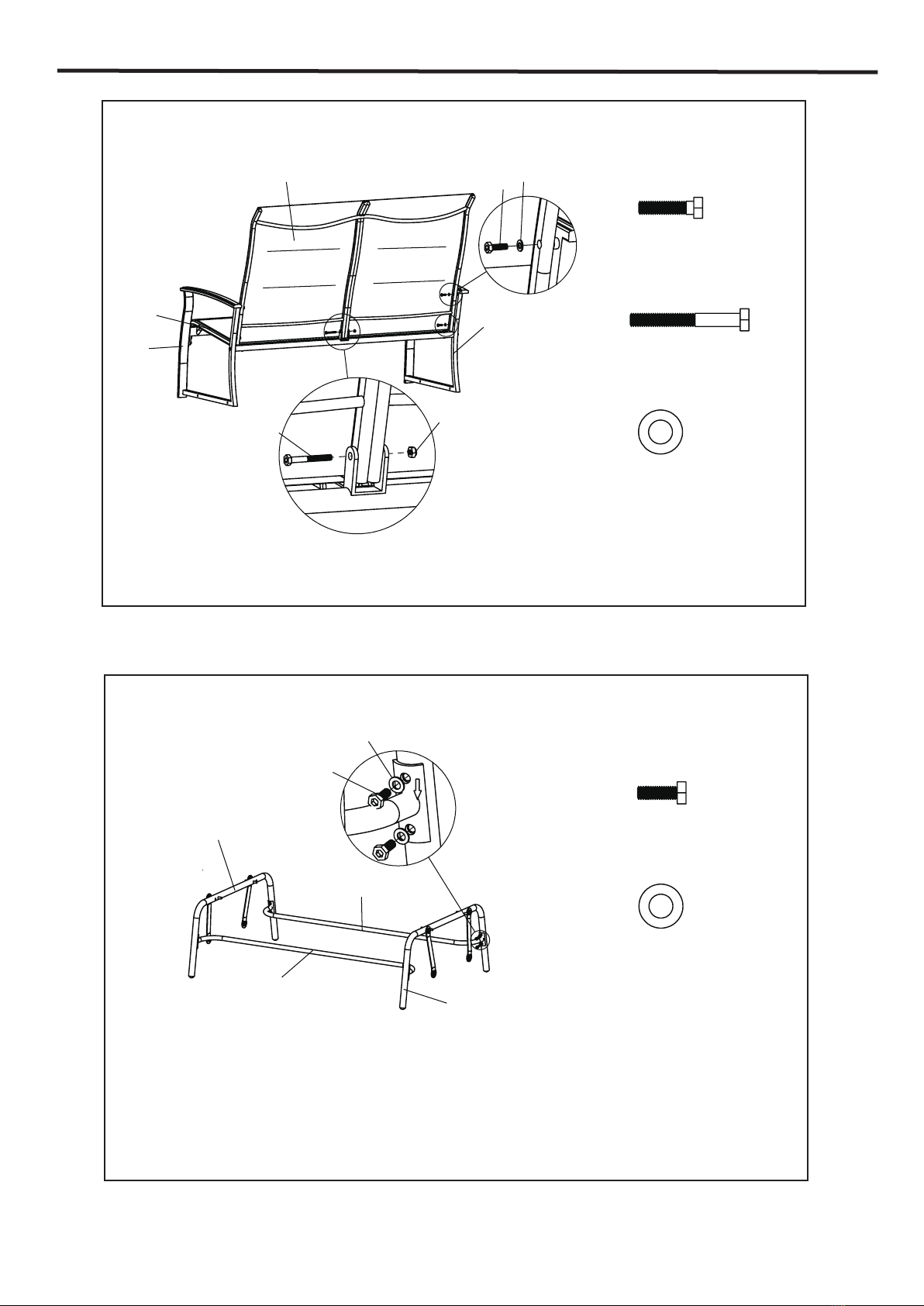

Assembly instruction
2
3
Don’t tighten completely.
Repeat procedure for the other side.
Note: the arrow should be towards downside when assembly.
Don’t tighten completely.
Repeat procedure for the other side and other connector.
Fb x 4
M6 x 25L Bolt
Fe x 4
Metal Washer
Fe x 8
Metal Washer
Fa x 8
M6 x 18L Bolt
A1
A2
C
B
Fb
Fe
Fd Ff
Fd x 1
M6 x 50L Bolt
D
E
E
D
Fa
Fe

4
4
Assembly instruction
5
Don’t tighten completely.
Repeat procedure for the other side.
Fe x 8
Metal Washer
Fd x 4
M6 x 50L Bolt
Nut
Ff x 4
Plastic Washer
Fg x 4
Securely tighten all bolts.
Now your glider is ready for use.
D
A1
A2
Fd
Fe
Fg
Fe
Ff
