Nuqleo Zing7 3G User manual

1
English User Manual
Brand Name: Nuqleo
Model Name: Zinq7 3G
FCC ID: JJMZINQ73G
This manual is to introduce the functions of the device, as well as
matter which need attention, Please read this manual before using
the device.

2
Announcements
Please keep the device from moist and dust.
Do not put the device in high-temperature environment,
especially closed car in hot weather.
Do not drop or strike the device.
Do not shake the device violently, especially the LCD screen
part, which will cause abnormal display on the screen.
Do not disconnect the device from PC when downloading,
uploading or formatting, or it will cause programming errors of
the device.
Do not use alcohol, thinner or benzene-chemical to clean the
surface of the device.
Do not use the device in forbidden place, like airplane.
Please back-up your files in device's memory always，The
manufacture is not responsible for the formatting of disk after
damage or repair of the device.
Do not refresh firmware privately without original manufacturer's
guidance. The manufacturer is not responsible for the
breakdown of the device caused by private firmware refresh.

3
Table of Contents
Table of Contents...........................................................................................3
1 appearance and button: .............................................................................4
2 Basic Key Operation...................................................................................4
3 Port Definition：............................................................................................5
4 Operation Interface of The Device..................................................................6
4.1 Main Interface Description....................................................6
4.2 Application Program Interface...............................................8
4.3 Pre-loaded Applications........................................................9
4.4 State Bar Description..........................................................11
5 Touch Panel Usages .....................................................................................11
6 Basic Setting of the Device............................................................................12
6.1 WIRELESS&NETWORKS..................................................12
6.1.1 Wi-Fi setting...........................................................................................................14
6.1.2 BIuetooth setting..................................................................................................14
6.1.3 Data usage information..........................................................................................15
6.1.4 More options..........................................................................................................15
6.2 Device.................................................................................16
6.2.1 Audio profiles .........................................................................................................17
6.2.2 Display: Display Parameters Setting .......................................................................17
6.2.3 Storage: Storage Parameters Information..............................................................18
6.2.4 Battery: Battery Parameters Information...............................................................19
6.2.5 Apps: Applications..................................................................................................19
6.3 Personal..............................................................................20
6.3.1 Location services: ...................................................................................................20
6.3.2 Security: .................................................................................................................21
6.3.3 Language & input: ..................................................................................................21
6.3.4 Backup & reset: ......................................................................................................22
6.3.5 Add account ...........................................................................................................22
6.4 System................................................................................23
6.4.1 Date & time:...........................................................................................................23
6.4.2 Accessibility: Miscellaneous Function Setting........................................................24
6.4.3 Developer options:.................................................................................................25
6.4.4 About tablet ...........................................................................................................26
7 Application Management & usage...........................................................26
7.1 Application Management ....................................................26
7.1.1 Install Android Applications ...................................................................................26
7.1.2 Applications uninstall .............................................................................................26
7.1.3 Application management.......................................................................................27
7.2Applications usage...............................................................27
7.2.1Browser ...................................................................................................................27
7.2.2 Camera ...................................................................................................................28
7.2.3 Video Play& Photo browser ...................................................................................29
7.2.4 Music Play ..............................................................................................................30
7.2.5 FM..........................................................................................................................31

4
8 FAQ............................................................................................................32
9 About Firmware Upgrading......................................................................33
1 appearance and button:
1.1 Front:
2 Basic Key Operation
Power Button Definition of the Device
2.1 Power Button Usage:
Turn On: Press the power button and hold for 3-5 seconds.

5
Turn Off: Press the power button and hold for 3-5 seconds, →click
OK.
Sleep Mode On/Off: Press & release the power button quickly to
turn sleep mode on and off.
2. 3 MENU & BACK
MENU: Open the menu option
BACK: In different application program, you can return to last
interface by clicking the icon on the left bottom of the main screen
3Port Definition：
3.1 TF Card:
3.11 Using TF Card: The device supports maximum 32GB TF card.
Insert your card into the TF slot until it clicks into place. It’s OK
3.12 Remove TF Card: Use the following methods to move the TF
card. Close all applications or documents which have been opened
on the card. Tap Settings → Storage →EXTSD → Unmount shared
storage →OK. Press the card lightly; it is partially ejected, allowing
you to pull the card out.
3.3 Reset: When the device is halted and can’t be turned off by
POWER button, users can launch the RESET function.
3.4 Micro USB：connect PC、charging 、OTG U-disk、USB
keyboard and USB mouse etc.

6
3.5 Earphone: 3.5 mm standard earphone jack.
4 Operation Interface of The Device
4.1 Main Interface Description
4.1.1 Press lock icon and move it out of circle, the screen will be
unlock.
☆Touch, hold and then slide icons to reposition then on the screen
☆Touch, hold and slide icons onto to remove them
from the Desktop screen, As the picture shown：

7
4.1.2 Change Wallpaper: Press screen until popup the following
interface
Choose the wallpaper that you need.

8

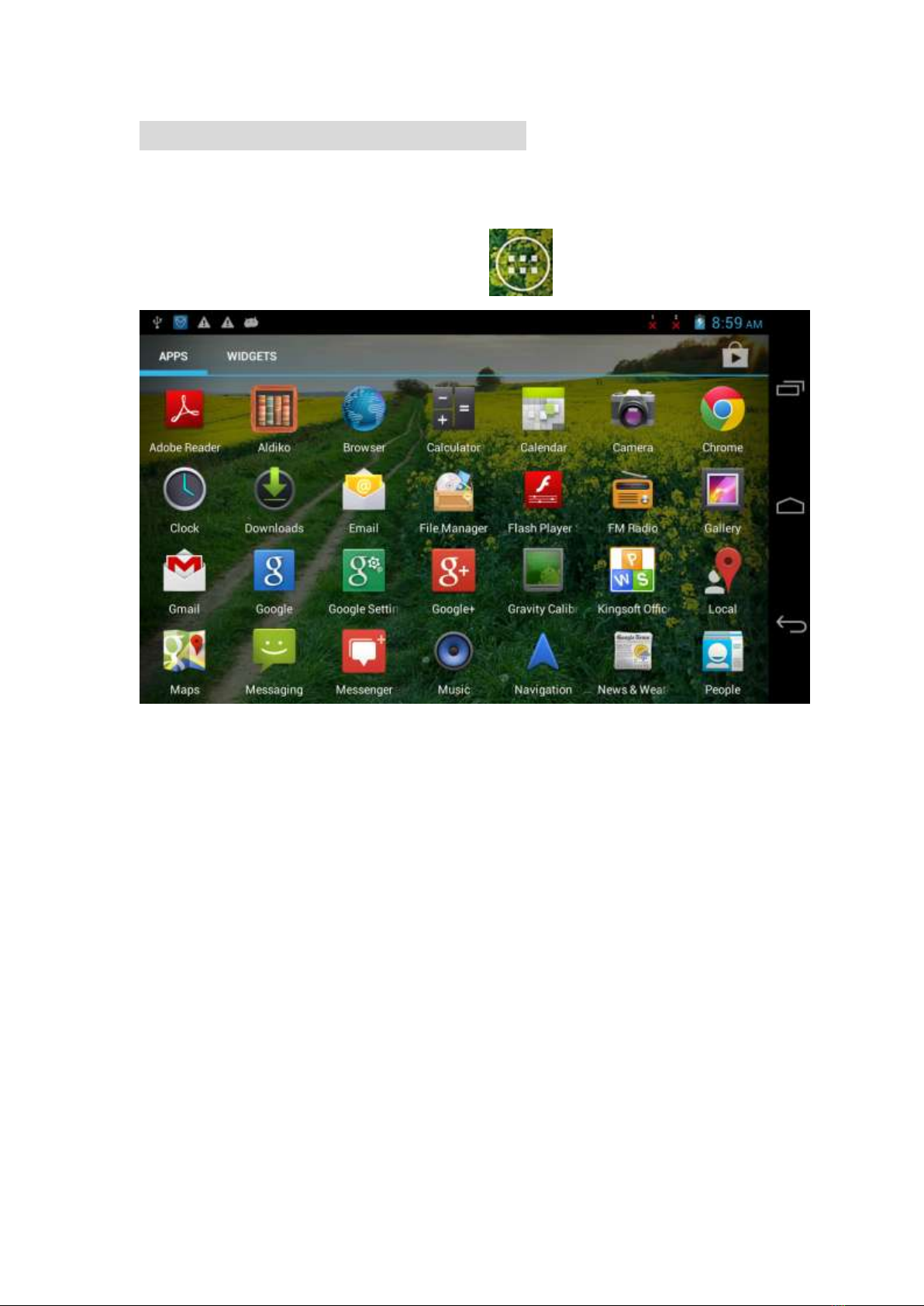

4.2 Application Program Interface
Enter into Application program Interface to choose the program that
you need to run by clicking the icon directly:
☆To move an icon to the Desktop screen, touch & hold on the
icon, and then release it when it appears on the Desktop
screen.

9
4.3 Pre-loaded Applications
Flash
Player
Connect to the adobe Settings
Manager.
Browser
Access the Internet and “surf the
web” whenever desired.
Calculator
Do calculation.
Calendar
Calendar with ability to set
events.
Camera
Take photos and save to internal
memory or your memory card.

10
Clock
Use as alarm clock with
scheduled alarms.
Downloads
Downloads record
Email
Send/Receive email by using
your existing email addresses.
File
Manager
File manager application for
viewing and managing files and
apps. Use it to install Android
apps, and to backup files to your
SD card.
Flash
Player
Connect to the adobe Settings
Manager.
GaIIery
Can see pictures and watch
videos
Email
Send/Receive email by using
your existing email addresses.
GoogIe
Google searching tool
GoogIe
Settings
Google service setting
Music
Play and manage audio files.

11
Settings
Multiple settings for
personalizing and enhancing
your Device.
Play Store
Download and install the app
4.4 State Bar Description
Icons descriptions
Back key
Home page key
Multiple tasks viewer
5 Touch Panel Usages
This device with 7 inch screen. Following description is about
the main interface and introduce how to use touch panel. No
matter which interface you are in, you can press lightly to click
the icon on the left bottom of the screen to return to
main interface.
In different application program, you can return to last interface
by clicking the icon on the left bottom of the main

12
screen.
【Note】：The function of the icon is the same as the
function of the Back button;
You can enter into the application program interface by clicking
icon . On the application program interface, you can click
the application program icon lightly to run the software
6 Basic Setting of the Device
Click the icon in the menu to enter into setting interface
6.1 WIRELESS&NETWORKS

13
WIRLESS&
NETWORKS
OUTLINE
WI-FI
WI-FI
Turn On/Off
BIuetooth
BIuetooth
Turn On/Off
Data
usage
Data usage
Display Mobile data
more
Airplane mode
Turn ON or Turn OFF all wireless
connection
VPN
VPN Setting
Mobile networks
Mobile network setting

14
6.1.1 Wi-Fi setting
Access setting-Wireless & Networks-Wi-Fi.
6.1.2 BIuetooth setting
Access Blurtooth

15
6.1.3 Data usage information
Click Data usage to view Mobile data.
6.1.4 More options
Click more...to switch to Ethernet, VPN, Mobile networks

16
1) Network access via 3G
Turn off WIFI, and access More-Mobile networks.
Note: Hotspot mode is supported.
6.2 Device

17
6.2.1 Audio profiles
6.2.2 Display: Display Parameters Setting
Display
Brightness
Tap & slide to adjust
the screen brightness as desired,
and then tap OK.
Wallpaper
Choose Live Wallpapers
Choose Super-HD Player
Choose Wallpapers
Sleep
Choose sleep time
Font size
Small , Normal , Large , Huge
Accelerometer
Default or Special coordinate

18
coordinate system
system
Screen adaption
Enable screen adaption
6.2.3 Storage: Storage Parameters Information
SD card
& device
storage
Media Scan
Enable media scanning on SD and
USB
Internal Storage
Display Storage information
Extsd
Micro SD information
USBHOST1
USBHOST1 Storage information

19
6.2.4 Battery: Battery Parameters Information
6.2.5 Apps: Applications
Program Information，including DOWNLOADED,ON FLASH,

20
RUNNING,ALL four item；
6.3 Personal
6.3.1 Location services:
