NuTone PM300SS Installation guide

INSTALLATION,
USE & CARE INSTRUCTIONS
WWW.BROAN-NUTONE.COM WWW.BROAN-NUTONE.CA
Serial number: 1105022B
PM300SS
BBN1243SS
BBN1303SS
Powerpack Inserts
Model numbers: PM300SS,
BBN1243SS, BBN1303SS

INSTALLATION, USE & CARE INSTRUCTIONS TABLE OF CONTENTS
2
Safety .....................................................3-4
Installation.................................................5-13
Recommended Tools and Accessories......................................5
Contents...........................................................5
Install Ductwork (Ducted Installations Only) ..................................5
Optional Liners (PM300SS Unit Only)......................................6
Remove the Cabinet Brackets ...........................................6
Prepare the Cabinet ................................................7-9
Prepare the Unit ....................................................10
Install the Unit...................................................11-12
Connect Ductwork...................................................12
Wiring............................................................13
Install the Filters ....................................................13
Operation ...................................................13
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Grease Filter(s)
Non-Ducted Recirculation Filter(s)
Stainless Steel Cleaning
Wiring Diagram ...............................................14
Service Parts .................................................15
Warranty ....................................................16

INSTALLATION, USE & CARE INSTRUCTIONS
SAFETY
3
!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction codes and standards.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the
local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Do not use this unit with any separate solid-state speed control device.
• To reduce the risk of fire, use only metal ductwork.
• This unit must be grounded.
• When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
• When applicable local regulations comprise more restrictive installation and/or certification
requirements, the aforementioned requirements prevail on those of this document and the installer
agrees to conform to these at his own expense.
To register your product, please visit our website:
In the United States - broan-nutone.com
In Canada - broan-nutone.ca
For Technical Support, call:
In the United States - 800-637-1453
In Canada - 800-567-3855
Installer: Leave this manual with the homeowner.
READ AND SAVE THESE INSTRUCTIONS
Intended for domestic cooking only
!
!

INSTALLATION, USE & CARE INSTRUCTIONS SAFETY
4
!
CAUTION
!
• For indoor residential use only.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air
into spaces within walls or ceilings or into attics, crawl spaces, or garages.
• Take care when using cleaning agents or detergents.
• Avoid using food products that produce flames under the Range Hood.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
• The bottom of the hood MUST NOT BE LESS than 24” and recommended at a maximum of 30” above
the cooktop for best capture of cooking impurities.
• Use only with range hood cord connection kits that have been investigated and found acceptable for
use with this model range hood.
• Please read specification label on product for further information and requirements.
!
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers
that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
5
INSTALL THE DUCTWORK
(DUCTED INSTALLATION ONLY)
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Decide where the ductwork will run between the hood and
the outside. (FIG. 1)
2. A straight, short duct run will allow the unit to perform most
efficiently.
3. Long duct runs, elbows, and transitions will reduce the
performance of the unit. Use as few of them as possible.
Larger ducting may be required for best performance with
longer duct runs.
4. Install wall cap or roof cap (sold separately). Connect metal
ductwork to cap and work back towards the unit location.
Use 2” metal foil duct tape to seal the joints between
ductwork sections.
24" MIN - 30" MAX
ABOVE COOKING SURFACE
UNIT 7" ROUND ELBOW
WALL CAP
ROOF CAP
7" ROUND DUCT
HOUSE WIRING
7" ROUND DAMPER
BP87Q (OPTIONAL)
FIG. 1
For ADA compliance installation guidelines, please type the model number into our website.
RECOMMENDED TOOLS AND ACCESSORIES
• Measuring tape
• Phillips screwdriver no. 2
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers
• Metal foil duct tape
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• 2 Appropriate wire nuts
• Strain relief, 7/8” diameter (to secure house wiring
cable to the hood)
• BP87Q Damper (optional)
• Liner (optionnal)

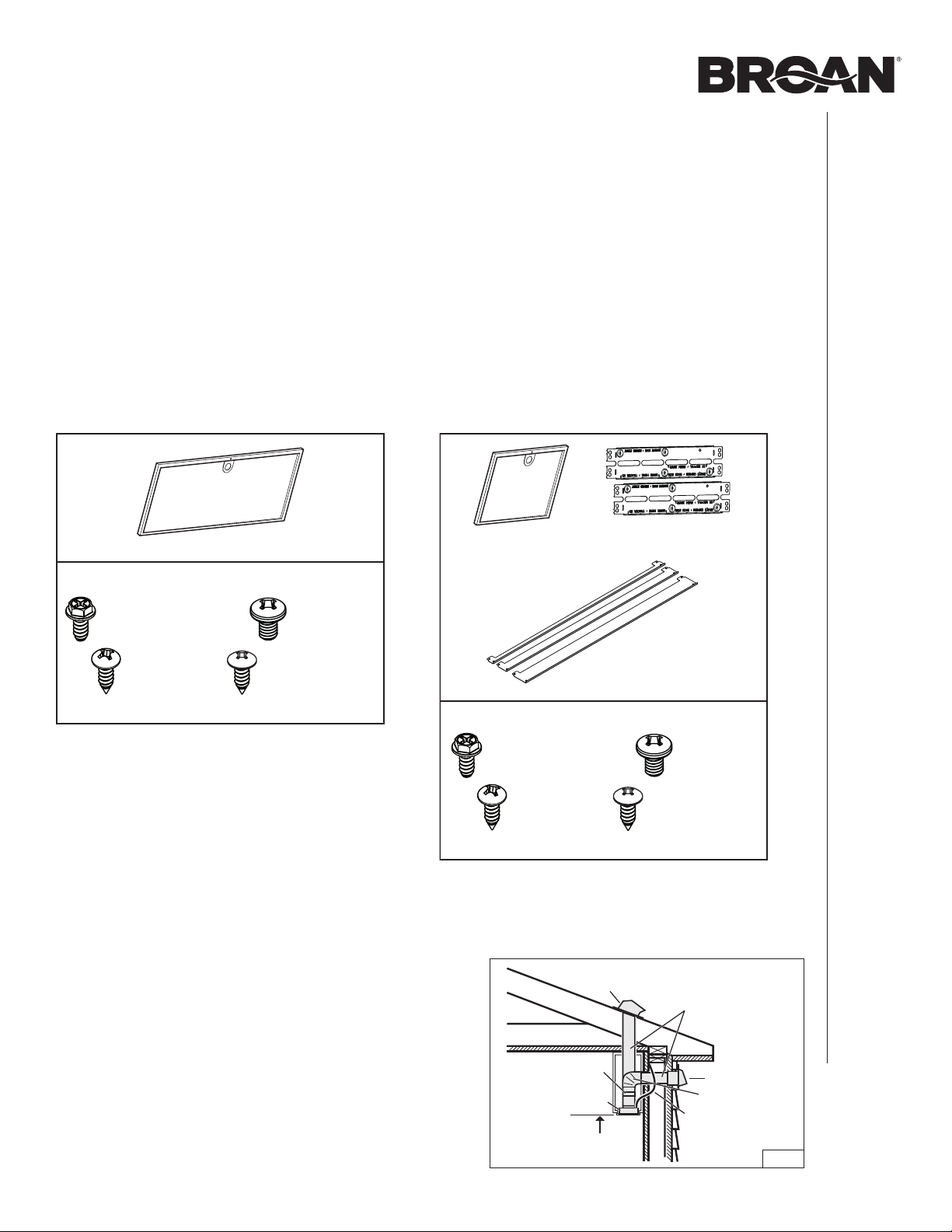

CONTENTS
Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the
manufacturer.
Make sure that the following items are included:
PM300SS BBN1243SS, BBN1303SS
(1) GREASEFILTER
(1) PARTS BAG* CONTAINING:
* FIND PARTSBAGBEHIND THE WIRING COMPARTMENT COVER.
(4) NO. 8-18 X1/4”
METAL SCREWS
(8) NO. 8-15 X5/8”
RD. HD.
WOOD SCREWS
(4) NO. 6-18 X3/4”
TRUSS HEAD
WOOD SCREWS
(4) NO. 8-32 X1/4”
METAL SCREWS
(2) GREASE FILTERS
(1) SET OF 3 FILLERS
CABINET BRACKETS
(ATTACHED TO THE BACK OF THE UNIT)
(1) PARTS BAG* CONTAINING:
* FIND PARTSBAGBEHIND THE WIRING COMPARTMENT COVER.
(4) NO. 8-18 X1/4”
METAL SCREWS
(8) NO. 8-15 X5/8”
RD. HD.
WOOD SCREWS
(4) NO. 6-18 X3/4”
TRUSS HEAD
WOOD SCREWS
(4) NO. 8-32 X1/4”
METAL SCREWS

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
6
OPTIONAL LINERS
(PM300SS UNIT ONLY)
For installations where the PM300SS unit is less than 30”
above cooktop, this powerpack insert should be mounted into
a metal liner (FIG. 2) to protect cabinetry combustible material
from heat, in order to meet building code requirements. This will
allow easier cleaning and provide protection to the cabinetry.
Refer to table at right to find the liner model corresponding to
the cabinet style and width.
Visit www.broan-nutone.com or www.broan-nutone.ca to view
specific model information.
Liner modeL Cabinet nominaL width
LB30SS 30"
LB36SS 36"
REMOVE THE CABINET BRACKETS
(BBN1243SS AND BBN1303SS UNITS
ONLY)
Detach the cabinet brackets (grey part in FIG. 3) from the back
of the powerpack insert by removing its 2 retaining screws.
Discard the screws.
Fold up and down the bracket until it is split in two separate
parts (FIG. 4). Keep the brackets for possible further use.
NOTE: Both cabinet brackets have one wide edge and one
narrow edge (FIG. 5), to cover all installation
configurations depending on cabinet widths.
FIG. 3
SCREWS
Wide edge
Narrow edge
FIG. 5
FIG. 4
METAL LINER FIG. 2

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
7

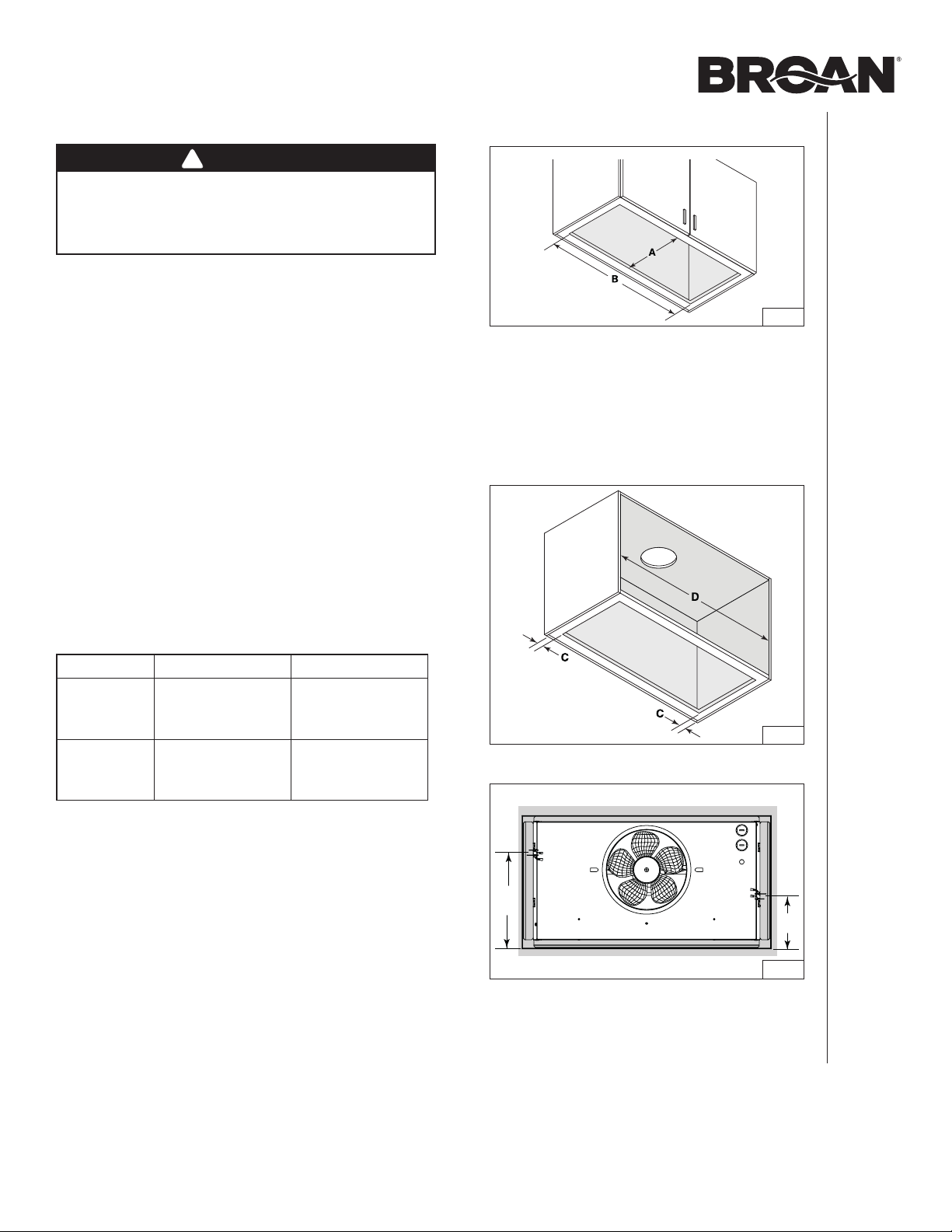

CUT A HOLE IN THE BOTTOM OF THE CABINET
FIG. 6
A = 10¼” (all units)
B = 19
9/16” (PM300SS)
B = 22¹/16” (BBN1243SS)
B = 28¹/16” (BBN1303SS)
PREPARE THE CABINET
WARNING
The cabinet must be secured to wall studs or other
wooden framework behind the drywall to support
the weight of this unit. Failure to do so may cause
personal injury or damage to countertop or cooktop.
NOTES: A. The unit has to be installed inside the cabinet. If
installing with one of the optional liners (PM300SS
unit only), use it as a template to cut the hole in
the bottom of the cabinet.
B. The unit should be mounted centered laterally
over the cooktop burners.
C. For back to front position, the unit must be
mounted according to local building codes.
1. Cut a hole in the bottom of the cabinet, using the
dimensions shown (FIG. 6), or use the optional liner as a
template (PM300SS unit only).
2. PM300SS unit only: Where needed, install the metal liner.
Go to PREPARE THE UNIT section on page 10.
3. BBN1243SS and BBN1303SS units only:Measure the
remaining material of the cabinet bottom sides (C) (FIG. 7),
if it is 1/4” or more, there is no need to use the cabinet
brackets. Go to step 8 on page 9.
4. If there is less than 1/4” remaining material (C), carefully
remove those strips. Measure the cabinet inner width (D)
(FIG. 7). Refer to the table below to see which cabinet
bracket edge configuration must be used.
5. Pay attention to the Ease of Install hooks location on the
unit (distance given from unit front flange, FIG. 8). Measure
and mark the position of the Ease of Install hooks (shown
as Ein FIG. 9 on next page) on both cabinet side walls.
Unit narrow edge wide edge
BBN1243SS
D
From 22-1/16”
to < 22-1/2”
D
From 22-1/2”
to 23”
BBN1303SS
D
From 28-1/16”
to < 28-1/2”
D
From 28-1/2”
to 29”
FIG. 7
!
4½
”
8¼”
FIG. 8
FRONT
UNIT TOP VIEW

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
8
PREPARE THE CABINET (cont’d)

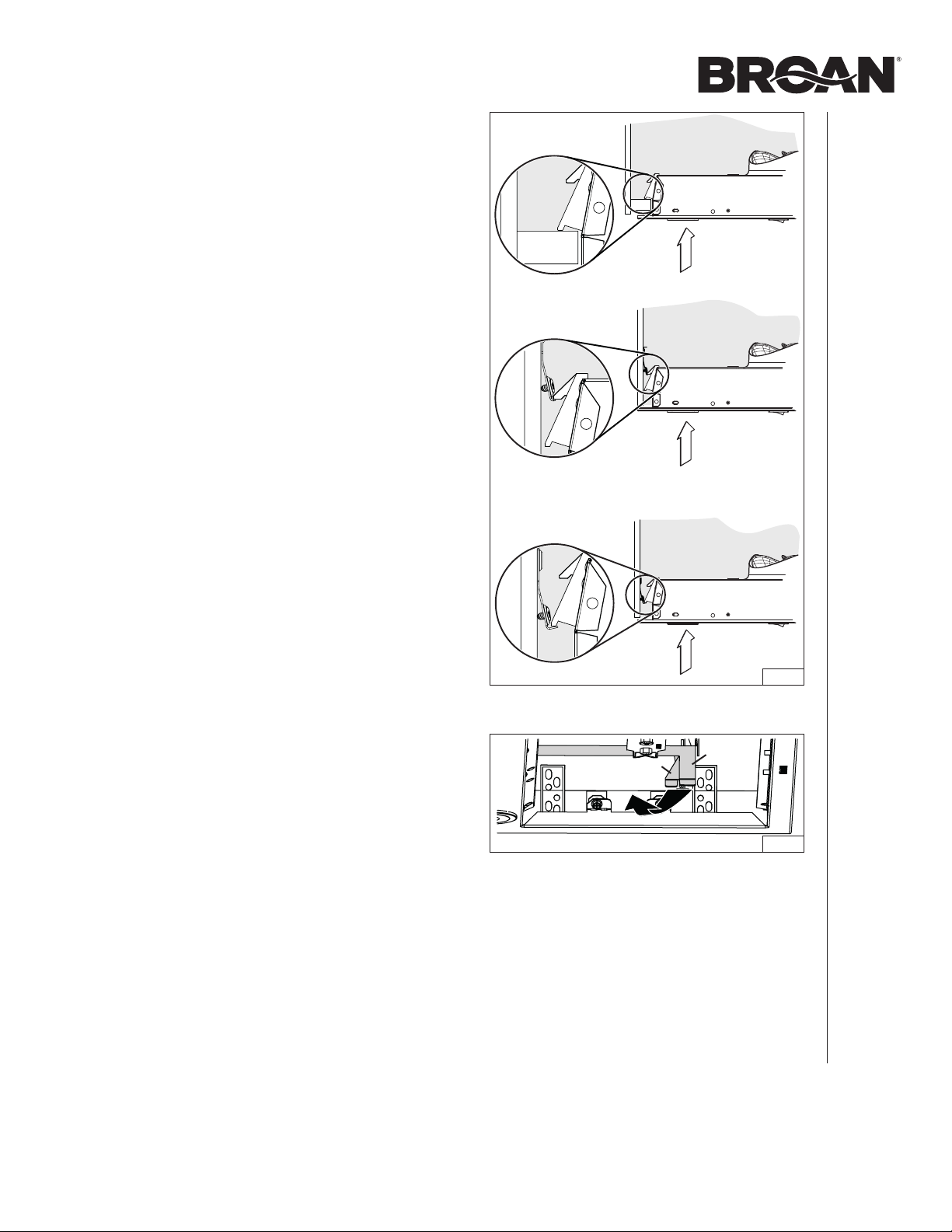

6. Install the cabinet brackets as follow (FIG. 9):
Align the bracket flush with the bottom of the right
cabinet side panel, with the hooks marked position (E)
between the bottom embossed holes. For the narrow
edge configuration, trace a line on the top of the
bracket. For wide edge configuration, trace a line at the
bottom of the central slots.
Lift the bracket flush with the marked lined. Assemble
the bracket to the cabinet side panel using 2 no. 8 x 5/8”
wood screws (included in parts bag) through the upper
holes.
NOTE: Do not use the embossed holes to atttach the
bracket to the cabinet.
 Repeat steps to for the left cabinet side panel.




FIG. 9
FLUSH
Narrow edge
configuration
Wide edge
configuration
FLUSH
E
E

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
9
PREPARE THE CABINET (cont’d)
7. Measure the distance between both bottom bracket
edges (F) (FIG. 10). The table below shows the appropriate
distance needed.
Unit narrow edge wide edge
BBN1243SS
F
From 21-7/8”
to < 22-1/16”
F
From 22-1/16”
to 22-5/16”
BBN1303SS
F
From 27-7/8”
to < 28-1/16”
F
From 28-1/16”
to 28-5/16”
If the measured distance needs to be shortened, screw two
no. 8-32 x 1/4” machine screws, in each bottom embossed
cabinet brackets hole; this will slightly bend the bottom part
of the brackets (FIG. 11). Screw both brackets until the
appropriate distance is obtained.
F
FIG. 10
FIG. 12
CAUTION
Never use an electric screwdriver or drill to screw the
filler to the bottom edge of cabinet; use a standard
screwdriver.
BBn1243SS and BBn1303SS unitS only:
8. There are 3 different sizes of filler included with these
units, designed to fit up to 13-in. depth cabinets. For up
to 15-in. depth cabinets, another set of 4 fillers is available
(for BBN1243SS unit: HADTBN24, for BBN1303SS:
HADTBN30). Choose the filler that fits to cover the back
bottom edge of the cabinet. Use 4 no. 6 x 3/4” truss head
wood screws (included) to mount it (FIG. 12).
F
FIG. 11
Screws in bottom
embossed holes

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
10
PREPARE THE UNIT
NOTE:Since this manual covers different unit models, some
details in the following illustrations may slightly differ
from your unit.
1. If present, remove all protective polyfilm from the unit and/
or parts.
2. Remove the grease filter(s) by pulling down on tab and tilting
the filter(s) downward (FIG. 13). Set aside the filter(s).
3. Disassemble the wiring compartment cover (grey part in
FIG. 14) from inside the unit by removing its retaining
screw. Remove the parts bag behind the cover. Set aside
the parts bag and the cover along with its screw.
4. Punch out one of the two knock-out holes (grey parts in
FIG. 15).
FIG. 13
SCREW
FIG. 14
FIG. 15
KNOCK-OUTS

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
11
INSTALL THE UNIT
1. Run house power cable between service panel and unit
location. Stub out a 2-foot length of power cable inside
the cabinet. Attach the power cable to the unit using an
appropriate 7/8” diameter strain relief (not included).
NOTE: The HCK44 cord connection kit (optional) can
be used instead of the house power cable. Refer to the
instruction packed with the HCK44 cord connection kit.
2. Insert the unit in the cabinet, until you feel a ‘click’ from
both sides of the unit, confirming that the Ease of Install
Hooks rest on the top of the cabinet bottom sides , or
cabinet brackets or (FIG. 16). Move the unit from
left to right, from rear to front and up to ensure the Ease
of Install Hooks are retaining the unit inside the cabinet.
NOTE: The unit will be protruding below the cabinetry until
tightened.
NOTE: If, for any reason, the unit has to be removed from the
cabinet, it is possible to disengage the Ease of Install
Hooks. To do so, while holding and pushing on one
side of the unit, lift simultaneously the Ease of Install
hooks levers (1and 2, grey parts in FIG. 17) in the
other side of the unit until the hooks are retracted.



FIG. 16
FIG. 17
12

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
12
12
3
4
56
1
2
3
45
6
FIG. 18
DUCTED
INSTALLATION
ONLY
BP87Q
7” ROUND DUCT
SECTION,
12” MINIMUM
LENGTH
FIG. 19
CONNECT DUCTWORK
Ducted Installation
Use 7” round metal duct to connect the discharge collar on
the powerpack insert to the ductwork above. An optional
7” round damper, model BP87Q, may be used (purchase
separately).
NOTE: Due to its design, the BP87Q 7” round damper
cannot be installed directly over the unit discharge
collar; if this damper has to be installed, it must
be attached between two sections of 7” round
metal duct (FIG. 19). Use metal foil tape to make
all joints secure and air tight.
Non-Ducted Installation
A non-duct kit is required for this type of installation
(purchase separately). To install, follow the instructions
packed with the kit. Refer to table below to find the
appropriate non-duct kit according to the unit.
Unit model Non-Duct kit model
PM300SS HARKPM21
BBN1243SS HARKBN24
BBN1303SS HARKBN30
INSTALL THE UNIT (cont’d)
3. Lift the unit until contact is made between the unit
flange and cabinet. Secure the unit to the cabinet using
4 no. 8 x 5/8”wood screws included in parts bag
(2 screws per side). Use upper or lower holes (1, 2, 3, 4,
5, or 6) (FIG. 18).
WARNING
The Ease of Install Hooks TEMPORARILY hold the unit
in place. The unit MUST BE secured to the cabinet
using the included 4 screws.
!
CAUTION
Do not use screws to attach the BP87Q damper to
the duct sections.
WARNING
Never use this unit as a shelf.
!

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION, OPERATION
13
WIRING
WARNING
Risk of electric shock. Electrical wiring must be
done by qualified personnel in accordance with all
applicable codes and standards. Before connecting
wires, switch power off at service panel and lock
service disconnecting means to prevent power from
being switched on accidentally.
1. Using appropriate wire nuts (not included), connect house
power cable to unit wiring: BLACK to BLACK, WHITE to
both WHITE wires and GREEN or bare wire to GREEN
ground screw (FIG. 20).
2. Reinstall the wiring compartment cover in the unit; ensuring
the bottom tabs are inserted in their embossed location.
Secure in place using its retaining screw (FIG. 21).
CAUTION
Take care not to pinch wires while reinstalling wiring
cover.
INSTALL THE FILTER(S)
Ducted Installation
Reinstall the grease filter(s).
Non-Ducted Installation
PM300SS unit only: Attach the non-ducted filter (included
with the HARKPM21 non-duct kit) to the back of the
grease filter using clips (provided with non-ducted filter).
To order a new non-ducted filter, use service part number
S99010464.
BBN1243SS and BBN1303SS units only: Attach
the non-ducted filters (included with the HARKBN24
or HARKBN30 non-duct kit) to the back of the grease
filters using clips (provided with non-ducted filters). To
order new non-ducted filters, use service part number
S99010464-124 for BBN1243SS and S99010464-130
for BBN1303SS model.
!
2 WHITE WIRES
BLACK WIRE
FIG. 20
GREEN
GROUND
SCREW
FIG. 21
TABS
OPERATION
Blower Switch:
Turns blower on to LOW speed.
o Turns blower OFF.
Turns blower on to HIGH speed.
Light Switch:
Turns light ON.
o Turns light OFF.
HOUSE
POWER
CABLE

INSTALLATION AND USE & CARE INSTRUCTIONS MAINTENANCE, CLEANING AND WIRING DIAGRAM
14
MAINTENANCE
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY
BEFORE CARRYING OUT ANY OPERATIONS ON THE
APPLIANCE.
Grease Filter(s)
The grease filter(s) should be cleaned frequently. Use a
warm dishwashing detergent solution. Grease filter(s) is (are)
dishwasher safe.
Clean the filter(s) in the dishwasher using a non-phosphate
detergent. Discoloration of the filter(s) may occur if using
phosphate detergents, or as a result of local water conditions
- but this will not affect filter performance. This discoloration
is not covered by the warranty. To minimize or prevent
discoloration, hand wash filter(s) using a mild detergent.
Non-Ducted Recirculation Filter(s)
The Non-Ducted Recirculation filter(s) should be changed
every 3 to 6 months. Replace more often if your cooking style
generates extra grease, such as frying and wok cooking.
STAINLESS STEEL CLEANING
Do:
• Regularly wash with clean cloth or rag soaked
with warm water and mild soap or liquid dish
detergent.
• Always clean in the direction of original polish
lines.
• Always rinse well with clear water (2 or 3 times)
after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
Don’t:
• Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the unit. During construction/
renovation, cover the unit to make sure no dust
sticks to the stainless steel surface.
Avoid when choosing a detergent:
• Any cleaners that contain bleach will attack
stainless steel.
• Any products containing: chloride, fluoride,
iodide, bromide will deteriorate surfaces
rapidly.
• Any combustible products used for cleaning
such as acetone, alcohol, ether, benzol,
etc., are highly explosive and should never be
used close to a range.
WHT
BLU
RED (LOW SPEED)
MM
MOTOR SWITCH
BLK (HIGH SPEED)
BLK
BLK
WHT
1
2
LE D
LI GHT
REF: 99046214_REV-A
1
2
LI NE / 120V AC
NEUTRAL
GROUND
ELECTRICAL BOX
BLK
WHT
WHT
LIGHT SWITCH
COLOR CODE
BLK
BLU
RED
WHT
BLACK
BLUE
RED
WHITE
•WHT
BLU
BLULE D
LI GHT
BLK
WHT
WIRING DIAGRAM

INSTALLATION, USE & CARE INSTRUCTIONS
SERVICE PARTS
15
B
C
D
E
F
F
E
BBN1246SS, BBN1306SS
G
PM300SS, BBN1246SS,
BBN1306SS
Key no. Part numBer deScriPtion Pm300SS BBn1243SS BBn1303SS
1 S520128 bLower ass’y1 1 1
2 S99030379 roCker switChes (set of 2) 1 1 1
3 S99271693 Led modULe assembLy (pair)1 1 1
4
S99010464
CharCoaL fiLter with CLips (not shown)
(non-dUCted instaLLation onLy, inCLUded in non-dUCt
kit modeL no. HARKPM21)
1
S99010464-124
CharCoaL fiLter with CLips (not shown)
(non-dUCted instaLLation onLy, inCLUded in non-dUCt
kit modeL no. HARKPM24)
2
S99010464-130
CharCoaL fiLter with CLips (not shown)
(non-dUCted instaLLation onLy, inCLUded in non-dUCt
kit modeL no. HARKPM30)
2
5
S99100628-121 miCromesh grease fiLter 1
S99100628-124 miCromesh grease fiLter 2
S99100628-130 miCromesh grease fiLter 2
6 S1104978
parts bag inCLUding : 4 no. 8-18 x1/4”metaL sCrews,
4 no. 8-32 x1/4”metaL sCrews,
8 no. 8 x5/8”roUnd head wood sCrews,
4 no. 6-18 x3/4”trUss head wood sCrews.
1 1 1

INSTALLATION, USE & CARE INSTRUCTIONS WARRANTY
16
Limited Warranty
Warranty Period and Exclusions: Broan-NuTone LLC and Venmar Ventilation ULC (either being the “Company”) warrants to the original consumer
purchaser of its product (“you”) that the product (the “Product”) will be free from material defects in the Product or its workmanship for a period of
one (1) year from the date of original purchase (or such longer period as may be required by applicable law). For Range Hood Product that includes
built-in LED modules, the Company warrants the LED modules and driver to be free from material defects for a period of three (3) years from the date of
purchase. The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited
warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).
This warranty does not cover fluorescent lamp starters, tubes, halogen, incandescent and LED bulbs, fuses, filters, ducts, roof caps, wall caps
and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal
maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence,
accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or
installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage
caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j)
damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products
sold to original consumers in the United States and Canada by the Company or its U.S. and Canadian distributors authorized by the Company.
This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.
No Other Warranties: This Limited Warranty contains the Company’s sole obligation and your sole remedy for defective products. The foregoing
warranties are exclusive and in lieu of any other warranties and conditions, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL
OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED
BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent
that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to
the period specified for the express warranty above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an
express warranty.
Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if
any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating
the remainder of such provision or the other remaining provisions of the Limited Warranty.
Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without
charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and
service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal,
reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the
Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for
damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty
repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted
for the remainder of the original warranty period (or such longer period as may be required by applicable law).
Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product in lieu of repair or replacement. If the
Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company’s sole discretion.
This is your sole and exclusive remedy for breach of this limited warranty.
Exclusion of Damages: THE COMPANY’S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR, REPLACE OR REFUND, AT
THE COMPANY’S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY’S
SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR
SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Incidental damages
include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing
or replacing other property which was damaged if the Product does not work properly.
THE COMPANY SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING UNDER YOU, FOR ANY OTHER OBLIGATIONS OR
LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR
WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO THE PRODUCT OR THE
COMPANY’S ACTS OR OMISSIONS OR OTHERWISE.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers,
exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.
This warranty covers only replacement or repair of defective Products or parts thereof at the Company’s main facility and does not include the cost of
field service travel and living expenses.
Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a
waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.
The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with
the Company’s prior written permission.
How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below
within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in
the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy
of the original written limited warranty, then the terms of the Company’s most current written limited warranty for your particular product will control.
The most current limited written warranties for the Company’s products can be found at www.broan-nutone.com and www.broan-nutone.ca.
Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan-nutone.com 800-637-1453
Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 1-800-567-3855

WWW.BROAN-NUTONE.COM WWW.BROAN-NUTONE.CA
Nº de série :
DIRECTIVES D’INSTALLATION,
D’UTILISATION ET D’ENTRETIEN
1105022B
PM300SS
BBN1243SS
BBN1303SS
Hottes encastrées
Numéros de modèle: PM300SS,
BBN1243SS, BBN1303SS

DIRECTIVES D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN TABLE DES MATIÈRES
2
Sécurité....................................................3-4
Installation.................................................5-13
Outils et accessoires recommandés. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Contenu ................................................................5
Installation des conduits (Installations avec conduits seulement) 5
Revêtements d’armoire optionnels (appareil PM300SS seulement) 6
Retrait des supports d’armoire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Préparation de l’armoire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Préparation de l’appareil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation de l’appareil..................................................11-12
Raccordement du conduit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Branchement électrique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation du (des) filtre(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fonctionnement ..............................................13
Nettoyage et entretien. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Filtre(s) à graisses
Filtre(s) de recirculation
Nettoyage de l’acier inoxydable
Schéma électrique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Pièces de remplacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Garantie.....................................................16

DIRECTIVES D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN
SÉCURITÉ
3
!
AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION OU DE BLESSURES
CORPORELLES, SUIVEZ LES DIRECTIVES SUIVANTES :
• N’utilisez cet appareil que de la façon prévue par le manufacturier. Si vous avez des questions,
contactez le manufacturier à l’adresse ou au numéro de téléphone indiqués dans la garantie.
• Avant de réparer ou de nettoyer l’appareil, couper l’alimentation électrique en verrouillant le panneau
de distribution afin d’éviter sa remise en marche accidentelle. Si le panneau de distribution ne peut
être verrouillé, y fixer un avertissement en évidence, telle qu’une étiquette de couleur vive.
• Les travaux d’installation et de raccordement électrique doivent être effectués par une personne
qualifiée, conformément aux codes et aux standards de construction, incluant ceux concernant la
protection contre les incendies.
• Une quantité d’air adéquate est requise afin d’assurer une bonne combustion et l’évacuation des
gaz par la cheminée dans le cas des équipements alimentés au gaz afin de prévenir les retours
de cheminée. Conformez-vous aux instructions et aux standards de sécurité des manufacturiers
d’équipement de chauffage, tel qu’ils sont publiés par la National Fire Protection Association (NFPA)
et l’American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) ainsi
que les responsables des codes locaux.
• Veillez à ne pas endommager le câblage électrique ou d’autres équipements non apparents lors de la
découpe ou du perçage du mur ou du plafond.
• Les ventilateurs avec conduits doivent toujours évacuer l’air à l’extérieur.
• Ne pas utiliser cet appareil avec une commande de vitesse à semi-conducteur additionnelle.
• Afin de réduire les risques d’incendie, n’utilisez que des conduits de métal.
• Cet appareil doit être mis à la terre.
• Il est recommandé de porter des lunettes et des gants de sécurité lors de l’installation, de l’entretien ou
de la réparation de cet appareil.
• Lorsqu’une réglementation est en vigueur et qu’elle comporte des exigences d’installation et/ou de
certification plus restrictives, lesdites exigences prévalent sur celles de ce document et l’installateur
entend s’y conformer à ses frais.
Pour enregistrer votre produit, veuillez visiter notre site Internet:
Aux États-Unis: broan-nutone.com
Au Canada: broan-nutone.ca
Pour de l’assistance technique, veuillez composer le numéro de téléphone suivant:
Aux États-Unis: 800 637-1453
Au Canada: 800 567-3855
Installateur: Laisser ce manuel au propriétaire.
Veuillez lire et conserver ces directives.
Conçu pour usage domestique seulement
!
!

DIRECTIVES D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN SÉCURITÉ
4
!
ATTENTION
!
• Pour une utilisation résidentielle et à l’intérieur seulement.
• Afin de réduire les risques d’incendie et évacuer l’air adéquatement, assurez-vous que les conduits
évacuent l’air à l’extérieur. Ne pas évacuer l’air dans des espaces restreints comme l’intérieur des murs
ou plafond ou dans le grenier, faux plafond ou garage.
• Soyez prudents lors de l’utilisation d’agents nettoyants ou de détergents.
• Évitez d’utiliser sous la hotte des produits alimentaires pouvant s’enflammer.
• Pour usage domestique seulement. Ne pas utiliser pour évacuer des vapeurs ou des matières
dangereuses ou explosives.
• Afin d’éviter tout dommage au moteur et de débalancer ou de rendre bruyante la roue du moteur,
garder votre appareil à l’abri des poussières de gypse et de construction/rénovation, etc.
• Le moteur de votre hotte possède une protection thermique qui éteindra automatiquement le moteur s’il
devient surchauffé. Le moteur redémarrera automatiquement une fois refroidi. Si le moteur continue à
arrêter et à redémarrer, faites-le vérifier.
• Pour une meilleure évacuation des odeurs de cuisson, le bas de votre hotte devrait être situé À UN
MINIMUM de 24 po et à un maximum recommandé de 30 po au-dessus de la surface de cuisson.
• À utiliser seulement avec une trousse de raccordement de cordon de hotte vérifiée et approuvée pour
emploi avec ce modèle de hotte.
• Veuillez consulter l’autocollant apposé à l’intérieur de la hotte pour plus d’information ou autres
exigences.
!
AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES DE FEU DE CUISINIÈRE:
A. Ne jamais laisser les appareils de cuisson sans surveillance lorsqu’ils sont réglés à feu vif.
Les débordements engendrent de la fumée et des déversements graisseux pouvant s’enflammer.
Chauffez l’huile lentement, à feu doux ou moyen.
B. Mettez toujours la hotte en marche lorsque vous cuisinez à feu vif ou que vous cuisinez des mets
flambés (par ex. : crêpes Suzette, cerises jubilé, steaks au poivre flambés).
C. Nettoyez régulièrement la roue du ventilateur. Ne laissez pas la graisse s’accumuler sur le ventilateur, le
filtre ou les conduits d’évacuation.
D. Utilisez le bon format de casserole. Servez-vous toujours de casseroles et d’ustensiles appropriés à la
dimension de la surface chauffante.
AFIN DE RÉDUIRE TOUT RISQUE DE BLESSURES LORS D’UN FEU DE CUISINIÈRE, SUIVEZ
CES DIRECTIVES*:
1. ÉTOUFFEZ LES FLAMMES avec un couvercle hermétique, une tôle à biscuits ou un plateau métallique
et ensuite, éteignez le brûleur. PRENEZ SOIN D’ÉVITER LES BRÛLURES. SI LES FLAMMES NE
S’ÉTEIGNENT PAS IMMÉDIATEMENT, ÉVACUEZ LES LIEUX ET APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS UNE CASSEROLE EN FLAMMES DANS VOS MAINS. Vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, incluant un linge à vaisselle ou une serviette mouillée, cela pourrait
occasionner une violente explosion de vapeur.
4. N’utilisez un extincteur QUE DANS LE CAS OÙ:
A. Vous possédez un extincteur de classe ABC et vous en connaissez le fonctionnement.
B. Le feu est petit et limité à l’endroit où il a débuté.
C. Les pompiers ont été avisés.
D. Vous pouvez combattre l’incendie en ayant accès à une sortie de secours.
* Tirées du Kitchen Fire Safety Tips publié par la NFPA.
