Nuvo Net Adapter User manual

In Control: The NuVoNet Adapter
NuVo has always put you in control of your whole home audio distribution. Now, NuVo
puts you in control of your home automation systems too.
Introducing the NuVoNet Adapter.

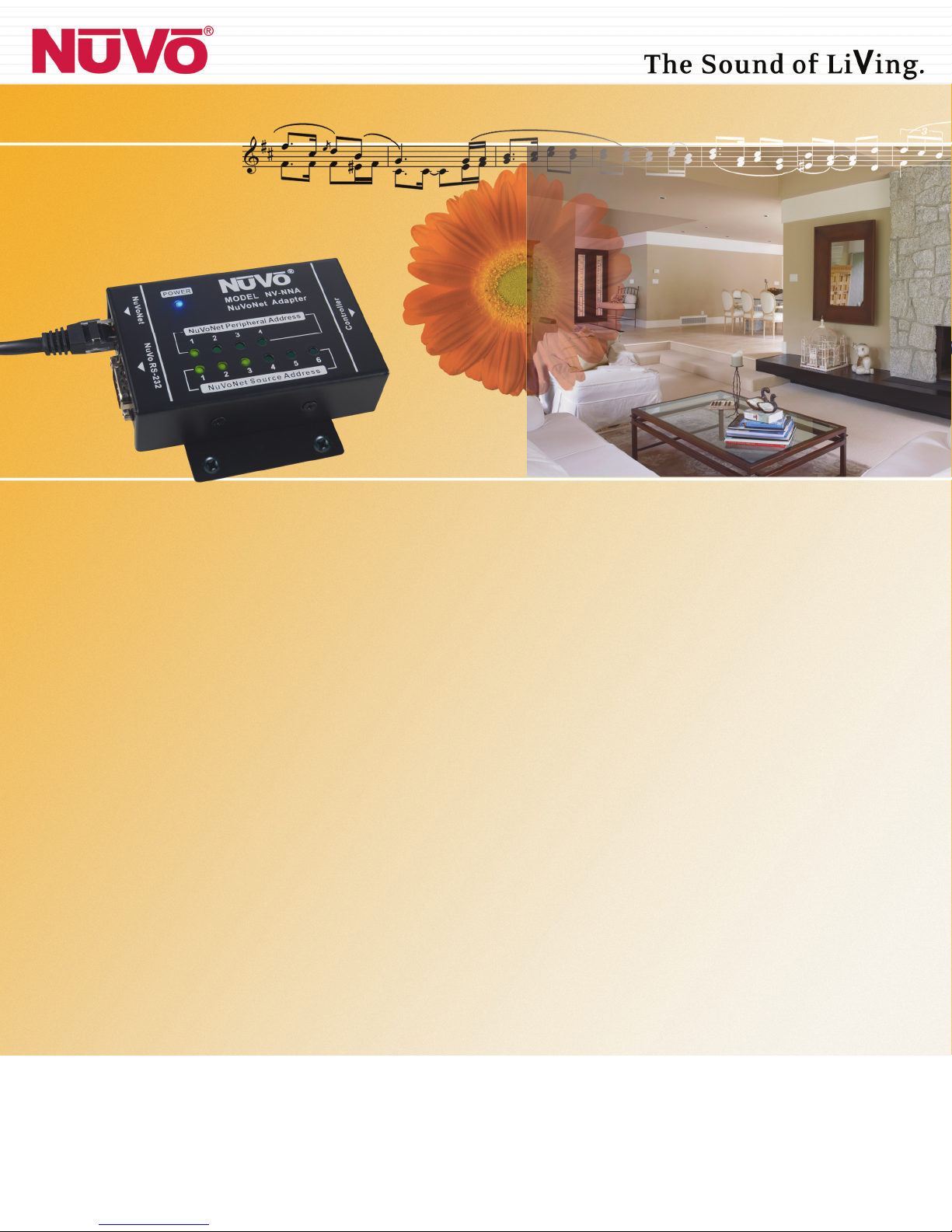

The NuVoNet Adapter (NNA) enables seamless integration and optimal fl exibility with
third party connectivity partners, making control of security, lighting, and much more a
snap.
The NNA features simple ASCII-based communication protocol, and lets the user
conveniently set and access all their home automation scenes through the Concerto or
Essentia (E6G) Control Pads.
And with the ability to convert third party audio inputs to NuVoNet sources, the
NuVoNet Adapter is your bridge to complete home integration, and even greater
installation possibilities.
Control never sounded so easy!
www.nuvotechnologies.com
1.866.796.4904
Caution: NuVo may cause spontaneous dancing.

e
Communications
NuVoNet RS-485
Connection RJ45 Jack
Protocol Proprietary
NuVo Serial Control RS-232
Connection Male DB-9
Protocol 57,600 Baud
8 Data Bits
No parity
1 Stop Bit
Serial Controller RS-232
Connection Female DB-9
Protocol 57,600 Baud
8 Data Bits
No parity
1 Stop Bit
Power Requirements
Power supplied via NuVoNet connection
Voltage 20-24VDC
Power Consumption, Average 400mW
Physical Specifications
(Excluding Mounting Bracket)
Unit Size Millimeters 64 L x 98 W x 25 H
Unit Size Inches 2.5 L x 3.9 W x 1 H
Shipping Size Millimeters 244 L x 212 W x 118 H
Shipping Size Inches 9.6 L x 8.3 W x 4.6 H
Unit Weight Kilograms 0.23
Unit Weight Pounds 0.5
Shipping Weight Kilograms 0.9
Shipping Weight Pounds 2
Regulatory Compliance
CE Electromagnetic Compatibility
FCC
Australia C-Tick
NuVo reserves the right to change specifications without notice.
NuVoNet Adapter Specifi cations
