1 Introduction
This application note introduces a parallel interface for the camera solution for
LPC55(S)xx. It includes the introduction of camera interface, features and API
routines, and demo.
2 Target application
The camera interface can be used as important part of camera usage as below:
• Object detection
• Gesture recognition
• Color recognition
• QR code scanning, and so on
3 Introduction of camera interfaces
A typical camera interface supports at least one parallel interface, although
nowadays many camera interfaces begin to support the MIPI CSI interface.
The camera parallel interface consists of the following lines:
• Data line (D[0:11]):
These parallel data lines carry pixel data. The data transmitted on these
lines change with every Pixel Clock (PCLK).
• Horizontal Sync (HSYNC)
This is a special signal that goes from the camera sensor. An HSYNC indicates that one line of the frame is transmitted.
• Vertical Sync (VSYNC)
This signal is transmitted after the entire frame is transferred. This signal is often a way to indicate that one entire frame
is transmitted.
• Pixel Clock (PCLK)
This pixel clock changes on every pixel.
The application note only focuses on Digital-Video-Port (DVP) interface which is parallel interface.
4 Features of camera interface
• Supported formats (8-bit): RGB565
• Maximum image transfer rate: 30 fps for QVGA(320 × 240). For small RAM parts, reduce the size of image and frame
rate.
• Camera module tested: OV7673
Contents
1 Introduction......................................1
2 Target application............................1
3 Introduction of camera interfaces....1
4 Features of camera interface.......... 1
5 Function description........................ 2
5.1 Camera interface engine............. 2
5.2 Camera driver library................... 2
5.3 LCD display..................................2
5.4 System clock................................2
5.5 Clock source of camera............... 2
5.6 I2C interface................................. 2
5.7 Memory usage............................. 2
5.8 Other supported camera modules
.....................................................2
6 Pin description.................................3
6.1 Connection of interface................3
6.2 Requirement of interface............. 4
7 Library and API routine................... 4
7.1 Library..........................................4
7.2 API routine................................... 4
7.3 API routine description.................4
7.4 Code detail description................ 4
8 Demonstration.................................7
9 Revision history...............................8
A Purchasing LCD module and camera
module used in this demo............... 8
AN12868
Camera Interface in LPC55(S)xx
Rev. 3 — 07 September 2021 Application Note

• Other camera modules can be supported as long as they provide the same signal timing.
5 Function description
5.1 Camera interface engine
There is a dedicated processor in LPC55S69 which can handle the signals of camera.
It reads the data from camera and stores the data in the RAM which is accessed by Arm core. Before using dedicated processor,
some configurations must be made, which includes pin configuration, clock enable, dedicated processor enable, interrupt enable
and so on.
5.2 Camera driver library
The instructions of dedicated processor use the type of machine code. The code implements the function of camera interface
protocol and is released in lib. Some API routines are provided in this application. User can use API routines to initialize the engine
and configure the pins.
5.3 LCD display
The application note uses LCD to display the video stream from camera in real time. The high-speed SPI port is used for LCD
driving port. The max speed on the SPI bus is 50 Mbit/s, so it can display the 320 × 240 resolution LCD up to 30 fps.
5.4 System clock
The camera engine shares the system clock with Arm® core. To speed up the processing time, the system clock must be
configured to 150 MHz. For those below 150 MHz, such as, 96 MHz system clock part, reduce the frequency of pixel clock.
5.5 Clock source of camera
The camera needs a 50 MHz clock source which is provided by CLKOUT signal from MCU.
5.6 I2C interface
The camera is configured through I2C interface which can be connected with I2C peripheral port in the MCU.
5.7 Memory usage
The 320 × 240 resolution picture requires 150 K bytes RAM space. The solution uses the space address from 0x20010000
to 0x20035800.
Additionally, the instruction code of camera engine must run in the RAM for high performance. This solution uses the space
address from 0x20040000 to 0x20043FFF to store camera engine code.
5.8 Other supported camera modules
Other camera modules can be supported as long as they provide the same signal timing.
1. The camera module must be configured as RGB565 mode with the timing diagram, as shown in Figure 1.
NXP Semiconductors
Function description
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 2 / 9

D[7] R4
First Byte
R0
G5
G3
D[6]
D[5]
D[4]
D[3]
D[2]
D[1]
D[0]
D[7]G2
Second Byte
B4
B0
D[6]
D[5]G0
D[4]
D[3]
D[2]
D[1]
D[0]
PCLK
HREF
D[7:0] Last
Byte
Last
Byte
First
Byte
(Row Data)
tPCLK
tPHL tPHL
tHD
tSU
tPDV

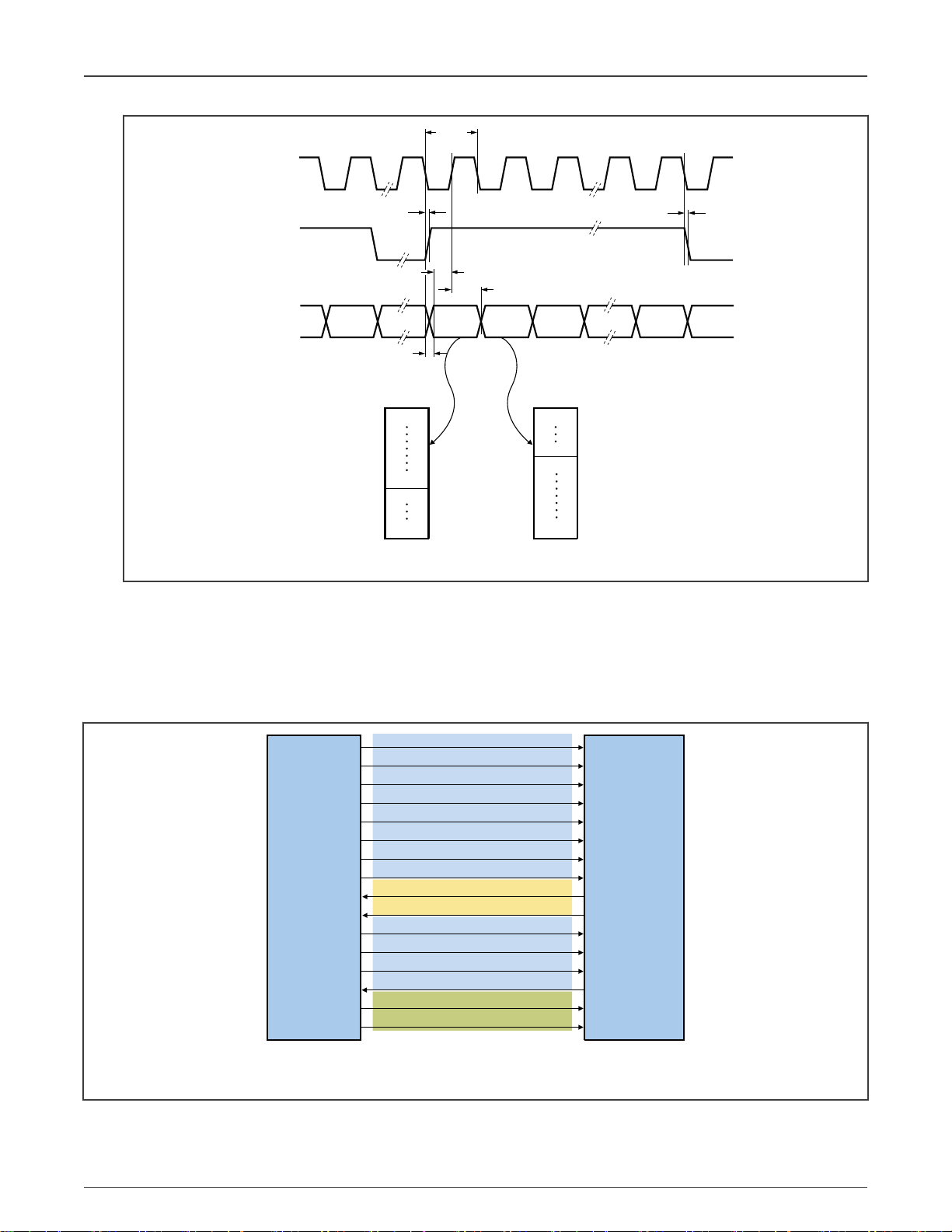

Figure 1. Camera module configuration
2. The resolution should be configured as QVGA (320 × 240).
6 Pin description
6.1 Connection of interface
Camera
D0
D1
D2
D3
D4
D5
D6
D7
SIOC
SIOD
VSYNC
HREF
PCLK
XCLK
VCC
GND
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P1.20
P1.21
P0.13
P0.14
P0.15
P0.16
Power
I2C port
Parallel data port
control signals
VCC
GND
LPC5500
Figure 2. Connection of interface
NXP Semiconductors
Pin description
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 3 / 9

Use P0_16 as a clkout pin to provide clock source for the camera.
NOTE
6.2 Requirement of interface
• The D0-D7 must be connected to P0.0-P0.7 for byte reading the data.
• SIOC and SIOD must be connected to the I2C interface of MCU for configuration.
• The VSYNC, HREF, PCLK must be connected to pins of Port0.
• XCLK must be connected to a clock output pin of MCU.
7 Library and API routine
7.1 Library
The library is named by camera engine lib. It includes the instructions which have to be handled by dedicated processor.
The library can support Keil, MCUXpresso IDE, but not IAR.
7.2 API routine
The main purposes of the API routines include:
• Enable the clock of engine.
• Configure the IO as camera interface function.
• Initial the I2C interface.
• Enable the interrupt of engine for telling the Arm core data is ready.
• Initialize and start the engine.
7.3 API routine description
Table 1. API routine
Routine Description
Reserved46_IRQHandler Interrupt routine for camera engine
OV7670_Init Camera module initialization
Camera_Init(); Camera engine initialization
Camera_Start(); Camera engine start running
LCD_Init(); LCD module initialization
LCD_Refresh(); LCD refresh
7.4 Code detail description
NXP Semiconductors
Library and API routine
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 4 / 9

7.4.1 System clock
Camera engine needs short time to store the data when every pixel edge comes. If the clock frequency of engine is higher, the time
cost is shorter. In this solution, the system clock must be set at 150 MHz when engine is running. The code to configure system
clock is shown as below:
BOARD_BootClockPLL150M();
7.4.2 I2C interface
The flexcomm4 is used as I2C function for initializing the camera before the video starts.
7.4.3 Pin function
Table 2. Pin function
Pin Function number Input/output Description
P0_0 15 Input Camera engine function
P0_1 15 Input Camera engine function
P0_2 15 Input Camera engine function
P0_3 15 Input Camera engine function
P0_4 15 Input Camera engine function
P0_5 15 Input Camera engine function
P0_6 15 Input Camera engine function
P0_7 15 Input Camera engine function
P0_18 15 Output Camera engine function
p0_13 0 Input GPIO as VSYNC input
P0_15 0 Input GPIO as Pixel clock input
P0_16 2 Output CLKOUT
P1_20 5 Input/output FC4_I2C_SCL
P1_21 5 Output FC4_I2C_SDA
P1_2 6 Output LSPI_HS_SCK
P0_26 9 Output LSPI_HS_MOSI
P1_3 6 Input LSPI_HS_MISO
P1_1 5 Output LSPI_HS_SSEL1
p1_11 0 Output GPIO
P0_29 1 Input FC0_USART_RX
P0_30 1 Output FC0_USART_TX
From P0_0 to P0_7 are the low 8 bits, they can be read by engine at one read instruction which only takes one system clock cycle.
P0_18 is set as camera engine function. It is operated by engine directly such as set logic high level, clear zero, toggle and so on.
P0_18 will be toggled by engine after every VSYNC edge.
NXP Semiconductors
Library and API routine
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 5 / 9

P0_13 and P0_15 are input function pins which can receive the VSYNC and pixel signals. The Pixel clock is 1/4 of clock source,
it is 12.5 MHz.
As clock output pin, P0_16 provides 50 MHz clock to camera as its clock source.
The LSPI_HS is high-speed SPI interface which is used to drive the LCD TFT screen.
7.4.4 LCD function
LCD is used to display the video of camera in real time. High-speed SPI is used to drive the LCD. The routine named by
LCD_Refresh() is a very high-efficiency routine, it can refresh a 320 × 240 picture in about 24 ms, up to 40 fps. The bus clock of
high-speed SPI can reach up to 50 MHz. The DMA is not used to drive the LCD. Instead, only software is used to drive LCD where
the Arm core writes the SPI FIFO data write register once it is empty.
Figure 3. LCD function
7.4.5 OV7670 camera module
The camera module is set as QVGA RGB565 mode. The 16-bit data is received with two pixel edges (high-byte first and
low-byte follows).
At the beginning, the MCU initializes the camera through I2C interface. Then, the video stream data is stored in the RAM by
camera engine.
7.4.6 Reserved 46_IRQHandler
Same with other peripheral handler, camera engine handler is implemented by Arm core once engine finishes the
storage operation.
In the handler, a flag is set as one. In the while(1) routine, the refreshing operation can be allowed when flag turns to logic one.
7.4.7 Data buffer
There needs 150 kB space for one frame of video and LPC55S59 has about 300 kB RAM space. Double buffer is not possible.
Only one buffer is used. Because the LCD refresh time (24 ms) is shorted than data storage time (33 ms), so Arm always reads
the data for LCD refresh is earlier than storage operation by the engine. Therefore, the media data cannot be lost.

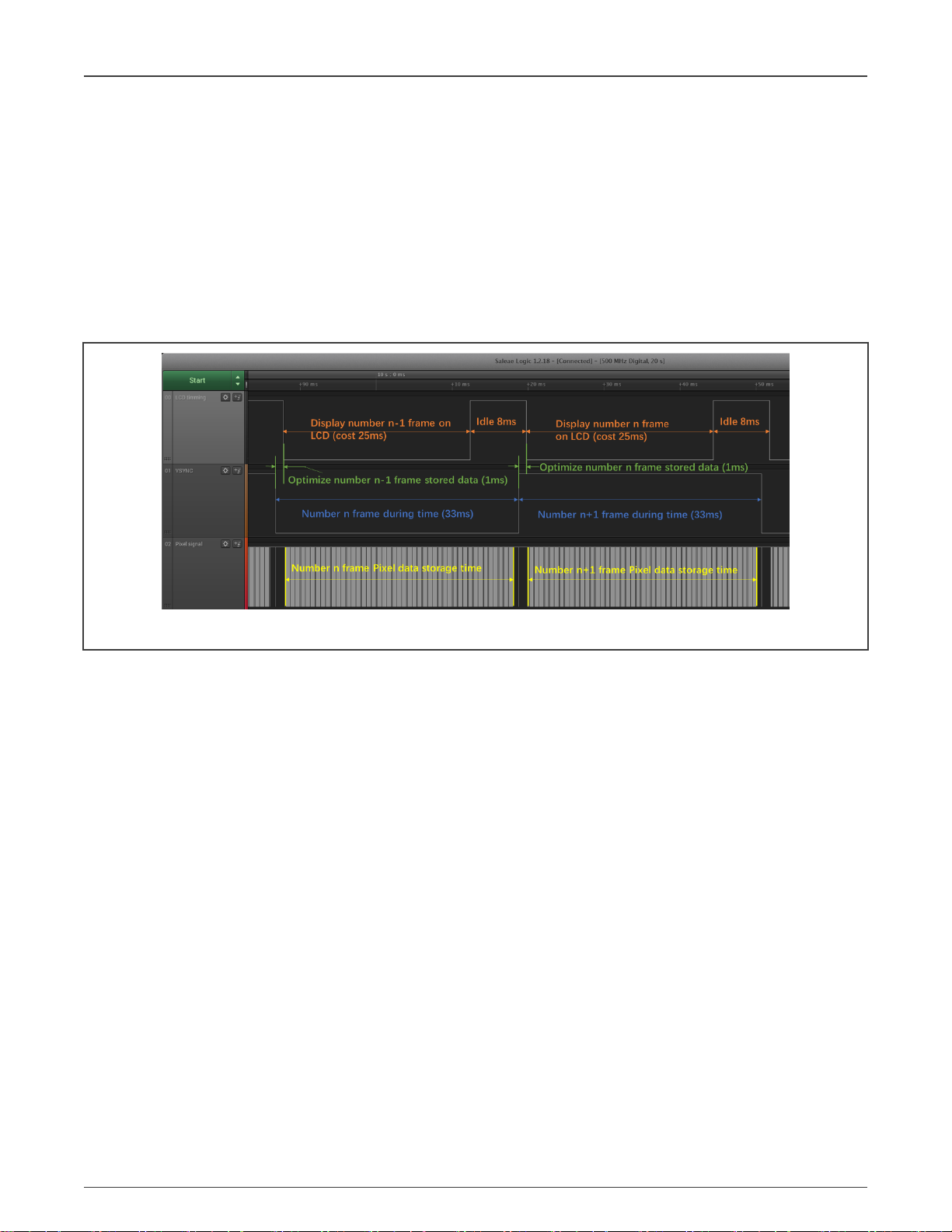

7.4.8 Timing
The LCD always displays the previous frame data from the camera. Before displaying, the data stored must be optimized by
dedicated processor for exchanging the high and low bytes of every pixel. Because the speed of LCD module displaying is higher
than the speed of camera interface reading data, the single data buffer is used in this application. While the current frame data is
stored, the LCD displays the previous frame data.
NXP Semiconductors
Library and API routine
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 6 / 9

8 Demonstration
1. Build and compile the project.
2. Plug one side of USB cable in PC USB port and another side in the debug link port in the EVK board, and then
download the image in the MCU.
3. Connect camera to MCU by referring to connection of interface in Chapter 4.
4. Connect the LCD panel with Arduino port on the LPCXpresso55s69 EVK board.
5. Connect one side of USB cable to USB power socket and the other to 5 V Power only USB port P5.
6. The LCD displays the video frame from camera as shown in Figure 4.
If the code cannot execute after downloaded, one of the reasons is that the MCU goes to ISP mode. The root cause
is that camera module generates logic level signal on P0.5 pin during MCU is under reset state. The solutions can
be as below:
1. Disconnect the pin before reset and connect it after reset.
2. Power down the camera module before reset and power up after reset.
WARNING
Figure 4. Video frame
NXP Semiconductors
Demonstration
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 7 / 9

9 Revision history
Table 3. Revision history
Rev. Date Description
3 07 September
2021
• Added purchase link for camera module in Purchasing LCD module and camera module
used in this demo
• Changed "coprocessor" to "dedicated processor"
2 07/2021 • Added a warning in Demonstration
• Editorial updates
1 10/2020 Replaced LPC55(S)xx for LPC55S69
0 05/2020 Initial release
A Purchasing LCD module and camera module used in this demo
You can purchase the LCD board and camera module from the below links:
1. https://www.waveshare.com/2.8inch-tft-touch-shield.htm
2. http://www.waveshare.net/shop/2.8inch-TFT-Touch-Shield.htm
3. https://www.amazon.com/gp/product/B07S66Y3ZQ/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&psc=1
4. https://detail.tmall.com/item.htm?spm=a230r.1.14.10.54a37d76CA0csy&id=554248152327&ns=1&abbucket=12
NXP Semiconductors
Revision history
Camera Interface in LPC55(S)xx, Rev. 3, 07 September 2021
Application Note 8 / 9

How To Reach
Us
Home Page:
nxp.com
Web Support:
nxp.com/support
Limited warranty and liability — Information in this document is provided solely to enable system and software implementers to use NXP
products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits based on
the information in this document. NXP reserves the right to make changes without further notice to any products herein.
NXP makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does
NXP assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability,
including without limitation consequential or incidental damages. “Typical” parameters that may be provided in NXP data sheets and/or
specifications can and do vary in different applications, and actual performance may vary over time. All operating parameters, including
“typicals,” must be validated for each customer application by customer's technical experts. NXP does not convey any license under its
patent rights nor the rights of others. NXP sells products pursuant to standard terms and conditions of sale, which can be found at the
following address: nxp.com/SalesTermsandConditions.
Right to make changes - NXP Semiconductors reserves the right to make changes to information published in this document, including
without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
Security — Customer understands that all NXP products may be subject to unidentified or documented vulnerabilities. Customer
is responsible for the design and operation of its applications and products throughout their lifecycles to reduce the effect of these
vulnerabilities on customer’s applications and products. Customer’s responsibility also extends to other open and/or proprietary
technologies supported by NXP products for use in customer’s applications. NXP accepts no liability for any vulnerability. Customer
should regularly check security updates from NXP and follow up appropriately. Customer shall select products with security features that
best meet rules, regulations, and standards of the intended application and make the ultimate design decisions regarding its products
and is solely responsible for compliance with all legal, regulatory, and security related requirements concerning its products, regardless
of any information or support that may be provided by NXP. NXP has a Product Security Incident Response Team (PSIRT) (reachable
at [email protected]) that manages the investigation, reporting, and solution release to security vulnerabilities of NXP products.
NXP, the NXP logo, NXP SECURE CONNECTIONS FOR A SMARTER WORLD, COOLFLUX,EMBRACE, GREENCHIP, HITAG,
ICODE, JCOP, LIFE, VIBES, MIFARE, MIFARE CLASSIC, MIFARE DESFire, MIFARE PLUS, MIFARE FLEX, MANTIS, MIFARE
ULTRALIGHT, MIFARE4MOBILE, MIGLO, NTAG, ROADLINK, SMARTLX, SMARTMX, STARPLUG, TOPFET, TRENCHMOS,
UCODE, Freescale, the Freescale logo, AltiVec, CodeWarrior, ColdFire, ColdFire+, the Energy Efficient Solutions logo, Kinetis,
Layerscape, MagniV, mobileGT, PEG, PowerQUICC, Processor Expert, QorIQ, QorIQ Qonverge, SafeAssure, the SafeAssure logo,
StarCore, Symphony, VortiQa, Vybrid, Airfast, BeeKit, BeeStack, CoreNet, Flexis, MXC, Platform in a Package, QUICC Engine, Tower,
TurboLink, EdgeScale, EdgeLock, eIQ, and Immersive3D are trademarks of NXP B.V. All other product or service names are the
property of their respective owners. AMBA, Arm, Arm7, Arm7TDMI, Arm9, Arm11, Artisan, big.LITTLE, Cordio, CoreLink, CoreSight,
Cortex, DesignStart, DynamIQ, Jazelle, Keil, Mali, Mbed, Mbed Enabled, NEON, POP, RealView, SecurCore, Socrates, Thumb,
TrustZone, ULINK, ULINK2, ULINK-ME, ULINK-PLUS, ULINKpro, µVision, Versatile are trademarks or registered trademarks of Arm
Limited (or its subsidiaries) in the US and/or elsewhere. The related technology may be protected by any or all of patents, copyrights,
designs and trade secrets. All rights reserved. Oracle and Java are registered trademarks of Oracle and/or its affiliates. The Power
Architecture and Power.org word marks and the Power and Power.org logos and related marks are trademarks and service marks
licensed by Power.org. M, M Mobileye and other Mobileye trademarks or logos appearing herein are trademarks of Mobileye Vision
Technologies Ltd. in the United States, the EU and/or other jurisdictions.
© NXP B.V. 2021. All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: [email protected]
Date of release: 07 September 2021
Document identifier: AN12868
