NXR NXR-EH3031 Assembly instructions

Professional Style Range hood
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
Under Cabinet / Wall Mount Range Hood
Duro Corporation
17018 Evergreen Place
City Of Industry, CA 91745
Product Information: 1-888-909-8818
Model:
NXR-EH3031
NXR-EH3631
NXR-EH4831
Installation Guide and User’s Manual

2
Welcome to the NXR Family! Thank you for purchasing your NXR range hood. We
appreciate your business and we recommend that you read this entire user’s manual
before operating your new appliance for the first time.
This manual contains instructions on how to properly install and set up your new range
hood, as well as insights into many of the unique features that our product offers. Please
keep this manual for future reference, as it contains the answers to questions that you
might have as you begin to cook.
Thank you,
NXR Duro Corporation

3
TABLE OF CONTENTS
RANGE HOOD WARNING & SAFETY.............................................4-6
INSTALLATION REQUIREMENTS & ASSEMBLY.........................7-10
Hardware List........................................................................................7
Circuit Diagram.....................................................................................7
Parts Supplied......................................................................................8
Installation Dimensions.........................................................................9
Ventilation Requirements......................................................................9
Electrical Requirements......................................................................10
INSTALLATION INSTRUCTIONS.................................................11-15
Preparation..........................................................................................11
Installation......................................................................................12-14
RANGE HOOD USE...........................................................................15
Range Hood Controls..........................................................................15
TROUBLE SHOOTING.......................................................................16
RANGE HOOD CARE...................................................................17-19
Cleaning..............................................................................................17
Maintenance.......................................................................................18
Replacement..................................................................................18-19
WARRANTY & SERVICE..............................................................19-20

4
The State of California enacted the California Safe Drinking Water and Toxic Enforcement
Act of 1986, (Prop.65), which “prohibits any person in the course of doing business from
knowingly and intentionally exposing any individual to a chemical known to the State of
California to cause cancer or reproductive toxicity without first giving clear and reasonable
warning to such individuals.” The Governor’s Scientific Advisory Panel added carbon
monoxide to the list of hazardous chemicals known to cause reproductive harm.
In order to establish full compliance with Proposition 65, a yellow warning label has been
attached to each gas-fired.
Carbon monoxide would not be present in concentrations that would pose a “significant
risk” to the consumer when the equipment is installed, operated and maintained as follows:
1. Installed in accordance with all local codes, or in the absence of local codes, with the
current National Fuel Gas Code ANSI Z223.1 Latest Addenda.
2. Installed under a properly designed and operating exhaust hood.
3. Connected to the type of gas for which the unit is equipped.
4. Proper appliance pressure regulator installed on the gas supply line and adjusted for
the manifold pressure marked on the rating plate.
5. Adequate air supply to the unit.
6. The equipment is operated in the manner intended and using the proper utensil for that
type of appliance.
7. Keep the equipment clean and have it checked periodically.
8. Burner air adjustments, mechanical maintenance and repairs must be performed by
qualified service personnel
Warning If the equipment is not installed, operated and maintained in accordance with the
above requirements, concentrations of carbon monoxide in excess of the established
limits could be present in the kitchen environment.
ALL PERSONNEL IN THE WORKPLACE WHO MAY BE SUBJECT TO ANY
EXPOSURE OF CARBON MONOXIDE MUST BE WARNED OF SUCH POSSIBLE
EXPOSURE. THIS WARNING SHOULD BE CONVEYED IN A MANNER SO THAT IT IS
CLEARLY UNDERSTOOD BY THE EMPLOYEE. THE EMPLOYEE MUST BE ASKED IF
IN FACT HE OR SHE UNDERSTANDS THE CORRECT METHOD OF OPERATION OF
THE EQUIPMENT AND THAT A RISK OF EXPOSURE EXISTS IF THE EQUIPMENT IS
OPERATED IMPROPERLY.
WARNING
If not installed, operated and maintained in accordance with the manufacturer’s
instructions, this product could expose you to fuel or fuel combustion substances, which
can cause death or serious illness and which are known to the State of California to cause
cancer, birth defects or other reproductive harm.

5
• The installation in this manual is intended for qualified installers, service technicians or
persons with similar qualified background. Installation and electrical wiring must be done
by qualified professionals and in accordance with all appliance codes and standards,
including fire-rated construction.
• DO NOT attempt to install this appliance yourself. Injury could result from installing the
unit due to lack of appropriate electrical and technical background.
• Range hood may have very sharp edges; please wear protective gloves if it is necessary
to remove any parts for installing, cleaning or servicing.
• Activating any switch ON before completing installation may cause ignition or an
explosion.
• Due to the size and weight of this range hood, two people installation is recommended.
To reduce the risk of fire, electric shock, or injury to persons:
• For general ventilating use only. DO NOT use to exhaust hazardous or explosive
materials and vapors.
• The combustion air flow needed for safe operation of fuel-burning equipment may be
affected by this unit’s operation. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire Protection
Association (NFPA), the American Society of Heating Refrigeration and Air Conditioning
Engineers(ASHRAE) and the local code authorities.
• Before servicing or cleaning unit, switch power OFF at service panel and lock service
panel to prevent power from being switched ON accidentally.
• Clean grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust into spaces between walls,
crawl spaces, ceiling, attics or garages.
• Ducted fan MUST always be vented to the outdoors.
• Use only metal ductwork and this unit MUST be grounded.
• Sufficient air is needed for proper combustion and exhausting of gases through the duct
to prevent back drafting.
• When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or
other hidden utilities.
• All electrical wiring must be properly installed, insulated and grounded.
• Old duct work should be cleaned or replaced if necessary to avoid the possibility of a
grease fire.
• Check all joints on duct work to insure proper connection and all joints should be
properly taped.
• Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the vendor.
To reduce the risk of a stove top grease fire:
• Keep all fan, baffle, spaces, filter, grease tunnel, oil container and grease-laden surfaces
clean. Grease should not be allowed to accumulate on fan, baffle, spaces, filter, grease
tunnel and oil container.
Important Safety Notice
Read all instructions before installing and operating this appliance

6
• Always turn range hood ON when cooking at high heat or when flaming foods.
• Use high setting on cooking range only when necessary.
• Never leave surface units unattended at high settings. Boil over cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Clean ventilation fan frequently.
• Always use appropriate cookware and utensils size.
• Always use cookware appropriate for the size of the surface element.
To reduce the risk of injury to person in the event of a stove top grease fire:
• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn OFF
the burner. BECAREFUL TO PREVENT BURNS.
• NEVER PICK UP A FLAMING PAN-you may be burned. KEEP FLAMMABLE OR
COMBUSTIBLE MATERIAL AWAY FROM FLAMES.
• If the flames DO NOT go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT OR 911.
• DO NOT USE WATER, including wet dishcloths or towels; a violent steam explosion may
result.
• Use an extinguisher ONLY if.
• You know you have a Class A, B, C extinguisher, and you already know how to operate it.
• The fire is small and is contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.
To reduce the risk of injury to persons in the event of a gas leak:
• Extinguish any open flame.
• DO NOT turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, call the gas
company and fire department, or 911 immediately.
• Your safety and the safety of others is very important. We have provided many important
safety messages in this manual and on your appliance.
• Always read and obey all safety message. All safety messages will tell you what the
potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt
you and others. All safety messages will follow the safety alert symbol and the word
“WARNING.”

7
Assembly

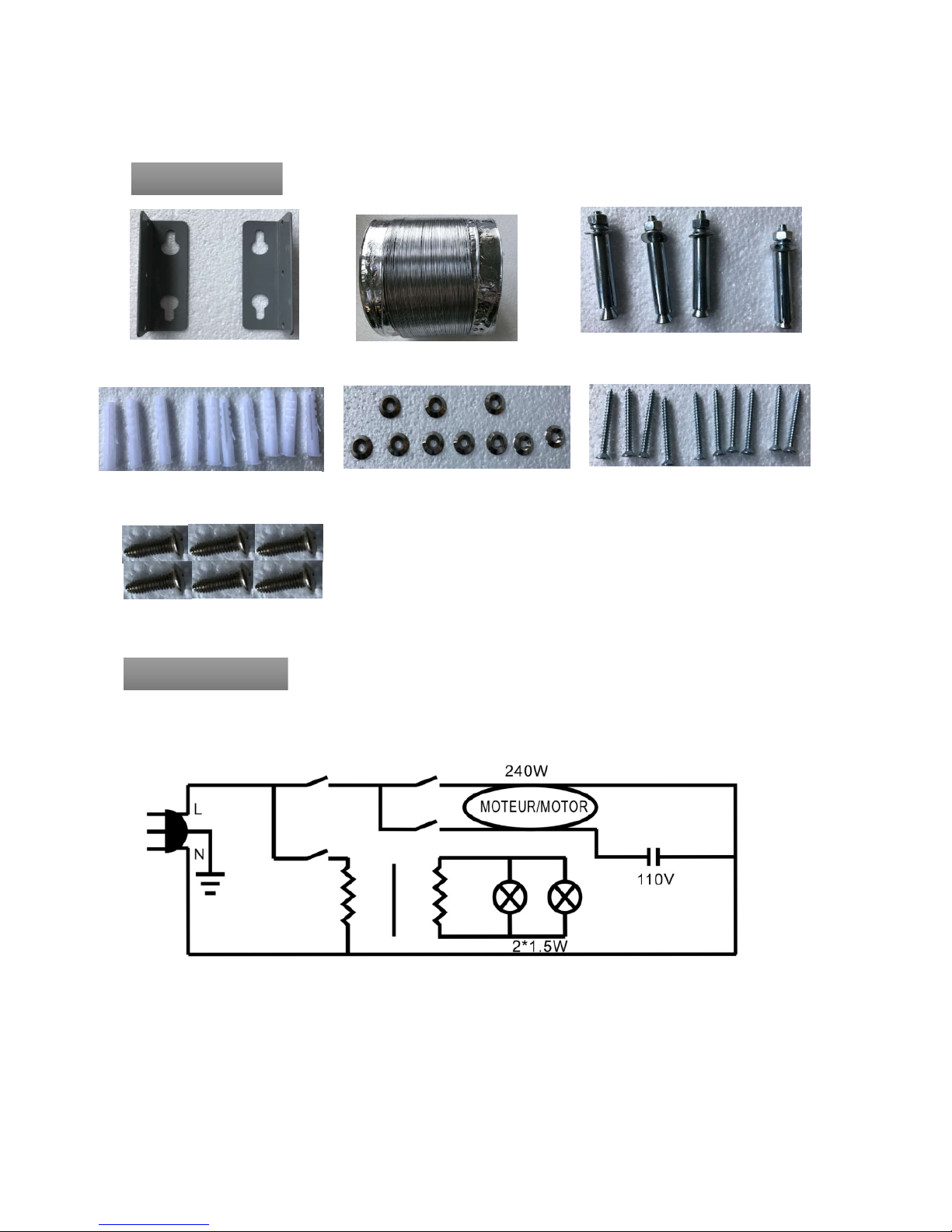

Hardware List
Mounting bracket 2pcs Aluminum tupe 1pc Explode screws M6x53 4pcs
Screws M4x40 10pcs
Washers M4 10pcs
Screw sleeve 10pcs
Screws M4x12 6pcs
Circuit Diagram

8

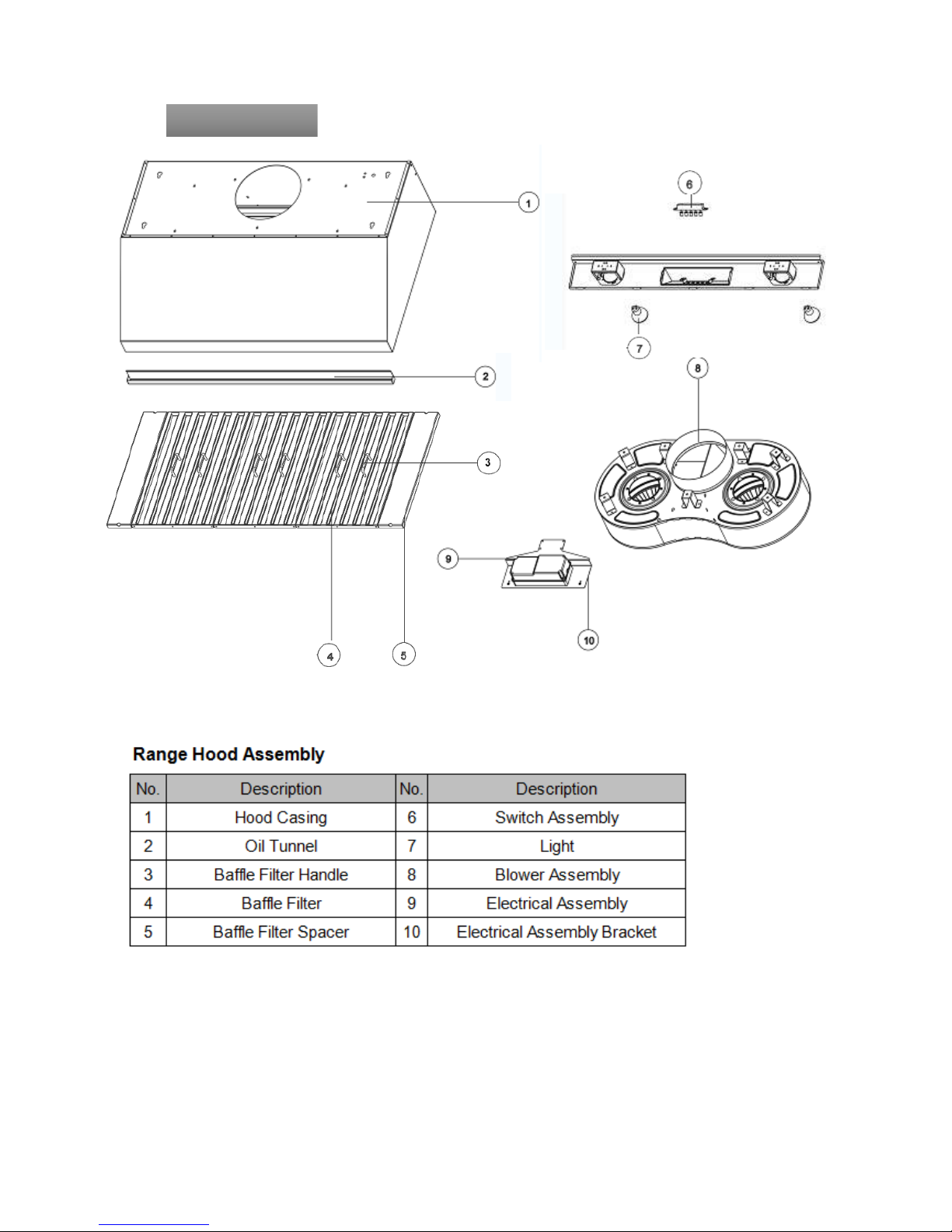

Parts supplied

9

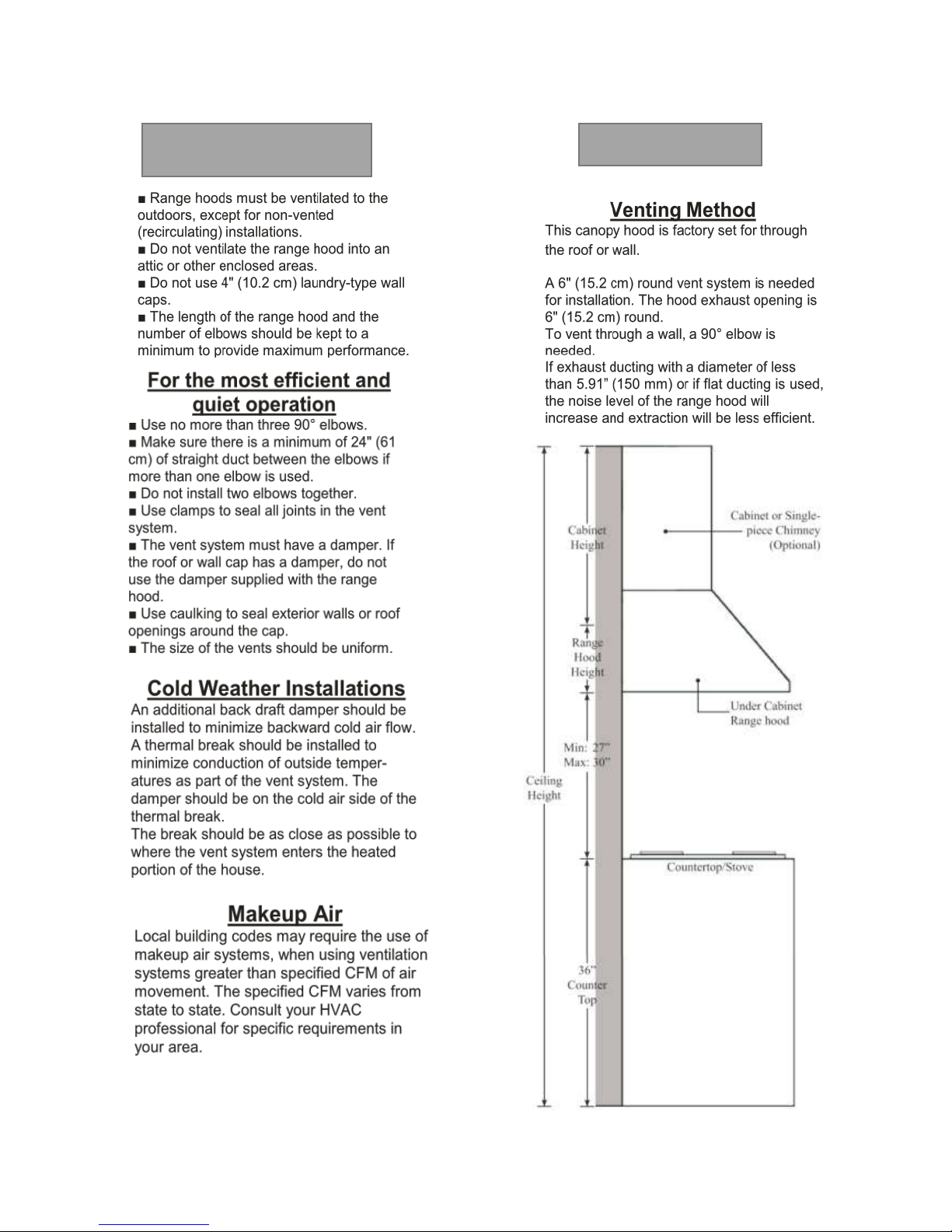

Height&ClearanceVenting Requirements&
Recommendation

10

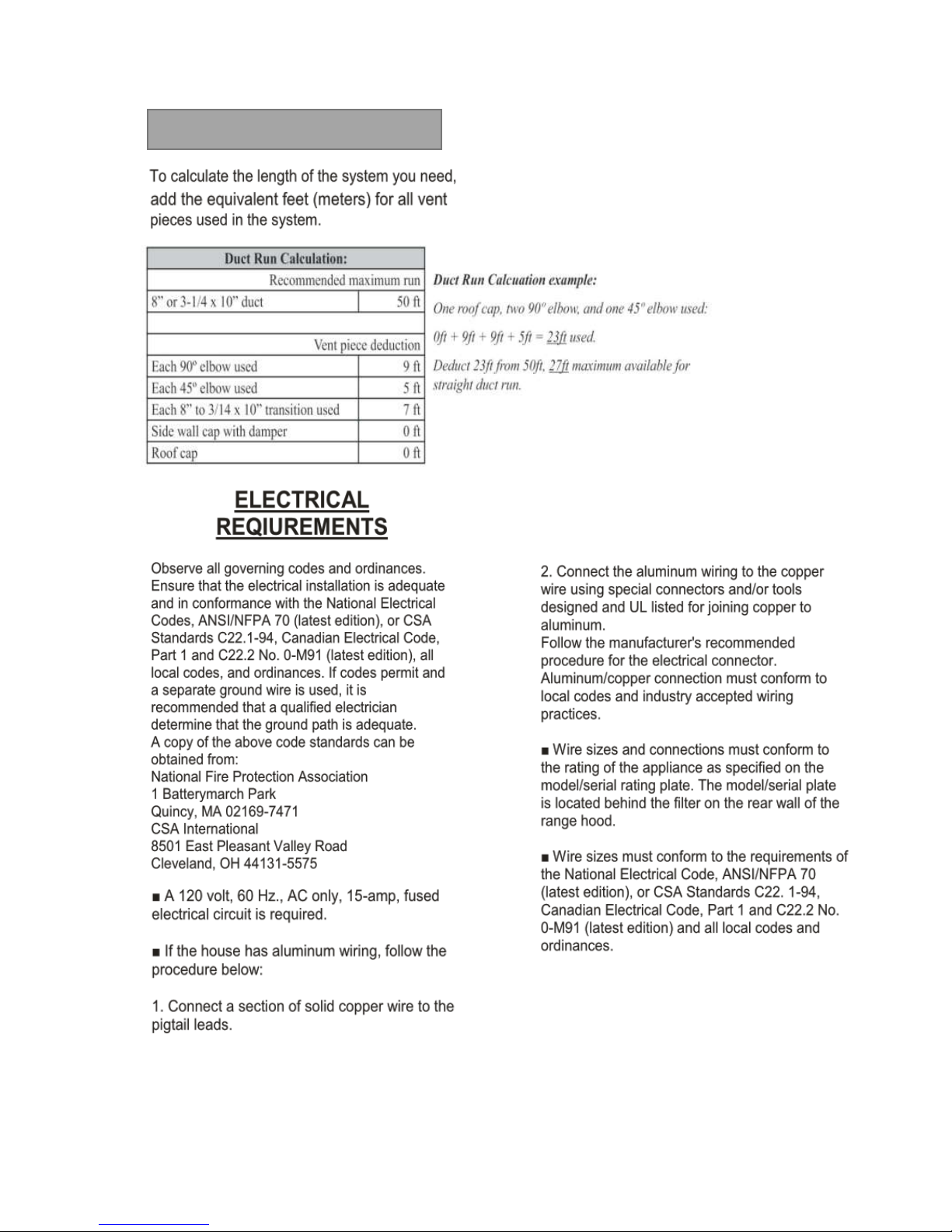

Calculating Vent System Length

11

12

13
Connect the hooks, gaskets and screws to the unit by screwdriver Figure 3
Screw the anchor screws to suitable location, the hook on lock screws.

14

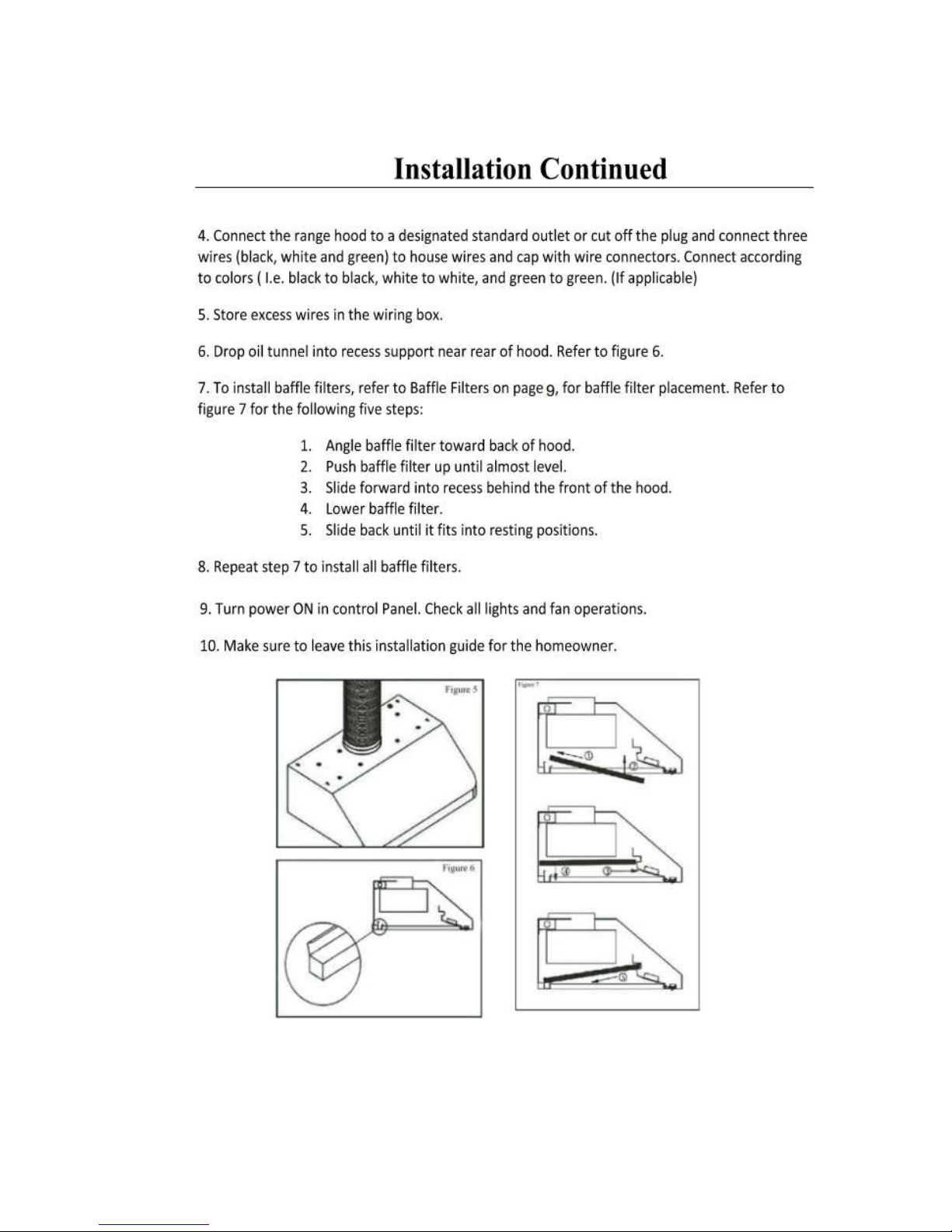

15

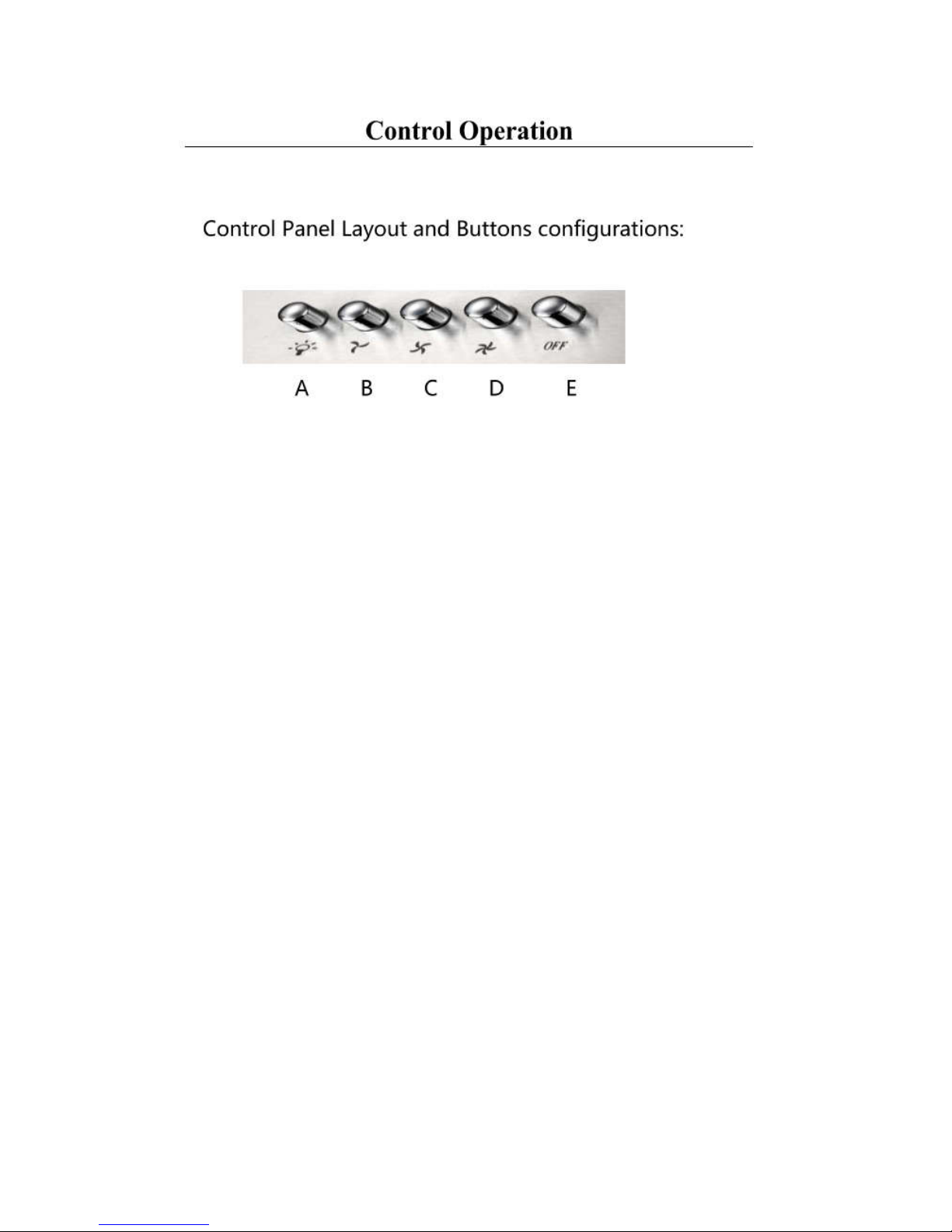

A) Lamp: Press the lamp display one time to activate the light,
press the lamp display again to deactivate it.
B) Low Speed: Press “low speed” key, fan running at low speed.
C) Mid Speed: Press “Mid Speed” key, fan running at mid speed.
D) High Speed: Press “High Speed” key, fan running at high
speed.
E) Power: When the range hood is running, press this button,
power off.

16
(1-888-909-8818)

17
Operations:
Read and understand all instructions and warnings in this manual before operating the
appliance. Save these instructions for future reference.
Always leave safety grills and filters in place. Without these components, operating
blowers could catch on to hair, finger and loose clothing.
NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers.
NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and
catch fire. The risk of self combustion is higher when the oil has been used several times.
NEVER cook on “open” flames under the range hood. Check deep-fryers during
use: Superheated oil may be flammable.
Cleaning:
The saturation of greasy residue in the blower and filters may cause increased
inflammability. Keep unit clean and free of grease and residue built up at all times to
prevent possible fires.
Filters must be cleaned periodically and free from accumulation of cooking residue. Old
and worn filters must be replaced immediately.
DO NOT operate blowers when filters are removed. Never disassemble parts to clean
without proper instructions. Disassembly is recommended to be performed by qualified
personnel only. Read and understand all instructions and warnings in this manual before
proceeding.
Body Design Stainless Steel,Satin Finish
Power Rating 120V/60Hz(USA&Canada standard)
Motor Input Power 240W
Levels Of Speed
Control 3 Levels
Airflow(Q/L/M/H) 600CFM
Noise Level(Q/L/M/H) 1.4sone(45dB) / 3.5sone(58dB) / 7.0sone(68dB) /
8.0sone(70dB)
Number Of Motors Twin Motor
Motor Type Dual Chamber Ultra Quiet
Fan Type Dual Centrifugal Squirrel Cage
Control Type Electronic Button Control Panel
Filtration Type Stainless Steel Baffle Filter
Illumination LED
Use and Care Information
Specifications

18
SAFETY WARNING: Never put your hand into area housing the fan while the fan is
operating!
For optimal operation, clean range hood and all baffle / spacer / filter / grease tunnel / oil
container regularly / Regular care will help preserve the appliance of the range hood.
Cleaning Exterior surfaces:
Clean periodically with hot soapy and clean cotton cloth. DO NOT use corrosive or
abrasive detergent, or steel wool/scoring pads, which will scratch and damage the
stainless steel surface. For heavier soil use liquid degrease such as “Forumla 409" or
“Fantastic” brand cleaner.
If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the
surface of the hood. Avoid getting cleaning solution onto or into the control panel. Follow
directions of the stainless steel cleaner.
CAUTION: DO NOT leave on too long as this may cause damage to hood finish.
Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use dry
towel to dry the hood.
After cleaning, you may use non abrasive stainless steel polish such as SM or ZEP, to
polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton
cloth, and with the grain.
DO NOT allow deposits to accumulate or remain on the hood.
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface and cause rusting.
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain
chemicals, which may be harmful. Rings with water exposure and wipe dry with a clean
cloth.
Cleaning Stainless Steel Baffle Filter:
IMPORTANT: Drain oil from baffles, spacers, filters, oil tunnels, oil containers before oil
residue overflow!
Remove all baffles, spacers, filters, grease tunnel, and oil containers and discard oil and
residue.
Wash with warm soapy water. NOTE: Stainless steel baffles, spacers and oil tunnel are
top rack dishwasher safe.
Dry thoroughly before replacing and follow directions for installation in reverse.
Filters should be cleaned after every 30 hours of use.
Replacing the light bulb:
This range hood uses halogen bulb
Make sure the range hood is unplugged or turn OFF breaker.
1. Place a flat-head screwdriver between light cover and housing to remove cover.
2. Gently pull defective bulb straight out and discard.
Maintenance

19
3. Wear a cotton glove or use a cloth to handle the replacement bulb (DO NOT handle
with bare fingers as this may shorten the life of the bulb). Push gently but securely into
light socket. NOTE: DO NOT push too hard as bulb “legs” may break off.
4. Replace light cover.
Turn ON breaker and range hood to rest for operation.
Manufacture’s Limited Warranty
This Product has been manufactured by Duro Corporation 17018 EVERGREEN PLACE
CITY OF INDUSTRY, CA 91745.
Duro Corporation disclaims all express warranties except for the following:
This warranty applies to products purchased and located in the United States. Products
purchased or located outside these areas are excluded.
The warranty does not apply to damage resulting from abuse, accident, natural disaster,
loss of electrical power to the product for any reason, alteration, outdoor use, improper
installation, improper operation, or repair or service of the product by anyone other than
an authorized
Duro Corporation service agency or representative.
Warranties and Duration
Full Warranty for Parts&Labor: 1 Year
Implied warranties terminate upon expiration of the limited warranty. Some states do not
allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to your implied warranty.
Duro will pay for:
All repair labor and the cost of replacement parts found to be defective due to materials
and workmanship. Service must be provided by a DURO Authorized Service Agency
during normal working hours. For a Service Agency nearest you, please call
1-888-909-8818.
Duro will not pay for:
1. Service by an unauthorized agency. Damage or repairs due to service by an
unauthorized agency or use of unauthorized parts.
TO OBTAIN SERVICE UNDER WARRANTY:
You must present of original purchase date. Please provide an original dated proof of
purchase (sales receipt/invoice) in order to obtain service under warranty.
Warranty

20
2. Service visits to:
a. Teach you how to use the appliance.
b. Correct the installation. You are responsible for providing electrical wiring and other
connecting facilities.
c. Reset circuit breakers or replace home fuses.
3. The warranty does not apply to damage caused from accident, alteration, misuse,
abuse, improper installation or installation not in accordance with local electrical codes or
plumbing codes, or improper storage of the appliance.
4. The warranty does not apply to repairs other than normal home use.
5. Travel or trip fees and associated charges incurred when the product is installed in a
location with limited or restricted access. (i.e.airplane flights, ferry charges, isolated
geographic regions).
The warranty applies to appliances purchased and used by consumers for personal,
family, or household purposes only. It does not cover appliances used in commercial
applications.
Should the appliance be sold by the original purchaser during the warranty period, the
warranty extends to the new owner until the expiration date of the expiration date of the
original purchaser’s warranty period.
Duro is not responsible for incidental or consequential damages. Under no circumstances
will Duro’s liability exceed the cost that you paid for the product. Some provinces / states
do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that wary
from state to state.
Whenever you call our Customer Service at 1-888-909-8818 for technical information and
parts sales in The United States or to request service for your appliance, please have your
complete model number and serial number ready. The model and serial number can be
found on the product data plate. Please enter the information requested in the spaces
provided below:
Model No. Serial No.
Date Purchased Date Installed
Purchased From
Address
Phone
NOTE: You must provide proof of purchase or installation date for in-warranty service.
