Ocean Matrix OMX-EDID-EM1 User manual

Ocean Matrix
812 Kings Highway ·Saugerties, NY 12477
www.oceanmatrix.com
USER MANUAL
OMX-EDID-EM1
HDMI EDID Emulator

OMX-EDID-EM1
HDMI EDID Emulator
The Ocean Matrix OMX-EDID-EM1 emulates EDID information to correct com-
patibility issues between a video source and a monitor. Designed for AV instal-
lation and equipment testing, the unit has an integrated learning function that
allows EDID management through read, write, emulator, and bypass modes.
Features
 Supports 8 sets of default EDID
 Supports DVI source with a HDMI to DVI adaptor
 Supports CEC and EDID pass through
 Can be powered through the USB or HDMI input
Includes
Mini-USB to USB Type A Cable
Specifications
Video Bandwidth 300Mbps/9 Gbps
Inputs 1-HDMI, 1-USB Mini-B (power only)
Output 1-HDMI
HDMI Cable Distance 32.8 ft@1080P/12-bit, 16.4 ft@4Kx2K
HDMI Support  Resolutions up to 1080p@60 Hz and 4K×2K@24/25/30 Hz
 12-bit Deep Color
 LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio (Sampling rates from 32 kHz to 192 kHz)
EDID Modes  Read: Reads the TV/display's EDID information
 Write: Overwrites the display's EDID information
 Emulator: Allows the source device to read the selected EDID
information from the unit's default or learned EDID memory
 Bypass: Allows the source device to read the EDID information
from the display directly
USB Power 5V/500mA
Dimensions (LxWxH) 2.8 x 2.8 x 0.9in / 71 x 71 x 23mm
Weight 3.81 oz / 108g
Power Consumption 2.5W
Ocean Matrix OMX-EDID-EM1 Page 2

Ocean Matrix OMX-EDID-EM1 Page 3

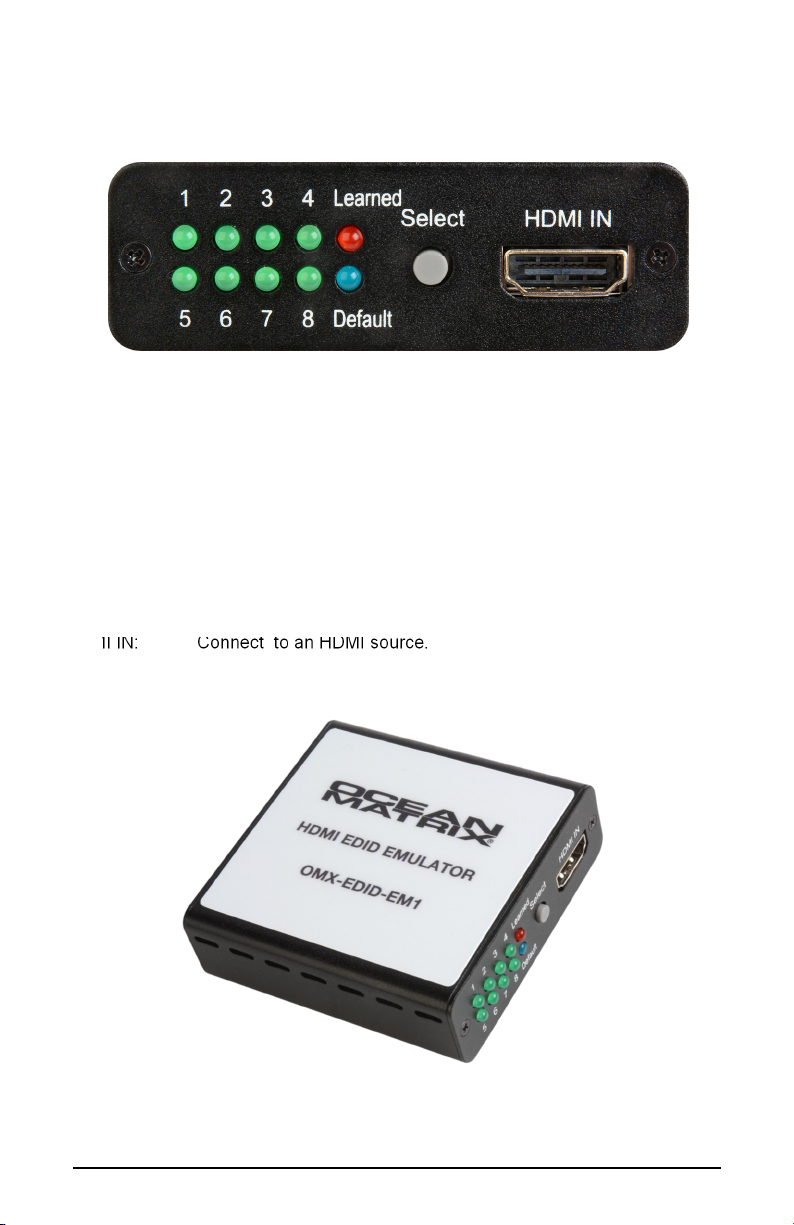

1-8 LEDs: EDID Settings: Press ‘Select’ button to switch from one setting to
the next.
Learned LED: Select Learned to save up to 8 unique HDMI EDID settings. Refer
to “ EDID Learning Procedure” for more information, page 5.
Default LED: Select Default to use the built-in default EDID settings, 1—8. Re-
fer to “ EDID Learning Procedure” for more information, page 5.
Select Button: Press for 3 seconds to switch between Learned and Default. The
appropriate LED will illuminate to indicate mode selected.
HDMI IN: Connect to an HDMI source.
OMX-EDID-EM1 Features
Front Panel

Ocean Matrix OMX-EDID-EM1 Page 4

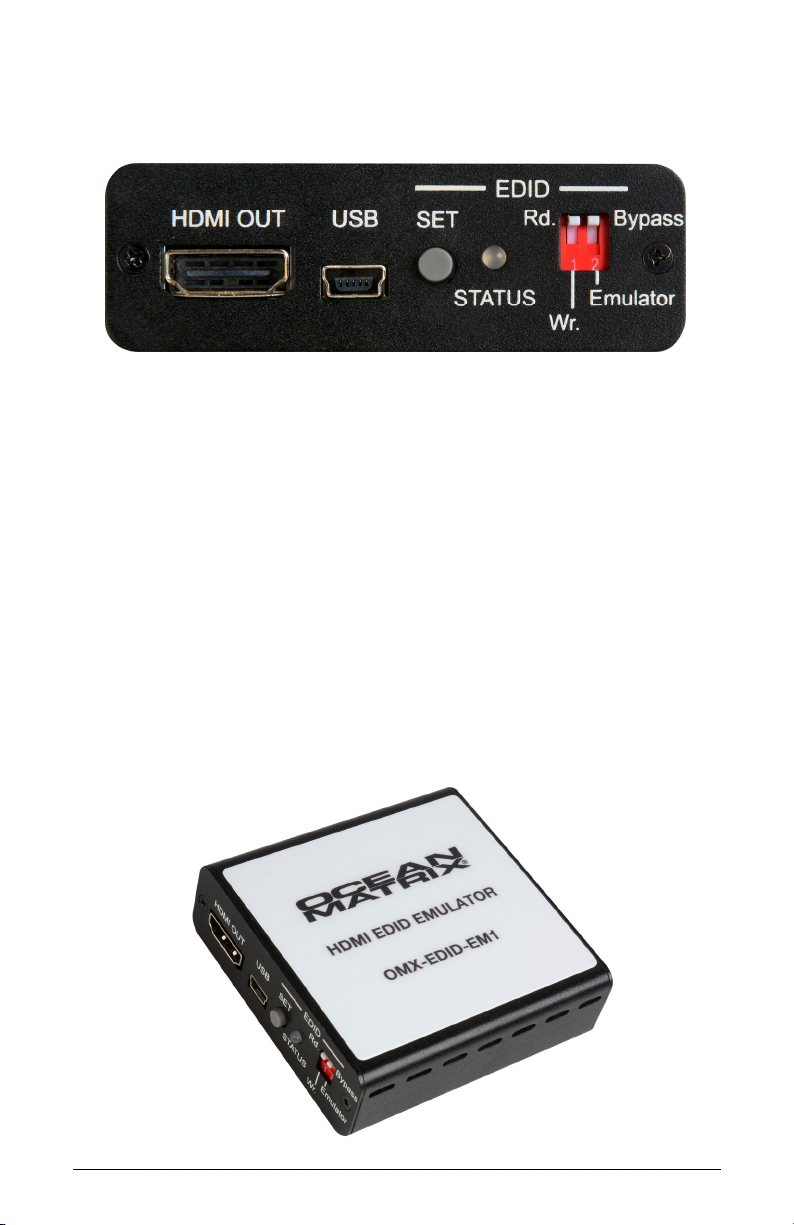

HDMI OUT: Connect to an HDMI display
USB: Connect the mini-USB to active USB device to power the system.
SET Button: Press to activate EDID Read/Write function.
STATUS LED: Indicates EDID Read/Write status.
EDID Switch: Selects Read/Write and Bypass/Emulator
 Rd (Read): sets the emulator mode to read (refer to page 5).
 Wr (Write): sets the emulator mode to write (refer to page 5).
 Emulator: set to Emulator position for video/audio source to
read the unit’s current set EDID (1-8). To change to another
EDID, press Select button to switch among settings.
 Bypass: set to Bypass mode for the video/audio source to
read the HDMI display’s EDID settings directly.
OMX-EDID-EM1 Features
Rear Panel

Ocean Matrix OMX-EDID-EM1 Page 5
OMX-EDID-EM1 Operation
EDID Learning Procedure
To Read the EDID
1. Connect a display to the HDMI output.
2. Set the Emulator/Bypass 2 switch to Emulator first then set the Rd/Wr 1
switch to the Rd (Read) position.
3. Press the Select button for 3 seconds to put the unit into Learned mode.
4. Press the Select button repeatedly to cycle through to the required 1 to 8
EDID setting.
5. Press the SET button for 3 seconds to write the EDID to the corresponding
memory as indicated by the LED.
6. When the STATUS LED illuminates in green, the EDID learning has been
successful. If the STATUS LED is red, the learning failed.
To Write the EDID
1. Connect a display to the HDMI output.
2. Set the Emulator/Bypass 2 switch to Emulator first then set the Rd/Wr 1
switch to the Wr (Write) position.
3. Press the Select button repeatedly to cycle through to the required Learned/
Default 1 to 8 setting.
4. Press the SET button for 3 seconds to overwrite the HDMI display EDID
setting. The STATUS LED will blink during the writing process.
5. When the STATUS LED illuminates in green, the EDID writing has been
successful. If the STATUS LED is red, the writing has failed. If the STATUS
LED did NOT blink and is red, then the display’s EDID is not writable.
Warning: Once the writing is complete, the original EDID will be erased. We
recommend you back up the original EDID settings by storing them in the unit
prior to performing the overwrite.

Ocean Matrix OMX-EDID-EM1 Page 6
OMX-EDID-EM1 Operation
Default EDID Settings
LED No. Video Audio
1 DVI N/A
2 1080p@60Hz, 8-bit LPCM 2CH
3 1080p@60Hz, 12-bit Deep Color LPCM 2CH
4 3D or 1080p@60 Hz,12-bit Deep
Color LPCM 2CH
5 4Kx2K@24/25/30 Hz LPCM 2CH
6 1080p@60Hz, 8-bit LPCM 5.1CH
7 3D or 1080p@60 Hz,12-bit Deep
Color
Dolby TrueHD or DTS-HD Master
Audio
8 4Kx2K@24/25/30 Hz or 3D Dolby TrueHD or DTS-HD Master
Audio

OMX-EDID-EM1 Connection Diagram
Diagram below shows power supplied through a USB port on the display. Power can
also be supplied over HDMI by compatible devices.
Ocean Matrix OMX-EDID-EM1 Page 7
Blu-Ray Player
3D TV/Display
USB PowerHDMI Output
HDMI Input

Ocean Matrix
812 Kings Highway
Saugerties NY 12477
www.oceanmatrix.com
SAFETY PRECAUTIONS
1. To prevent fire or shock hazard, do not expose this equipment to high
humidity and/or dust. Do not use in an unprotected outdoor installation
nor any area classified as overly damp or wet.
2. The temperature for installation should be kept between 32°F to 140°F
(0°C to 60°C). Avoid direct sunlight exposure or extreme changes of
temperature over a short period of time.
3. Do not disassemble the unit or place it on an unstable base.
4. Do not drop the unit and avoid heavy impact.
5. This unit should not be permanently installed unless proper ventilation is
provided. Any enclosure openings must not be blocked or covered as
they protect the unit from overheating.
6. Before cleaning, turn off the power and unplug the unit from all
connections. Use a damp cloth. Do not use liquid or aerosol cleaners.
7. Do not overload outlets and extension cords as this may result in a risk of
fire or electric shock.
8. Enclosure entry is dangerous. Never push objects of any kind, including
liquids, into this unit through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock.
9. Do not attempt to open or service this unit yourself as opening or removing
covers may expose you to dangerous voltage and other hazards.
10. There are no user-serviceable parts inside the unit. If the unit requires
service contact your authorized dealer, or an authorized repair service
company.
