USE AND CARE GUIDE
40-INCH CEILING FAN
THANK YOU
We appreciate the trust and confidence you have purchased this ceiling fan. We strive to continually create quality products designed to
en
hanceyourhome.Visit usonline toseeour fulllineof products available foryour home!
Dear Customer
:
Thank you very much for choosing Ohniyou .
Your choice is our biggest driving force. We
have been and will continue to be committed to
providing our customers with more high-quality
and low-cost products.
Tips : The installation process of this product is
a bit cumbersome and it is estimated that it will
take 0.5-1 hour to complete the assembly.
Please be patient to complete this assembly
process then you will get a practical pretty
product and a full sense of achievement after
completion.
If you have any questions in the process of
assembly or use, please contact us through the
QR code email below as soon as possible.
Thank you again for choosing ohniyou
Please feel free to contact us: ohniyou@ledphy.com
2
Table of Contents.............................................................. 2
Safety Information ............................................................ 2
Warranty............................................................................ 3
Pre-installation.................................................................. 3
Installation......................................................................... 6
Assembly...........................................................................7
Operation.........................................................................13
Care and Cleaning...........................................................14
Troubleshooting..............................................................14
READ AND SAVE THESE INSTRUCTIONS
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70-1999 and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting 35 lbs (15.9 kg). Use only UL Listed outlet
boxes marked “Acceptable for Fan Support of 35 lbs (15.9 kg) or less.”
4. CAUTION:The fan must be mounted with a minimum of 7 ft. (2.1 m)
clearance from the trailing edge of the blades tothe floor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL-listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the instructions packaged with the light kits
and switches for proper assembly.
9. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
10.
All setscrews must be checked and re-tightened where
necessary
before installation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□
Reorient or relocate the receiving antenna.
□
Increase the separation between the equipment and receiver.
□
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□
Consult the dealer or an experienced radio/TV technician for help.
Safety Information
Table of Contents
WARNING:
To reduce the risk
of
personal
injury, do
not
bend the blade brackets (also referred to as flanges) during
assembly or after installation. Do not insert objects in the
path of the blades.
WARNING:
To reduce the risk of fire or electric shock, this
fan must be installed with an isolating wall switch.
WARNING:
To reduce the risk of fire, electric shock, or
personal injury, mount to outlet box
marked “Acceptable
for
fan support of 35 lbs (15.9 kg) or less,” and use the screws
provided with the outlet box.
WARNING:
Electrical diagrams are for reference only.
Optional use of any light kit shall be UL-listed and marked
suitable for use with this fan.
WARNING:
To reduce the risk of fire or electric shock, this fan
should only be used with fan speed control part no. AP-8RDL
manufactured by DawnSun Electronic Technology Co., Ltd.
Zhongshan.
WARNING:
To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
CAUTION:
To reduce the risk of personal injury, use only the
screws provided with the outlet box.
3
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of five years after the date of purchase by the original purchaser.
The supplier also warrants that other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as
by accident, misuse, improper installation, or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions
this warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing, or peeling. Brass finishes of this type give
their longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered
a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators
Collection hereby disclaims any and all warranties, including but not limited to those of merchant-ability and fitness for a particular purpose to the
extent permitted by law. The duration of any implied warranty, which cannot be disclaimed, is limited to the time period as specified in the express
warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may
otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation
may not apply to you. This warranty gives specific legal rights, and you may also have other rights that vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
TOOLS REQUIRED
Phillips
screwdriver
Step ladder
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter /
stripper
Warranty
Scan the QR code to watch the installation video if necessary.
Pre-Installation
4
HARDWARE INCLUDED
AA
BB
CC
DD EE
Pre-Installation (continued)
Part
Description
Quantity
AA
Hanger pin
1
BB
Locking pin
1
CC
Wire connecting nut
3
Part
Description
Quantity
DD
Blade screws
12
EE
Extra blade bracket screw
1
NOTE:
Hardware not shown to actual size.
5

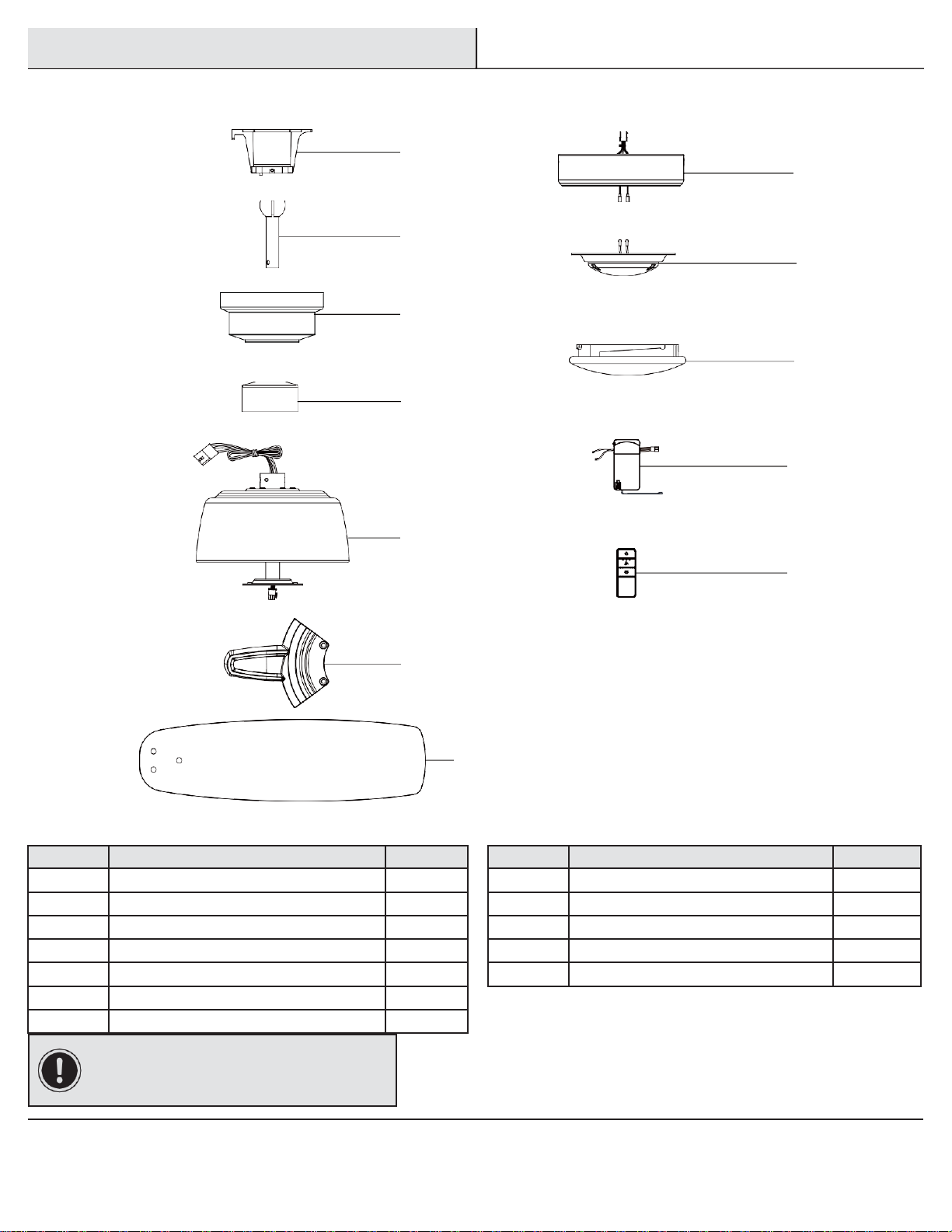

PACKAGE CONTENTS
A
H
B
I
C
J
D
K
E
L
F
G
IMPORTANT:
This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
Part
Description
Quantity
A
Slide-on mounting bracket (inside canopy)
1
B
Ball/downrod assembly
1
C
Canopy
1
D
Decorative motor collar cover
1
E
Fan-motor assembly
1
F
Blade bracket (with pre-installed screws)
4
G
Blade
4
Part
Description
Quantity
H
Light kit pan
1
I
Light kit fitter assembly
1
J
Glass shade
1
K
Receiver
1
L
Transmitter
1
6
MOUNTING OPTIONS
If your ceiling fan does not have an existing UL mounting box,
then install one using the following instructions:
□
Disconnect the power by removing the fuses or turning off
the circuit breakers.
□
Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight of
the moving fan (at least 35 lbs). Do not use a plastic outlet
box.
The illustrations below show three different ways to mount the
outlet box.
Hanger Bar
Outlet Box
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing fixture but no ceiling joist,
you may need an installation hanger bar as shown above (available at
any Home Depot store).
Outlet Box
Provide Strong
Support
Recessed
Outlet
Box
Ceiling
Mounting
Plate
Installation
WARNING:
To reduce the risk of fire, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lbs (15.9 kg) or less,”
and use the screws provided with
the
outlet
box. An
outlet box commonly used for the support of lighting
fixtures may not be acceptable for fan support and may
need to be replaced. If in doubt, consult a qualified
electrician.
Outlet Box
NOTE:
You may
need
a
longer
downrod
to
maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
7
WARNING:
Failure
to
properly
install
the
locking
pin (BB) could result in the fan becoming loose and
possibly falling.
C
B
L
E

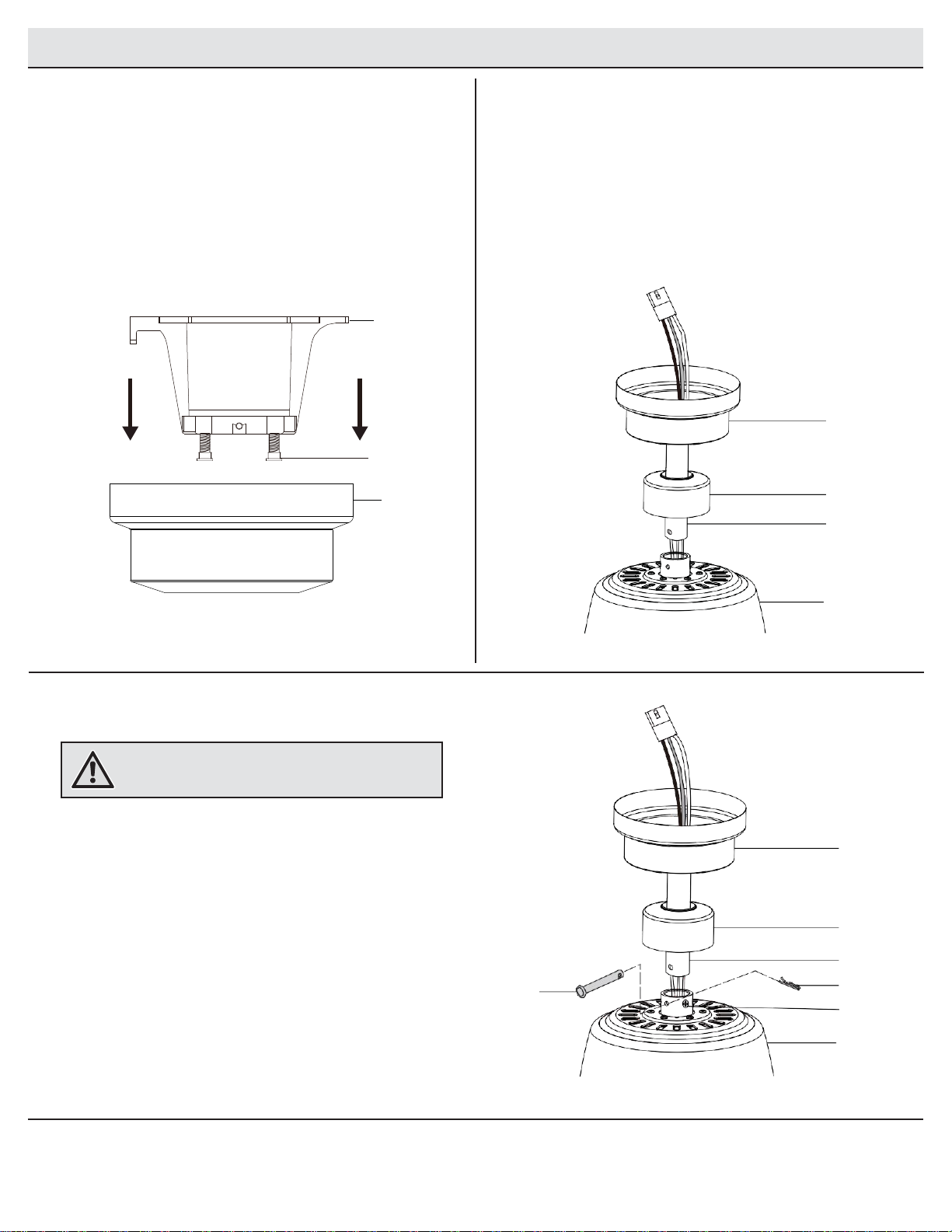

1 Preparing for standard mounting 2 Routing the wires
□
Remove the canopy bottom cover (JJ) from the canopy
(C) by turning the bottom cover counterclockwise until it
unlocks.
□
Loosen the two canopy screws (HH) located in the
bottom of the mounting bracket (A), and turn the canopy
counterclockwise to remove the mounting bracket (A)
from the canopy (C).
C
□
Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the
center of the canopy bottom cover (JJ).
□
Make sure the opening of the canopy (C) is on top and insert
the ball/downrod (B) through the canopy (C).
□
Route the wires exiting the top of the fan motor assembly (E)
through the downrod asshown.
C
D
B
E
3
Assembling the fan
□
Loosen, but do not remove, the setscrews (LL) on the collar on
top ofthe fan-motor assembly (E).
□
Align the holes at the bottom of the ball/downrod assembly (B)
with the holes in the collar on top of the fan-motor assembly (E).
□
Carefully insert the hanger pin (AA) through the holes in the
collar and ball/downrod assembly (B). Be careful not to jam
D
the hanger pin (AA) against the wiring inside the ball/downrod
assembly (B).
□
Insert the locking pin (BB) through the hole near the end of the
AA BB
hanger pin (AA) until it snaps into its locked position.
L
□
Re-tighten the setscrews (LL) on the collar on top of the fan-
motor assembly (E).
Assembly - Standard Ceiling Mount
A
HH
8
MM
Attaching the fan to the electrical
box
MM
□
Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
A
□
Install the slide-on mounting bracket (A) on the outlet box by
sliding the slide-on mounting bracket (A) over the two screws
(MM) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. The flat side of the slide-on mounting
bracket (A) should face toward the outlet box, as shown.
□
Securely tighten the two outlet box screws (MM).
2 Hanging the fan A
□
Carefully lift the fan-motor assembly (E) up to the slide-on
B
mounting bracket (A).
C
□
Insert the ball portion of the ball/downrod assembly (B) into
the socket of the slide-on mounting bracket (A).
□
Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned with
D
the slot in the ball.
E
Assembly - Hanging the Fan
NOTE:
The mounting bracket (A) is designed to slide into
place on an outlet box with the outlet box screws (MM).
1
WARNING:
To reduce the risk of fire, electric shock or
personal injury, mount to an outlet box marked “Acceptable
for fan support of 35 lbs (15.9 kg) or less,” and use
the
screws provided withthe outlet box.
9
K
AAA
B
BBB
C
K
Downrod mounted installation method
□
Position the house supply wires (AAA) to one side of the slide-on mounting bracket (A); position the fan wires (BBB) to the
opposite side.
□
Insert the narrow end of the receiver (K) (as shown, flat side towards the ceiling) into the slide-on mounting bracket until it
rests on top of the
ball/downrod assembly.
Receiver (K) correctly positioned in the mounting bracket.
Assembly - Hanging the Fan (continued)
CAUTION:
Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
CAUTION:
If other fan wires are a different color, have this
unit installed by alicensed electrician.
WARNING:
To reduce the risk of fire or electric shock, remember
to disconnect power. The electrical wiring must meet all local
and national electrical code requirements. The electrical source
and fan must be 110/120 volt, 60Hz. Do not use this product
inconjunction with any variable wall control. Incorrect wire
connection candamage thisreceiver.
3
10
Wiring the receiver to the
household wiring
□
Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□
Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting nut
(CC).
□
Connect the receiver (K) black or red wire to the household
black (hot) wire using a wire connecting nut (CC).
□
Connect the receiver (K) white wire to the household white
wire (neutral) using a wire connecting nut (CC).
□
Secure each wire connecting nut using electrical tape.
5 Wiring the fan to the receiver
□
If using the 4.5 in. ball downrod
assembly
(B)
provided,
wire the receiver to the fan wires by connecting the molded
adaptor plug from receiver (K) with molded adaptor of the fan
motor assembly (E) together.
□
If you wish to use longer downrod, you can use the extension
lead wire (42 in.) (M) provided by connecting the molded
adaptor together.
Outlet Box
CC (x3)
Black
Green (or Bare)
Black
White
Green(or Bare)
Receiver
Antenna
Receiver (K)
NOTE:
The fan comes with 12 in. lead wires for use with
the provided 4.5 in. ball downrod assembly (B). If you wish
to use longer downrod, you can use the extension lead
wire (42 in.) (M) provided.
IMPORTANT:
Use the wire connecting nuts (CC) supplied
with your fan. Secure the connectors with electrical tape
and ensure there are no loose strands or connections.
WARNING:
Each wire nut supplied with this fan is designed
to accept up to one 12-gauge house wire and two wires
from the fan. If you have larger than 12-gauge house wiring
or more than one house wire to connect to the fan wiring,
consult an electrician for the proper size wire nuts to use.
WARNING:
To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Assembly - Hanging the Fan (continued)
Outlet
box
in the ceiling
(SS)
Green(or Bare)
4
11
G
F
6
1
Mounting the fan-motor assembly
(standard mount)
□
Align the locking slots of the canopy (C) with the two
screws (HH) and alignment post (KK) in the mounting
bracket (A).
□
Push up the canopy (C) and turn clockwise until the
alignment post (KK) engage to the round hole and the
screws (HH) engage to the key slots.
□
Firmly tighten the two mounting screws (HH).
Attaching the blades to the blade
brackets DD
□
Attach a blade (G) to blade bracket (F) by inserting the
screws (DD) into the holes in the blade (G) and through
the blade bracket (F).
□
Tighten each screw securely.
□
Repeat this step for each blade and blade bracket.
Fastening the blade assemblies to
the motor
□
Fasten the blade/blade bracket assembly to the fan motor
assembly (E) by inserting the alignment posts into the slot on
the bottom of the motor and tightening the pre-installed blade
bracket screws (EE).
□
Repeat this steps for the remaining blades.
Assembly - Hanging the Fan (continued)
K
A
HH
KK
C
B
D
E
E
EE
F
2
Assembly - Attaching the Fan Blades
NOTE:
Your fan blades are reversible. Select the blade side finish
which best accentuates your decor.
12
H
RR
□
Remove one screw (RR) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□
Connect the 9-pin plug exiting the bottom of the fan motor
assembly (E) to the 9-pin plug from the light kit pan (H). Be sure
the plug connections snap together completely.
□
Push the light kit pan (H) up to the fan motor assembly (E) so
that the two loosened screw heads fit into the keyhole slots.
Turn thelight kit pan (H) clockwise.
□
Re-install the screw (RR) that was removed in step 1.
□
Make sure all the screws are firmly tightened.
2
Attaching the light kit fitter assembly
□
Remove one screw (PP) from the light kit pan (H) and loosen but do
not remove the other two screws.
□
Connect the wires from the light kit fitter assembly (I) to the wires
from the light kit pan (H) by connecting the molded adaptor plugs
together. Carefully tuck all wires and splices into the switch cup.
□
Push the light kit fitter assembly (I) up to the light kit pan (H) so that
the two loosened screw heads fit into the keyhole slots. Turn the light
kit fitter assembly (I) clockwise.
□
Re-install the screw (PP) that was removed in step 1.
□
Make sure all the screws are firmly tightened.
3
Installing the glass bowl
□
Place the glass bowl (J) into the light kit pan (H), aligning the
three flat areas on the top flange of the glass bowl (J) with the
raised dimples inthe light kit pan.
□
Turn the glass bowl (J) clockwise until it stops.
CAUTION:
Make sure the power is off before attaching or
removing theglassbowl.
WARNING:
Allow the glass bowl to cool completely before
removing.
CAUTION:
To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light fixture.
1
Installing the light kit pan
E
Assembly - Attaching the Lights
IMPORTANT:
It is critical to attach the light kit pan using the
quick connector. The fan will not operate unless the light kit
panisconnectedtothefan.
E
H
I
PP
E
H
J
13

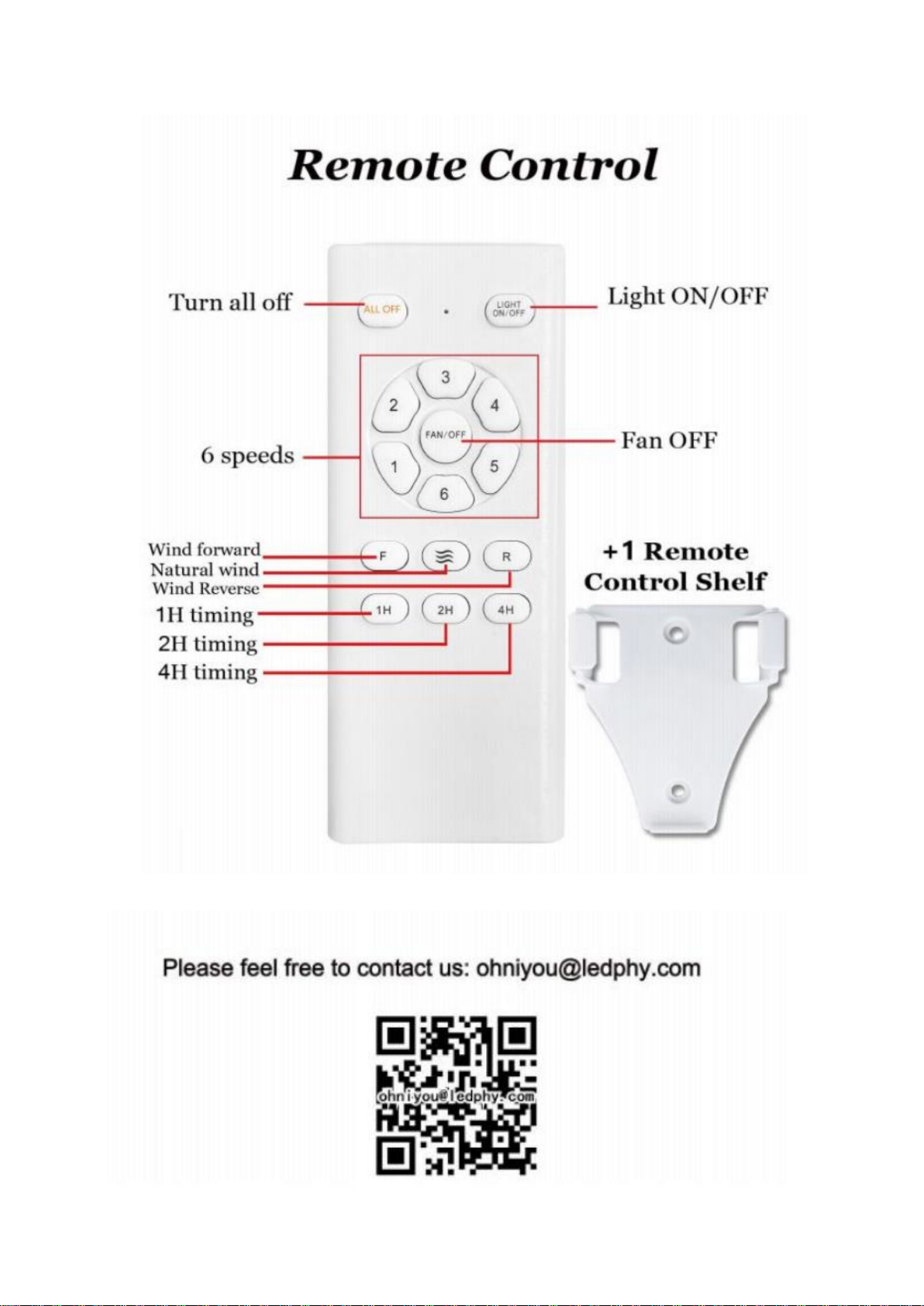

Mounting the remote control holder
□

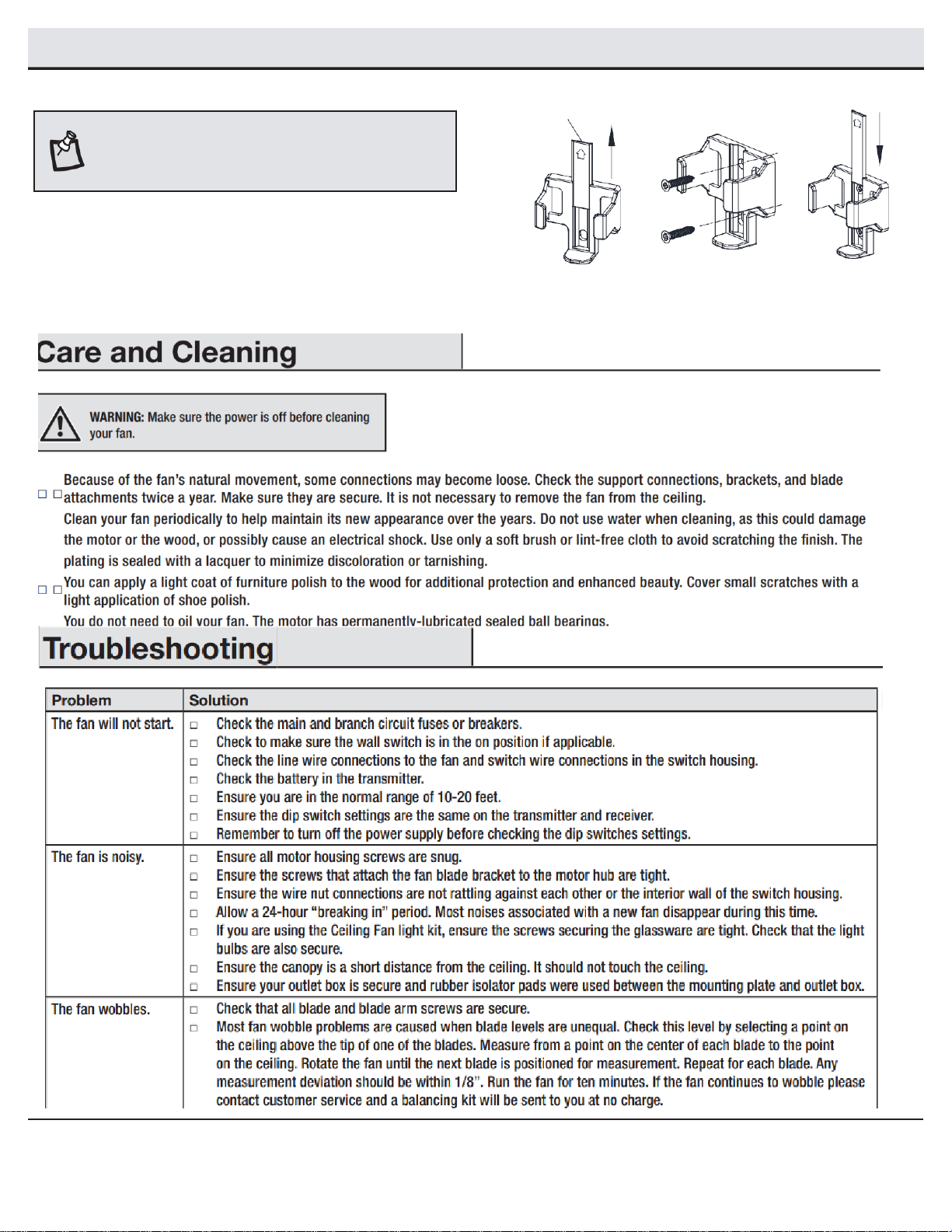

Slide the screw cover plate up to remove it from the wall
cradle.
□
Position the wall cradle in the desired position and attach it to
the wall using the included wall cradle screws.
□
Slide the screw cover plate back onto the wall cradle to
conceal the screws.
Screw cover plate
NOTE:
Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
Assembly - Attaching the Accessories
Table of contents
Other OHNIYOU Fan manuals
