Olmar PRELUDE Operating and maintenance manual

PRELUDE
Installation and use instructions
for other countries

KEY TO SIMBOLS
WARNING!
OBLIGATORY QUALIFIED PERSONNEL
WARNING! HOT GLASS TEMPERATURE
INDEX
1. Health and safety information .................................................................. 03
2. Technical Characteristics of the appliance ............................................... 04
3. Assembly Instructions ................................................................................ 06
4. Remote Controller ...................................................................................... 08
5. Automatic Operation Instructions ............................................................. 10
6. Maintenance and Cleaning ........................................................................ 11
7. Environment .............................................................................................. 11
2

1. IMPORTANT INFORMATION ABOUT HEALTH AND SAFETY
1.1 Read all the instructions carefully before using the appliance.
DO NOT INSTALL AND USE THE APPLIANCE IF DAMAGED
1.2 Remove all packaging. In case of disposal, place them in an appropriate facility for the
recycling.
1.3 Do not immediately connect the appliance to a power socket. DO NOT install the
appliance before to verify its operation.
The glass panel of this appliance is considered by the manufacturer as a work surface
which heats up when the product is in operation.
1.4 WARNING! NEVER COVER THE SURFACE OF THE PANEL
1.5 FOR INTERNAL USE ONLY. This appliance is not suitable for use outside the home.
1.6 Keep the power cord away from hot surfaces and heat pipes. Do not place the cable in front
of the appliance.
1.7 Thepanelshouldonlybesecurelyattachedtoaatbrickinteriorwall.
1.8 Once the panel is installed, the connection plug must be accessible
1.9 If the power cable must pass through a masonry, glass or other covering material that con-
stitutes internal partition, make sure that protections are installed in rubber in possible wear
points.
If the power cord is damaged, do not use the appliance until it has been replaced.
1.10 Do not use this appliance with any type of timer, programmer, thermal control or other
devices other than those supplied.
1.11 Do not leave the appliance unattended when in use. Theapplianceswitchesoandon
with ON / OFF button on the remote control.
1.12 This appliance has NOT been designed for use by children under the age of 12, by people
with reduced physical, sensory or mental abilities or by people who do not have the
knowledge or experience required to operate the appliance safely.
This appliance can be used by people over the age of 12 as long as they have been
educated about safe use and understand the possible risks.
Children under 12 can use the appliance as long as they are supervised by a responsible adult
3

2. APPLIANCE’S TECHNICAL FEATURES
THIS APPLIANCE MUST BE CONNECTED
WITH SOCKET PROVIDED WITH EARTHING
VOLTAGE ........................................................... 220 volts 50/60 Hz
POWER ............................................................. 2400 watts
EMISSION ......................................................... FAR INFRARED BEAMS
SPECTRUM ........................................................ 4 – 14 μ micron
COMMAND ......................................................... REMOTE CONTROL
PANEL POWER LEVELS ..................................... 4 SELECTABLE
LEVEL SIGNALING ............................................. LUMINOUS RED LED
SAFETY SIGNALING .......................................... THERMAL SWITCH
GLASS ............................................................... TEMPERED ANTI SHOCK
ELECTRICAL SAFETY ........................................ GLASS SENSE
ENERGY EFFICIENCY ....................................... 99%
TECHNOLOGY .................................................. DUAL Ag+
PROTECTION CLASS ....................................... IPx44

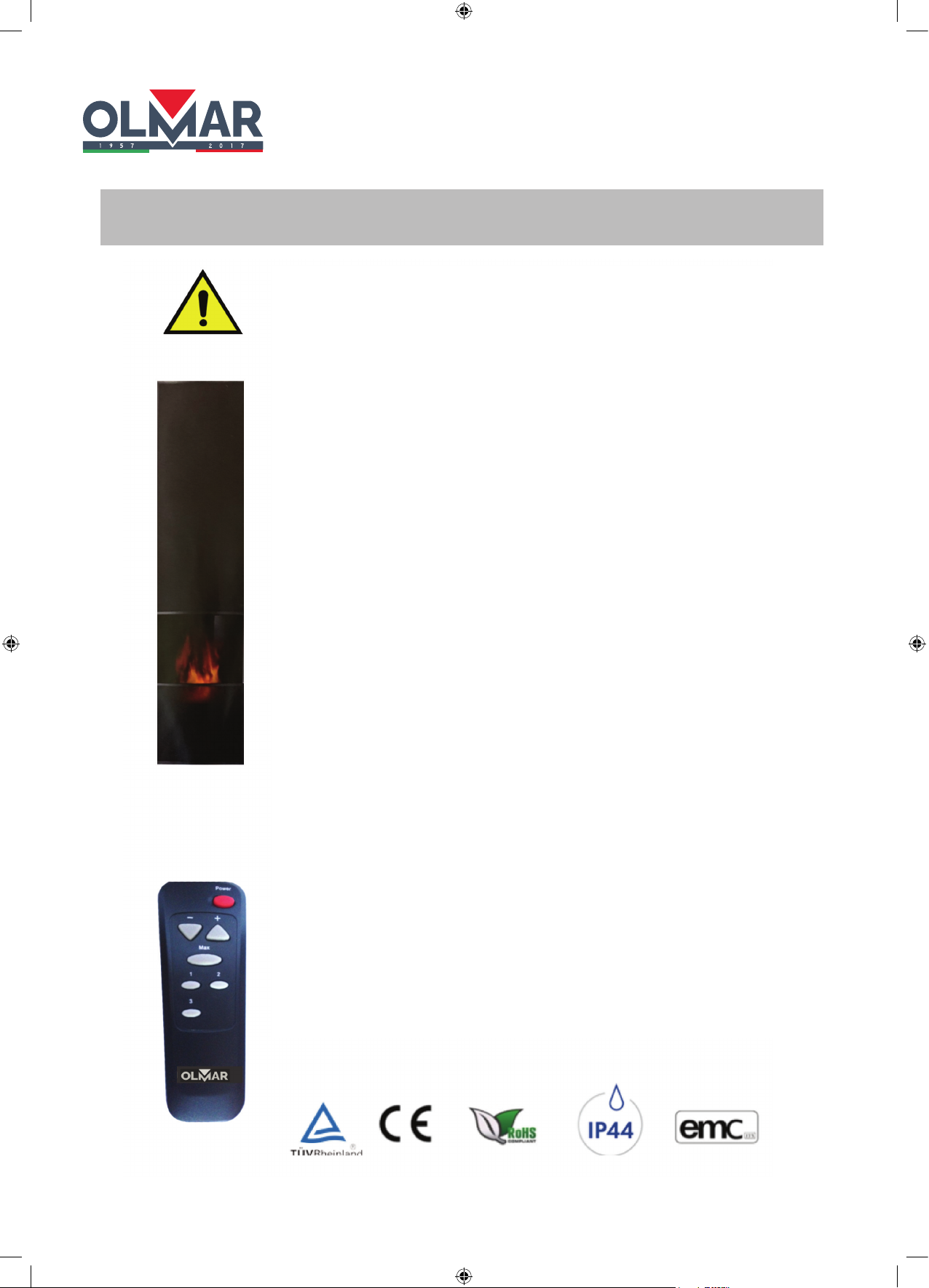

REMOTE CONTROLLER
FUNCTIONS ....................................................... ON / OFF
4 POWER SELECTORS
BOOSTER FUNCTION
TIMER CUT OFF
POWER SUPPLY ................................................ BATTERIES
4

2.1 TECNOLOGIA DUAL Ag+ : exclusive technological process that allows to generate FIR infrared
rays with a wavelength between 4 and 14 microns combined with antibacterial and antimi-
crobial properties of SILVER IONS.
2.2 PROTECTION AND SAFETY : the tempered glass emitter is set up with a a system that gua-
rantees its safety in any malfunction condition o accidental breakage. It constantly monitors
the operating temperature and intervenes for prevent any risk caused by external accidental
elements that modify its function.
2.3 TEMPERATURE OF USE:using the supplied remote control you can select
4 power levels:
IT IS FORBIDDEN TO USE ANY OTHER CONTROL OR SELECTION TOOLS OTHER THAN
REMOTE CONTROL SUPPLIED
IN CASE OF MALFUNCTION, ACCIDENTAL BREAKAGE OR LOSS OF THE REMOTE CONTROL
CONTACT YOUR DEALER TO PURCHASE A NEW REMOTE CONTROL ORIGINAL
THE MANUFACTURER DECLINES ANY LIABILITY FOR DAMAGES TO PERSONS, THINGS AND
ANIMALS CAUSED BY IMPROPER USE OF THE APPLIANCE OR WITH INSTRUMENTS OTHER THAN
THE ORIGINAL ONES
5
HEATABLE AREA / ENERGY CLASS
POWER
1st level 600 watts
2nd level 1200 watts
3rd level 1800 watts
4th level 2400 watts
0.450
0.900
1.350
1.800
CONSUMPTION KW/H

3. ASSEMBLING INSTRUCTIONS
3.1 Before proceeding with the assembly of the panel, make sure that you have carefully read the speci-
 cationsandcharacteristicsoftheproductandthatyouhaveclearlyunderstoodthefollowing
assembly instructions.
3.2 ThisappliancehasbeencertiedforuseinItaly,preciselytoinstalltheapplianceindierentcoun-
tries, instructions in the language of the country of installation are required and in some cases make
changes to the appliance itself. For any needs, contact HEATALO directly via email [e-mail]
3.3 Unpack the panel. The operation must be performed by two adults. Open the cardboard packaging,
remove the polystyrene and the plastic bag that wraps the panel. keep the plastic wrap out of the
reach of children. pay attention during handling to avoid damaging the wooden and glass parts.
3.4 Before throwing away the packaging, check that all parts and accessories have been removed.
It is necessary to keep the packaging for possible transport, future storage or to return the product.
3.5 Check that the panel is intact and free of defects caused by transport or handling.
WARNING: DO NOT USE the panel on any part that is tampered with or defective

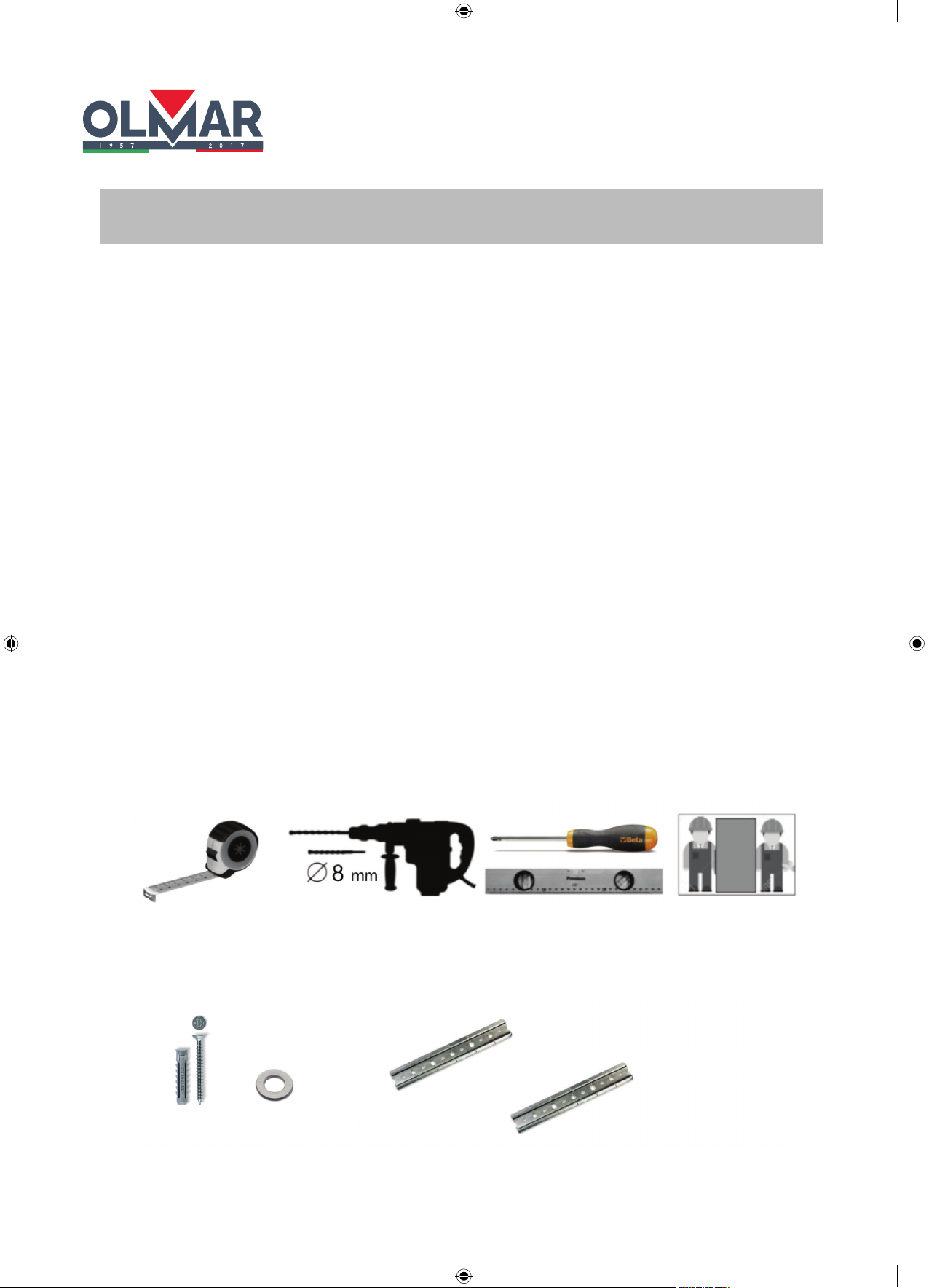

3.6 Equipment required for panel assembly
3.7 SUPPLIED KIT CONTENTS
6
4 plugs 4 washer
4 screws

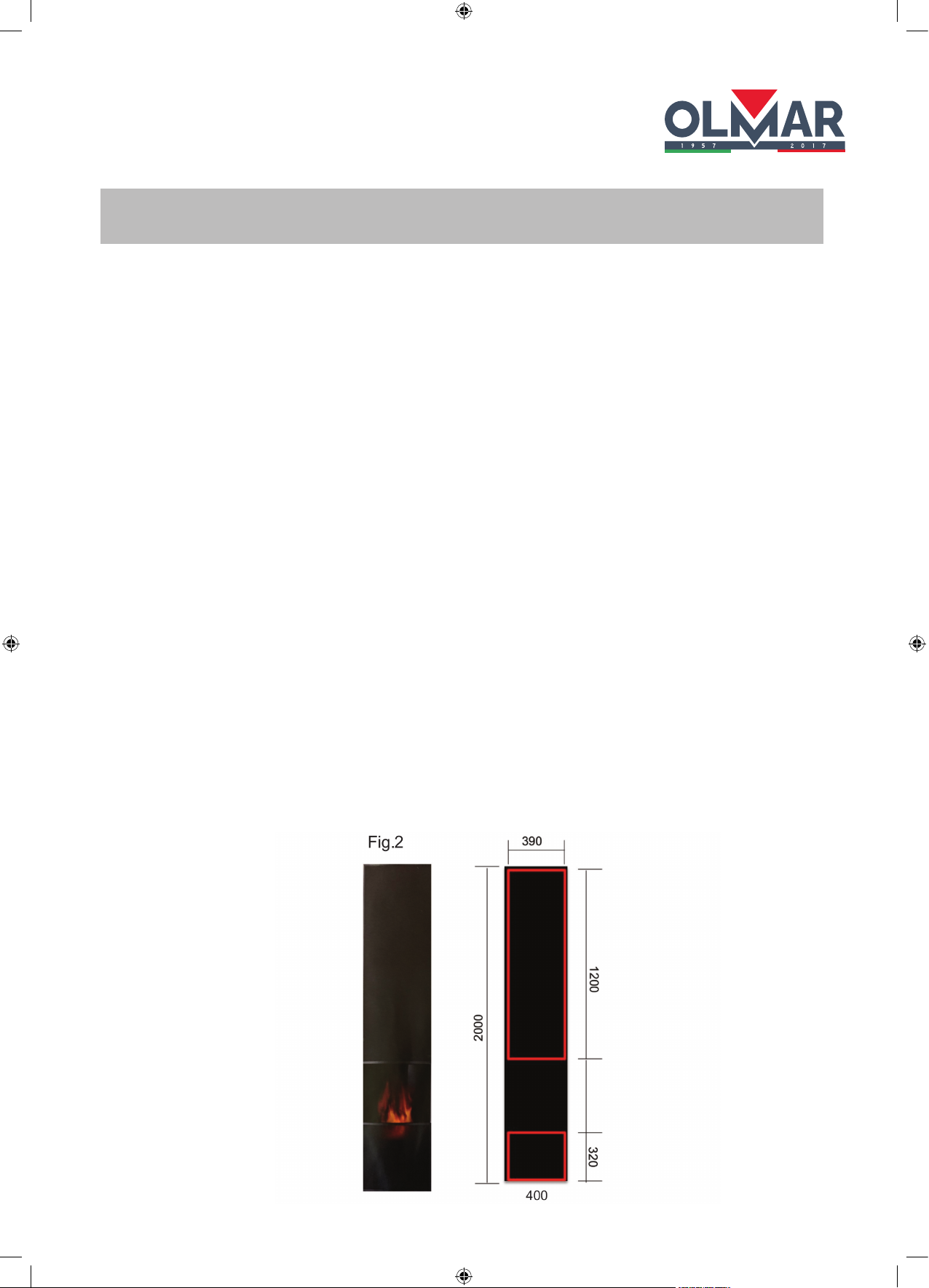

4. WALL MOUNTING INSTRUCTIONS
4.1 WALLMEASUREMENTANDDRILLING:Denetheareadedicatedtotheinstallationofthe
panel paying attention to the instructions below. The chosen area and the methodology
installation must ensure compliance with the supplier’s instructions.
 VERIFYthattheairowattherearofthepanelisguaranteed.Thewallitmustnothaveele-
 mentsthatcouldobstructthecorrectow.
4.2 The panel must be installed so that switches or other controls are accessible.
Check that the electrical system is compliant.
4.3 The panel is operated and functions only with the supplied remote control
There are no manual or manually accessible components in the control panel.
4.4 Do not install the panel in front of electrical sockets.
4.5 Aermounting,makesurethattheelectricalsocketiseasilyaccessibleeisequippedwitha
single-pole breaking device with separation distance between the contacts of at least 3mm.
4.6 Thepowercablesuppliedwiththepanelisttedwithadie-castSCHUKOplug.
Do not use for any reason other connections than the plug-cable supplied.
Do not use the panel if the cable is damaged.
7

AFTER FIXING THE BRACKET TO THE WALL
THROUGH THE SCREWS PROVIDED, HANG
THE FIREPLACE TO THE SAME INSERTING IT
IN THE APPROPRIATE OPENING POSTS IN
THE BACK OF THE APPLIANCE
THE FIREPLACE MUST BE OPERATED
ALWAYS BY TWO PEOPLE
CONSIDER TO INSTALL THE APPLIANCE AT LEAST
300 MM ABOVE THE FLOOR
MAKE THE HOLES WHERE TO PUT THE PLUGS
AND THE PROVIDED BRACKETS
POWER ON
A - AFTER CONNECTING THE PLUG TO THE ELECTRIC SOCKET, THE NUMBER 2
BELOW IN THE CENTER OF THE PANEL
B - TAKE THE REMOTE CONTROL AND SELECT THE DESIRED POSITION AS DESCRIBED
IN THE REMOTE CONTROL PARAGRAPH BELOW
8

5. REMOTE CONTROLLER
6.1 REMOTE CONTROL FUNCTIONS AND PANEL USE
A The supplied remote control is the only panel control tool
B Before using the remote control make sure batteries are inserted
C. when using it, always point it towards the panel.
KEYS FUNCTION
1. POWER : Redbuttonatthetopright.thiskeyturnsthepanelonandoatanytime
2. + - : Operating time selection keys from one to 9 hours
3. MAX: Activation of level four of heating sauna treatment. Booster For heating.
4. 1: First power level selection key
5. 2: Second power level selection key
6. 3: Third power level selection key
SWITCH ON AND USE OF THE PANEL
A. Activate the single-pole switch of the electrical socket. If the panel has been disconnected.
B. press the POWER button
C. Select a power level. press the button of the desired level. The red LED level number
will appear on the panel display
TIME 9-0 HOURS
LEVEL 1
LEVEL 2
ON/OFF BUTTON
HEAT DURATION
PROGRAM
BY HOUR
GLASS TEMPERATURE HIGH
GLASS TEMPERATURE LOW
TIMER 1-9 HOURS
LEVEL 4 BOOSTER
LEVEL 3
9

6. AUTOMATIC OPERATION TIME PROGRAMMING INSTRUCTIONS
PROGRAMMING MUST BE DONE ONLY WITH
THE PANEL IN STAND BY POSITION
A. Select the desired function level by pressing the reference button on the remote control
B. The number of the selected level will appear on the panel display
C. Press the button again for at least 10 seconds
D. TheletterPwillappearonthepanelwithaashinglightatthetople
E. Thelightwillashtwiceandthenthenumberfromoneto9hourswillappear
F. Thelightwillcontinuetoash.releasethelevelkeyandimmediatelyaccessthe+key
G. The sequential numbers of the hours will appear on the display. use the + - key to select the number
of hours you wish to make the panel work
ATTENTION:the+keymustbepressedwiththelightashing.Ifthelightdoesnotash,memorizationisnot
activated. in which case, repeat.

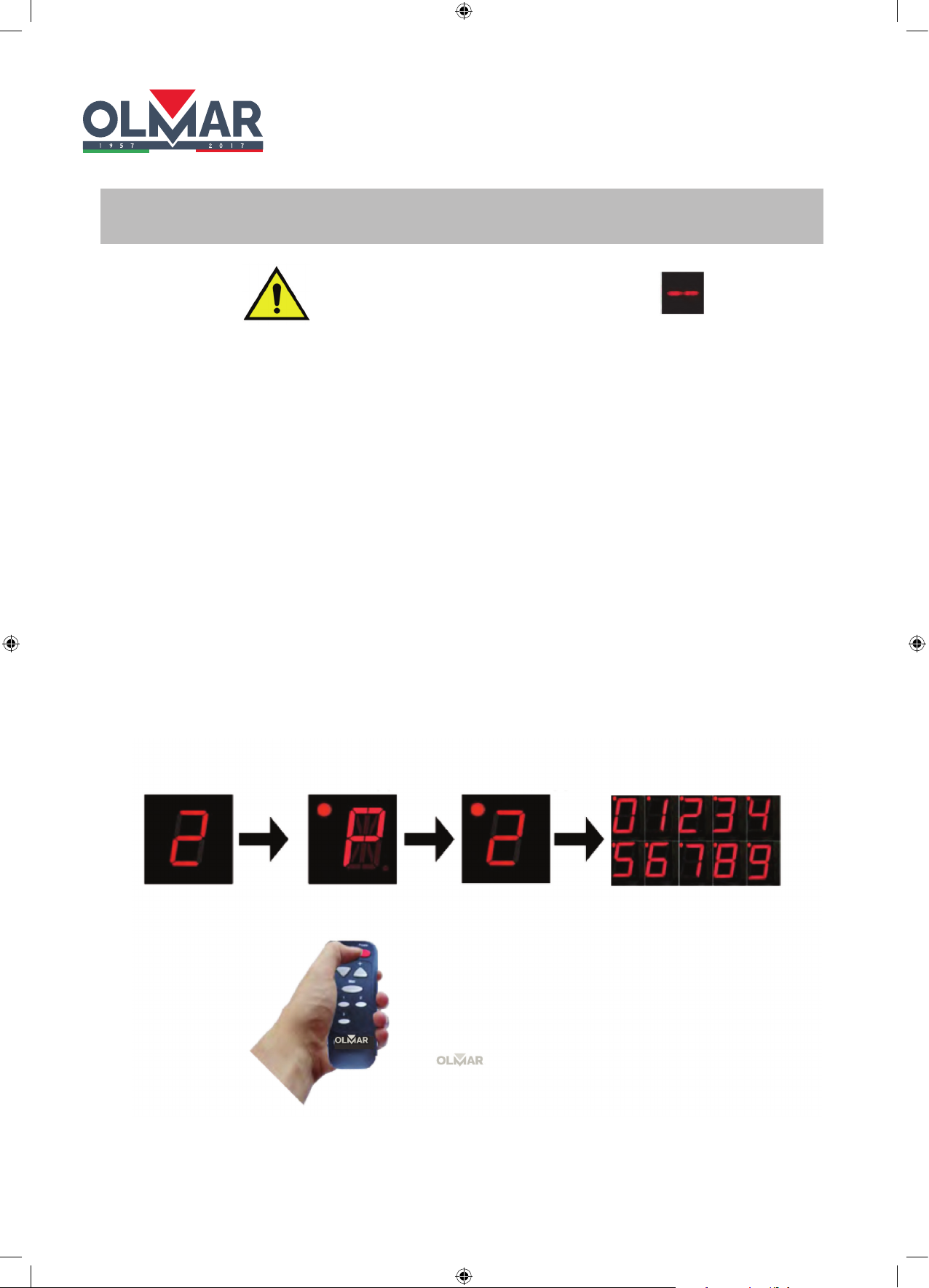

EXAMPLE PROGRAMMING AND DISPLAY IMAGES
FIGURE M
Selection
power level
Appears letter P
twoashes
Appears number.
Light ashes
Number of hours
the operating
Press again the key
for 10 seconds
Hold down Let key +o -Press in sequence
key +o -
10

7. MAINTENANCE AND CLEANING
MAINTENANCE: ThePRELUDEreplacedoesnotrequiremaintenance
GLASS CLEANING: To clean the glass, remove the grid
With STAND BY light on or Cold glass surface on
Use only water and glass detergent.
8. ENVIRONMENT
The product is subject to separate collection for electrical appliances. At the
end of its life the appliance cannot be disposed of with common solid urban
waste,itmustbeconveyedtoaspeciccollectioncenterinyourareaIreturned
it to the dealer when purchasing a new appliance of the same type and used for
the same use. The separate collection of electrical and electronic equipment
is part of the policy of safeguarding, protecting and improving the quality of
theenvironmentandtoavoidpotentialharmfuleectsonhumanhealthdue
tothepresenceofhazardoussubstancesasclassiedbyEuropeandirectives.
ATTENTION: incorrect disposal of the appliance implies sanctions
Tool number
800 974 074
[e-mail]
[email protected]
HEATALO Srl
Via Sacro Cuore, 15/b
35121 Padova
C.F. - P.IVA ITA 05070570287
REA Padova numero PD-440872
Capitale Sociale 100.000 euro i.v.
