Olympus Camedia D-575ZOOM Installation guide

DIGITAL CAMERA
APPAREIL PHOTO NUM
ÉRIQUE
DIGITALKAMERA
CÁMARA DIGITAL
D-575ZOOM
C-360ZOOM
X-350
BASIC MANUAL
MANUEL DE BASE
EINFACHE ANLEITUNG
MANUAL BÁSICO
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
x215_Basic.book 1 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

2En
En
CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO
ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
CONTENTS
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
ADVANCED SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 31
PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PRINT RESERVATION /DIRECT PRINT . . . . . . . . . . . . 38
DOWNLOADING PICTURES TO A COMPUTER . . . . . 40
ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
These instructions are only for quick reference. For more details
on the functions described here, refer to the “Reference Manual”
on CD-ROM.
For connection to the PC or installation of provided software,
refer to the Software Installation Guide included in the CD-ROM
package.
x215_Basic.book 2 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 3
En
JBefore using your camera, read this manual carefully to ensure correct use.
JWe recommend that you take test shots to get accustomed to your camera before
taking important photographs.
JThese instructions are only a basic manual. For more details on the functions described
here, refer to the Reference Manual on the CD-ROM.
For customers in North and South America
For customers in USA
Declaration of Conformity
Model Number : D-575ZOOM/C-360ZOOM/X-350
Trade Name : OLYMPUS
Responsible Party : Olympus America Inc.
Address : 2 Corporate Center Drive, Melville, New York
11747-3157 U.S.A.
Telephone Number : 1-631-844-5000
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
For customers in Canada
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
For customers in Europe
Trademarks
• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
• All other company and product names are registered trademarks and/or
trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the “Design
Rule for Camera File System/DCF” standards stipulated by the Japan Electronics
and Information Technology Industries Association (JEITA).
“CE” mark indicates that this product complies with the European
requirements for safety, health, environment and customer
protection. “CE” mark cameras are intended for sales in Europe.
x215_Basic.book 3 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

4En
En
GETTING STARTED
JNAMES OF PARTS
Lens barrier
Turns the camera on
and off in the shooting
mode.
Shutter button
Flash
Self-timer lamp
Connector cover
DC-IN jack
USB connector
Lens
Extends automatically when
you open the lens barrier.
Zoom lever
(W/T• )
Card cover
A/V OUT jack
(MONO)
Strap eyelet
DC-IN jack cover
Card slot
Microphone
x215_Basic.book 4 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 5
En
Orange lamp
Green lamp
AF target mark
Playback button
( ) (QUICK VIEW)
Turns the camera on
and off in the playback
mode.
Switches to the
playback mode in the
shooting mode.
Self-timer button ( )
Monitor
Macro button ( )
Viewfinder
Tripod socket
Flash mode button ( )
Arrow pad
()
Viewfinder
OK/Menu button ( )
Battery compartment
cover
Arrow pad
Shooting mode button
( : Virtual dial)
Buttons on the arrow pad have their respective functions. They are also
used as direction buttons. , , and indicate which button to
be pressed.
x215_Basic.book 5 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

6En
En
JMONITOR INDICATIONS
Shooting mode
Items Indications
1 Shooting mode , , , , , ,
2 Battery check ,
3 Green lamp
4 Flash standby
Camera movement warning/Flash charge
(Lit)
(Blinks)
5 Macro mode ,
6 Flash mode , ,
7 Sequential shooting ,
8Self-timer
9 Record mode SHQ, HQ, SQ1, SQ2
10 Sound record
11 Resolution 2048×1536, 1600×1200, 640×480, etc.
12 Metering
13 Exposure compensation
-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
14 White balance , , ,
15 AF target mark [ ]
16 Memory gauge , , ,
17 Number of storable still pictures
Remaining recording time
15
00:36
2
112
14 5
13
14
13
17
5
7
916
15
1
Still picture Movie
2
34
6
11
10
8
6
8
12
17
15
10
9
x215_Basic.book 6 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 7
En
Playback mode
Screens when the Information display is set to ON are shown below.
Items Indications
1 Print reservation,
Number of prints
×10
2 Battery check ,
3 Sound record
4Protect
5 Record mode SHQ, HQ, SQ1, SQ2
6 Resolution
2048 × 1536, 1600 × 1200, 640 × 480, etc
7 Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
8 White balance WB AUTO, , , ,
9 Date and time '04.02.10 12:30
10 File number (still picture),
Number of frames
Elapsed time /Total recording time (movie)
100-0016,
16
00:00/00:15
11 Movie
2
1
5
7
2
8
9
10
5
6
6
10
8
9
3
Still picture Movie
44
311
x215_Basic.book 7 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

8En
En
Memory gauge
The memory gauge lights up when you take a still picture. While the gauge is
lit, the camera is storing the picture on the card.The memory gauge indication
changes as shown below depending on the shooting status.
The indication is not displayed during movie recording.
Battery check
If the remaining battery power is low, the battery check indication on the
monitor changes as follows while the camera is turned on.
Before shooting
(Gauge is off)
No more pictures can
be taken (Fully lit).
Wait until the gauge
returns to the status
on the left to take the
next shot.
One picture
taken
(Lit)
Two or more
taken
(Lit)
Shoot Shoot Shoot
Wait
Lit (Green) Green lamp and orange
lamp on the right of the
viewfinder blink.
Blinks (Red)
No indication
Remaining power level:
exhausted.
Replace with a new batteries.
Remaining power level: low.
Prepare new batteries.
(The indicator turns
off after a while.)
Remaining power
level: high.
x215_Basic.book 8 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 9
En
JATTACHING THE STRAP
1Thread the short end of the
strap through the strap eyelet.
2Thread the long end of the
strap through the loop that
has already gone through the
eyelet.
3Pull the strap tight, making
sure that it is securely
fastened and does not come
loose.
JLOADING THE BATTERIES
1Make sure that:
• The lens barrier is closed.
• The monitor is off.
• The lamp on the right of the viewfinder is off.
2Slide the battery compartment
cover in the direction of .
• The battery compartment cover is
unlocked and opened in the
direction of .
• Use the ball of your finger to slide
the cover. Do not use your fingernail
as this could result in injury.
Strap eyelet
Battery
compartment cover
x215_Basic.book 9 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

10 En
En

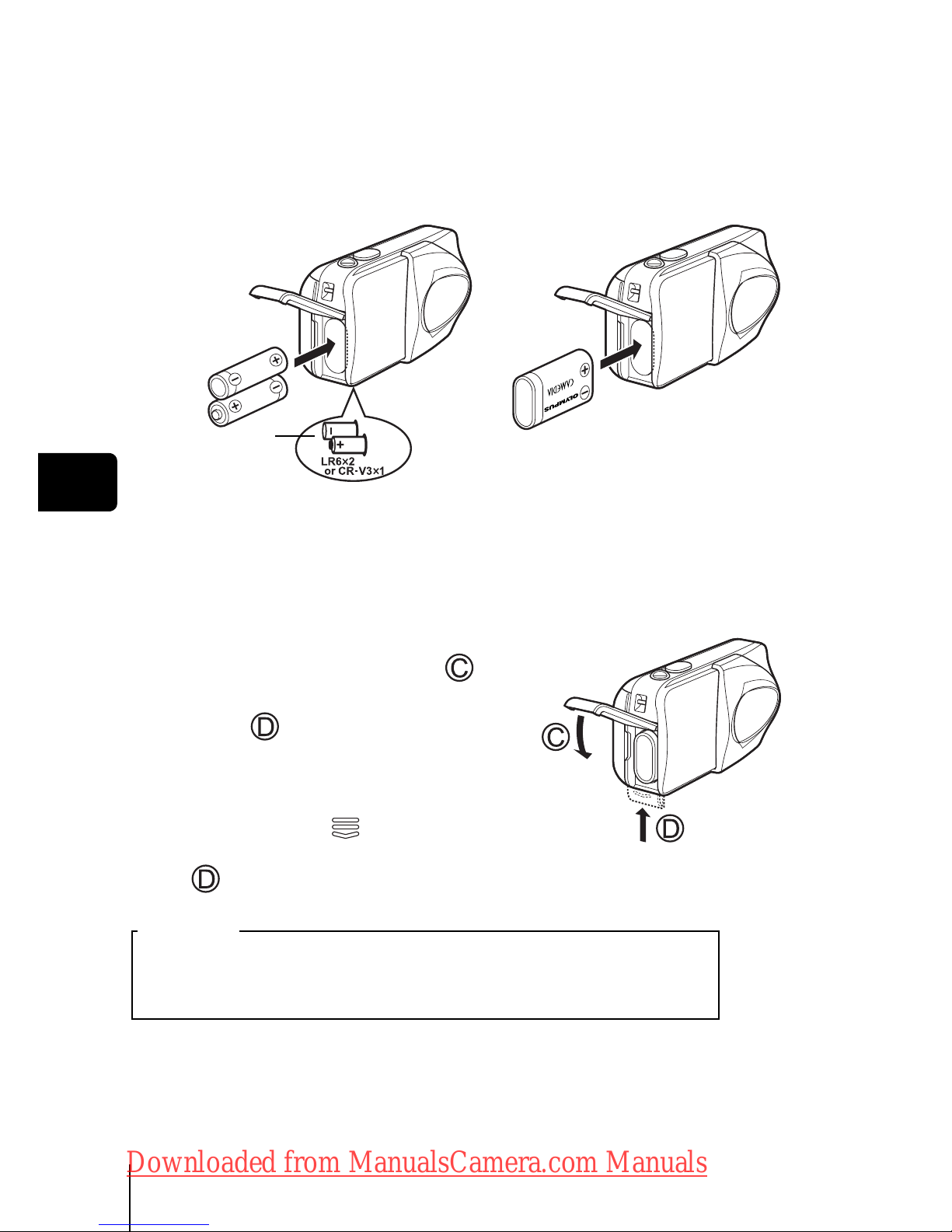

3Insert the batteries, making sure that they are correctly
oriented as shown in the illustration.
The battery insertion direction mark is provided inside of the battery
compartment.
4Close the battery compartment
cover, then press it down
and slide it in the direction
shown .
• If the battery compartment cover
seems hard to close, do not force it.
With the battery compartment cover
shut, press the mark firmly and
push it in the direction indicated by
.
When using AA (R6) batteries When using CR-V3 lithium battery
pack
When using a lithium battery pack,
insert it in the direction as shown in
the illustration.
There is a mark showing the
correct way to insert the AA
batteries on the bottom of the
camera.
Battery insertion
direction mark
Important
• CR-V3 lithium battery cannot be recharged.
• Do not peel off the label from a CR-V3 lithium battery pack.
• Manganese (zinc-carbon) batteries cannot be used.
x215_Basic.book 10 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 11
En
JINSERTING A CARD
“Card” in this manual refers to the xD-Picture Card. The camera uses the card
to record pictures.
1Make sure that:
• The monitor is off.
• The lens barrier is closed.
• The lamp on the right of the viewfinder is off.
2Open the card cover.
3Face the card the correct way and
insert it into the card slot as shown
in the illustration.
• Insert the card while keeping it straight.
• The card stops with a click when it is
inserted all the way.
• Inserting the card the wrong way or at an
angle could damage the contact area or
cause the card to jam.
• If the card is not inserted all the way, data
may not be written to the card.
4Close the card cover securely.
Removing the card
Make sure that:
• The lens barrier is closed.
• The monitor is off.
• The lamp on the right of the viewfinder is off.
• Push the card all the way in to unlock it, then let it return slowly. The card
is ejected a short way and then stops. Hold the card straight and pull it out.
Index area side of the card
The position of the card
inserted correctly
Notch
Releasing your finger quickly after pushing the card all the way in may
cause it to eject forcefully out of the slot.
Note
x215_Basic.book 11 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

12 En
En

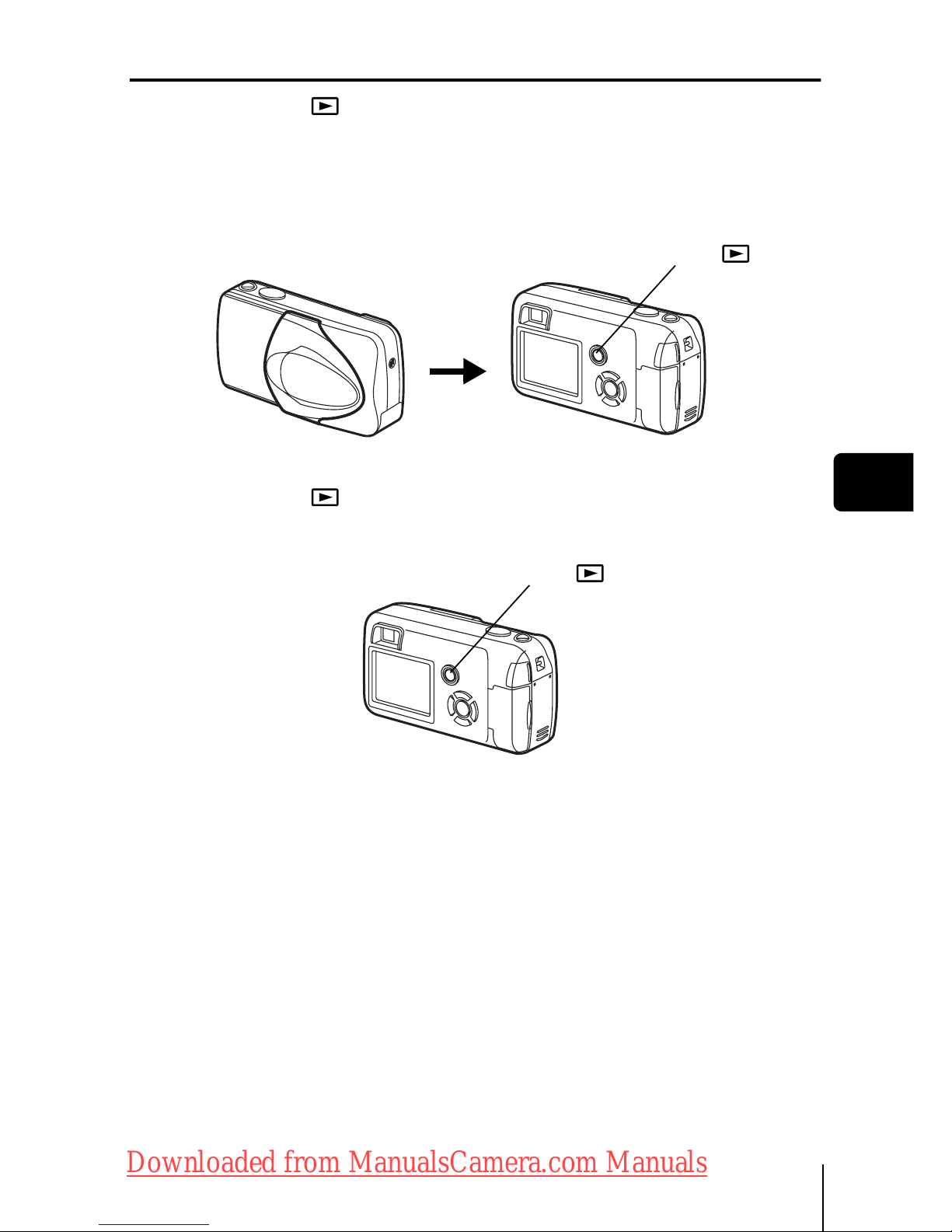

JTURNING THE POWER ON/OFF
When shooting pictures (Shooting mode)
Power on: Open the lens barrier fully.
The camera turns on in the shooting mode. The lens extends
and the subject is displayed on the monitor.
If the lens does not extend when the lens barrier is opened, there
is a possibility that the barrier is not fully open. Open the lens
barrier fully until you feel it click.
Power off: Close the lens barrier slightly until it almost touches the
lens barrel.
The lens barrier stops just before it touches the lens and the lens
retracts. Wait until the lens is fully retracted before closing the
lens barrier completely.
The camera turns off. (The monitor also turns off.)
• Do not push the lens barrier forcefully against the lens as this may
damage the lens or cause it to malfunction.
Note
x215_Basic.book 12 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 13
En
When playing back pictures (Playback mode)
Power on: Press (Playback) with the lens barrier closed.
The camera turns on in the playback mode. The monitor turns
on and the last picture taken is displayed.
If no pictures have been taken yet, or the xD-Picture card is
empty, the message "NO PICTURE" is displayed on the monitor.
Power off: Press .
The monitor and the camera turn off.
Playback button ( )
Playback button ( )
x215_Basic.book 13 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

14 En
En
JSELECTING A LANGUAGE
1Open the lens barrier fully.
2Press .
• The top menu is displayed.
3Press on the arrow pad to select MODE MENU.
4Press to select the SETUP tab, and press .
5Press to select , and press .
• The green frame moves to the selected item.
6Press to select a language, and press .
7Press again to exit the menu.
8Close the lens barrier to turn the camera off.
JSETTING THE DATE AND TIME
1Open the lens barrier fully.
2Press .
• The top menu is displayed.
3Press on the arrow pad to select MODE MENU.
4Press to select the SETUP tab, and press .
5Press to select , and press .
• The green frame moves to the selected item.
6Press to select one of the following date formats:
Y-M-D (Year/Month/Day), M-D-Y (Month/Day/Year), D-M-Y
(Day/Month/Year). Then press .
• Move to the year setting.
• The following steps show the procedure used when the date and time
settings are set to Y-M-D.
x215_Basic.book 14 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 15
En
7Press to set the year, and press to move to the
month setting.
• To move back to the previous setting, press .
• The first two digits of the year are fixed.
8Repeat this procedure until the date and time are
completely set.
• The camera only displays the time in 24-hour time system (“2 p.m.”
would be “14:00”).
9Press .
• For a more accurate setting, press when the time signal hits 00
seconds. The clock starts when you press the button.
10 Close the lens barrier to turn the camera off.
• The date and time settings will be returned to the factory default
settings if the camera is left without the battery for approximately 3
days.
Note
x215_Basic.book 15 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

4En
En
GETTING STARTED
JNAMES OF PARTS
Lens barrier
Turns the camera on
and off in the shooting
mode.
Shutter button
Flash
Self-timer lamp
Connector cover
DC-IN jack
USB connector
Lens
Extends automatically when
you open the lens barrier.
Zoom lever
(W/T• )
Card cover
A/V OUT jack
(MONO)
Strap eyelet
DC-IN jack cover
Card slot
Microphone
x215_Basic.book 4 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 17
En
Shortcut menus
Shooting mode
Selects a shooting mode from (Single-frame shooting) and
(Sequential shooting).
Selects whether to record sound when shooting a movie.
Sets the image quality and resolution.
Still picture : SHQ, HQ, SQ1, SQ2
Movie : HQ, SQ
Sets whether or not the monitor is turned on when the camera is turned on.
If the monitor is set not to turn on, the top menu displays MONITOR ON
when the camera is turned on.
DRIVE
(movies)
MONITOR OFF (MONITOR ON)
x215_Basic.book 17 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

18 En
En
Playback mode
Runs through all saved pictures one after another. It is displayed when the
camera is playing back still pictures.
Plays back movies. It is displayed when a movie is selected.
Displays all the shooting information on the monitor.
Erases the selected still picture or movie.
MOVIE PLAYBACK
INFO
ERASE
x215_Basic.book 18 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

En 19
En

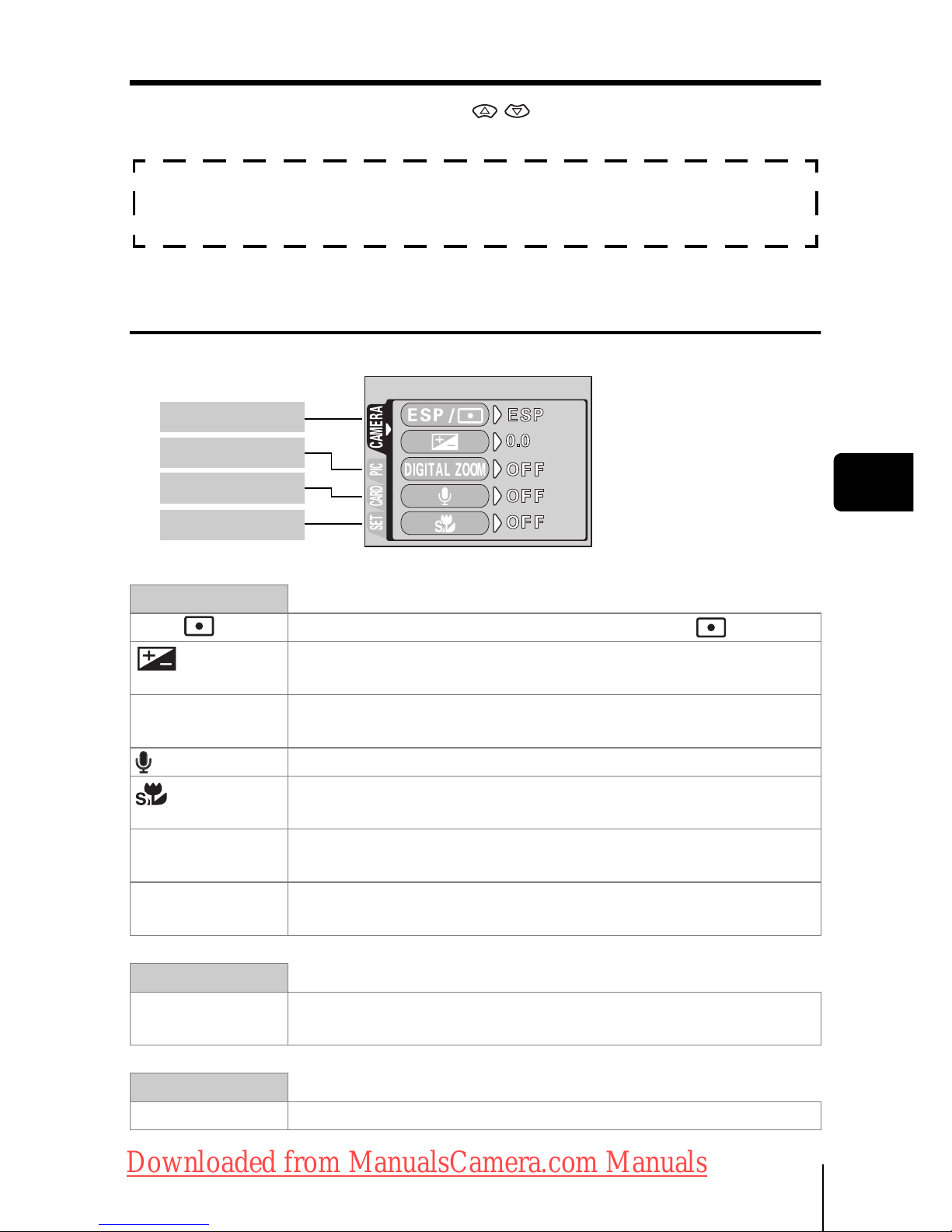

Mode menus
The MODE MENU has 4 tabs. Press to select a tab and display the
associated menu items.
Shooting mode
CAMERA tab
ESP/ Selects the metering method from ESP and .
Adjusts the brightness of the image (Exposure
compensation).
DIGITAL ZOOM Enables the zoom shooting at larger magnification than the
maximum optical zoom.
(still pictures) Sound can be recorded when taking still pictures.
Allows pictures to be taken as close as 7 cm/2.8" from the
subject.
PANORAMA Allows panorama pictures to be taken with Olympus
CAMEDIA-brand cards.
2 IN 1 Combines two still pictures taken in succession and stores
them as a single picture.
PICTURE tab
WB Sets the appropriate white balance according to the light
source.
CARD tab
CARD SETUP Formats a card.
These instructions are only for quick reference. For more details
on the functions described here, refer to the “Reference Manual”
on CD-ROM.
CAMERA tab
PICTURE tab
CARD tab
SETUP tab
x215_Basic.book 19 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals

20 En
En
SETUP tab
ALL RESET Selects whether to keep the current camera settings when
you turn off the power.
Selects a language for on-screen display.
PW ON/OFF
SETUP
Sets the picture that is displayed on the monitor when the
power is turned on and off.
Selects whether the beep sound (used for warnings, etc.)
should be turned on or off.
REC VIEW Selects whether to display pictures on the monitor while
saving them to a card.
FILE NAME Changes how file names are assigned.
PIXEL
MAPPING
Checks the CCD and image processing functions for
errors.
Adjusts the brightness of the monitor.
Sets the date and time.
VIDEO OUT Selects NTSC or PAL according to your TV’s video signal
type. TV video signal types differ depending on the region.
x215_Basic.book 20 ページ ２００３年１２月１１日 木曜日 午前９時１６分
Downloaded from ManualsCamera.com Manuals
