Manual Calibration Instructions
For Models: Omega | Quantum | Paragon | Omega II | Quantum II | Paragon II | Alpine | Advance 200 |
Advance 300 | Advance 400 | Advance 500 | TSC2 | TSC3 | TSC4 | TSC5
SPEED CUBE
TRANSFORMER
Do NOT stand on the running belt when calibrating. Use the guide rails instead.
IMPORTANT If the unit has a “Select” button and not the “Enter” button use the select to
select the engineering mode on the screen.
Entering Diagnostics Mode
1Turn the treadmill power to ON.
2Place the safety key in position on the console.
3Simultaneously press and hold the incline “+” (s) and speed “-” (t) buttons for about ve seconds. (F1 & F2)
4The console will beep and display the software version in the one of the two following windows;
For Models Omega II | Advance 200: in the Time window.
All other Models: in the Calories/Elevation window.
Speed / Pulse
Calories / Elevation
Distance / Laps
Time
UP
DOWN
ELEVATION
START STOP SELECT
FAST
SLOW
SPEED
Time
Speed
Elevation
Distance
Pulse/Laps
Calories
0.87
10.46
INCLINE SPEED
START
SELECT
STOP
HOLD TO PAUSE
F1 F2
F3
Tip: Another way to verify the speed is set correctly: Count the running belt revolutions per minute. At 0.5mph the running
belt should make 4 revolutions per minute for the Alpine and Advance 500 and 4.5 revolutions per minute for all other units.
Manual Calibration | Pre Auto Cal _rev1.5 | 08/17/07
WARNING
5Press Start. The running belt should begin moving.
6The Speed or Speed Pulse window will display the actual speed of the running belt. This should be
0.5mph.
7This should be 0.5mph (+ or - .05). If the speed is not within the proper start range, adjust the speed cube located on
the lower control board. (F3)
Note: When adjusting the speed cube, turn the screw right to increase the speed and left to decrease the speed. Use small
increments as the speed cube is sensitive and will respond to each change.
DO NOT PUSH DOWN HARD ON THE SCREW.
INCLINE
UP
SPEED
DOWN INCLINE
UP
SPEED
DOWN
IMPORTANT To exit the Engineering menu, press and hold “Stop” for three seconds.

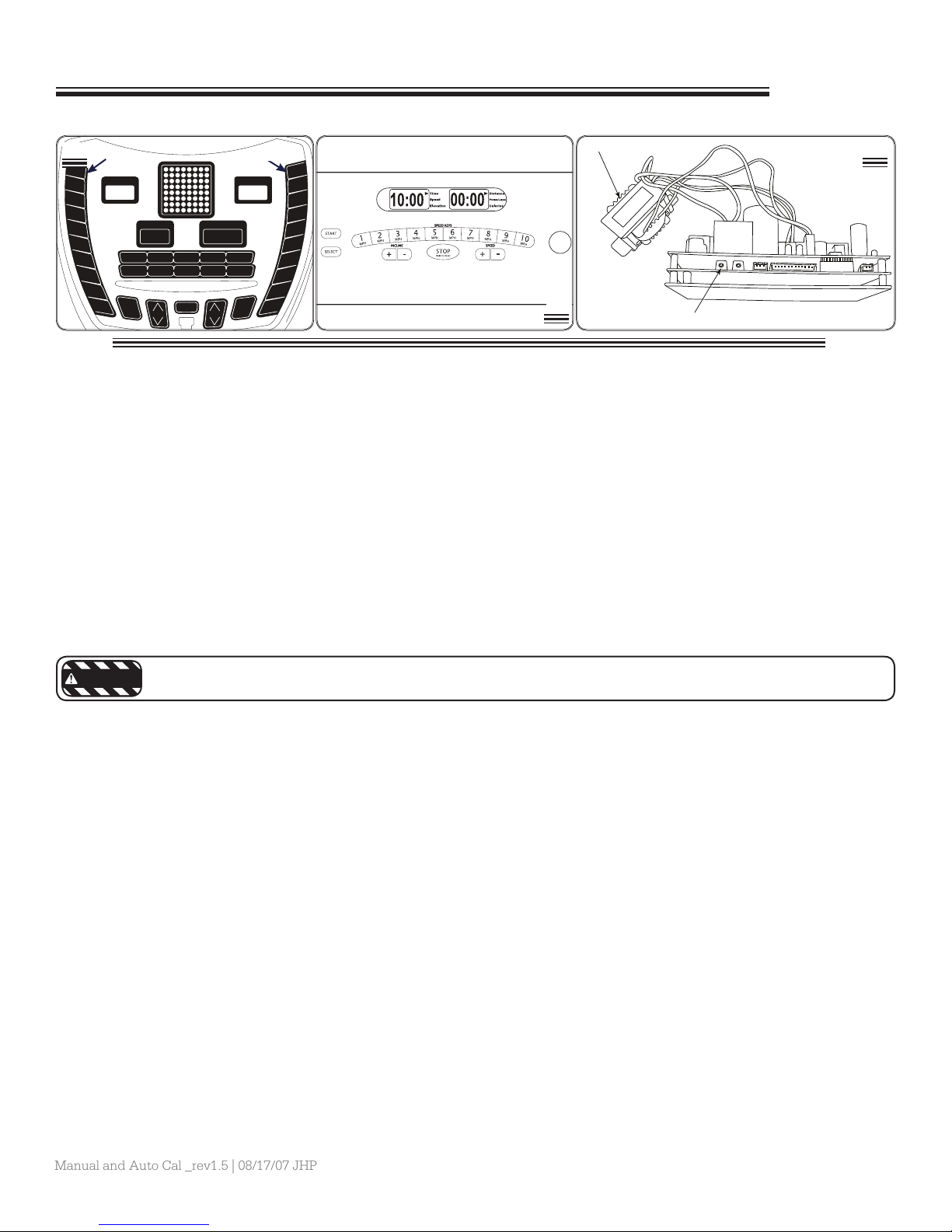

Manual and Auto Calibration Instructions
For Models: Advance 205 | T20 | T30 | T40 | 2.0T | 3.0T | 4.0T | 5.0T | Free Spirit 200 | Free Spirit 300 | Free
Spirit 400 | 1.1T | 2.1T | 3.1T | 4.1T | 5.1T
SPEED CUBE
TRANSFORMER
Do NOT stand on the running belt when calibrating. Use the guide rails instead.
Step One | Entering the Engineering Mode
1Turn the treadmill power to ON.
2Place the safety key in position on the console.
3 Simultaneously press and hold (for about ve seconds) the following buttons:
For Models 3.0T | 4.0T | 5.0T | Free Spirit 200, 300, 400: The “10%” and “10mph” buttons.(F1)
All other Models: The incline “+” (s) and speed “-” (t) buttons.(F1 & F2)
4 The console should beep three times and ENG0 (EN90) should be displayed.
This indicates you are in the engineering menu.
Note: if ENG0 (EN90) is not displayed, but ENG (EN9) is displayed with another number at the end, you are still in the
engineering menu. Use the “+” (s) or “-” (t) buttons to navigate to the correct menu. See following instructions.
Step Two | Manual Calibration
1Press the speed “+” (s) or “-” (t) button until ENG1 (EN91) is displayed.
2Press and hold the “Start” button for about three seconds to select.
For Models 4.1T | 5.1T: Press and hold the “Select” button for about three seconds to select.
SELECT
START STOP
Distance / Laps Time
1mph
2mph
3mph
4mph
5mph
6mph
7mph
1%
2%
3%
4%
5%
6%
7%
INCLINE SPEED
Rolling Weight Loss Hill RunIntervalsManual
SELECT
THR Zone Custom1 Custom 2RaceHillClimb
8%
%
%
9
10
8
9
10
mph
mph
mph
F1 F3
Manual and Auto Cal _rev1.5 | 08/17/07 JHP
WARNING
3 Press the “Start” button to begin manual calibration. The Running belt should begin moving.
4 The readout in the speed window will indicate the start speed of the unit. This should be 0.5mph (+ or - .05). If the
speed is not within the proper start range, adjust the speed cube (F3) until the speed window (F2) readout is correct.(See
note below)
Note: The speed cube is located on the Motor Control Board. It is blue with a small yellow screw. (F3) When adjusting the
speed cube, turn the screw right to increase the speed and left to decrease the speed. Use small increments as the speed
cube is sensitive and will respond to each change. DO NOT PUSH DOWN HARD ON THE SCREW.
5 Once the speed readout is at the proper setting, press and hold the “Stop” button for about three seconds to return to
the engineering menu. Proceed to the following instructions to Auto Calibrate the unit.
Step Three | Auto Calibration
After following the steps above you will have one step left to complete the calibration process.
Note: If you are not in the engineering menu, follow steps 1-4 from Entering the Engineering Mode.
1Press the speed “+” (s) or “-“ (t) buttons until ENG2 (EN92) is displayed.
2Press and hold the “Start” button for about three seconds to select.
For Models 4.1T | 5.1T: Press and hold the “Select” button for about three seconds to select.
3 Press the “Start” button to begin.
The running belt will begin moving and will automatically begin the auto-calibration sequence to properly set and store the
speed values. Upon successful calibration there will be four beeps and it will automatically exit the Engineering Mode and will
return to the original screen. The whole process will typically take about two minutes.
F2
10% 10mph

Auto Calibration Instructions
For Models: RT1 | T51 | T52 | T53 | T54 | T605 | T805 | CST3 | CST4 | CST5 | T25 | T35 | 1.2T | 2.2T | 3.2T | 4.2T | 5.2T | 30516 | T61 | T62 | T63 |
T64 | T50 | T70 | CST3.5 | CST4.5 | PST6 | PST8 | T650 | T805 | 30517 | T10K | 30518 | T95 | CST3.5x | CST3.6 | CST4.6 | PST Pro | PST6 | PST8 |
T71 | T72 | T73 | T74 | 1.3T | 2.3T | 5.3T | T4 | T6 | DT680 | LS925T | RST5.6 | RCT7.6 | 30519 | 30516 | 30517 | WT751 | WT951 | 610T | 620T | 700T |
720T | 730T | 820T | 830T | 930T
Do NOT stand on the running belt when calibrating. Use the guide rails instead.
Entering the Engineering Mode
1Turn the treadmill power to ON.
2Place the safety key in position on the console.
3 Simultaneously press and hold (for about ve seconds) the incline “+” (s) and speed “-” (t) buttons.(F1 & F2)
For Model RT1: Simultaneously press and hold the 1 and 10 quick speed buttons for about three seconds. (F3)
4 The console should beep three times and ENG0 (EN90) should be displayed.
This indicates you are in the engineering menu.
Note: if ENG0 (EN90) is not displayed, but ENG (EN9) is displayed with another number at the end, you are still in the
engineering menu. Use the “+” (s) or “-” (t) buttons to navigate to the correct menu. See following instructions.
Auto Calibration
WARNING
After following the steps above you will have three steps left to complete the calibration process.
1Press the speed “+” (s) or “-“ (t) buttons until ENG2 (EN92) is displayed.
For Model RT1: Press the “Enter” button untill the display reads “Auto Set”.
2Press and hold the “Enter” button for about three seconds to select.
For Models 1.2T | 2.2T | 3.2T: Press and hold the “Select” button for about three seconds to select.
For Models T25 | T35: Press and hold the “Start” button for about three seconds to select.
For Model RT1: Press the “Start” button to select Auto Set mode. (F3)
3 Press the “Start” button to begin.
For Models 1.2T | 2.2T | 3.2T: Press the “Select” button to begin.
The running belt will begin moving and will automatically begin the auto-calibration sequence to properly set and store the
speed values. Upon successful calibration there will be four beeps and it will automatically exit the Engineering Mode and will
return to the original screen. The whole process will typically take about two minutes.
SELECT
START STOP
Distance / Laps Time
1mph
2mph
3mph
4mph
5mph
6mph
7mph
1%
2%
3%
4%
5%
6%
7%
INCLINE SPEED
Rolling Weight Loss Hill RunIntervalsManual
SELECT
THR Zone Custom 1 Custom 2RaceHill Climb
8%
%
%
9
10
8
9
10
mph
mph
mph
F1 F3
F2
Auto Cal _rev1.5 | 08/17/07 JHP
