Air Conditioner Service Manual
0
Multi Inverter air conditioner
Service Manual
Models
OMEGA WM 09K OMEGA WM 12K
OMEGA WM 18K OMEGA ODU 18K2
OMEGA ODU 24K3
CONTENTS
1. Important Notice
2. Technical Specification
3. Product Dimensions
4. Refrigeration cycle diagram
5. Operation details
6. Wiring diagram
7. Explosion view and parts
8. Precaution
9. Names of parts
10.Installation
11.Trouble shooting

Air Conditioner Service Manual
1
1. Important Notice
This service manual is intended for use by individuals possessing adequate
backgrounds of electrical, electronic and mechanical experience. Any
attempt to repair the appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
The information, specifications and parameter are subject to change due to
technical modification or improvement without any prior notice. The
accurate specifications are presented on the nameplate label.
How to order spare parts
To have your order filled promptly and correctly, please furnish the following
information:
1. Model No. with Indoor or Outdoor
2. No. in the Explosion View
3. Part Name
4. The quantity you ordered

Air Conditioner Service Manual
2
2. Technical Specification
Model No.
FMA-14I2HA/DVO
FMA-18I2HA/DVO
FMA-21I3HA/DVO
Standard indoor combination under Erp
7+7
9+9
7+7+7
One unit
7,9,12
7,9,12
7,9,12,18
Two units
7+7;7+9;7+12
9+9;9+12
7+7;7+9;7+12;7+18
9+9;9+12;9+18
12+12
7+7;7+9;7+12;7+18
9+9;9+12;9+18
12+12;12+18
Three units
None
None
7+7+7;7+7+9;7+7+12;7+7+18
7+9+9;7+9+12
9+9+9;9+9+12
Control type
Remote Controller
Remote Controller
Remote Controller
Cooling capacity
Btu/h
14000(4000~16500)
18000(4200~20000)
21000(9500~22500)
W
4100(1200~4850)
5200(1230~5860)
6150(2800~6600)
Heating capacity
Btu/h
15400(4300~17800)
20000(4400~21000)
22000(8350~23300)
W
4500(1250~5200)
5860(1290~6280)
6600(2450~6900)
Pdesignc
Btu/h
14000
18000
21000
W
4100
5200
6150
Pdesignh
Btu/h
13000
16400
20500
W
3800
4800
6000
SEER (Class)
W/W
6.1 (A++)
6.1 (A++)
6.1 (A++)
SCOP (Class)
W/W
4.0 (A+)
4.0 (A+)
4.0 (A+)
EER
W/W
4.1
3.47
3.27
COP
W/W
4.6
3.94
3.86
Elbu (Backup electrical
capacity)
W
700
700
900
Outdoor sound power level
dB(A)
65
65
68
Electrical Data
Power supply
220-240V~/50HZ
220-240V~/50HZ
220-240V~/50HZ
Voltage Range
V
198~264
198~264
198~264
Power input
Cooling
W
1000(250~1550)
1500(280~1850)
1880(350~2100)
Heating
W
980(230~1450)
1490(250~1780)
1710(420~2050)
Operating
Current
Cooling
A
1.13-4.5-6.87
1.3-6.8-8.4
1.6-8.5-9.5
Heating
A
1.02-4.3-6.43
1.13-6.7-8.1
1.9-7.8-9.3
Annual electricity
consumption
Cooling
W
238
298
352
Heating
W
1325
1637
2098
Refrigerating System
Refrigerant/Charge
Gram
R410A/1350g
R410A/1800g
R410A/2300g
CO2 equivalent
Tonnes
2.819
3.759
4.803
Compressor type
Twin Rotary
Twin Rotary
Twin Rotary
Compressor brand & model
GMCC
ASN108D32UFZ
GMCC
ATM150D43UFZ
GMCC ATM150D43UFZ
Fan System
Outdoor air circulation
m3/h
3000
3000
4000
Outdoor fan type
axial-flow
axial-flow
axial-flow
Outdoor fan motor model
GZSDJ-33(DC)
GZSDJ-33(DC)
GZSDJ-31(DC)
Outdoor fan speed
rpm
850
850
850
Outdoor fan motor output
W
52
52
≤100
Outdoor coil
Number of rows
/
2
2
2
Number of U tube
/
22
22
24
Tube outside diameter
mm
9.52
9.52
9.52
Tube type
/
Rifled tube
Rifled tube
Rifled tube
Fin spacing
mm
1.5
1.5
1.5
Fin type
Corrugated sheet
Corrugated sheet
Corrugated sheet
Tube pitch(a)x row pitch(b)
mm
19.05x25.4
19.05x25.4
19.05x25.4
Connections
Refrigerant coupling
Flare
Flare
Flare
High & low
pressure valve
Liquid
Inches
1/4''
1/4''
1/4''
Gas
Inches
3/8''
3/8''
3/8''
Others
Net dimensions (W x H x D)
mm
780×605×290
780×605×290
900×660×310
Net weight
kg
40
40
50
Packing dimensions (W x H x
D)
mm
883×412×653
883×412×653
1015×425×750
Gross weight
kg
44
44
55
Loading quantity
40HQ

Air Conditioner Service Manual
3
3. Product Dimensions
Indoor Unit:
Wall split type
Model
A
B
C
9K
770
205
250
12K
770
205
250
18K
910
205
292
Cassette type
580
19
620
304
580
124
64
144293
50
113
95
255
45
Duct type
Model
A
B
C
D
E
F
G
H
I
J
7/9/12K
700
447
200
570
172
510
140
738
298
158
18K
920
447
200
790
172
730
140
958
298
158
A
H
F
I
J
B
E
C
G
D

Air Conditioner Service Manual
4
Outdoor Unit:
Model
Outdoor unit
D
E
F
G
H
I
J
K
OMEGA ODU 18K2
780
605
290
521
360
327.5
55
56
OMEGA ODU 27K3
900
650
315
623
374
347
61
56

Air Conditioner Service Manual
5
4. Refrigeration cycle diagram
TIN1 PMV1
TIN2
TIN3
PMV2
PMV3
PMV4
TIN4
T2B1
T2B24
T2B3
T2B4 ST
CONDENSER
liquid
storage
pot
T3
T4
TP
HP
COMPRESSOR
Optional
Evaporator

Air Conditioner Service Manual
6
5. Operation details
Remote controller
Note: Each mode and relevant function will be further specified in following pages.
Remote controller:
The remote controller is not preset as Cooling Only Air Conditioner or Heat Pump by manufacturer.
Each time after the remote controller replace batteries or is energized, the arrowhead will flashes
on the front of Heat or Cool on LCD of the remote controller.
User can preset the remote controller depending on the air conditioner type you have purchased as
follows:
Press any button when the arrow head flashes on the front of Cool, Cooling Only is set.
Press any button when the arrow head flashes on the front of Heat, Heat Pump is set.
If you don’ t press any button within 10 seconds, the remote controller is preset as Heat Pump
automatically.
Note:
If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller as
Heat Pump, it doesn’t bring any matter. But if the air conditioner you purchased is a Heat Pump one,
and you preset the remote controller as Cooling Only, then you CAN NOT preset the Heating
operation with the remote controller.
1ON/OFF button
2
2Swing control button
3FAN SPEED control button
Used to select the indoor fan motor
speed: AUTO, High, Mid and Low
Used to star and stop operation
when pressed.
Used to adjust airflow direction
Used to decrease the set room
temperature and time.
5SLEEP button
Used to set or cancel sleep mode operation.
6TIMER button
Used to set select TIMER operation.
7MODE button
Used to select the type of operation mode:
Feel, Cooling, Dry, Fan and Heating (Only for
Heat Pump).
8DOWN button
4UP button
Used to decrease the set room temperature
and time.
MODE
FAN SLEEP
ECO TIMER
SWING
TURBOMUTE
DISPLAY
SWING
HEALTHI FEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

Air Conditioner Service Manual
7
Electronic Controller
1. Safety Protection
(1) Time Delay for Safety protection
3 minutes delay for compressor ---The compressor is ceased for 3minutes before restarting
to balance the pressure in the refrigeration cycle in order to protect the compressor.
150 seconds delay for 4-way valve---The 4-way valve will be ceased for 150 seconds
late after compressor to prevent the refrigerant-gas abnormal noise when the HEATING
operation is OFF or switch to the other operation mode.
(2) Discharge temperature protection
There is a temperature sensor on discharge pipe, when temperature on discharge pipe
exceeded the limit 115℃, system control will shut down the compressor and the display board
will show the error code.
(3) Lower voltage protection
When AC voltage <160V, DC voltage<170V, unit will be shut down for protection and recover while
the AC voltage ˃170 V, DC voltage ˃190V.
(4) Over voltage protection
When AC voltage ˃ 275V, DC voltage ˃400V unit will be shut down and recover while AC
voltage<255V, DC voltage<390 V.
(5) Over current protection
When the current of outdoor unit is overload, controller will drop the operation frequency or shut
down the unit immediately and show error code.
(6) Condenser temperature protection
When condenser temperature≥ 65℃and keep 10s, the air conditioner will shut down, and show
error code, and recover while condenser temperature<52℃and the compressor stop for 3minutes.
(7) IPM module protection
IPM module has high temperature & over current protection itself, if there is signal feedback to
IPM, the outdoor unit will shut down, LED on outdoor PCB will show the error code.
(8) Evaporator freeze protection.
When evaporator temperature<2℃, the controller will drop compressor operate frequency.
When evaporator temperature<0℃and keep 1 minute, the expand valve of the unit will stop.
When all of the operating unit enter freeze protect, the compressor will stop and recover while
evaporator temperature and stop for 3 minutes.
2. “Feel” Mode Operation
(1) When the “Feel” mode is selected, the operation mode and initial temperature set are
determined by the initial room temperature at start-up of the operation except to turn off the air
conditioner and operates it again.
(2) If the unit have activate the AUTO restart, when the power off and supply again, the unit will
judge the condition again and enter the “Feel” mode.
(3) If the mode is change to “Feel” from other mode, the “Feel” mode doesn’t operate until
compressor stop for more than 3 minutes.
Mode
Initial Room Temperature
Initial Set Temperature
COOLING
RT=26℃
23℃
DRY
26℃>RT≥20℃
RT-2℃
HEATING
RT<20℃
23℃
Fan
RT<20℃
RT

Air Conditioner Service Manual
8
In the “Feel” mode, when the controller receives the up or down signal of temperature, the set
temperature can adjust by 1℃ upper or lower. The biggest you can adjust by 2℃ upper or lower.
3. “COOLING” Mode Operation
(1) Compressor frequency control
According to difference room temperature and set temperature (δt = RT-ST), running frequency
of compressor is controlled by electronic controller. When room temperature is much higher than
set temperature, the compressor will start at a high frequency, and as room temperature goes
down, the compressor running frequency will go down. When room temperature is lower than set
temperature, the compressor will run at very low frequency. In general, unit will change its running
frequency according to δt to make room temperature closing to set temperature.
(2) Outdoor temperature affects running frequency of the compressor
Outdoor temperature affect compressor’s running frequency. Difference inlet temperature of
outdoor unit is adapted by difference compressor running frequency. While outdoor temperature is
about 30℃, the compressor will run in high frequency.
If unit run in “cooling” mode and outdoor temperature is less than -2℃,the controller will shut
down compressor and show error code, while the ambient temperature is over 1℃, the compressor
will run automatically.
(3) Auto fan control in cooling mode
In cooling mode (include cooling in “Feel” mode), fan speed is determined by δ t, as the
following diagram:
4.“DRY” Mode Operation
(1)The system for DRY operation used the same refrigerant circle as the cooling one.
(2)When the system operates in DRY mode, at first it operates in cooling mode, the set
temperature (ST) is “RT-2℃”. After that, t he system will operate in cooling mode with
lowest fan speed. During the course of this operation, you can’t use remote controller to adjust
the fan speed but you can control the vane direction.
(3)In the dry mode, when RT≤12℃, the compressor will stop and operates again at RT≥14℃.
5. “HEATING” Mode Operation (available for Heat Pump only)
(1) Frequency control
Same as the frequency control in cooing mode, the running frequency of compressor is
controlled by controller. Unit change its running frequency according to δ t to make the room
temperature closing to the set temperature.
(2) Indoor fan motor control
1) Cold Air Prevention Control
The function is intended to prevent cold air from being discharged when heating mode
selected or while in defrosting.
The indoor fan speed will be controlled as following.
RT-ST
℃
4.0
3.0
1.5
1.0
δt come down
δt come up
High fan
Min fan
Low fan

Air Conditioner Service Manual
9
In heating operation, if air conditioner turn off, the indoor fan motor will run most for 30
seconds since the stop of compressor.
2) Auto fan control (heating)
In heating mode (include in “feel” mode) , fan speed is determined by δt as the following:
(3) 4-way valve control
In heating mode, 4-way valve will power on ahead of compressor for 8 seconds, and cut off
for 2 minutes later than compressor. 4-way valve will not power off unless the machine to be
switched off, mode changed or on the process of defrosting.
(4) Outdoor fan motor control
In heating mode, the outdoor fan motor will power on ahead of compressor 5 seconds, and
cut off for 30seconds later than compressor.
(5) Defrosting
Defrosting is controlled by the microprocessor.
When the unit operate 30 minutes accumulated and the compressor operation more than 3
minutes continuously, one of the following conditions is satisfied, unit comes into defrosting:
a. When FrostDeg ≥ -5℃, and OPT ≤ -5℃, the .2 times defrosting interval time is 45 minutes.
b. When -10℃≤ FrostDeg < -5℃, and OPT < FrostDeg , the .2 times defrosting interval time is
45 minutes.
c. When -13℃≤ FrostDeg < -10℃, and OPT < FrostDeg , the .2 times defrosting interval time is
45 minutes.
RT-ST
δt come down
δt come up
℃
Breeze
Temperature up
Temperature down
Setting
Low fan
Stop
37℃
33℃
25℃
33℃
25℃
20℃
4.0
3.0
1.5
1.0
High fan
Min fan
Low fan
Indoor pipe Temperature
3S
5S
30S
120S
ON
OFF
ON
ON
OFF
OFF
4-WAY valve
Outdoor fan motor
Compressor
5S
30S
ON
ON
OFF
OFF
Outdoor fan motor
Compressor

Air Conditioner Service Manual
10
d. When -15℃≤ FrostDeg < -13℃, and OPT < FrostDeg , the .2 times defrosting interval time is
65 minutes.
e. When -15℃≤ FrostDeg < -10℃, and OPT < FrostDeg , the .2 times defrosting interval time is
75 minutes.
f. When FrostDeg < -15℃, and OPT < -15℃, the .2 times defrosting interval time is 75 minutes.
FrostDeg = C*OAT-α
OAT: Outdoor environment temperature.
When OAT< 0℃, C=0.8, when OAT≥ 0℃, C=0.6
α=8
Before the air con comes into defrosting, compressor running frequency drop down to a
lower frequency firstly, then the compressor shuts down.
In defrosting, all protection function are available.
T1 T2 T3 T4 T5 T7 T8 T9 T10T6
Compressor Frequency
Outdoor Fan Motror
4-way Valve
ON
OFF
ON
OFF
ON
OFF
Defrost Hightest Frequency
T
T1
T2
T3
T4
T5
T6
T7
T8
T9
T10
Times
Drop frequency
or stop
50s
5s
5s
Rise
frequency
2-11Min
Stop
Defrost
50s
10s
Rise frequency
In defrosting, LED showing by winking.
No matter what AC come into or out of defrosting, indoor fan motor speed is the same as
Cold Air Prevention Control.
While one of the following conditions is satisfied, unit comes out of defrosting and shifts to
heating mode:
a. Outdoor coil Temperature (OPT) >5℃and keeps 30 seconds.
b. Outdoor coil Temperature (OPT) >10℃and keeps 2 seconds.
c. Continue 11minutes defrost Operation.
(5) Indoor exchanger overheat protection
When Indoor exchanger Temperature (IPT) is higher than 54℃ , unit comes into indoor exchanger
overheat protection. The compressor drops its frequency.
If IPT≥65℃ and keep for 30 seconds, control system shut down compressor, and recover while IPT
drop less than 52℃.
6. “SLEEP” mode
When the SLEEP button is pressed, the AC operates as following:
The indoor fan speed is set at low speed, the power lamp and the sleep lamp is on,
the display of temperature will close after 30 seconds.
When selecting COOLING/DRY operation with SLEEP mode, the set temperature will be
raised by 1℃ 1 hour later and by 2℃ 2 hour later, after 3 hours, the set temperature will be
raise by 3℃ and keeps 2hours. And then the temperature is Set+2℃, after 1 hour, the
temperature is set temperature and keep.
When selecting HEATING operation with SLEEP mode, the set temperature will be dropped
by 1℃1 hour later and 2℃ 2 hours later, after 3 hours, the set temperature will be dropped by

Air Conditioner Service Manual
11
3℃ and keep 2 hours. And then the temperature is Set-2℃, after 1 hour, the temperature is
set temperature and keep.
7. EMERGENCY Operation
When the EMERGENCY Operation switch is pressed, “Beep” a short sound, COOLING mode
is selected, two short sound the HEATING mode selected, and a long sound the unit off of 3s.
During the unit operation in emergency operation, when the unit receive the signal of remote
controller, the unit will operates by remote.
When the remote controller missing, failed or the batteries run down, press the EMERGENCY
Operation switch on front of the indoor unit for function test.
NOTE: Do not press the EMERGEMCY Operation switch during normal operation.
8. AUTO-RESTART Function (Option)
While air conditioner is operating in one mode, all of its operation data, such as working
mode, preset temperature etc. would be memorized into IC by main PCB. If power supply cut off
due to reasons and recover again, the AUTO-RESTART function will set synchronously and
the air conditioner would work at the same mode as before.
Auto-restart Pre-setting (optional):
If Auto-restart function is needed, follow the steps below to activate this function:
1) Pulling the air-con's plug out of socket.
2) Pressing and holding the Emergency button (ON/OFF) on the indoor, then insert the plug
into the socket again.
3) Keep pressing the Emergency button for more than 10 seconds until three short beeps
heard, the Auto-restart function been activated.
4) When the unit in operation, press the timer button 10 times in 8s, the Auto-restart
function will be active，if the Auto-restart is active, the Auto-restart off.
9. Water pump control(cassette and duct type)
When the unit operates in cool or dry mode, the water pump operates, once the compressor
off or change to other mode, the water pump stop after 10 minutes.
Anytime, when the unit check the water full, the water pump operates, the unit stop and
display the water full code. When the water full eliminate, the water pump will stop after 10
minutes.
When check the water pump switch open for 8 seconds continuous, enter water full
protection, and check the water pump switch on for 180 seconds continuous, the water full
protection exit.
10. Protection and Failure Display
When protection display is available, controller will show error code, digital LED shows
error code and setting temperature by turns.
If there is more than one failure, it will show error codes according to the error list sequence.
To insure the signal communication of indoor and outdoor unit, any failure code relates to
outdoor unit will remain display for 2 minutes maximum after it’s recovered.
Among all the failure codes, sensor failure can be recovery automatically once it comes normal.

Air Conditioner Service Manual
12
Error list
Failure Type
IndoorLED
Code
CASSETTE
Outdoorlight
blink time (n)
LED1
LED2
LED3
LED4
Indoor and outdoor communication failure
E0
●
●
●
◎
7
Outdoor communication failure
EC
◎
◎
●
●
15
Indoor room temperature sensor (IRT)
E1
●
●
◎
●
25
Indoor coil temperature sensor (IPT)
E2
●
●
◎
◎
26
Outdoor coil temperature sensor (OPT)
E3
●
◎
●
●
10
IPM over current protect
E4
●
◎
●
◎
40
Compressor phase-deficient operation
34
Model configuration wrong
E5
●
◎
◎
●
29
Indoor fan motor fault
E6
●
◎
◎
◎
21
Outdoor temperature sensor
E7
◎
●
●
●
9
Exhaust temp. sensor
E8
◎
●
●
◎
11
IPM drive and module fault
E9
◎
●
◎
●
30
Outdoor fan motor fault (DC motor)
EF
◎
◎
◎
◎
16
Current sensor fault
EA
◎
●
◎
◎
13
Indoor EEPROM fault
EE
◎
◎
●
◎
27
Outdoor EEPROM fault
EE
◎
◎
◎
●
19
Temp. switch fault ( on top of the
compressor)
EP
-
-
-
-
8
Voltage sensor fault
EU
○
●
●
◎
12
Suction temperature sensor fault
EH
-
-
-
-
18
Outlet temperature sensor A fault
Ey
○
●
◎
●
47
Outlet temperature sensor B fault
48
Inlet temperature sensor A fault
En
○
●
◎
◎
51
Inlet temperature sensor B fault
52
Protection display code list:
○--light ●--off ◎—flash
Outdoor failure display
ProtectionType
IndoorLED
Code
CASSETTE
Outdoorlight
blink time (n)
LED1
LED2
LED3
LED4
lower voltage protection
P1
○
●
●
○
2
Overcurrent protection
P2
○
●
○
●
3
Discharge over temperature
protection
P4
○
○
●
●
4
Too cool protection in cooling mode
P5
-
-
-
-
32
Overheat protection in cooling mode
P6
○
○
○
●
5
Overheat protection in heating mode
P7
○
○
○
○
33
Outdoor over temperature
/ lower temperature protection
P8
-
-
-
-
31
Drive protection (software control )
P9
-
-
-
-
6
Module protection (hardware control)
P0
-
-
-
-
1
Model different
PA
●
●
○
○
-
Water full protect
D3
●
○
○
◎
-
High pressure protection
H1
-
-
-
-
-

Air Conditioner Service Manual
13
There is a LED on outdoor power board, it blinks 1s ON and 1s OFF while compressor standby and
it always light (ON) while compressor running; If there is failure happened on ODU, The indicator (LED)
alerts the fault in a cycle as such that it is bright for 0.5 seconds, dark for 0.5 seconds, blinks “n” times
and then dark for 3 seconds. For details as table below.
Display on outdoor power source board:
blink time (n)
Failure
1
IPM protection
2
Over voltage /lower voltage
3
Overcurrent
4
Exhaust over temperature protection
5
Outdoor coil over temperature protection
6
Drive fault and protection (V1，VP1)
7
Communication fault with indoor unit
8
Compressor overheat fault (compressor top switch)
9
Short-circuit / open-circuit fault of outdoor temperature sensor
10
Short circuit / open-circuit fault of outdoor heat exchanger temperature
sensor
11
Short-circuit / open-circuit fault of exhaust temperature sensor
12
Voltage sensor fault
13
Current sensor fault
14
IPM fault
15
Communication fault between power source board and IPM
16
No feedback from DC fan motor(outdoor unit)
17
Defrost state

Air Conditioner Service Manual
14
6. Wiring diagram
INDOOR UNIT:
Wall split type:
Cassette, Duct type:

Air Conditioner Service Manual
15
OUTDOOR UNIT
ONE TO 2 TYPE:
ONETO 3TYPE:

Air Conditioner Service Manual
16
ONE TO 4 TYPE

Air Conditioner Service Manual
17
7. Explosion view and parts

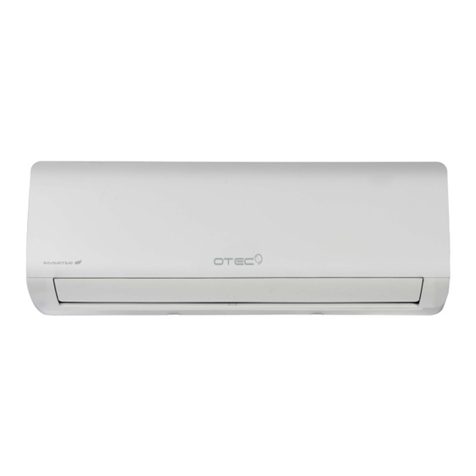

WALL SPLIT TYPE: OMEGA WM 09K, OMEGA WM 12K
INDOOR UNIT:
5
12
24
25
26
27
28
30 21
22
23
15
19
20
18 17
16
14
13
12
11
10
9
8
7
6
4
3

Air Conditioner Service Manual
18
Parts List
Wall split type- OMEGA WM 09K
No.
Part No.
Part Name
Q’ty
Remark
1
41106-002048
Front Panel
1
2
31102-000085
Display PCB
1
3
42003-000001
Display PCB Box
1
4
32001-000140
WIFI PCB
1
5
42008-000049
Air Filter
2
6
41108-000066
Screw Cover
1
7
41201-000068
Electrical Box Cover
1
8
41106-002371
Face Frame
1
9
41103-000101
Vane
1
10
41101-000122
Right Vertical Vane Supporter
1
11
41101-000033
Vertical Vane Assembly
2
12
31101-000186
Main PCB
1
13
22001-000313
Vane Motor
1
14
10104-100014
Indoor Sensor Assembly
1
15
11304-100028
Terminal
1
16
41105-000104
Electrical Box
1
17
22001-000318
Step Motor
1
18
41199-002747
Base
1
19
41101-000242
In And Out Pipe Fixer
1
20
22001-000262
Indoor Motor
1
21
42009-000011
Drainage Hose
1
22
42003-000060
Indoor Motor Cover
1
23
41109-000042
Installation Plate
1
24
92011-002804
Evaporator
1
25
42004-000039
Cross Fan
1
26
42007-000001
Bearing Mount
1
27
41101-000251
Bearing Mount Holder
1
28
41101-000115
Vertical Vane Connector
1
29
22013-002088
Remote Controller
1
Not shown in Explosion
view
30
42001-000013
Remote Controller Supporter
1
31
A1101-011314
Indoor Carton
1
32
41110-000221
Left Foaming
1
33
41110-000260
Right Foaming
1

Air Conditioner Service Manual
19
Wall split type- OMEGA WM 12K
No.
Part No.
Part Name
Q’ty
Remark
1
41106-002048
Front Panel
1
2
31102-000085
Display PCB
1
3
42003-000001
Display PCB Box
1
4
32001-000140
WIFI PCB
1
5
42008-000049
Air Filter
2
6
41108-000066
Screw Cover
1
7
41201-000068
Electrical Box Cover
1
8
41106-002371
Face Frame
1
9
41103-000101
Vane
1
10
41101-000122
Right Vertical Vane Supporter
1
11
41101-000033
Vertical Vane Assembly
2
12
31101-000186
Main PCB
1
13
22001-000313
Vane Motor
1
14
10104-100014
Indoor Sensor Assembly
1
15
11304-100028
Terminal
1
16
41105-000104
Electrical Box
1
17
22001-000318
Step Motor
1
18
41199-002747
Base
1
19
41101-000242
In And Out Pipe Fixer
1
20
22001-000262
Indoor Motor
1
21
42009-000011
Drainage Hose
1
22
42003-000060
Indoor Motor Cover
1
23
41109-000042
Installation Plate
1
24
92011-002804
Evaporator
1
25
42004-000039
Cross Fan
1
26
42007-000001
Bearing Mount
1
27
41101-000251
Bearing Mount Holder
1
28
41101-000115
Vertical Vane Connector
1
29
22013-002088
Remote Controller
1
Not shown in Explosion
view
30
42001-000013
Remote Controller Supporter
1
31
A1101-011315
Indoor Carton
1
32
41110-000221
Left Foaming
1
33
41110-000260
Right Foaming
1
