Instruction Manual
Bar Freezer
OBFZ91B
OBFZ91X
2
Thank you for purchasing an Omega appliance
Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a
welcome addition to the family.
Omega caters to style-savvy customers who look for balance between stunning form and clever function.
This means a combination of sleek, chic, sophisticated design yet effortless functionality.
And we source from the best. The best craftsmanship. The best innovation. From the best international
design-houses.
All brought together under an appliance that stands for design-led balance.
Please take the time to read through the following instruction manual to familiarise yourself with the
installation, operation requirements and maintenance to ensure optimum performance.
Further Information
For important information about your Omega Appliance such as warranty registration, manuals, features,
and specifications please visit omegaappliances.co.nz or contact our Customer Care team on the below
email or phone numbers.
Contact Us
Our customer service team is here to help you with any question or concern.
Both teams are on call Monday to Friday 8.30am to 5.00pm and of course you can always send an email at
your convenience.
New Zealand Contact Details
Monday to Friday 8.30am –5.00pm
Email: [email protected]
Phone: 09 415 6000
3
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE
AP
P
LIAN
CE.
It is important that you retain these instructions, proof of purchase as well as other important
documents about this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances
without notice.
Contents
Important Safety Warnings ............................................................................................................................................... 4
Installaon......................................................................................................................................................................... 5
Appliance Details............................................................................................................................................................... 9
Operang Instrucons..................................................................................................................................................... 10
Care and Maintenance .................................................................................................................................................... 10
Data Label and Circuit Diagram....................................................................................................................................... 12
Troubleshoong .............................................................................................................................................................. 13
New Zealand Product Warranty Statements of Standard Warranty Condions............................................................. 14
Disposal Information
•Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them into appropriate collection containers.
•If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.
4
Important Safety Warnings
Read the assembly instruction section and safety precautions of this booklet carefully before removing the
contents of this carton.
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety. Young children should be supervised to ensure
that they do not play with the appliance.
2. In certain circumstances electrical appliances may be a safety hazard.
3. Do not place heavy objects on this appliance.
4. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
5. Electrical connection must be made as per local wiring rules and regulations. Do not disconnect the appliance with
wet hands and do not disconnect the power cord with extreme force. Do not coil the cord while in use but keep any
excess cord to the back of the appliance. Take care that the power socket is accessible.
6. The appliance should be unplugged when not in use and before any maintenance is carried out on the appliance.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or a similarly
qualified person in order to avoid a hazard.
8. WARNING: Ensure that the ventilation openings, in the appliance enclosure or in the built-in structure, are not
obstructed. Follow the installation requirements in this manual. Avoid prolonged exposure to direct sunlight.
9. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
10.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
11.WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
12.WARNING: Do not damage the refrigerant circuit.
13.WARNING: Do not use electrical appliances inside the food storage compartments of the appliance.
14.WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
15.WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
16.Do not store explosive substances such as aerosol cans with flammable propellant in this appliance. Do not modify
this appliance.
17.This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the
manufacturer’s instructions. Please see the specific section of this booklet that refers to installation.
18.When disposing of this appliance, please do so according to local regulations as it contains flammable gas and
refrigerant.
19.Do not place hot items on plastic areas of appliance. Do not refreeze food once defrosted. Store pre-packed frozen
food in accordance to the manufacturer’s instructions. Take care when freezing liquids as sealed containers can
explode under pressure.
20.The refrigerant isobutene (R600a) contained within the refrigerant circuit of the appliance is a natural gas with a
high level of environmental compatibility, which is nevertheless flammable.
21.During transportation, installation and servicing of the appliance ensure that none of the components of the
refrigerant circuit are damaged.
22.Avoid open flames and sources of ignition.
23.Thoroughly ventilate the room in which the appliance is situated.
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION DO NOT BOOKLET PLACE
ARTICLES ON OR AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE
This appliance is intended to be used in household and similar applications such as:
Staff kitchen areas in shops, offices and other working environments; Farm houses and by clients in hotels, motels and
other residential type environments; Bed and breakfast type environments; Catering and similar non-retail applications.
WARNING: Risk of re / ammable materials
5
Installation
Unpacking the Appliance
Remove the external & internal packaging.
When unpacking the appliance please check for any damage. If damage is found, do not connect to the
power source and contact the Authorised Service Provider.
Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will
reduce the possibility of a malfunction in the cooling system from handling during transportation. Remove
any protective film from the outer surface.
Clean the interior surface with lukewarm water using a soft cloth.
Installing the Refrigerator
This appliance is designed to be free standing only, and should not be recessed or built‐in.
Place your appliance on a solid, level floor that is strong enough to support the appliance when it is fully
loaded. Use the adjustable feet at the bottom of the appliance to compensate for any unevenness of the
floor.
Allow at least 50 mm of space around the back and sides of the appliance, which allows the proper air
circulation, and at least 100 mm above the unit.
Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct
sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold
ambient temperatures may also cause the appliance not to perform properly. Avoid locating the appliance in
moist areas.
Plug the appliance into an exclusive, properly installed‐grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning
power and/or grounding should be directed toward a certified electrician or an Authorised Service Centre.
After plugging the appliance into a wall outlet (220‐240V 50Hz), let the appliance at least 2 hours before
placing food in the freezer.
Reverse Door
Tool required: Philips screwdriver, flat bladed screwdriver, hexagonal spanner.
•Ensure the unit is unplugged and empty.
•To take the door off, it is necessary to tilt the unit backwards. Rest the unit on something solid so that it
will not slip during the door reversing process.
•All parts removed must be saved to do the reinstallation of the door.
•Do not lay the unit flat as this may damage the coolant system.
•Two persons required for this installation.

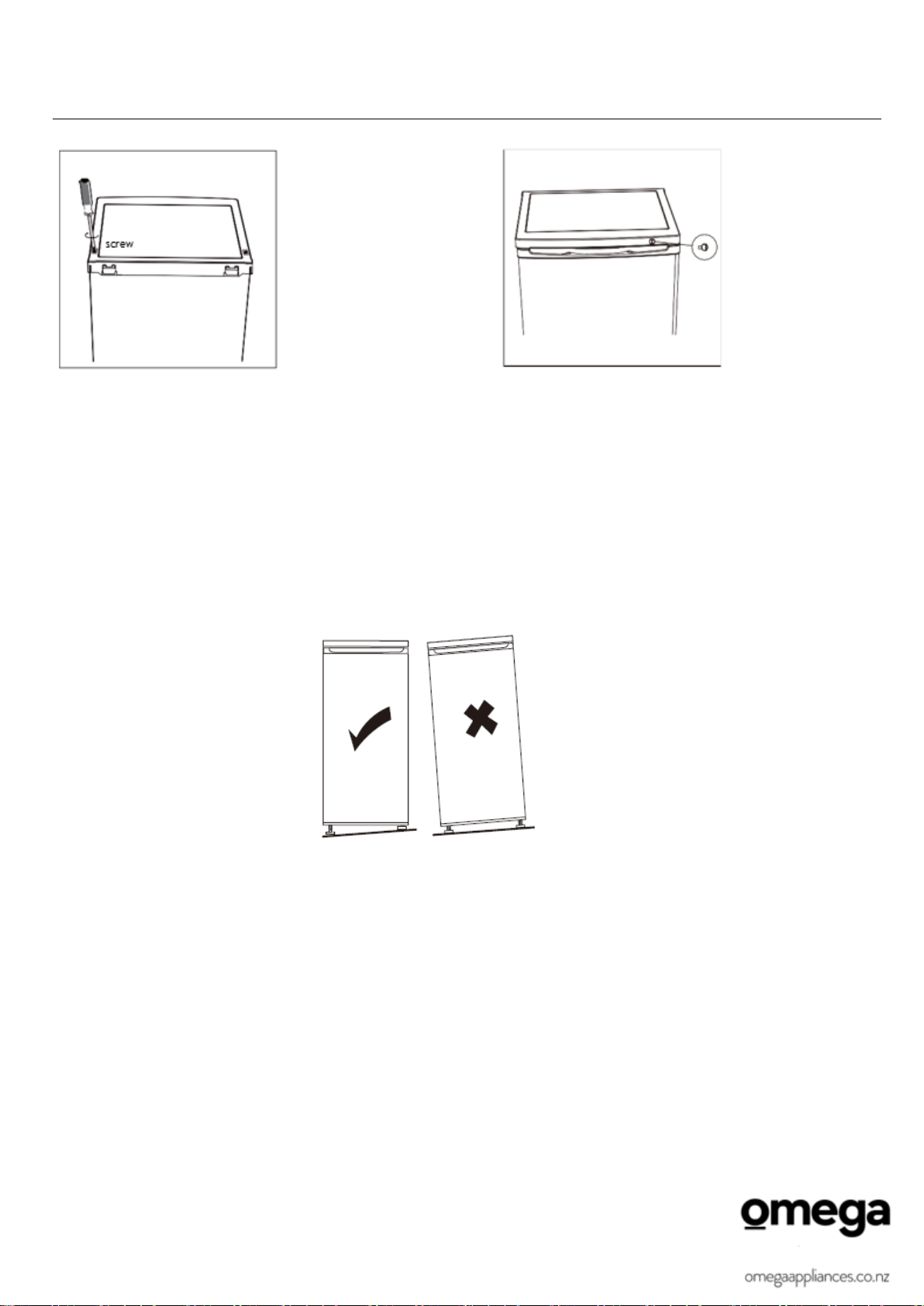

2. Remove top cover and thermostat knob, then
place it aside.
1. Remove two screws at rear side of top cover.
6
Installation
5. Unscrew and remove the boom hinge pin, turn the bracket over and replace it.
3. Unscrew top hinge and then remove door and
place it on a so pad to avoid scratch.
4. Unscrew boom hinge. Then remove the
adjustable feet from both sides.
6. Ret the bracket ng the
boom hinge pin. Replace
both adjustable feet.
7. Place the door back on. Ensure the
door is aligned horizontally and vercally,
so that the seals are closed on all sides
before nally ghtening the top hinge.
7
Installation
Levelling the unit
To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnec seal
alignment will not be covered properly.
8. Put the top cover and x it with
2 screws on the back.
9. Fix the thermostat knob.
8
Installation
Posioning
Install this appliance at a locaon where the ambient temperature corresponds to the climate class indicated on the
rang plate of the appliance.
Locaon
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight
etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the
appliance is posioned below an overhanging wall unit, the minimum distance between the top of the
cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be posioned below
overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.
Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must
therefore be easily accessible aer installaon.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rang plate correspond to your domesc
power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this
purpose. If the domesc power supply socket is not earthed, connect the appliance to a separate earth in
compliance with current regulaons, consulng a qualied electrician.
The manufacturer declines all responsibility if the above safety precauons are not observed.
9
Appliance Details
ELECTRICAL DETAILS:
Rated Voltage: 220‐240 Vac 50 Hz.
Supply Connection: 10 A domestic socket.
Max Rated Inputs: See data label on unit.
10
Operating Instructions
First
use
Cleaning the interior
Before using the appliance for the rst me, wash the interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
Important!
Do not use detergents or abrasive powders, as these will damage the finish.
Temperature Setting
Plug on your appliance. The internal temperature is controlled by ahermostat.
There are 3 sengs MIN, NORMAL and MAX. MIN is warmest seng and
MAX is coldest seng.
The appliance may not operate at the correct temperature if it is in a
parcularly hot or if you open the door oen.
Freezing
fresh
food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long
me.
Place the fresh food to be frozen in the freezer compartment.
The maximum amount of food that can be frozen in 24 hours is specied on the rang plate.
The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storing
frozen
food
When rst starng-up or aer a period out of use, before pung the product in the compartment let the
appliance run at least 2 hours on the higher sengs.
Important! In the event of accidental defrosng, for example the power has been o for longer than the value
shown in the technical characteriscs chart under “rising me”, the defrosted food must be consumed quickly
or cooked immediately and then re-frozen (aer cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room
temperature, depending on the me available for this operaon.
Small pieces may even be cooked sll frozen, directly from the freezer. In this case, cooking will take longer.
Ice-
cube
This appliance may be equipped with one or more ice-cube to produce ice.
11
Care and Maintenance
CLEANING THE APPLIANCE
•Upon installaon of your new appliance, it is recommended that it be cleaned thoroughly, and cleaned once a
month aer that.
•To clean the appliance, unplug from the power socket and remove all food and shelving.
•Wash the inside with a damp warm cloth containing a water and baking soda soluon. The soluon should be about
2 tablespoons of baking soda to a quart of water.
•Wash the shelving with a mild detergent soluon.
•Be sure to keep the door gasket (seal) clean to keep the unit running eciently.
•The outside of the appliance should be cleaned with mild detergent and warm water. Dry the interior and exterior
with a so cloth.
•It is recommended that the unit be cleaned each me it is defrosted to help keep the unit odour free and running
eciently.
•Do not use oils, abrasive cleaners, petroleum products, acids or alkaline detergents, as they can damage the
appliance.
Defrosng of the freezer
The freezer compartment, however, will become progressively covered with frost. This should be removed. Never
use sharp metal tools to scrape o frost from the evaporator as you could damage it.
However, when the ice becomes very thick on the inner liner, complete defrosng should be carried out as
fellows:
•pull out the plug from the socket.
•remove all stored food, wrap it in several layers of newspaper and put it in a cool place.
•keep the door open, and placing a basin underneath of the appliance to collect the defrost water.
•when defrosng is completed, dry the interior thoroughly.
•replace the plug in the power socket to run the appliance again.
IMPORTANT: If your appliance appears not to be operang correctly, turn o the appliance at the switch and then
contact the Service Department.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
MOVING THE APPLIANCE
Remove all the food.
Securely tape down all loose items inside the appliance. Tape the doors shut.
Be sure the appliance stays in the upright posion during transportaon.
ENERGY SAVING TIPS
The appliance should be located in the coolest area of the room, away from heat producing appliances or heang
ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that coo or freeze too slowly may lose quality, or spoil.
The freezer compartment should not be lined with aluminium foil, wax paper, or paper towels. Liners interfere with
cold air circulaon, making the freezer less ecient.
12
Data Label and Circuit Diagram
13
Troubleshooting
Cauon! Before troubleshoong, disconnect the power supply. Only a qualied electrician of competent
person must do the troubleshoong that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulation).
Problem
Possible cause
Solution
Appliance does not
work
Mains plug is not plugged in
or is loose
Insert mains plug.
Fuse has blown or is
defective
Check fuse, replace if necessary.
Socket is defective
Mains malfuncons are to be corrected by an
electrician.
Appliance freezes
too much
Temperature is set too cold
or the appliance runs at MAX
setting.
Turn the temperature regulator to a warmer
seng temporarily.
The food is not
frozen enough.
Temperature is not properly
adjusted.
Please look in the inial Temperature Seng secon.
Door was open for an
extended period.
Open the door only as long as necessary.
A large quanty of warm
food was placed in the
appliance within the last 24
hours.
Turn the temperature regulaon to a colder
seng temporarily.
The appliance is near a
heat source.
Please look in the installaon locaon secon.
Heavy build-up of
frost on the door
seal.
Door seal is not air-tight.
Carefully warm the leaking secons of the door seal
with a hair dryer (on a cool seng). At the same me
shape the warmed door seal by hand such that it sits
correctly.
Unusual noises
Appliance is not level.
Re-adjust the feet.
The appliance is touching
the wall or other objects.
Move the appliance slightly.
A component, e.g. a pipe,
on the rear of the appliance
is touching another part of
the appliance or the wall.
If necessary, carefully bend the component out of
the way.
If the malfuncon shows again, contact the Service Center.
These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the
rang plate.
14
New Zealand Product Warranty Statements of Standard Warranty Conditions
Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantee Act 1993.
OUR WARRANTY
This productis also covered by the manufacturer's warranty set out in this document (Our Warranty). Our Warranty
is for a period of forty eight (48) months from the date of purchase.
This is in
addition
to
(and
does not exclude, restrict or
modify) any rights
or remedies to
which you
may already
be
entitled
to
under
the
New Zealand
Consumer
Guarantee
act 1993
relating
to this
product.
Our warranty (which is subject to the conditions below) covers rectification free of charge of any fault arising from defective
materials or
components or faulty workmanship.
The productwill be repairedor replacedat the option of Omega.
Our warranty is subject to the following conditions:
1.
That
the
purchaser
contacts
Omega prior
to
any product
repair.
2.
That the purchaser carefully follows all instructions provided with the product and complies with all relevant electrical &
plumbing
regulations wheninstallingtheproduct.
3.
That the purchaser carefully follows the instructions provided in the owner's handbook relating to the proper use and care of the
productand
doesnotusetheproductforanypurposeotherthantheDOMESTICuseforwhichithasbeendesigned.
WHAT IS COVERED: By Our Warranty
Duringthewarrantyperiod, OmegaoritsauthorisedService Centrewill, atnoextracharge,if yourapplianceis readilyaccessible without the
needofspecialequipmentandsubjecttothe termsandconditionsofthiswarranty,repairorreplaceanyparts which it considers defective.
WHAT IS NOT COVERED: By Our Warranty
1.
Products installed damaged
or incomplete or not in
compliance
with
the relevant
electrical
& plumbing
regulations in
their State.
2.
Normal
wear
and
tear e.g. cleaning,
light
globes,
filters
etc.
3.
Failure resulting frompower surges and electrical storms.
4.
Insect
or
vermin
infestation.
5.
Unauthorised
repairs
or
use
of
non-
genuine
Omega
parts.
6.
Any failure caused by the product not being used in accordance with the instruction and the installation manual provided with
the product.
7.
Misuse or abuse,
including failure to properly maintain or service.
8.
Theclearingofblockagesinpumpsandhoses.
9.
Damage which occurs during delivery or installation.
10.
Claims to product surface coating due to liquid or solid spill-overs, accidental damage or damage caused from cleaning
productsnot
recommendedby Omega.
HOW TO CLAIM YOUR WARRANTY
If you are contacting Omega regarding any warranty claims and spare parts inquiries, please make sure you have the following
information on hand:
1.
Product Name/Model Number
2.
Serial Number/s
3.
Purchase Date (as per invoice or proof of purchase)
4.
Purchased
From
www.omegaappliances.co.nz
OmegaisdivisionofMonacoCorporationLimited
(Member Shriro Australia PTY LTD)
Phone: (09) 415 6000
Email:
customercare@monacocorp.co.nz
1
This manual suits for next models
1
Table of contents
Other Omega Freezer manuals
