Instruction Manual for
Chest freezers
OCF316
OCF380

2
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FOR OMEGA ELECTRIC CHEST FREEZERS
OCF316 & OCF380
CONTENTS
SECTION PAGE NO.
Important Safety Instructions ………….. 3
Installation ………………………………… 4
Appliance Details ………………………… 4
Operating Instructions …………………… 5-6
Care & maintenance …………………….. 7
Troubleshooting …………………….….… 8

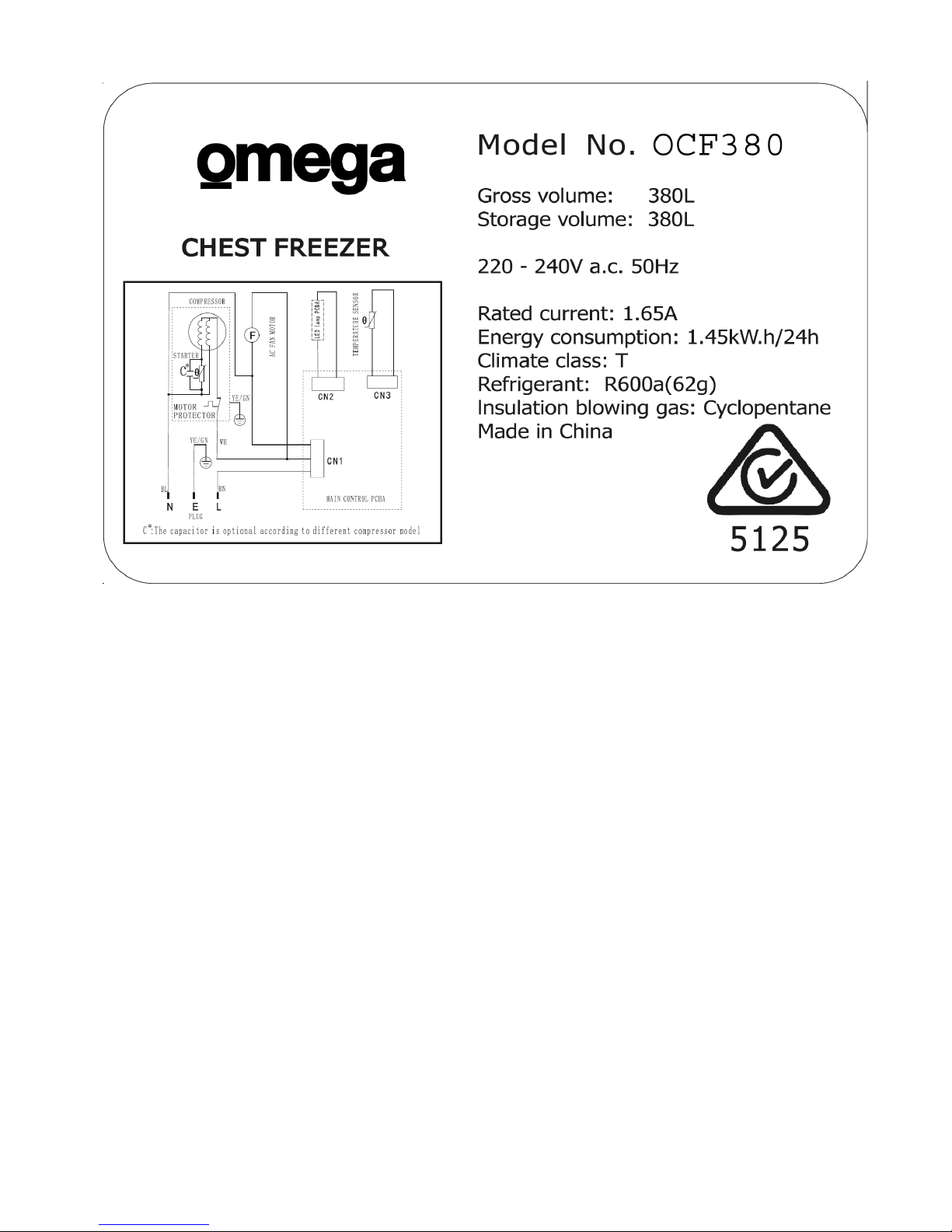

Data Labels with Electrical Diagrams ... 9-10
It is important that you retain these instructions, proof of purchase as well as
other important documents about this product for future reference.

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet
carefully before removing the contents of this carton.
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety. Children should be supervised to insure that they
do not play with the appliance.
2. In certain circumstances electrical appliances may be a safety hazard.
3. Do not place heavy objects on this appliance.
4. The appliance is not intended to be operated by means of an external timer or separate remote control system.
5. Electrical connection must be made as per local wiring rules and regulations. Do not disconnect the appliance with
wet hands and do not disconnect the power cord with extreme force.
6. The appliance should be unplugged when not in use and before any maintenance is carried out on the appliance.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or a similarly
qualified person in order to avoid a hazard.
8. Warning: Ensure that the ventilation openings, in the appliance enclosure or in the built-in structure, are not
obstructed. Follow the installation requirements in this manual. Avoid prolonged exposure to direct sunlight.
9. Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
10. Warning: Do not damage the refrigerant circuit.
11. Warning: Do not use electrical appliances inside the food storage compartments of the appliance.
12. Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
13. Do not modify this appliance.
14. This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s
instructions. Please see the specific section of this booklet that refers to installation.
15. When disposing of this appliance, please do so according to local regulations as it contains flammable gas &
refrigerant.
16. Do not place hot items on plastic areas of appliance. Do not refreeze food once defrosted. Store pre-packed frozen
food in accordance to the manufactures instructions. Take care when freezing liquids as sealed containers can
explode under pressure.
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTION BOOKLET
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR
SPRAY AEROSOLS NEAR THIS APPLIANCE
This appliance is intended to be used in household and similar applications such as:
Staff kitchen areas in shops, offices and other working environments;
Farm houses and by clients in hotels, motels and other residential type environments;
Bed & breakfast type environments;
Catering and similar non-retail applications.

4
INSTALLATION
UNPACKING THE APPLIANCE
Remove the external & internal packaging.
When unpacking the appliance please check for any damage. If damage is found, do not connect to the power
source and contact the Authorised Service Provider. Check that the following items are contained within the
packaging:
 1 Storage Basket
 1 Instruction Manual
Before connecting the freezer to the power source, let it stand upright for approximately 4 hours. This will reduce the
possibility of a malfunction in the cooling system from handling during transportation. Remove any protective film
from the outer surface.
Clean the interior surface with lukewarm water using a soft cloth.
INSTALLING THE FREEZER
This appliance is designed to be free standing only, and should not be recessed or built-in.
Place your freezer on a level floor that is strong enough to support the freezer when it is fully loaded.
Allow at least 10 cm of space between the back and sides of the freezer, which allows the proper air circulation,
and at least 70cm above the unit.
Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may
affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient
temperatures may also cause the freezer not to perform properly. Avoid locating the freezer in moist areas.
Plug the freezer into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or
remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should
be directed toward a certified electrician or an Authorised Service Centre.
After plugging the appliance into a wall outlet, allow the unit to cool down for 2~3 hours before placing food in
the freezer compartment.
APPLIANCE DETAILS
ELECTRICAL DETAILS:
Rated Voltage: 220-240 Vac 50 Hz.
Supply Connection: 10 A domestic socket.
Max Rated Inputs: See data label on unit.
This information can be found on the rating plate
(data label) affixed to the rear of the appliance
OCF380:
Dimensions (WxDxH): 1300x700x845mm
Weight: 50kg
OCF316:
Dimensions (WxDxH): 1120x700x845mm
Weight: 44kg
1. Internal handle.
2. Drainage hole.
3. Storage basket.
4. Power cord (not shown).
5. Control panel.
6. Castors (2 fixed, 2 uni-directional).
3
4

5
OPERATING INSTRUCTIONS
CONTROL PANEL
POWER ON/OFF
Note: If moved, always leave the freezer to stand upright for ~4 hours before connecting to power.
To start, connect to power, close the freezer lid and press the On/Off button for ~3 seconds. The indicators will flash
briefly, the temperature indicator will then light up (showing the previous setting) and shortly after the compressor will
start up.
To turn the freezer off, press the On/Off button for 3 seconds. The indicators will all turn off and the compressor (if
running) will stop.
TEMPERATURE SETTING
With the freezer connected to the power supply, first press the Temperature set button once. Continue to press the
button to adjust the power level (the power level cycles through from MIN to MAX, Fast freeze and back to MIN). MIN
is the warmest setting, and MAX is the coldest setting. The setting will be locked in after 5 seconds without buttons
being pressed.
In general, the temperature setting should be adjusted to between MIN and MAX.
The Fast freeze mode is used for short periods of time when a lot of new food is placed in the freezer. If not turned
off after 52 hours, the freezer will automatically revert to the NORMAL setting.
In the case of a power outage, the freezer will restart at the previous setting.
If the temperature sensor develops a problem (becomes disconnected or shorts out), the Temperature indicator will
begin to flash left to right.
THE COMPRESSOR
The compressor will turn on and off to keep the freezer at the desired temperature level. The frequency will depend
on the internal temperature and the set temperature (when using the Fast freeze mode, it will run the most). When
the compressor is running, the Compressor on indicator will be lit. If it has not run for half an hour or more, it will
light up at half the normal brightness.
Temperature
set button
Compressor
on indicator
Fast freeze
indicator
Temperature
Indicator
On/Off button
5

6
DEFROSTING THE FREEZER
For the most efficient operation and minimum energy consumption, defrost the freezer when the frost on the freezer
walls is excessive or 5 to 10 mm thick. Choose a time when the stock of frozen food is low.
CAUTION: Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp or
metallic instrument to remove frost as it may damage the cooling coils and will void the warranty. We recommend
using a plastic scraper that has no sharp edges or corners.
 Remove the frozen food from the freezer and place it in a cool area to protect the food.
 Turn the freezer off and unplug the freezer. The indicators should all turn off.
 During defrosting, the ice melts into the cabinet.
 Remove the drain plug on the inside floor of the freezer by rotating it and pulling it out.
 Place a shallow pan outside drain outlet. Rotate the outlet dial by 180⁰and pull
outwards. The defrost water will drain out through the hole.
 Check the pan occasionally so the water does not overflow.
 Clean the interior of the freezer.
 Replace the plug on the inside floor.
 Push the outlet back into the freezer body and turn 180⁰to lock in place.
 Reset the temperature to desired setting.
 Allow the cabinet to cool for at least one hour.
 Return food to the freezer.
HELPFUL HINT: Defrosting usually takes a few hours. Leaving the door open will help speed the process. Also,
pouring warm water (not boiling) on the ice/frost will help speed melting. If you must use a scraper- please use
caution - it is very easy to damage the freezer compartment and void your warranty.
THE FREEZER COMPARTMENT
This compartment is designed for the long-term storage of frozen food. Storage time is up to three months.
The storage life of frozen foods varies and the recommended storage time should not be exceeded. The
instructions regarding the care of frozen foods should be followed when defrosting the freezer.
Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer’s
instructions for a two star frozen food storage compartment or home freezer.
Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet,
carefully follow these instructions regarding storage times.
The freezer door is susceptible to breaking due to excessive ice build up. Be sure to defrost when the ice reaches
5 to 10 mm thick.
A storage basket is provided for the organization of odd-shaped items. To reach other packages in the freezer,
just slide the basket to one side, or lift it out.
6

7
CARE AND MAINTENANCE
CLEANING THE FREEZER
Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
Turn the temperature setting to MIN, turn off the power to the freezer, unplug the freezer, remove the food and
storage basket.
Wash the inside with a damp warm cloth containing a water and baking soda solution. The solution should be about
2 tablespoons of baking soda to a quart of water.
Wash the storage basket with a mild detergent solution.
Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
The outside of the freezer should be cleaned with mild detergent and warm water.
Dry the interior and exterior with a soft cloth.
The condenser coils should be vacuumed when they are dusty or dirty.
It is recommended that the unit be cleaned each time it is defrosted to help keep the unit odour free and running
efficiently.
CARE WHEN GOING ON VACATION
Short vacations: Leave the freezer operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord.
Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly: blocking it
open if necessary or have the door removed. Do not leave access to children.
MOVING YOUR FREEZER
Remove all the food.
Securely tape down all loose items inside your freezer.
Remove the rollers to prevent damage.
Tape the doors shut.
Be sure the freezer stays in the upright position during transportation.
ENERGY SAVING TIPS
The freezer should be located in the coolest area of the room, away from heat producing appliances or heating
ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor
to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This cuts down on frost
build-up inside the freezer.
Freezer storage bin should not be lined with aluminium foil, wax paper, or paper towels. Liners interfere with cold
air circulation, making the freezer less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one
time, and close the door as soon as possible.
When adding fresh food, try to add it to the bottom of the freezer, surrounded by food that is already frozen. After
adding fresh food to the freezer, allow 24 hours for it to be fully frozen before adding any more fresh food.
7

8
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE
Freezer does not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
Compressor turns on and off
frequently.
The room temperature is hotter than normal.
A large amount of food has been added to the freezer.
The door is open too often, or not fully closed.
The temperature control is not set correctly.
The door gasket does not seal properly.
The freezer does not have the correct clearances.
The freezer has recently been disconnected for a period of time. Four hours
are required for the freezer to cool down completely.
The Fast freeze mode has been set.
Temperature inside the freezer is
too warm.
Temperature control is set too warm. Turn the control to a cooler setting and
allow several hours for the temperature to stabilize.
Door is kept open too long or opened too frequently. Open the door less.
The door is not closed completely.
The door gasket does not seal properly.
A large amount of warm or hot food might have been stored recently. Wait
until the freezer has had a chance to reach its selected temperature.
The freezer has recently been disconnected for a period of time. Four hours
are required for the freezer to cool down completely.
Temperature inside the freezer is
too cold.
Temperature control is set too cold. Turn the control to a warmer setting and
allow several hours for the temperature to stabilize.
Popping or cracking sound when
compressor comes on.
Metal parts undergo expansion and contraction, as in hot water pipes. This is
normal. Sound will level off or disappear as freezer continues to run.
Bubbling or gurgling sound, like
water boiling.
Refrigerant (used to cool freezer) is circulating throughout the system. This is
normal.
V
ibrations. Check to assure that the freezer is level.
Floor is uneven or weak. Freezer rocks on the floor when it is moved slightly.
Be sure floor can adequately support freezer. Level the freezer by putting
wood or metal shims under part of the freezer.
The freezer is touching the wall. Re-level the freezer and move it from the wall.
See “Installation Instructions”.
Moisture forms on inside freezer
walls.
W
eather is hot and humid, which increases internal rate of frost build-up. This
is normal.
Door is slightly open.
Door is kept open too long, or is opened too frequently. Open the door less
often.
The door is not sealed properly.
Moisture forms on outside of
freezer.
Door is slightly open, causing cold air from inside the freezer to meet warm
moist air from outside.
The door will not close properly. The freezer is not level.
The gasket is dirty.
The storage basket is out of position.
IMPORTANT: If your appliance appears not to be operating correctly, turn off the appliance at
the switch and then contact the Service Department.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
The appliance must be accessible for a qualified person to perform any necessary repair.
8

9
DATA LABELS & ELECTRICAL DIAGRAMS

10
9

11

12
