Omega OTEC IEMP-D Series User manual

IEMP-D Series
Ducted Fan Coil
Technical Manual

Applicable Models:
Indoor units:
Medium Static Pressure Duct
IEMP009J3A-DCG026
IEMP012J3A-DCG035
IEMP018J3A-DCG053
IEMP024J3A-DCG071
IEMP031J3A-DCG090
IEMP036J3A-DCG105
IEMP042J3A-DCG120
IEMP048J3A-DCG140
IEMP060J3A-DCG160
Outdoor unit
ICHD009J0A-DMG026
ICHD012J0A-DMG035
ICHD018J0A-DMG053
ICHD024J0A-DMG071
ICHD031J0A-DMG090
ICHD036J0A-DMG105
ICHD042J0A-DMG120
ICHD048J0A-DMG140
ICHD060J0A-DMG160

1
Content
Part. 1 General information ....................................................... 2
Part. 2 Outdoor Unit ................................................................... 6
Part. 3 Indoor Unit ................................................................... 18
Part. 4 Installation & Troubleshooting .................................. 107

3
1. Model Names of Indoor/Outdoor Units
Type
Indoor unit
Outdoor unit
Model
Power supply
Model
Power supply
Medium static pressure duct
IEMP009J3A
220-240V~, 1Ph, 50Hz
ICHD009J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP012J3A
220-240V~, 1Ph, 50Hz
ICHD012J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP018J3A
220-240V~, 1Ph, 50Hz
ICHD018J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP024J3A
220-240V~, 1Ph, 50Hz
ICHD024J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP031J3A
220-240V~, 1Ph, 50Hz
ICHD031J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP036J3A
220-240V~, 1Ph, 50Hz
ICHD036J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP042J3A
220-240V~, 1Ph, 50Hz
ICHD042J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP048J3A
220-240V~, 1Ph, 50Hz
ICHD048J0A
220-240V~, 1Ph, 50Hz
Medium static pressure duct
IEMP060J3A
220-240V~, 1Ph, 50Hz
ICHD060J0A
220-240V~, 1Ph, 50Hz

4
2. External Appearance
2.1 Indoor units
IEMP009J3A / IEMP012J3A / IEMP018J3A / IEMP024J3A
IEMP031J3A / IEMP036J3A / IEMP042J3A / IEMP048J3A / IEMP060J3A
2.2 Outdoor unit
ICHD009J0A / ICHD012J0A / ICHD018J0A/ ICHD024J0A
ICHD031J0A/ ICHD036J0A / ICHD042J0A / ICHD048J0A/ ICHD060J0A

7
Part. 2 Outdoor Unit
1. Specifications ...................................................................... 7
2. Dimension (Unit:mm) .......................................................... 9
3. Refrigerant circuit ............................................................. 10
4. Wiring Diagrams ................................................................ 14
5. Electric Characteristics .................................................... 16
6. Sound Levels ..................................................................... 17
7. Accessories ....................................................................... 17

8
1. Specifications
Table 1.1: ICHD009, 012, 018, 024 specifications
kW
2.6
3.5
5.3
7.1
Model name
ICHD009J0A ICHD012J0A ICHD018J0A ICHD024J0A
Power supply
V/Ph/Hz
220-240/1/50
Cooling
Power input
W
649(210~1350)
1159(240~1460)
1602(370~2380)
2115(520~2890)
Power input (Maximum)
W
1620
1900
2800
3500
Heating
Power input
W
859(190~1250)
1209(230~1570)
1902(390~2490)
2615(460~3310)
Power input (Maximum)
W
1900
1720
2700
3800
Compressor
Type
KSK103D53UFZ
KSN140D21UFZ
ATM240D57UMT
Quantity
1
1
1
Oil type
ESTER OIL VG74
Start-up method
soft start
Fan
Type
WZDK20-
38G-W
WZDK56-38G-W
WZDK80-38G-
W(A)
WZDK170-38G-1
Motor type
DC motor
Quantity
1
Motor output
kW
0.02
0.056
0.08
Static pressure
Pa
/
Airflow rate
m3/h
1718
1718
2283
3715
Drive type
External Drive
Refrigerant
Type
R410A
Factory charge
g
800
800
1450
1600
Throttle type
\
Throttle valve throttling
Pipe connections
Liquid pipe
mm
Φ6.4
Gas pipe
mm
Φ9.5
Φ12.7
Φ15.9
Sound pressure level
dB(A)
50
54
55
Net dimensions (W×H×D)
mm
722×555×260
795×555×287
910×712×345
Packed dimensions (W×H×D)
mm
845×610×390
915×610×420
1045×800×485
Net weight
kg
25
25.5
33.5
47
Gross weight
kg
28
28.5
36.5
52
Ambient temp.
operation range
Cooling
oC
10~55
Heating
oC
-15~24
Note:
1. The design implementation standard of this unit is GB/T 18836-2017.
2. The parameters in the table are the nominal values tested under the rated working conditions specified in GB/T 18836-2017, and actual
operating parameters will vary with the working conditions.
3. The above parameters may change due to product improvement. Please refer to the nameplate parameters of the product.

9
Table 1.2: ICHD031, 036, 042, 048 specifications
kW
9.0
10.5
12
14
Model name
ICHD031J0A ICHD036J0A ICHD042J0A ICHD048J0A
Power supply
V/Ph/Hz
220-240/1/50
Cooling
Power input
W
3060(670~3480)
3109(529-3909)
4559(529~5009)
5809(1200~6100)
Power input (Maximum)
W
4700
4609
5469
7000
Heating
Power input
W
2900(650~3570)
3009(509-4009)
3909(509~4009)
4909(1000~5200)
Power input (Maximum)
W
4700
4520
4520
5420
Compressor
Type
Rotary DC Inverter
ATM240D57UMT
ATF400D64UMTC
Quantity
1
1
1
1
Oil type
ESTER OIL VG74
Start-up method
DC Inverter Starting
Soft Start
Fan
Type
WZDK80-38G-W(A)
WZDK170-38G-1
Motor type
DC motor
Quantity
1
1
1
1
Motor output
kW
0.08
0.17
Static pressure
Pa
/
/
Airflow rate
m3/h
3692
5086
Drive type
Built-in Drive
Refrigerant
Type
R410A
Factory charge
g
2000
3000
3000
3200
Throttle type
\
Piston
Throttle valve throttling
Pipe connections
Liquid pipe
mm
Φ9.5
Φ9.5
Gas pipe
mm
Φ15.9
Φ15.9
Sound pressure level
dB(A)
55
59
Net dimensions (W×H×D)
mm
910×712×345
950×840×360
Packed dimensions (W×H×D)
mm
1045×800×485
1025×860×510
Net weight
kg
51
68
68
78.5
Gross weight
kg
56
76.5
76.5
87
Ambient temp.
operation range
Cooling
oC
10~55
Heating
oC
-15~24
Note:
4. The design implementation standard of this unit is GB/T 18836-2017.
5. The parameters in the table are the nominal values tested under the rated working conditions specified in GB/T 18836-2017, and actual
operating parameters will vary with the working conditions.
6. The above parameters may change due to product improvement. Please refer to the nameplate parameters of the product.

10
Table 1.3: ICHD060 specifications
kW
16
Model name
ICHD060J0A
Power supply
V/Ph/Hz
220-240/1/50
Cooling
Power input
W
6600(1340~6600)
Power input (Maximum)
W
7465
Heating
Power input
W
5800(1120~5800)
Power input (Maximum)
W
7465
Compressor
Type
Rotary DC Inverter
Quantity
1
Oil type
ESTER OIL VG74
Start-up method
DC Inverter Starting
Fan
Type
WZDK170-38G-1
Motor type
DC motor
Quantity
1
Motor output
kW
0.17
Static pressure
Pa
/
Airflow rate
m3/h
5086
Drive type
Built-in Drive
Refrigerant
Type
R410A
Factory charge
g
3800
Throttle type
\
Piston
Pipe connections
Liquid pipe
mm
Φ9.5
Gas pipe
mm
Φ15.9
Sound pressure level
dB(A)
60
Net dimensions (W×H×D)
mm
1040×865×410
Packed dimensions (W×H×D)
mm
1120×890×560
Net weight
kg
91
Gross weight
kg
101
Ambient temp.
operation range
Cooling
oC
10~55
Heating
oC
-15~24
Note:
1. The design implementation standard of this unit is GB/T 18836-2017.
2. The parameters in the table are the nominal values tested under the rated working conditions specified in GB/T 18836-2017, and actual
operating parameters will vary with the working conditions.
3. The above parameters may change due to product improvement. Please refer to the nameplate parameters of the product.

11
2. Dimension (Unit: mm)
ICHD009J0A-DMG026 / ICHD012J0A-DMG035 / ICHD018J0A-DMG053 / ICHD024J0A-DMG071
Model
A
B
C
D
E
F
G
H
I
26
722
453
302
327
260
50
135
555
300
35/53
795
514
340
365
287
50
125
555
330
71
910
663
403
427
345
55
120
712
390
ICHD031J0A-DMG090 / ICHD036J0A-DMG105 / ICHD042J0A-DMG120 / ICHD048J0A-DMG140 / ICHD060J0A-DMG160
Model
A
C
D
E
F
G
H
I
90
910
390
345
120
663
712
403
427
105/120/140
950
406
360
175
590
840
390
440
160
1040
452
410
191
656
865
463
523
A
G
D
C
I
H
F
E

12

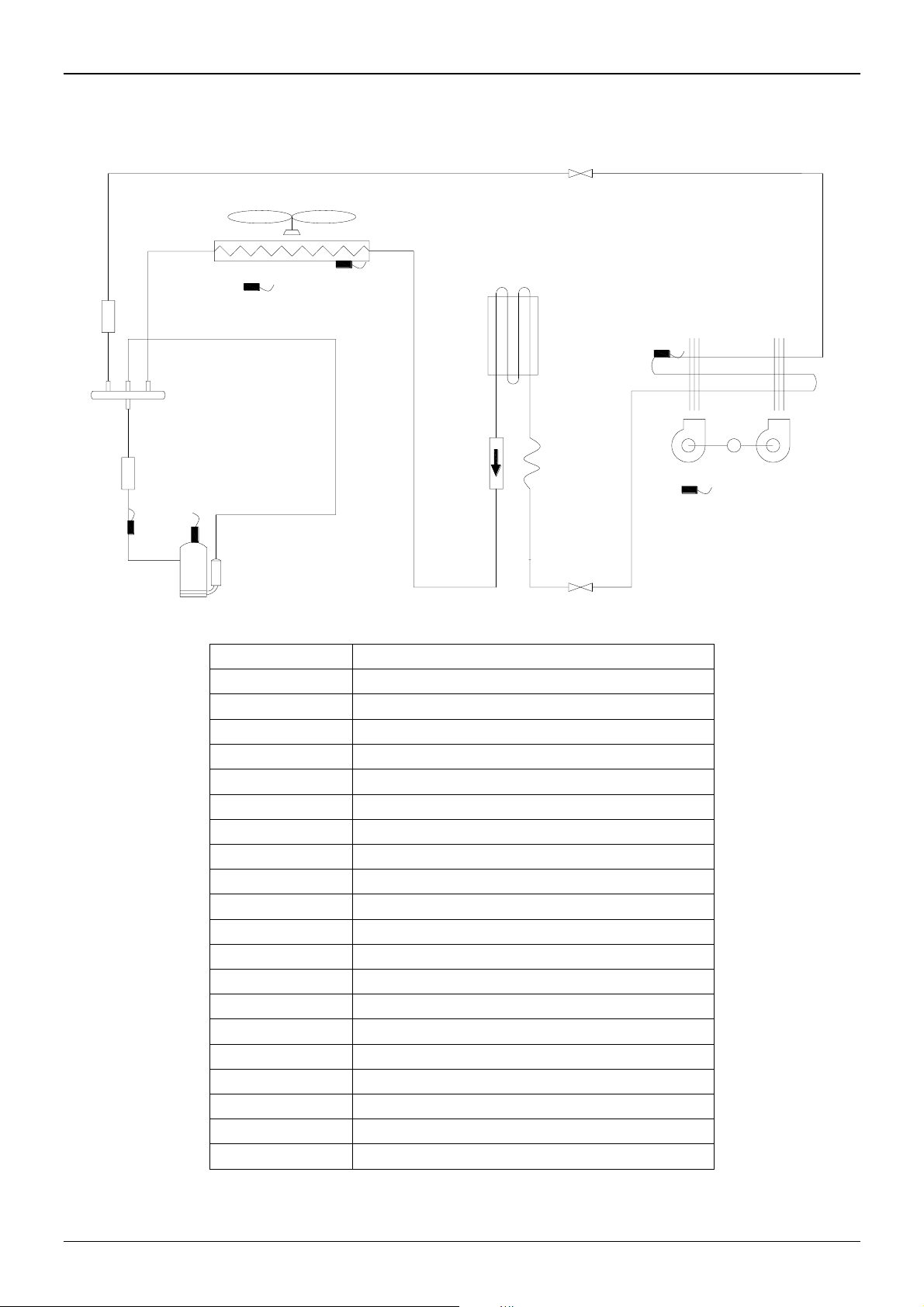

3. Refrigerant circuit
ICHD009J0A-DMG026 / ICHD012J0A-DMG035
M
1
T5
2
T4
T3
7
5
6
3
8
9
10
11
12
13 14
15
E S C
D
T1
T2
16
4
1
Compressor
2
Silencer
3
Four-way reversing valve
4
Silencer
5
Condenser
6
Fan blade
7
Motor
8
Heating spool
9
Refrigerant cooling module
10
Throttling capillary
11
Stop valve (liquid side)
12
Evaporator
13
Outdoor unit wind wheel
14
Indoor unit motor
15
Stop valve (gas side)
16
Temperature control switch
T1
Indoor temperature sensor
T2
Temperature sensor in the middle of evaporator
T3
Condenser outlet temperature sensor
T4
Outdoor temperature sensor
T5
Exhaust temperature sensor

13

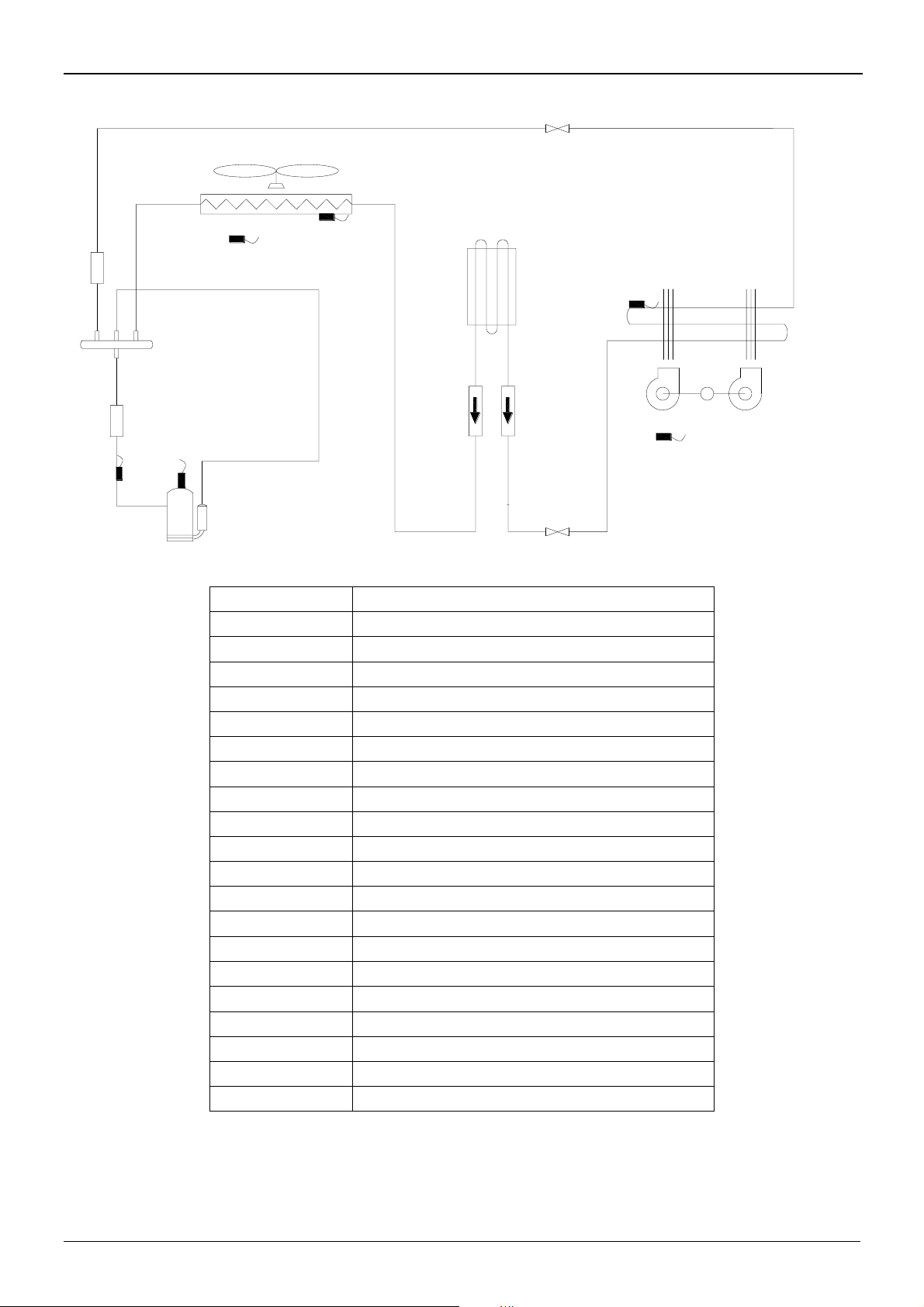

ICHD018J0A-DMG053
M
1
T5
2
T4
T3
7
5
6
3
8
9
10
11
12
13 14
15
E S C
D
T1
T2
16
4
1
Compressor
2
Silencer
3
Four-way reversing valve
4
Silencer
5
Condenser
6
Fan blade
7
Motor
8
Heating spool
9
Refrigerant cooling module
10
Refrigeration spool
11
Stop valve (liquid side)
12
Evaporator
13
Outdoor unit wind wheel
14
Indoor unit motor
15
Stop valve (gas side)
16
Temperature control switch
T1
Indoor temperature sensor
T2
Temperature sensor in the middle of evaporator
T3
Condenser outlet temperature sensor
T4
Outdoor temperature sensor
T5
Exhaust temperature sensor

14
ICHD024J0A-DMG071
M
1
T5
2
T4
T3
7
5
6
3
8
9
10
11
12
13 14
15
E S C
D
T1
T2
16
4
1
Compressor
2
Silencer
3
Four-way reversing valve
4
Silencer
5
Condenser
6
Fan blade
7
Motor
8
Heating spool
9
Refrigerant cooling module
10
Refrigeration spool
11
Stop valve (liquid side)
12
Evaporator
13
Outdoor unit wind wheel
14
Indoor unit motor
15
Stop valve (gas side)
16
Temperature control switch
T1
Indoor temperature sensor
T2
Temperature sensor in the middle of evaporator
T3
Condenser outlet temperature sensor
T4
Outdoor temperature sensor
T5
Exhaust temperature sensor

15
ICHD031J0A-DMG090 / ICHD036J0A-DMG105 / ICHD042J0A-DMG120 / ICHD048J0A-DMG140 /
ICHD060J0A-DMG160
M
1
T5
2
3
T4
T3
7
5
6
4
8
TL
9
10
11
12
13
14 15
16
17
18
E S C
D
T1
T2
T2B
1
Compressor
2
Silencer
3
Four-way reversing valve
4
Silencer
5
Condenser
6
Fan blade
7
Motor
8
Heating spool
9
Refrigerant cooling module
10
Refrigeration spool
11
Filter
12
Stop valve (liquid side)
13
Evaporator
14
Outdoor unit wind wheel
15
Indoor unit motor
16
Stop valve (gas side)
17
Gas liquid separator
18
Low voltage switch
T1
Indoor temperature sensor
T2
Temperature sensor in the middle of evaporator
T2B
Evaporator outlet temperature sensor
T3
Condenser outlet temperature sensor
T4
Outdoor temperature sensor
T5
Exhaust temperature sensor
TL
Temperature sensor of refrigerant cooling pipe

16

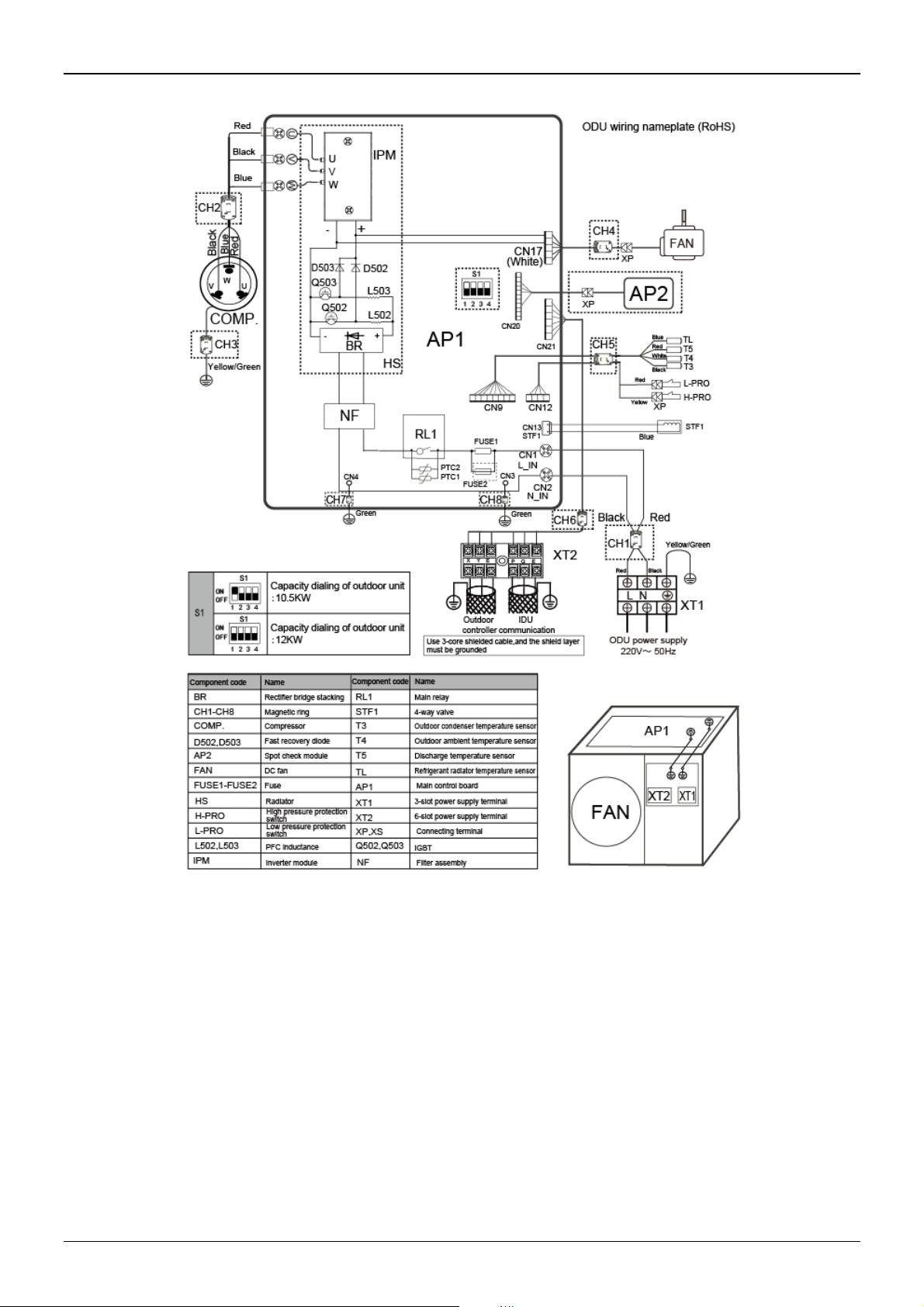

4. Wiring Diagrams
ICHD009J0A-DMG026 / ICHD012J0A-DMG035
ICHD018J0A-DMG053 / ICHD024J0A-DMG071
1
2
3
CN6
CN7
CN2
CN8
5/6
C N1 8
U
VW
CN6-1
CN60
Electronic
Expansive Valve
3
Terminal
Separating board
Blue
Red
Black Black
Red
Blue
Comp
INDOORUNIT
CN414
CN 27
CN 29
C N 2 8
2
L N S
CN23 4
E arth
N-IN
S
L-IN
E arth
W
U
V
DC Fan
M
E E V.
T3
Cond.Temp.
Sensor
Outdoor Temp.
Sensor T4
CN17
CompressorTop
Temp. Switch
DischargeTemp.
Sensor TP
U
V
W
Four Way Valve
Debug Board
Blue
Black
Black White Red Red
Brown
Y/G
Y/G
Y/G
Outdoor main Controller
Outdoor wire diagram

17
ICHD031J0A-DMG090

18
ICHD036J0A-DMG105 / ICHD042J0A-DMG120 / ICHD048J0A-DMG140

19
ICHD060J0A-DMG160

20
5. Electric Characteristics
Model
Power Supply1
Compressor
OFM
Capacity
Hz Volts
Min.volts
Max.volts
MCA2
TOCA3
MFA4
MSC5
RLA6
kW
FLA
50 220-240
198
264
8.8
10
16
/
5.6
0.02
0.6
ICHD012-DMG035 50 220-240
198
264
8.8
10
16
/
5.8
0.02
0.6
ICHD018-DMG053 50 220-240
198
264
12.9
14.5
20
/
7.85
0.05
6
0.71
ICHD024-DMG071 50 220-240
198
264
17.5
20
25
/
8.85
0.08
1.0
ICHD031-DMG090 50 220-240
198
264
23
25
32
/
11.8
0.08
1.0
ICHD036-DMG105 50 220-240
198
264
27
28.5
32
/
14.5
0.17
1.53
ICHD042-DMG120 50 220-240
198
264
27
28.5
32
/
23
0.17
1.53
ICHD048-DMG140 50 220-240
198
264
32
35.2
40
/
27.5
0.17
1.53
ICHD060-DMG160 50 220-240
198
264
33
35
40
/
27.1
0.17
1.53
Abbreviations:
MCA: Minimum Circuit Amps; TOCA: Total Over-current Amps; MFA: Maximum Fuse Amps; MSC: Maximum Starting Current (A); RLA:
Rated Load Amps; FLA: Full Load Amps
Notes:
1. Units are suitable for use on electrical systems where voltage supplied to unit terminals is not below or above listed range limits. Maximum
allowable voltage variation between phases is 2%.
2. Select wire size based on the value of MCA.
TOCA indicates the total overcurrent amps value of each OC set.
MFA is used to select overcurrent circuit breakers and residual-current circuit breakers.
MSC indicates the maximum current on compressor start-up in amps.
RLA is based on the following conditions: indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB.
ICHD009-DMG026
This manual suits for next models
18
Table of contents
Other Omega Ventilation Hood manuals

Omega
Omega K296 User manual

Omega
Omega ORT61X User manual

Omega
Omega ORT6WXA User manual

Omega
Omega Rangehood User manual

Omega
Omega ORCG60MB User manual

Omega
Omega ORU52MB User manual

Omega
Omega ORU70MB User manual

Omega
Omega ORT6WXA Installation guide

Omega
Omega ORC97G User manual

Omega
Omega OBC60BX User manual

Omega
Omega OR904CXA User manual

Omega
Omega ORU50X Installation guide

Omega
Omega ORU50PXL User manual

Omega
Omega ORU50XL User manual

Omega
Omega ORU52XL User manual

Omega
Omega ORC93XA User manual

Omega
Omega ORU52GLED User manual

Omega
Omega ORU52X Installation guide

Omega
Omega ORW6XA Installation guide

Omega
Omega K7588ASC User manual
