Omow ATV150-3 User manual

ATTENTION
Break-in of New ATV
Your ATV requires 800km break-in when you start to drive it. During the
break-in period, do not run the ATV at a speed over 35km/h or the engine will be
seriously damaged. Do remember to replace the gear oil after the break-in period .
The grade of oil recommended is: 10w-40 for winter time and 15w-40 for sum-
mer time.

Thank you for choosing a motorcycle of the company.
May you riding all the time.
The manual contains the necessary instructions and guid-
ance with respect to the operation and maintenance of the
motorcycle, and RESURE TO READ IT CAREFULLY BEFORE
YOU RIDE THE MOTORCYCLE. Proper operation and main-
tenance can guarantee a safe riding to minimize troubles of the
motorcycle and keep it in a sound condition, which can extend
the engine service life. Your dealer will provide you with tech-
nical inquiry and after service.
The technical data in the manual are the latest, and
we reserve absolute right to amend them. The revision
will be made without notice. Please check carefully the prod-
uct nameplate, VIN record and engine code in the motorcycle,
which you have bought, and they are helpful for you to get the
motorcycle a license plate and for future inquiry.
IMPORTANTNOTICE
Operator and passenger
This motorcycle is designed to carry the operator only.
Never exceed the maximum loading capacity as specified in
the manual.
Maximum loading cap 75kg.
PREFACE
On-road use
This motorcycle is designed only for level, off-road surface,
free of obstacles. Operation on public streets, roads or high-
ways is illegal.
READTHISOWNER’SMANUALCAREFULLY
Pay special attention to statements preceded by the
following words:
WARNING
A warning is used to alert the user to fact that hazardous
operating and maintenance procedures may result in injury
or death of personnel if not strictly observed.
CAUTION
A caution is used to alert the user to fact that hazardous
operating and maintenance procedures may result in damage
or destruction of equipment if not strictly observed.
NOTE
A note is used to give helpful information.
This manual should be considered as a permanent part of
the motorcycle and should remain with the motorcycle when
resold.

CONTENTS
VEHICLESAFERINING ............................................... 1
Notes for safety .......................................................... 1
Refitting ....................................................................... 2
Accessories .................................................................. 2
SPECIFICATIONS ......................................................... 3
DESCRIPTION ............................................................... 4
Parts Location ............................................................. 5
Ignition Switch ............................................................ 8
Seat Lock ..................................................................... 8
Fuel and Fuel Tank ..................................................... 9
Fuel Handlebar Control ............................................10
Safety Switch ............................................................ 10
Speed-Limited Device...............................................11
Engine Oil ..................................................................11
OPETATIONGUIDE ....................................................13
Pre-ride Inspection ...................................................13
Starting the Engine ....................................................13
Breaking-in ................................................................15
Riding.........................................................................15
Parking .......................................................................16
Check and Change of Engine Oil ..............................16
Spark Plug .................................................................17
Air Cleaner ................................................................18
Check Leaks along Air Supply Line ........................18
Throttle Operation....................................................19
Idle Speed ..................................................................19
Inspection of Front Suspension ...............................20
Front Mechanical Drum Brake ................................21
Check of Brake System ............................................22
Reverse Gear Operation System ..............................23
Exhaust Muffler ........................................................24
Battery.......................................................................25
Tool Kit… .................................................................26
Self-Recovered Overload Protector..........................27
Troubleshooting ........................................................27
Cleaning .....................................................................27
Storage Guide ............................................................28
Removal from Storage...............................................29
MAINTERANCE ...........................................................30
Mainterance Schedule ...............................................30
ELECTRICDIAGRAM .................................................31

-1-
VEHICLE SAFE RIDING
WARNING
Vehicle riding requires special efforts on your part to ensure your safety. Know these requirements below before you
ride.
NOTESFORSAFETY
1. This vehicle is designed for the rider of 12-16 year-old.
2. Both parents and their children must fully understand everything in this Owner’s Manual before riding.
3. This vehicle is for OPERATOR ONLY.
4. For OFF-ROAD USE ONLY. This vehicle is designed to be operated only on level, off-road surface, free of
obstacles.
5. It is illegal to ride this vehicle on public roads or highways. If it is necessary to cross a public road, please get off this
vehicle and push it across.
6. Do not operate this vehicle while under the influence of alcohol or drugs. This can impair judgment and result in
serious injury or even death.
7. Keep a safe distance between your vehicle and other off-road vehicle.
8. Never ride this vehicle unless it has been properly adjusted and maintained.
9. Do not allow your child to ride without your supervision.
10.Never run the engine in closed area. The exhaust gas contains poisonous carbon monoxide gas(CO).
11.Don’t touch any part of the engine and muffler during and even after riding, because it is very hot.

-2-
PROTECTIVE THINGS
1. Most motorcycle accident fatalities are due to head injuries. ALWAYS wear a helmet. You should also wear a face
shield and protective clothing.
2. The exhaust system becomes hot during riding, and it remains hot for a while after stopping the engine. Be careful
not to touch the exhaust system since it is hot. Wear clothing that fully covers your legs.
3. Do not wear loose clothing that could catch on the control levers, kick-starter, footrests or wheels.
REFITTING
WARNING
Refitting of the motorcycle ,or removal of original parts may make the vehicle unsafe or illegal. Obey all national and
local equipment regulations.
ACCESSORIES
Genuine accessories by our Co. have been specifically designed and tested on the motorcycle. Because our Co. won’t
test and accessories manufactured by other company/factory, you are personally responsible for selection, installation, and
use of them. Always follow the guidelines below:
1. Carefully inspect the accessory to make sure that it does not obscure any lights, reduce ground clearance and banking
angel, or limit suspension travel, steering travel or control operation.
2. Accessories may increase the time that hands of feet operate controls, resulting in increased reaction time in an
emergency.
3. Do not add electrical equipment that will exceed the vehicle’s electrical system capacity.
Do not add device cooling the engine.

-3-
SPECIFICATIONS
Model
Length
Width
Height
Ground clearance
Wheel base
Dry weight
Steering bar angle
Top speed
Front brake type
Rear brake type
Tire size(front&rear)
displacement
Compression ratio
Ignition mode
lubrication
ATV150-3
1650mm
920mm
1080mm
160mm
1100mm
140kgs
30°
45km/h
Mechanical drum
Hydraulic disc
19×7-8/18×9.5-8
124.6/149.5
9.2:1/1
CDI
Press/splash
Model
Fuel tank cap
Type
Max power
Max. torpue
Idle speed
Start mode
Clutch
Spark plug type
Engine oil cap
Engine oil
Oil pump
Magnet
ATV150-M
7.8L
4-stroke,single cylinder with air-cooled
5.5KW/7500r/min/6.5KW/7500R/min
7.5N.M/6000r/min/9N.m/6000r/min
1700±100r/min
Electric/Kick
Dry&centrifugal
C7HSANGK
0.9L
15W/40-SE
Inner-outer totor type
Permanent magnet

DESCRIPTION
-4-

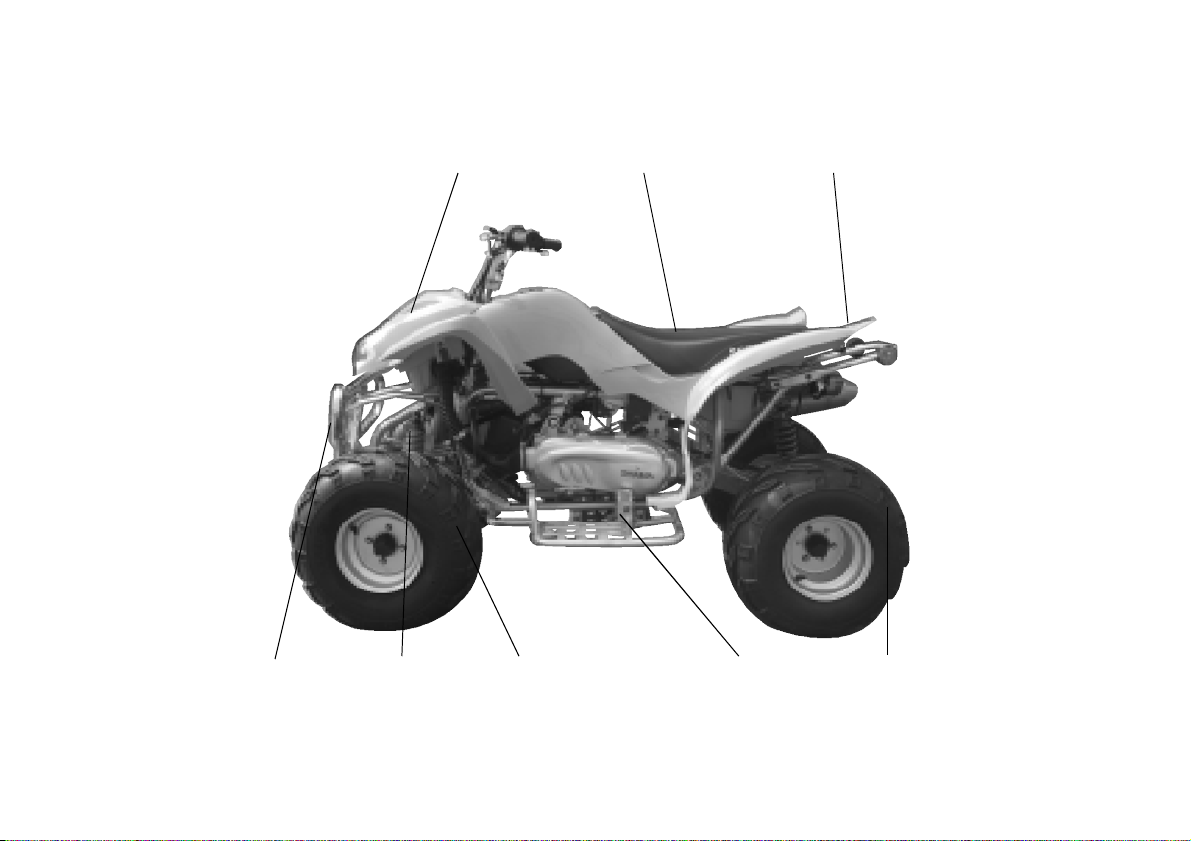

Decorative cover on handlebar Fuel tank Throttle grip Front brake lever
Rear brake lever
Switch assy.L.
Throttle assy

-5-
Footrest Rear wheel Front wheel
Shock absorber
Bumper
Tail coverSeatHead cover

-6-
Shock absorberFootrest Front wheelAdiabatic barRear wheel
BumperHead coverTail cover Seat

-7-
VINRECORD
Please fill the VIN and engine code of your motorcycle in blank below. They will help order spare parts and find out
the vehicle once stolen.
VIN: ☆
□□□□□□□□□□□□□□□□□ ☆
Engine code:☆
□□□□□□□□ ☆
NOTES
①The VIN is stamped on the front transversal beam.
②The vehicle nameplate is fixed on the upper support of the front frame.
The engine code is stamped on the bottom-left of the crankcase.
①VIN
②Nameplate ③Engine Number

-8-

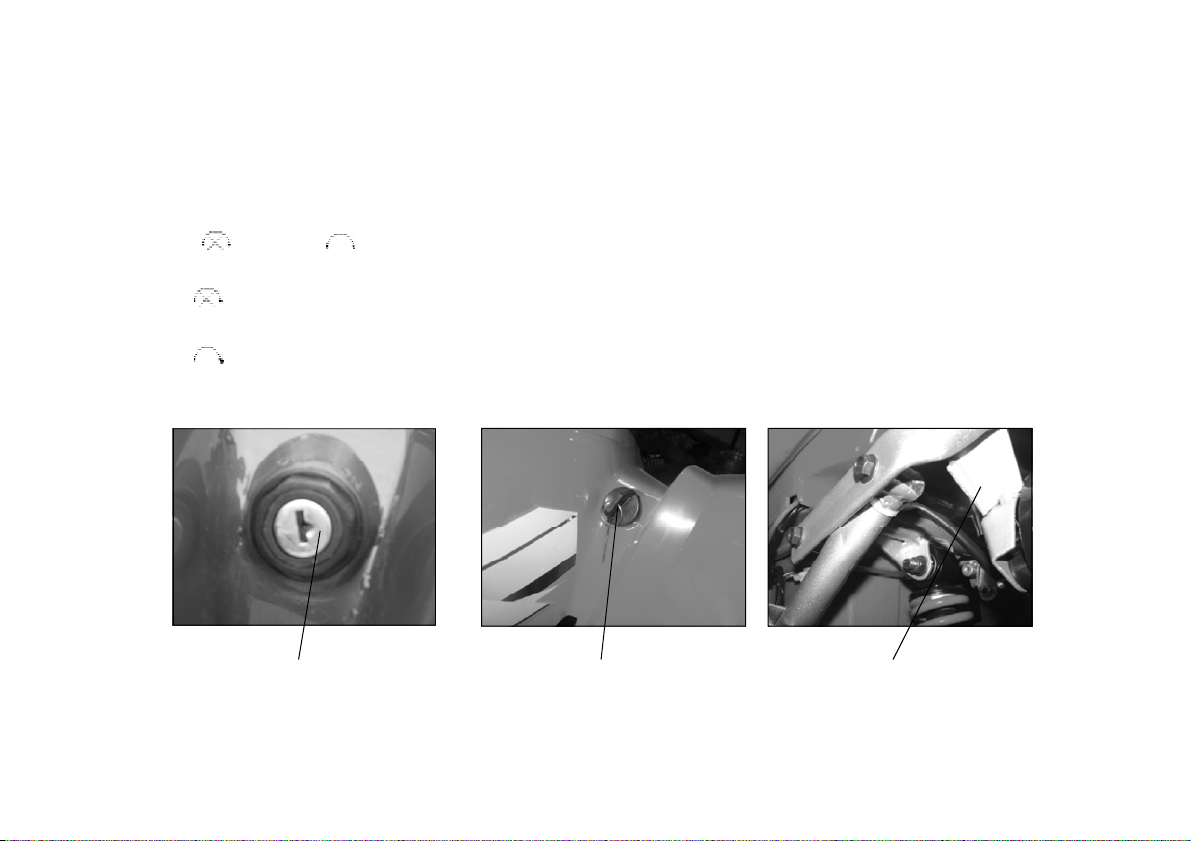

IGNITIONSWITCH
The ignition switch is situated on the front right of the
vehicle body.
“”(OFF) and “ ” (ON) on the switch
indicate:
(OFF) : Engine and lights cannot be operated and
the key can be removed.
(ON): Engine and lights can be operated and the
key cannot be removed.
SEATLOCK
The seat lock is set below the cushion. Pull backward
the seat lock rope ,the seat will spring out of its support; to
lock the seat, put it down and depress downwards.
Ignition switch Seat Lock
Ignition switch

-9-
FUELANDFUELTANK
Fuel Selection
Fuel is a key factor in deciding the exhaust emissions amount from the engine, so selection of fuel must follow the rules
below.
Selected fuel must be unleaded or low-leaded gasoline with octane No.RQ-90 or higher.
The fuel tank capacity is 7.8L.
WARNING
●
Gasoline is extremely flammable and is explosive under certain conditions. Refuel in a well-ventilated area with the
engine stopped. Do not smoke or allow flames or sparks in the area where gasoline is stored or where the fuel tank is refueled.
●
Before refueling, make sure to filter fuel first.
Do not overfill the tank (there should be no fuel in the filler neck). After refueling, make sure the fuel tank cap is closed
securely.
●
Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite. If any fuel is spilled, make sure the
area is dry before starting the engine.
●
Avoid repeated or prolonged contact with skin or breathing of vapor.
●
KEEP OUT OF REACH OF CHILDREN.

-10-
LEFTHANDBARCONTROLS
Emergency Switch
In normal, the switch is set in middle position; to stop the engine, set the switch to left or right.
Parking button
When stopping the vehicle , depress it to lock the rear wheel; restarting the vehicle, pull in the rear brake lever to spring
it up.
Starter button
Depress the button with the vehicle in braking to start up the engine.
①Parking button
②Emergency switch
③Starter button

-11-
SPEED-LIMITINGDEVICE
Turn loose the lock nut and screw in the adjusting screw,
at last, tighten the locknut.
CAUTION
It’s better for inexperienced riders to set the top speed
lower so as to avoid accidents.

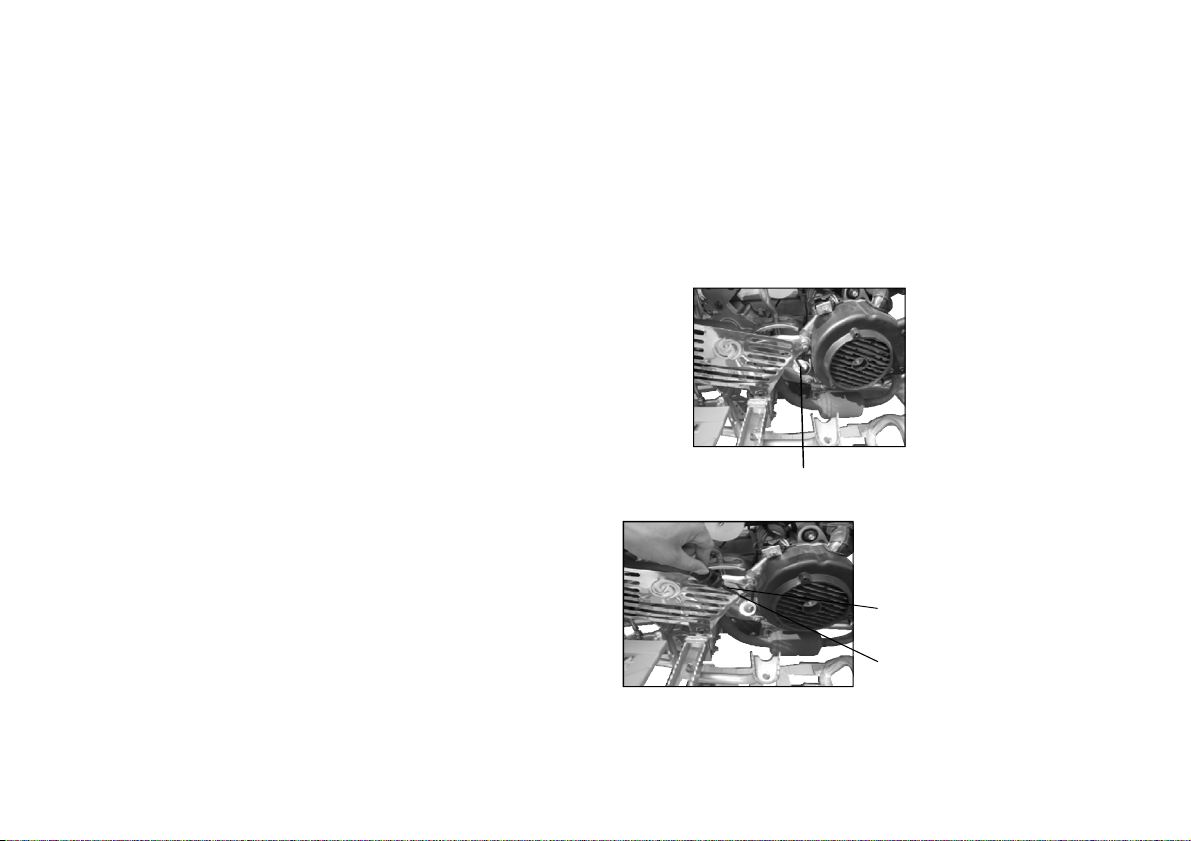

ENGINEOIL
The quality of the engine oil plays a vital role in decid-
ing the engine performance and service life.
Engine oil must be selected in accordance with the rules
below and other oils, are forbidden to be used.
②Adjusting screw ①Lock nut
Engine oil recommended: gasoline engine oil Class
SAE15W/40-SE or Class SE, SF, SC from API Service
Classification.
The vehicle has been filled with the engine oil Class
SAE15W/40-SE Class before being been delivered, and the
lubricant is only suitable at a temperature range from +40°C
to -10°C. If other motor oil is to be used instead, the alterna-
tive must be technically in every respect. Viscosity varies
with regions and temperatures, so the lubricant has to be
selected according to our recommendation. If the gasoline
engine oil Class ASE15W/40-SE can not be obtained when
in need, the gasoline engine oil No. HQB-10 (or No. HQB-6
in regions where the temperature is under -10°C ) is available.
Before replacing the lubricant, please drain the oil out
completely remaining in the crankcase, and clean the inside
by cleansing kerosene, then fill new one inside.

-12-
CAUTION
Running the engine with insufficient oil can cause seri-
ous damage to engine.
TYRES
Proper air pressure will provide maximum stability,
riding comfort and tyre life.
Check tyre pressure frequently and adjust if necessary.
Select the right replacement tyres in accordance with
the specifications shown in the table1.
NOTE
Tyre pressure should be checked before you ride while
the tyres are cold. Check the tyres for cuts, embedded nails,
or other sharp objects.
Check the rims for dents or deformation. See your dealer
for change of damaged tyres or punctured inner tubes.
WARNING
●
Do not attempt to patch a damaged tyre or inner
tube, otherwise wheel balance and tyre reliability may be
impaired.
●
Improper tyre inflation will cause abnormal tread
wear and create a safety hazard. The tyre pressure less than
the rated value may result in the tyre slipping on the ground,
or coming off from the rim, even the vehicle being out of
control.
●
Operation with excessively worn tyres is hazardous
and will adversely affect traction and handling.
●
The use of tyres other than those listed on the table
1 may adversely affect handling.
Pressure (kPa)
Tyre size
Front: 200
Front:19×7-8
REAR:200
REAR:18×9.5-8

-13-
When the tread depth in the middle section of tyres
reaches the limits in table 2 below, please replace tyres.
Tread depth limits
Front tyre 2.0mm Rear tyre 2.0mm
OPERATION GUIDE
PRE-RIDE INSPECTION
WARNING
If the Pre-ride Inspection is not performed, severe in-
jury to personnel or damage to equipment may occur.
Inspect your motorcycle every day before you ride it.
The items listed here will only take a few minutes to inspect,
and in the long run they can save time, expense, and possi-
bly your life.
1. Engine oil level-add engine oil if required. Check for
leads.
2. Fuel level-fill fuel tank when necessary. Check for
leaks.
3. Front and rear brakes-check operation and if
necessary, adjust free play.
4. Tyres-check condition and pressure.
5. Throttle operation-check for smooth opening and
full closing in all steering positions; check for throttle grip
free play and throttle cable in lubricating and connecting.
6. Fastener-check that all nuts, screws and bolts are
fixed securely.
7. Steering system-check for its smoothness and
reliability. Correct your dealer for assistance if you cannot
correct the problem.
STARTINGTHEENGINE
Always follow the proper starting procedure described
below.
WARNING
Never run the engine in an enclosed area. The exhaust
emissions contain poisonous carbon monoxide (CO) gas that
can cause loss of consciousness and lead to death.

-14-
☆Starting procedure by the starter button
1. Place the vehicle on a level ground and lock the rear
brake by depressing down the parking button.
2. Insert the ignition key switch and turn to (ON).
3. Set the emergency switch to “ON”.
4. Depress the starter button while rotate the throttle
grip slightly to start the engine. Release the starter button
once the engine starts.
NOTE
Do not use the electric starter for more than 5 seconds
at a time. Release the starter button for approximately 10
seconds before pressing it again.
5. When starting and warming up the engine, make sure
to maintain the throttle slightly open.
6. Before riding the vehicle, make sure that the engine
is well warmed up.
CAUTION
Opening or closing the throttle fully and rapidly may
make the vehicle’s sudden moving forwards, resulting in it
out of control.
Rear brake lever Handlebar Ignition switch Engine

-15-
BREAKING-IN
Help assure your vehicle’s future reliability and performance bypaying extra attention to how you ride during the first
two-week riding.
During this period, avoid full-throttle riding and loading the engine heavily ;be sure to keep changing speed.
NOTE
After the breaking –in period, be sure to conduct maintenance according to the maintenance schedule so as to keep the
vehicle in a sound condition, which will extend the service, which will extend the service life of the engine obviously.
RIDING
Review Vehicle Safe Riding before you ride.
1. After the engine has been warmed up, the vehicle is ready for riding.
2. End braking state of the vehicle.
CAUTION
Riding with only one hand may cause the vehicle out of control.
3. Open the throttle gradually so the vehicle moves forward.
4. To slow down the vehicle, reduce the throttle while carry out braking. Coordinate the throttle with brakes for
smooth deceleration.
NOTE
Both the front and rear brakes should be used at the same time and should not be applied strongly enough to lock the
wheel, or braking effectiveness will be reduced and control of the vehicle be difficult.

-16-
PARKING
1. Close the throttle while apply the brakes to slow
down the vehicle until it stops.
2. Turn the ignition key to (OFF), and remove the key
once the engine stops.
3. press down the parking button at the left handlebar.
Apply the parking brake.
CHECKANDCHANGE OFENGINE OLL
Check of Engine Oil Level
Check the engine oil level each day before riding the
vehicle.
The level must be maintained between the upper and
lower level marks on the dipstick.
1. Start the engine and let it idle for a few minutes.
2. Stop the engine and put the vehicle on a levelground.
3. After a few minutes, remove the oil filler cap/
dipstick, wipe it clean, and reinsert the dipstick without
screwing it in, remove the dipstick. The oil level should be
between the upper and lower level marks on the dipstick.
Change of Engine Oil
The engine oil quality is the chief factor affecting the
engine service life. Change the engine oil as specified in the
maintenance schedule.
1. Drain out the engine oil in the crankcase completely.
2. Clean the crankcase inside with cleaning lerosene.
3. Add specified engine oil about 0.8L.
①Upper level mark
②Lower level mark
③Oil filter cap/Dipstick
