Onkyo DV-CP701 User manual

DV-CP701
SERVICE MANUAL
SERVICE MANUAL
DVD CHANGER
Black and Silver models
MODEL DV-CP701
120V AC, 60Hz
220-230V AC, 50/60Hz
B MDD, S MDD
B MPA
Ref. No. 3760
052003
ON STANDBY
SEARCH LAST M MEMORY
CHAIN MODE
REPEAT
A
-
B
RANDOM
DISPLAY
MENU
SETUP
TOP MENU
RETURN
AUDIO ANGLE SUBTITLE ZOOM
DISC
1 DISC 2 DISC 3
DISC 4 DISC 5 DISC 6
DISC SKIP DIMMER
RC-542DV
STEP/SLOW
CLEAR
OPEN/
CLOSE
PROGRESSIVE
ENTER
+10 0
123
456
789
RC-542DV
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

DV-CP701
SPECIFICATIONS
SpeciÞcations and features subject to change without notice.
Video system Standard NTSC (U.S.model), PAL/AUTO (Australian model)
Region code 1 (U.S.model), 4 (Australian model)
Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD)
Frequency response DVD linear audio 4 Hz-22 kHz @ 48 kHz sampling rate
4 Hz-44 kHz @ 96 kHz sampling rate
CD audio 4 Hz-20 kHz
Signal-to-noise ratio (digital audio) 100 dB
Audio dynamic range (digital audio) 96 dB
Harmonic distortion (digital audio) 0.001%
Wow and futter Below measurable level (+/-0.001% (W. PEAK)) or less
Operating conditions Temperature 5 to 35 C (41 F to 95 F)
Installation Install horizontally
Video outputs
COMPONENTVIDEO Y: 1.0 V (p-p), 75 ohm, negative sync, RCA/phono x 3
PB/PR: 0.7 V (p-p), 75 ohm
SVIDEO (S-Video) Y: 1.0V (p-p), 75 ohm, negative sync, 4-pin mini DIN x 1
C: 0.286 V (p-p), 75 ohm
VIDEO (composite video) 1.0 V (p-p), 75 ohm, negative sync, RCA/phono x 1
Audio outputs OPTICAL Optical connector x 1 COAXIAL 0.5 V (p-p), 75 ohm, RCA/phono x 1
ANALOG 2.0 V rms, 470 ohm, RCA/phono x 2
General
Power supply 120 V AC, 60 Hz (U.S. model)
220-230 V AC, 50/60 Hz (Australian model)
Power consumption 13 W
Power consumption in Standby
mode 1.6 W (U.S. model)
2.0 W (Australian model)
Weight 5.3 kg (11.7 lbs.)
Dimensions (W x H x D) 435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17)

DV-CP701
SERVICE PROCEDURES-1
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs a laser. Therefore, be sure to follow
carefully the instructions below when servicing.
WARNING!!
SERVICE WARNING : DO NOT APPROACH THE
LASER EXIT WITH THE EYE TOO CLOSELY.
IN CASE IT IS NECESSARY TO CONFIRM LASER
BEAM EMISSION, BE SURE TO OBSERVE FROM
A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE
OPTICAL PICKUP BLOCK.
Laser Diode Properties
LASERWARNING
Wavelength: 650/780nm (DVD/CD)
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
AVIS
WARNING
This unit contains a semiconductor laser system and is classified
as a "CLASS 1 LASER PRODUCT". So, to use this model
properly, read this Instruction Manual carefully. In case of any
trouble, please contact the store where you purchased the unit.
To prevent being exposed to the laser beam, do not try to open
the enclosure.
VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
FAILED OR DEFEATED. DO NOT STARE INTO BEAM.
THIS PRODUCT UTILIZESA LASER. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
The label on the right
is applied on the rear
panel except for USA
and Canadian
models.
1.This unit is a CLASS 1 LASER PRODUCT and employs a
laser inside the cabinet.
2.To prevent the laser from being exposed, do not remove
the cover. Refer servicing to qualified personnel.
"CLASS 1 LASER
PRODUCT"
CAUTION:
CAUTION:
SERVICE PROCEDURE
1. Replacing the fuses
REF. NO. PART NO. DESCRIPTION
This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse , For fuse rating, refer to
the marking adjest to the symbol.
Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.
F001 252185 or 1.6A-UL/T-237
252252 1.6A-T/UL-ST2
LASER BEAM CAUTION LABEL
<MDD>
252075 or
252275 2.5A-SE-EAK 2.5A-SE-TL250V<MPA>
North American area
Australian area
F001

DV-CP701
SERVICE PROCEDURES-2
Factory-shipped condition
Push button "ON" (Mechanical SW)
Press the [STOP] and [STANDBY] same time with NO DISC condition.
Push button "STANDBY".
After display "COMPLETE".
INITIALIZING
2. Safety-check out
(Only U.S.A. model)
After correcting the original service problem perform the
following safety check before releasing the set to the customer
Connect the insulating-resistance tester between the plug of
power supply cord and terminal GND on the back panel.
Specifications: More than 10M ohm at 500V
REMOVE THE SOLDER OF LASER DIODE SHORT
When replace the mechanism or DVD main PC board.
Shotting the solder of Shot-circuit land. (2 positions)

DV-CP701
EXPLODEDVIEW
A
1
2
3
4
5
BCDEFGH
3
2
5
6
4
1
A22
A22
A19
A19
A19 A19
A19
A25
A26
A30
A31
A32
A33A25
A25
A25
A25
A25
A25
A25
A26 A26
A26
A25
A26
A25 A25
A41
A41
A42
A42
A42
A42
A46
A46
A48
A50
A53
A54
A54
A54
A56
A214
A215
A215
A215
A215 A215
A215
E102
F001 A25
P901 U1
U2
U14
E821
A25 A25 A34 A25
M01
M02
M06
M04 M07
M08
M09
M10
M11
M11
M11
M12
M13
M14
M14
M15
M15
P1101 M16
M11
M11
P1001
M17
M18
M19
M50
M32 M35
M36
A26
A26
(U8)
A19 A19
(U7)
A19
A19
(U6)
(U9)
(U12)
P707
(U3)
P2501
P2901
A25
P2401
P2001
A54
Cloth tape
(160)
Cloth
tape
(80)
Cloth tape
M11
A25
A59
A32
A15
A15 A15
A25
M41 M42
ba
ba
c
c
d
d
ef
e
f
A25
e
e
A01
A02
A03
A04 A05
A06
A08 A12
A13
A14
A18
A21
M38 M38
M38
M39
A07
<S> only
Cloth tape
(80)
P702

DV-CP701
EXPLODEDVIEW
A
1
2
3
4
5
BCDEFGH
3
2
5
6
4
1
A22
A22
A19
A19
A19 A19
A19
A25
A26
A30
A31
A32
A33A25
A25
A25
A25
A25
A25
A25
A26 A26
A26
A25
A26
A25 A25
A41
A41
A42
A42
A42
A42
A46
A46
A48
A50
A53
A54
A54
A54
A56
A214
A215
A215
A215
A215 A215
A215
E102
F001 A25
P901 U1
U2
U14
E821
A25 A25 A34 A25
M01
M02
M06
M04 M07
M08
M09
M10
M11
M11
M11
M12
M13
M14
M14
M15
M15
P1101 M16
M11
M11
P1001
M17
M18
M19
M50
M32 M35
M36
A26
A26
(U8)
A19 A19
(U7)
A19
A19
(U6)
(U9)
(U12)
P707
(U3)
P2501
P2901
A25
P2401
P2001
A54
Cloth tape
(160)
Cloth
tape
(80)
Cloth tape
M11
A25
A59
A32
A15
A15 A15
A25
M41 M42
ba
ba
c
c
d
d
ef
e
f
A25
e
e
A01
A02
A03
A04 A05
A06
A08 A12
A13
A14
A18
A21
M38 M38
M38
M39
A07
<S> only
Cloth tape
(80)
P702

DV-CP701
EXPLODEDVIEW
A
1
2
3
4
5
BCDEFGH
3
2
5
6
4
1
A22
A22
A19
A19
A19 A19
A19
A25
A26
A30
A31
A32
A33A25
A25
A25
A25
A25
A25
A25
A26 A26
A26
A25
A26
A25 A25
A41
A41
A42
A42
A42
A42
A46
A46
A48
A50
A53
A54
A54
A54
A56
A214
A215
A215
A215
A215 A215
A215
E102
F001 A25
P901 U1
U2
U14
E821
A25 A25 A34 A25
M01
M02
M06
M04 M07
M08
M09
M10
M11
M11
M11
M12
M13
M14
M14
M15
M15
P1101 M16
M11
M11
P1001
M17
M18
M19
M50
M32 M35
M36
A26
A26
(U8)
A19 A19
(U7)
A19
A19
(U6)
(U9)
(U12)
P707
(U3)
P2501
P2901
A25
P2401
P2001
A54
Cloth tape
(160)
Cloth
tape
(80)
Cloth tape
M11
A25
A59
A32
A15
A15 A15
A25
M41 M42
ba
ba
c
c
d
d
ef
e
f
A25
e
e
A01
A02
A03
A04 A05
A06
A08 A12
A13
A14
A18
A21
M38 M38
M38
M39
A07
<S> only
Cloth tape
(80)
P702

DV-CP701
BLOCK DIAGRAM
P901
OPT_OUT
COAXAL_OUT
CV
S
PR
COMPONENTPB
Y
Q
ROULETTE SENSOR
Q716
DISC SENSOER
Z Z
X801
5MHZ
X701
4.5MHZ
MD,MC,CSDACD,DACRST
P2001A
DIG OUT
LASER etc
SPD+,SPD-,SLD+,SLD,LMT-SW
P1001
P1101
DVD MECHA
EV5V,SW5V,SW3.3V,A+12V,A-12V
CR/R,CB/B,CY/G
SY,SC,LETTER
SQEZ,P/IX,AR2/AR1X
P2401A
RGBON
EV5V
DSPSI,DSPSO DSPCK,DSTBX
SW8VSW5VSW3.3V
P2501
P710A
P2901
NADIS-7808
NADG-7809
P704A
REMOTE CONTROL SENSOR
FL TUBE HNV-12SM34
RPM7138
Q808
MPD780232GC-070-8BT
Q801
MPD780053GC-141-8BT
P403A
P701B
NAVD-7810
DIGTAL OUT DRIVE
TC74VHCU04T
Q411
VIDEO AMP
LA73054
Q201
EV5V,SW5V,SW3.3V,A+12V,A-12V
EV5V,-30V,F1,F2
EV5V,SW5V
RESET IC
S-80130
Q702
SENSER
POSITION
Q717,Q711,Q708
DISC SENSER
Q706,Q710,Q709
Q705,Q707Q704,Q706
DRIVE
LOADING MOTOR
DRIVE
ROULETTE MOTOR
SUBRST,SUBCL,SUBREQ,SUBSI,SUBSO Q701
Q110:DTC114YKA
Q109:DTA114YKA
Q407,Q408:HN1C03F
MUTING
Q407,Q408
Q109,Q110
Q403-Q406:NJM4580M-D
NAAF-7811
AUDIO OUT
Rch
Lch
VLSC
Q404(2/2)
Q406
Q405
FILTER CCT
Q404(1/2)
Q403(1/2)
AUDIO DAC
PCM1742KE
Q401 Q403(2/2)
NGPS-0037( AUS)
NGPS-0036 (US)
DVD MAIN CIRCUIT PC BOARD
NADG-7807
P702B
RI,RESET,AMUTE
F2
F1
-30V
A-12V
A+12V
SW8V
SW3.3V
SW5V
EV5V
POWER SUPPLY UNIT
LED
KEY INPUT
VIDEO OFF,RXD1,TXD1
DACCLK,LRCLK,BCLK,DATAD,DOUT0-1

DV-CP701
BLOCK DIAGRAM
P901
OPT_OUT
COAXAL_OUT
CV
S
PR
COMPONENTPB
Y
Q
ROULETTE SENSOR
Q716
DISC SENSOER
Z Z
X801
5MHZ
X701
4.5MHZ
MD,MC,CSDACD,DACRST
P2001A
DIG OUT
LASER etc
SPD+,SPD-,SLD+,SLD,LMT-SW
P1001
P1101
DVD MECHA
EV5V,SW5V,SW3.3V,A+12V,A-12V
CR/R,CB/B,CY/G
SY,SC,LETTER
SQEZ,P/IX,AR2/AR1X
P2401A
RGBON
EV5V
DSPSI,DSPSO DSPCK,DSTBX
SW8VSW5VSW3.3V
P2501
P710A
P2901
NADIS-7808
NADG-7809
P704A
REMOTE CONTROL SENSOR
FL TUBE HNV-12SM34
RPM7138
Q808
MPD780232GC-070-8BT
Q801
MPD780053GC-141-8BT
P403A
P701B
NAVD-7810
DIGTAL OUT DRIVE
TC74VHCU04T
Q411
VIDEO AMP
LA73054
Q201
EV5V,SW5V,SW3.3V,A+12V,A-12V
EV5V,-30V,F1,F2
EV5V,SW5V
RESET IC
S-80130
Q702
SENSER
POSITION
Q717,Q711,Q708
DISC SENSER
Q706,Q710,Q709
Q705,Q707Q704,Q706
DRIVE
LOADING MOTOR
DRIVE
ROULETTE MOTOR
SUBRST,SUBCL,SUBREQ,SUBSI,SUBSO Q701
Q110:DTC114YKA
Q109:DTA114YKA
Q407,Q408:HN1C03F
MUTING
Q407,Q408
Q109,Q110
Q403-Q406:NJM4580M-D
NAAF-7811
AUDIO OUT
Rch
Lch
VLSC
Q404(2/2)
Q406
Q405
FILTER CCT
Q404(1/2)
Q403(1/2)
AUDIO DAC
PCM1742KE
Q401 Q403(2/2)
NGPS-0037( AUS)
NGPS-0036 (US)
DVD MAIN CIRCUIT PC BOARD
NADG-7807
P702B
RI,RESET,AMUTE
F2
F1
-30V
A-12V
A+12V
SW8V
SW3.3V
SW5V
EV5V
POWER SUPPLY UNIT
LED
KEY INPUT
VIDEO OFF,RXD1,TXD1
DACCLK,LRCLK,BCLK,DATAD,DOUT0-1

DV-CP701
BLOCK DIAGRAM
P901
OPT_OUT
COAXAL_OUT
CV
S
PR
COMPONENTPB
Y
Q
ROULETTE SENSOR
Q716
DISC SENSOER
Z Z
X801
5MHZ
X701
4.5MHZ
MD,MC,CSDACD,DACRST
P2001A
DIG OUT
LASER etc
SPD+,SPD-,SLD+,SLD,LMT-SW
P1001
P1101
DVD MECHA
EV5V,SW5V,SW3.3V,A+12V,A-12V
CR/R,CB/B,CY/G
SY,SC,LETTER
SQEZ,P/IX,AR2/AR1X
P2401A
RGBON
EV5V
DSPSI,DSPSO DSPCK,DSTBX
SW8VSW5VSW3.3V
P2501
P710A
P2901
NADIS-7808
NADG-7809
P704A
REMOTE CONTROL SENSOR
FL TUBE HNV-12SM34
RPM7138
Q808
MPD780232GC-070-8BT
Q801
MPD780053GC-141-8BT
P403A
P701B
NAVD-7810
DIGTAL OUT DRIVE
TC74VHCU04T
Q411
VIDEO AMP
LA73054
Q201
EV5V,SW5V,SW3.3V,A+12V,A-12V
EV5V,-30V,F1,F2
EV5V,SW5V
RESET IC
S-80130
Q702
SENSER
POSITION
Q717,Q711,Q708
DISC SENSER
Q706,Q710,Q709
Q705,Q707Q704,Q706
DRIVE
LOADING MOTOR
DRIVE
ROULETTE MOTOR
SUBRST,SUBCL,SUBREQ,SUBSI,SUBSO Q701
Q110:DTC114YKA
Q109:DTA114YKA
Q407,Q408:HN1C03F
MUTING
Q407,Q408
Q109,Q110
Q403-Q406:NJM4580M-D
NAAF-7811
AUDIO OUT
Rch
Lch
VLSC
Q404(2/2)
Q406
Q405
FILTER CCT
Q404(1/2)
Q403(1/2)
AUDIO DAC
PCM1742KE
Q401 Q403(2/2)
NGPS-0037( AUS)
NGPS-0036 (US)
DVD MAIN CIRCUIT PC BOARD
NADG-7807
P702B
RI,RESET,AMUTE
F2
F1
-30V
A-12V
A+12V
SW8V
SW3.3V
SW5V
EV5V
POWER SUPPLY UNIT
LED
KEY INPUT
VIDEO OFF,RXD1,TXD1
DACCLK,LRCLK,BCLK,DATAD,DOUT0-1

DV-CP701

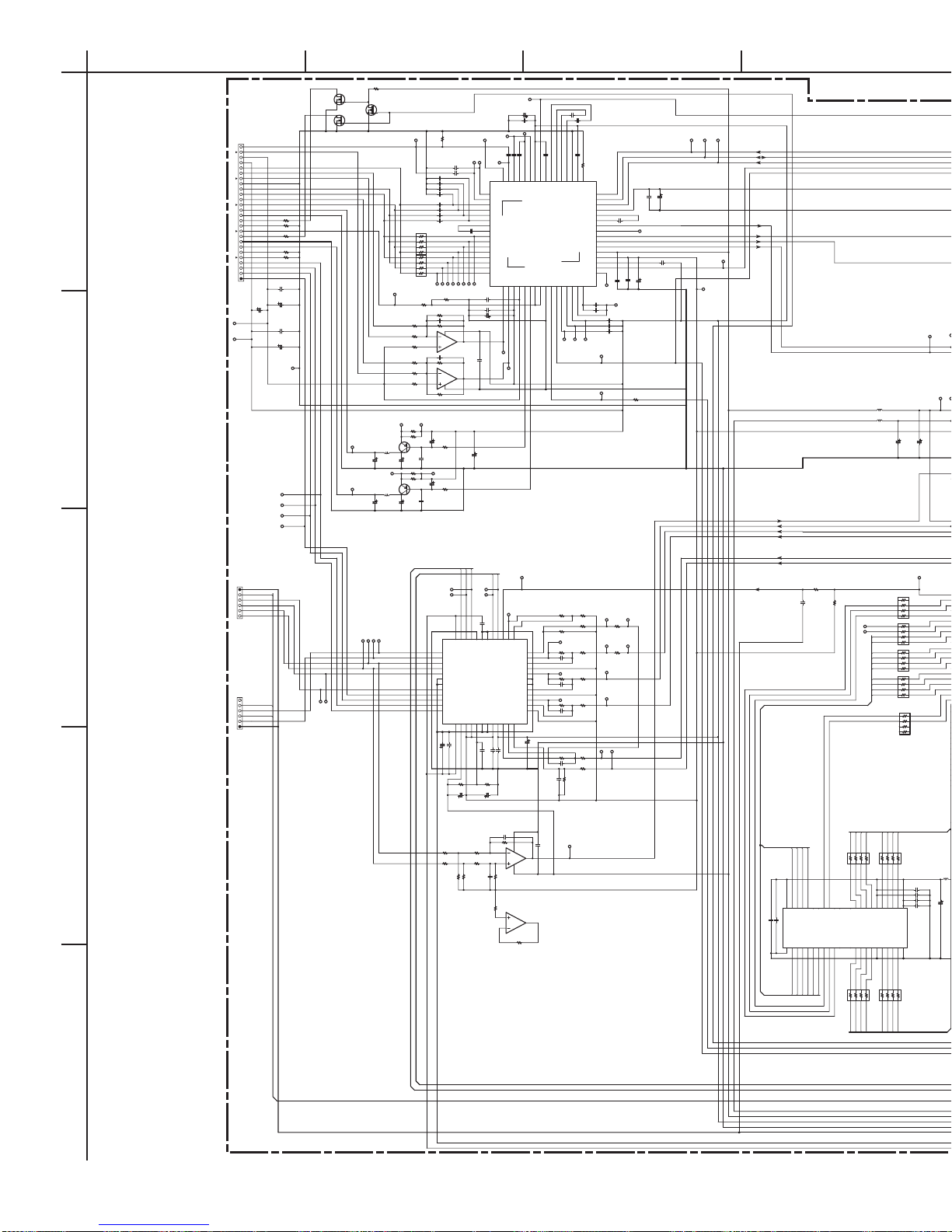

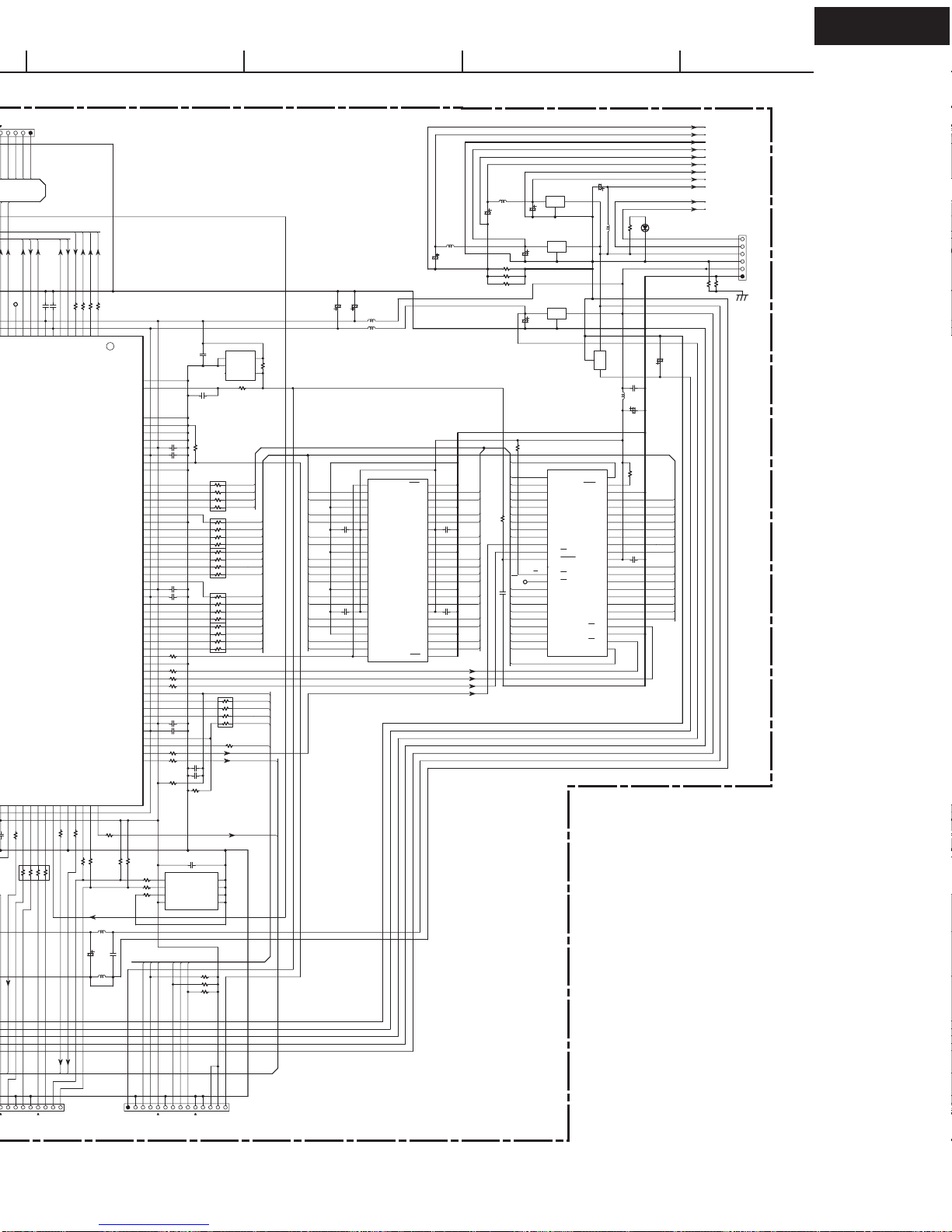

SCHEMATIC
DIAGRAM
A
1
2
3
4
5
BCDEFGH
Q1004
2SK3019 Q1003
2SK3019
Q1005
2SK3019
P1001
C1010 222K
C1009 222K
C1008 222K
C1007 222K
C1011
331J
C1006 220J
C1005 220J
C1004 220J
C1003 220J
C1001 104K
C1002 104K
C1012 104Z
C1038 104Z
C1034 104K
C1033 104K
C1035
103K
C1030 104K
C1027 102J
C1031 104Z
C1024 473K
C1020 104K
C1051 104Z
C1049 104Z
C1025
104Z
C1015 333K
C1016 333K
C1017 151J
C1239 105Z
C1230 105Z
C1251 471J
C1252 104Z
C1253 471J
C1254 104Z
C1225 105Z
C1218 105ZC1217 105Z
C1221 105Z
C1223 105Z
C1222 104Z
C1224
473K
C1216 154K
C1215 101J
C1214 223K
C1213 101J
C1212 104K
C1211 223K
C1210 151J
C1209 223K
C1208 105Z
C1206 105Z
C1207 105Z
C1232 105Z
C1233 105Z
C1203
105Z
C1201
105Z
C1202
105Z
C1205
C1204
C1023
104Z
C1021
104Z
C1040
102J
C1044
102J
C1226
103K
C1102 101J
C1103 102J
C1101 221J
C1108 104Z
C1107 104Z
C1110
104Z
C1113 223K
C1114 223K
C1105
104Z
C1104
104Z
C1219
331J
C1220
331J
C1037 100D
C1036 100D
C1028
104K
C1029
104K
C1255 471J
C1256 104Z
C1116 223K
C1115 473K
C1117
104
C1014 104Z
C1018 105Z
C1019
C1227105Z C1228105Z C1229105Z
C1050 100/6.3
C1052 22/16
C1026
10/16
C1053
1/50V
C1257 100/6.3
C1022
22/16
C1042
10/16
C1039
47/6.3
C1041
10/16
C1046
10/16
C1043
47/6.3
C1045
10/16
C1111
10/16 C1112
10/16
C1236
100/6.3
C1237
100/6.3
C1238
10/16
C1234
22/16 C1235
22/6.3
C1106
22/16
C1047
22/16
C1013
22/16
C1032 22/16
C1109
22/16
R1029 100KR1028 3.9K
R1008
R1243
0R1242 0R1244 0
R1022 100
R1021 0
R1025
R1024
R1026
R1003 12KF
R1229 0
R1228 0
R1223 22K
R1216 150K
R1217 470
R1219 47K R1220 100K
R1222 1.8K
R1221 1.8K
R1218 68K
R1215 47K
R1214 47K
R1240
10K
R1203
R1204
R1202
0
R1201
R1207
180
R1017 33
R1015
1K
R1016 33
R1020 33
R1018
1K
R1019 33
R1233
33K
R1232
1.5K
R1104 33K R1103
56K
R1106 33K R1105
56K
R1102 15K R1101
56K
R1109
10K
R1108
10K
R1111
10K
R1110
10K
R1114 7.5K R1113
33K
R1115
33K
R1116 7.5K
R1118
10K
R1117
(1%)
10K
R1112
0
R1107
0
R1227
10K
R1225
10K
R1224
0
R1226
0
R1231 33K
R1230
0
R1012 22K
R1007 22K
R1011 22K
R1010 22K
R1014 10K
R1005 22K
R1006 22K
R1009 10K
R1013
R1004
10K
R1119
22K
R1123
22K
R1120 10K
R1124 10K
R1125
10K
R1126 100K
R1122
100K
R1121
10K
R1127
0
R1128
0
R1023
0
R1027
1K
Q1006
2SB1132
Q1007
2SB1132
L1001
47U
L1002
47U
L1201 2.2U
L1202 2.2U
L1203 2.2U
L1204 2.2U
L1251
2.2U
P01
VC25
P02
A5V
P168
DP167 CP166
BP165 AP164
CD_D P163 CD_C P162
CD_B P161 CD_A
P17
CD/DVD-PD
P29
AIN
P25
AIP
P24
CD-F
P26
CD-E
P35
MP
P36
MB
P37
MLPF
P50 CE
P51
AMPSEN
P52
AMPSDT
P53
AMPSCK
P23
RFSIN
P18
RFN
P19
RFP
P12
RFOP
P20
RFDC
P07
AGND
P06
T-
P05
T+
P04
F-
P03
F+
P56
RA10 P55
RA11
P66
GPWM4
P65
GPWM2
P64
GPWM0
P70
GPWM3
P69
GPWM1
P67
TILT
P74 VREFH
P89 VCOI
P78
JITT
P90 HF
P109 TP
P110 TP
P75
BLKSYNC
P77
FMSYNC
P79
STS3
P80
TST4
P81
TST5
P82
TST6
P83
TST7
P84
TST8
P85
TST9
P86
TST10
P87
TST11
P88
TST12
P96
RSV0
P94
ST4
P93
ST3 P92 ST2 P91 ST1
P97
RSV1
P111
EDCNG
P112
CLVLOCK
P113
SYNCLOCK
P114
CD/XDVD
P115
LDON
P116
XFTSMUTE
P117
XSPMUTE
P118
TSD-M
P119
FOK
P120
BUFEMP
P121
TRST
P122
TMS
P123
TDI
P124
TCK
P125
TDO
P107 LRCK
P106 DOUT
P105 DADT
P104 C2PO
P103 DRVRDY
P108 BCK
P102 DRVTX
P101 DRVIRQ
P100 DRVCLK
P99 DRVRX
P98 DRVRST
P139 DCK
P138 XSHD
P137 VEFG
P135 HDRQ
P136 XHAC
P134 VDT0
P133 VDT1
P132 VDT2
P131 VDT3
P130 VDT4
P129 VDT5
P128 VDT6
P127 VDT7
P41
LINK
P08
LD-DVD
P11
IOP_DV
P13
A5V
P14 A5V
P10
IOP_CD
P09
LD-CD
P68
SE
P57
GPWM5
P33 TD
P34 FD
P32 SLD
P27
SPD
P16
XSPMUTE P15
XFTSMUTE
P22
LDM2
P21
LDM1
P40
SPWM1
P46
SPWM2
P42SPDL1
P43
SLED1
P44TSCON
P45FSCON
P48
SPDL0
P49
SLED0
P28 LDRSP
P38 MIRR
P62 FEO
P71 FE1
P72 TE1
P63 TEO
P60 PI
P58
AMPMNT
P59 A3.3VDSP
P61 A1.8VDSP
P141
XRDY
P140
XINT
P95
RSV2
P30
RFAC0
P54
DFCT
P144
XCSI
P143
XWR
P142
XRD
P39
LDON
P73 VREFL
P47 MIN
P76
PLCK
P126 MCK
P145
VC16
P148
ATC
P149
SPDET
P150 LDNG-
P151 LDNG+ P155 SPD- P158 SPD+
P159
SLD+ P160 SLD-
Q1002
NJM2115V
3+B
8
21
Q1002
NJM2115V
5
6-B47
Q1101
FAN8042
CTL
15
DO1+
36
DO1-
35
DO2+
34
DO2-
33
DO3+
32
DO3-
29
DO4+
28
DO4-
27
DO5+
26
DO5-
25
FWD
16
GND_0
6
GND_1
7
GND_2
18
GND_3
19
GND_4
30
GND_5
31
GND_6
42
GND_7
43
IN1+
1
IN1-
2
IN2+
4
IN2-
5
IN3+
9
IN3-
10
IN4+
12
IN4-
13
MUTE123
21
MUTE4
22
OPIN1+
48
OPIN1-
47
OPIN2+
41
OPIN2-
40
OPOUT1
46
OPOUT2
39
OUT1
3
OUT2
8
OUT3 11
OUT4
14
PS
38
PVCC1
37
PVCC2
24
REV
17
SGND
20
SVCC
45
TSD-M
23
VREF
44
16
2
1
33
Q1001
CXD1881AR
A12
A23
AIN
60
AIP
59
ATON
61
ATOP
62
B11
B24
BYP
56
C10
C25
CDLD
22
CDPD
24
CD_A
16 CD_B15 CD_C14 CD_D13
CD_E
18
CD_F
17
CE 41 CN8CP7
D9
D26
DFT
34
DIN
55
DIP
54
DVDLD
21
DVDPD
23
DVDRFN
2DVDRFP
1
FE
40
FNN
52
FNP
53
LCN 43
LCP 44
LDON
26
LINK
33
MB
29
MEV
50
MEVO
32
MIN
31
MIRR
27
MLPF
30
MNTR 42
MP
28
PI 38
RFAC
57
RFDC
64
RFSIN
63
RX
49
SCLK 46
SDATA 47
SDEN 48
TE 39
TPH 35
V125 36
V25 37
V33 45
VC
20
VNA
51
VNB
25
VPA
58
VPB
19
P1102 P1101
Q1251 IC41LV16100-50T
A0 21 A1 22 A2 23 A3 24A427 A528 A629 A730 A831 A932
DQ0 2 DQ1 3
DQ1043 DQ1144 DQ1246 DQ1347 DQ1448 DQ1549
DQ2 4 DQ3 5 DQ4 7 DQ5 8 DQ6 9 DQ7 10DQ841 DQ942
LCAS
35
NC1 11
NC2 15 NC3 16 NC4 19 NC5 20
NC6
36
NC740 OE33 RAS 18 UCAS34
VCC1 1 VCC2 6 VCC3 25VSS126
VSS245 VSS350
WR 17
Q1201
CXD1885Q
AD0 91 AD1 92 AD2 93 AD3 95 AD4 96 AD5 97 AD6 98 AD7 99 AD8 100 AD9 101
ALCR 2
ATC 74
AVDD18_0 84
AVDD18_1
104
AVDD33_0 79 AVDD33_1 94
AVDD33_2105
AVSS_0 73 AVSS_1 89 AVSS_2 90
AVSS_3110
BCK 62
C2PO 58
CHG 82 CSL 65
DA0/TSCON106 DA1/SLED107 DA2/FSCON108 DA3/SLED2_TILT109
DADT 59
DCK 49
DOTX 60
DRVCLK 56
DRVIRQ 50
DRVRDY 57
DRVRST 51
DRVRX 55 DRVTX 54
DTC 72
DVDD18_0 32
DVDD18_1 52
DVDD18_2136
DVDD18_3156
DVDD18_4188 DVDD18_5208
DVDD33_0 1
DVDD33_1 27
DVDD33_2 53
DVDD33_3131
DVDD33_4157 DVDD33_5183
DVSS_0 21
DVSS_1 35
DVSS_2 38
DVSS_3125
DVSS_4142
DVSS_5177 DVSS_6194
EXPLDT 64
EXVCO 63
FG111
GIO0179 GIO1180 GIO10191 GIO11192 GIO12193 GIO13195 GIO14196 GIO15197 GIO16198 GIO17199 GIO18200 GIO19201 GIO2181 GIO3182 GIO4184 GIO5185 GIO6186 GIO7187 GIO8189 GIO9190
GPWM0114 GPWM1115 GPWM2116 GPWM3117 GPWM4118 GPWM5119
HDRQ 45
HF 75
HFD 70
IREF 78
JMOUT 81 JMREF 80
LPF1 86 LPF2 87 LRCK 61
MA0 5
MA1 6
MA2 7
MA3 8
MA4 9
MA5 10
MA6 11
MA7 12
MA8 13
MALE 24
MCS 25
MD0 15
MD1 16
MD2 17
MD3 18
MD4 19
MD5 20
MD6 22
MD7 23
MINT 30
MIRRORH 71
MODSEL0175 MODSEL1176 MODSEL2178
MRD 28
MRDY 29
MSEL0 3
MSEL1 4
MWR 26
RA0137
RA1135
RA10124 RA11123
RA2134 RA3133 RA4132
RA5130 RA6129 RA7128 RA8127 RA9126
RC 88
RD0148 RD1147
RD10154 RD11153 RD12152 RD13151 RD14150 RD15149
RD2146 RD3145 RD4144 RD5143
RD6141 RD7140
RD8158
RD9155
RFOKGH69
SCLKH 68
SI 66 SO 67
SPWM1112 SPWM2113
SYSCK 31
TCK205 TDI204 TDO206 TEST0159 TEST1160 TEST10169 TEST11170 TEST12171 TEST13172 TEST14173 TEST15174 TEST2161 TEST3162 TEST4163 TEST5164 TEST6165 TEST7166 TEST8167 TEST9168
TESTSEL 14
TLC0 76 TLC1 77
TMS203 TRST202
VCOI 85
VDT0 44
VDT1 43
VDT2 42
VDT3 41
VDT4 40
VDT5 39
VDT6 37
VDT7 36
VEFG 47
VFBC 83
VMCHG207
VREFH102 VREFL103
XHAC 46
XI 33
XLCAS120
XMOE122
XMWR139
XO 34
XRAS138
XSHD 48
XUCAS
121
R1001
1.5K*4
1
2
3
45
6
7
8
R1002
0*4
1
2
3
45
6
7
8
R1235
100*41
2
3
45
6
7
8
R1236
100*41
2
3
45
6
7
8
R1234 100*4
1
2
3
45
6
7
8
R1237 100*4
1
2
3
45
6
7
8
R1238
100*4
1
2
3
4 5
6
7
8
R1252 100*4
1 2 3 45
6 7
8
R1251 100*4
1 2 3 45
6 7
8
R1253 100*4
1 2 3 45
6 7
8
R1254 100*4
1 2 3 45
6 7 8
R1212 180*4
1 2 3 45
6 7
8
R1211 100*4
1 2 3 45
6 7
8
R1209 33*4
1 2
3 45
6 7
8
R1213
10K*4
1
2
3
45
6
7
8
R1241
100*4
1
2
3
45
6
7
8
R1210 100*4
1 2 3 45
6 7
8
R1205 100*4
1 2 3 45
6 7
8
R1206
100*4
1 2 3 45
6 7
8
R1208 100*4
1 2 3 45
6 7
8
R1292
10K*8
1
2
3
4
56
7
8
9
10
R1291
10K*8
1
2
3
4
56
7
8
9
10
R1293
10K*8
1
2
3
4
56
7
8
9
10
X1201
P1291
Q1102
BA4510FV
38
24
1
Q1102
BA4510FV
5
67
P1292
A3.3V CD/XDVD
RFAC
CD/XDVD RFAC
VR_CD
VR_DVD
A5V
AGND
RF-OP RF-OP
FAMPSEN AMPSEN
VC25 AMPSDT AMPSDT
AMPSCK AMPSCK
AA DFCT
GG MIRR
HH
AGND C2PO
CC D3.3V DADT
DD BCK
EE
D3.3V
RFAC MIRR DFCT
AMPSEN
LRCK
AMPSCK AMPSDT
BB A
LD-DVD B DGND
AGND CDOUT
VR-DVD D
DGND
NC AMPMNT
PD
VR-CD D FE0 FE0 FE DRVRDY
AGND CTE0 DRVTX
LD-CD BPI DRVIRQ
NC1 AA3.3V DRVCLK
NC2 D VC16 DRVRX
F+ CA5V TE0 TE DRVRST
F- BDFCT
T+ A LINK
T- MIRR
LRCK
BCK
DADT C2PO
T- T+ F- F+
LD-CD
LD-DVD
F E H G
PD
AGND
AGND
VDT7
VDT6
VDT5
VDT4
VDT3
VDT2
GAGND VDT1
A5V
VDT0
HXHAC
VC25 PI VEFG
AMPMNT XSHD
AMPSCK AMPSDT AMPSEN
BCK
LRCK DOUT DADT C2PO
DRVRDY
DRVTX
DRVIRQ DRVCLK
DRVRX
DRVRST
DCK
A5V
VC25
AGND
EMIRR HDRQ
RFAC
TE1
F
AMPMNT
PI TE FE
D3.3V
VC25 A5V
AGND
LPF2 LPF1
LDONO JMOUT
A3.3V A3.3VDSP
A1.8V
A5V VC16
LD-DVD
A1.8VDSP
HDRQ
VDT4 VDT5 VDT6 VDT7 VDT0 VDT1 VDT2 VDT3
DCK
XSHD VEFG XHAC
AGND DRVRST0
VREFH DRVIRQ0
JMOUT
AGND VREFL
SP_DET
T- T+ F- F+
SE
MIRR DFCT
D3.3VDSP
LD-CD
AGND
PI TE FE
DGND
SP_DET A3.3VDSP D1.8VDSP
TSCON TSCON DRVRST0
VDT04 VDT05 VDT06 VDT07 VDT00 VDT01 VDT02 VDT03 HDRQ0
DCK0
XSHD0 VEFG0 XHAC0
SLED SLED DRVIRQ0
FSCON FSCON DCK0
XSHD0
VEFG0
FG XHAC0
SPWM1 SPWM1 HDRQ0
SPWM2 SPWM2 VDT00
GPWM0 VDT01
VC16
GPWM1 VDT02
MIRR LDON
CD/XDVD
GPWM2 VDT03
GPWM3 VDT04
DGND LDRSPO
GPWM4 VDT05
LMT-SW DGND
SLD- VDT06
SLD+
TSD-M
XSPMUTE
XFTSMUTE
LDM2 LDM1
LDRSPO
XLCAS VDT07
SPD- XUCAS DGND
SPD+ XMOE 33.8688MHZ 33.8688MHZ
SPDO
SPDLO RA11 D1.8VDSP
PGND
DGND VC16
RA10 MCKO0 MCKO
RA9 XINT
VC16
RA8 XRDY XINT XINT
XRD XRDY XRDY
LOD- SLED RA7 D3.3VDSP XRD XRD
LOD+ SLDO RA6 D3.3VDSP XWR XWR XWR
SPD- RA5 XCS1 XCS1 XCS1
SPD+ RA4
SLD+ TDO MCUD7 MCUD7 MCUD7
TSCON RA3 MCUD6 MCUD6 MCUD6
RA2 D1.8VDSP DGND D3.3V MCUD5
SLD- RA1 MCUD5 MCUD5 MCUD4
T- RA0 MCUD4 MCUD4
T+ FDO MCUD3 MCUD3 MCUD3
CLS-SW F+ FSCON RD7 MCUD2 MCUD2 MCUD2
LOD- F- RD6 MCUD1 MCUD1 MCUD1
OPN-SW
VC16
XRAS MCUD0 MCUD0 MCUD0
LOD+ XMWR RD5 MCUA9 MCUA9
MCUD0 MCUD2 MCUD4 MCUD6
MCUD7
MCUD5 MCUD3 MCUD1
DGND RD4 MCUA8 MCUA8 MCUA9
RD3 MCUA7 MCUA7 MCUA8
A5V RD2 MCUA6 MCUA6 D3.3V MCUA7
AGND RD1 MCUA5 MCUA5 MCUA6
SPDLO RD0 MCUA4 MCUA4 MCUA5
RD15 MCUA3 MCUA3 XCS1
SPWM1 RD14 MCUA2 MCUA2 XWR MCUA4
RD13 MCUA1 MCUA1 XRD MCUA3
SPWM2 RD12 MCUA0 MCUA0
MCUA8 MCUA9
MCUA2
RD11 MCUA1
MCUA7 MCUA5 MCUA3 MCUA1 MCUA0 MCUA2 MCUA4 MCUA6
RD10 MCUA0
P8V
PGND
RD9 XRST
D1.8VDSP
D3.3VDSP XRST
VMCHG
VC16
D3.3VDSP D1.8VDSP
DGND
A3.3V
DGND
TST10 TST11 TST12 EDCNG
RSV2
FOK
RSV0 RSV1
PLCK0
FMSYNC
TST3
TST4 TST5 TST6 TST7 TST8 TST9
MIRR
ST1 ST2
ST3 ST4
TSD-M
LDM1 LDM2
CLS-SW OPN-SW LMT-SW BUFEMP
TRST
TMS TDI TCK
TDOA
BLKSYNC
CLVLOCK
SYNCLOCK
CD/XDVD
LDON
XFTSMUTE
XSPMUTE
RD8 VMCHG
D3.3VDSP D3.3V D3.3V
VC16 MIRR LDON
CD/XDVD
AGND
A3.3V A1.8V
DGND
XLCAS XUCAS
XMOE
A5V
D1.8VDSP D1.8V D1.8V
RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0
SPD- DGND DGND DGND
SP_DET
XRAS XMWR
SPD+
RA3 RA2 RA1 RA0
D3.3V
A3.3V TDOA TDOA
EDO3.3V TCKA
TCK TCKA TDIA
VC16 TDI TDIA TMSA
TMS TMSA
TRST TRSTA TRSTA
BUFEMP
FOK
BUFEMP BUFEMP TSD-M
FOK FOK
TSD-M TSD-M XSPMUTE
XSPMUTE XSPMUTE XFTSMUTE
XFTSMUTE XFTSMUTE CD/XDVD
LDON LDON LDON
CD/XDVD CD/XDVD DGND
EDCNG
DGND SYNCLOCK SYNCLOCK SYNCLOCK
CLVLOCK CLVLOCK CLVLOCK
EDCNG EDCNG C2PO
LRCK
RA4 RA5 RA6 RA7 RA8 RA9
BCK
XMOE
XUCAS XLCAS
DADT
RD8 RD9
RD10 RD11 RD12 RD13 RD14 RD15
CD/XDVD
LDON
MIRR
CLS-SW
XFTSMUTE
XSPMUTE
TSD-M
LDM1 LDM2
OPN-SW LMT-SW
A1.8V A1.8V A1.8V
A3.3V A3.3V A3.3V
A5V A5V A5V
AGND AGND AGND
DGND DGND
PGND PGND PGND
P8V P8V P8V
U1 : DVD MAIN CIRCUIT PC BOARD-1 (F/E SECTION) NADG-7807 NADG-7807
To Optical pickup
To Spindle motor
(1%)

DV-CP701
SCHEMATIC
DIAGRAM
A
1
2
3
4
5
BCDEFGH
Q1004
2SK3019 Q1003
2SK3019
Q1005
2SK3019
P1001
C1010 222K
C1009 222K
C1008 222K
C1007 222K
C1011
331J
C1006 220J
C1005 220J
C1004 220J
C1003 220J
C1001 104K
C1002 104K
C1012 104Z
C1038 104Z
C1034 104K
C1033 104K
C1035
103K
C1030 104K
C1027 102J
C1031 104Z
C1024 473K
C1020 104K
C1051 104Z
C1049 104Z
C1025
104Z
C1015 333K
C1016 333K
C1017 151J
C1239 105Z
C1230 105Z
C1251 471J
C1252 104Z
C1253 471J
C1254 104Z
C1225 105Z
C1218 105ZC1217 105Z
C1221 105Z
C1223 105Z
C1222 104Z
C1224
473K
C1216 154K
C1215 101J
C1214 223K
C1213 101J
C1212 104K
C1211 223K
C1210 151J
C1209 223K
C1208 105Z
C1206 105Z
C1207 105Z
C1232 105Z
C1233 105Z
C1203
105Z
C1201
105Z
C1202
105Z
C1205
C1204
C1023
104Z
C1021
104Z
C1040
102J
C1044
102J
C1226
103K
C1102 101J
C1103 102J
C1101 221J
C1108 104Z
C1107 104Z
C1110
104Z
C1113 223K
C1114 223K
C1105
104Z
C1104
104Z
C1219
331J
C1220
331J
C1037 100D
C1036 100D
C1028
104K
C1029
104K
C1255 471J
C1256 104Z
C1116 223K
C1115 473K
C1117
104
C1014 104Z
C1018 105Z
C1019
C1227105Z C1228105Z C1229105Z
C1050 100/6.3
C1052 22/16
C1026
10/16
C1053
1/50V
C1257 100/6.3
C1022
22/16
C1042
10/16
C1039
47/6.3
C1041
10/16
C1046
10/16
C1043
47/6.3
C1045
10/16
C1111
10/16 C1112
10/16
C1236
100/6.3
C1237
100/6.3
C1238
10/16
C1234
22/16 C1235
22/6.3
C1106
22/16
C1047
22/16
C1013
22/16
C1032 22/16
C1109
22/16
R1029 100KR1028 3.9K
R1008
R1243
0R1242 0R1244 0
R1022 100
R1021 0
R1025
R1024
R1026
R1003 12KF
R1229 0
R1228 0
R1223 22K
R1216 150K
R1217 470
R1219 47K R1220 100K
R1222 1.8K
R1221 1.8K
R1218 68K
R1215 47K
R1214 47K
R1240
10K
R1203
R1204
R1202
0
R1201
R1207
180
R1017 33
R1015
1K
R1016 33
R1020 33
R1018
1K
R1019 33
R1233
33K
R1232
1.5K
R1104 33K R1103
56K
R1106 33K R1105
56K
R1102 15K R1101
56K
R1109
10K
R1108
10K
R1111
10K
R1110
10K
R1114 7.5K R1113
33K
R1115
33K
R1116 7.5K
R1118
10K
R1117
(1%)
10K
R1112
0
R1107
0
R1227
10K
R1225
10K
R1224
0
R1226
0
R1231 33K
R1230
0
R1012 22K
R1007 22K
R1011 22K
R1010 22K
R1014 10K
R1005 22K
R1006 22K
R1009 10K
R1013
R1004
10K
R1119
22K
R1123
22K
R1120 10K
R1124 10K
R1125
10K
R1126 100K
R1122
100K
R1121
10K
R1127
0
R1128
0
R1023
0
R1027
1K
Q1006
2SB1132
Q1007
2SB1132
L1001
47U
L1002
47U
L1201 2.2U
L1202 2.2U
L1203 2.2U
L1204 2.2U
L1251
2.2U
P01
VC25
P02
A5V
P168
DP167 CP166
BP165 AP164
CD_D P163 CD_C P162
CD_B P161 CD_A
P17
CD/DVD-PD
P29
AIN
P25
AIP
P24
CD-F
P26
CD-E
P35
MP
P36
MB
P37
MLPF
P50 CE
P51
AMPSEN
P52
AMPSDT
P53
AMPSCK
P23
RFSIN
P18
RFN
P19
RFP
P12
RFOP
P20
RFDC
P07
AGND
P06
T-
P05
T+
P04
F-
P03
F+
P56
RA10 P55
RA11
P66
GPWM4
P65
GPWM2
P64
GPWM0
P70
GPWM3
P69
GPWM1
P67
TILT
P74 VREFH
P89 VCOI
P78
JITT
P90 HF
P109 TP
P110 TP
P75
BLKSYNC
P77
FMSYNC
P79
STS3
P80
TST4
P81
TST5
P82
TST6
P83
TST7
P84
TST8
P85
TST9
P86
TST10
P87
TST11
P88
TST12
P96
RSV0
P94
ST4
P93
ST3 P92 ST2 P91 ST1
P97
RSV1
P111
EDCNG
P112
CLVLOCK
P113
SYNCLOCK
P114
CD/XDVD
P115
LDON
P116
XFTSMUTE
P117
XSPMUTE
P118
TSD-M
P119
FOK
P120
BUFEMP
P121
TRST
P122
TMS
P123
TDI
P124
TCK
P125
TDO
P107 LRCK
P106 DOUT
P105 DADT
P104 C2PO
P103 DRVRDY
P108 BCK
P102 DRVTX
P101 DRVIRQ
P100 DRVCLK
P99 DRVRX
P98 DRVRST
P139 DCK
P138 XSHD
P137 VEFG
P135 HDRQ
P136 XHAC
P134 VDT0
P133 VDT1
P132 VDT2
P131 VDT3
P130 VDT4
P129 VDT5
P128 VDT6
P127 VDT7
P41
LINK
P08
LD-DVD
P11
IOP_DV
P13
A5V
P14 A5V
P10
IOP_CD
P09
LD-CD
P68
SE
P57
GPWM5
P33 TD
P34 FD
P32 SLD
P27
SPD
P16
XSPMUTE P15
XFTSMUTE
P22
LDM2
P21
LDM1
P40
SPWM1
P46
SPWM2
P42SPDL1
P43
SLED1
P44TSCON
P45FSCON
P48
SPDL0
P49
SLED0
P28 LDRSP
P38 MIRR
P62 FEO
P71 FE1
P72 TE1
P63 TEO
P60 PI
P58
AMPMNT
P59 A3.3VDSP
P61 A1.8VDSP
P141
XRDY
P140
XINT
P95
RSV2
P30
RFAC0
P54
DFCT
P144
XCSI
P143
XWR
P142
XRD
P39
LDON
P73 VREFL
P47 MIN
P76
PLCK
P126 MCK
P145
VC16
P148
ATC
P149
SPDET
P150 LDNG-
P151 LDNG+ P155 SPD- P158 SPD+
P159
SLD+ P160 SLD-
Q1002
NJM2115V
3+B
8
21
Q1002
NJM2115V
5
6-B47
Q1101
FAN8042
CTL
15
DO1+
36
DO1-
35
DO2+
34
DO2-
33
DO3+
32
DO3-
29
DO4+
28
DO4-
27
DO5+
26
DO5-
25
FWD
16
GND_0
6
GND_1
7
GND_2
18
GND_3
19
GND_4
30
GND_5
31
GND_6
42
GND_7
43
IN1+
1
IN1-
2
IN2+
4
IN2-
5
IN3+
9
IN3-
10
IN4+
12
IN4-
13
MUTE123
21
MUTE4
22
OPIN1+
48
OPIN1-
47
OPIN2+
41
OPIN2-
40
OPOUT1
46
OPOUT2
39
OUT1
3
OUT2
8
OUT3 11
OUT4
14
PS
38
PVCC1
37
PVCC2
24
REV
17
SGND
20
SVCC
45
TSD-M
23
VREF
44
16
2
1
33
Q1001
CXD1881AR
A12
A23
AIN
60
AIP
59
ATON
61
ATOP
62
B11
B24
BYP
56
C10
C25
CDLD
22
CDPD
24
CD_A
16 CD_B15 CD_C14 CD_D13
CD_E
18
CD_F
17
CE 41 CN8CP7
D9
D26
DFT
34
DIN
55
DIP
54
DVDLD
21
DVDPD
23
DVDRFN
2DVDRFP
1
FE
40
FNN
52
FNP
53
LCN 43
LCP 44
LDON
26
LINK
33
MB
29
MEV
50
MEVO
32
MIN
31
MIRR
27
MLPF
30
MNTR 42
MP
28
PI 38
RFAC
57
RFDC
64
RFSIN
63
RX
49
SCLK 46
SDATA 47
SDEN 48
TE 39
TPH 35
V125 36
V25 37
V33 45
VC
20
VNA
51
VNB
25
VPA
58
VPB
19
P1102 P1101
Q1251 IC41LV16100-50T
A0 21 A1 22 A2 23 A3 24A427 A528 A629 A730 A831 A932
DQ0 2 DQ1 3
DQ1043 DQ1144 DQ1246 DQ1347 DQ1448 DQ1549
DQ2 4 DQ3 5 DQ4 7 DQ5 8 DQ6 9 DQ7 10DQ841 DQ942
LCAS
35
NC1 11
NC2 15 NC3 16 NC4 19 NC5 20
NC6
36
NC740 OE33 RAS 18 UCAS34
VCC1 1 VCC2 6 VCC3 25VSS126
VSS245 VSS350
WR 17
Q1201
CXD1885Q
AD0 91 AD1 92 AD2 93 AD3 95 AD4 96 AD5 97 AD6 98 AD7 99 AD8 100 AD9 101
ALCR 2
ATC 74
AVDD18_0 84
AVDD18_1
104
AVDD33_0 79 AVDD33_1 94
AVDD33_2105
AVSS_0 73 AVSS_1 89 AVSS_2 90
AVSS_3110
BCK 62
C2PO 58
CHG 82 CSL 65
DA0/TSCON106 DA1/SLED107 DA2/FSCON108 DA3/SLED2_TILT109
DADT 59
DCK 49
DOTX 60
DRVCLK 56
DRVIRQ 50
DRVRDY 57
DRVRST 51
DRVRX 55 DRVTX 54
DTC 72
DVDD18_0 32
DVDD18_1 52
DVDD18_2136
DVDD18_3156
DVDD18_4188 DVDD18_5208
DVDD33_0 1
DVDD33_1 27
DVDD33_2 53
DVDD33_3131
DVDD33_4157 DVDD33_5183
DVSS_0 21
DVSS_1 35
DVSS_2 38
DVSS_3125
DVSS_4142
DVSS_5177 DVSS_6194
EXPLDT 64
EXVCO 63
FG111
GIO0179 GIO1180 GIO10191 GIO11192 GIO12193 GIO13195 GIO14196 GIO15197 GIO16198 GIO17199 GIO18200 GIO19201 GIO2181 GIO3182 GIO4184 GIO5185 GIO6186 GIO7187 GIO8189 GIO9190
GPWM0114 GPWM1115 GPWM2116 GPWM3117 GPWM4118 GPWM5119
HDRQ 45
HF 75
HFD 70
IREF 78
JMOUT 81 JMREF 80
LPF1 86 LPF2 87 LRCK 61
MA0 5
MA1 6
MA2 7
MA3 8
MA4 9
MA5 10
MA6 11
MA7 12
MA8 13
MALE 24
MCS 25
MD0 15
MD1 16
MD2 17
MD3 18
MD4 19
MD5 20
MD6 22
MD7 23
MINT 30
MIRRORH 71
MODSEL0175 MODSEL1176 MODSEL2178
MRD 28
MRDY 29
MSEL0 3
MSEL1 4
MWR 26
RA0137
RA1135
RA10124 RA11123
RA2134 RA3133 RA4132
RA5130 RA6129 RA7128 RA8127 RA9126
RC 88
RD0148 RD1147
RD10154 RD11153 RD12152 RD13151 RD14150 RD15149
RD2146 RD3145 RD4144 RD5143
RD6141 RD7140
RD8158
RD9155
RFOKGH69
SCLKH 68
SI 66 SO 67
SPWM1112 SPWM2113
SYSCK 31
TCK205 TDI204 TDO206 TEST0159 TEST1160 TEST10169 TEST11170 TEST12171 TEST13172 TEST14173 TEST15174 TEST2161 TEST3162 TEST4163 TEST5164 TEST6165 TEST7166 TEST8167 TEST9168
TESTSEL 14
TLC0 76 TLC1 77
TMS203 TRST202
VCOI 85
VDT0 44
VDT1 43
VDT2 42
VDT3 41
VDT4 40
VDT5 39
VDT6 37
VDT7 36
VEFG 47
VFBC 83
VMCHG207
VREFH102 VREFL103
XHAC 46
XI 33
XLCAS120
XMOE122
XMWR139
XO 34
XRAS138
XSHD 48
XUCAS
121
R1001
1.5K*4
1
2
3
45
6
7
8
R1002
0*4
1
2
3
45
6
7
8
R1235
100*41
2
3
45
6
7
8
R1236
100*41
2
3
45
6
7
8
R1234 100*4
1
2
3
45
6
7
8
R1237 100*4
1
2
3
45
6
7
8
R1238
100*4
1
2
3
4 5
6
7
8
R1252 100*4
1 2 3 45
6 7
8
R1251 100*4
1 2 3 45
6 7
8
R1253 100*4
1 2 3 45
6 7
8
R1254 100*4
1 2 3 45
6 7 8
R1212 180*4
1 2 3 45
6 7
8
R1211 100*4
1 2 3 45
6 7
8
R1209 33*4
1 2
3 45
6 7
8
R1213
10K*4
1
2
3
45
6
7
8
R1241
100*4
1
2
3
45
6
7
8
R1210 100*4
1 2 3 45
6 7
8
R1205 100*4
1 2 3 45
6 7
8
R1206
100*4
1 2 3 45
6 7
8
R1208 100*4
1 2 3 45
6 7
8
R1292
10K*8
1
2
3
4
56
7
8
9
10
R1291
10K*8
1
2
3
4
56
7
8
9
10
R1293
10K*8
1
2
3
4
56
7
8
9
10
X1201
P1291
Q1102
BA4510FV
38
24
1
Q1102
BA4510FV
5
67
P1292
A3.3V CD/XDVD
RFAC
CD/XDVD RFAC
VR_CD
VR_DVD
A5V
AGND
RF-OP RF-OP
FAMPSEN AMPSEN
VC25 AMPSDT AMPSDT
AMPSCK AMPSCK
AA DFCT
GG MIRR
HH
AGND C2PO
CC D3.3V DADT
DD BCK
EE
D3.3V
RFAC MIRR DFCT
AMPSEN
LRCK
AMPSCK AMPSDT
BB A
LD-DVD B DGND
AGND CDOUT
VR-DVD D
DGND
NC AMPMNT
PD
VR-CD D FE0 FE0 FE DRVRDY
AGND CTE0 DRVTX
LD-CD BPI DRVIRQ
NC1 AA3.3V DRVCLK
NC2 D VC16 DRVRX
F+ CA5V TE0 TE DRVRST
F- BDFCT
T+ A LINK
T- MIRR
LRCK
BCK
DADT C2PO
T- T+ F- F+
LD-CD
LD-DVD
F E H G
PD
AGND
AGND
VDT7
VDT6
VDT5
VDT4
VDT3
VDT2
GAGND VDT1
A5V
VDT0
HXHAC
VC25 PI VEFG
AMPMNT XSHD
AMPSCK AMPSDT AMPSEN
BCK
LRCK DOUT DADT C2PO
DRVRDY
DRVTX
DRVIRQ DRVCLK
DRVRX
DRVRST
DCK
A5V
VC25
AGND
EMIRR HDRQ
RFAC
TE1
F
AMPMNT
PI TE FE
D3.3V
VC25 A5V
AGND
LPF2 LPF1
LDONO JMOUT
A3.3V A3.3VDSP
A1.8V
A5V VC16
LD-DVD
A1.8VDSP
HDRQ
VDT4 VDT5 VDT6 VDT7 VDT0 VDT1 VDT2 VDT3
DCK
XSHD VEFG XHAC
AGND DRVRST0
VREFH DRVIRQ0
JMOUT
AGND VREFL
SP_DET
T- T+ F- F+
SE
MIRR DFCT
D3.3VDSP
LD-CD
AGND
PI TE FE
DGND
SP_DET A3.3VDSP D1.8VDSP
TSCON TSCON DRVRST0
VDT04 VDT05 VDT06 VDT07 VDT00 VDT01 VDT02 VDT03 HDRQ0
DCK0
XSHD0 VEFG0 XHAC0
SLED SLED DRVIRQ0
FSCON FSCON DCK0
XSHD0
VEFG0
FG XHAC0
SPWM1 SPWM1 HDRQ0
SPWM2 SPWM2 VDT00
GPWM0 VDT01
VC16
GPWM1 VDT02
MIRR LDON
CD/XDVD
GPWM2 VDT03
GPWM3 VDT04
DGND LDRSPO
GPWM4 VDT05
LMT-SW DGND
SLD- VDT06
SLD+
TSD-M
XSPMUTE
XFTSMUTE
LDM2 LDM1
LDRSPO
XLCAS VDT07
SPD- XUCAS DGND
SPD+ XMOE 33.8688MHZ 33.8688MHZ
SPDO
SPDLO RA11 D1.8VDSP
PGND
DGND VC16
RA10 MCKO0 MCKO
RA9 XINT
VC16
RA8 XRDY XINT XINT
XRD XRDY XRDY
LOD- SLED RA7 D3.3VDSP XRD XRD
LOD+ SLDO RA6 D3.3VDSP XWR XWR XWR
SPD- RA5 XCS1 XCS1 XCS1
SPD+ RA4
SLD+ TDO MCUD7 MCUD7 MCUD7
TSCON RA3 MCUD6 MCUD6 MCUD6
RA2 D1.8VDSP DGND D3.3V MCUD5
SLD- RA1 MCUD5 MCUD5 MCUD4
T- RA0 MCUD4 MCUD4
T+ FDO MCUD3 MCUD3 MCUD3
CLS-SW F+ FSCON RD7 MCUD2 MCUD2 MCUD2
LOD- F- RD6 MCUD1 MCUD1 MCUD1
OPN-SW
VC16
XRAS MCUD0 MCUD0 MCUD0
LOD+ XMWR RD5 MCUA9 MCUA9
MCUD0 MCUD2 MCUD4 MCUD6
MCUD7
MCUD5 MCUD3 MCUD1
DGND RD4 MCUA8 MCUA8 MCUA9
RD3 MCUA7 MCUA7 MCUA8
A5V RD2 MCUA6 MCUA6 D3.3V MCUA7
AGND RD1 MCUA5 MCUA5 MCUA6
SPDLO RD0 MCUA4 MCUA4 MCUA5
RD15 MCUA3 MCUA3 XCS1
SPWM1 RD14 MCUA2 MCUA2 XWR MCUA4
RD13 MCUA1 MCUA1 XRD MCUA3
SPWM2 RD12 MCUA0 MCUA0
MCUA8 MCUA9
MCUA2
RD11 MCUA1
MCUA7 MCUA5 MCUA3 MCUA1 MCUA0 MCUA2 MCUA4 MCUA6
RD10 MCUA0
P8V
PGND
RD9 XRST
D1.8VDSP
D3.3VDSP XRST
VMCHG
VC16
D3.3VDSP D1.8VDSP
DGND
A3.3V
DGND
TST10 TST11 TST12 EDCNG
RSV2
FOK
RSV0 RSV1
PLCK0
FMSYNC
TST3
TST4 TST5 TST6 TST7 TST8 TST9
MIRR
ST1 ST2
ST3 ST4
TSD-M
LDM1 LDM2
CLS-SW OPN-SW LMT-SW BUFEMP
TRST
TMS TDI TCK
TDOA
BLKSYNC
CLVLOCK
SYNCLOCK
CD/XDVD
LDON
XFTSMUTE
XSPMUTE
RD8 VMCHG
D3.3VDSP D3.3V D3.3V
VC16 MIRR LDON
CD/XDVD
AGND
A3.3V A1.8V
DGND
XLCAS XUCAS
XMOE
A5V
D1.8VDSP D1.8V D1.8V
RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0
SPD- DGND DGND DGND
SP_DET
XRAS XMWR
SPD+
RA3 RA2 RA1 RA0
D3.3V
A3.3V TDOA TDOA
EDO3.3V TCKA
TCK TCKA TDIA
VC16 TDI TDIA TMSA
TMS TMSA
TRST TRSTA TRSTA
BUFEMP
FOK
BUFEMP BUFEMP TSD-M
FOK FOK
TSD-M TSD-M XSPMUTE
XSPMUTE XSPMUTE XFTSMUTE
XFTSMUTE XFTSMUTE CD/XDVD
LDON LDON LDON
CD/XDVD CD/XDVD DGND
EDCNG
DGND SYNCLOCK SYNCLOCK SYNCLOCK
CLVLOCK CLVLOCK CLVLOCK
EDCNG EDCNG C2PO
LRCK
RA4 RA5 RA6 RA7 RA8 RA9
BCK
XMOE
XUCAS XLCAS
DADT
RD8 RD9
RD10 RD11 RD12 RD13 RD14 RD15
CD/XDVD
LDON
MIRR
CLS-SW
XFTSMUTE
XSPMUTE
TSD-M
LDM1 LDM2
OPN-SW LMT-SW
A1.8V A1.8V A1.8V
A3.3V A3.3V A3.3V
A5V A5V A5V
AGND AGND AGND
DGND DGND
PGND PGND PGND
P8V P8V P8V
U1 : DVD MAIN CIRCUIT PC BOARD-1 (F/E SECTION) NADG-7807 NADG-7807
To Optical pickup
To Spindle motor
(1%)

DV-CP701
SCHEMATIC
DIAGRAM
A
1
2
3
4
5
BCDEFGH
Q1004
2SK3019 Q1003
2SK3019
Q1005
2SK3019
P1001
C1010 222K
C1009 222K
C1008 222K
C1007 222K
C1011
331J
C1006 220J
C1005 220J
C1004 220J
C1003 220J
C1001 104K
C1002 104K
C1012 104Z
C1038 104Z
C1034 104K
C1033 104K
C1035
103K
C1030 104K
C1027 102J
C1031 104Z
C1024 473K
C1020 104K
C1051 104Z
C1049 104Z
C1025
104Z
C1015 333K
C1016 333K
C1017 151J
C1239 105Z
C1230 105Z
C1251 471J
C1252 104Z
C1253 471J
C1254 104Z
C1225 105Z
C1218 105ZC1217 105Z
C1221 105Z
C1223 105Z
C1222 104Z
C1224
473K
C1216 154K
C1215 101J
C1214 223K
C1213 101J
C1212 104K
C1211 223K
C1210 151J
C1209 223K
C1208 105Z
C1206 105Z
C1207 105Z
C1232 105Z
C1233 105Z
C1203
105Z
C1201
105Z
C1202
105Z
C1205
C1204
C1023
104Z
C1021
104Z
C1040
102J
C1044
102J
C1226
103K
C1102 101J
C1103 102J
C1101 221J
C1108 104Z
C1107 104Z
C1110
104Z
C1113 223K
C1114 223K
C1105
104Z
C1104
104Z
C1219
331J
C1220
331J
C1037 100D
C1036 100D
C1028
104K
C1029
104K
C1255 471J
C1256 104Z
C1116 223K
C1115 473K
C1117
104
C1014 104Z
C1018 105Z
C1019
C1227105Z C1228105Z C1229105Z
C1050 100/6.3
C1052 22/16
C1026
10/16
C1053
1/50V
C1257 100/6.3
C1022
22/16
C1042
10/16
C1039
47/6.3
C1041
10/16
C1046
10/16
C1043
47/6.3
C1045
10/16
C1111
10/16 C1112
10/16
C1236
100/6.3
C1237
100/6.3
C1238
10/16
C1234
22/16 C1235
22/6.3
C1106
22/16
C1047
22/16
C1013
22/16
C1032 22/16
C1109
22/16
R1029 100KR1028 3.9K
R1008
R1243
0R1242 0R1244 0
R1022 100
R1021 0
R1025
R1024
R1026
R1003 12KF
R1229 0
R1228 0
R1223 22K
R1216 150K
R1217 470
R1219 47K R1220 100K
R1222 1.8K
R1221 1.8K
R1218 68K
R1215 47K
R1214 47K
R1240
10K
R1203
R1204
R1202
0
R1201
R1207
180
R1017 33
R1015
1K
R1016 33
R1020 33
R1018
1K
R1019 33
R1233
33K
R1232
1.5K
R1104 33K R1103
56K
R1106 33K R1105
56K
R1102 15K R1101
56K
R1109
10K
R1108
10K
R1111
10K
R1110
10K
R1114 7.5K R1113
33K
R1115
33K
R1116 7.5K
R1118
10K
R1117
(1%)
10K
R1112
0
R1107
0
R1227
10K
R1225
10K
R1224
0
R1226
0
R1231 33K
R1230
0
R1012 22K
R1007 22K
R1011 22K
R1010 22K
R1014 10K
R1005 22K
R1006 22K
R1009 10K
R1013
R1004
10K
R1119
22K
R1123
22K
R1120 10K
R1124 10K
R1125
10K
R1126 100K
R1122
100K
R1121
10K
R1127
0
R1128
0
R1023
0
R1027
1K
Q1006
2SB1132
Q1007
2SB1132
L1001
47U
L1002
47U
L1201 2.2U
L1202 2.2U
L1203 2.2U
L1204 2.2U
L1251
2.2U
P01
VC25
P02
A5V
P168
DP167 CP166
BP165 AP164
CD_D P163 CD_C P162
CD_B P161 CD_A
P17
CD/DVD-PD
P29
AIN
P25
AIP
P24
CD-F
P26
CD-E
P35
MP
P36
MB
P37
MLPF
P50 CE
P51
AMPSEN
P52
AMPSDT
P53
AMPSCK
P23
RFSIN
P18
RFN
P19
RFP
P12
RFOP
P20
RFDC
P07
AGND
P06
T-
P05
T+
P04
F-
P03
F+
P56
RA10 P55
RA11
P66
GPWM4
P65
GPWM2
P64
GPWM0
P70
GPWM3
P69
GPWM1
P67
TILT
P74 VREFH
P89 VCOI
P78
JITT
P90 HF
P109 TP
P110 TP
P75
BLKSYNC
P77
FMSYNC
P79
STS3
P80
TST4
P81
TST5
P82
TST6
P83
TST7
P84
TST8
P85
TST9
P86
TST10
P87
TST11
P88
TST12
P96
RSV0
P94
ST4
P93
ST3 P92 ST2 P91 ST1
P97
RSV1
P111
EDCNG
P112
CLVLOCK
P113
SYNCLOCK
P114
CD/XDVD
P115
LDON
P116
XFTSMUTE
P117
XSPMUTE
P118
TSD-M
P119
FOK
P120
BUFEMP
P121
TRST
P122
TMS
P123
TDI
P124
TCK
P125
TDO
P107 LRCK
P106 DOUT
P105 DADT
P104 C2PO
P103 DRVRDY
P108 BCK
P102 DRVTX
P101 DRVIRQ
P100 DRVCLK
P99 DRVRX
P98 DRVRST
P139 DCK
P138 XSHD
P137 VEFG
P135 HDRQ
P136 XHAC
P134 VDT0
P133 VDT1
P132 VDT2
P131 VDT3
P130 VDT4
P129 VDT5
P128 VDT6
P127 VDT7
P41
LINK
P08
LD-DVD
P11
IOP_DV
P13
A5V
P14 A5V
P10
IOP_CD
P09
LD-CD
P68
SE
P57
GPWM5
P33 TD
P34 FD
P32 SLD
P27
SPD
P16
XSPMUTE P15
XFTSMUTE
P22
LDM2
P21
LDM1
P40
SPWM1
P46
SPWM2
P42SPDL1
P43
SLED1
P44TSCON
P45FSCON
P48
SPDL0
P49
SLED0
P28 LDRSP
P38 MIRR
P62 FEO
P71 FE1
P72 TE1
P63 TEO
P60 PI
P58
AMPMNT
P59 A3.3VDSP
P61 A1.8VDSP
P141
XRDY
P140
XINT
P95
RSV2
P30
RFAC0
P54
DFCT
P144
XCSI
P143
XWR
P142
XRD
P39
LDON
P73 VREFL
P47 MIN
P76
PLCK
P126 MCK
P145
VC16
P148
ATC
P149
SPDET
P150 LDNG-
P151 LDNG+ P155 SPD- P158 SPD+
P159
SLD+ P160 SLD-
Q1002
NJM2115V
3+B
8
21
Q1002
NJM2115V
5
6-B47
Q1101
FAN8042
CTL
15
DO1+
36
DO1-
35
DO2+
34
DO2-
33
DO3+
32
DO3-
29
DO4+
28
DO4-
27
DO5+
26
DO5-
25
FWD
16
GND_0
6
GND_1
7
GND_2
18
GND_3
19
GND_4
30
GND_5
31
GND_6
42
GND_7
43
IN1+
1
IN1-
2
IN2+
4
IN2-
5
IN3+
9
IN3-
10
IN4+
12
IN4-
13
MUTE123
21
MUTE4
22
OPIN1+
48
OPIN1-
47
OPIN2+
41
OPIN2-
40
OPOUT1
46
OPOUT2
39
OUT1
3
OUT2
8
OUT3 11
OUT4
14
PS
38
PVCC1
37
PVCC2
24
REV
17
SGND
20
SVCC
45
TSD-M
23
VREF
44
16
2
1
33
Q1001
CXD1881AR
A12
A23
AIN
60
AIP
59
ATON
61
ATOP
62
B11
B24
BYP
56
C10
C25
CDLD
22
CDPD
24
CD_A
16 CD_B15 CD_C14 CD_D13
CD_E
18
CD_F
17
CE 41 CN8CP7
D9
D26
DFT
34
DIN
55
DIP
54
DVDLD
21
DVDPD
23
DVDRFN
2DVDRFP
1
FE
40
FNN
52
FNP
53
LCN 43
LCP 44
LDON
26
LINK
33
MB
29
MEV
50
MEVO
32
MIN
31
MIRR
27
MLPF
30
MNTR 42
MP
28
PI 38
RFAC
57
RFDC
64
RFSIN
63
RX
49
SCLK 46
SDATA 47
SDEN 48
TE 39
TPH 35
V125 36
V25 37
V33 45
VC
20
VNA
51
VNB
25
VPA
58
VPB
19
P1102 P1101
Q1251 IC41LV16100-50T
A0 21 A1 22 A2 23 A3 24A427 A528 A629 A730 A831 A932
DQ0 2 DQ1 3
DQ1043 DQ1144 DQ1246 DQ1347 DQ1448 DQ1549
DQ2 4 DQ3 5 DQ4 7 DQ5 8 DQ6 9 DQ7 10DQ841 DQ942
LCAS
35
NC1 11
NC2 15 NC3 16 NC4 19 NC5 20
NC6
36
NC740 OE33 RAS 18 UCAS34
VCC1 1 VCC2 6 VCC3 25VSS126
VSS245 VSS350
WR 17
Q1201
CXD1885Q
AD0 91 AD1 92 AD2 93 AD3 95 AD4 96 AD5 97 AD6 98 AD7 99 AD8 100 AD9 101
ALCR 2
ATC 74
AVDD18_0 84
AVDD18_1
104
AVDD33_0 79 AVDD33_1 94
AVDD33_2105
AVSS_0 73 AVSS_1 89 AVSS_2 90
AVSS_3110
BCK 62
C2PO 58
CHG 82 CSL 65
DA0/TSCON106 DA1/SLED107 DA2/FSCON108 DA3/SLED2_TILT109
DADT 59
DCK 49
DOTX 60
DRVCLK 56
DRVIRQ 50
DRVRDY 57
DRVRST 51
DRVRX 55 DRVTX 54
DTC 72
DVDD18_0 32
DVDD18_1 52
DVDD18_2136
DVDD18_3156
DVDD18_4188 DVDD18_5208
DVDD33_0 1
DVDD33_1 27
DVDD33_2 53
DVDD33_3131
DVDD33_4157 DVDD33_5183
DVSS_0 21
DVSS_1 35
DVSS_2 38
DVSS_3125
DVSS_4142
DVSS_5177 DVSS_6194
EXPLDT 64
EXVCO 63
FG111
GIO0179 GIO1180 GIO10191 GIO11192 GIO12193 GIO13195 GIO14196 GIO15197 GIO16198 GIO17199 GIO18200 GIO19201 GIO2181 GIO3182 GIO4184 GIO5185 GIO6186 GIO7187 GIO8189 GIO9190
GPWM0114 GPWM1115 GPWM2116 GPWM3117 GPWM4118 GPWM5119
HDRQ 45
HF 75
HFD 70
IREF 78
JMOUT 81 JMREF 80
LPF1 86 LPF2 87 LRCK 61
MA0 5
MA1 6
MA2 7
MA3 8
MA4 9
MA5 10
MA6 11
MA7 12
MA8 13
MALE 24
MCS 25
MD0 15
MD1 16
MD2 17
MD3 18
MD4 19
MD5 20
MD6 22
MD7 23
MINT 30
MIRRORH 71
MODSEL0175 MODSEL1176 MODSEL2178
MRD 28
MRDY 29
MSEL0 3
MSEL1 4
MWR 26
RA0137
RA1135
RA10124 RA11123
RA2134 RA3133 RA4132
RA5130 RA6129 RA7128 RA8127 RA9126
RC 88
RD0148 RD1147
RD10154 RD11153 RD12152 RD13151 RD14150 RD15149
RD2146 RD3145 RD4144 RD5143
RD6141 RD7140
RD8158
RD9155
RFOKGH69
SCLKH 68
SI 66 SO 67
SPWM1112 SPWM2113
SYSCK 31
TCK205 TDI204 TDO206 TEST0159 TEST1160 TEST10169 TEST11170 TEST12171 TEST13172 TEST14173 TEST15174 TEST2161 TEST3162 TEST4163 TEST5164 TEST6165 TEST7166 TEST8167 TEST9168
TESTSEL 14
TLC0 76 TLC1 77
TMS203 TRST202
VCOI 85
VDT0 44
VDT1 43
VDT2 42
VDT3 41
VDT4 40
VDT5 39
VDT6 37
VDT7 36
VEFG 47
VFBC 83
VMCHG207
VREFH102 VREFL103
XHAC 46
XI 33
XLCAS120
XMOE122
XMWR139
XO 34
XRAS138
XSHD 48
XUCAS
121
R1001
1.5K*4
1
2
3
45
6
7
8
R1002
0*4
1
2
3
45
6
7
8
R1235
100*41
2
3
45
6
7
8
R1236
100*41
2
3
45
6
7
8
R1234 100*4
1
2
3
45
6
7
8
R1237 100*4
1
2
3
45
6
7
8
R1238
100*4
1
2
3
4 5
6
7
8
R1252 100*4
1 2 3 45
6 7
8
R1251 100*4
1 2 3 45
6 7
8
R1253 100*4
1 2 3 45
6 7
8
R1254 100*4
1 2 3 45
6 7 8
R1212 180*4
1 2 3 45
6 7
8
R1211 100*4
1 2 3 45
6 7
8
R1209 33*4
1 2
3 45
6 7
8
R1213
10K*4
1
2
3
45
6
7
8
R1241
100*4
1
2
3
45
6
7
8
R1210 100*4
1 2 3 45
6 7
8
R1205 100*4
1 2 3 45
6 7
8
R1206
100*4
1 2 3 45
6 7
8
R1208 100*4
1 2 3 45
6 7
8
R1292
10K*8
1
2
3
4
56
7
8
9
10
R1291
10K*8
1
2
3
4
56
7
8
9
10
R1293
10K*8
1
2
3
4
56
7
8
9
10
X1201
P1291
Q1102
BA4510FV
38
24
1
Q1102
BA4510FV
5
67
P1292
A3.3V CD/XDVD
RFAC
CD/XDVD RFAC
VR_CD
VR_DVD
A5V
AGND
RF-OP RF-OP
FAMPSEN AMPSEN
VC25 AMPSDT AMPSDT
AMPSCK AMPSCK
AA DFCT
GG MIRR
HH
AGND C2PO
CC D3.3V DADT
DD BCK
EE
D3.3V
RFAC MIRR DFCT
AMPSEN
LRCK
AMPSCK AMPSDT
BB A
LD-DVD B DGND
AGND CDOUT
VR-DVD D
DGND
NC AMPMNT
PD
VR-CD D FE0 FE0 FE DRVRDY
AGND CTE0 DRVTX
LD-CD BPI DRVIRQ
NC1 AA3.3V DRVCLK
NC2 D VC16 DRVRX
F+ CA5V TE0 TE DRVRST
F- BDFCT
T+ A LINK
T- MIRR
LRCK
BCK
DADT C2PO
T- T+ F- F+
LD-CD
LD-DVD
F E H G
PD
AGND
AGND
VDT7
VDT6
VDT5
VDT4
VDT3
VDT2
GAGND VDT1
A5V
VDT0
HXHAC
VC25 PI VEFG
AMPMNT XSHD
AMPSCK AMPSDT AMPSEN
BCK
LRCK DOUT DADT C2PO
DRVRDY
DRVTX
DRVIRQ DRVCLK
DRVRX
DRVRST
DCK
A5V
VC25
AGND
EMIRR HDRQ
RFAC
TE1
F
AMPMNT
PI TE FE
D3.3V
VC25 A5V
AGND
LPF2 LPF1
LDONO JMOUT
A3.3V A3.3VDSP
A1.8V
A5V VC16
LD-DVD
A1.8VDSP
HDRQ
VDT4 VDT5 VDT6 VDT7 VDT0 VDT1 VDT2 VDT3
DCK
XSHD VEFG XHAC
AGND DRVRST0
VREFH DRVIRQ0
JMOUT
AGND VREFL
SP_DET
T- T+ F- F+
SE
MIRR DFCT
D3.3VDSP
LD-CD
AGND
PI TE FE
DGND
SP_DET A3.3VDSP D1.8VDSP
TSCON TSCON DRVRST0
VDT04 VDT05 VDT06 VDT07 VDT00 VDT01 VDT02 VDT03 HDRQ0
DCK0
XSHD0 VEFG0 XHAC0
SLED SLED DRVIRQ0
FSCON FSCON DCK0
XSHD0
VEFG0
FG XHAC0
SPWM1 SPWM1 HDRQ0
SPWM2 SPWM2 VDT00
GPWM0 VDT01
VC16
GPWM1 VDT02
MIRR LDON
CD/XDVD
GPWM2 VDT03
GPWM3 VDT04
DGND LDRSPO
GPWM4 VDT05
LMT-SW DGND
SLD- VDT06
SLD+
TSD-M
XSPMUTE
XFTSMUTE
LDM2 LDM1
LDRSPO
XLCAS VDT07
SPD- XUCAS DGND
SPD+ XMOE 33.8688MHZ 33.8688MHZ
SPDO
SPDLO RA11 D1.8VDSP
PGND
DGND VC16
RA10 MCKO0 MCKO
RA9 XINT
VC16
RA8 XRDY XINT XINT
XRD XRDY XRDY
LOD- SLED RA7 D3.3VDSP XRD XRD
LOD+ SLDO RA6 D3.3VDSP XWR XWR XWR
SPD- RA5 XCS1 XCS1 XCS1
SPD+ RA4
SLD+ TDO MCUD7 MCUD7 MCUD7
TSCON RA3 MCUD6 MCUD6 MCUD6
RA2 D1.8VDSP DGND D3.3V MCUD5
SLD- RA1 MCUD5 MCUD5 MCUD4
T- RA0 MCUD4 MCUD4
T+ FDO MCUD3 MCUD3 MCUD3
CLS-SW F+ FSCON RD7 MCUD2 MCUD2 MCUD2
LOD- F- RD6 MCUD1 MCUD1 MCUD1
OPN-SW
VC16
XRAS MCUD0 MCUD0 MCUD0
LOD+ XMWR RD5 MCUA9 MCUA9
MCUD0 MCUD2 MCUD4 MCUD6
MCUD7
MCUD5 MCUD3 MCUD1
DGND RD4 MCUA8 MCUA8 MCUA9
RD3 MCUA7 MCUA7 MCUA8
A5V RD2 MCUA6 MCUA6 D3.3V MCUA7
AGND RD1 MCUA5 MCUA5 MCUA6
SPDLO RD0 MCUA4 MCUA4 MCUA5
RD15 MCUA3 MCUA3 XCS1
SPWM1 RD14 MCUA2 MCUA2 XWR MCUA4
RD13 MCUA1 MCUA1 XRD MCUA3
SPWM2 RD12 MCUA0 MCUA0
MCUA8 MCUA9
MCUA2
RD11 MCUA1
MCUA7 MCUA5 MCUA3 MCUA1 MCUA0 MCUA2 MCUA4 MCUA6
RD10 MCUA0
P8V
PGND
RD9 XRST
D1.8VDSP
D3.3VDSP XRST
VMCHG
VC16
D3.3VDSP D1.8VDSP
DGND
A3.3V
DGND
TST10 TST11 TST12 EDCNG
RSV2
FOK
RSV0 RSV1
PLCK0
FMSYNC
TST3
TST4 TST5 TST6 TST7 TST8 TST9
MIRR
ST1 ST2
ST3 ST4
TSD-M
LDM1 LDM2
CLS-SW OPN-SW LMT-SW BUFEMP
TRST
TMS TDI TCK
TDOA
BLKSYNC
CLVLOCK
SYNCLOCK
CD/XDVD
LDON
XFTSMUTE
XSPMUTE
RD8 VMCHG
D3.3VDSP D3.3V D3.3V
VC16 MIRR LDON
CD/XDVD
AGND
A3.3V A1.8V
DGND
XLCAS XUCAS
XMOE
A5V
D1.8VDSP D1.8V D1.8V
RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0
SPD- DGND DGND DGND
SP_DET
XRAS XMWR
SPD+
RA3 RA2 RA1 RA0
D3.3V
A3.3V TDOA TDOA
EDO3.3V TCKA
TCK TCKA TDIA
VC16 TDI TDIA TMSA
TMS TMSA
TRST TRSTA TRSTA
BUFEMP
FOK
BUFEMP BUFEMP TSD-M
FOK FOK
TSD-M TSD-M XSPMUTE
XSPMUTE XSPMUTE XFTSMUTE
XFTSMUTE XFTSMUTE CD/XDVD
LDON LDON LDON
CD/XDVD CD/XDVD DGND
EDCNG
DGND SYNCLOCK SYNCLOCK SYNCLOCK
CLVLOCK CLVLOCK CLVLOCK
EDCNG EDCNG C2PO
LRCK
RA4 RA5 RA6 RA7 RA8 RA9
BCK
XMOE
XUCAS XLCAS
DADT
RD8 RD9
RD10 RD11 RD12 RD13 RD14 RD15
CD/XDVD
LDON
MIRR
CLS-SW
XFTSMUTE
XSPMUTE
TSD-M
LDM1 LDM2
OPN-SW LMT-SW
A1.8V A1.8V A1.8V
A3.3V A3.3V A3.3V
A5V A5V A5V
AGND AGND AGND
DGND DGND
PGND PGND PGND
P8V P8V P8V
U1 : DVD MAIN CIRCUIT PC BOARD-1 (F/E SECTION) NADG-7807 NADG-7807
To Optical pickup
To Spindle motor
(1%)

DV-CP701
SCHEMATIC
DIAGRAM U1 : DVD MAIN CIRCUIT PC BOARD-2 (B/E SECTION) NADG-7807
A
1
2
3
4
5
BCDEFGH
D2901
D_LED
P2701
Q2904
MPC29M33T
GI
O
Q2903
MPC2918T
GIO
Q2901
MPC29M33T
GI
O
Q2902
MPC2918T
GIO
P2501A
Q2001
M65783AFP
ACLKI
32
AGND18_0
107
AGND33_0
116
AGND33_2
128
ALE 171
AO0
26
AO1
23
AO2
22
AOD
21
AVDD18_0
105
AVDD33_0
112
AVDD33_1
115
AVDD33_2
119
AVDD33_3
124
AVDD33_4
127
AVDD33_5
131
AVRI
114
AVRIO
126
BCLK
45
BD0 54
BD1 53
BD2
51
BD3
50
BD4
49
BD5
48
BD6
47
BD7
46
BDEN
44
BDREQ
41
BIAS01
132
BIAS02
130
BIAS1
120
BIAS2
118
BSECH 55
BSEL0 169
CAS 78
CDBCK
34
CDDATA
31
CDDIN
36
CDLRCK
35
CDMCK
37
CLKIN
106
CLKO
108
DACCLK
20
DAOUTB
110
DCS 73
DCS2 76
DOCLK
28
DOUT0
30
DOUT1
29
DOUTOB
122
DQML 83
DQMU 82
DWE 80
GND_0
16
GND_1
33
GND_10 189
GND_11 208
GND_2
52
GND_3 67
GND_4 81
GND_5 96
GND_6
109
GND_7
134
GND_8
152
GND_9 170
HA11 194
HA12 193
HA13 192
HA14 191
HAD0 190
HAD1 188
HAD10 177
HAD11 176
HAD12 175
HAD13 174
HAD14 173
HAD15 172
HAD2 187
HAD3 186
HAD4 185
HAD5 184
HAD6 183
HAD7 182
HAD8 181
HAD9 178
IREF
113
IREFO
125
LRCLK
27
MA0 64
MA1 62
MA10 66
MA11 72
MA2 58
MA3 56
MA4 57
MA5 61
MA6 63
MA7 65
MA8 68
MA9 70
MBA0 71
MBA1 69
MCLK 79
MD0 101
MD1 99
MD10 91
MD11 93
MD12 95
MD13 98
MD14 100
MD15 102
MD2 97
MD3 94
MD4 92
MD5 90
MD6 86
MD7 84
MD8 85
MD9 87
NC1 195
NC2 204
NC3 205
NC4 206
PA0
111
PA00
123
PA01
129
PA02
133
PA1
117
PA2
121
PIO00/SIN0
10
PIO01/SOUT0
9
PIO02/SCLK0
6
PIO03/SRDY0
5
PIO04/SIN1
4
PIO05/SOUT1
3
PIO06/SCLK1
2
PIO07/SRDY1
1
PIO10SIN2
19
PIO11/SOUT2
18
PIO12/SCLK2
17
PIO13/SRDY2
15
PIO14/RXD
14
PIO15/TXD
13
PIO16CTS
12
PIO17/RTS
11
PIO20/INTM0
150
PIO21/INTM1
151
PIO22/INTM2/TMO0
153
PIO23//TMO1
154
PIO24BSEL3/TMO2
155
PIO25/BSEL2
156
PIO26/BSEL1
157
PIO27/HA10
158
PIO30/EXWIT
145
PIO31/ADBCK
40
PIO32/ADLRCK
39
PIO33/ADDIN
38
PIO34/ADMCK/SDITRSYNC
146
PIO35/PXCLK/SDITRCLK
147
PIO36/HSYNC/SDIEVENT0
148
PIO37/VSYNC/SDIEVENT1
149
PIO40/PD0/SDITRDATA0
135
PIO41/PD1/SDITRDATA1
136
PIO42/PD2/SDITRDATA2
137
PIO43/PD3/SDITRDATA3
138
PIO44/PD4/SDITRDATA4
139
PIO45/PD5/SDITRDATA5
140
PIO46/PD6/SDITRDATA6
141
PIO47/PD7/SDITRDATA7
144
RAS 77
RESET 207
RS 168
SDIDBI 159
SDITCK 160
SDITDI 163
SDITDO 164
SDITMS 165
SDITRST 166
TEST0 203
TEST1 202
TEST2 201
TEST3 200
TEST4 197
TEST5 196
VDD18_0
7
VDD18_1
24
VDD18_10 198
VDD18_2
42
VDD18_3 59
VDD18_4 74
VDD18_5 88
VDD18_6 103
VDD18_7
142
VDD18_8 161
VDD18_9 179
VDD33_0
8
VDD33_1
25
VDD33_10 199
VDD33_2
43
VDD33_3 60
VDD33_4 75
VDD33_5 89
VDD33_6 104
VDD33_7
143
VDD33_8 162
VDD33_9 180
WS 167
Q2303 IS42S16400-7T
A0 23
A1 24
A10/AP 22
A1135
A2 25
A3 26A429 A530 A631 A732 A833 A934 BA0 20
BA1 21
CKE37 CLK38
DQ0 2
DQ1 4
DQ1045
DQ1147 DQ1248
DQ1350 DQ1451
DQ1553
DQ2 5
DQ3 7
DQ4 8
DQ5 10
DQ6 11
DQ7 13DQ842
DQ944
LDQM 15
NC0
36
NC140 UDQM39
VDD0 1
VDD1 14
VDD2 27
VDDQ0 3
VDDQ1 9
VDDQ243
VDDQ349
VSS028
VSS141
VSS254
VSSQ0 6
VSSQ1 12
VSSQ246
VSSQ3
52
CAS 17
CS 19
RAS 18
WE 16
Q2302
MX29LV160ABTC-90
A0 25A124
A10
6A115A124A133A142A151A1648
A1717 A1816
A199
A223
A2010
A322 A421 A520 A619 A718
A88 A97
DQ0 29
DQ1 31
DQ10 34
DQ11 36
DQ12 39
DQ13 41
DQ14 43
DQ2 33
DQ3 35
DQ4 38
DQ5 40
DQ6 42
DQ7 44
DQ8 30
DQ9 32
NC213
QD15/A-1 45
VCC 37
VSS0 27
VSS1 46
BY/RY
15
BYTE 47
CE 26
OE 28
RESET12 WE11
WP/ACC
14
Q2002
S-80127CNMC-JKM-T2
DS1
NC3
VDD 5
VOUT 4
VSS
2
Q2401
NJM2373AF
ANOD 2
CATH
5NC0 1
NC1 3REF
4
Q2301TC74VCX162373FT
1D147 1D246
1D344 1D443
1D541 1D640
1D738 1D837
1LE48 1Q1 2
1Q2 3
1Q3 5
1Q4 6
1Q5 8
1Q6 9
1Q7 11
1Q8 12
2D136 2D235
2D333 2D432
2D530 2D629
2D727 2D826 2LE25
2Q1 13
2Q2 14
2Q3 16
2Q4 17
2Q5 19
2Q6 20
2Q7 22
2Q8 23
GND_0 4
GND_1 10
GND_2 15
GND_3 21GND_428
GND_534
GND_639
GND_745
VCC_0 7
VCC_1 18VCC_231
VCC_3
42
1OE 1
2OE 24
Q2501
TC74VHCT125AFT
1A21Y3
2A52Y63A9
3Y 8
4A 12
4Y 11
GND7
VCC 141G1
2G43G 10
4G 13
Q2502
TC7SZ125FU
2
GND
3
VCC 5
4
G
1
Q2003
IS24C08-3Z
A0 1
A1 2
A2 3
NC7SCL6SDA5
VCC8
VSS 4
P2401B
Q2601
BU2288FV
AO1 9
AO2 10
FSEL 14MO1
3MO2
4
NC 16
SO1 13
SO2 15
VDD11
VDD25VDD312
VSS12
VSS26VSS311
XTI7XTO
8
P2001B
P2702
P2002B
C2419
105Z
C2002 105Z
C2001 105Z
C2003 105Z
C2004 105Z
C2006 105Z C2005 105Z
C2007 105Z
C2008 105Z
C2009 105Z
C2010 105Z
C2011 105Z
C2012 105Z
C2013 105Z
C2014 105Z
C2015105Z C2016
105Z
C2017
105Z
C2018 105Z
C2020 105Z
C2021 105Z
C2022 105Z
C2023 105Z
C2402
105Z C2404
C2416
102J
C2024
101J
C2028 105Z
C2417
102J
C2309
105Z
C2310
105Z
C2311
105Z
C2312
105Z
C2315
105Z
C2314
105Z
C2313
105Z
C2317
105Z
C2318
105Z
C2501
104Z
C2502 104Z
C2304
104Z
C2303
104Z
C2301
104Z
C2302
104Z
C2306
105Z
C2308 105Z
C2305 101J
C2025
104Z
C2606
120J
C2608
120J
C2609
C2607
C2604
105Z
C2603
105Z
C2605
105Z
C2406 105Z
C2408 105Z
C2411 105Z C2413 105Z C2410 105Z C2414 105Z C2412 105Z
C2409 105Z C2407 105Z
C2405 105Z
C2019 105Z
C2029 105Z
C2403
100/6.3
C2418
100/6.3
C2401
100/6.3
C2415
10/16
C2316
10/16
C2307
100/6.3
C2602
100/6.3
C2601
22/6.3
C2027
100/6.3
C2026
100/6.3
C2905
100/6.3
C2903
100/6.3
C2902 100/6.3
C2901 100/6.3
C2904
100/6.3
C2906 100/6.3
R2906
R2905
R2033
47
R2304
R2303
R2302
10K
R2301 1K
R2433
R2432
R2431 0
R2055 10K
R2057 10K
R2056 10K
R2054
0
R2904
R2608
0
R2607
R2050 47
R2051 47
R2052 47
R2053 47
R2005 47
R2006 47
R2020 0
R2021 10
R2043
10K
R2401 22
R2402
220
R2019 10K
R2018 22
R2017 22 R2016 22 R2015 22
R2014
R2013 R2012 R2011 22
R2010 22 R2009 47 R2008 47 R2007 47
R2004 47
R2003 47 R2002 47 R2001 47
R2029 2.2K
R2028 2.2K
R2031 10
R2030 10
R2027 0
R2026 0
R2405 10
R2416 1.5K
F
R2415 270 F
R2422 1.5K
F
R2421 270 F
R2419 1.5K
F
R2418 270 FR2428 1.5K
F
R2427 270 F
R2425 1.5K
F
R2424 270 F
R2414 1.2K
R2417 1.2K R2420 1.2K R2423 1.2K
R2426 1.2K
R2501 0
R2502 22
R2503 22
R2504 22
R2505 22
R2044 1K
R2024
47
R2032 47
R2045
4.7K
R2034 47
R2036
10K
R2601
560
R2602
22
R2606
R2605 22
R2604
100
R2603
100
R2403
0
R2404 R2429 0
R2430 0
R2901 0
R2902 0
R2903 0
R2037 10K
R2408 3.3K F
R2409
R2412 3.3K F
R2413
R2406 270 F
R2407 270 F
R2410 270 F
R2411 270 F
R2046 R2047 R2048
R2049 0
Q2402
2SA1774
Q2404
2SA1774
Q2403
2SA1774
Q2406
2SA1774
Q2405
2SA1774
L2404
2.2U
L2405
2.2U
L2401 2.2U
L2302 2.2U
L2301
2.2U
L2602
BLM21P221SG
L2604
L2603
L2601
BLM21P221SG
L2002 2.2U
L2001 2.2U
L2903
2.2U
L2902
2.2U
L2901 2.2U
P152
INTM1
P146
4A
P147
4Y
P157
BY/RD
P2901A
R2042
15*4
1
2
3
45
6
7
8
R2025
47*4
1 2 3 45
6 7
8
R2038
15*4
1
2
3
45
6
7
8
R2040
15*4
1
2
3
45
6
7
8
R2039
15*4
1
2
3
45
6
7
8
R2041
15*4
1
2
3
45
6
7
8
R2023
47*4
1 2 3 45
6 7
8
R2022
47*4
1 2 3 45
6 7
8
R2035 47*4
1
2
3
45
6
7
8
X2601
FCX-03-27MHZ
AGND
A3.3V
DGND
D3.3V
AGND
LRCLK
CSDACSUR CSDACCSW
CSDACLR DAT-CSW
DAT-SLSR
DIGOUT0 DIGOUT1
BITCLK
DAT-DMIX
DACCLK CSDMIX
MD MC
AMUTE
DACRST
A1.8V
DAT-LR
DGND
DRVIRQ D1.8V
DRVRDY A5V
DRVCLK
DRVRX PGND
DRVTX P8V
DRVRST
DOUT
BCK P8V
LRCK PGND
DADT SW+5V
DGND
SW+3.3V
LRCLK
CSDACSUR
CSDACCSW
CSDACLR
DADT
LRCK
BCK
ACLKI
DOUT
DIGOUT0 DIGOUT1
BITCLK DAT-LR
DAT-CSW
DAT-SLSR DAT-DMIX
DACCLK CSDMIX
MD MC
FSEL
AMUTE
DACRST DRVRST
DRVTX DRVRX
DRVCLK DRVRDY FP_SIN
FP_SOUT
FP_CLK
FP_CS
DGND1
HDRQ
FP_CLK
FP_CS
FP_SOUT
FP_SIN
XHAC SW+3.3V
DCK
XSHD VDT0 VDT1 VDT2 VDT3 VDT4 VDT5 VDT6 VDT7
DCK
XHAC HDRQ
SW+1.8V
XSHD
VDT7 BED+3.3V BED+3.3V
VDT6 BED+1.8V BED+1.8V
VDT5
VDT4
VDT3
VDT2
VDT1
VDT0
MC_RST
SW+1.8V SW+3.3V
SW+5V
E+5V
MICONGND BEMA3
DSTBX BEMA4
DSPSCK BEMA2
DSPSO
DSPSI BEMA5
BEMA1
BEMA6
BEMA0 DGND1 MCA14
BEMA7 ROM3.3V
ROM3.3V
BEMA10 MCA15
MCA11
MC_RST
MCA16
BEMA8 MCA12 MCAD0 MCA15 MCA17
BEMA4 BEMA3 BEMBA1 MCA13 MCAD1 MCA16 MCA18 MCAD0
BEMA5 BEMA2 BEMA9 MCA14 MCA19 MCAD8
BEMA6 BEMA1 BEMBA0 MCAD2 MCA17 MCA20 MCAD1
BEMA7 BEMA0 BEMA11 MCAD0 MCAD3 MCA18 MCA21 MCAD9
BEMA8 BEMA10 MCAD1 MCA22 MCAD2
BEMA9 BEMBA1 MCAD2 MCAD4 MCA19 MCA11 MCAD10
BEMA11 BEMBA0 MCAD3 MCAD5 MCA20 MCA10 MCAD3
BEDCS MCAD4 MC_WS0 MCAD11
BERAS MCAD5 MCAD6 MCA21 MC_RSTO
TEST4
BEMCKA BECAS MCAD6
DRVIRQ MC_RST
MCAD7 MCA22 MCAD4
BEDQMU BEDWE MCAD7 MCAD8 MCA23 WP MCAD12
BEDQML MCAD9 MCA24 MCAD5
MCA12 MCAD13
BEMD8 BEMD7 MCAD8 MCAD10 MCA25 MCA13 MCAD6
MCAD9 MCAD11 MCA26 MCA23 MCAD14
BEMD9 BEMD6 BEMD7 MCAD10 MCA24 MCAD7
BEMD10 BEMD5 BEMD8 MCAD11 MCAD12 MCA27 MCA25 MCAD15
BEMD6 MCAD12 MCAD13 MCA28 MCA26 MC_RS
BEMD11 BEMD4
BEMCKA BEDQMU
FSEL
ACLKI
BEMD9 MCAD13 MCA27
BEMD12 BEMD3 MCAD14 MCAD14 MCA29 MCA28 FROMCS
MCAD15 MCAD15 MCA30 MCA29
BEMD13 BEMD2 BEMD5 ALE
BEMD14 BEMD1 BEMD10 MCA30
BEMD4 FROMCS
BEMD15 BEMD0 BEMD11 MC_RS
BEMD3 MC_WS0 DGND1
BEMD12 SDITRST MCA10
SDRAM_D3 SDITMS
BEMD2 SDITDO
BEMD13 SDITDI
BEMD1 SDITCK
BEMD14
BEMD0
BEMD15 SDIDBI
MCA10
DGND1
LETTER
DGND1
SW+3.3V
DGND1
CR
IREF VREF
CB
BIAS2 BIAS1
CY
S_Y
IREF0
VREF
S_C
BIAS02 BIAS01
27MHZ AVENC1.8V
DRVIRQ
SQUEEZE
AVENC3.3V
33.8688MHZ
VDACGND SDA
PLLA3.3V
PLLD3.3V SCL
VDACGND SW+1.8V
DGND1
SW+3.3V
SW+5V
DGND
FSEL DRVIRQ
V+5V
ACLKI
DGND
PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8
P/IX
TRSYNCA
PIXCLK
HSYNC
VSYNC
RGBON
SDA
SCL
AR2/AR1X
MC_RST
SDITRST
SDITMS SDITDO
SDITDI
SDITCK
SDIDBI
BED+3.3V
TEST4
SW+1.8V
DGND1
SW+3.3V
P/IX
PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8
PIXCLK
HSYNC
VSYNC
SDA
TRSYNCA
MC_RST
SDITRST
SDITMS SDITDO
SDITDI
SDITCK
SDIDBI
BED+3.3V BED+3.3V
TEST4
CR/R
DGND
CB/B
DGND
CY/G
DGND
SY
DGND
SC
DGND
LETTER
SQUEEZE
P/IX
AR2/AR1X
RGBON
SCL
DGND1
To U4: VIDEO SIGNAL OUTPUT TERMINAL PC BOARD
NAVD-7810
To Mechanism control PC board
NADG-7809
From Mechanism control PC board
NADG-7809
To AUDIO OUTPUT TERMINAL PC BOARD
NAAF-7811

DV-CP701
SCHEMATIC
DIAGRAM U1 : DVD MAIN CIRCUIT PC BOARD-2 (B/E SECTION) NADG-7807
A
1
2
3
4
5
BCDEFGH
D2901
D_LED
P2701
Q2904
MPC29M33T
GI
O
Q2903
MPC2918T
GIO
Q2901
MPC29M33T
GI
O
Q2902
MPC2918T
GIO
P2501A
Q2001
M65783AFP
ACLKI
32
AGND18_0
107
AGND33_0
116
AGND33_2
128
ALE 171
AO0
26
AO1
23
AO2
22
AOD
21
AVDD18_0
105
AVDD33_0
112
AVDD33_1
115
AVDD33_2
119
AVDD33_3
124
AVDD33_4
127
AVDD33_5
131
AVRI
114
AVRIO
126
BCLK
45
BD0 54
BD1 53
BD2
51
BD3
50
BD4
49
BD5
48
BD6
47
BD7
46
BDEN
44
BDREQ
41
BIAS01
132
BIAS02
130
BIAS1
120
BIAS2
118
BSECH 55
BSEL0 169
CAS 78
CDBCK
34
CDDATA
31
CDDIN
36
CDLRCK
35
CDMCK
37
CLKIN
106
CLKO
108
DACCLK
20
DAOUTB
110
DCS 73
DCS2 76
DOCLK
28
DOUT0
30
DOUT1
29
DOUTOB
122
DQML 83
DQMU 82
DWE 80
GND_0
16
GND_1
33
GND_10 189
GND_11 208
GND_2
52
GND_3 67
GND_4 81
GND_5 96
GND_6
109
GND_7
134
GND_8
152
GND_9 170
HA11 194
HA12 193
HA13 192
HA14 191
HAD0 190
HAD1 188
HAD10 177
HAD11 176
HAD12 175
HAD13 174
HAD14 173
HAD15 172
HAD2 187
HAD3 186
HAD4 185
HAD5 184
HAD6 183
HAD7 182
HAD8 181
HAD9 178
IREF
113
IREFO
125
LRCLK
27
MA0 64
MA1 62
MA10 66
MA11 72
MA2 58
MA3 56
MA4 57
MA5 61
MA6 63
MA7 65
MA8 68
MA9 70
MBA0 71
MBA1 69
MCLK 79
MD0 101
MD1 99
MD10 91
MD11 93
MD12 95
MD13 98
MD14 100
MD15 102
MD2 97
MD3 94
MD4 92
MD5 90
MD6 86
MD7 84
MD8 85
MD9 87
NC1 195
NC2 204
NC3 205
NC4 206
PA0
111
PA00
123
PA01
129
PA02
133
PA1
117
PA2
121
PIO00/SIN0
10
PIO01/SOUT0
9
PIO02/SCLK0
6
PIO03/SRDY0
5
PIO04/SIN1
4
PIO05/SOUT1
3
PIO06/SCLK1
2
PIO07/SRDY1
1
PIO10SIN2
19
PIO11/SOUT2
18
PIO12/SCLK2
17
PIO13/SRDY2
15
PIO14/RXD
14
PIO15/TXD
13
PIO16CTS
12
PIO17/RTS
11
PIO20/INTM0
150
PIO21/INTM1
151
PIO22/INTM2/TMO0
153
PIO23//TMO1
154
PIO24BSEL3/TMO2
155
PIO25/BSEL2
156
PIO26/BSEL1
157
PIO27/HA10
158
PIO30/EXWIT
145
PIO31/ADBCK
40
PIO32/ADLRCK
39
PIO33/ADDIN
38
PIO34/ADMCK/SDITRSYNC
146
PIO35/PXCLK/SDITRCLK
147
PIO36/HSYNC/SDIEVENT0
148
PIO37/VSYNC/SDIEVENT1
149
PIO40/PD0/SDITRDATA0
135
PIO41/PD1/SDITRDATA1
136
PIO42/PD2/SDITRDATA2
137
PIO43/PD3/SDITRDATA3
138
PIO44/PD4/SDITRDATA4
139
PIO45/PD5/SDITRDATA5
140
PIO46/PD6/SDITRDATA6
141
PIO47/PD7/SDITRDATA7
144
RAS 77
RESET 207
RS 168
SDIDBI 159
SDITCK 160
SDITDI 163
SDITDO 164
SDITMS 165
SDITRST 166
TEST0 203
TEST1 202
TEST2 201
TEST3 200
TEST4 197
TEST5 196
VDD18_0
7
VDD18_1
24
VDD18_10 198
VDD18_2
42
VDD18_3 59
VDD18_4 74
VDD18_5 88
VDD18_6 103
VDD18_7
142
VDD18_8 161
VDD18_9 179
VDD33_0
8
VDD33_1
25
VDD33_10 199
VDD33_2
43
VDD33_3 60
VDD33_4 75
VDD33_5 89
VDD33_6 104
VDD33_7
143
VDD33_8 162
VDD33_9 180
WS 167
Q2303 IS42S16400-7T
A0 23
A1 24
A10/AP 22
A1135
A2 25
A3 26A429 A530 A631 A732 A833 A934 BA0 20
BA1 21
CKE37 CLK38
DQ0 2
DQ1 4
DQ1045
DQ1147 DQ1248
DQ1350 DQ1451
DQ1553
DQ2 5
DQ3 7
DQ4 8
DQ5 10
DQ6 11
DQ7 13DQ842
DQ944
LDQM 15
NC0
36
NC140 UDQM39
VDD0 1
VDD1 14
VDD2 27
VDDQ0 3
VDDQ1 9
VDDQ243
VDDQ349
VSS028
VSS141
VSS254
VSSQ0 6
VSSQ1 12
VSSQ246
VSSQ3
52
CAS 17
CS 19
RAS 18
WE 16
Q2302
MX29LV160ABTC-90
A0 25A124
A10
6A115A124A133A142A151A1648
A1717 A1816
A199
A223
A2010
A322 A421 A520 A619 A718
A88 A97
DQ0 29
DQ1 31
DQ10 34
DQ11 36
DQ12 39
DQ13 41
DQ14 43
DQ2 33
DQ3 35
DQ4 38
DQ5 40
DQ6 42
DQ7 44
DQ8 30
DQ9 32
NC213
QD15/A-1 45
VCC 37
VSS0 27
VSS1 46
BY/RY
15
BYTE 47
CE 26
OE 28
RESET12 WE11
WP/ACC
14
Q2002
S-80127CNMC-JKM-T2
DS1
NC3
VDD 5
VOUT 4
VSS
2
Q2401
NJM2373AF
ANOD 2
CATH
5NC0 1
NC1 3REF
4
Q2301TC74VCX162373FT
1D147 1D246
1D344 1D443
1D541 1D640
1D738 1D837
1LE48 1Q1 2
1Q2 3
1Q3 5
1Q4 6
1Q5 8
1Q6 9
1Q7 11
1Q8 12
2D136 2D235
2D333 2D432
2D530 2D629
2D727 2D826 2LE25
2Q1 13
2Q2 14
2Q3 16
2Q4 17
2Q5 19
2Q6 20
2Q7 22
2Q8 23
GND_0 4
GND_1 10
GND_2 15
GND_3 21GND_428
GND_534
GND_639
GND_745
VCC_0 7
VCC_1 18VCC_231
VCC_3
42
1OE 1
2OE 24
Q2501
TC74VHCT125AFT
1A21Y3
2A52Y63A9
3Y 8
4A 12
4Y 11
GND7
VCC 141G1
2G43G 10
4G 13
Q2502
TC7SZ125FU
2
GND
3
VCC 5
4
G
1
Q2003
IS24C08-3Z
A0 1
A1 2
A2 3
NC7SCL6SDA5
VCC8
VSS 4
P2401B
Q2601
BU2288FV
AO1 9
AO2 10
FSEL 14MO1
3MO2
4
NC 16
SO1 13
SO2 15
VDD11
VDD25VDD312
VSS12
VSS26VSS311
XTI7XTO
8
P2001B
P2702
P2002B
C2419
105Z
C2002 105Z
C2001 105Z
C2003 105Z
C2004 105Z
C2006 105Z C2005 105Z
C2007 105Z
C2008 105Z
C2009 105Z
C2010 105Z
C2011 105Z
C2012 105Z
C2013 105Z
C2014 105Z
C2015105Z C2016
105Z
C2017
105Z
C2018 105Z
C2020 105Z
C2021 105Z
C2022 105Z
C2023 105Z
C2402
105Z C2404
C2416
102J
C2024
101J
C2028 105Z
C2417
102J
C2309
105Z
C2310
105Z
C2311
105Z
C2312
105Z
C2315
105Z
C2314
105Z
C2313
105Z
C2317
105Z
C2318
105Z
C2501
104Z
C2502 104Z
C2304
104Z
C2303
104Z
C2301
104Z
C2302
104Z
C2306
105Z
C2308 105Z
C2305 101J
C2025
104Z
C2606
120J
C2608
120J
C2609
C2607
C2604
105Z
C2603
105Z
C2605
105Z
C2406 105Z
C2408 105Z
C2411 105Z C2413 105Z C2410 105Z C2414 105Z C2412 105Z
C2409 105Z C2407 105Z
C2405 105Z
C2019 105Z
C2029 105Z
C2403
100/6.3
C2418
100/6.3
C2401
100/6.3
C2415
10/16
C2316
10/16
C2307
100/6.3
C2602
100/6.3
C2601
22/6.3
C2027
100/6.3
C2026
100/6.3
C2905
100/6.3
C2903
100/6.3
C2902 100/6.3
C2901 100/6.3
C2904
100/6.3
C2906 100/6.3
R2906
R2905
R2033
47
R2304
R2303
R2302
10K
R2301 1K
R2433
R2432
R2431 0
R2055 10K
R2057 10K
R2056 10K
R2054
0
R2904
R2608
0
R2607
R2050 47
R2051 47
R2052 47
R2053 47
R2005 47
R2006 47
R2020 0
R2021 10
R2043
10K
R2401 22
R2402
220
R2019 10K
R2018 22
R2017 22 R2016 22 R2015 22
R2014
R2013 R2012 R2011 22
R2010 22 R2009 47 R2008 47 R2007 47
R2004 47
R2003 47 R2002 47 R2001 47
R2029 2.2K
R2028 2.2K
R2031 10
R2030 10
R2027 0
R2026 0
R2405 10
R2416 1.5K
F
R2415 270 F
R2422 1.5K
F
R2421 270 F
R2419 1.5K
F
R2418 270 FR2428 1.5K
F
R2427 270 F
R2425 1.5K
F
R2424 270 F
R2414 1.2K
R2417 1.2K R2420 1.2K R2423 1.2K
R2426 1.2K
R2501 0
R2502 22
R2503 22
R2504 22
R2505 22
R2044 1K
R2024
47
R2032 47
R2045
4.7K
R2034 47
R2036
10K
R2601
560
R2602
22
R2606
R2605 22
R2604
100
R2603
100
R2403
0
R2404 R2429 0
R2430 0
R2901 0
R2902 0
R2903 0
R2037 10K
R2408 3.3K F
R2409
R2412 3.3K F
R2413
R2406 270 F
R2407 270 F
R2410 270 F
R2411 270 F
R2046 R2047 R2048
R2049 0
Q2402
2SA1774
Q2404
2SA1774
Q2403
2SA1774
Q2406
2SA1774
Q2405
2SA1774
L2404
2.2U
L2405
2.2U
L2401 2.2U
L2302 2.2U
L2301
2.2U
L2602
BLM21P221SG
L2604
L2603
L2601
BLM21P221SG
L2002 2.2U
L2001 2.2U
L2903
2.2U
L2902
2.2U
L2901 2.2U
P152
INTM1
P146
4A
P147
4Y
P157
BY/RD
P2901A
R2042
15*4
1
2
3
45
6
7
8
R2025
47*4
1 2 3 45
6 7
8
R2038
15*4
1
2
3
45
6
7
8
R2040
15*4
1
2
3
45
6
7
8
R2039
15*4
1
2
3
45
6
7
8
R2041
15*4
1
2
3
45
6
7
8
R2023
47*4
1 2 3 45
6 7
8
R2022
47*4
1 2 3 45
6 7
8
R2035 47*4
1
2
3
45
6
7
8
X2601
FCX-03-27MHZ
AGND
A3.3V
DGND
D3.3V
AGND
LRCLK
CSDACSUR CSDACCSW
CSDACLR DAT-CSW
DAT-SLSR
DIGOUT0 DIGOUT1
BITCLK
DAT-DMIX
DACCLK CSDMIX
MD MC
AMUTE
DACRST
A1.8V
DAT-LR
DGND
DRVIRQ D1.8V
DRVRDY A5V
DRVCLK
DRVRX PGND
DRVTX P8V
DRVRST
DOUT
BCK P8V
LRCK PGND
DADT SW+5V
DGND
SW+3.3V
LRCLK
CSDACSUR
CSDACCSW
CSDACLR
DADT
LRCK
BCK
ACLKI
DOUT
DIGOUT0 DIGOUT1
BITCLK DAT-LR
DAT-CSW
DAT-SLSR DAT-DMIX
DACCLK CSDMIX
MD MC
FSEL
AMUTE
DACRST DRVRST
DRVTX DRVRX
DRVCLK DRVRDY FP_SIN
FP_SOUT
FP_CLK
FP_CS
DGND1
HDRQ
FP_CLK
FP_CS
FP_SOUT
FP_SIN
XHAC SW+3.3V
DCK
XSHD VDT0 VDT1 VDT2 VDT3 VDT4 VDT5 VDT6 VDT7
DCK
XHAC HDRQ
SW+1.8V
XSHD
VDT7 BED+3.3V BED+3.3V
VDT6 BED+1.8V BED+1.8V
VDT5
VDT4
VDT3
VDT2
VDT1
VDT0
MC_RST
SW+1.8V SW+3.3V
SW+5V
E+5V
MICONGND BEMA3
DSTBX BEMA4
DSPSCK BEMA2
DSPSO
DSPSI BEMA5
BEMA1
BEMA6
BEMA0 DGND1 MCA14
BEMA7 ROM3.3V
ROM3.3V
BEMA10 MCA15
MCA11
MC_RST
MCA16
BEMA8 MCA12 MCAD0 MCA15 MCA17
BEMA4 BEMA3 BEMBA1 MCA13 MCAD1 MCA16 MCA18 MCAD0
BEMA5 BEMA2 BEMA9 MCA14 MCA19 MCAD8
BEMA6 BEMA1 BEMBA0 MCAD2 MCA17 MCA20 MCAD1
BEMA7 BEMA0 BEMA11 MCAD0 MCAD3 MCA18 MCA21 MCAD9
BEMA8 BEMA10 MCAD1 MCA22 MCAD2
BEMA9 BEMBA1 MCAD2 MCAD4 MCA19 MCA11 MCAD10
BEMA11 BEMBA0 MCAD3 MCAD5 MCA20 MCA10 MCAD3
BEDCS MCAD4 MC_WS0 MCAD11
BERAS MCAD5 MCAD6 MCA21 MC_RSTO
TEST4
BEMCKA BECAS MCAD6
DRVIRQ MC_RST
MCAD7 MCA22 MCAD4
BEDQMU BEDWE MCAD7 MCAD8 MCA23 WP MCAD12
BEDQML MCAD9 MCA24 MCAD5
MCA12 MCAD13
BEMD8 BEMD7 MCAD8 MCAD10 MCA25 MCA13 MCAD6
MCAD9 MCAD11 MCA26 MCA23 MCAD14
BEMD9 BEMD6 BEMD7 MCAD10 MCA24 MCAD7
BEMD10 BEMD5 BEMD8 MCAD11 MCAD12 MCA27 MCA25 MCAD15
BEMD6 MCAD12 MCAD13 MCA28 MCA26 MC_RS
BEMD11 BEMD4
BEMCKA BEDQMU
FSEL
ACLKI
BEMD9 MCAD13 MCA27
BEMD12 BEMD3 MCAD14 MCAD14 MCA29 MCA28 FROMCS
MCAD15 MCAD15 MCA30 MCA29
BEMD13 BEMD2 BEMD5 ALE
BEMD14 BEMD1 BEMD10 MCA30
BEMD4 FROMCS
BEMD15 BEMD0 BEMD11 MC_RS
BEMD3 MC_WS0 DGND1
BEMD12 SDITRST MCA10
SDRAM_D3 SDITMS
BEMD2 SDITDO
BEMD13 SDITDI
BEMD1 SDITCK
BEMD14
BEMD0
BEMD15 SDIDBI
MCA10
DGND1
LETTER
DGND1
SW+3.3V
DGND1
CR
IREF VREF
CB
BIAS2 BIAS1
CY
S_Y
IREF0
VREF
S_C
BIAS02 BIAS01
27MHZ AVENC1.8V
DRVIRQ
SQUEEZE
AVENC3.3V
33.8688MHZ
VDACGND SDA
PLLA3.3V
PLLD3.3V SCL
VDACGND SW+1.8V
DGND1
SW+3.3V
SW+5V
DGND
FSEL DRVIRQ
V+5V
ACLKI
DGND
PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8
P/IX
TRSYNCA
PIXCLK
HSYNC
VSYNC
RGBON
SDA
SCL
AR2/AR1X
MC_RST
SDITRST
SDITMS SDITDO
SDITDI
SDITCK
SDIDBI
BED+3.3V
TEST4
SW+1.8V
DGND1
SW+3.3V
P/IX
PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8
PIXCLK
HSYNC
VSYNC
SDA
TRSYNCA
MC_RST
SDITRST
SDITMS SDITDO
SDITDI
SDITCK
SDIDBI
BED+3.3V BED+3.3V
TEST4
CR/R
DGND
CB/B
DGND
CY/G
DGND
SY
DGND
SC
DGND
LETTER
SQUEEZE
P/IX
AR2/AR1X
RGBON
SCL
DGND1
To U4: VIDEO SIGNAL OUTPUT TERMINAL PC BOARD
NAVD-7810
To Mechanism control PC board
NADG-7809
From Mechanism control PC board
NADG-7809
To AUDIO OUTPUT TERMINAL PC BOARD
NAAF-7811

DV-CP701
SCHEMATIC
DIAGRAM U1 : DVD MAIN CIRCUIT PC BOARD-2 (B/E SECTION) NADG-7807
A
1
2
3
4
5
BCDEFGH
D2901
D_LED
P2701
Q2904
MPC29M33T
GI
O
Q2903
MPC2918T
GIO
Q2901
MPC29M33T
GI
O
Q2902
MPC2918T
GIO
P2501A
Q2001
M65783AFP
ACLKI
32
AGND18_0
107
AGND33_0
116
AGND33_2
128
ALE 171
AO0
26
AO1
23
AO2
22
AOD
21
AVDD18_0
105
AVDD33_0
112
AVDD33_1
115
AVDD33_2
119
AVDD33_3
124
AVDD33_4
127
AVDD33_5
131
AVRI
114
AVRIO
126
BCLK
45
BD0 54
BD1 53
BD2
51
BD3
50
BD4
49
BD5
48
BD6
47
BD7
46
BDEN
44
BDREQ
41
BIAS01
132
BIAS02
130
BIAS1
120
BIAS2
118
BSECH 55
BSEL0 169
CAS 78
CDBCK
34
CDDATA
31
CDDIN
36
CDLRCK
35
CDMCK
37
CLKIN
106
CLKO
108
DACCLK
20
DAOUTB
110
DCS 73
DCS2 76
DOCLK
28
DOUT0
30
DOUT1
29
DOUTOB
122
DQML 83
DQMU 82
DWE 80
GND_0
16
GND_1
33
GND_10 189
GND_11 208
GND_2
52
GND_3 67
GND_4 81
GND_5 96
GND_6
109
GND_7
134
GND_8
152
GND_9 170
HA11 194
HA12 193
HA13 192
HA14 191
HAD0 190
HAD1 188
HAD10 177
HAD11 176
HAD12 175
HAD13 174
HAD14 173
HAD15 172
HAD2 187
HAD3 186
HAD4 185
HAD5 184
HAD6 183
HAD7 182
HAD8 181
HAD9 178
IREF
113
IREFO
125
LRCLK
27
MA0 64
MA1 62
MA10 66
MA11 72
MA2 58
MA3 56
MA4 57
MA5 61
MA6 63
MA7 65
MA8 68
MA9 70
MBA0 71
MBA1 69
MCLK 79
MD0 101
MD1 99
MD10 91
MD11 93
MD12 95
MD13 98
MD14 100
MD15 102
MD2 97
MD3 94
MD4 92
MD5 90
MD6 86
MD7 84
MD8 85
MD9 87
NC1 195
NC2 204
NC3 205
NC4 206
PA0
111
PA00
123
PA01
129
PA02
133
PA1
117
PA2
121
PIO00/SIN0
10
PIO01/SOUT0
9
PIO02/SCLK0
6
PIO03/SRDY0
5
PIO04/SIN1
4
PIO05/SOUT1
3
PIO06/SCLK1
2
PIO07/SRDY1
1
PIO10SIN2
19
PIO11/SOUT2
18
PIO12/SCLK2
17
PIO13/SRDY2
15
PIO14/RXD
14
PIO15/TXD
13
PIO16CTS
12
PIO17/RTS
11
PIO20/INTM0
150
PIO21/INTM1
151
PIO22/INTM2/TMO0
153
PIO23//TMO1
154
PIO24BSEL3/TMO2
155
PIO25/BSEL2
156
PIO26/BSEL1
157
PIO27/HA10
158
PIO30/EXWIT
145
PIO31/ADBCK
40
PIO32/ADLRCK
39
PIO33/ADDIN
38
PIO34/ADMCK/SDITRSYNC
146
PIO35/PXCLK/SDITRCLK
147
PIO36/HSYNC/SDIEVENT0
148
PIO37/VSYNC/SDIEVENT1
149
PIO40/PD0/SDITRDATA0
135
PIO41/PD1/SDITRDATA1
136
PIO42/PD2/SDITRDATA2
137
PIO43/PD3/SDITRDATA3
138
PIO44/PD4/SDITRDATA4
139
PIO45/PD5/SDITRDATA5
140
PIO46/PD6/SDITRDATA6
141
PIO47/PD7/SDITRDATA7
144
RAS 77
RESET 207
RS 168
SDIDBI 159
SDITCK 160
SDITDI 163
SDITDO 164
SDITMS 165
SDITRST 166
TEST0 203
TEST1 202
TEST2 201
TEST3 200
TEST4 197
TEST5 196
VDD18_0
7
VDD18_1
24
VDD18_10 198
VDD18_2
42
VDD18_3 59
VDD18_4 74
VDD18_5 88
VDD18_6 103
VDD18_7
142
VDD18_8 161
VDD18_9 179
VDD33_0
8
VDD33_1
25
VDD33_10 199
VDD33_2
43
VDD33_3 60
VDD33_4 75
VDD33_5 89
VDD33_6 104
VDD33_7
143
VDD33_8 162
VDD33_9 180
WS 167
Q2303 IS42S16400-7T
A0 23
A1 24
A10/AP 22
A1135
A2 25
A3 26A429 A530 A631 A732 A833 A934 BA0 20
BA1 21
CKE37 CLK38
DQ0 2
DQ1 4
DQ1045
DQ1147 DQ1248
DQ1350 DQ1451
DQ1553
DQ2 5
DQ3 7
DQ4 8
DQ5 10
DQ6 11
DQ7 13DQ842
DQ944
LDQM 15
NC0
36
NC140 UDQM39
VDD0 1
VDD1 14
VDD2 27
VDDQ0 3
VDDQ1 9
VDDQ243
VDDQ349
VSS028
VSS141
VSS254
VSSQ0 6
VSSQ1 12
VSSQ246
VSSQ3
52
CAS 17
CS 19
RAS 18
WE 16
Q2302
MX29LV160ABTC-90
A0 25A124
A10
6A115A124A133A142A151A1648
A1717 A1816
A199
A223
A2010
A322 A421 A520 A619 A718
A88 A97
DQ0 29
DQ1 31
DQ10 34
DQ11 36
DQ12 39
DQ13 41
DQ14 43
DQ2 33
DQ3 35
DQ4 38
DQ5 40
DQ6 42
DQ7 44
DQ8 30
DQ9 32
NC213
QD15/A-1 45
VCC 37
VSS0 27
VSS1 46
BY/RY
15
BYTE 47
CE 26
OE 28
RESET12 WE11
WP/ACC
14
Q2002
S-80127CNMC-JKM-T2
DS1
NC3
VDD 5
VOUT 4
VSS
2
Q2401
NJM2373AF
ANOD 2
CATH
5NC0 1
NC1 3REF
4
Q2301TC74VCX162373FT
1D147 1D246
1D344 1D443
1D541 1D640
1D738 1D837
1LE48 1Q1 2
1Q2 3
1Q3 5
1Q4 6
1Q5 8
1Q6 9
1Q7 11
1Q8 12
2D136 2D235
2D333 2D432
2D530 2D629
2D727 2D826 2LE25
2Q1 13
2Q2 14
2Q3 16
2Q4 17
2Q5 19
2Q6 20
2Q7 22
2Q8 23
GND_0 4
GND_1 10
GND_2 15
GND_3 21GND_428
GND_534
GND_639
GND_745
VCC_0 7
VCC_1 18VCC_231
VCC_3
42
1OE 1
2OE 24
Q2501
TC74VHCT125AFT
1A21Y3
2A52Y63A9
3Y 8
4A 12
4Y 11
GND7
VCC 141G1
2G43G 10
4G 13
Q2502
TC7SZ125FU
2
GND
3
VCC 5
4
G
1
Q2003
IS24C08-3Z
A0 1
A1 2
A2 3
NC7SCL6SDA5
VCC8
VSS 4
P2401B
Q2601
BU2288FV
AO1 9
AO2 10
FSEL 14MO1
3MO2
4
NC 16
SO1 13
SO2 15
VDD11
VDD25VDD312
VSS12
VSS26VSS311
XTI7XTO
8
P2001B
P2702
P2002B
C2419
105Z
C2002 105Z
C2001 105Z
C2003 105Z
C2004 105Z
C2006 105Z C2005 105Z
C2007 105Z
C2008 105Z
C2009 105Z
C2010 105Z
C2011 105Z
C2012 105Z
C2013 105Z
C2014 105Z
C2015105Z C2016
105Z
C2017
105Z
C2018 105Z
C2020 105Z
C2021 105Z
C2022 105Z
C2023 105Z
C2402
105Z C2404
C2416
102J
C2024
101J
C2028 105Z
C2417
102J
C2309
105Z
C2310
105Z
C2311
105Z
C2312
105Z
C2315
105Z
C2314
105Z
C2313
105Z
C2317
105Z
C2318
105Z
C2501
104Z
C2502 104Z
C2304
104Z
C2303
104Z
C2301
104Z
C2302
104Z
C2306
105Z
C2308 105Z
C2305 101J
C2025
104Z
C2606
120J
C2608
120J
C2609
C2607
C2604
105Z
C2603
105Z
C2605
105Z
C2406 105Z
C2408 105Z
C2411 105Z C2413 105Z C2410 105Z C2414 105Z C2412 105Z
C2409 105Z C2407 105Z
C2405 105Z
C2019 105Z
C2029 105Z
C2403
100/6.3
C2418
100/6.3
C2401
100/6.3
C2415
10/16
C2316
10/16
C2307
100/6.3
C2602
100/6.3
C2601
22/6.3
C2027
100/6.3
C2026
100/6.3
C2905
100/6.3
C2903
100/6.3
C2902 100/6.3
C2901 100/6.3
C2904
100/6.3
C2906 100/6.3
R2906
R2905
R2033
47
R2304
R2303
R2302
10K
R2301 1K
R2433
R2432
R2431 0
R2055 10K
R2057 10K
R2056 10K
R2054
0
R2904
R2608
0
R2607
R2050 47
R2051 47
R2052 47
R2053 47
R2005 47
R2006 47
R2020 0
R2021 10
R2043
10K
R2401 22
R2402
220
R2019 10K
R2018 22
R2017 22 R2016 22 R2015 22
R2014
R2013 R2012 R2011 22
R2010 22 R2009 47 R2008 47 R2007 47
R2004 47
R2003 47 R2002 47 R2001 47
R2029 2.2K
R2028 2.2K
R2031 10
R2030 10
R2027 0
R2026 0
R2405 10
R2416 1.5K
F
R2415 270 F
R2422 1.5K
F
R2421 270 F
R2419 1.5K
F
R2418 270 FR2428 1.5K
F
R2427 270 F
R2425 1.5K
F
R2424 270 F
R2414 1.2K
R2417 1.2K R2420 1.2K R2423 1.2K
R2426 1.2K
R2501 0
R2502 22
R2503 22
R2504 22
R2505 22
R2044 1K
R2024
47
R2032 47
R2045
4.7K
R2034 47
R2036
10K
R2601
560
R2602
22
R2606
R2605 22
R2604
100
R2603
100
R2403
0
R2404 R2429 0
R2430 0
R2901 0
R2902 0
R2903 0
R2037 10K
R2408 3.3K F
R2409
R2412 3.3K F
R2413
R2406 270 F
R2407 270 F
R2410 270 F
R2411 270 F
R2046 R2047 R2048
R2049 0
Q2402
2SA1774
Q2404
2SA1774
Q2403
2SA1774
Q2406
2SA1774
Q2405
2SA1774
L2404
2.2U
L2405
2.2U
L2401 2.2U
L2302 2.2U
L2301
2.2U
L2602
BLM21P221SG
L2604
L2603
L2601
BLM21P221SG
L2002 2.2U
L2001 2.2U
L2903
2.2U
L2902
2.2U
L2901 2.2U
P152
INTM1
P146
4A
P147
4Y
P157
BY/RD
P2901A
R2042
15*4
1
2
3
45
6
7
8
R2025
47*4
1 2 3 45
6 7
8
R2038
15*4
1
2
3
45
6
7
8
R2040
15*4
1
2
3
45
6
7
8
R2039
15*4
1
2
3
45
6
7
8
R2041
15*4
1
2
3
45
6
7
8
R2023
47*4
1 2 3 45
6 7
8
R2022
47*4
1 2 3 45
6 7
8
R2035 47*4
1
2
3
45
6
7
8
X2601
FCX-03-27MHZ
AGND
A3.3V
DGND
D3.3V
AGND
LRCLK
CSDACSUR CSDACCSW
CSDACLR DAT-CSW
DAT-SLSR
DIGOUT0 DIGOUT1
BITCLK
DAT-DMIX
DACCLK CSDMIX
MD MC
AMUTE
DACRST
A1.8V
DAT-LR
DGND
DRVIRQ D1.8V
DRVRDY A5V
DRVCLK
DRVRX PGND
DRVTX P8V
DRVRST
DOUT
BCK P8V
LRCK PGND
DADT SW+5V
DGND
SW+3.3V
LRCLK
CSDACSUR
CSDACCSW
CSDACLR
DADT
LRCK
BCK
ACLKI
DOUT
DIGOUT0 DIGOUT1
BITCLK DAT-LR
DAT-CSW
DAT-SLSR DAT-DMIX
DACCLK CSDMIX
MD MC
FSEL
AMUTE
DACRST DRVRST
DRVTX DRVRX
DRVCLK DRVRDY FP_SIN
FP_SOUT
FP_CLK
FP_CS
DGND1
HDRQ
FP_CLK
FP_CS
FP_SOUT
FP_SIN
XHAC SW+3.3V
DCK
XSHD VDT0 VDT1 VDT2 VDT3 VDT4 VDT5 VDT6 VDT7
DCK
XHAC HDRQ
SW+1.8V
XSHD
VDT7 BED+3.3V BED+3.3V
VDT6 BED+1.8V BED+1.8V
VDT5
VDT4
VDT3
VDT2
VDT1
VDT0
MC_RST
SW+1.8V SW+3.3V
SW+5V
E+5V
MICONGND BEMA3
DSTBX BEMA4
DSPSCK BEMA2
DSPSO
DSPSI BEMA5
BEMA1
BEMA6
BEMA0 DGND1 MCA14
BEMA7 ROM3.3V
ROM3.3V
BEMA10 MCA15
MCA11
MC_RST
MCA16
BEMA8 MCA12 MCAD0 MCA15 MCA17
BEMA4 BEMA3 BEMBA1 MCA13 MCAD1 MCA16 MCA18 MCAD0
BEMA5 BEMA2 BEMA9 MCA14 MCA19 MCAD8
BEMA6 BEMA1 BEMBA0 MCAD2 MCA17 MCA20 MCAD1
BEMA7 BEMA0 BEMA11 MCAD0 MCAD3 MCA18 MCA21 MCAD9
BEMA8 BEMA10 MCAD1 MCA22 MCAD2
BEMA9 BEMBA1 MCAD2 MCAD4 MCA19 MCA11 MCAD10
BEMA11 BEMBA0 MCAD3 MCAD5 MCA20 MCA10 MCAD3
BEDCS MCAD4 MC_WS0 MCAD11
BERAS MCAD5 MCAD6 MCA21 MC_RSTO
TEST4
BEMCKA BECAS MCAD6
DRVIRQ MC_RST
MCAD7 MCA22 MCAD4
BEDQMU BEDWE MCAD7 MCAD8 MCA23 WP MCAD12
BEDQML MCAD9 MCA24 MCAD5
MCA12 MCAD13
BEMD8 BEMD7 MCAD8 MCAD10 MCA25 MCA13 MCAD6
MCAD9 MCAD11 MCA26 MCA23 MCAD14
BEMD9 BEMD6 BEMD7 MCAD10 MCA24 MCAD7
BEMD10 BEMD5 BEMD8 MCAD11 MCAD12 MCA27 MCA25 MCAD15
BEMD6 MCAD12 MCAD13 MCA28 MCA26 MC_RS
BEMD11 BEMD4
BEMCKA BEDQMU
FSEL
ACLKI
BEMD9 MCAD13 MCA27
BEMD12 BEMD3 MCAD14 MCAD14 MCA29 MCA28 FROMCS
MCAD15 MCAD15 MCA30 MCA29
BEMD13 BEMD2 BEMD5 ALE
BEMD14 BEMD1 BEMD10 MCA30
BEMD4 FROMCS
BEMD15 BEMD0 BEMD11 MC_RS
BEMD3 MC_WS0 DGND1
BEMD12 SDITRST MCA10
SDRAM_D3 SDITMS
BEMD2 SDITDO
BEMD13 SDITDI
BEMD1 SDITCK
BEMD14
BEMD0
BEMD15 SDIDBI
MCA10
DGND1
LETTER
DGND1
SW+3.3V
DGND1
CR
IREF VREF
CB
BIAS2 BIAS1
CY
S_Y
IREF0
VREF
S_C
BIAS02 BIAS01
27MHZ AVENC1.8V
DRVIRQ
SQUEEZE
AVENC3.3V
33.8688MHZ
VDACGND SDA
PLLA3.3V
PLLD3.3V SCL
VDACGND SW+1.8V
DGND1
SW+3.3V
SW+5V
DGND
FSEL DRVIRQ
V+5V
ACLKI
DGND
PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8
P/IX
TRSYNCA
PIXCLK
HSYNC
VSYNC
RGBON
SDA
SCL
AR2/AR1X
MC_RST
SDITRST
SDITMS SDITDO
SDITDI
SDITCK
SDIDBI
BED+3.3V
TEST4
SW+1.8V
DGND1
SW+3.3V
P/IX
PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8
PIXCLK
HSYNC
VSYNC
SDA
TRSYNCA
MC_RST
SDITRST
SDITMS SDITDO
SDITDI
SDITCK
SDIDBI
BED+3.3V BED+3.3V
TEST4
CR/R
DGND
CB/B
DGND
CY/G
DGND
SY
DGND
SC
DGND
LETTER
SQUEEZE
P/IX
AR2/AR1X
RGBON
SCL
DGND1
To U4: VIDEO SIGNAL OUTPUT TERMINAL PC BOARD
NAVD-7810
To Mechanism control PC board
NADG-7809
From Mechanism control PC board
NADG-7809
To AUDIO OUTPUT TERMINAL PC BOARD
NAAF-7811

DV-CP701
SCHEMATIC DIAGRAM
A
1
2
3
4
5
BCDEFGH
L702 47UH
L701 47UH
Q704 TA7291S
ROULETTE MOTOR DRIVE
GND5 IN19 IN2
1
NC4 OUT17 OUT23 VCC2 VREF8 VS
6
Q705 TA7291S
LOADING MOTOR DRIVE
GND5 IN19 IN2
1
NC4 OUT17 OUT23 VCC2 VREF8 VS
6
P706B
P706A
P2501B
Q702
S-80145
DS
1
NC3
VDD
5
VOUT4
VSS
2
P706
P710A
Q713
2SD655
Q714
2SD655
Q707
2SA1162
Q701
MPD78005X
AMUT 46
AN15/NC
1AN16/NC2
AVREF17
AVREF275
AVSS04
DISC/SEN 24
DSPCKX13 DSPSI12 DSPSO11
DSTBX63
FLON/OFF6
IC71
IRIN61
K1/DESTI76
LMCURRENT 22
LML 28
LMR 27
LMVOLH/L 26
LOADHI 32
MODE177 MODE2
78
NC5
P/OFF62
P04/GND65 P05/GND66
P120/GND 52 P121/GND 53 P122/GND 54 P123/GND 55 P126/GND 58 P127/GND 59
P13/GND79 P14/GND
80
P23/STB/TXD114 P24/BUSY/RXD1
15 P31/NC 45
P34/GND 48 P35/GND 49 P36/GND 50 P37/GND 51
P40/SW119
P41/SW2
20
P42/SW3 21
P46/NC 25
P56/NC 34
P57/NC 35
P60/GND 36
P61/GND 37
P62/GND 38
P63/GND 39
P64/GND 40
P65/GND41
P66/GND 42
P67/GND 43
PWRCTR 47
R/SEN 23
RESET 60
RIIN 56
RIOUT 57
RML 30
RMR 29
ROTHI 31
SUBCLK18 SUBCLK/FLASH10 SUBRST3 SUBSDI16 SUBSDI/FLASH8 SUBSDO17 SUBSDO/FLASH9
SUB_RDY
64
VDD074
VDD168
VDOFF 44
VSS1 33
VSS267
X170 X269
XT1/P07/VDD0
73 XT2/OPEN
72
D734
1SS352
D731
1SS352
D733
1SS352
Q711
DTC114YKA
Q710
DTC114YKA Q709
DTC114YKA
Q712
DTC114YKA
Q708
NC
Q706
DTC114YKA
I_38
S701
SPVF1
I_37
S703
SPVF1
I_36
S702
SPVF1
Q703
DTA114YKA
Q715
DTA114YKA
X701
4.5MHZ
P702A
P704A
D702
UDZ2.2B
D701
UDZ2.7B
D704
NC
D703 UDZS4.7B
D732
UDZS5.1B
C729 104
C766
104
C765
104
C761
223
C764
223
C762 104
C701
NC
C702
NC
C716
104
C714
104
C712
104
C718
104
C720
104
C722
104
C732
104
C733
102
C707
223
C706
223
C705
223
C768
100/6.3
C767
100/16
C763
NC
C715
10/16
C713
10/16
C711
10/16
C717
10/16
C721
10/16
C719
10/16
C728
100/6.3
C703
100/16
C704
100/16
C731
1/50
R767
10K
R768
2.2K
R771
10K
R736
100
R735
100
R766
4.7K R765
22K
R737
100
R734
100
R757
NC
R758
2.7K
R755
NC R756
2.7K
R761
390
R763
390
R764
470K R762
150K
R703
1M
R704
10K
R702
3.3K
R707
1M
R708
10K
R706
5.6K
R701
8.2K
R705
8.2K
R711 100K R712 100K
R709
4.7
(1/4W)
R710
2.2K
R713 100K
R714 100K
R715
4.7
(1/4W)
R716 5.6K
R717
10K
R720
2.2K
R718
4.7K
R719
5.6K
R743
100 R744
100
R759
100
R748
47K
R746
100
R747
100
R732
100
R742
100
R739
100
R741
100
R753
NC R754
2.7K
R752
1K
R745
100
R724 220K
R725
22K
R726
22K
R751 4.7K
R733 2.7K
R731 2.7K
R740 2.7K
R738 2.7K
R749
470
R750
220K
R723
10K
R722
10K
R721
10K
P707A
FFC1MM
P701A
P2901B
P707B
FFC1MM
Q717
RPI-576
STOP_POSITION SENSOR
Q716
GP2S28
DISC SENSOR
P708B
P709B
P708A
P711A
P709A
Z701
Z702
AMUTE/UCOM VDOFF
IRIN
ROTHI
ROTHI
RI
IR_IN
VIDEO/OFF
SW+5V
SUBSDO SUBCLK
SUSDI
RI
AMUTE_UCOM
R/SEN R/SEN EV5V
DISC/SEN DISC/SEN SW+5V
LMVOLH/L LMVOLH/L
ROTHI ROTHI SW+3.3V
A+12V
LMR LMR A-12V
LML LML
RML RML
RMR RMR
PWRCNT
EV5V
SW+5V
EV5V
SW+3.3V
SW+5V
EV5V
VDISP VDISP
F1
F2
SW+8V SW+8V
SW+8V/GND SW+5V SW+5V
SW+5V/GND SW+3.3V SW+3.3V
SW+5V/GND
A+12V A+12V
AGND AGND
A-12V A-12V
0
0
0
02.7K
2.7K
2.7K
2.7K
Model & Area
NCNC
NCNC
NCNC
NCNC
DPC7.4MPA4P
DPC7.4MDD1N
DV-CP701MPA4P
DV-CP701MDD1N
R755 R756 R757 R758
NCETC-7896 WRITE IN FLASH PLUG
IC EV5V RESET SUBCLK SUBSO SUBSI GND
NAETC-7817
NAETC-7816
EV5V
TXD1
RXD1
DGND
SW+5V
VIDEO OFF
to VIDEO SIGNAL OUTPUT TERMINAL PC BOARD
1
A+12V
A-12V
VDISP/-30V
SW+5/GND
SW8/GND
SW8V
RI
DSPSO-DSPSI
DSPSI-DSPSO
SUBCLK
SUBSDO-SUBSDI
SUBSDI-SUBSDO
to DISPLAY CIRCUIT PC BOARD
SUBREQ
11
1
6
11
7
1
1
6
SW+3.3V
A+12V
AGND
A-12V
SW+8V
to AUDIO SIGNAL OUT PUT TERMINAL PC BOARD
LOADING MOTOR
ROULETTE MOTOR
6
1
15
10
5
1
SW+8V/GND
EV5V
from POWER SUPPLY UNIT
F2
F1
AGND
SW+8V
SW+3.3V
SW+5V/GND
SW+5V
EV+5V/GND
P-ON
EV5VGND
SW+5V
DGND
EV5V
1
AMUTE/UCOM
RST
200mS Delay
EV5V
F1
F2
VDISP
SUBRST
GND
GND
DGND1
SW+3.3V
SW+5V
to DVD MAIN CIRCUIT PC BOARD
EV5V
DSPSCK
DSTBX
GND(MICON)
NAETC-7818
U12 : DISC SENSOR PC BOARD
NAETC-7818
U10 : ROULETTE MOTOR PC BOARD
NAETC-7816
U11 : LOADING MOTOR PC BOARD
NAETC-7817
U3 : MECHANISM CONTROL CIRCUIT PC BOARD NADG-7809
to DVD MAIN CIRCUIT PC BOARD
NC
NC

DV-CP701
SCHEMATIC DIAGRAM
A
1
2
3
4
5
BCDEFGH
L702 47UH
L701 47UH
Q704 TA7291S
ROULETTE MOTOR DRIVE
GND5 IN19 IN2
1
NC4 OUT17 OUT23 VCC2 VREF8 VS
6
Q705 TA7291S
LOADING MOTOR DRIVE
GND5 IN19 IN2
1
NC4 OUT17 OUT23 VCC2 VREF8 VS
6
P706B
P706A
P2501B
Q702
S-80145
DS
1
NC3
VDD
5
VOUT4
VSS
2
P706
P710A
Q713
2SD655
Q714
2SD655
Q707
2SA1162
Q701
MPD78005X
AMUT 46
AN15/NC
1AN16/NC2
AVREF17
AVREF275
AVSS04
DISC/SEN 24
DSPCKX13 DSPSI12 DSPSO11
DSTBX63
FLON/OFF6
IC71
IRIN61
K1/DESTI76
LMCURRENT 22
LML 28
LMR 27
LMVOLH/L 26
LOADHI 32
MODE177 MODE2
78
NC5
P/OFF62
P04/GND65 P05/GND66
P120/GND 52 P121/GND 53 P122/GND 54 P123/GND 55 P126/GND 58 P127/GND 59
P13/GND79 P14/GND
80
P23/STB/TXD114 P24/BUSY/RXD1
15 P31/NC 45
P34/GND 48 P35/GND 49 P36/GND 50 P37/GND 51
P40/SW119
P41/SW2
20
P42/SW3 21
P46/NC 25
P56/NC 34
P57/NC 35
P60/GND 36
P61/GND 37
P62/GND 38
P63/GND 39
P64/GND 40
P65/GND41
P66/GND 42
P67/GND 43
PWRCTR 47
R/SEN 23
RESET 60
RIIN 56
RIOUT 57
RML 30
RMR 29
ROTHI 31
SUBCLK18 SUBCLK/FLASH10 SUBRST3 SUBSDI16 SUBSDI/FLASH8 SUBSDO17 SUBSDO/FLASH9
SUB_RDY
64
VDD074
VDD168
VDOFF 44
VSS1 33
VSS267
X170 X269
XT1/P07/VDD0
73 XT2/OPEN
72
D734
1SS352
D731
1SS352
D733
1SS352
Q711
DTC114YKA
Q710
DTC114YKA Q709
DTC114YKA
Q712
DTC114YKA
Q708
NC
Q706
DTC114YKA
I_38
S701
SPVF1
I_37
S703
SPVF1
I_36
S702
SPVF1
Q703
DTA114YKA
Q715
DTA114YKA
X701
4.5MHZ
P702A
P704A
D702
UDZ2.2B
D701
UDZ2.7B
D704
NC
D703 UDZS4.7B
D732
UDZS5.1B
C729 104
C766
104
C765
104
C761
223
C764
223
C762 104
C701
NC
C702
NC
C716
104
C714
104
C712
104
C718
104
C720
104
C722
104
C732
104
C733
102
C707
223
C706
223
C705
223
C768
100/6.3
C767
100/16
C763
NC
C715
10/16
C713
10/16
C711
10/16
C717
10/16
C721
10/16
C719
10/16
C728
100/6.3
C703
100/16
C704
100/16
C731
1/50
R767
10K
R768
2.2K
R771
10K
R736
100
R735
100
R766
4.7K R765
22K
R737
100
R734
100
R757
NC
R758
2.7K
R755
NC R756
2.7K
R761
390
R763
390
R764
470K R762
150K
R703
1M
R704
10K
R702
3.3K
R707
1M
R708
10K
R706
5.6K
R701
8.2K
R705
8.2K
R711 100K R712 100K
R709
4.7
(1/4W)
R710
2.2K
R713 100K
R714 100K
R715
4.7
(1/4W)
R716 5.6K
R717
10K
R720
2.2K
R718
4.7K
R719
5.6K
R743
100 R744
100
R759
100
R748
47K
R746
100
R747
100
R732
100
R742
100
R739
100
R741
100
R753
NC R754
2.7K
R752
1K
R745
100
R724 220K
R725
22K
R726
22K
R751 4.7K
R733 2.7K
R731 2.7K
R740 2.7K
R738 2.7K
R749
470
R750
220K
R723
10K
R722
10K
R721
10K
P707A
FFC1MM
P701A
P2901B
P707B
FFC1MM
Q717
RPI-576
STOP_POSITION SENSOR
Q716
GP2S28
DISC SENSOR
P708B
P709B
P708A
P711A
P709A
Z701
Z702
AMUTE/UCOM VDOFF
IRIN
ROTHI
ROTHI
RI
IR_IN
VIDEO/OFF
SW+5V
SUBSDO SUBCLK
SUSDI
RI
AMUTE_UCOM
R/SEN R/SEN EV5V
DISC/SEN DISC/SEN SW+5V
LMVOLH/L LMVOLH/L
ROTHI ROTHI SW+3.3V
A+12V
LMR LMR A-12V
LML LML
RML RML
RMR RMR
PWRCNT
EV5V
SW+5V
EV5V
SW+3.3V
SW+5V
EV5V
VDISP VDISP
F1
F2
SW+8V SW+8V
SW+8V/GND SW+5V SW+5V
SW+5V/GND SW+3.3V SW+3.3V
SW+5V/GND
A+12V A+12V
AGND AGND
A-12V A-12V
0
0
0
02.7K
2.7K
2.7K
2.7K
Model & Area
NCNC
NCNC
NCNC
NCNC
DPC7.4MPA4P
DPC7.4MDD1N
DV-CP701MPA4P
DV-CP701MDD1N
R755 R756 R757 R758
NCETC-7896 WRITE IN FLASH PLUG
IC EV5V RESET SUBCLK SUBSO SUBSI GND
NAETC-7817
NAETC-7816
EV5V
TXD1
RXD1
DGND
SW+5V
VIDEO OFF
to VIDEO SIGNAL OUTPUT TERMINAL PC BOARD
1
A+12V
A-12V
VDISP/-30V
SW+5/GND
SW8/GND
SW8V
RI
DSPSO-DSPSI
DSPSI-DSPSO
SUBCLK
SUBSDO-SUBSDI
SUBSDI-SUBSDO
to DISPLAY CIRCUIT PC BOARD
SUBREQ
11
1
6
11
7
1
1
6
SW+3.3V
A+12V
AGND
A-12V
SW+8V
to AUDIO SIGNAL OUT PUT TERMINAL PC BOARD
LOADING MOTOR
ROULETTE MOTOR
6
1
15
10
5
1
SW+8V/GND
EV5V
from POWER SUPPLY UNIT
F2
F1
AGND
SW+8V
SW+3.3V
SW+5V/GND
SW+5V
EV+5V/GND
P-ON
EV5VGND
SW+5V
DGND
EV5V
1
AMUTE/UCOM
RST
200mS Delay
EV5V
F1
F2
VDISP
SUBRST
GND
GND
DGND1
SW+3.3V
SW+5V
to DVD MAIN CIRCUIT PC BOARD
EV5V
DSPSCK
DSTBX
GND(MICON)
NAETC-7818
U12 : DISC SENSOR PC BOARD
NAETC-7818
U10 : ROULETTE MOTOR PC BOARD
NAETC-7816
U11 : LOADING MOTOR PC BOARD
NAETC-7817
U3 : MECHANISM CONTROL CIRCUIT PC BOARD NADG-7809
to DVD MAIN CIRCUIT PC BOARD
NC
NC

C703
C704
C711
C713 C715 C717
C719 C721
C731
P2501B
P704A
P2901B
P706A
P707A
P708A
Q704
Q705
R709
R715
S701
S702
S703
X701
P711A
C729 J760
J738
J740
J741
J711
J713
J714
J715
J709
J710
J712
J754
J742
J735 J730
J732
J733
J749
J751
J756
J757 J764
J746
J718 J719
J725
J745
J705
J706 J707
J729 J728
J724 J723
J753J752
J737
J701
J758
J755
J748
J704
J731
J708
J726
J727
J717
J762 J761
J739 J716
J743
J736
J750
J744
J747
NCDG-7809
P710A
0
P702A
P701A
J765
J763
Q713
Q714
25137809
J759
J720 J721 J722
1
1
J703
J702
P-ON
EV5V
EVGND
SW5V
GND
SW33
SW8 SW8
SW8GND
A+12 AGND
A-12
VDISPF
F
CONTACT
EV5V
GND
DSTBX
DSPSCK
DSPSO
DSPSI
SW8V
8G
SW5V
SW5VGND SW5VGND
SW5V
SW8VGND
SW8V
SW3.3 SW3.3
GND GND
L701
L701
C767
SIDE
L702
L702
C768
J734
F
F
VDISP
EV5V
SRST
GND
SCLK
SREQ
GND
SDO
SDI
GND
SSI
SSO
SCLK
RST
EV5V
IC
30
30
30
22
7
7
7 7
12
20
7 7
20
15
2030
15
30
7
30
12
20
20
7
27
22
25
27
12
20
12 12
12
12
25
22
27
27
27
27
7
15
C701
C702
C705
C706
C707
C712
C714C716
C718
C720 C722
C732
C733
D701 D702
D703 D704
D731
D732
D733
D734
Q701
Q701
Q702
Q703
Q706
Q707
Q708
Q709
Q710
Q711
Q712
Q715
R701
R702
R703
R704
R705
R706
R707
R708
R710
R711
R712
R713
R714
R716
R717
R718 R719
R720
R721 R722 R723
R724
R725 R726
R731
R732
R733
R734
R735 R736 R737
R738 R739 R740 R741
R742
R743
R744
R745
R746
R747
R748
R749
R750
R751
R752
R753
R754
R755R756 R757R758
R759
C728
R783
R782
R784
R781
1
1
1
1
R786
R7001
R766
R765
R767
R768 R771
8
9
98
30
DV-CP701
PRINTED CIRCUIT BOARDVIEW FROM COMPONENT SIDEVIEW
Component side view
Sodering side view
(U3) : MECHANISM CONTROL PC BOARD (NADG-7809)
A
1
2
3
4
5
BCD

DV-CP701
SCHEMATIC DIAGRAM
A
1
2
3
4
5
BCDEFGH
E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER
ATTENTION
FOR CONTINUED PROTECTION AGAINST FIRE
AGAINST FIRE HAZARD, REPLACE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL.
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
VA
ET CALIBRATION COMME INDIQUE.
D'INCENDIE, REMPLACER UNIQUEMENT
PERMANENTE CONTRE LES RISQUES
AFIN D'ASSURER UNE PROTECTION
PAR UN FUSIBLE DE MEME TYPE
VA
FOR CONTINUED PROTECTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
CAUTION
P
P861
AC_G
AC_H
P901
Q808
RPM7138
OUT
VCC
R846
4.7 (1/2W)
P806A
P806B
P802A
P805A
P802B
P805B
Q802 HNV-12SM34
F101 F112 F2262 F2361 G15 G1014 G1115 G1216 G26 G37 G48 G59 G610 G711 G812 G913 P140 P1049 P1150 P1251 P1352 P1453 P1554 P1655 P1756 P1857 P1958 P241 P342 P443 P544 P645 P746 P847 P9
48
Q810
DTC114YKA
Q809
DTC114YKA
Q805
DTC114YKA
P704B P704C
P704
Q806
2SC2712
D804 5.6B
P804A
P804B
C827
223Z
C829
223Z
C828
223Z
C803
104Z
C806
104Z
C805
104Z
C815
330
C817
330
C816
330
C818
330
C819
330
C813
223Z
C808
104Z
C807
104Z
C823
101
C814
104Z C802 104Z
C804
100/6.3
C820
2.2/50
C801
10/16
D801
SLR-343BBT
D802
SLR-343BBT
D803
SLR-342VR
STBY LED
R850 150
R847 390
R849 390
R848 150
R806
3.9K
R805
1.8K
R804
1K
R803
820
R802
470
R801
390 R807 10K
R827 100 R826 100
R812
1.8K
R811
1K
R810
820
R809
470
R808
390
R813
390 R814 470 R815 820 R816 1K
R856
27K
R835
100K
R836
100K
R837
100K
R838
100K
R824
2.7K
R825
2.7K
R821
0
R828
470
R844
470 R845
470
R843
470
R842
470
R841
470 R822
2.7K
R823
2.7K
R831
2.7K
R832
2.7K
R839
470
R840
470
R833
2.7K
R834
2.7K
S807
DISC1
S806
DISC2
S805
DISC3
S804
DISC4
S803
DISC5
S802
DISC6
S801
OPEN/CLOSE
S808
DISC/SKIP
S834
REW
S833
FF
S832
PAUSE
S831
CHIAN MODE
S830
STOP
S829
PLAY
S809
PLAY
S814
REW
S813
FF
S812
PAUSE
S811
CHAIN MODE
S810
STOP
S822
LAST MEMORY S817
LAST MEMORY
S821
REPEAT S816
REPEAT
S815
STBY/ON
S818
DISPLAY
S819
DIMMER
X801
5MHZ
Q801
MPD780232GC-070-8BT
10G71 11G70 12G
69 13G
68 14G67
1G80 2G79 3G78 4G77 5G76
5V1
6G75 7G74 8G73 9G72
AVDD 24
AVSS18 CLOCK13 CLOCK24 FRAIC5 GND2 IRIN15
JOGA 26
JOGB 27
KEY0 22
KEY1 21
KEY220 KEY319 LED1[ORG]14 LED2[GRN]
16 NC117
NC266
P164
P10 53 P11 52 P12 51 P13 50 P14 49 P15 48 P16 47 P17 46 P18 45 P19 44
P263
P20 43
P21 42 P22 41
P23 40
P24 39
P25 38
P26 37
P27 36
P28 35
P29 34
P3
62
P30 33
P31 32
P32 31
P33 30
P34 29
P35 28
P3665
P461
P5 58 P6 57 P7 56 P8 55 P9 54
RESET6 STBYLED13 SUBCL7 SUBREQ10 SUBSI8 SUBSO9
VDD 25
VDD2 59
VDISP 60
VOLA11 VOLB12
VSS 23
NADIS-7815
NASW-7812
from MECHANISM CONTROL PC BOARD NADG-7809
DPC-7.4 ONLY
NAETC-7896
MDD1N:NGPS0036
MPA4P:NGPS0037
U14 : POWER SUPLLY UNIT
NADIS-7808
NASW-7814
NASW-7813
SUBRST
VDISP
F2
F1
SUBSO
SUBSI
GND
SUBREQ
SUBCL
GND
5V
U2 : DISPLAY CIRCUIT PC BOARD NADIS-7808
U7 : KEY OPERATION SWITCH
PC BOARD NASW-7813
U6 : DISC SELECT SWITCH PC BOARD NASW-7812
U9 : LED DISPLAY PC BOARD NADIS-7815
MARKBYTHE COMPONENTS IDENTFIED ARE CRITICAL FOR SAFETY.
REPLACE ONLY WITH PART NUMBER SPECIFIED.
.
.VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE. (NO INPUT SIGNAL)
.ELECTROLYTIC CAPACITORS ( )ARE IN F/WV.
.ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED.
EX) 030 3pF 330 33pF 331 330pF 333 0.033uF
u
ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED.
.THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS.
EX) PRINTING SIDE
CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.
.
.
NOTE
U8: STANDBY SWITCH PC BOARD NASW-7814
Not used
