DV-CP802

SERVICE MANUAL

Black and Silver models

120V AC,60Hz

CDD1N

Ref. No. 3798

062004

DVD CHANGER

MODEL DV-CP802

RC-542DV

ON STANDBY

SEARCH LAST M MEMORY

CHAIN MODE

REPEAT

RANDOM

DISPLAY

SETUP

TOP MENU

RETURN

AUDIO ANGLE SUBTITLE ZOOM

DISC

DISC SKIP DIMMER

RC-542DV

STEP/SLOW

CLEAR

OPEN/

PROGRESSIVE

ENTER

+10 0

123

456

789

STANDBY/ON

STANDBY

SAFETY-RELATED COMPONENT

WARNING!!

COMPONENTS IDENTIFIED BY MARK ON THE

SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ONKYO

PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE

MEASUREMENTS TO DETERMINE THAT EXPOSED

PARTS ARE ACCEPTABLY INSULATED FROM THE

SUPPLY CIRCUIT BEFORE RETURNING THE

APPLIANCE TO THE CUSTOMER.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

SPECIFICATION

DV-CP802

SpeciÞcations and features subject to change without notice.

Signal System NTSC

Composite Video Output/Impedance 1.0 V (p-p)/75 negative sync, RCA/phono

S-Video Output/Impedance Y: 0.7 V (p-p)/75 negative sync, 4-pin mini DIN

C: 0.286 V (p-p)/75

Component Video Output/Impedance Y: 1.0 V(p-p)/75

PB/PR: 0.7 V (p-p)/75 RCA/phono

Frequency

Response

DVD-Audio 4 Hz-50 kHz (192 kHz)

DVD Linear Sound 4 Hz-44 kHz (96 kHz)

4 Hz-22 kHz (48 kHz)

Audio CD 4 Hz-20 kHz (44.1 kHz)

S/N ratio 110 dB

Audio Dynamic Range 98 dB

THD (Total Harmonic Distortion) 0.005 % (1 kHz)

Wow and Flutter Below threshold of measurability

Audio Output (Digital/Optical) -22.5 dBm

Audio Output/Impedance (Digital/Coaxial) 0.5 V p-p/75

Audio Output/Impedance (Analog) 2.0 V (rms)/600

Power Supply AC 120 V, 60 Hz

Power Consumption 21 W

Standby Power Consumption 0.6 W

Dimensions (W x H x D) 435 x 131 x 432 mm

17-1/8 x 5-3/16 x17 inches

Weight 7.3 kg

16.1 lbs.

Operation Condition Temperature 5-35 C (4-95 F)

Disc Compatibility

DVD-VIDEO, DVD-AUDIO, CD, CD-R, CD-RW, SACD, MP3,

DVD-R, DVD-RW, JPEG, VCD

Disc that have not been property Þnalized may only be partially

playable or not playable at all.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

SERVICE PROCEDURES-1

DV-CP802

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

AVIS

"CLASS 1 LASER

PRODUCT"

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

WARNING

LASER WARNING

This set employs a laser. Therefore, be sure to follow

carefully the instructions below when servicing.

1. Replacing the fuses

SERVICE PROCEDURE

This symbol located near the fuse indicates that the

fuse used is show operating type, For continued protection against

fire hazard, replace with same type fuse , For fuse rating, refer to

the marking adjest to the symbol.

Ce symbole indique que le fusible utilise est e lent.

Pour une protection permanente, n'utiliser que des fusibles de meme

type. Ce demier est indique la qu le present symbol est apposre.

Laser Diode Properties

Wavelength: 650/780nm (DVD/CD)

SERVICE WARNING : DO NOT APPROACH THE

LASER EXIT WITH THE EYE TOO CLOSELY.

IN CASE IT IS NECESSARY TO CONFIRM LASER

BEAM EMISSION, BE SURE TO OBSERVE FROM

A DISTANCE OF MORE THAN 30cm FROM THE

SURFACE OF THE OBJECTIVE LENS ON THE

OPTICAL PICKUP BLOCK.

WARNING!!

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user to

the presence of uninsulated "dangerous voltage" within

the product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

This unit contains a semiconductor laser system and is classified

as a "CLASS 1 LASER PRODUCT". So, to use this model

properly, read this Instruction Manual carefully. In case of any

trouble, please contact the store where you purchased the unit.

To prevent being exposed to the laser beam, do not try to open

the enclosure.

VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK

FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS

OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

The label on the right

is applied on the rear

panel except for USA

and Canadian

models.

1.This unit is a CLASS 1 LASER PRODUCT and employs a

laser inside the cabinet.

2.To prevent the laser from being exposed, do not remove

the cover. Refer servicing to qualified personnel.

CAUTION:

LASER BEAM CAUTION LABEL

REF. NO. PART NO. DESCRIPTION

F101 5120-0130-0 or 1.6A-UL/T-237 <CDD1N>

5120-1000-0 1.6A-T/UL-ST2 <CDD1N> North American area

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

SERVICE PROCEDURES-2

DV-CP802

2. Safety-check out

(Only U.S.A. model)

After correcting the original service problem perform the

following safety check before releasing the set to the customer

Connect the insulating-resistance tester between the plug of

power supply cord and terminal GND on the back panel.

Specifications: More than 10M ohm at 500V

INITIALIZING

Factory-shipped condition

Push button "ON" (Mechanical SW)

Press the [STOP] and [STANDBY] same time with NO DISC condition.

Push button "STANDBY".

After display "COMPLETE".

REMOVE THE SOLDER OF LASER DIODE SHORT

When replace the mechanism or DVD main PC board.

Shotting the solder of Shot-circuit land. (2 positions)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PANEL VIEWS-1

FRONT PANEL

DV-CP802

STANDBY/ON

STANDBY

2 3

5 7

8 10 111 4 6 9

12 13 14 15

19 20

DISC SELECT 1-6 buttons

These buttons are used to select discs. Playback

starts automatically when discs are selected with

these buttons

Disc tray

The disc tray has six bays for loading up to six discs.

Disc tray light

This light illuminates the disc tray. It comes on

when the DV-CP802 is turned on, and is brighter

while the disc tray is open.

DISC SKIP button

This button is used to select the disc bays (i.e., rotate

the disc tray) when loading or removing discs, and

to select discs for playback.

Previous [ ] button

This button is used to select the previous chapter or

track. During playback it selects the beginning of

the current chapter or track.

Next [ ] button

This button is used to select the next chapter or

track.

PAUSE [ ] button

This button is used to pause playback.

CHAIN MODE button

This button is used with the Chain mode function.

STOP [ ] button

This button is used to stop playback.

PLAY/ENTER [ ] button

This button is used to start playback and to cancel

fast forward and fast reverse. It's also used to start

Chain mode playback.

STANDBY/ON button

This button is used to set the DV-CP802 to On or

Standby.

Don't turn on the power until you've completed and

double checked all of your connections.

STANDBY indicator

This indicator lights up when the DV-CP802 is in

Standby mode.

VIDEO CIRCUIT OFF button & indicator

This button is used to turn off all of the internal

video circuitry, eliminating the possibility of interference

when playing audio-only discs. The button

lights up when the video circuitry is turned off.

LAST MEMORY button

This button is used with the Last Memory function.

REPEAT button

This button is used with the Repeat function.

DIMMER button

This button is used to adjust the display brightness.

DISPLAY button

This button is used to display information about the

current disc, title, chapter, or track, including the

elapsed time, remaining time, total time, and so on.

Display

Remote control sensor

This sensor receives control signals from the remote

controller.

Open/Close [ ] button

This button is used to open and close the disc tray.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PANEL VIEWS-2

DISPLAYS-1

DV-CP802

SACD

DVD

AUDIO

TITLE GROUP CHP TRACK TOTAL REMAIN

MEMORY RANDOM

REPEAT A

V.OFF PRGSV

PBC JPEG

LAST M

MP3

DISC

CD DVD ALL

CHAIN M

DISC 123456

1 2 3

8 9

16 17 18 19

22 23 24 25 26 27

For detailed information, refer to the pages in parenthesis.

This indicator appears when using the Random

function.

DISC indicator

The number of the currently selected disc appears

here.

CHAIN M, CD, DVD & ALL indicators

Short for CHAIN MODE, the CHAIN M indicator

appears when the Chain mode function is on. The

CD, DVD, and ALL indicators show the type of

Chain mode selected.

TITLE indicator

This indicator appears while title numbers are being

displayed. While stopped, the total number of titles

on the current DVD-Video disc is displayed here.

During playback, the number of the current title is

displayed.

GROUP indicator

This indicator appears while group numbers are

being displayed. While stopped, the total number of

groups on the current DVD-Audio disc are displayed.

During playback, the number of the current

group is displayed.

PBC indicator

This indicator appears if the VCD currently playing

supports PBC (Playback Control).

MEMORY indicator

This indicator appears when using the Memory

function.

CHP indicator

This indicator appears while the number of the current

chapter is being displayed.

RANDOM indicator

TRACK indicator

This indicator appears while track numbers are

being displayed. While stopped, the total number of

tracks on the current VCD, CD, or MP3 disc are displayed.

During playback, the number of the current

track is displayed.

LAST M indicator

This indicator appears when using the Last Memory

function.

REPEAT indicator

This indicator appears when using the Repeat function.

A-B indicators

These indicators appear when using the A-B Repeat

function.

V. OFF indicator

This indicator appears while the video circuits are

turned off.

Camera angle indicator

This indicator appears if the DVD-Video disc being

played features multiple camera angles.

PRGSV indicator

This indicator appears when progressive scanning is

on.

TOTAL indicator

This indicator appears while the total time is being

displayed.

REMAIN indicator

This indicator appears while the remaining time is

being displayed.

JPEG indicator

This indicator appears while a JPEG picture is being

displayed.

DVD-AUDIO & SACDVCD indicators

These indicators show the type of disc currently

selected.

DVD: DVD-Video

DVD-AUDIO: DVD-Audio

SACD: Super Audio CD

VCD: Video CD

CD: Audio CD, MP3, JPEG

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PANEL VIEWS-3

DISPLAYS-2

DV-CP802

Play indicator

This indicator is shown during playback.

Pause indicator

This indicator appears when playback is paused.

Title & group number

Title and group numbers appear here.

Chapter & track number

Chapter and track numbers appear here.

Time display

Time information, such as total time, remaining

time, and so on, is displayed here in hours, minutes,

and seconds. Other messages are also displayed.

MP3 indicator

This indicator appears while an MP3 track is being

played.

Dolby Digital ( D), Dolby Pro Logic

( PL) & DTS ( ) indicators

The Dolby Digital indicator ( D) appears when

a Dolby Digital soundtrack is selected. The Dolby

Pro Logic ( PL) indicator appears when the

DV-CP802's Dolby Pro Logic decoder is on. The

DTS indicator appears when a DTS soundtrack is

selected.

DISC indicators 1-6

These indicators show how many discs are loaded.

When the disc tray is closed, all of the disc indicators

appear until the DV-CP802 has checked each

bay for the presence of a disc. If a bay is found to

have no disc, the corresponding indicator disappears.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PANEL VIEWS-4

REAL PANEL

DV-CP802

3 5 7

8 10

1 4 6

Power cord

Connect the power cord to a suitable wall outlet.

OPTICAL DIGITAL AUDIO OUTPUT

This optical digital audio output can be connected to

an optical digital audio input on a hi-fi amp, AV

receiver, or surround sound decoder (Dolby Digital,

DTS).

COAXIAL DIGITAL AUDIO OUTPUT

This coaxial digital audio output can be connected

to a coaxial digital audio input on a hi-fi amp, AV

receiver, or surround sound decoder (Dolby Digital,

DTS).

REMOTE CONTROL

These (Remote Interactive) connectors can be

connected to the connectors on your other

Onkyo AV components for interactive control.

To use you must make an analog audio connection

(RCA) between the DV-CP802 and your

Onkyo AV receiver, even if they are connected digitally.

VIDEO OUTPUT

This socket outputs composite video and can be

connected to a composite video input on a TV or

projector.

S VIDEO OUTPUT

This socket outputs S-Video and can be connected

to an S-Video input on a TV or projector.

COMPONENT VIDEO OUTPUT

These sockets output component video and can be

connected to a component video input on a TV or

projector.

FRONT/D.MIX 1 & 2, SURR 1, CENTER &

SUBWOOFER AUDIO OUTPUT

These sockets output 5.1-channel analog audio and

can be connected to a 5.1-channel analog audio

input on an AV receiver, surround sound decoder

(Dolby Pro Logic), or other component. The

FRONT/D.MIX 1 & 2 outputs can be used as either

front outputs or downmix outputs.

SURR 2 AUDIO OUTPUT

These sockets output the same analog audio as the

SURR1 outputs and can be connected to the analog

surround back left and right inputs on a 7.1-channel

AV receiver or other component. When using these

sockets, the SURR MODE switch should be set to

1+2.

SURR MODE (AUDIO OUT) switch

This switch is used to set the surround output mode

of the analog multichannel audio outputs. If you

connect the SURR 2 outputs to a 7.1-channel AV

receiver or amp, set this switch to 1+2. This reduces

the output level by 3 dB. If you fre not using the

SURR 2 outputs, set it to 1.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

REMOTE CONTROLLER-1

RC-542DV

DV-CP802

ON STANDBY

SEARCH LAST M MEMORY

CHAIN MODE

REPEAT

RANDOM

DISPLAY

SETUP

TOP MENU

RETURN

AUDIO ANGLE SUBTITLE ZOOM

DISC

DISC SKIP DIMMER

RC-542DV

STEP/SLOW

CLEAR

OPEN/

PROGRESSIVE

ENTER

+10 0

123

456

789

STANDBY button

This button is used to set the DV-CP802 to Standby.

ON button

This button is used to turn on the DV-CP802.

Don't turn on the DV-CP802 until you've completed and double

checked all of your connections.

SEARCH button

This button is used to search for titles, chapters, groups, tracks,

and specific points in time.

LAST M button

This button is used with the Last Memory function.

Number buttons

These buttons are used to enter title, chapter, group, and track numbers

and to enter times for locating specific points in time.

To enter a single-digit number, simply press the corresponding button.

To enter a double-digit number, enter the numbers in order from

left-to-right (e.g., to enter 14, press [1] then [4].

The [+10] button is used to enter multiples of ten

(i.e., 10, 20, 30, and so on). For example, to enter the number 25,

press the [+10] button twice followed by the [5] button.

TOP MENU button

This button is used to select the top menu.

RETURN button

This button is used to return to the previously displayed onscreen

setup menu.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

REMOTE CONTROLLER-2

RC-542DV

DV-CP802

AUDIO button

This button is used to select foreign language soundtracks

and audio formats (e.g., Dolby Digital or DTS).

ANGLE button

This button is used to select different camera angles.

Fast Forward [ ] button

This button is used to start fast forward.

Fast Reverse [ ] button

This button is used to start fast reverse.

DISC 1-6 buttons

These buttons are used to select discs. Playback starts automatically

when discs are selected with these buttons.

DISC SKIP button

This button is used to select the disc bays (i.e., rotate the disc tray)

when loading or removing discs, and to select discs for playback.

MEMORY button

This button is used with the Memory function.

OPEN/CLOSE [ ] button

This button is used to open and close the disc tray.

CHAIN MODE button

This button is used with the Chain mode function.

REPEAT button

This button is used to set the Repeat functions.

A-B button

This button is used to set the A-B Repeat function.

RANDOM button

This button is used with the Random function.

DISPLAY button

This button is used to display information about the current disc, title,

chapter, group, or track, including the elapsed time, remaining time,

total time, and so on.

CLEAR button

This button is used to cancel functions and to clear entered numbers.

MENU button

This button is used to show DVD menus.

ENTER button

This button is used to start playback of the selected title chapter, group,

or track and to confirm settings.

Arrow [ ], [ ], [ ], [ ] buttons

These buttons are used to navigate onscreen menus.

SETUP button

This button is used to open and close the onscreen setup menus.

SUBTITLE button

This button is used to select subtitles.

Play [ ] button

This button is used to start playback.

Pause [ ] button

This button is used to pause playback.

Stop [ ] button

This button is used to stop playback.

Previous [ ] button

This button is used to select the previous chapter or track. During

playback it selects the beginning of the current chapter or track.

Next [ ] button

This button is used to select the next chapter or track.

STEP/SLOW [+] & [-] buttons

These buttons are used for frame-by-frame playback and slow-motion

playback.

DIMMER button

This button is used to adjust the display brightness.

PROGRESSIVE button

This button is used to turn on and off progressive scanning. Progressive

scanning can ft be turned on or off during playback.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

EXPLODED VIEW

A103

A031

A012

A051

A012

A103

A012

A221

A103

A008

A012

A012 A010

A001

A012

A003 A004

A208

A201

A012

A005

A081

A031

A032

M030

M011

A012

A028

(L=150)

A012

M009

A111

M052

M051

M054

M023

M026

M022

A036

A103

M024

M025

M053

M020

A012

M050

P1101

P1001

P901

M011

M010

M011

M008

A005

M012

E101

A033

P2901

P2701 E101

P6503

P2002

P2001

P1302

P2003

P2004

P2005

A012

A055

A028

(L=150)

A056

A032

A045

M004

A101

A087

(L=400)

M007

M011

A012

A023

M006

A012

A025

A061

A062

A043

A061

A021

A062

A043

A012

A029

A038

M001

A045

M002

A012

A031

M035

M044

M042

M037

M041

P707

A103

M040

A103

M034

M038

A205

A103

A301

A103

U12

U06

U03

U10

U08

U14

U11

F101

U07

U05

U13

U09

U01

U02

Black

Blue

A011

A028

(L=50)

A062

A065

A069

A071 A072

A071

A072

A084

A085

Up side

A053

M021

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

EXPLODED VIEW

A103

A031

A012

A051

A012

A103

A012

A221

A103

A008

A012

A012 A010

A001

A012

A003 A004

A208

A201

A012

A005

A081

A031

A032

M030

M011

A012

A028

(L=150)

A012

M009

A111

M052

M051

M054

M023

M026

M022

A036

A103

M024

M025

M053

M020

A012

M050

P1101

P1001

P901

M011

M010

M011

M008

A005

M012

E101

A033

P2901

P2701 E101

P6503

P2002

P2001

P1302

P2003

P2004

P2005

A012

A055

A028

(L=150)

A056

A032

A045

M004

A101

A087

(L=400)

M007

M011

A012

A023

M006

A012

A025

A061

A062

A043

A061

A021

A062

A043

A012

A029

A038

M001

A045

M002

A012

A031

M035

M044

M042

M037

M041

P707

A103

M040

A103

M034

M038

A205

A103

A301

A103

U12

U06

U03

U10

U08

U14

U11

F101

U07

U05

U13

U09

U01

U02

Black

Blue

A011

A028

(L=50)

A062

A065

A069

A071 A072

A071

A072

A084

A085

Up side

A053

M021

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

EXPLODED VIEW

A103

A031

A012

A051

A012

A103

A012

A221

A103

A008

A012

A012 A010

A001

A012

A003 A004

A208

A201

A012

A005

A081

A031

A032

M030

M011

A012

A028

(L=150)

A012

M009

A111

M052

M051

M054

M023

M026

M022

A036

A103

M024

M025

M053

M020

A012

M050

P1101

P1001

P901

M011

M010

M011

M008

A005

M012

E101

A033

P2901

P2701 E101

P6503

P2002

P2001

P1302

P2003

P2004

P2005

A012

A055

A028

(L=150)

A056

A032

A045

M004

A101

A087

(L=400)

M007

M011

A012

A023

M006

A012

A025

A061

A062

A043

A061

A021

A062

A043

A012

A029

A038

M001

A045

M002

A012

A031

M035

M044

M042

M037

M041

P707

A103

M040

A103

M034

M038

A205

A103

A301

A103

U12

U06

U03

U10

U08

U14

U11

F101

U07

U05

U13

U09

U01

U02

Black

Blue

A011

A028

(L=50)

A062

A065

A069

A071 A072

A071

A072

A084

A085

Up side

A053

M021

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

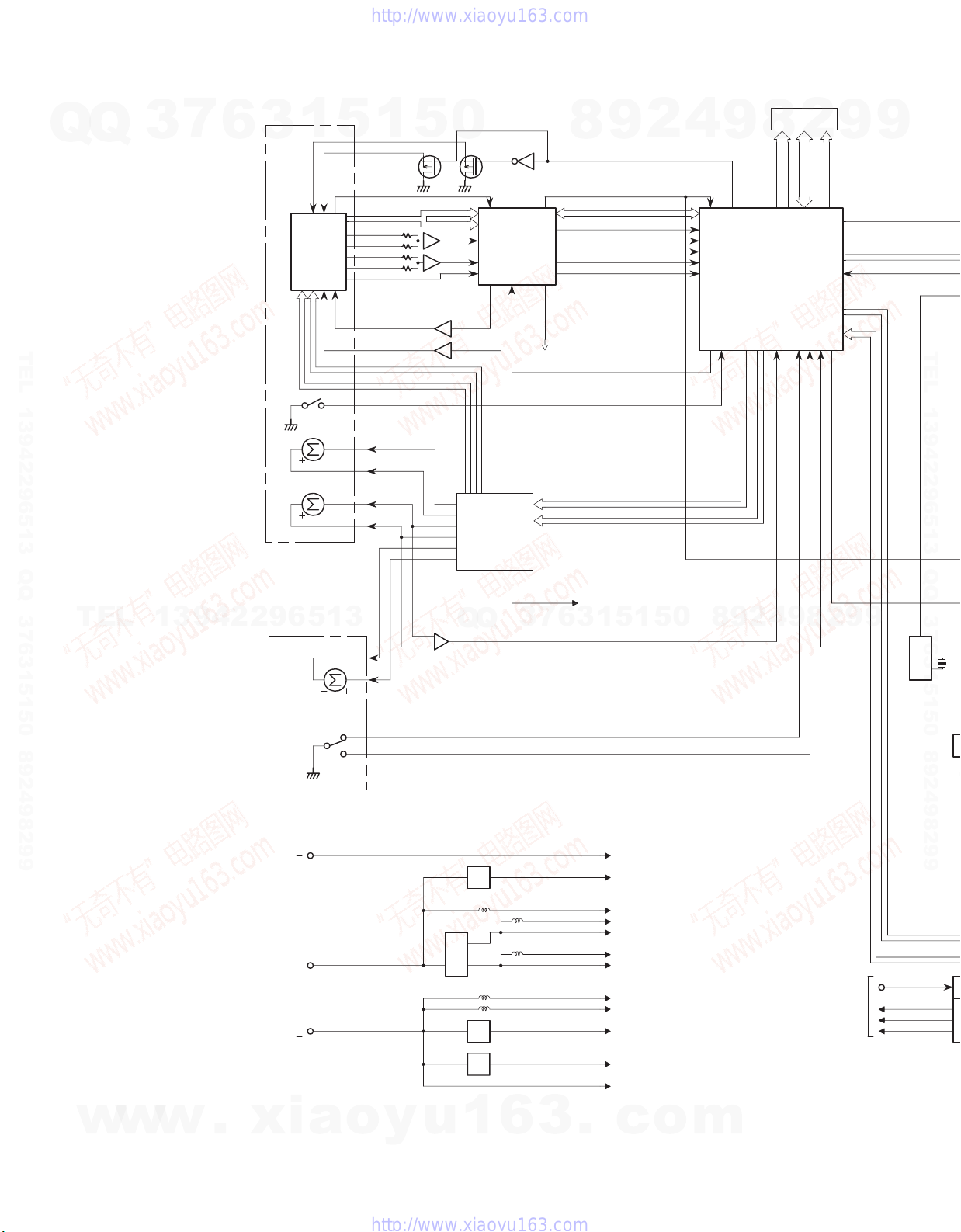

BLOCK DIAGRAM

DVD MAIN BOARD

Q1305

Q2007

Q2102

PORT EXTENDER

Q2008

Q1308

Q1307

Q1309

Q1304

Q1004Q1005

Q1003

P8V

SW+3.3V

SW+5V

Q2191

NJM2880U25

Q2903

MPC2918T

Q2902

LM1117MPX-ADJ

Q2107

S-80127CNMC-JKM-T2

SYSTEM RESET

Q2003

NJM2373AF

REF VOLTAGE

Q2103

Q2502 TC7SZ125FU

Q2901

BA33B00FP

Q2501

TC74VHCT

125AFT

Q2104

BR24L08F-W E2P-ROM 8K

X2601

FCX03-27MHZ

X1301

FCX03-33.8688MHZ

Q2601

BU2288FV

CLOCK GEN.

Q2002

IS42S16400-7T

SDRAM 64M

Q1303

IS42S16100-7T

SDRAM 16M

Q1251 IC412LV16100-50T

EDO DRAM 16M

OPEN/ CLOSE_SW

LIMIT_SW

SPINDLE_MOTOR

SLED_MOTOR

LOADING_MOTOR

Q1302

Q1002

Q1007

Q1006

Q2106

MX29LV320BTC-90

ADDRESS DATA

FLASH-ROM

OPTICAL PICK-UP

Q1102

BA4510FV

COMPARATOR

Q2101

M32102S6FP

MAIN MPU

Q1301

CXD2753R

SACD DECORDER

Q2001

M65776CFP

AV 1CHIP DECORDER

Q1201

CXD1885Q

SERVO PROCESSOR

& DVD DECODER

W/ F/E MICOM

Q1371

HARMONY-8L

STREAM SELECTOR

Q1101

FAN8042

MOTOR DRIVER

1001

CXD1881BR

RF AMP

VR_CD

VR_DVD

CD/XDVD

CONTROLLS

ADDRESS-BUS

RA0-11

DATA-BUS

RD0-15

CONTROLLS

ADDRESS-BUS

BEMA0-11.BEMBA0-1

DATA-BUS

BEMD0-15

VREF

RF_OP RFAC

AMPSEN.AMPSDT.AMPSCK

A.B.C.D C2PO.DATA.BCK.LRCK.DOUT

TE PAY.PAB.PAR

ECD_E FE

FPI VDT0-7_COR.XHAC_COR.XSHG_COR.DCK_COR.VEFG_COR BD0-7.BDEN.SHDO.BCLK

GCD_F DFCT BE_SD0-7.BE_PXCLK.BE_HSYNC.BE_VSYNC

HPD MIRR HDRQ_COR BDREQ

MCK_PLD DOUT0-1.DA_DATAD.DA_DATA1-3.DA_LRCK.DA_BCK

SACDSEL

DACCLK DACMCK

LD_DVD

VC25

ACLK_IN

PLL/XTAL

LD_CD

F+.F-

LDON

T+.T-

LMT_SW

SP_DET

OPN_SW

CLS_SW

33.8688MHZ

LMT_SW

ACLK1

27MHZ

MCD15-0

MCA30-20

SDCK_DSD

XSRQ

SD0-7.XSHD_DSD.XSAK_DSD.XSDEF_DSD

MC_WS0.MC_WS1.MC_RS.MC_BSEL1

SVA_INT3.MC_INT2.MC_INTR.MC_RDY

SLD-

SLD+

TSCON.FSCON.SLED.SPWM1.SPWM2

SPD-

CONTROLLS

ADDRESS-BUS

DSDA0-11

DATA-BUS

DSDQ0-7

SACDSEL

LDRSPO.LDM1.LDM2

FSEL [44/48X]

SPD+

LOD+

LOD- RFAC DSD_IEEE_OUT

DSD-SIGNAL

VC16 PLCK

PH/EXSEL

SP_DET

MCK_DSD EXCKO EX/PHCKO

PHREFO

SACDSEL SACDSEL SACDSEL

OPN_SW

MC_RST

CLS_SW

MCD15-8

WR_EXT

MC_WS0

MC_RS

FROMCS

XRST_DSD.SMUTE

MSDATAO.MSREADY

XMSLAT.MSCK.MSDATAI

DATA-BUS

ADRESS-BUS

MCA30-10

MCD15-0

P8V

DSD2.5V

WR_EXT

A5V SACDSEL BSEL2Z.MC_WS0

A3.3V MC_RST

D3.3V SACDSEL

DRVRDY.DRVTX.DRVIRQ MC_WS0.MC_WS1.MC_RS.MC_BSEL1

SVA_INT3.MC_INT2.MC_INTR.MC_RDY BSTDSP.ZRSTDSP.PM

A1.8V DRVCLK.DRVRX.DRVRST

D1.8V

DSPSI CS0-2.CSD.CSDSP.XHACDSP.MC.MDI.MDO.XRSTDAC.AMUTE.44/48X.FSX2.FSX4

VENC3.3V RGBON.S/NSX.SQUEEZE.LETTER.NTSC/PALX

VENC1.8V DSPSO

DSTBX

SW+1.8V DSPSCK VRESET.P/IX.SDA_HD.SCL_HD.SDA_504.SCL_504

E_SDA

MPU2.5V E_SCL

E_SCL

E_SDA

SW+3.3V

NADG-8257

P2701B

Video Controls

Audio Controls

P2001B

P2003B

DSD

P1302

DSD for IEEE

P1301B

Digital Video

P2002B

P2004B

Audio

P2005A

Analog Prog-Video

P2901A

Power supply

DSADML,DSADMR,BCKAO

DSAL,DSAR,DSAC,DSASW,DSALS,DSARS

IOUT0-5,IBCK,IOUTE,IFRM,IANCO

Sub-micom

DSR_XWE

Data Stream

CD data

BEDQMU,BEDQML

BECS,BECAS,BERAS

BEMCKA,BEDWE

DSR_RAS,DSR_CAS

DSR_CKE,DSR_CLK

XUCAS,XLCAS

XRAS,XMWR,XMOE

for Servo

Ref Voltage

for Pick-up sig.

Ref voltage

Loader mecha. TRAVERSE mecha

KHM-280AAA

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

BLOCK DIAGRAM

DVD MAIN BOARD

Q1305

Q2007

Q2102

PORT EXTENDER

Q2008

Q1308

Q1307

Q1309

Q1304

Q1004Q1005

Q1003

P8V

SW+3.3V

SW+5V

Q2191

NJM2880U25

Q2903

MPC2918T

Q2902

LM1117MPX-ADJ

Q2107

S-80127CNMC-JKM-T2

SYSTEM RESET

Q2003

NJM2373AF

REF VOLTAGE

Q2103

Q2502 TC7SZ125FU

Q2901

BA33B00FP

Q2501

TC74VHCT

125AFT

Q2104

BR24L08F-W E2P-ROM 8K

X2601

FCX03-27MHZ

X1301

FCX03-33.8688MHZ

Q2601

BU2288FV

CLOCK GEN.

Q2002

IS42S16400-7T

SDRAM 64M

Q1303

IS42S16100-7T

SDRAM 16M

Q1251 IC412LV16100-50T

EDO DRAM 16M

OPEN/ CLOSE_SW

LIMIT_SW

SPINDLE_MOTOR

SLED_MOTOR

LOADING_MOTOR

Q1302

Q1002

Q1007

Q1006

Q2106

MX29LV320BTC-90

ADDRESS DATA

FLASH-ROM

OPTICAL PICK-UP

Q1102

BA4510FV

COMPARATOR

Q2101

M32102S6FP

MAIN MPU

Q1301

CXD2753R

SACD DECORDER

Q2001

M65776CFP

AV 1CHIP DECORDER

Q1201

CXD1885Q

SERVO PROCESSOR

& DVD DECODER

W/ F/E MICOM

Q1371

HARMONY-8L

STREAM SELECTOR

Q1101

FAN8042

MOTOR DRIVER

1001

CXD1881BR

RF AMP

VR_CD

VR_DVD

CD/XDVD

CONTROLLS

ADDRESS-BUS

RA0-11

DATA-BUS

RD0-15

CONTROLLS

ADDRESS-BUS

BEMA0-11.BEMBA0-1

DATA-BUS

BEMD0-15

VREF

RF_OP RFAC

AMPSEN.AMPSDT.AMPSCK

A.B.C.D C2PO.DATA.BCK.LRCK.DOUT

TE PAY.PAB.PAR

ECD_E FE

FPI VDT0-7_COR.XHAC_COR.XSHG_COR.DCK_COR.VEFG_COR BD0-7.BDEN.SHDO.BCLK

GCD_F DFCT BE_SD0-7.BE_PXCLK.BE_HSYNC.BE_VSYNC

HPD MIRR HDRQ_COR BDREQ

MCK_PLD DOUT0-1.DA_DATAD.DA_DATA1-3.DA_LRCK.DA_BCK

SACDSEL

DACCLK DACMCK

LD_DVD

VC25

ACLK_IN

PLL/XTAL

LD_CD

F+.F-

LDON

T+.T-

LMT_SW

SP_DET

OPN_SW

CLS_SW

33.8688MHZ

LMT_SW

ACLK1

27MHZ

MCD15-0

MCA30-20

SDCK_DSD

XSRQ

SD0-7.XSHD_DSD.XSAK_DSD.XSDEF_DSD

MC_WS0.MC_WS1.MC_RS.MC_BSEL1

SVA_INT3.MC_INT2.MC_INTR.MC_RDY

SLD-

SLD+

TSCON.FSCON.SLED.SPWM1.SPWM2

SPD-

CONTROLLS

ADDRESS-BUS

DSDA0-11

DATA-BUS

DSDQ0-7

SACDSEL

LDRSPO.LDM1.LDM2

FSEL [44/48X]

SPD+

LOD+

LOD- RFAC DSD_IEEE_OUT

DSD-SIGNAL

VC16 PLCK

PH/EXSEL

SP_DET

MCK_DSD EXCKO EX/PHCKO

PHREFO

SACDSEL SACDSEL SACDSEL

OPN_SW

MC_RST

CLS_SW

MCD15-8

WR_EXT

MC_WS0

MC_RS

FROMCS

XRST_DSD.SMUTE

MSDATAO.MSREADY

XMSLAT.MSCK.MSDATAI

DATA-BUS

ADRESS-BUS

MCA30-10

MCD15-0

P8V

DSD2.5V

WR_EXT

A5V SACDSEL BSEL2Z.MC_WS0

A3.3V MC_RST

D3.3V SACDSEL

DRVRDY.DRVTX.DRVIRQ MC_WS0.MC_WS1.MC_RS.MC_BSEL1

SVA_INT3.MC_INT2.MC_INTR.MC_RDY BSTDSP.ZRSTDSP.PM

A1.8V DRVCLK.DRVRX.DRVRST

D1.8V

DSPSI CS0-2.CSD.CSDSP.XHACDSP.MC.MDI.MDO.XRSTDAC.AMUTE.44/48X.FSX2.FSX4

VENC3.3V RGBON.S/NSX.SQUEEZE.LETTER.NTSC/PALX

VENC1.8V DSPSO

DSTBX

SW+1.8V DSPSCK VRESET.P/IX.SDA_HD.SCL_HD.SDA_504.SCL_504

E_SDA

MPU2.5V E_SCL

E_SCL

E_SDA

SW+3.3V

NADG-8257

P2701B

Video Controls

Audio Controls

P2001B

P2003B

DSD

P1302

DSD for IEEE

P1301B

Digital Video

P2002B

P2004B

Audio

P2005A

Analog Prog-Video

P2901A

Power supply

DSADML,DSADMR,BCKAO

DSAL,DSAR,DSAC,DSASW,DSALS,DSARS

IOUT0-5,IBCK,IOUTE,IFRM,IANCO

Sub-micom

DSR_XWE

Data Stream

CD data

BEDQMU,BEDQML

BECS,BECAS,BERAS

BEMCKA,BEDWE

DSR_RAS,DSR_CAS

DSR_CKE,DSR_CLK

XUCAS,XLCAS

XRAS,XMWR,XMOE

for Servo

Ref Voltage

for Pick-up sig.

Ref voltage

Loader mecha. TRAVERSE mecha

KHM-280AAA

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

BLOCK DIAGRAM

OVERALL

1_1+2

SUR

Q808

REMO_SENS

KEY

PANEL

MUTE DRIVE

GAIN CNT

Q956

REGURATOR-12V

Q955

REGURATOR+12V

MUTE DRIVE

Q6102

NJM2880U25

REGURATOR+2.5V

Q4301

REGURATOR+5V

Q4302

REGURATOR+3.3V

Q4009

REGURATOR 2.85V

X4001

13.5MHZ

Q4421

LPF

Q4422

LPF

Q4522

LPF

Q4521

LPF

Q4321

LPF

Q4322

LPF

OPTICAL

DIGITAL OUTPUT

P901

Q801

MPD780232GC-091

KEY& DISPLAY

CONTROLLER

Q802

13-BT211GNK

FL-TUBE

Q4424

Q4423

Q4524

Q4523

Q4751

Q4851

Q4324

Q4323

Q4011

Y/PB/PR

COAXIAL

DIGITAL OUTPUT

SUR_L2

SUR_R2

SUR_R1

CV1

FRONT_R1

FRONT_L1

FRONT_R2

FRONT_L2

CENTER

SUR_L1

Q501

DIGITALOUT DRIVER

Q6113

NJM2584M

VIDEO-SW

Q6001

LA73054

VIDEO

DRIVER

WITH_LFP

NADG-8257

DVD-MAIN BOARD

See DVD_Main board Block Diagram

Q701

MPD78F225GC

SYSTEM_CONTROLLER

6-DISCS CHANGER MECHA.

NGPS-0049

92PS-235

SW-POWER SUPPLY UNIT

Q4005

Q4006

SRAM

Q4012

MB86344BPFV

AUDIO DSP

Q4304

WM8756

D/A CONVERTER

Q6101

ADV7300A

VIDEO-ENCODER

DSAL.DSAR.DSAC.DSASW.DSALS.DSARS.BCKAO

DSD_SIGNAL

MCLK_DAC OUT0_L

OUT0_R

LRCKI OUT1_L

DA_DATA1-3.BCK.LRCK BCKI OUT1_R

DATA_F.SDO2.SDO3.SDO4 OUT2_L

CONTROL-SIGNALS OUT2_R

RF&ERROR-SIGNALS

+3.3V

SERVO-SIGNALS

AVDD+5V

CONTROL-SIGNALS

2.85V_DSP

SW+5V

+12V

AMUTE

DOUT0-1

CONTROL-SIGNALS

DSPSI.DSPSO.DSTBX.DSPCK

ROULETTE_DRIVE

LOADING_DRIVE SQUEEZE.LETTER.P/IX

REMO.SENS

SENSOR-SIGNAL

BE_SD0-7.BE_PIXCLK.BE_HSYNC.BE_YSYNC

KEY

E_SCL.E_SDA.VRESET

P/IX

FL.DRV SUBRESET.SUBCL.SUBREQ.SI.SO AMUTE

VDOFF SD.CV0

VDD+3.3V SD_SY0

CV1

SD.SC0

+2.5V SD.Y

SD.CB

SD.CR

RI. REMOTE CONTROL

PWRCTR

PAY0.PAB0.PAC0

CB1

CR1

VDOFF

-30V

ASW+14V +12V

ASW-14V -12V

SW+8V

SW+5V

SW+3V

EV5V

FRONT/D.MIX

for Audio DAC, amp. & LPF.

for MECHA. drive, video Drive & Digital circuits

for System & Display controller

for FL TUBE DRIVE

P2701B P2005A

P2002B

p2001B

P2003B

P2004B

P1302

Progressive Video signal

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

BLOCK DIAGRAM

OVERALL

1_1+2

SUR

Q808

REMO_SENS

KEY

PANEL

MUTE DRIVE

GAIN CNT

Q956

REGURATOR-12V

Q955

REGURATOR+12V

MUTE DRIVE

Q6102

NJM2880U25

REGURATOR+2.5V

Q4301

REGURATOR+5V

Q4302

REGURATOR+3.3V

Q4009

REGURATOR 2.85V

X4001

13.5MHZ

Q4421

LPF

Q4422

LPF

Q4522

LPF

Q4521

LPF

Q4321

LPF

Q4322

LPF

OPTICAL

DIGITAL OUTPUT

P901

Q801

MPD780232GC-091

KEY& DISPLAY

CONTROLLER

Q802

13-BT211GNK

FL-TUBE

Q4424

Q4423

Q4524

Q4523

Q4751

Q4851

Q4324

Q4323

Q4011

Y/PB/PR

COAXIAL

DIGITAL OUTPUT

SUR_L2

SUR_R2

SUR_R1

CV1

FRONT_R1

FRONT_L1

FRONT_R2

FRONT_L2

CENTER

SUR_L1

Q501

DIGITALOUT DRIVER

Q6113

NJM2584M

VIDEO-SW

Q6001

LA73054

VIDEO

DRIVER

WITH_LFP

NADG-8257

DVD-MAIN BOARD

See DVD_Main board Block Diagram

Q701

MPD78F225GC

SYSTEM_CONTROLLER

6-DISCS CHANGER MECHA.

NGPS-0049

92PS-235

SW-POWER SUPPLY UNIT

Q4005

Q4006

SRAM

Q4012

MB86344BPFV

AUDIO DSP

Q4304

WM8756

D/A CONVERTER

Q6101

ADV7300A

VIDEO-ENCODER

DSAL.DSAR.DSAC.DSASW.DSALS.DSARS.BCKAO

DSD_SIGNAL

MCLK_DAC OUT0_L

OUT0_R

LRCKI OUT1_L

DA_DATA1-3.BCK.LRCK BCKI OUT1_R

DATA_F.SDO2.SDO3.SDO4 OUT2_L

CONTROL-SIGNALS OUT2_R

RF&ERROR-SIGNALS

+3.3V

SERVO-SIGNALS

AVDD+5V

CONTROL-SIGNALS

2.85V_DSP

SW+5V

+12V

AMUTE

DOUT0-1

CONTROL-SIGNALS

DSPSI.DSPSO.DSTBX.DSPCK

ROULETTE_DRIVE

LOADING_DRIVE SQUEEZE.LETTER.P/IX

REMO.SENS

SENSOR-SIGNAL

BE_SD0-7.BE_PIXCLK.BE_HSYNC.BE_YSYNC

KEY

E_SCL.E_SDA.VRESET

P/IX

FL.DRV SUBRESET.SUBCL.SUBREQ.SI.SO AMUTE

VDOFF SD.CV0

VDD+3.3V SD_SY0

CV1

SD.SC0

+2.5V SD.Y

SD.CB

SD.CR

RI. REMOTE CONTROL

PWRCTR

PAY0.PAB0.PAC0

CB1

CR1

VDOFF

-30V

ASW+14V +12V

ASW-14V -12V

SW+8V

SW+5V

SW+3V

EV5V

FRONT/D.MIX

for Audio DAC, amp. & LPF.

for MECHA. drive, video Drive & Digital circuits

for System & Display controller

for FL TUBE DRIVE

P2701B P2005A

P2002B

p2001B

P2003B

P2004B

P1302

Progressive Video signal

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

BLOCK DIAGRAM

DVD MAIN BOARD

Q1305

Q2007

Q2102

PORT EXTENDER

Q2008

Q1308

Q1307

Q1309

Q1304

Q1004Q1005

Q1003

P8V

SW+3.3V

SW+5V

Q2191

NJM2880U25

Q2903

MPC2918T

Q2902

LM1117MPX-ADJ

Q2107

S-80127CNMC-JKM-T2

SYSTEM RESET

Q2003

NJM2373AF

REF VOLTAGE

Q2103

Q2502 TC7SZ125FU

Q2901

BA33B00FP

Q2501

TC74VHCT

125AFT

Q2104

BR24L08F-W E2P-ROM 8K

X2601

FCX03-27MHZ

X1301

FCX03-33.8688MHZ

Q2601

BU2288FV

CLOCK GEN.

Q2002

IS42S16400-7T

SDRAM 64M

Q1303

IS42S16100-7T

SDRAM 16M

Q1251 IC412LV16100-50T

EDO DRAM 16M

OPEN/ CLOSE_SW

LIMIT_SW

SPINDLE_MOTOR

SLED_MOTOR

LOADING_MOTOR

Q1302

Q1002

Q1007

Q1006

Q2106

MX29LV320BTC-90

ADDRESS DATA

FLASH-ROM

OPTICAL PICK-UP

Q1102

BA4510FV

COMPARATOR

Q2101

M32102S6FP

MAIN MPU

Q1301

CXD2753R

SACD DECORDER

Q2001

M65776CFP

AV 1CHIP DECORDER

Q1201

CXD1885Q

SERVO PROCESSOR

& DVD DECODER

W/ F/E MICOM

Q1371

HARMONY-8L

STREAM SELECTOR

Q1101

FAN8042

MOTOR DRIVER

1001

CXD1881BR

RF AMP

VR_CD

VR_DVD

CD/XDVD

CONTROLLS

ADDRESS-BUS

RA0-11

DATA-BUS

RD0-15

CONTROLLS

ADDRESS-BUS

BEMA0-11.BEMBA0-1

DATA-BUS

BEMD0-15

VREF

RF_OP RFAC

AMPSEN.AMPSDT.AMPSCK

A.B.C.D C2PO.DATA.BCK.LRCK.DOUT

TE PAY.PAB.PAR

ECD_E FE

FPI VDT0-7_COR.XHAC_COR.XSHG_COR.DCK_COR.VEFG_COR BD0-7.BDEN.SHDO.BCLK

GCD_F DFCT BE_SD0-7.BE_PXCLK.BE_HSYNC.BE_VSYNC

HPD MIRR HDRQ_COR BDREQ

MCK_PLD DOUT0-1.DA_DATAD.DA_DATA1-3.DA_LRCK.DA_BCK

SACDSEL

DACCLK DACMCK

LD_DVD

VC25

ACLK_IN

PLL/XTAL

LD_CD

F+.F-

LDON

T+.T-

LMT_SW

SP_DET

OPN_SW

CLS_SW

33.8688MHZ

LMT_SW

ACLK1

27MHZ

MCD15-0

MCA30-20

SDCK_DSD

XSRQ

SD0-7.XSHD_DSD.XSAK_DSD.XSDEF_DSD

MC_WS0.MC_WS1.MC_RS.MC_BSEL1

SVA_INT3.MC_INT2.MC_INTR.MC_RDY

SLD-

SLD+

TSCON.FSCON.SLED.SPWM1.SPWM2

SPD-

CONTROLLS

ADDRESS-BUS

DSDA0-11

DATA-BUS

DSDQ0-7

SACDSEL

LDRSPO.LDM1.LDM2

FSEL [44/48X]

SPD+

LOD+

LOD- RFAC DSD_IEEE_OUT

DSD-SIGNAL

VC16 PLCK

PH/EXSEL

SP_DET

MCK_DSD EXCKO EX/PHCKO

PHREFO

SACDSEL SACDSEL SACDSEL

OPN_SW

MC_RST

CLS_SW

MCD15-8

WR_EXT

MC_WS0

MC_RS

FROMCS

XRST_DSD.SMUTE

MSDATAO.MSREADY

XMSLAT.MSCK.MSDATAI

DATA-BUS

ADRESS-BUS

MCA30-10

MCD15-0

P8V

DSD2.5V

WR_EXT

A5V SACDSEL BSEL2Z.MC_WS0

A3.3V MC_RST

D3.3V SACDSEL

DRVRDY.DRVTX.DRVIRQ MC_WS0.MC_WS1.MC_RS.MC_BSEL1

SVA_INT3.MC_INT2.MC_INTR.MC_RDY BSTDSP.ZRSTDSP.PM

A1.8V DRVCLK.DRVRX.DRVRST

D1.8V

DSPSI CS0-2.CSD.CSDSP.XHACDSP.MC.MDI.MDO.XRSTDAC.AMUTE.44/48X.FSX2.FSX4

VENC3.3V RGBON.S/NSX.SQUEEZE.LETTER.NTSC/PALX

VENC1.8V DSPSO

DSTBX

SW+1.8V DSPSCK VRESET.P/IX.SDA_HD.SCL_HD.SDA_504.SCL_504

E_SDA

MPU2.5V E_SCL

E_SCL

E_SDA

SW+3.3V

NADG-8257

P2701B

Video Controls

Audio Controls

P2001B

P2003B

DSD

P1302

DSD for IEEE

P1301B

Digital Video

P2002B

P2004B

Audio

P2005A

Analog Prog-Video

P2901A

Power supply

DSADML,DSADMR,BCKAO

DSAL,DSAR,DSAC,DSASW,DSALS,DSARS

IOUT0-5,IBCK,IOUTE,IFRM,IANCO

Sub-micom

DSR_XWE

Data Stream

CD data

BEDQMU,BEDQML

BECS,BECAS,BERAS

BEMCKA,BEDWE

DSR_RAS,DSR_CAS

DSR_CKE,DSR_CLK

XUCAS,XLCAS

XRAS,XMWR,XMOE

for Servo

Ref Voltage

for Pick-up sig.

Ref voltage

Loader mecha. TRAVERSE mecha

KHM-280AAA

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

DV-CP802

BLOCK DIAGRAM

OVERALL

1_1+2

SUR

Q808

REMO_SENS

KEY

PANEL

MUTE DRIVE

GAIN CNT

Q956

REGURATOR-12V

Q955

REGURATOR+12V

MUTE DRIVE

Q6102

NJM2880U25

REGURATOR+2.5V

Q4301

REGURATOR+5V

Q4302

REGURATOR+3.3V

Q4009

REGURATOR 2.85V

X4001

13.5MHZ

Q4421

LPF

Q4422

LPF

Q4522

LPF

Q4521

LPF

Q4321

LPF

Q4322

LPF

OPTICAL

DIGITAL OUTPUT

P901

Q801

MPD780232GC-091

KEY& DISPLAY

CONTROLLER

Q802

13-BT211GNK

FL-TUBE

Q4424

Q4423

Q4524

Q4523

Q4751

Q4851

Q4324

Q4323

Q4011

Y/PB/PR

COAXIAL

DIGITAL OUTPUT

SUR_L2

SUR_R2

SUR_R1

CV1

FRONT_R1

FRONT_L1

FRONT_R2

FRONT_L2

CENTER

SUR_L1

Q501

DIGITALOUT DRIVER

Q6113

NJM2584M

VIDEO-SW

Q6001

LA73054

VIDEO

DRIVER

WITH_LFP

NADG-8257

DVD-MAIN BOARD

See DVD_Main board Block Diagram

Q701

MPD78F225GC

SYSTEM_CONTROLLER

6-DISCS CHANGER MECHA.

NGPS-0049

92PS-235

SW-POWER SUPPLY UNIT

Q4005

Q4006

SRAM

Q4012

MB86344BPFV

AUDIO DSP

Q4304

WM8756

D/A CONVERTER

Q6101

ADV7300A

VIDEO-ENCODER

DSAL.DSAR.DSAC.DSASW.DSALS.DSARS.BCKAO

DSD_SIGNAL

MCLK_DAC OUT0_L

OUT0_R

LRCKI OUT1_L

DA_DATA1-3.BCK.LRCK BCKI OUT1_R

DATA_F.SDO2.SDO3.SDO4 OUT2_L

CONTROL-SIGNALS OUT2_R

RF&ERROR-SIGNALS

+3.3V

SERVO-SIGNALS

AVDD+5V

CONTROL-SIGNALS

2.85V_DSP

SW+5V

+12V

AMUTE

DOUT0-1

CONTROL-SIGNALS

DSPSI.DSPSO.DSTBX.DSPCK

ROULETTE_DRIVE

LOADING_DRIVE SQUEEZE.LETTER.P/IX

REMO.SENS

SENSOR-SIGNAL

BE_SD0-7.BE_PIXCLK.BE_HSYNC.BE_YSYNC

KEY

E_SCL.E_SDA.VRESET

P/IX

FL.DRV SUBRESET.SUBCL.SUBREQ.SI.SO AMUTE

VDOFF SD.CV0

VDD+3.3V SD_SY0

CV1

SD.SC0

+2.5V SD.Y

SD.CB

SD.CR

RI. REMOTE CONTROL

PWRCTR

PAY0.PAB0.PAC0

CB1

CR1

VDOFF

-30V

ASW+14V +12V

ASW-14V -12V

SW+8V

SW+5V

SW+3V

EV5V

FRONT/D.MIX

for Audio DAC, amp. & LPF.

for MECHA. drive, video Drive & Digital circuits

for System & Display controller

for FL TUBE DRIVE

P2701B P2005A

P2002B

p2001B

P2003B

P2004B

P1302

Progressive Video signal

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

SCHEMATIC DIAGRAMS-1

DV-CP802

BCDEFGH

Q1202

TC7SZ08FU

GND

VCC 5

Q1004

2SK3019

Q1003

2SK3019

Q1005

2SK3019

P1001

C1044

102J

C1040

102J

C1243 105Z

C1242 105Z

C1258 105Z

C1241

105Z

C1231

C1216 154K

C1355

C1204

C1240

560J

C1233 105Z

C1010 222K

C1009 222K

C1008 222K

C1007 222K

C1011

331J

C1006 220J

C1005 220J

C1004 220J

C1003 220J

C1001 104K

C1002 104K

C1012 104Z

C1038 104Z

C1034 104K

C1033 104K

C1035

103K

C1030 104K

C1027 102J

C1031 104Z

C1024

473K

C1020 104K

C1051 104Z

C1049 104Z

C1025

104Z

C1015 333K

C1016 333K

C1017 151J

C1239 105Z

C1230 105Z

C1251 471J

C1252 104Z

C1253 471J

C1254 104Z

C1225 105Z

C1218 105Z

C1217 105Z

C1221 105Z

C1223 105Z

C1222 104Z

C1224

473K

C1215 101J

C1214 223K

C1213 101J

C1212 104K

C1211 223K

C1210 151J

C1209 223K

C1208 105Z

C1206 105Z

C1207 105Z

C1232 105Z

C1203

105Z

C1201

105Z

C1202

105Z

C1205

C1023

104Z

C1021

104Z

C1226

103K

C1102 101J

C1103 102J

C1101 221J

C1108 104Z

C1107 104Z

C1110

104Z

C1113 223K

C1114 223K

C1105104Z

C1104

104Z

C1219

331J

C1220

331J

C1037 100D

C1036 100D

C1028

104K

C1029

104K

C1255 471J

C1256 104Z

C1116 473K

C1115 473K

C1117

104

C1014 104Z

C1018 474K

C1019 474K

C1227 105Z

C1228 105Z

C1229 105Z

C1046

10/16

C1045

10/16

C1043

47/6.3

C1039

47/6.3

C1054

220/4

C1022

22/16

C1048

100/6.3

C1237

220/4

C1050 100/6.3

C1052 100/6.3

C1026

22/16

C1053

1/50

C1257 220/4

C1042

10/16

C1041

10/16

C1111

10/16

C1112

10/16

C1236

220/4

C1238

10/16

C1234

220/4

C1235

220/4

C110622/16

C1047

22/16

C1013

22/16

C1032 100/6.3

C1109

22/16

R1003

12K F

R1018

R1020 33

R1019 33

R1204

R1201

R1239

R1240

10K

R1029 100KR1028

3.9K

R1008

R1243

R12420

R12440

R1022 100

R1021 100

R1025

R1024

R1026

R1229 0

R1228 0

R1223 22K

R1216 150K

R1217 470

R1219 47K

R1220 100K

R1222 1.8K

R1221 1.8K

R1218 68K

R1215 47K

R1214 47K

R1203

R1202

R1207

180

R1017 33

R1015

R1016 33

R1233

33K

R1232

1.5K

R1104 33K R1103

56K

R1106 33K R1105

56K

R1102 15K R1101

56K

R1109

10K

R1108

10K

R1111

10K

R1110

10K

R1114 7.5K R1113

33K

R1115

33K

R1116 7.5K

R1118

10K F

R1117

10K F

R1112

R1107

R1227

10K

R1225

10K

R1224

R1226

R1231 33K

R1230

R1012 22K

R1007 22K

R1011

22K

R1010

22K

R1014

10K

R1005

22K

R1006

22K

R1009

10K

R1013

R1004

10K

R1119

22K

R1123

22K

R1120 10K

R1124 10K

R1125

10K

R1126 100K

R1122

100K

R1121

10K

R1127

R1128

R1023

R1027

Q1007

2SB1132

Q1006

2SB1132

L1002

47U

L1201 2.2U

L1202 2.2U

L10052.2U

L10042.2U

L10032.2U

L1203 2.2U

L1001

47U

L1204 2.2U

L1251

2.2U

P09

LD-CD

P14 A5V

P10

IOP_CD

P126 MCK

P76

PLCK

P01

VC25

P02

RF5V

P168

DP167

CP166

BP165

AP164

CD_D P163

CD_C P162

CD_B P161

CD_A

P17

CD/DVD-PD

P29

AIN

P25

AIP

P24

CD-F

P26

CD-E

P35

P36

P37

MLPF

P50 CE

P51

AMPSEN

P52

AMPSDT

P53

AMPSCK

P23

RFSIN

P18

RFN

P19

RFP

P12

RFOP

P20

RFDC

P07

AGND

P06

T-

P05

T+

P04

F-

P03

F+

P56

RA10 P55

RA11

P66

GPWM4

P65

GPWM2

P64

GPWM0

P70

GPWM3

P69

GPWM1

P67

TILT

P74 VREFH

P89 VCOI

P78

JITT

P90 HF

P109 TP

P110 TP

P75

BLKSYNC

P77

FMSYNC

P79

STS3

P80

TST4

P81

TST5

P82

TST6

P83

TST7

P84

TST8

P85

TST9

P86

TST10

P87

TST11

P88

TST12

P96

RSV0

P94

ST4

P93

ST3 P92

ST2 P91

ST1

P97

RSV1

P111

EDCNG

P112

CLVLOCK

P113

SYNCLOCK

P114

CD/XDVD

P115

LDON

P116

XFTSMUTE

P117

XSPMUTE

P118

TSD-M

P119

FOK

P120

BUFEMP

P121

TRST

P122

TMS

P123

TDI

P124

TCK

P125

TDO

P107 LRCK

P106 DOUT

P105 DADT

P104 C2PO

P103 DRVRDY

P108 BCK

P102 DRVTX

P101 DRVIRQ

P100 DRVCLK

P99 DRVRX

P98 DRVRST

P139 DCK

P138 XSHD

P137 VEFG

P135 HDRQ

P136 XHAC

P134 VDT0

P133 VDT1

P132 VDT2

P131 VDT3

P130 VDT4

P129 VDT5

P128 VDT6

P127 VDT7

P41

LINK

P08

LD-DVD

P11

IOP_DV

P13

A5V

P68

P57

GPWM5

P33 TD

P34 FD

P32 SLD

P27

SPD

P16

XSPMUTE P15

XFTSMUTE

P22

LDM2

P21

LDM1

P40

SPWM1

P46

SPWM2

P42

SPDL1

P43

SLED1

P44

TSCON

P45FSCON

P48

SPDL0

P49

SLED0

P28 LDRSP

P38

MIRR

P62 FEO

P71 FE1

P72 TE1

P63 TEO

P60 PI

P58

AMPMNT

P59

A3.3VDSP

P61

A1.8VDSP

P141

XRDY

P140

XINT

P95

RSV2

P30

RFAC0

P54

DFCT

P144

XCSI

P143

XWR

P142

XRD

P39

LDON

P73 VREFL

P47 MIN

P145

VC16

P148

ATC

P149

SPDET

P150 LDNG-

P151 LDNG+

P155 SPD-

P158 SPD+

P159

SLD+ P160

SLD-

Q1002

NJM2115V

Q1002

NJM2115V

-B

Q1101

FAN8042

CTL 15

DO1+

DO1-

DO2+

DO2-

DO3+

DO3-

DO4+

DO4-

DO5+

DO5-

FWD 16

GND_0 6

GND_1 7

GND_2 18

GND_3 19

GND_4

GND_5

GND_6

GND_7

IN1+ 1

IN1- 2

IN2+ 4

IN2- 5

IN3+ 9

IN3- 10

IN4+ 12

IN4- 13

MUTE123 21

MUTE4 22

OPIN1+

OPIN1-

OPIN2+

OPIN2-

OPOUT1

OPOUT2

OUT1 3

OUT2 8

OUT3 11

OUT4 14

PVCC1

PVCC2

REV 17

SGND 20

SVCC

TSD-M 23

VREF

Q1001

CXD1881AR

A12

A23

AIN 60

AIP 59

ATON 61

ATOP 62

B11

B24

BYP 56

C10

C25

CDLD22

CDPD24

CD_A

CD_B15

CD_C14

CD_D13

CD_E18

CD_F17

CE 41CN8

CP7

D26

DFT 34

DIN 55

DIP 54

DVDLD21

DVDPD23

DVDRFN

DVDRFP

FE 40

FNN 52

FNP 53

LCN 43

LCP 44

LDON26

LINK

MB29

MEV 50

MEVO32

MIN31

MIRR27

MLPF30

MNTR 42

MP28

PI 38

RFAC 57

RFDC 64

RFSIN 63

RX 49

SCLK 46

SDATA 47

SDEN 48

TE 39

TPH 35

V125 36

V25 37

V33 45

VC20

VNA 51

VNB25

VPA 58

VPB19

P1102 P1101

Q1251 IC41LV16100-50T

A021

A122

A223

A324A427

A528

A629

A730

A831

A932

DQ0 2

DQ1 3

DQ1043

DQ1144

DQ1246

DQ1347

DQ1448

DQ1549

DQ2 4

DQ3 5

DQ4 7

DQ5 8

DQ6 9

DQ710DQ841

DQ942

LCAS35

NC111

NC215

NC316

NC419

NC520

NC636

NC740

OE33 RAS 18

UCAS34

VCC1 1

VCC2 6

VCC325VSS126

VSS245

VSS350

WR17

Q1201

CXD1885Q

AD0 91

AD1 92

AD2 93

AD3 95

AD4 96

AD5 97

AD6 98

AD7 99

AD8 100

AD9 101

ALCR 2

ATC 74

AVDD18_0 84

AVDD18_1

104

AVDD33_0 79

AVDD33_1 94

AVDD33_2105

AVSS_0 73

AVSS_1 89

AVSS_2 90

AVSS_3110

BCK 62

C2PO 58

CHG 82

CSL 65

DA0/TSCON

106

DA1/SLED107

DA2/FSCON108

DA3/SLED2_TILT109

DADT 59

DCK 49

DOTX 60

DRVCLK 56

DRVIRQ 50

DRVRDY 57

DRVRST 51

DRVRX 55

DRVTX 54

DTC 72

DVDD18_0 32

DVDD18_1 52

DVDD18_2136

DVDD18_3156

DVDD18_4188

DVDD18_5208

DVDD33_0 1

DVDD33_1 27

DVDD33_2 53

DVDD33_3131

DVDD33_4157

DVDD33_5183

DVSS_0 21

DVSS_1 35

DVSS_2 38

DVSS_3125

DVSS_4142

DVSS_5177

DVSS_6194

EXPLDT 64

EXVCO 63

FG111

GIO0179

GIO1180

GIO10191

GIO11192

GIO12193

GIO13195

GIO14196

GIO15197

GIO16198

GIO17199

GIO18200

GIO19201

GIO2181

GIO3182

GIO4184

GIO5185

GIO6186

GIO7187

GIO8189

GIO9190

GPWM0114

GPWM1115

GPWM2116

GPWM3117

GPWM4118

GPWM5119

HDRQ 45

HF 75

HFD 70

IREF 78

JMOUT 81

JMREF 80

LPF1 86

LPF2 87

LRCK 61

MA0 5

MA1 6

MA2 7

MA3 8

MA4 9

MA5 10

MA6 11

MA7 12

MA8 13

MALE 24

MCS 25

MD0 15

MD1 16

MD2 17

MD3 18

MD4 19

MD5 20

MD6 22

MD7 23

MINT 30

MIRRORH 71

MODSEL0175

MODSEL1176

MODSEL2178

MRD 28

MRDY 29

MSEL0 3

MSEL1 4

MWR 26

RA0137

RA1135

RA10124

RA11123

RA2134

RA3133

RA4132

RA5130

RA6129

RA7128

RA8127

RA9126

RC 88

RD0148

RD1147

RD10154

RD11153

RD12152

RD13151

RD14150

RD15149

RD2146

RD3145

RD4144

RD5143

RD6141

RD7140

RD8158

RD9155

RFOKGH 69

SCLKH 68

SI 66

SO 67

SPWM1112

SPWM2113

SYSCK 31

TCK205

TDI204

TDO206

TEST0159

TEST1160

TEST10169

TEST11170

TEST12171

TEST13172

TEST14173

TEST15174

TEST2161

TEST3162

TEST4163

TEST5164

TEST6165

TEST7166

TEST8167

TEST9168

TESTSEL 14

TLC0 76

TLC1 77

TMS203

TRST202

VCOI 85

VDT0 44

VDT1 43

VDT2 42

VDT3 41

VDT4 40

VDT5 39

VDT6 37

VDT7 36

VEFG 47

VFBC 83

VMCHG207

VREFH 102

VREFL 103

XHAC 46

XI 33

XLCAS120

XMOE122

XMWR139

XO 34

XRAS138

XSHD 48

XUCAS121

R1001

1.5K*4

R1002

0*4

R1235

100*41

R1236

100*41

R1234 100*4

R1237 100*4

R1238

100*4

R1252 100*4

R1251 100*4

R1253 100*4

R1254 100*4

R1212

180*4

R1211 100*4

R1209 33*4

4 5

R1213

10K*4

R1241

100*4

R1210 100*4

R1205 100*4

R1206 100*4

R1208 100*4

R1292

10K*8

R1291

10K*8

R1293

10K*8

X1201

P1291

Q1102

BA4510FV

Q1102

BA4510FV

P1292

RF3.3V

CD/XDVD

RFAC

CD/XDVD RFAC RFAC

VR_CD

VR_DVD

RF5V

AGND

RF-OP RF-OP

F AMPSEN AMPSEN

VC25 AMPSDT AMPSDT

AMPSCK AMPSCK

AA DFCT

GG MIRR

AGND C2PO

CC D3.3V DADT

DD BCK

D3.3V

RFAC

MIRR

DFCT

AMPSEN

LRCK

AMPSCK

AMPSDT

BB A

LD-DVD B DGND

AGND C DOUT

VR-DVD D

DGND

NC AMPMNT

VR-CD D FE0 FE0 FE DRVRDY

AGND CTE0 DRVTX

LD-CD B PI DRVIRQ

NC1 A RF3.3V DRVCLK

NC2 D VC16 DRVRX

F+ C TE0 TE DRVRST

F- B DFCT

T+ A LINK

T- MIRR

LRCK

BCK

DADT

C2PO

T-

T+

F-

F+

LD-CD

LD-DVD

AGND

VDT7_COR

VDT6_COR

VDT5_COR

VDT4_COR

VDT3_COR

VDT2_COR

G AGND VDT1_COR

RF5V

VDT0_COR

XHAC_COR

VC25 PI VEFG_COR

AMPMNT XSHD_COR

RF5V

AMPSCK

AMPSDT

AMPSEN

BCK

LRCK

DOUT

DADT

C2PO

DRVRDY

DRVTX

DRVIRQ

DRVCLK

DRVRX

DRVRST

DCK_COR

VC25

AGND

E MIRR

HDRQ_COR

RFAC

TE1

AMPMNT

D3.3V

VC25 RF5V

AGND

LPF2

LPF1

LDONO

JMOUT

A3.3V A3.3VDSP

A1.8V

A5V VC16

HDRQ_COR

LD-DVD

A1.8VDSP

VDT4_COR

VDT5_COR

VDT6_COR

VDT7_COR

VDT0_COR

VDT1_COR

VDT2_COR

VDT3_COR

DCK_COR

XSHD_COR

VEFG_COR

XHAC_COR

AGND DRVRST0

VREFH DRVIRQ0

JMOUT

AGND VREFL

SP_DET

T-

T+

F-

F+

MIRR

DFCT

D3.3VDSP

DRVRST

AGND

DGND

XRST_PLD

LD-CD

SP_DET A3.3VDSP D1.8VDSP

TSCON TSCON DRVRST0

VDT04

VDT05

VDT06

VDT07

VDT00

VDT01

VDT02

VDT03

HDRQ0

DCK0

XSHD0

VEFG0

XHAC0

SLED SLED DRVIRQ0

FSCON FSCON DCK0 D3.3V

XSHD0

VEFG0

XRST

FG XHAC0

SPWM1 SPWM1 HDRQ0

SPWM2 SPWM2 VDT00

GPWM0 VDT01

VC16

GPWM1 VDT02

MIRR

LDON

CD/XDVD

GPWM2 VDT03

GPWM3 VDT04

DGND LDRSPO GPWM4 VDT05

LMT-SW DGND

SLD- VDT06

SLD+

TSD-M

XSPMUTE

XFTSMUTE

LDM2

LDM1

LDRSPO

XLCAS VDT07

SPD- XUCAS DGND

SPD+ XMOE

33.8688MHZ 33.8688MHZ

SPDO

SPDLO RA11 D1.8VDSP MCKO

PGND

DGND

VC16

RA10 MCKO0 MCKO

RA9 XINT

VC16

RA8 XRDY XINT XINT

XRD XRDY XRDY

LOD- SLED RA7 D3.3VDSP XRD XRD

LOD+ SLDO RA6 D3.3VDSP XWR XWR XWR

SPD- RA5 XCS1 XCS1 XCS1

SPD+ RA4

SLD+ TDO MCUD7 MCUD7 MCUD7

TSCON RA3 MCUD6 MCUD6 MCUD6

RA2 D1.8VDSP DGND D3.3V MCUD5

SLD- RA1 MCUD5 MCUD5 MCUD4

T- RA0 MCUD4 MCUD4

T+ FDO MCUD3 MCUD3 MCUD3

CLS-SW F+ FSCON RD7 MCUD2 MCUD2 MCUD2

LOD- F- RD6 MCUD1 MCUD1 MCUD1

OPN-SW

VC16

XRAS MCUD0 MCUD0 MCUD0

LOD+ XMWR RD5 MCUA9 MCUA9

MCUD0

MCUD2

MCUD4

MCUD6

MCUD7

MCUD5

MCUD3

MCUD1

DGND RD4 MCUA8 MCUA8 MCUA9

RD3 MCUA7 MCUA7 MCUA8

A5V RD2 MCUA6 MCUA6 D3.3V MCUA7

AGND RD1 MCUA5 MCUA5 MCUA6

SPDLO RD0 MCUA4 MCUA4 MCUA5

RD15 MCUA3 MCUA3 XCS1

SPWM1 RD14 MCUA2 MCUA2 XWR MCUA4

RD13 MCUA1 MCUA1 XRD MCUA3

SPWM2 RD12 MCUA0 MCUA0

MCUA8

MCUA9

MCUA2

RD11 MCUA1

MCUA7

MCUA5

MCUA3

MCUA1

MCUA0

MCUA2

MCUA4

MCUA6

RD10 MCUA0

P8V

PGND

RD9 XRST

D1.8VDSP

D3.3VDSP XRST

VMCHG

VC16

D3.3VDSP

D1.8VDSP

DGND

A3.3V

DGND

TST10

TST11

TST12

EDCNG

RSV2

FOK

RSV0

RSV1

PLCK0

FMSYNC

TST3

TST4

TST5

TST6

TST7

TST8

TST9

MIRR

ST1

ST2

ST3

ST4

TSD-M

LDM1

LDM2

CLS-SW

OPN-SW

LMT-SW

BUFEMP

TRST

TMS

TDI

TCK

TDOA

BLKSYNC

CLVLOCK

SYNCLOCK

CD/XDVD

LDON

XFTSMUTE

XSPMUTE

RD8 VMCHG

D3.3VDSP D3.3V D3.3V

VC16

MIRR

LDON

CD/XDVD

AGND

A3.3V

A1.8V

DGND

XLCAS

XUCAS

XMOE

A5V

D1.8VDSP D1.8V D1.8V

RD7

RD6

RD5

RD4

RD3

RD2

RD1

RD0

SPD- DGND DGND DGND

SP_DET

XRAS

XMWR

SPD+

RA3

RA2

RA1

RA0

D3.3V

A3.3V TDOA TDOA

EDO3.3V TCKA

TCK TCKA TDIA

VC16 TDI TDIA TMSA

TMS TMSA

TRST TRSTA TRSTA

BUFEMP

FOK

BUFEMP BUFEMP TSD-M

FOK FOK

TSD-M TSD-M XSPMUTE

XSPMUTE XSPMUTE XFTSMUTE

XFTSMUTE XFTSMUTE CD/XDVD

LDON LDON LDON

CD/XDVD CD/XDVD

DGND

EDCNG

DGND SYNCLOCK SYNCLOCK SYNCLOCK

CLVLOCK CLVLOCK CLVLOCK

EDCNG EDCNG C2PO

LRCK

RA4

RA5

RA6

RA7

RA8

RA9

BCK

XMOE

XUCAS

XLCAS

DADT

PLCK

RD8

RD9

RD10

RD11

RD12

RD13

RD14

RD15

CD/XDVD

LDON

MIRR

CLS-SW

XFTSMUTE

XSPMUTE

TSD-M

LDM1

LDM2

OPN-SW

LMT-SW

A1.8V A1.8V A1.8V

A3.3V A3.3V A3.3V

A5V A5V A5V

AGND AGND AGND

DGND DGND

PGND PGND PGND

P8V P8V P8V

U01 DVD MAIN CIRCUIT PC BOARD-1 NADG-8257

TO PICK UP MECHATO DVD MECHA

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Other manuals for DV-CP802

Table of contents

Popular CD Player manuals by other brands

ELECTROCOMPANIET

ELECTROCOMPANIET SPIDER owner's manual

AudioSonic

AudioSonic CD-1581 instruction manual

Sony

Sony CDP-461 operating instructions

Omnitronic

Omnitronic XDP-2800MT user manual

Stanion

Stanion S-250 user manual

VIETA

VIETA VH-CD060 user manual

Coomber

Coomber 3320 Product instruction manual

Sony

Sony CD Walkman D-FJ200 Service manual

Kenwood

Kenwood KDC-P200 instruction manual

Sony

Sony CDX-R88 Service manual

Philips

Philips AX3303 brochure

Electron

Electron RCD 310E instruction manual

Sony

Sony Walkman D-EJ785 operating instructions

Philips

Philips CDI350 owner's manual

Emerson

Emerson PD6870CH owner's manual

Sony

Sony D-F400 operating instructions

Integra

Integra DPC-7.4 instruction manual

Arcam

Arcam DiVA CD92 Handbook

Onkyo DV-CP802 User manual

Popular CD Player manuals by other brands
