Onkyo DV-C503 User manual

RC-469DV
DV-C503
SERVICE MANUAL
SERVICE MANUAL
DVD Changer
Black model
MODEL DV-C503
120V AC, 60HzBUDD
Ref. No. 3704
102001
SAFETY-RELATED COMPONENT
WARNING!!
THE MARK FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Specifications and features are subject to change without notice.
DVD Changer
Power supply AC 120 V, 60 Hz
Power consumption 20 W
Weight 15.0 lbs
External dimensions 17 1/8" x 51/16" x 1615/16" (W/H/D)
Signal system NTSC
Frequency range (digital audio) 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 42 kHz
Signal-to-noise ratio (digital audio) More than 98 dB
Audio dynamic range (digital audio) More than 95 dB
Harmonic distortion (digital audio) Less than 0.005 %
Wow and flutter Below measurable level
Operating conditions Temperature: 5 C to 35 C (41 F to 95 F), Operation status: Horizontal
Outputs
Video output 1.0 V (p-p), 75 ohm, negative sync., pin jack 1
S-video output (Y) 1.0 V (p-p), 75 ohm, negative sync.
(C) 0.286 V (p-p), 75 ohm, Mini DIN 4-pin 1
Component video output (Y) 1.0 V (p-p), 75 ohm, negative sync., pin jack 1
(PB)/(PR) 0.7V(p-p), 75 ohm, pin jack 2
Audio output (digital output Optical) Optical connecter 1
Audio output (digital output Coaxial) 0.5 V (p-p), 75 ohm, pin jack 1
Audio output (analog output) 2.0 V (rms), 320 ohm, pin jack (L, R) 2
Supplied Accessories
Audio/video connection cable 1
Remote controller (RC-469DV) 1
Batteries (size AAA/R3) 2
DV-C503
SPECIFICATIONS

DV-C503

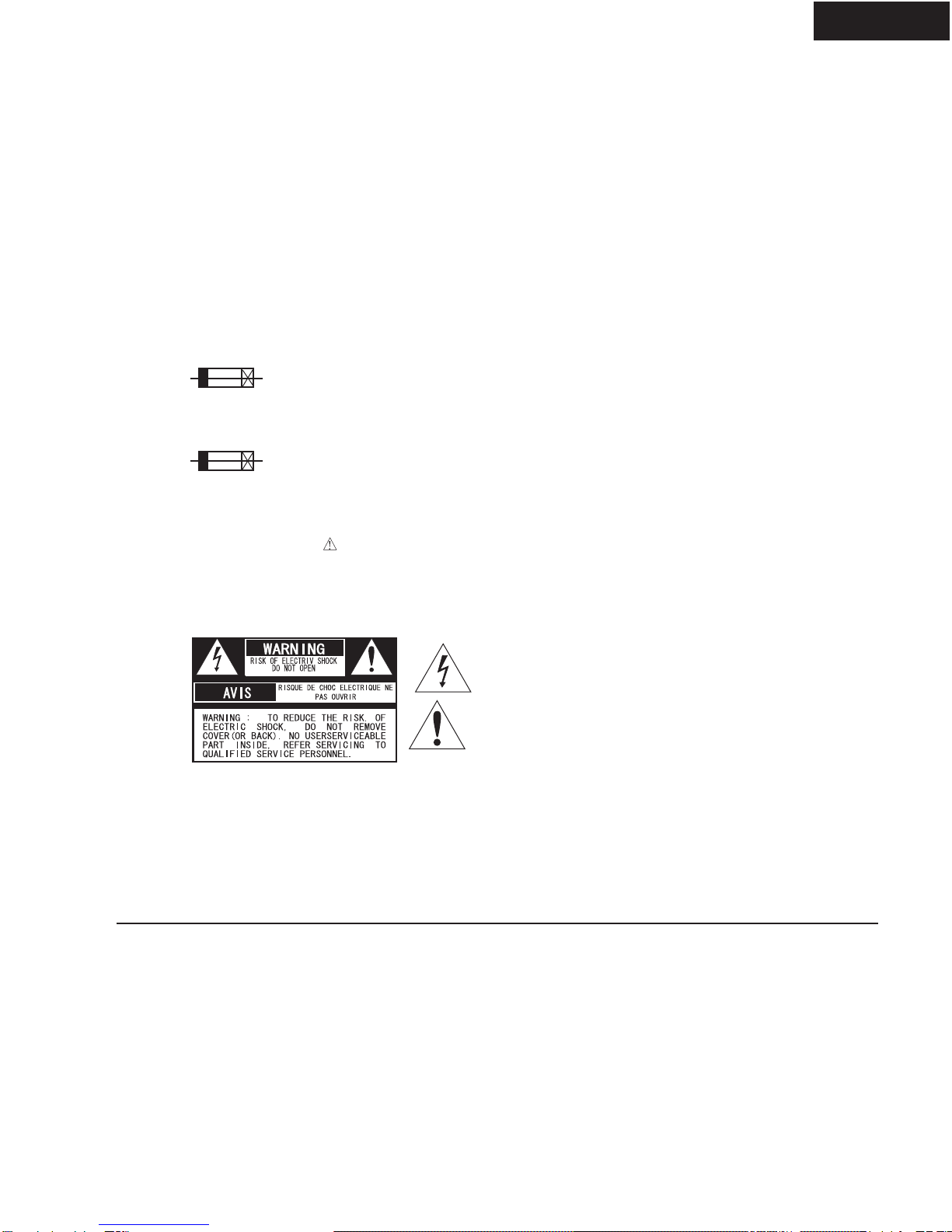

SERVICE NOTE
1. Replacing the fuses 2. Safety-check out
(Only U.S.A. model)
After correcting the original service problem perform the
following safety check before releasing the set to the customer
Connect the insulating-resistance tester between the plug of
power supply cord and terminal GND on the back panel.
Specifications: More than 10M ohm at 500V
REF.NO. PART NO. DESCRIPTION
F1 252159 2A-UL/T-237
This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse , For fuse rating, refer to
the marking adjust to the symbol.
Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.
TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCETO RAIN
OR MOISTURE. DANGEROUS HIGHVOLTAGES ARE PRESENT INSIDETHE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TOWIDE SLOT, FULLY INSERT.
POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DA LA FICHE DANS LA
BORNE CORRESPONDANTE DA LA PRISE ET POUSSER JUSQU' AU FOND.
WARNING :
CAUTION :
ATTENTION :
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instruction
in the literature accompanying the appliance.
1. Ground for the work-desk.
Place a conductive sheet such as a sheet of copper (with impedance lower than 10Mohm) on the work-desk and
place the set on the conductive sheet so that the chassis.
2. Grounding for the test equipments and tools.
Test equipments and toolings should be grounded in order that their ground level is the same the ground of the power source.
3. Grounding for the human body.
Be sure to put on a wrist-strap for grounding whose other end is grounded.
Be particularly careful when the workers wear synthetic fiber clothes, or air is dry.
4. Select a soldering iron that permits no leakage and have the tip of the iron well-grounded.
5. Do not check the laser diode terminals with the probe of a circuit tester or oscilloscope.
PRECAUTIONS
LASER CAUTION
Initialization of setup
1. Press the "DISC 4" and "CDPLAY" key to the same timing.
The "DISC 4 key is pushed previously.
Then, light off the FL tube.
2. Push the power switch.

S5
H1
H13
H4
H3
H2
S2
H43
42
S2
H5
S4
S5
H7
H8
H10 11 H12
H21
H47
H47
U2
H15
H14
S2
H20
S2
H22
H49
H48 H47
H22
H23
S2 U3
S2
H44
S2
S2
S6
S3
S6
H45
S2 S1
S2
H47
H41
S2
H46
H27
H24 U1
H26
H27
S2
H38 S2
H37 H35
S3 H34
S2
H6
F1
CN01
S3
S3
S6
S4
S4
S2
S2
S2 S2
S2
S2
S2
H26
H26
S2
S1
S1
S2
S2
S6
S2
S2
S2 CC201
CC202
H52
FLtube
H47H47
H42
S2
H42
S1
S2
U2
U2
H53
DV-C503
DV-C503
EXPLODEVIEW
CHASSIS

DV-C503
PARTS LIST
CHASSIS
REF. NO. PART NO. DESCRIPTION
H1 55221110 Plate, DVD
H255184480 Drawer panel
H3 55221120 Clear plate
H4 55186750 Badge Logo
H5 55186710 Facet
H6 55244650 Button, STANDBY
H7 55244620 Knob, POWER
H8 55184600 Shaft, power
H10 55244670 Button, PLAY
H12 55164930 FL holder
H13 55184330 Front panel
H14 55244660 Button, OPEN/CLOSE
H15 55244680 Button, Keys (9-keys)
H20 55236110 Front chassis
H21 55201610 Sponge, front bracket
H22 55125120 Foot (4)
H23 55196510 Sponge, chassis
H24 55174580 Bracket ground
H26 55186640 Bracket main PC board
H27 55178960 Spring
H34 55011170 Power cord, 1830mm
H35 55125180 Cord bushing
H37 55186610 Rear panel
H38 55174610 Bracket R small
H41 55186600 Top cover
H42 55141370 Rubber (4)
H42 55127310 Washer foot
H43 55184690 Power supply board unit
H44 55221140 Shield cover
H45 55186670 Bracket L, Frame
H46 55186680 Bracket R, Frame
H47 55174550 Cushion, 12 x 8 x 20
H48 55186620 Main chassis
H49 55190690 Rubber sheet
H52 55170390 Wire tie
H53 55190770 Sheet
S1 838130068 3TTB+6B, Self tapping screw
S2 838130088 3TTB+8B, Self tapping screw
S3 838130108 3TTB+10B(BC), Self tapping screw
S4 831130088 3TTW+8B, Self tapping screw
S6 838440088 4TTB+8B(BC), Self tapping screw
U1 55183100 Main circuit PC board
U2 55183110 Display PC board,
Open/Close SW PC board,
Standby LED PC board
U355183120 Output terminal PC board
F1
NOTE:THE COMPONENTS IDENTIFIED BY MARK
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
REF. NO. PART NO. DESCRIPTION
252159 2A-UL/T-237, Fuse

20710180 GEAR
M18
20710180
GEAR
pp-6.max

M18 20710180 GEAR
M18
20710180
GEAR
pp-7.max

AC120V, 60Hz
Power supply circuit
DVD Mechanism
Roulette Mechanism
AC CORD
+12V ANALOG Vcc
+8V ANALOG Vcc
-8V ANALOG Vcc
+5V DIGITAL Vcc
+3.3V DIGITAL Vcc
+8V MOTOR Vcc
+12V MOTOR Vcc
5V DISPLAY
F-OE(DRAM OE)
DATA*
RDNOTWR
D-RASO-
ADDR*
D-CAS1-
D-CAS1
ADDR*
F-WE
F-RESET
F-DE
DATA*
F-OE(DRAM OE)
F-CE
IC401
FLASH MEMORY
8MBIT
M29F400T-90N1
IC301
SDRAM-64MBIT
HY57V651610BTLC-8 125MHz
IR REMOCON +5V6S VFD STD VFD DATA IN VFD DATA OUT VFD CLK POWER CTL
PCM1748E-CS
PCM1748E-CLK
PCM1748E-DATA
PCMCLK
BCK
LRCLK
AUDIO-MUTE
CVBS-OUT
Y-OUT
C-OUT
R(Cr)-OUT
B(Cb)-OUT
G(Y)-OUT
SPDIF
PCM1748E
DAC
IC802-A-A
BA4560
L AUDIO
R AUDIO
L. P. F
L. P. F
MUTE
TR
BUFFER
& B.N.F.
TR
BUFFER
& B.N.F.
TR
BUFFER
& B.N.F.
TR
BUFFER
& B.N.F.
TR
BUFFER
& B.N.F.
TR
BUFFER
& B.N.F.
BUFFER
VIDEO-MUTE
PIXCLK-27MHz
IC501
74HC04
SDA
SCL
EEPROM
M24C02
IC202
EXIT-PSTART/ERROR
EXIT-DATAVALID
EXIT-DATA
EXIT-BCLK
+3V3-RESET
IRQ2
F/E SCL
F/E SDATA
+3.3V DIGITAL Vcc
+5V DIGITAL Vcc
+12V MOTOR Vcc
SLIDER-OPEN/CLOSE (POWER-POSITION P1)
SLIDER-IN (DRAWER-CCW-CTRL)
SLIDER-OUT(DRAWER-CTRL)
IC201
ST15519
MPEG
CVBS-OUT
Y-OUT
C-OUT
R(Cr)-OUT
B(Cb)-OUT
G(Y)-OUT
COAXIAL
OPTICAL
CVBS-VIDEO
S-VIDEO
JK804
RCA 3V
6
7
8
9
10
GND
Cr
Cb
Y
L-CH MIXED
R-CH MIXED
+5VS
FL AC
FL AC
-17V IC901 FL tube
DV-C503
BLOCK DIAGRAM
A
1
2
3
4
BCDE

GRID(00:11)
Display circuit PC board
Connection board
Standby LED PC board
Open/Close
PC board
From Power supply unit
DV-C503

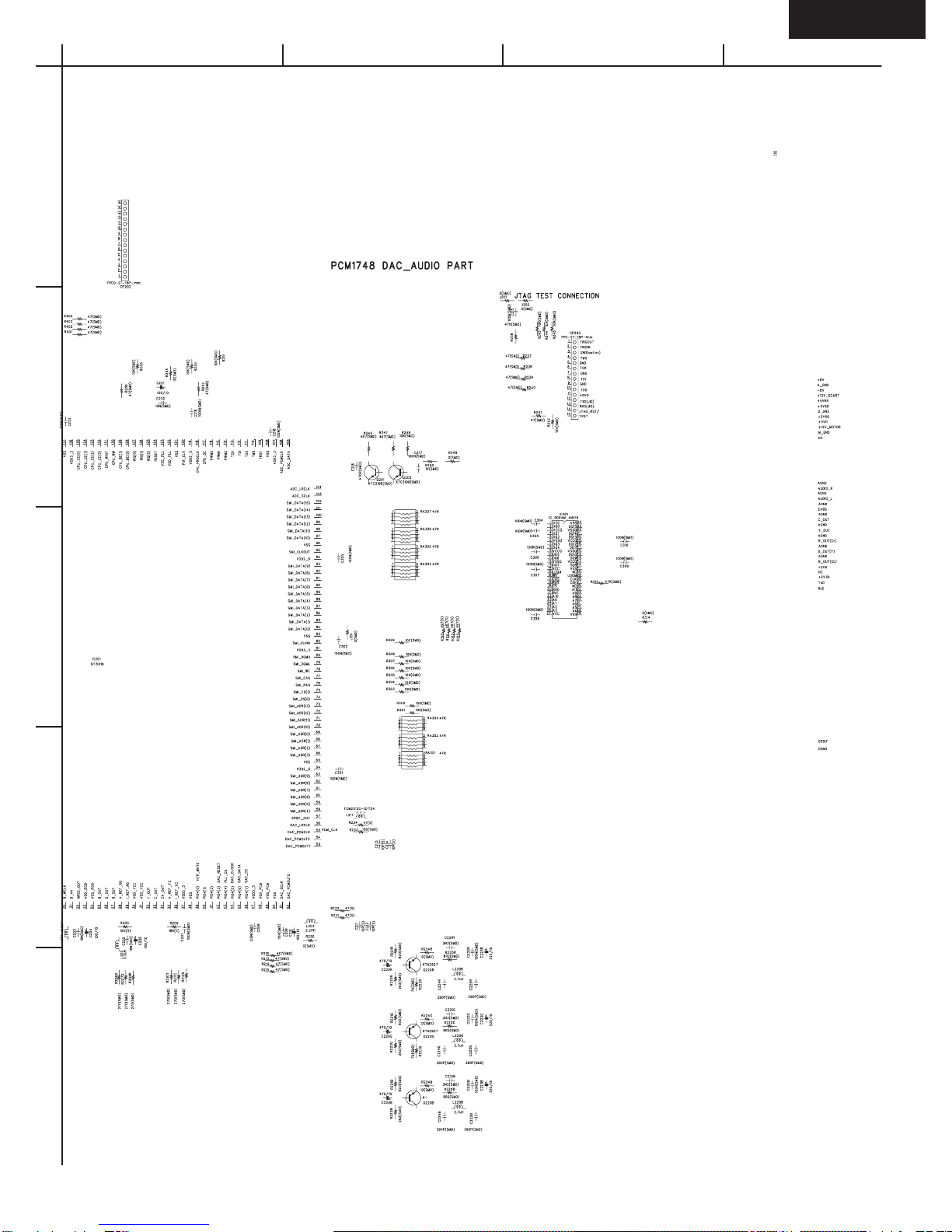

SCHEMATIC DIAGRAM
A
1
2
3
4
5
BCDEFGH

From Main PC board
Audio output
Video output
Component

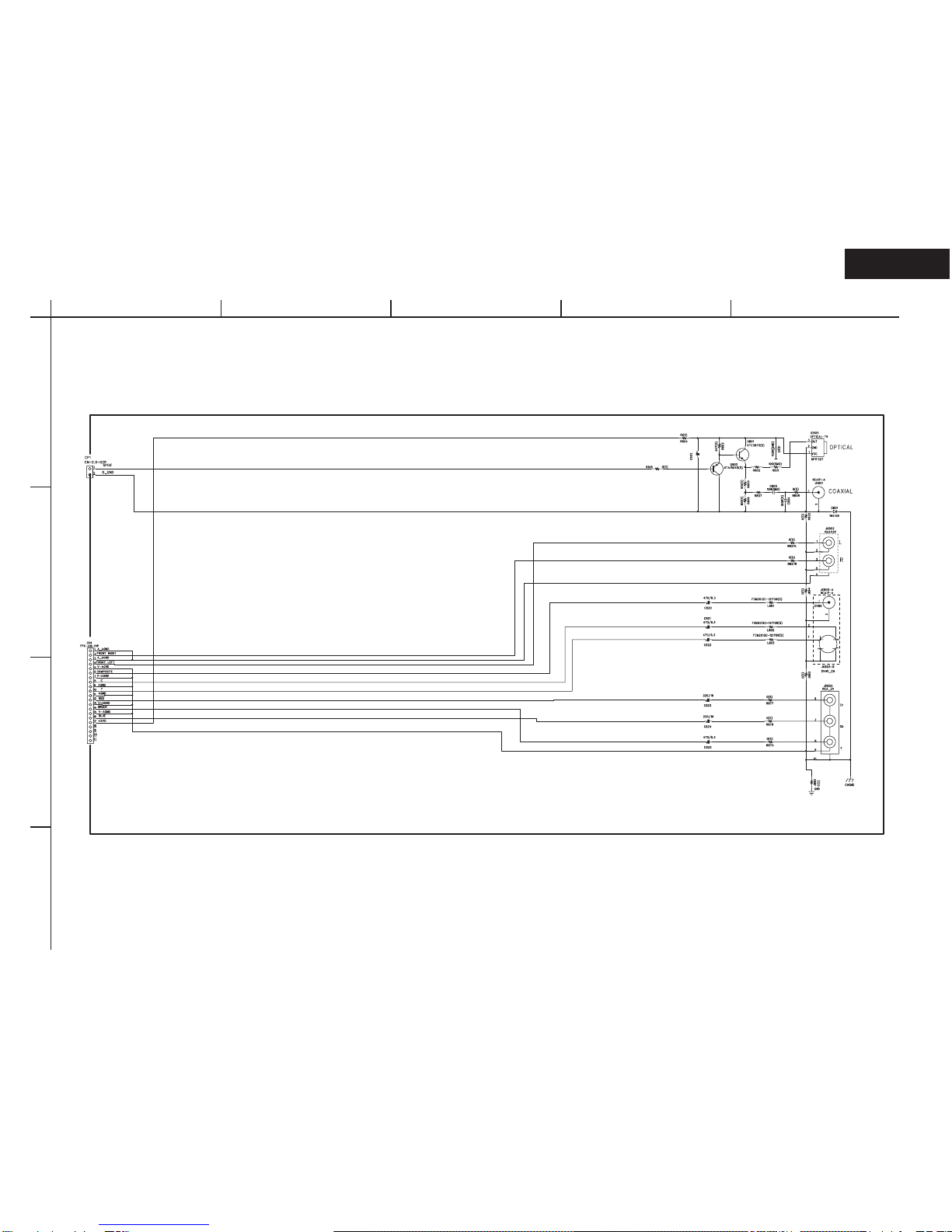

Output terminal PC board
From Main PC board
DV-C503
SCHEMATIC DIAGRAM
A
1
2
3
4
BCDE

A
1
2
3
4
5
BCD
DV-C503

Mechanism circuit PC board
Roulette motor PC board
To Mecha. control
PC board
To P003
To Main control PC board
CN206
DV-C503
SCHEMATIC DIAGRAM
A
1
2
3
4
BCDE

From Main PC board
Audio output
Video output
Component
Output terminal PC board
From Main PC board
DV-C503
SCHEMATIC DIAGRAM
A
1
2
3
4
BCDE

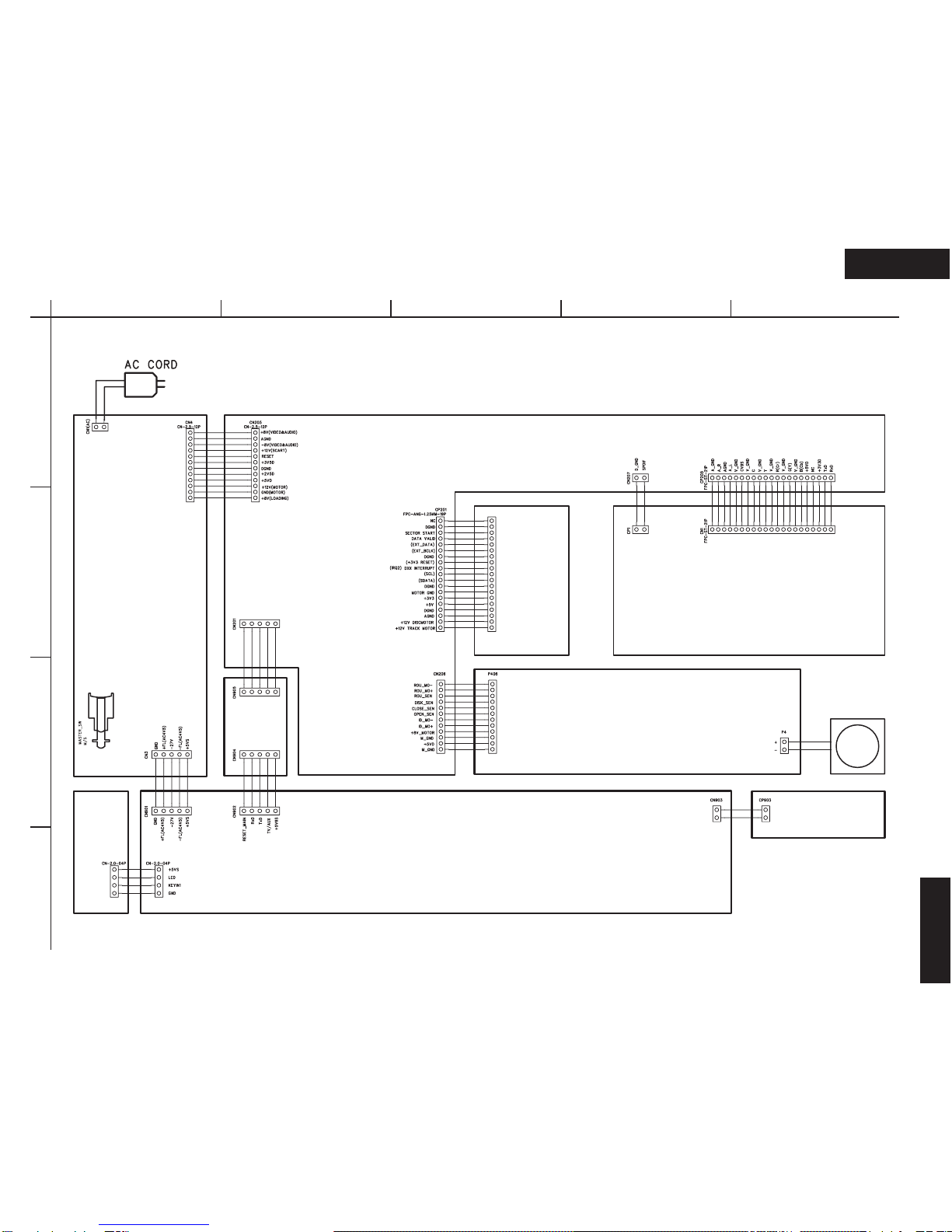

Power supply
circuit PC board
Main circuit PC board
DVD Mecha.
F/E PC board
B08
Mechanism control PC board
Display circuit PC board
OPEN/ CLOSE
switch PC board
MOTOR
Output terminal PC board
Connection
PC board
CN904
CP904
Standby
switch
PC board
Power switch
DV-C503
PC BOARD CONNECTION DIAGRAM
DV-C503
A
1
2
3
4
BCDE
AC 120V 60Hz

DV-C503
PRINTED CIRCUIT BOARD PARTS LIST
DISPLAY CIRCUIT PC BOARD ASSY (PART NO. 55183110)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
IC901 55183040NR CXP82324
IC902 55191090NR KIA7045
Transistor
Q901 5513318092 DTC114YKA
Remote sensor
RM901 55156010NR NJL63H38
FL tube
FL901 55183030NR HNA-12SM17
Diodes
D904 7043654016 1N4148
D905 55125510NR LED
D906 5517787088 RB501V-40
Coils
L901 1403936091 22uH, Chip
L902,L905 1032875091 0 ohm, Chip
L903,L904 2053866091 4.7 ohm, Chip
L909,L912, 5512667050 Choke
L913,L914 Resonator
X901 55126140NR 10MHz
Socket AS
CN901 55191010NR
CN902 55182990NR
CN903 55199600NR
CN904,CN905 55123320XX 2.0MM 5 MA ST
CN906 55199610NR
Socket
CP903 55090070XX
CP906 55123310XX
Capacitors
C901 2034206030 47uF,+/-20%, 16V, Elect
C903-C905, 2028804091 0.1uF, +80-0%,Chip
C908,C911
C906 2025205030 100uF,+/-20%, 6.3V, Elect
C907 2026862041 470uF,+/-20%, 6.3V, Elect
C909 2026884030 1uF,+/-20%, 50V, Elect
Switches
SW901,SW903, 55145270NR
SW905,SW907,
SW911,SW913,
SW915,SW917,
SW921,SW924,
SW927,SW930,
SW931 Spring
Finger 55178960XX Finger type

PRINTED CIRCUIT BOARD VIEW
DV-C503
Display circuit PC board
Component side view
Soldering side view
A
1
2
3
4
BCDE

DV-C503
DV-C503
PRINTED CIRCUIT BOARD VIEW
A
1
2
3
4
BCDE

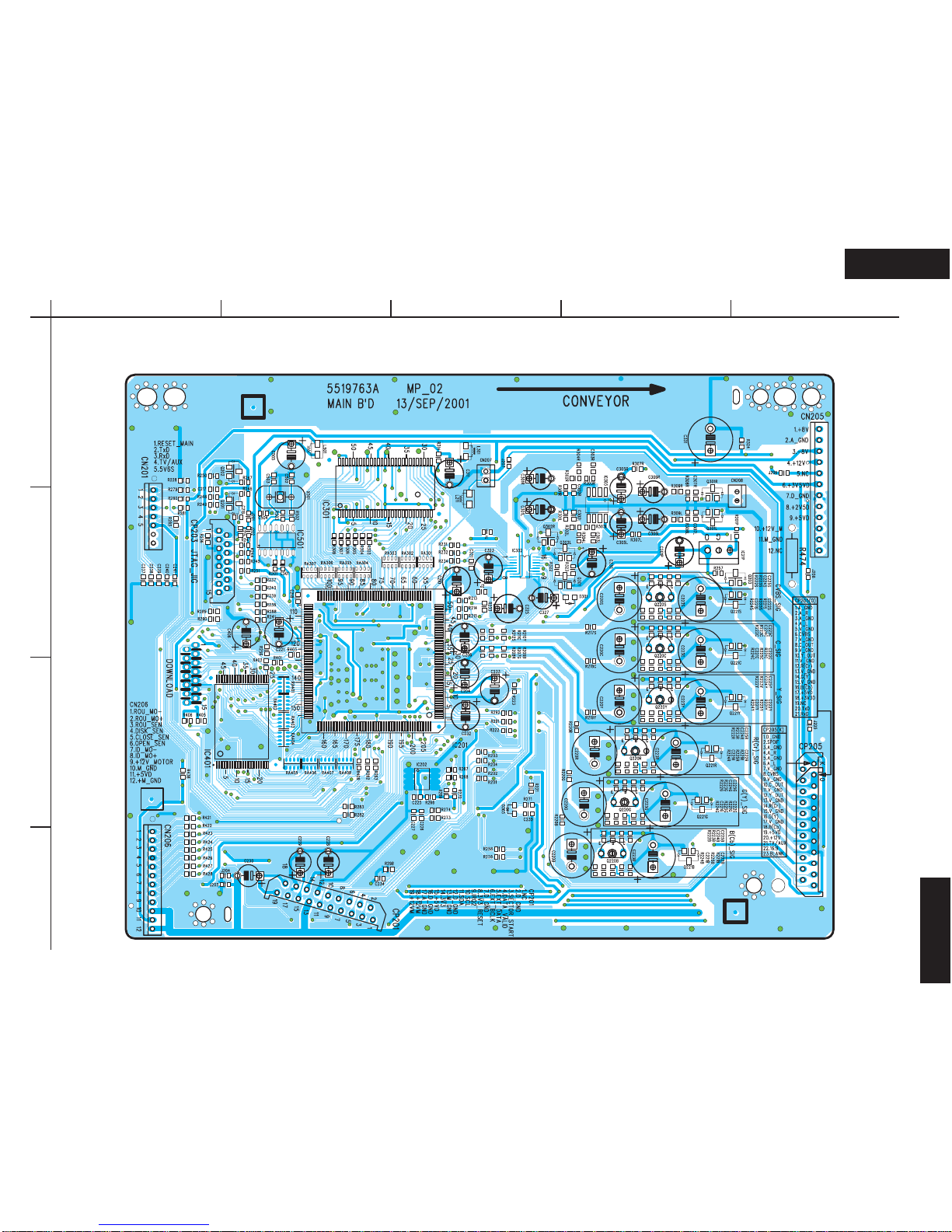

Main circuit board Top pattern and top parts

DV-C503
DV-C503
PRINTED CIRCUIT BOARD VIEW
A
1
2
3
4
BCDE
Main circuit board Bottom pattern and bottom parts

Sodering side view
Component side view
J805
C825
C824
C823
C820
C821
JK803
JK802
JK801
IC805
J801
J802
J803
C802
J806
CN01
D711
DV-C503
PRINTED CIRCUIT BOARD VIEW
Output terminal PC board
DV-C503
A
1
2
3
4
BCDE
CP01
C822
