PRODUCT GUIDE
100008403
Ver.00 07/24/19
onn_100008403-BT Speakers-IB-01.indd 1 6/08/2019 4:45:56 PM

2
FCC Warnings
Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Customer Service
For any product related questions,
please call us at: 1-888-999-4215.
Copyright © 2019 Digital Products International (DPI,
Inc.) All other trademarks appearing herein are the
property of their respective owners. Specifications are
subject to change without notice.
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. When the provided plug
does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with
the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Information & Safety Instructions
onn_100008403-BT Speakers-IB-01.indd 2 6/08/2019 4:45:57 PM

3
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it
should remain readily operable during intended
use. In order to disconnect the apparatus from
the mains completely, the mains plug should
be disconnected from the mains socket outlet
completely.
• CAUTION: Use of controls or adjustments or
performance of procedures other than those
specified may result in hazardous radiation
exposure.
• WARNING: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment.
• WARNING: Use of this unit near fluorescent lighting
may cause interference regarding use of the
remote. If the unit is displaying erratic behavior
move away from any fluorescent lighting, as it may
be the cause.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the
rear or bottom of the apparatus.
• WARNING: To reduce the risk of fire or electric
shock, do not expose this apparatus to rain,
moisture, dripping, or splashing.
• Objects filled with liquids, such as vases, shall not
be placed on the apparatus.
Warning: To reduce the risk of electric
shock, do not remove cover (or back).
No user-serviceable parts inside. Refer
servicing to qualified service personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sucient magnitude to constitute a risk of
electric shock to persons.
WARNING : This product can expose
you to chemicals including lead, which
is known to the State of California to
cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65Warnings.ca.gov. This
product meets and complies with all Federal
regulations.
onn_100008403-BT Speakers-IB-01.indd 3 6/08/2019 4:45:58 PM

4
Table of Contents
Get to Know Your Speakers–5
Features–5
What’s in the Box?–5
Front–6
Rear–6
Controls–7
Remote–8
Remote Battery–9
Let’s Get Started–10
Connect Your Speakers–10
Power On Your Speaker–10
Connecting to a Bluetooth Speaker–11
Connecting to External Audio Sources–12
RCA Connection –12
3.5mm Audio Cable Connection –12
onn_100008403-BT Speakers-IB-01.indd 4 6/08/2019 4:45:58 PM

5
What’s in the Box?
• Speakers
• Remote Control with pre-installed
CR2025 battery
• AC power adapter with cable
• RCA cable
• Speaker connection wire
• Quick Start Guide
Features
• Supports Bluetooth 5.0
• Aux In (RCA stereo input)
• Line In (3.5mm audio input)
Get to Know Your Speakers
onn_100008403-BT Speakers-IB-01.indd 5 6/08/2019 4:45:58 PM

6
Get to Know Your Speakers
Front Rear
1
2
4
5
3
1. Source Mode Indicator LED
2. Remote Sensor
3. Speaker Controls
4. Speaker Inputs
5. Speaker to Speaker Connection (L/R)
onn_100008403-BT Speakers-IB-01.indd 6 6/08/2019 4:45:59 PM

7
Controls
1. Power: Press to power ON.
Press and hold to power OFF.
2. Line In: Press to select Line In
Mode, indicated by a green LED
on the front of the speaker.
3. Aux: Press to select Aux Mode,
indicated by a white LED on the
front of the speaker.
4. : Press to select Bluetooth
Mode, indicated by a blue LED
on the front of the speaker.
5. Pair: Press to begin Bluetooth
pairing. The indicator on the
front of the speaker will flash
quickly while pairing, then turn
solid when successfully paired.
6. Volume -/+: Press to adjust the
volume level of the speakers.
1 2 3 4 5 6
onn_100008403-BT Speakers-IB-01.indd 7 6/08/2019 4:45:59 PM

8
Remote
Power: Press to power ON or OFF.
Sub Filter: Press to filter out low
level audio interference, such as
imperfections on vinyl record playing
from a turntable.
Mute: Press to mute the volume.
Line In: Press to select Line In Mode,
indicated by a green LED on the front
of the speaker.
: Press to select Bluetooth Mode,
indicated by a blue LED on the front
of the speaker.
Aux In: Press to select Aux Mode,
indicated by a white LED on the front
of the speaker.
Treble -/+: Press to adjust the treble
level of the speakers.
Bass -/+: Press to adjust the bass
level of the speakers.
Volume -/+: Press to adjust the
volume level of the speakers.
: Press to skip audio tracks
(Bluetooth Mode).
: Press to play or pause audio
tracks (Bluetooth Mode).
Get to Know Your Speakers
onn_100008403-BT Speakers-IB-01.indd 8 6/08/2019 4:46:00 PM

9
Remote Battery
Requires 1 CR2025 button cell battery (included).
onn_100008403-BT Speakers-IB-01.indd 9 6/08/2019 4:46:01 PM

10
Let’s Get Started
Connect Your Speakers
Connect the speakers using the included speaker cable. Match the colored
wires to the same color-coded ports.
Power On Your Speaker
• Plug the power adapter into the DC power input on the speaker and a
standard outlet.
• Press the Power button to turn the speakers ON.
onn_100008403-BT Speakers-IB-01.indd 10 6/08/2019 4:46:01 PM

11
Connecting to a Bluetooth Speaker
• When the speakers first power ON they default to Bluetooth Mode and
are ready to pair automatically. When pairing, remain within 3 feet of the
Bluetooth device.
• Using the controls on your Bluetooth device, select ONN8403 in the
Bluetooth Settings to pair. If need be, refer to the user’s manual for your
specific device for more information.
• When successfully paired, a voice will announce, “Bluetooth is connected.”
You will now hear audio from your Bluetooth device through the speakers.
• Use the controls on the connected Bluetooth device to select and play
audio.
onn_100008403-BT Speakers-IB-01.indd 11 6/08/2019 4:46:01 PM

12

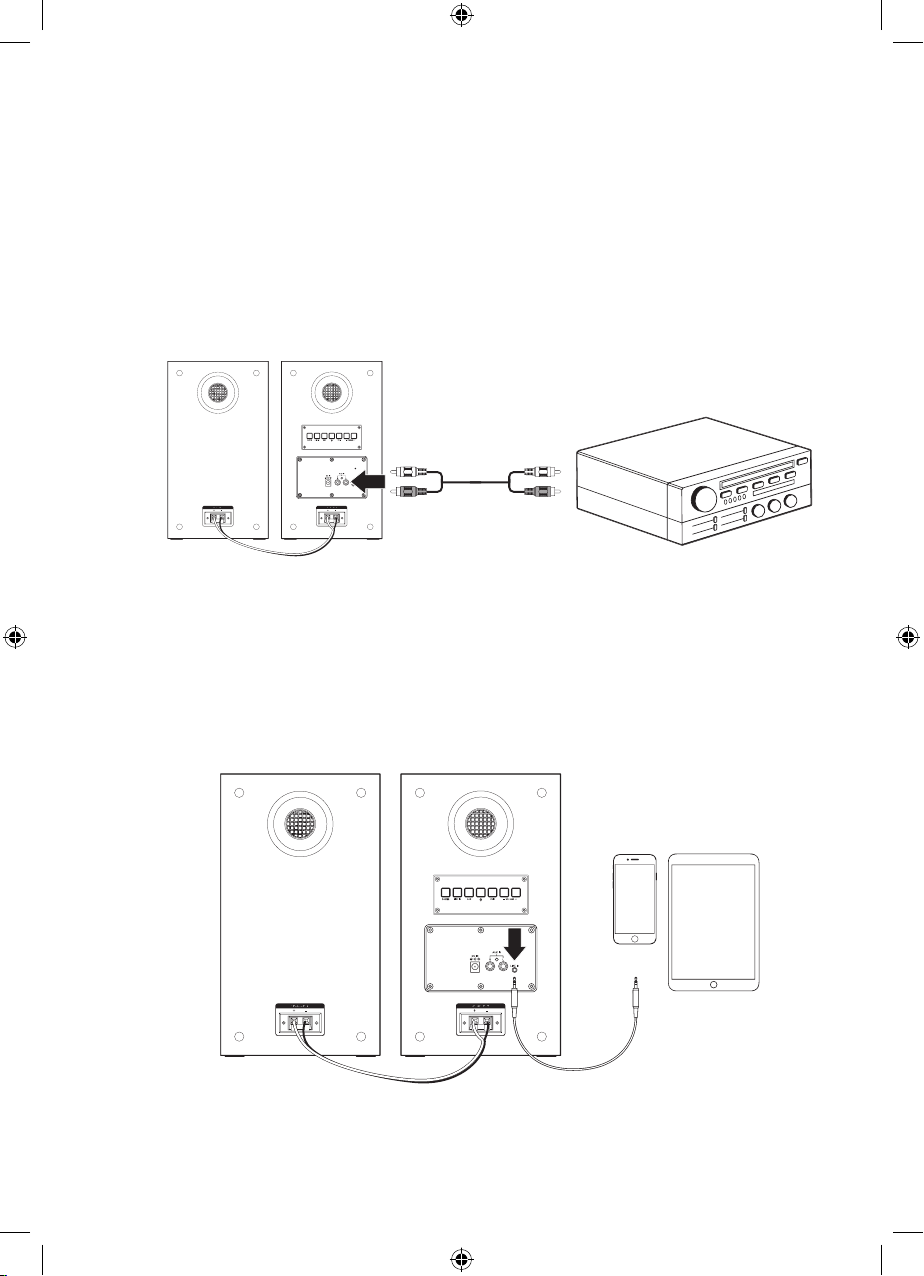

Connecting to External Audio Sources
RCA Connection
• You can connect the speakers to an audio system using an RCA stereo
audio cable (included). Just connect the color-coded ports on the speaker
to the same ports on your audio device.
• Next, press the Aux button on the back of the speaker or press the Aux Mode
button on the remote
3.5mm Audio Cable Connection
• You can also connect the speakers using a 3.5mm audio cable (not
included). Just connect the Line In on the speakers to the headphone jack
on your audio device.
• Next, press the Aux button on the back of the speaker or press the Aux Mode
button on the remote
Amplifier
