Opel 2014 Zafira User manual

2014 Models Edition 1
OPEL ZAFIRA

This brochure covers Club models only. Some
of the images shown include options and
accessories available at extra cost. We may
also offer alternative Zara models such as
Special Editions. So for all current model or
equipment details visit the Opel website:
www.opel.ie
Zara Club shows what can be
achieved with clever thinking.
All that dynamic driving
experience, interior comfort and
built-in seven-seater exibility–
but with sharp styling, cool
interior nishes and impressive
safety features.
make the world
adjust to you
Interior comfort 4
Flex7® seating 6
Driving dynamics 8
Safety and security 10
Interior features 12
Zafira Club equipment 14
Accessories 16
Colours and trim 18
Specification 19

Zara’s design themes move effortlessly from outside to
inside with a driver-friendly facia and high quality interior
nishes throughout. And while it’s easy for the driver to get
comfortable, this is a car designed to make travel easy for
the whole family. So it’s light and spacious, comfortable
and clever – wherever you’re sitting.
real comfort
wherever you sit

55

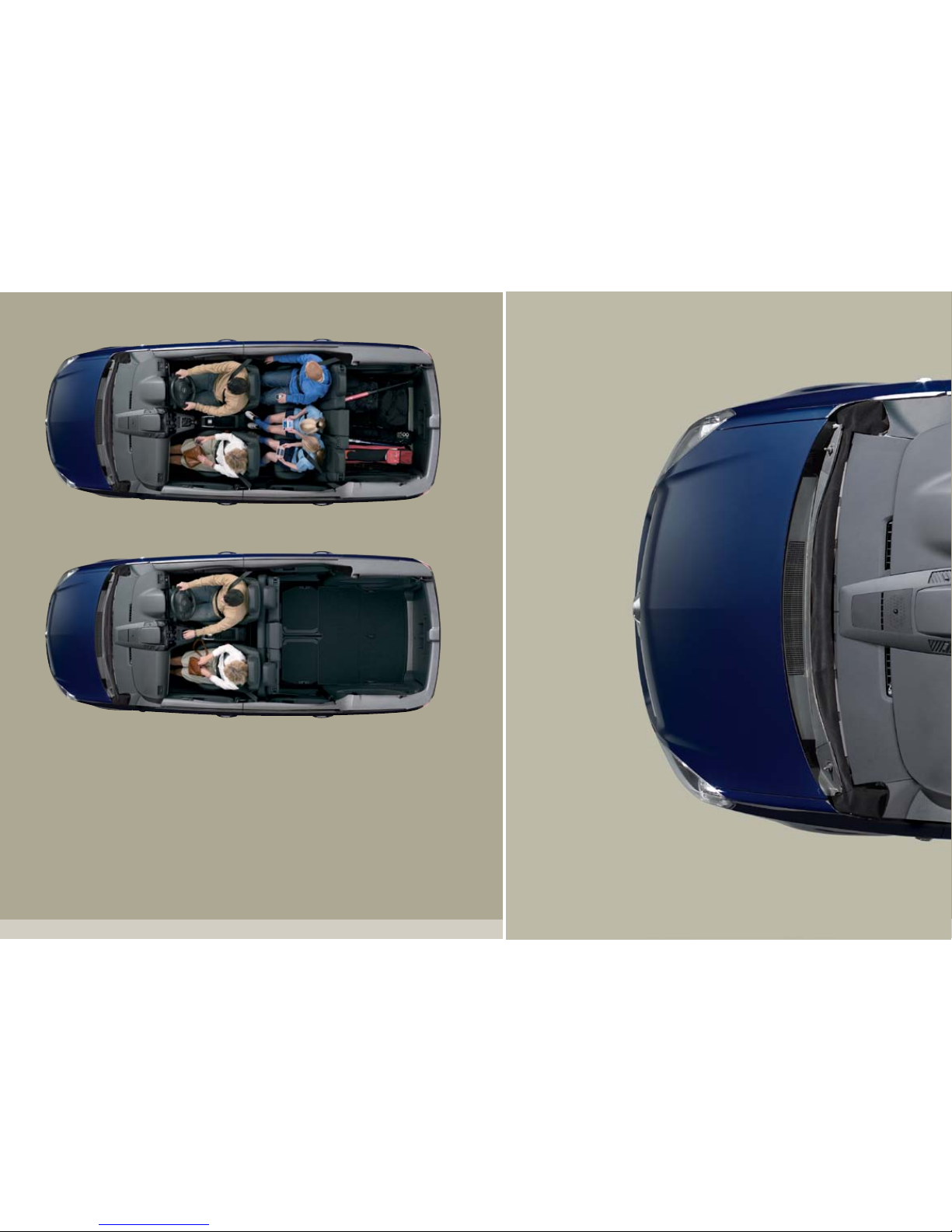

This is what versatility looks like. And it’s all down to clever design –
Flex7® seating, adaptable luggage space and plenty of smart storage
ideas for all your essential travelling kit.
space for a quality lifestyle

77

Life is better on the move
Think Zafira. Think advanced diesel engines and chassis technology. Two common rail turbo diesels – both brilliantly
efficient with an impressive spread of power, and out on the road, a reassuring sense of control, helping you feel
relaxed and secure under any conditions.

Performance Fuel economy (litres/100km)#CO2 emissions
(g/km)
Power Torque Urban driving Extra-urban driving Combined figure
Diesel
1.7CDTi 16v ecoFLEX 110PS 260Nm 6 .1 4.5 5.1 134
1.7CDTi 16v 125PS 280Nm 6.1 4.5 5.1 134
#Official Government Test Environmental Data. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style,
road conditions and other non-technical factors.
9
Driving dynamics
Six-speed. Zafira Club comes with a
six-speed manual gearbox as standard
on both diesel models.
Efficient diesel engines. Zafira’s two
turbo diesel models – a 1.7CDTi 16v
(110PS) ecoFLEX and 1.7CDTi 16v
(125PS) have CO2 emission figures of
only 134g/km. Not only do they save
you money with lower vehicle tax, but
they do so without compromising the
excellent driveability and performance
Zafira is renowned for.

Intelligent, reassuring safety and security
Zafira has a strong reputation for safety and security, and with good reason. The Zafira Club features six full-size
airbags and a chassis that is packed with active safety innovations that help you avoid accidents before they happen.
Security features include remote control central deadlocking.
Non-specific model shown. For illustrative purposes only.

11
Safety and security
Anti-lock Braking System (ABS).
On its own, ABS is a huge benefit
in emergency braking, but Zafira
goes even further. Emergency Brake
Assist (EBA), Electronic Brakeforce
Distribution (EBD) and Cornering Brake
Control (CBC) all make the car easier
to control and stop under extreme
cornering and braking.
Six airbags. Zafira protects
you and your family with six full-size
airbags. Specially developed to provide
maximum protection, each model has
twin front airbags, enlarged ‘thorax-
pelvis’ front seat side-impact airbags
and full-size curtain airbags too.
Remote control alarm system.
The ultrasonic security alarm system
features forced entry detection,
along with tilt, movement and rear
glass breakage sensors. Optional
at extra cost.
ISOFIX Child seat restraint system.
The rigid ISOFIX anchoring mechanism
virtually eliminates the dangers of
incorrect child seat installation. You
simply click the optional accessory Opel
ISOFIX child seat into the mounting
points engineered into the Zafira outer
rear second-row seats.
ESP-plus. Especially useful on
wet roundabouts and greasy roads
or whenever a slippery surface
catches you out, Electronic Stability
Programme-plus (ESP-plus), senses if
the car starts to slide on a bend and
applies corrective braking to the
appropriate wheels to help you
regain control.

Keeping everybody happy

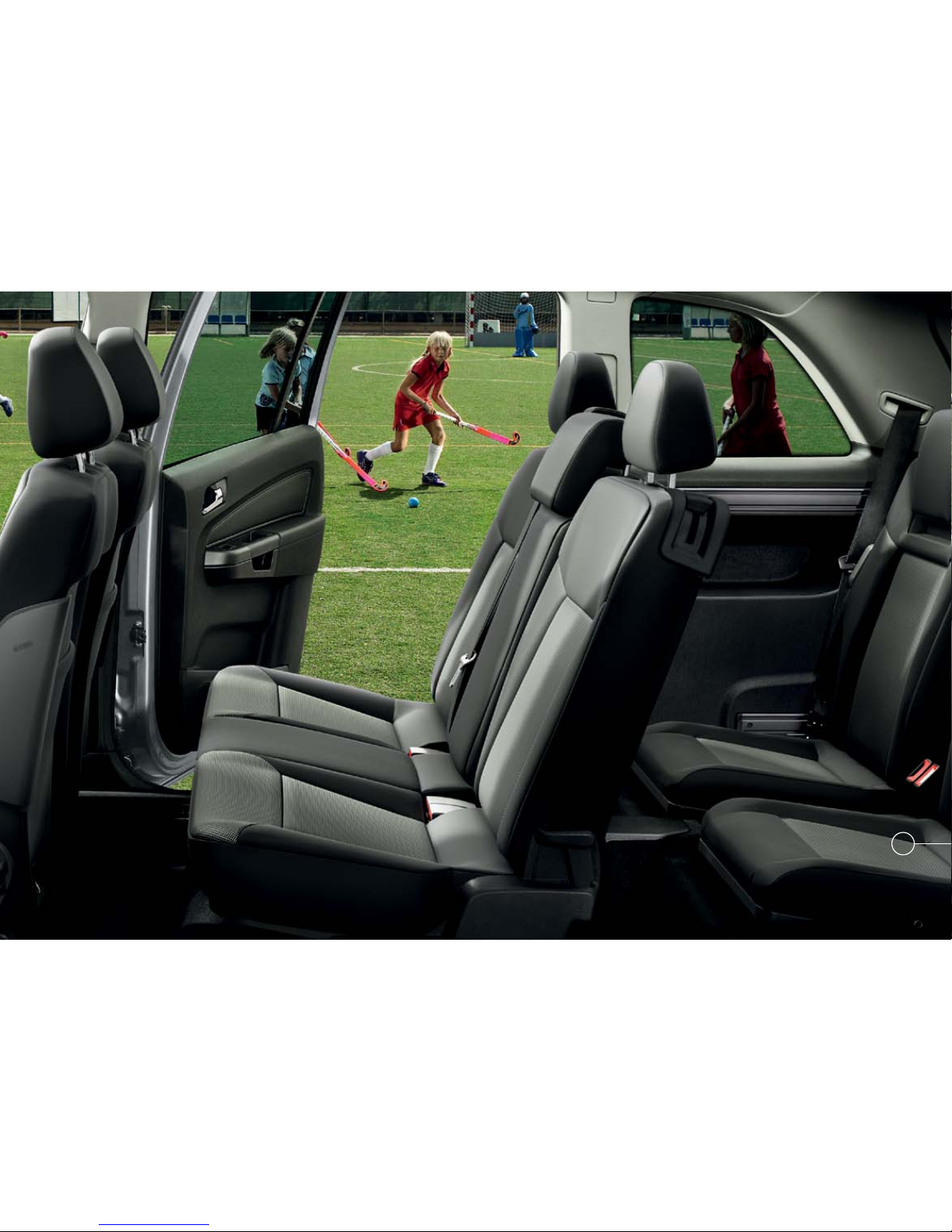

Zafira’s Flex7® seating. It’s not just about quantity. It’s about quality too, making everyone feel comfortable
– front and rear. Wherever you’re sitting, you’ll be amazed at what Zafira Club has to offer, whether it’s features
like air conditioning or clever storage space for all your bits and bobs.

13
Interior features
Multi-function trip computer. This
invaluable driver information system
provides instantaneous and average
fuel consumption, fuel consumed,
average speed, distance travelled and
range based on fuel remaining.
Cruise control. The easy-to-use,
tap-up/tap-down cruise control is
optional. It allows you to maintain a
steady speed without keeping your foot
on the throttle. So it’s more comfortable
on long journeys and easier to keep to
speed limits too.
*Please refer to the online Opel Car and Accessory
Price Guide for a list of phone-specic cradles.
Touch and Connect. An intuitive
touch-screen navigation system
complete with USB connection and
Bluetooth® facility is optional at extra
cost. The perfect in-car multimedia
solution. The Zafira’s sophisticated
system packs all the latest technology:
• Five-inch touch-screen colour display
and steering wheel control for easy,
intuitive operation
• Dynamic navigation with bird’s eye
view map
• Navigation data for 28 European
countries on SD card
• CD/MP3 CD player
• Aux-in socket and USB connection
with full control and browsing
capability for portable MP3 players
• Bluetooth® wireless connectivity for
hands-free calling and audio
streaming with detailed track
information on display
• Four x 20 watts per channel output
and six premium speakers.
Mobile phone system with
Bluetooth®*. With the mobile phone
system, your phone interfaces with
the audio unit, for operation via the
steering wheel controls and facia
display. Bluetooth® wireless technology
with voice activation is included.
Quality sounds. The Zafira Club
features a quality CD/MP3 CD player/
stereo radio complete with steering
wheel mounted audio controls and
an aux-in socket as standard. What’s
more, with a DAB digital radio option
now available at extra cost, you can
enjoy digital quality sound together
with a broader range of stations.
Air conditioning. It makes for a fresher
interior atmosphere all year round, with
chilled air on hot days and faster
demisting when it’s damp. Move up to
the optional Electronic Climate Control
and you can maintain the interior
temperature to within a single degree.
Versatile load space.
When you’re not using Zafira’s third
row seats, there’s no need to remove
them completely. Each one folds down
separately, flush with the load floor.
Add the optional FlexOrganiser® pack,
and you’ve got the smartest, most
versatile way to manage your load
area ever!

14
Club

15
Club
CLUB
Standard features include:
• Electronic Stability Programme-plus
(ESP-plus)
• Anti-lock braking system
• Charcoal twist cloth interior
• Twin front airbags
• Front seat side-impact airbags
• Full-size curtain airbags
• Driver’s seat height adjuster
• Electric front windows
• Remote control central deadlocking
•
Steering wheel adjustable
for reach and rake
• Air conditioning
• CD/MP3 CD player/stereo radio
(CD 30 MP3)
• Aux-in socket
• 16-inch alloy wheels
• Leather-covered three-spoke
steering wheel
• Steering wheel mounted audio
controls
• Piano black-effect centre console
• Electrically adjustable/heated
door mirrors
• Body-colour door handles and
side-protection mouldings
• 16-inch alloy wheels
• Mobile phone system with Bluetooth®
(does not include phone or cradle)
• Dark-tinted rear glass
• Front fog lights
• Multi-function trip computer
• Alloy-effect roof rails
Engine availability
1.7CDTi 16v (110PS) ecoFLEX
1.7CDTi 16v (125PS)
Model illustrated features Carbon Flash two-coat
metallic paint, optional at extra cost.

Accessories
Dog guard with space divider grid*.
Designed to fit Zafira models, the
heavy-duty steel dog guard helps
keep your pet secure and protects
passengers in the event of sudden
braking. The space divider grid (sold
separately) allows luggage to be stored
on one side, and the dog to travel on
the other.
*The space divider grid can only be used in conjunction
with the dog guard. N.B. Dog guard requires fitting kit
(dealer-fit only) if vehicle is not equipped with the
optional factory-fit vertical load restraining net.
Floor mats. A range of floor mats
including rubber, velour and deluxe
velour are available for your Zafira.
Each come with their own fixing points
which help keep them firmly in place.
The rubber mats are available as a
front pair or set of four rears whilst all
other variants are supplied in sets of six.
Base carrier. The Opel roof
rack system begins with a base carrier.
It comprises two T-track bars which
support a wide range of attachments
from Thule including bicycle carriers
and a choice of high-capacity roof
boxes (available separately). Each
carrier is supplied with locks for security.
Genuine Opel Accessories are the right choice for your Zafira Club. Whatever you’re into, there’s certain to be an Opel
accessory with your name on it; all fitted by trained Opel professionals. We’ve only featured a small selection of what’s
available here, so please check with your Opel dealer for accessory availability information.
Rear parking distance sensors.
Activated automatically as you select
reverse, this clever system beeps faster
the closer you get to an obstruction,
changing to a continuous tone at
300mm away.
FURTHER ACCESSORIES
AVAILABLE INCLUDE:
• Thatcham approved alarm system
• Cargo liner
• Mudflaps
• Headlight protectors
• Electrically chilled 12-litre cool bag
• Thule bike carrier
• Thule alloy ski carrier
• Tow bar
• Steering wheel security bar
• Child seats
• Privacy shades
• Alloy wheels
• iPad cradle
• DAB upgrade
• Glovebox shelf
16

17
Accessories
Safety Pack.
• First aid kit
• Warning triangle
• Hi-visibility vest
OPEL ACCESSORY PACKS
Opel accessory packs bring together a selection of essential
accessories at great prices, helping you to protect your car and
equipping you for roadside emergencies.
Protection Pack.
• Velour mats
• Mudflaps
• Cargo liner
Developed in conjunction with auto design specialists Irmscher International,
Zafira styling accessories perfectly complement the vehicle’s lines, as well as being
manufactured to the same exacting standards as the car itself.
Styling
Irmscher sports silencers.
For distinctive looks (with chrome-
plated tailpipes) and a sportier exhaust
note, these split oval design tailpipes
are the perfect choice for your Zafira.
Cross hatch grille. Being different is
easy with the cross hatch front grille
from Irmscher. Featuring an aluminium
upper strip with a laser-etched
‘Irmscher’ logo it adds style and
individuality.
Irmscher alloy wheels. They’re the
perfect way to personalise your Zafira.
With a huge range to choose from
(style illustrated is Stila), and sizes from
16 to 19 inches, you’re sure to find one
to suit your style and budget. And don’t
forget to ask about our accessory wheel
locking kits too.

Power Red – solid (two-coat)Royal Blue – solid
Sovereign Silver – metallic*
Summit White – brilliant*
Sculpture Bronze – metallic* Carbon Flash – metallic*
18
Colours
Zafira Club comes in six different exterior colours, each one complementing the interior cloth trim beautifully.
*Optional at extra cost.
Due to the limitations of the printing process the colours reproduced may vary slightly from the actual paint
colour or trim material. As a result they should be used as a guide only. Vehicle illustrated is a non-specific model.
Your Opel dealer has a comprehensive display of all our paint samples.

Performance
1.7CDTi 16v (110PS) ecoFLEX
Maximum speed km/h (mph): 179 (111)
Acceleration (sec) 0-100km/h: 13.4
1.7CDTi 16v (125PS)
Maximum speed km/h (mph): 189 (117)
Acceleration (sec) 0-100km/h: 12.3
Standard transmission
Six-speed manual gearbox:
Fitted as standard on all models.
Suspension
Front: Independent. Lightweight MacPherson
struts with gas-pressure dampers and coil
springs. Anti-roll bar. Rear: Lightweight torsion
beam rear axle with trailing arms. Built-in
anti-roll bar. Progressive-rate double conical
mini-block springs and gas-pressure dampers.
Brakes
• Anti-lock Braking System (ABS)
• Dual circuit, diagonally split braking system
Front ventilated discs: 308mm diameter
Rear discs: 264mm diameter
Wheels and tyres
• 16-inch alloy wheels with 205/55 R 16 tyres.
• Emergency tyre ination kit included in lieu
of spare wheel
Steering
• Electro-hydraulic power-assisted steering
• Turning circle (kerb-to-kerb):
11.10m (36.4ft.)
Fuel tank capacity
• 58 litres (12.8 gallons)
Body
• Aerodynamic drag co-efcient: Cd 0.31
Anti-corrosion warranty
• 12-year body panel anti-perforation
warranty
Engines
1.7CDTi 16v (110PS) Turbo diesel 1.7CDTi 16v (125PS) Turbo diesel
Capacity 1686cc 1686cc
Maximum power 110PS (81kW) @ 3800rpm 125PS (92kW) @ 4000rpm
Maximum torque 260Nm (192 lb.ft.) @ 2300rpm 280Nm (206 lb.ft.) @ 2300rpm
Conguration 4 cylinders, 4 valves per cylinder. Double overhead camshafts
Fuel/induction system Variable geometry turbocharger with intercooler.
Common rail fuel injection
Emission compliance Euro 5
Service interval 30,000km or 1 year (whichever occurs sooner)
Weights and towing data kg
Gross vehicle weight
Max. towing weights
Trailer with brakes
(without brakes)
1.7CDTi 16v (110PS) ecoFLEX 217 5 1300 (750)
1.7CDTi 16v (125PS) 217 5 1400 (750)
Gross vehicle weight is the total permissible weight of the vehicle including passengers and their luggage. The maximum
roof rack loading should not exceed 100kg. The maximum towing weights are based on the ability of the car, with two
occupants of 75kg each, to restart on a 12% gradient, which is approximately 1 in 8.3, at sea level. At altitudes above
1500 metres, the engine output may drop with a corresponding reduction in towing capability. Any extra weight, such
as luggage or additional passengers, should be deducted from the maximum towing weight. With a trailer fully loaded,
maximum noseweight should not exceed 75kg. Always t Opel towing attachments and accessories available from your
Opel retailer. They are designed specically for Opel models and carry a 12-month guarantee.
Tyre rating
Tyre size Fuel efciency
group
Wet grip
performance
External noise
Measured (dB) Group
205/55 R 16 C-E B-E 69-76
Tyre rating according to EU Regulation 1222/2009
Loadspace dimensions millimetres (inches)
Maximum oor length – behind front seats, second-row seat back lowered 1809 (71.2)
Maximum oor length – behind second-row seat 1088 (42.8)
Maximum oor width 1114 (43.9)
Width between wheel arches 1071 (42.2)
Tailgate aperture height 893 (35.2)
Luggage capacities* litres (cu.ft.)
Behind second-row, to glass line 645 (22.8)
Behind front seats, to glass line 1070 (37.8)
Behind front seats, to roof 1820 (64.3)
* = Measured using the ECIE method.
1645
(64.7)
including
roof rails
1645
(64.7)
844
(33.2)
920
(36.2)
1781 (70.1)
excluding door mirrors
2026 (79.8)
including door mirrors
2703
(106.4)
4467
(175.8)
Exterior dimensions millimetres (inches)
19
Specification

OP1400223
www.opel.ie
Every effort has been made to ensure that the contents of this publication were accurate and up-to-date at the time of going to press (September 2013). Opel vehicles
are equipped with components manufactured by various General Motors operating units and outside suppliers. The Company reserves the right to change specications
and withdraw products from sale without notice. Any such alterations will be notied to Opel dealers at the earliest opportunity; please consult your local dealer for
the latest information. The specications detailed within this brochure are not necessarily applicable to alternative models such as Special Editions. Details of any such
models will be contained in specic literature or found on the Opel website. The colours reproduced in this brochure may vary slightly from the actual paint colour or
trim material due to the limitations of the printing process. Please note that Opel dealers are not the agents of General Motors Ireland Limited and are not authorised
to bind the Company by any specic or implied undertaking or representation. It is advisable to ensure that your motor insurance policy provides adequate cover for
additional tted options and accessories. As part of Opel’s policy of environmental care, this brochure is printed on paper manufactured using Elemental Chlorine Free
pulps from specially farmed, sustainable timber resources. All rights reserved. No part of this publication may be reproduced in any form or by any means, without the
prior written permission of General Motors Ireland Limited.
Published October 2013 General Motors Ireland Limited, Fern Road, Sandyford Business Estate, Dublin 18. www.opel.ie
Opel Service.
Europe-wide Customer Service.
Throughout Europe, more than 6,000 Opel repair
workshops are ready to provide professional and
punctual service. As you’d expect, they’ll repair
your vehicle to the highest standards. More
unusually, perhaps, they’ll tell you exactly what’s
been done and why, and they will show any costs
involved clearly and concisely.
New Vehicle Warranty.
2-year new vehicle warranty. This warranty
applies to any new Opel car for a period of 24
months without any mileage restrictions, as from
the day on which it was either registered for the
first time or delivered to the customer by the
dealer, depending on which date comes first.
Opel Roadside Assistance.
This free-of-charge mobility service is valid
for all new Opel vehicles during the first year
after the date on which they were first
registered or delivered to the customer by the
dealer, depending on which date comes first.
No matter where you are, the Opel Assistance
is there to help. In more than 40 European
countries – round the clock. Offering services
such as breakdown assistance, towing services,
rental car, hotel accommodation or the
organisation of onward transportation, e.g. via
rail or air (please see programme conditions).
12-year Anti-Perforation Warranty.
Opel provides you with a reliable long-term
warranty against perforation, provided you have
your vehicle serviced and all necessary inspections
performed according to the service booklet.
2-year Warranty for Opel Batteries.
With a 2-year warranty for service-installed Opel
original batteries your starting problems are
over – even in the coldest winter.
Parts and Accessories Service.
Opel parts and accessories are available at your
local Opel Shop, where you’ll find everything to
make your vehicle more comfortable or to meet
your individual needs, as well as expert advice.
Opel on the Internet.
Need instant information? At www.opel.ie you
can access a wealth of information on all Opel
cars, services, and accessories. Get online for
Opel news and product updates.
Recycling.
Information about Design for Recycling, Take-
Back points for End of Life Vehicles (ELVs) and
the recycling of ELVs can be found on the Opel
website www.opel.ie
In case of any questions, please ask your
Opel dealer. More information can be found
at www.opel.ie
