Open House H580 User manual

Page 1 ©2004 Linear LLC. All Rights Reserved. 07/04

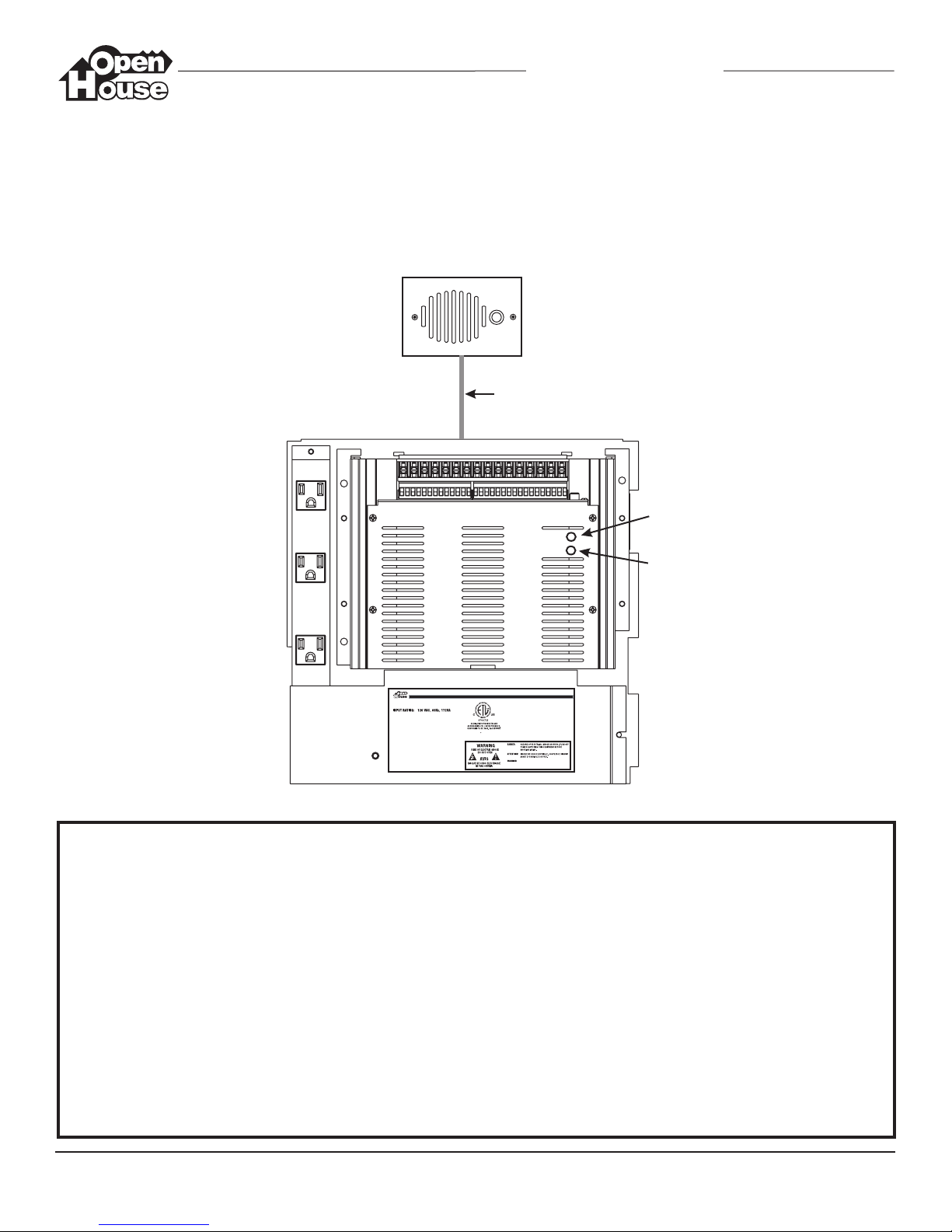

Door Station Connections
This details the procedures necessary to enable the Communication features of the H560.
These connections include.
• Door Stations (H580/H581) Open House
Door Station
(H580 or H581)
4 Twisted-
Pair Shielded
Wire w/ Ground
Return
Page Level
Adjustment
Doorbell Level
Adjustment
NOTICES: THIS DEVICE COMPLIES WITH FCC PART15 RULES AND
REGULATIONS.OPERATIONS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY
NOT CAUSE HARMFULINTERFERENCE AND (2) THIS
DEVICE MUST ACCEPT ANY INTERFERPENCE THAT
MAYCAUSE UNDESIRED OPERATION.
THIS DIGITALAPPARATUS IS CERTIFIED TO COMPLYWITH
THE LIMITS OF A CLASS B DIGITALDEVICE PURSUANT TO
PART15 OF FCC RULES. SEE INSTRUCTIONAL MANUAL IF
INTERFERENCE TO RADIO RECEPTION IS SUSPECTED.
COMPLIES WITH FCC PART68
FCC REGISTRATIONNUMBER: 5J7USA-30852-MA-T
RINGER EQUIVALENCE:0.6B
NO USER SERVICEABLE PARTSINSIDE
REFER SERVICE TO OPEN HOUSE
APPROVED SERVICE TECHNICIAN
modelH560
Multi-Room Audio & Intercom System
MADE IN CHINA P/N: 930019592 REV.A
Linear LLC
Carlsbad, CA 92009, USA
www.openhousesystems.com
©2004 Linear Corporation, Carlsbad, CA, USA
®
P/N 9900538 A
®
INSTALLATION MANUAL
H580/H581
Warranty
Linear LLC warrants this product to be free from defects in material and workmanship for two years (2 years). The time period will be measured using the date code labeled on
the product. Linear LLC is not responsible for damage to the product resulting from the buyer's improper handling, stocking or warehousing of the product. Any implied warranty
arising from the sale of the product including implied warranties of merchantability and fitness for purpose are limited. Linear LLC shall not be responsible for any losses, damages
or expenses, whether direct, consequential, or incidental arising from the use or the inability to use the product. Some states and countries do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. The Linear LLC warranty gives specific legal
rights in addition to other rights, which may exist and vary from state to state and country to country.
The warranty is limited to repair or replacement of products returned, freight prepaid, to Linear LLC, there is NO PROVISION FOR LABOR COST OR OTHER REIMBURSEMENTS OF ANY KIND.
1. Failures due to product abuse, such as negligence, improper use, and electrical surge including damage from lightening, water damage or other damage due to natural
disasters are not covered by the warranty. The most common form of product abuse is surge damage caused by lightening.
2. The warranty shall also be voided by any tampering with the date code, labels or other markings on the product.
3. Products that are damaged in transit to Linear LLC due to improper packaging or by the carrier (shipping company) will not be covered under the warranty. If the product was
damaged or lost by the carrier, it is the sender's responsibility to create a claim against the carrier.
4. The user is responsible for all labor costs associated with removing, reinstalling and returning the product to Linear LLC.
Linear LLC, at its option, will repair or replace the defective product. Replacements will be made from B-Stock, if an exact replacement is not available, Linear LLC, at it's option,
will select the nearest equivalent product. The user is responsible for freight charges to Linear LLC. Linear LLC will return warranted repaired or replacements by UPS Ground or an
equivalent service. A customer may pay the additional costs for second-day or next-day service.
All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear Technical Services at 1-800-999-5225 for an RPA# and other
important details.

Page 2 ©2004 Linear LLC. All Rights Reserved. 08/04
INSTALLATION MANUAL
1. Use 22/24 AWG, 8 conductor, 4 twisted pair shielded
cable w/ drain between the H560 and the Door
Station location(s).
2. Connect the Drain wire to SHLD/GND position on the
H560.
3. Connect DB-/DB+, MIC-/MIC+, SPKR-/SPKR+, and
L-/L+ (if applicable) as shown in the diagram below.
4. Test functions and make adjustments as shown
below.

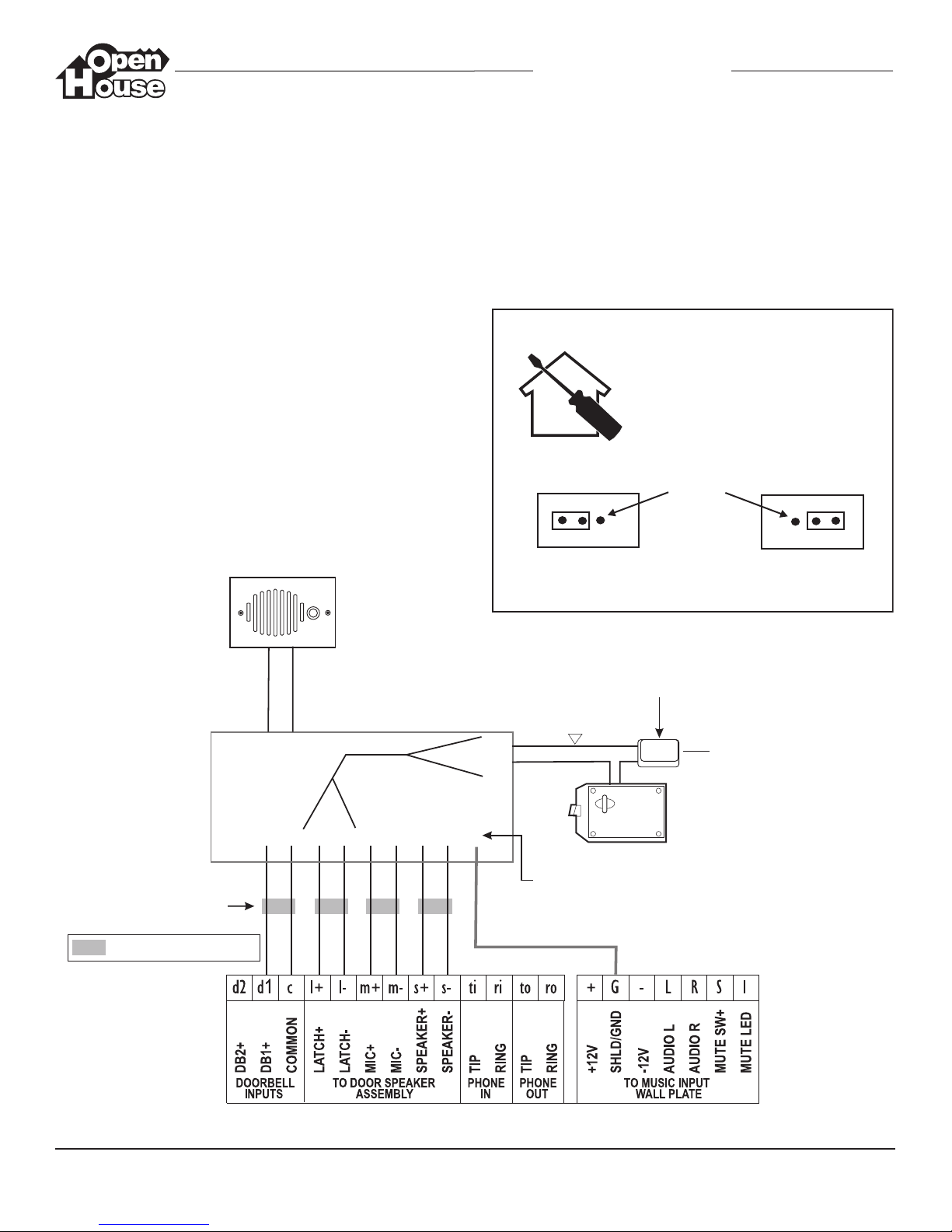

Connecting an OpenHouse Door Station (H580/H581) to the H560
H580/H581
See Gaining Access to the H560 PC Board,
in H560 Installation Manual
INSTALLATION TIP:
The Door Speaker and Door Microphone
levels can be adjusted by repositioning
2 shunts on the H560's PC Board . To
gain access to the shunts, the top cover
of the H560 must be removed. Make
sure you are fully grounded before
removing cover or touching the PC Board.
A wrist strap connected to an earth ground
is recommended.
Default
shunt position
is Hi. Move
to opposite
pins to
lower levels.
DOOR MICROPHONE
J2
Lo Hi
MIC
Gain
DOOR SPEAKER
Lo Hi
J4
DSPK
Gain
DB+ DB- L+ L- MIC+ MIC- SPKR+ SPKR-
Drain Wire
X
No connection at Door Station.
Cut at jacket.
H580/H581
PC Board
DB+ DB-
To Button N.O.
H581
ONLY
COM
H560
4 twisted-pair shielded
wire with drain
=Maintain Twisted Pair
Electronic Door Latch
Release Mechanism
(not sold by Open House)
Door Latch
Power Supply
Class 2 Low
Voltage Output
to 110VAC
H582 Faceplate
Doorbell
®
