Opera AMLETO IDRO User manual

MADE IN ITALY
design & production
LCD THERMO PRODUCTS USER MANUAL
AMLETO IDRO - FEDORA IDRO - OTELLO IDRO - RIGOLETTO IDRO
ENGLISH/INGLESE

2

index
3ENGLISH
We thank you for having chosen our company; our product is a great heating solution developed from the
most advanced technology with top quality machining and modern design, aimed at making you enjoy
the fantastic sensation that the heat of a ame gives, in complete safety.
enGLiSH
WarninGS.................................................................................................................................................................................. 5
Safety........................................................................................................................................................................................ 5
routine Maintenance.......................................................................................................................................................... 5
HydrauLic SySteM.................................................................................................................................................................. 6
InstallatIon and safety devIces................................................................................................................................................................................. 6
type of SySteM........................................................................................................................................................................ 6
safety devIces for closed vessel system ............................................................................................................................................................. 7
dIstances of safety devIces accordIng to the standard ........................................................................................................................ 7
coMMiSSioninG cHeckS........................................................................................................................................................ 7
autoMatic tHerMoStatic Mixer vaLve (Mandatory) ................................................................................................. 7
HydrauLic pLant baSic Layout.......................................................................................................................................... 8
otello Idro hydraulIc connectIons....................................................................................................................................................................... 9
inStant doMeStic Hot Water production kit ...........................................................................................................10
stove posItIonIng ................................................................................................................................................................................................................10
rearMinG ................................................................................................................................................................................10
tHerMo-productS featureS ............................................................................................................................................10
deviceS ....................................................................................................................................................................................11
reference StandardS ........................................................................................................................................................11
general .......................................................................................................................................................................................................................................12
inStaLLation..........................................................................................................................................................................13
Inserts InstallatIon...........................................................................................................................................................................................................13
fuMeS exHauSt SySteM.......................................................................................................................................................14
general requIrements .....................................................................................................................................................................................................14
smoke duct...............................................................................................................................................................................................................................15
chImney.......................................................................................................................................................................................................................................17
chImney caps...........................................................................................................................................................................................................................17
fumes eXhaust system product requIrements ..............................................................................................................................................18
combustIon products outlet quota....................................................................................................................................................................18
technIcal InstallatIon documentatIon.............................................................................................................................................................19
peLLetS and feedinG ...........................................................................................................................................................20
3

4ENGLISH
cHeckS and precautionS for firSt iGnition..............................................................................................................20
the pellet loadIng motor does not Work:................................................................................................................................................20
controL board.....................................................................................................................................................................21
dIsplay Icons...........................................................................................................................................................................................................................21
GeneraL Menu .......................................................................................................................................................................22
basIc InstructIons .............................................................................................................................................................................................................22
tHe reMote controL...........................................................................................................................................................23
enable delayed sWItch-off...........................................................................................................................................................................................23
type and replacement of batterIes........................................................................................................................................................................23
coMMiSSioninG SettinGS...................................................................................................................................................24
adjustIng tIme, day, month and year.....................................................................................................................................................................24
adjustIng language..........................................................................................................................................................................................................24
functioninG and LoGic .....................................................................................................................................................25
additionaL tHerMoStat ....................................................................................................................................................26
addItIonal thermostat functIonIng WIth stby actIve.............................................................................................................................26
addItIonal thermostat operatIon WIth deactIvated stby ....................................................................................................................26
addItIonal thermostat InstallatIon....................................................................................................................................................................26
auX..................................................................................................................................................................................................................................................26
uSer Menu...............................................................................................................................................................................27
set thermostat ......................................................................................................................................................................................................................27
enable fan.................................................................................................................................................................................................................................27
dIsplay .........................................................................................................................................................................................................................................27
pellet feed adjustment...................................................................................................................................................................................................27
v1-fan............................................................................................................................................................................................................................................28
stand-by......................................................................................................................................................................................................................................28
keys locked...............................................................................................................................................................................................................................29
reset ..............................................................................................................................................................................................................................................29
air diScHarGe........................................................................................................................................................................29
cHrono....................................................................................................................................................................................29
programmIng eXample.....................................................................................................................................................................................................30
cLeaninG and Maintenance.............................................................................................................................................31
Maintenance.........................................................................................................................................................................31
cleanIng and maIntenance by the user...............................................................................................................................................................31
routine Maintenance perforMed by quaLified tecHnicianS ..............................................................................34
decommIssIonIng (end of season)...........................................................................................................................................................................34
diSpLayS ..................................................................................................................................................................................36
aLarMS ....................................................................................................................................................................................37
4

5ENGLISH
WARNINGS
This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if
transferred to another owner or user, or if transferred to another place. If it is damaged or lost, request another copy from the
area technician. This product is intended for the use for which it has been expressly designed. The manufacturer is exempt from
any liability, contractual and extracontractual, for injury/damage caused to persons/animals and objects, due to installation,
adjustment and maintenance errors and improper use.
Installation must be performed by qualied sta, which assumes complete responsibility for the denitive installation
and consequent good functioning of the product installed. One must also bear in mind all laws and national, regional,
provincial and town council Standards present in the country in which the appliance has been installed, as well as the
instructions contained in this manual.
The Manufacturer cannot be held responsible for the failure to comply with such precautions.
After removing the packaging, ensure that the content is intact and complete. Otherwise, contact the dealer where the appliance
was purchased.
All electric components that make up the product must be replaced with original spare parts exclusively by an authorised after-
sales centre, thus guaranteeing correct functioning.
SAFETY
The generator must not be used by persons (including children) with reduced physical, sensory and mental capacities or
who are unskilled persons, unless they are supervised and trained regarding use of the appliance by a person responsible for
their safety.
Children must be checked to ensure that they do not play with the appliance.
Do not touch the generator when you are barefoot or when parts of the body are wet or damp.
The safety and adjustment devices must not be modied without the authorisation or indications of the manufacturer.
Do not pull, disconnect, twist electric cables leaving the stove, even if disconnected from the electric power supply mains.
It is advised to position the power supply cable so that it does not come into contact with hot parts of the appliance.
The power supply plug must be accessible after installation.
Do not close or reduce the dimensions of the airing vents in the place of installation. The airing vents are essential for
correct combustion.
Do not leave the packaging elements within reach of children or unassisted disabled persons.
The hearth door must always be closed during normal functioning of the product.
When the appliance is functioning and hot to the touch, especially all external surfaces, attention must be paid
Check for the presence of any obstructions before switching the appliance on following a prolonged period of inactivity.
The generator has been designed to function in any climatic condition (even critical). In particularly adverse conditions
(strong wind, freezing) safety systems may intervene that switch the generator o. If this occurs, contact the technical after-
sales service and always disable the safety systems.
In the event the ue catches re, use suitable systems for suocating the ames or request help from the re brigade.
This appliance must not be used to burn waste
Do not use any ammable liquids for ignition
During the lling phase do not put the bag of pellets to into contact with the product
The majolicas are top quality artisan products and as such can have micro-dots, crackles and chromatic imperfections.
These features highlight their valuable nature. Due to their dierent dilation coecient, they produce crackling, which
demonstrate their eective authenticity. To clean the majolicas, it is recommended to use a soft, dry cloth. If a detergent or
liquid is used, the latter could penetrate inside the crackles, highlighting them.
ROUTINE MAINTENANCE
Based on Decree 22 January 2008 n°37 art.2, routine maintenance means interventions aimed at reducing degradation due to
normal use, as well as dealing with accidental events entailing the need of rst interventions, which however do not modify
the structure of the system upon which one is intervening or its intended use according to the requirements laid down by the
technical standards in force and by the manufacturer's use and maintenance manual.
5

6ENGLISH
HYDRAULIC SYSTEM
Certain concepts referring to the Italian UNI 10412-2 (2009) Standard are described in this chapter.
As previously described, when installing, all national, regional, provincial and town council Standards in force provided by the
country in which the appliance has been installed must be complied with.
During installation of the stove it is MANDATORY to adjust the system with a manometer in order to display the water pressure.
INSTALLATION AND SAFETY DEVICES
The installation, relative system connections, commissioning and inspection of correct functioning must be carried out perfectly,
in total compliance with Standards in force, both national, regional and municipal, as well as these instructions.
For Italy, installation must be carried out by professionally authorised sta (Ministerial Decree dated 22.01.08 n°37).
The manufacturer declines all responsibility for damages to objects and/or persons caused by the system.
TYPE OF SYSTEM
There are two dierent types of system:
Open vessel plant and closed vessel plant.
The product has been designed and realised to work with closed vessel systems.
TABLE OF DEVICES FOR CLOSED VESSEL SYSTEM, PRESENT AND NOT PRESENT INTHE PRODUCT
Safety valve
R
Pump control thermostat (managed by the water probe and board program)
R
Acoustic alarm activation thermostat

Water temperature indicator (display)
R
Pressure transducer with display
R
Acoustic alarm

Automatic circuit breater switch (managed by board program)
R
Pressure transducer with minimum and maximum pressure switch alarm
R
Water overheating automatic circuit breaker (blocking thermostat)
R
Circulation system (pump)
R
Expansion system
R
J
CHECK THAT THE PRE-FILLING PRESSURE OF THE EXPANSION VESSEL IS 1.5 BAR.
6

1
2
3
7ENGLISH
SAFETY DEVICES FOR CLOSED VESSEL SYSTEM
According to the UNI 10412-2 (2009) Standard in force in Italy, the closed systems must have: safety valve, pump control
thermostat, acoustic alarm activation thermostat, temperature indicator, pressure indicator, acoustic alarm, regulation automatic
circuit breaker switch, automatic circuit breaker block switch (block thermostat), circulation system, expansion system, safety
dissipation system incorporated with the generator with thermal safety valve (self-activated), whenever the appliance does not
have a temperature self-adjustment system.

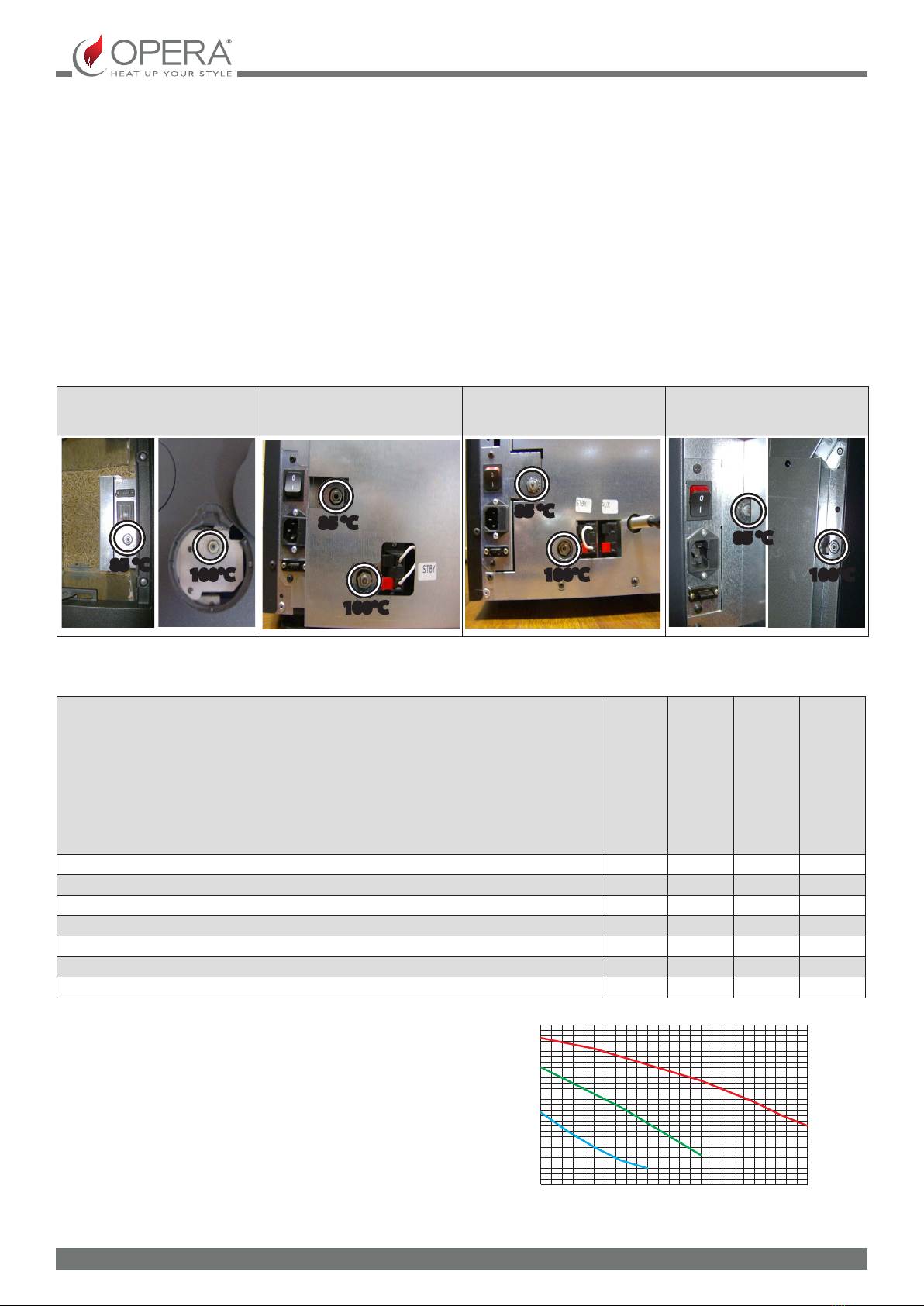

DISTANCES OF SAFETY DEVICES ACCORDING TO THE STANDARD
The temperature safety sensors must be in place on the machine at a distance no greater than 30 cm from the ow connection.
Whenever the generators lack a device, those missing can be installed on the generator ow pipe, within a distance no greater
than 1m from the machine.
COMMISSIONING CHECKS
Before connecting the boiler:
a) wash all system piping in order to remove any residues which might compromise the correct functioning of certain system
components (pumps, valves, etc.).
b) check to verify that the ue has adequate draft, is not narrowed and that other appliances do not discharge into the ue.
This is to prevent unexpected power increases. Only after this control can the ue tting be mounted between the boiler and
the ue. A check of the connections with pre-existing ues is recommended.

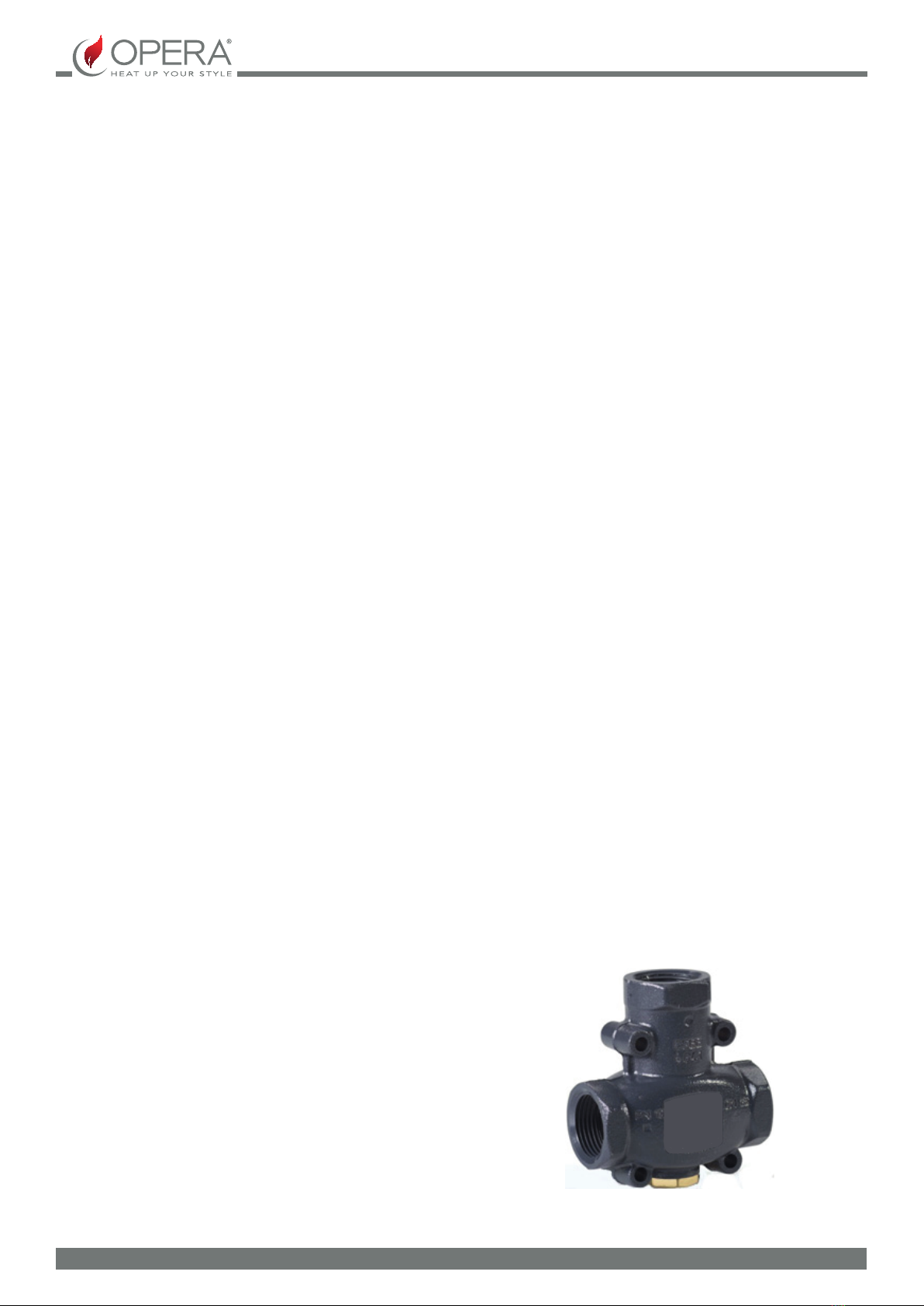

AUTOMATIC THERMOSTATIC MIXER VALVE (MANDATORY)
It is required to create an adequate anti-condensation circuit that ensures a return temperature for the appliance of at least 55°
C. The anti-condensation valve, for example, is applied in solid fuel boilers as it prevents the return of cold water in the heat
exchanger.
Routes 1 and 3 are always open and, together with the pump installed on the return, they guarantee water circulation inside
the biomass boiler exchanger.
A high return temperature allows eciency improvement, reduces formation of smoke condensation and prolongs the life
span of the generator.
Valves on the market have dierent calibrations. The manufacturer advises use of model 55°c with 1" hydraulic connections.
Once the valve calibration temperature is reached, route 2 is opened and the boiler water goes to the system via the ow.
Valve sold as an accessory (optional)
7

8
T1
T2
T3
A
B
OTELLO IDRO
T1
T2
T3
B A
AMLETO IDRO
T1
T2
A
B
T3
FEDORA IDRO
T1
T2
B
A
T3
RIGOLETTO IDRO
1 2
3
T M
S
G
VB
SI
T1
T2
A
B
T3
C
ENGLISH
HYDRAULIC PLANT BASIC LAYOUT
NOTE:
the drawing in the gure is an example.
KEY
APrimary air inlet
B Flue exhaust outlet
CCirculator pump (in the models where
provided)
T1 3 bar safety drain
T2 Boiler ow/outlet
T3 Boiler return/inlet
M Manometer
T Thermometer
G Filling system
SSafety valve discharge
VB Balance Valve
SI System exhaust
WE RECOMMEND REFERRING TO THE TEMPLATE MANUAL FOR FURTHER INFORMATION REGARDING
HYDRAULIC CONNECTIONS, AIR INTAKE/FLUE EXHAUST AND DIMENSION SPECIFICATIONS OF THE PRODUCT
IN QUESTION.

9ENGLISH
OTELLO IDRO HYDRAULIC CONNECTIONS
1. Remove the galvanised back 2. Remove the two steel sheets by
cutting the joints 3. Re-position the back
4. Remove the two caps, the ceramic
covering and the two sides
5. First remove the left cast iron
cover and then the complete left
front panel
6. First remove the 6 screws of the
right cast iron cover and then the
complete right front panel
7. Connect the system ow (T2) to
the machine and the safety valve
pipe (T1). Refer to the template for
the correct position
T1
T2
8. Connect the system return (T3) to
the machine. Refer to the template
for the correct position of the ttings
9. The stove must be about 10 mm
away from the wall
10. Re-position the complete right
panel. Fix the right cast iron cover
using the 6 screws.
11. Re-position the complete left
panel
T3
10
12. Reposition the caps, the cast iron
cover and the ceramic covering 13. Re-position the 2 sides

10
0,0 0,5 1,0 1,5 2,0 2,5
0
1
2
3
4
5
6
ENGLISH
OTELLO IDRO FEDORA IDRO RIGOLETTO IDRO AMLETO IDRO
INSTANT DOMESTIC HOT WATER PRODUCTION KIT
Warnings: if the instant hot water production kit is to be used, contact the company technical after-sales service.
STOVE POSITIONING
For correct product functioning, it is recommended to position it in a way that it is perfectly level, with the aid of a spirit level.
REARMING
The gures below show the positions for rearming the tank (85°C) and H2O (100°C).
We recommend contacting a qualied technician in the event rearming occurs to verify its cause.
*Content of water in the system in addition to that of the
thermo product that can be managed with the integrated
expansion vessel. An additional expansion vessel must be
installed for a higher content of water.
The following graph shows the behaviour of the circulator
pump used on our thermo-products at the speeds that can be
set.
Flow rate (m3/h)
Head (m)
85 °C
85 °C 85 °C
85 °C
100°C
100°C
100°C 100°C
THERMO-PRODUCTS FEATURES
FEDORA IDRO
RIGOLETTO IDRO
AMLETO IDRO
OTELLO IDRO
Water content of the thermo product heat exchanger (l) 13 13 18.5 15
Volume of expansion vessel integrated into thermo-product (l) 6688
Maximum content of water in the system for integrated expansion vessel (l)* 23 23 33 36
3 bar safety valve integrated into the thermo-product YES YES YES YES
Minimum and maximum pressure switch integrated into the thermo-product YES YES YES YES
Pump integrated into the thermo-product YES YES YES YES
Pump max. head (m) 5555

11ENGLISH
DEVICES
(in the relevant models)
Door micro switch: With the door open, the operation of the
burn pot cleaning system is blocked
Electronic pressure switch: in the event of inadequate pression,
it sends the machine in alarm conditions
F 2.5 A 250 V fuse (stoves): protects the machine from violent
current surges
85°C calibrated mechanical bulb with manual rearm:
intervenes by blocking fuel feed if the pellet tank t° reaches the
limit of 85°C. Rearm must be performed by qualied sta and/
or the manufacturer's technical after-sales assistance.
Pellet tank temperature control probe: if the tank over-heats,
the machine automatically modulates to return to normal
temperature values
Mechanical air pressure switch: blocks the pellet in the event of
insucient depression
REFERENCE STANDARDS
The installation must be in compliance with:
UNI 10683 (2012) heat generators fed with wood and
other solid fuels: installation.
The chimneys must be in compliance with:
UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, UNI
EN 1806 in the event of non-metallic chimneys:
EN 13384-1 (13384) chimneys.Thermal and uid dynamic
calculation methods.
UNI EN 1443 (2005) chimneys: general requirements.
UNI EN 1457 (2012) chimneys: clay/ceramic ue liners.
UNI/TS 11278 (2008) Metal - chimneys/ue liners/ue
ducts.
UNI 7129 point 4.3.3 Fire Brigade provisions, local rules
and regulations.
NATIONAL, REGIONAL, PROVINCIAL AND TOWN
COUNCIL REGULATIONS
One must also bear in mind all laws and national, regional,
provincial and town council Standards present in the country
in which the appliance has been installed.
TERMS AND DEFINITIONS
Aeration: Air renewal is required both for the disposal of
the combustion products, and to prevent mixtures with a
hazardous content of non-combusted gases.
Closed hearth appliance: Appliance designed for operation
with closed combustion chamber.
Forced draught appliance: Appliance with ventilation in the
fumes circuit and combustion with fumes ow at a positive
pressure with respect to the environment.
Chimney: Structure consisting in one or several walls
containing one or several outow airways.
The purpose of this predominantly vertical element is to expel
the combustion products at a convenient height from the
ground.
Smoke duct: Component or components that connect the
outlet of the heat generator to the chimney.
Chimney cap: Device that placed on the chimney outlet
allows the dispersion of the combustion products even in
presence of adverse weather conditions.
Condensation: Liquid products which form when the fumes
temperature is lower or equal to the water dew point.
Ducting pipe: Pipe made up of one or several predominantly
vertical elements, specically suitable for collecting and
expelling the fumes, as well as to withstand the relative
components and any condensate over time,
suitable to be installed in a chimney, existing or new technical
compartment, even in new buildings.
Sealed installation: Installation of an appliance with sealed
operation, so that all the air required for combustion is taken
from outside.
Maintenance: Set of procedures required to ensure and
maintain safety and functionality over time and maintain the
eciency of the system within the prescribed parameters.
Chimney system: Chimney installed using a combination
of compatible components, manufactured or specied by a
sole manufacturer whose product liability covers the entire
chimney.
Fumes exhaust system: Flue gas exhaust system,
independent from the appliance made up of a smoke duct,
chimney or individual ue and chimney cap.
Radiation area: Area immediately in front of the hearth in
which the radiant heat caused by combustion is diused.

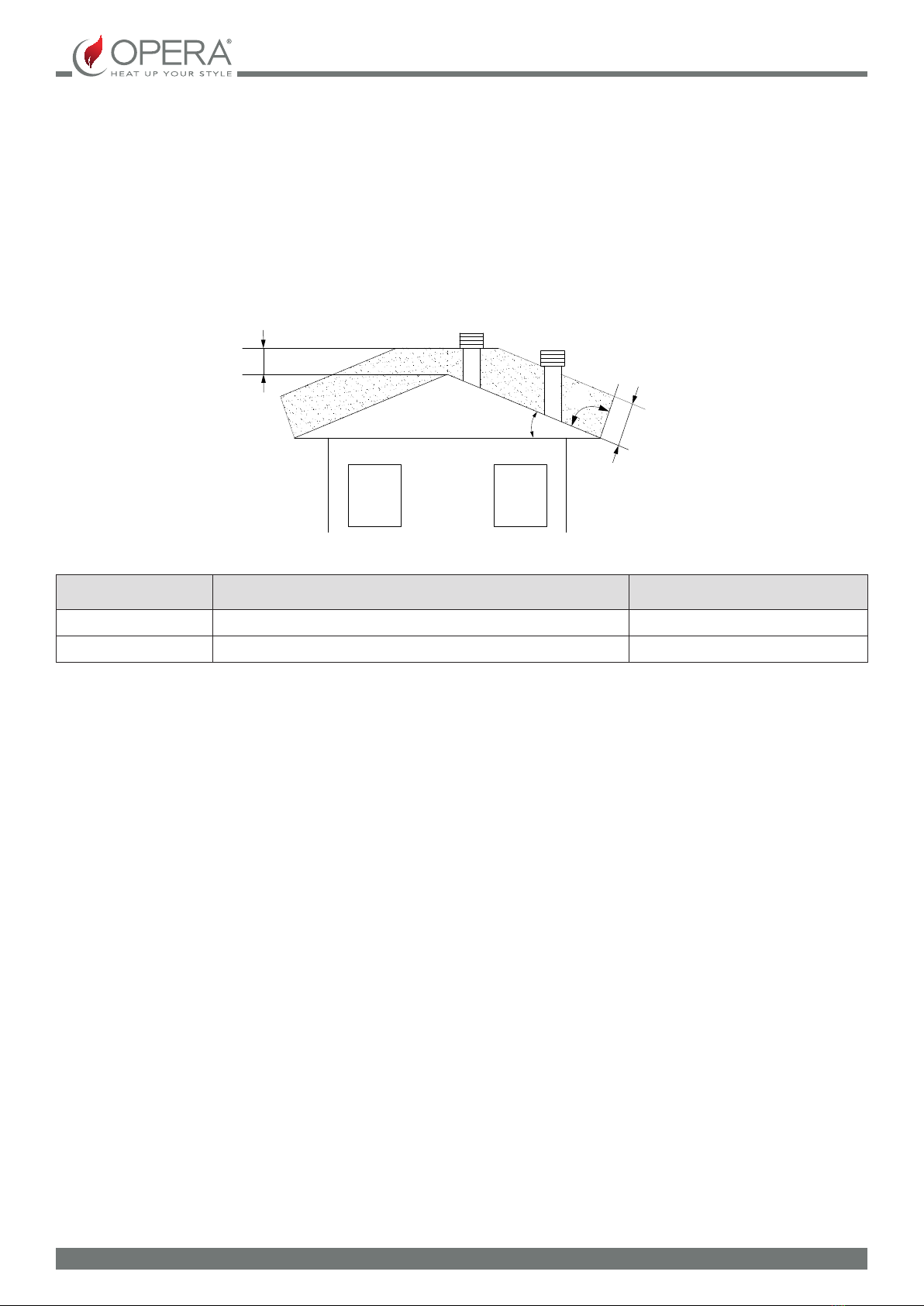

Reux area: Area beyond the extrados of the roof in which
overpressure or depressions occur, which may aect the
proper discharge of the combustion products.
11

12 ENGLISH
FUNCTIONAL OPERATIONS DIAGRAM
State of the art installation and proper system operation include a series of activities:
1. Preliminary activities:
Verication of the suitability of the power of the heat generator based on the characteristics of the system
verication of the suitability of the installation site,
verication of the suitability of the fumes exhaust system,
verication of the suitability of the outside air inlets;
2. Installation:
implementation of ventilation and connection to the outer air inlets,
implementation and connection to the fumes exhaust system,
assembly and installation,
electric and hydraulic connections,
installation of insulation,
ignition and operation test,
installation of nishings and coverings;
3. Issue of complementary documentation;
4. Inspection and maintenance.
Other actions may be required in relation to specic requests of the competent authority.
PRELIMINARY ACTIVITIES
GENERAL
Verication of compatibility of the system, of any restrictions required by local administrative regulations, special or conventional
requirements resulting from condominium regulations, constraints, laws or administration deeds must precede any other
assembly or installation operation.
One must especially verify the suitability:
of the installation premises, of the appliances already installed in the installation premises and in the adjacent and
adjoining premises, also powered by dierent fuels, with particular reference to non-compliant installations.
of the fumes exhaust system
of the outside air inlets
SUITABILITY OF THE FUMES EXHAUST SYSTEM
Installation must be preceded by a compatibility test between the appliance and the fumes exhaust system, by verifying:
the existence of documentation relating to the system;
existence and content of the chimney plaque;
suitability of the internal section of the chimney;
absence of obstructions all along the chimney;
predominantly vertical height and development of the chimney;
existence and suitability of the chimney cap;
distance of the outside wall of the chimney and of the smoke duct from
combustible materials;
chimney type and material;
absence of other chimney connections.
12

BCA
S
13ENGLISH
INSTALLATION
Installation in premises with re hazards is forbidden. Installation in residential premises (except for sealed operation appliances)
is also forbidden:
in which there are liquid fuel-operated appliances with continuous or intermittent operation, which draw the combustion
air in the room in which they are installed, or
in which there are type B gas appliances intended for room heating, with or without production of domestic hot water and
in adjacent and adjoining premises, or
in which, in any case, the depression measured during installation between the internal and external environment is
greater than 4 Pa
Installations in bathrooms, bedrooms and studio ats
Installation in bathrooms, bedrooms and studio ats is only allowed for sealed or closed hearth appliances with ducted
combustion air taken from the outside.
Installation premises requirements
The support surfaces and/or points must have a suitable load-bearing capacity to support the weight of the appliance, of the
accessories and coatings.
The adjacent, side and rear walls and the supporting surface must be made of non-combustible material. Installation near combustible
materials or those sensitive to heat is permitted as long as there is a suitable safety distance, which for pellet stoves is equal to:
REFERENCES INFLAMMABLE OBJECTS NONINFLAMMABLE OBJECTS
A 200 mm 100 mm
B 1500 mm 750 mm
C 200 mm 100 mm
In any case the temperature of the adjacent combustible materials must not reach a temperature equal to or greater than the
room temperature increased by 65°C.
The minimum volume of the premises in which to install the appliance must be greater than 15 m³.
INSERTS INSTALLATION
In the event of installation of inserts, access to the internal parts of the device is to be prevented and, during extraction, it should
not be possible to access to live parts.
Any wiring, such as a power supply cable or room sensors must be positioned so as not to be damaged during movement of the
insert, or come into contact with hot parts.
Air inlet
S= oor protection
Flue
Inspection
gure 1 gure 2
13

14 ENGLISH
VENTILATION AND AERATION OF THE INSTALLATION PREMISES
Ventilation is deemed sucient when the room is equipped with air inlets according to the table:
Air inlet
See gure 2
Appliance categories Reference standard
Percentage of the
net opening section with
respect to the appliance fumes
outlet section
Minimum net opening value of
the ventilation duct
Pellet stoves UNI EN 14785 - 80 cm²
Boilers UNI EN 303-5 50% 100 cm²
In any case ventilation is deemed sucient when the pressure dierence between the external and internal environment is
equal to or less than 4 Pa.
In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration
and/or ventilation opening. The air inlets must meet the following requirements:
they must be protected with grids, metal mesh, etc., but without reducing the net useful section;
they must be made so as to make the maintenance operations possible;
positioned so that they cannot be obstructed;
The ow of clean, uncontaminated air can also be obtained from a room adjacent to that of installation (indirect aeration and
ventilation), as long as the ow takes place freely through permanent openings communicating with the outside.
The adjacent room cannot be used as a garage, warehouse of combustible material or for any other activity with a re hazard,
bathroom, bedroom or common room of the building.
FUMES EXHAUST SYSTEM
GENERAL REQUIREMENTS
The heat generator works in a vacuum and has an output fan for fume extraction. Each appliance must be connected to a suitable
fumes exhaust system and ensure adequate dispersion of the combustion products into the atmosphere.The combustion products
must discharged above the roof. Direct discharge from the wall or towards closed spaces is forbidden, even with clear skies.
In particular, it is forbidden to use exible and extendible metal pipes.
The chimney should only receive the exhaust of the smoke duct connected to the appliance; collective ues or conveying
exhausts from hoods above cooking appliances of any kind, or exhausts from other generators into the chimney itself or smoke
duct are not allowed.
The smoke duct and the chimney must be connected with a continuity solution, in order to prevent the chimney from resting
on the appliance.
It is forbidden to have other air supply channels and pipes for plant engineering transit inside the fumes exhaust systems,
especially if over-sized.
The components of the fumes exhaust system must be chosen in relation to the type
of appliance to be installed in compliance with:
in the event of metal chimneys, UNI/ TS 11278, with particular attention to what is stated in the specication;
in the event of non-metallic chimneys: UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, .-UNI EN 1806; considering especially:
temperature class;
pressure class (fumes seal) at least equal to the seal required for the appliance;
moisture resistance (resistance to condensation);
class or level of corrosion and specication of the materials constituting the inner wall in contact with the fumes.
soot re resistance class;
minimum distance from combustible materials
Where due to high eciency a pellet stove has fumes at a temperature of less than 160°C + ambient (see technical data)
it must be resistant to moisture.
The installer of the fumes exhaust system, once the installation is complete and the relevant checks and inspections have been
made, must x the chimney plaque supplied by the manufacturer with the product in a visible manner, near the replace, and
which must be completed with the following information:
14

a
a
b.1
b
a
a
a
a
b.1
b.1
b b
OK OK
15ENGLISH
SMOKE DUCT
General requirements
The smoke ducts must be installed in compliance with the following general requirements:
be equipped with at least one sealed outlet for eventual fumes sampling;
they must be insulated if they cross through rooms that are not to be heated or outside the building;
they must not cross rooms in which the installation of combustion appliances is forbidden, nor in other premises
compartmentalised against re or with a re hazard, nor in rooms and/or areas that cannot be inspected;
they must be installed so as to allow normal thermal expansion;
they must be tted to the opening of the chimney without protruding inwards;
the use of exible metal pipes to connect the appliance to the chimney is not allowed;
nominal diameter;
distance from combustible materials, indicated in millimetres, followed by the arrow and ame symbol;
installer data and date of installation.
Every time one must cross combustible materials, the following indications must be complied with:
SYMBOL DESCRIPTION QUOTAMM
bMinimum distance of combustible materials from the intrados of the framework/oor/wall 500
b.1 Minimum distance of combustible materials from the extrados of the framework/oor 500
a Minimum distance from combustible materials dened by the manufacturer G(xxx)
The single wall pipes are indicated in white.
The insulated double wall chimney systems are indicated in grey.
One can disregard the quota only in the event of using an appropriate heat protection screen (for example: wall plate) to
protect the intrados of the framework/oor
Chimney Chimney
Incorrect Correct
15


16 ENGLISH
counter-slope sections are not allowed;
the smoke ducts must have, along their entire length, a diameter that is no less than that of the attachment of the appliance
exhaust pipe; any section changes are allowed only on the inlet to the chimney;
they must be installed so as to limit the formation of condensation and prevent their release from the joints;
they must be positioned at a distance no less than that indicated in the product specications from combustible materials;
the smoke channel/duct must allow to collect the soot and to be cleaned using a swab and inspected after being
disassembled, or through inspection openings when not accessible from inside the appliance.
ADDITIONAL REQUIREMENTS FOR APPLIANCES FITTED WITH AN ELECTRIC FAN FOR FUMES EXPULSION
For the heat generator appliances equipped with electric fan for expelling fumes, the instructions below must be followed:
The horizontal sections must have a minimum upward slope of 3%
The length of the horizontal section must be minimal and, in any case, no longer than 3 metres
The number of direction changes including the one due to the use of the "T" element must not be more than 4.
Ash deposited in
the 90° bend
Ash deposited in
the 90° bend
Installation with internal ue
Protection from
rain and wind
Protection from
rain and wind
Insulated ue
Insulated
condensation-
proof "T" tting
with inspection
plug
Condensation-proof
"T" tting with
inspection plug
Insulated ue
Installation with internal - external
ue
IT IS NOT RECOMMENDED TO INSTALL A 90° BEND AS THE FIRST INITIAL PART, SINCE THE ASH WOULD BLOCK THE
PASSAGE OF THE FUMES IN A SHORT TIME, CAUSING PROBLEMS TO THE GENERATOR DRAUGHT.:
EXAMPLES OF CORRECT CONNECTION TO THE CHIMNEY
16

3 - 5%
Max 3 mt

17ENGLISH
It is mandatory to use airtight pipes.
CHIMNEY
In addition to the general requirements, the chimneys for releasing combustion products into the atmosphere must:
operate under negative pressure (operation under positive pressure is not allowed);
have a preferably circular internal section; square or rectangular sections must have rounded corners with a radius of no
less than 20 mm (hydraulically equivalent sections may be used, as long as the ratio between the longer side and the shorter
side of the rectangle, which circumscribes the section, is in any case no greater than 1.5);
be designed for fumes be designed for fumes expulsion;
be predominantly vertical and have no narrowing along their entire length;
have no more than two direction changes with a slope angle no greater than 45°;
be tted with, in the event of operating in damp conditions, a device for reux drainage (condensation, rainwater);
Ducted system
A ducted system can be installed with one or more ducts, operating only with negative pressure with respect to the environment.
The exible hose compliant with UNI EN 1856-2, with T400-G characteristics, meets the requirements.
CHIMNEY CAPS
The chimney caps must meet the following requirements:
they must have a useful outlet section no less than double of that of the chimney/ducted system on which it is installed;
they must be adapted in order to prevent the penetration of rain and snow in the chimney/ducted system;
they must be built so that, in the event of winds coming from all directions and from any angle, the expulsion of combustion
products is in any case ensured;
they must be free from mechanical intake aids.
"T" tting with
inspection
plug
Steel plate,
airtight
Insulated "T"
tting with
inspection plug
Protection from rain
and wind
Protection from rain
and wind
"T" tting with
inspection plug
EXAMPLES OF CORRECT CONNECTION TO THE CHIMNEY
17

90°
c
a
ß
18 ENGLISH
The outlet of a chimney/ducted system must not be near obstacles that may create turbulence areas and/or prevent proper
expulsion of combustion products and maintenance operations to be carried out on the roof.
Verify the presence of other chimney caps or skylights and dormers.
FUMES EXHAUST SYSTEM PRODUCT REQUIREMENTS
Temperature class
In the event of a pellet appliance, temperature classes below T200 are not allowed.
Soot re resistance class
The fumes exhaust system interlocked with appliances supplied by solid fuels require soot re resistance, and the specication
must be indicated by the letter G followed by the distance from combustible materials in millimeters (XX) (in compliance with
UNI EN 1443) .
In the event of pellet appliances, the fumes exhaust systems must be airtight; if double designation elements are used (G and
O, with or without seal elastomer) for connecting the appliance to the chimney, one must comply with the minimum distance
XX in millimeters, indicated for designation G; in the event of re due to soot, one must ensure the restoration of the initial
conditions (by replacing the gaskets and damaged items and cleaning those remaining in use).
Ignition tests
Operation of the appliance must be veried with an ignition test, i.e.:
for mechanical feed appliances, one must complete the ignition test, verify proper operation for at least the next 15
minutes and adjust the switch-o;
For appliances installed in a hot water heating system (closed replaces, thermo-stoves), testing must also extend to the entire
hydraulic circuit.
COMBUSTION PRODUCTS OUTLET QUOTA
The outlet quota is determined by measuring the minimum height between the roof covering and the lower point of the fumes
expulsion section into the atmosphere; this quota must be outside the reux area and at an adequate distance from obstacles
which hinder or make the expulsion of the combustion products dicult or from openings or accessible areas.
Reux area
The outlet quota must be outside the reux area calculated according to the indications below.
Near the ridge one considers the lowest between the two.
Buer area for outlet quota
Clear area for outlet quota above the roof slope ( ß>10°)
REFERENCE DESCRIPTION CLEAR AREA MM
c Distance measured at 90° from the roof surface 1300
a Height above the ridge of the roof 500
18

19ENGLISH
Coverings and nishings
The coverings and nishings must only be applied after having veried the proper operation of the appliance according to the
indicated modalities
TECHNICAL INSTALLATION DOCUMENTATION
When installation is complete, the installer must provide the owner or person acting for him, according to the legislation in
force, with the declaration of conformity, supplied with:
1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts,
chimney, etc.);
2) photocopy or photograph of the chimney plaque;
3) system booklet (where applicable).
The installer must ask to be issued with a receipt stating that the documentation has been provided, and must keep it with a copy of
the technical documentation relating to the installation.
Installation performed by several parties
If the individual installation steps are carried out by dierent parties, each must document the work carried out for the customer
and the for the operator working on the next step.
INSPECTION AND MAINTENANCE
Frequency of operations
Maintenance of the heating system and of the appliance must be carried out on a regular basis according to the table below:
TYPE OF APPLIANCE INSTALLED <15kW (15- 35) kW
Pellet operated appliance 1 year 1 year
Water operated appliances
(closed replaces, thermo-stoves, thermo-kitchens) 1 year 1 year
Boilers 1 year 1 year
Fumes exhaust system 4 t of fuel used 4 t of fuel used
For further details refer to the "cleaning and maintenance" chapter.
Inspection and maintenance report
At the end of the inspection and/or maintenance operations, a report must be issued and released to the owner, or person
acting for him, who must conrm its receipt in writing. The report must indicate the situations encountered, the action taken,
any components replaced or installed and any comments, recommendations and requirements.
The report must be kept with the relative documentation.
In the inspection and maintenance report one must mention:
anomalies detected that cannot be removed, which pose a risk to the safety of the user or serious damage to building;
components that have been tampered with.
If anomalies as per above were detected, the owner, or person acting for him, must be warned in writing, in the maintenance
report, to refrain from using the system until the safety conditions have been fully restored.
The inspection and maintenance report must include the main information of the technician or company who performed the
inspection and/or maintenance operations, with their contact details, date of intervention and the signature of the operator.
19

20 ENGLISH
PELLETS AND FEEDING
Pellets are made by applying high pressure to sawdust, or wood waste products (not containing paint) from sawmills, carpentry
and other activities related to processing and working with wood. Given that it does not use any glue to hold it together this
type of fuel is completely environmentally friendly. In fact the compactness of the pellets over time is guaranteed by a natural
substance found in the wood itself: wood coal. In addition to being an environmentally friendly fuel in that it pushes wood
residues to the limits pellets also have technical advantages. While wood has a caloric value of 4.4kWh/kg. (with 15% humidity
after around 18 months of seasoning) the caloric value of pellets is 5 kWh/kg. Pellet density is 650kg/m3 and the water content
is equal to 8% of its weight. For this reason they do not require seasoning in order to arrive at a suciently adequate degree of
heat yield.
THE USE OF EXPIRED PELLETS OR ANY OTHER MATERIAL WILL AFFECT THE FUNCTIONALITY OF YOUR
GENERATOR AND MAY LEAD TO THE TERMINATION OF THE WARRANTY AND CESSATION OF ANY ACCOMPANYING
RESPONSIBILITY ON THE PART OF THE MANUFACTURER
The pellets used must comply with the characteristics described
by the following standards:
EN PLUS - UNI EN 14961 - 2 (UNI EN ISO 17225-2) class
A1 or A2
The manufacturer always recommended using pellets with a
diameter of 6 mm with its products.
PELLET STORAGE
In order to ensure problem-free combustion pellets must be
stored in a dry place.

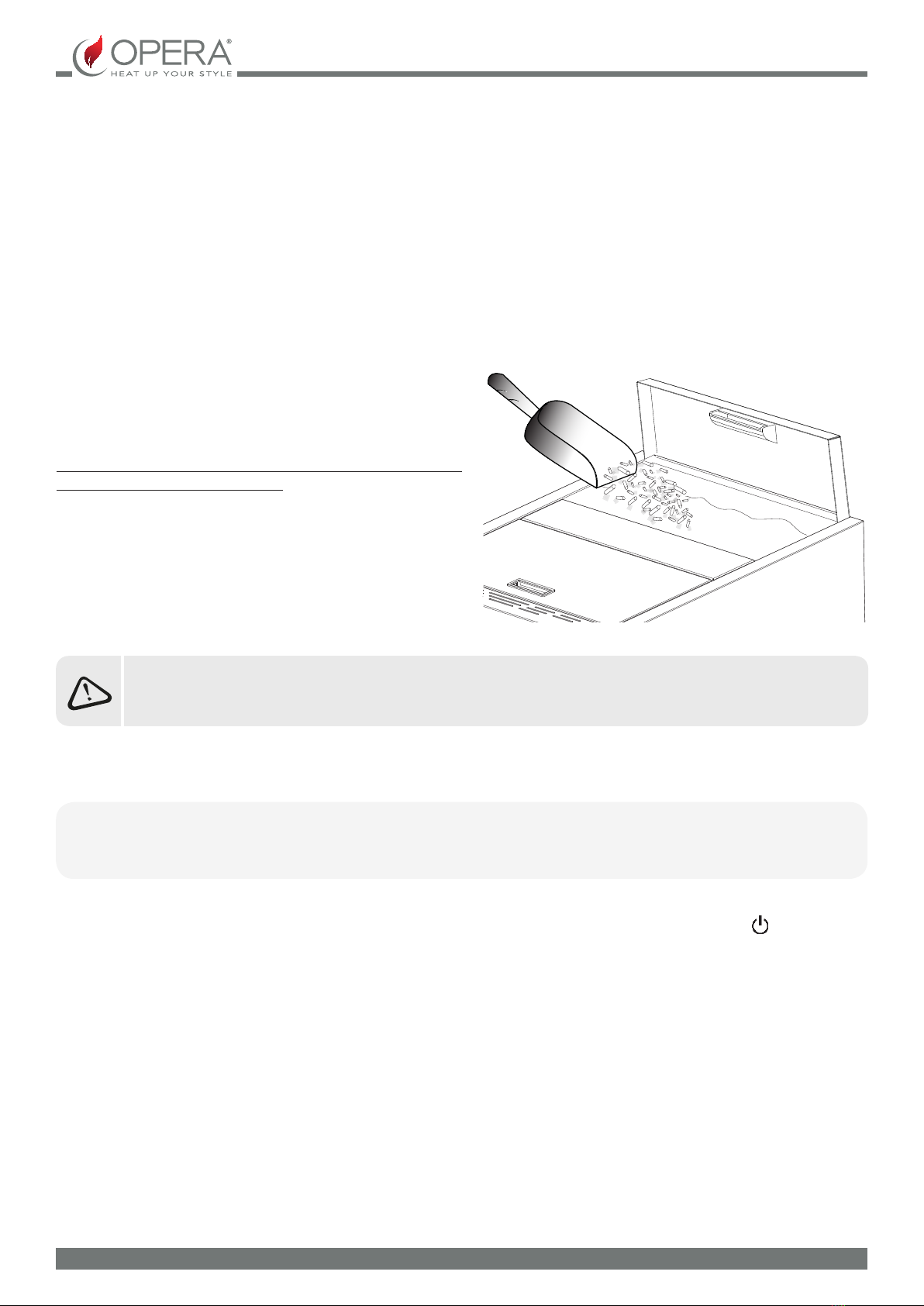

Open the tank lid and load the pellets using a scoop.
CHECKS AND PRECAUTIONS FOR FIRST IGNITION
IMPORTANT!
IN ORDER FOR THE GENERATOR TO WORK PROPERLY, THE HYDRAULIC SYSTEM’S PRESSURE MUST BE BETWEEN
0.6 AND 2.5 BAR.
If the pressure detected by the digital pressure switch is below 0.6 or above 2.5 bar, it triggers a boiler alarm.
Bringing the water pressure within the standard values, it is possible to reset the alarm by pressing the button /1 for 3 seconds
(The alarm can be reset only if the fumes motor has stopped and 15 minutes have elapsed from the display of the alarm)
THE PELLET LOADING MOTOR DOES NOT WORK:
Due to the lling of the system, it is normal that there is air inside the circuit.
During the 1st ignition cycle, water movement causes the displacement of air bubbles and their out-ow from the automatic
vents out of the system. This can cause the pressure to drop and activate the minimum pressure switch, which stops the motor
that transports the pellets and, therefore, the heat generator.
Vent out the system, if necessary even multiple times, to remove the air, and reload it if the pressure is too low.
It is not a malfunction, but a normal occurrence due to its lling. After lling, the plumber must always thoroughly vent the
system, using the special vents in the circuit and running the "air breather" function on the machine. (After the rst ignition and
with a cold machine, re-activate the function "air breather" - see chapter "OTHER FUNCTIONS”)
BULB THERMOSTATS - RESET:
Check by pressing the reset buttons (85 - 100°C) located on the back of the appliance, before contacting a technician (see
section RESET).
20
