Optelecom-nkf 9000 Series User manual

9000 Series
Installation and Operation Manual
Model 9152DT
Model 9152DR
Digital Eight Channel Video/Five Channel
Data Multiplexer/Transmitter and
Receiver/Demultiplexer Cards
For the high quality transmission of eight channels of
composite baseband video and five channels of data
in one direction over one optical fiber
UM50243, Manual 9152DT/DR, ECO 22805, Rev. E


Table of Contents
Section Page
Safety Instructions ii
Fiber Information iv
Functional Description 1
9152DT Indicator, Connector, and Dipswitch Locations and Function 2
9152DR Indicator, Connector, and Dipswitch Locations and Function 3
9152DT/9152DR Configuration and Connection Guide 5
Built-In Data Connection and Configuration 6
Operation of the 9152DT and 9152DR 12
Operation of the 9152D with the Network Management System 13
Specifications for the 9152D 14
UM50243, Manual 9152DT/DR, ECO22805, Rev. E

ii
Safety Instructions RM-1
The optical devices used in this equipment are Hazard Level 1M. As required by IEC60825-1, the installer is responsible for insuring that the label
depicted below is present in the restricted locations where this equipment is installed.
This assembly contains parts sensitive to damage by electrostatic discharge (ESD). Use ESD precautionary procedures when
touching, removing, or inserting parts or assemblies.
The chassis into which this unit is installed must be housed in a properly rated NEMA enclosure.
When this unit is operated in extremely elevated temperature conditions, it is possible for internal and external metal surfaces to
become extremely hot. Care should be taken to insure this unit is installed in a restricted area where only properly trained service
personnel have access to the unit.
This product contains Class 1M lasers or LEDs.
• Class 1M laser product according to IEC60825-1:1993+A1+A2
•CAUTION: Use of controls or adjustments or procedures other than those specified herein may result in hazardous
radiation exposure.
• Precautions should be taken to prevent exposure to optical radiation when the unit is removed from its enclosure or when
the fiber is disconnected from the unit.
• Laser radiation may be present on a fiber connection to this unit even when the power has been removed from the unit.
• This unit is intended for installation in locations where only trained service personnel have access to the fiber connections.
• The locations of all optical connections are listed in the Connection Locations and Function section of this manual.
• Optical outputs and wavelengths are listed in the Specifications section of this manual.
The safety information contained in this section, and on other pages of this manual, must be observed whenever this unit is operated,
serviced, or repaired. Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards
of design, manufacture, and intended use of the unit. Optelecom-NKF assumes no liability for the customer’s failure to comply with any
of these safety requirements.
Hazard Level 1M The border shall be black and the
background shall be yellow.
LASER RADIATION
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS (MAGNIFIERS).
CLASS 1M LASER PRODUCT
CAUTION:
DISCONNECTED OPTICAL CONNECTORS MAY EMIT OPTICAL ENERGY.
DO NOT VIEW BEAM WITH OPTICAL INSTRUMENTS (MAGNIFIERS).

iii
Instrucciones de seguridad RM-1
Los dispositivos ópticos usados en este equipo son de Nivel de Riesgo 1M. Según lo exige la norma IEC60825-1, el instalador es responsable de
asegurar que la etiqueta descrita a continuación esté presente en las ubicaciones restringidas donde se instale este equipo.
Este ensamblaje contiene piezas sensibles al daño por descargas electrostáticas (ESD, por sus siglas en inglés). Use
procedimientos para prevenir las descargas electrostáticas al tocar, desmontar o insertar piezas o ensamblajes.
El chasis en el cual está instalada esta unidad debe estar dentro de un alojamiento debidamente calificado por NEMA.
Cuando se opera esta unidad en condiciones de temperatura sumamente elevada, es posible que las superficies internas y
externas de metal se pongan extremadamente calientes. Debe tenerse cuidado para asegurar que esta unidad se instale en un
área restringida donde sólo tenga acceso a la unidad el personal de servicio debidamente capacitado.
Este producto contiene rayos láser o diodos emisores de luz Clase 1M.
• Producto láser Clase 1M conforme a la norma IEC60825-1:1993+A1+A2
•PRECAUCIÓN: El uso de los controles o ajustes o procedimientos aparte de lo especificado aquí puede ocasionar
exposición peligrosa a la radiación.
• Deben tomarse precauciones para evitar la exposición a la radiación óptica cuando se saque la unidad de su alojamiento, o
cuando se desconecte la fibra de la unidad.
• Puede haber radiación láser en una conexión de fibra a esta unidad aun cuando se haya eliminado la corriente de la unidad.
• Esta unidad está destinada a instalarse en ubicaciones donde sólo el personal de servicio competente tenga acceso a las
conexiones de fibra.
• Las ubicaciones de todas las conexiones ópticas se enumeran en la sección Ubicaciones de las conexiones y funciones de
este manual.
• Las salidas ópticas y longitudes de onda aparecen en la sección Especificaciones de este manual.
Debe observarse la información de seguridad contenida en esta sección, y en otras páginas de este manual siemptre que se opere, dé
servicio o repare esta unidad. Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los
estándares de diseño, fabricación y el uso destinado a la unidad. Optelecom-NKF no asume ninguna responsabilidad si el cliente no
cumple con alguno de estos reequisitos de seguridad.
RADIACIÓN LÁSER
NO VER DIRECTAMENTE CON INSTRUMENTOS ÓPTICOS (DE AUMENTO)
PRODUCTO LÁSER CLASE 1M
PRECAUCIÓN:
LOS CONECTORES ÓPTICOS DESCONECTADOS PUEDEN EMITIR ENERGÍA ÓPTICA
NO VER EL HAZ CON INSTRUMENTOS ÓPTICOS (DE AUMENTO)
Nivel de Riesgo 1M El borde debe ser negro y
el fondo debe ser amarillo.

iv
Sicherheitsanleitungen RM-1
Die optischen Vorrichtungen in diesem Gerät haben Gefahrenstufe 1M. Wie vorgeschrieben durch IEC60825-1 ist der Installateur dafür verantwortlich,
sicherzustellen, dass die unten abgebildeten Schilder an den Orten mit eingeschränktem Zugang, an denen dieses Gerät aufgestellt ist, vorhanden sind.
Diese Baugruppe enthält Teile, die durch elektrostatische Entladungen (ESD) beschädigt werden können. Vorsichtsmaßnahmen
zum Schutz vor elektrostatischer Entladung treffen, wenn Teile oder Baugruppen berührt, ausgebaut oder eingefügt werden.
Das Gestell, in dem diese Einheit eingebaut ist, muss in einem entsprechend klassifizierten NEMA-Schutzgehäuse untergebracht
sein.
Wenn diese Einheit bei besonders hohen Temperaturen betrieben wird, können interne und externe Metallflächen extrem heiß
werden. Es muss darauf geachtet werden, dass diese Einheit in einem Bereich mit eingeschränktem Zugang aufgestellt wird,
damit nur geschultes Wartungspersonal Zugang zur Einheit hat.
Dieses Produkt enthält Laser oder LEDs der Klasse 1M.
• Laserprodukt der Klasse 1M gemäß IEC60825-1:1993+A1+A2
•VORSICHT: Wenn die Bedienungselemente anders als hier beschrieben bzw. andere Einstellungen verwendet werden,
kann es zu schädlicher Strahlenaussetzung kommen.
• Es müssen Vorsichtsmaßnahmen getroffen werden, um Aussetzung an optischer Strahlung zu vermeiden, wenn die Einheit
aus dem Gehäuse genommen oder die Faseroptik von der Einheit getrennt wird.
• In einer Faseroptik-Verbindung dieser Einheit kann auch dann Laserstrahlung vorhanden sein, wenn die Stromversorgung
zur Einheit abgeschaltet wurde.
• Diese Einheit ist zum Einbau an Orten vorgesehen, an denen nur geschultes Personal Zugang zu den Faseroptik-
Verbindungen hat.
• Die Lage aller optischen Verbindungen ist im Abschnitt über die Lage von Anschlüssen und Funktionsweise dieses
Handbuchs zu finden.
• Optische Ausgänge und Wellenlängen sind im Abschnitt mit den technischen Daten dieses Handbuchs zu finden.
Die in diesem abschnitt und auf anderen seiten dieses handbuchs enthaltenen sicherheitsinformationen müssen befolgt werden, wenn diese einheit betrieben,
gewartet oder repariert wird. Falls vorsichtsmassnahmen, warnungen oder anweisungen in diesem handbuch nicht befolgt werden, verstösst dies gegen die
konstruktions, und herstellungsstandards und erfolgt im gegensatz zum vorgesehenen verwendungszweck dieser einheit. Optelecom-NKF übernimmt keine
haftung für das verabsäumnis des kunden, diese sicherheitsanforderungen einzuhalten.
LASER-STRAHLUNG
NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN (LUPEN) ANSEHEN
LASER-PRODUKT DER KLASSE 1M
VORSICHT:
ABGEKLEMMTE OPTISCHE STECKVERBINDER KÖNNEN OPTISCHE ENERGIE FREI SETZEN
NICHT MIT OPTISCHEN INSTRUMENTEN (LUPEN) IN DEN STRAHL BLICKEN.
Gefahrenstufe 1M Schwarzer Rand und
gelber Hintergrund.

v
Consignes de sécurité RM-1
Les appareils optiques utilisés dans cet équipement correspondent à un niveau de danger 1M. Comme exigé par la norme IEC60825-1, il incombe à
l’installateur de s’assurer que l’étiquette ci-dessous est présente aux endroits d’accès limité où cet équipement est installé.
Cet ensemble contient des pièces sensibles aux décharges électrostatiques (ESD). Prendre les précautions relatives aux ESD avant
de toucher, retirer ou insérer des pièces ou des ensembles.
Le châssis dans lequel est installé cet appareil doit être placé dans une enceinte NEMA conforme aux spécifications nominales.
Lorsque cet appareil fonctionne à une température ambiante extrêmement élevée, il est possible que les surfaces métalliques
internes et externes deviennent extrêmement chaudes. S’assurer que cet appareil est installé dans une zone dont l’accès est
limité à un personnel de maintenance correctement formé.
Ce produit contient des lasers ou diodes électroluminescentes de classe 1M.
• Produit laser de classe 1M conformément à IEC60825-1:1993+A1+A2
•ATTENTION: L’utilisation de commandes ou réglages, ou de procédures différentes de celles indiquées ici risque de
provoquer une exposition dangereuse au rayonnement.
• Prendre des précautions pour empêcher une exposition au rayonnement optique lorsque l’appareil est retiré de son boîtier ou
lorsque le câble optique fibre est débranché de l’appareil.
• Un rayonnement laser pourra être présent dans un câble optique branché sur cet appareil, même une fois l’alimentation coupée.
• Cet appareil est prévu pour une installation à des endroits où seul un personnel de maintenance formé a accès aux câbles optiques.
• Les points de branchement de tous les câbles optiques sont indiqués à la section Points de branchement et fonction de ce manuel.
• Les sorties et longueurs d’onde optiques figurent à la section Caractéristiques techniques de ce manuel.
Les consignes de securite contenues dans cette section et dans le reste de ce manuel doivent etre respectees a chaque fois que cet appareil
est utilise ou fait l’objet d’une maintenance ou d’une reparation. Le non-respect d’une precaution, d’un avertissement ou d’une instruction
figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil. Optelecom-NKF n’est
pas responsable du non-respect de ces consignes de securite par le client.
RAYONNEMENT LASER
NE PAS REGARDER DIRECTEMENT AVEC DES INSTRUMENTS OPTIQUES (LOUPES)
PRODUIT LASER DE CLASSE 1M
ATTENTION:
LES CONNECTEURS OPTIQUES DEBRANCHES PEUVENT EMETTRE UNE ENERGIE OPTIQUE.
NE PAS REGARDER LE FAISCEAU AVEC DES INSTRUMENTS OPTIQUES (LOUPES)
Niveau de danger 1M La bordure doit être noire et
le fond jaune.

vi
Fiber Information
This unit was manufactured with attention to fiber cleanliness by Optelecom-NKF. Beyond the optical safety
information contained in this manual, the following guidelines should be observed when working with
optical fibers.
The biggest problem is dirt!
It takes very little contamination to cause problems with optical fiber connections; cleanliness is extremely
important to proper operation of optical equipment.
1. Protect optical connectors by leaving the connector covers in place on unused fiber connections and on
the fiber tips themselves.
2. Personnel who remove and replace fibers should be equipped with a fiber cleaning kit. These are
inexpensive and can be obtained from any fiber equipment supply house. If you choose to, you can use
propanol and lint-free tissue to clean fibers.
a. a. Do not use isopropanol alcohol (typically called rubbing alcohol) mixed with water. This can cause
additional spots. (Caution: Pure isopropanol is very flammable!)
b. Use lintless tissues to clean fibers.
c. Clean the fiber with a folded tissue moistened with the propanol, pulling the connector tip across the
tissue, then turn the connector 90 degrees and repeat in a different spot on the tissue.
d. Don’t pull the fiber across and then push it back. This will put the dirt that was cleaned off back on
again.
e. Repeat the process on a dry, folded tissue.
3. When removing fibers, always clean them when replacing them no matter how long you had them off.
4. When connecting fibers, pay attention to the bend radius of the fibers. A general rule is to have a 3-inch
(8 cm) bend radius. A bend radius less than 3 inches is an attenuator and can cause optical signal loss.
5. Installers of fiber equipment should be equipped with the equipment manuals and an optical power meter
to measure the optical inputs and outputs in a system. An optical power meter is an inexpensive tool that
can save much time and effort in getting optical communications links up and running. Properly equipped
and trained installers can quickly determine the source of any problems that occur.

1
Functional Description
The Model 9152DT Multiplexer/Transmitter combines eight composite video baseband signals by
implementing a 10-bit linear analog-to-digital conversion on each signal at a 15 MHz rate, combining the
signals with five input data signals using Time Division Multiplexing (TDM) techniques and transmitting the
data via one optical fiber.
The Model 9152DR receives the optical signal from the transmitter, separates the composite data into eight
digital video data streams and five data streams, does an digital-to-analog conversion of the eight video data
streams yielding eight composite video outputs and five data outputs.
The 9152DT and 9152DR are compatible with the 9000 series card chassis, occupies two card slots each, and
operate on 6 VDC from the appropriate chassis power supply.

9152DT Indicator, Connector, and Dipswitch
Locations and Function
2
FIGURE 1
1. POWER INDICATOR
When illuminated, the green LED indicates that the card is receiving power from the power supply.
2. OPTICAL OUTPUT PORT
The optical fiber cable connector is connected to this port for transmission of the optical signal to the
9152DR receiver/demux.
3. VIDEO INPUT CONNECTORS (EIGHT)
Compatible with BNC connected coaxial cables, these connectors accept the eight video input signals.
4. SIMPLEX DATA INPUT CONNECTORS (TWO)
A. The RJ45 “DATA” port accepts two input data signals, one RS232 and one switch-selectable RS422,
RS485, or Manchester (biphase) signal.
B. The RJ12 “RS485” port accepts the input of an RS485-compatible data signal.
5. SIMPLEX HS AUX DATA INPUT PORTS
Each of these two RJ45 ports interface with a Model 9961-C or 9962-C Option Module Mux/Demux,
providing for the transmission of its composite data output signal via the 9152DT to the 9152DR. By using
up to two Model 9962-C Option Modules connected via the HS ports, up to 32 channels of audio or up to
16 channels of data may be transmitted in addition to the 8 video channels over the same optical fiber.
The shielded Cat5/6e cable connecting the two HS Aux Data ports should not exceed 4 feet (1.3m).
6. DATA INTERFACE CONFIGURATION DIPSWITCH
This ten-position dipswitch allows the user to select the desired data interface compatibility of the
configurable input on the “DATA” port.

9152DR Indicator, Connector, and Dipswitch
Locations and Function
3
FIGURE 2
1. STATUS INDICATORS
a. SYNC — When illuminated, this green LED indicates that the data demultiplexer is receiving a good
signal and is synchronized with the multiplexer.
b. ERR — When illuminated, this yellow LED indicates that there are errors being detected in the
received optical data stream.
c. CD — When illuminated, this red LED indicates that the receiver is not receiving sufficient optical
power to operate. (The optical carrier is not being displayed.) For the LHS version, this LED is not
functional.
2. OPTICAL INPUT PORT
The optical fiber cable connector is connected to this port to receive the optical signal from the 9152DT
mux/transmitter.
3. VIDEO OUTPUT CONNECTORS (EIGHT)
Compatible with BNC connectors, these connectors output the eight received video signals.
4. SIMPLEX DATA OUTPUT CONNECTORS (TWO)
A. The RJ45 “DATA” port outputs two data signals, one RS232 and one switch-selectable RS422, RS485,
or Manchester (biphase) signal.
B. The RJ12 “RS485” port outputs an RS485-compatible data signal.

5. SIMPLEX HS AUX DATA OUTPUT PORTS
Each of these two RJ45 ports on the 9152DR interface with a Model 9961-C or 9962-C Auxiliary
Audio/Data Mux/Demux cards to transport the multiplexed composite data transmitted via the 9152DT
from the HS AUX Data Input Ports. These high-speed ports greatly expand the transmission capability of
the 9152DT/9152DR pair. The shielded Cat5/6e cable connecting the two HS Aux Data ports should not
exceed 4 feet (1.3m).
6. DATA INTERFACE SELECT DIPSWITCH
This ten-position dipswitch allows the user to select the desired data interface compatibility of the
configurable data output on the “DATA” port.
4

9152DT/9152DR Configuration
and Connection Guide
5
Video Camera
Video Camera
8 Video
Inputs
Simplex RS485 2-Wire
Simplex RS232
Simplex RS422, RS232, or
RS485 2-Wire or 4-wire
Simplex High-Speed
Synchronous Data Port
Simplex High-Speed
Synchronous Data Port
Video
Monitor
Video
Monitor
8 Video
Outputs
Fiber
Connection
Simplex RS485 2-Wire
Simplex RS232
Simplex RS422, RS232, or
RS485 2-Wire or 4-Wire
Simplex High-Speed
Synchronous Data Port
Simplex High-Speed
Synchronous Data Port
FIGURE 3
To install, connect the video inputs to the 9152DT, connect the video monitors or other video receptors to
the 9152DR, and connect an appropriate optical fiber between the 9152DT and 9152DR optical ports.
Connect data signal sources or destinations, as required, to the “DATA” and “RS485” ports per the
following Built-In Data Connection section. If the Model 9961-C or 9962-C add-on option interface module
mux/demux host units are to be used, plug the CAT-5/6e data cable from the unit(s) into the HS AUX data
port(s) as required. The shielded Cat5/6e cable connecting the HS Data ports to accessory cards should not
exceed 4 feet (1.3m) in length.

Built-In Data Connection and Configuration
DATA AND RS485 PORTS
There are four data interface ports on the 9152DT and 9152DR. Two of them are the
“
DATA” port and the
“RS485” port that are primarily used for the transmission of RS232, RS422, RS485 or Manchester (biphase)
PTZ data.
The
“
DATA” port supports two data channels, one a full-time RS232 channel and the other a configurable data
channel that is dipswitch programmable for RS422, RS485 2- or 4-wire, or Manchester operation. Both channels
are implemented via the RJ45 connector marked
“
data”. The RS232 channel is a dedicated channel. There are no
dipswitch settings associated with or required for operation of this channel. The configurable channel must be
programmed by setting dipswitch S1 on the board for proper operation. Refer to Table 1 for switch settings and
to Table 2 and Figures 4, 5, 6, and 7 for connection and pinout information. Refer to the section on termination
to determine when the terminations should be enabled (ON) and when it should be disabled (OFF).
The “RS485” port supports a dedicated 2-wire RS485 channel. The only dipswitch setting required for this
port is the termination setup. Tables 1 (above) and 3 contain switch setting and pinout information.
Connection information is found in Figures 8 and 9. Refer to the next section on Termination Rules to
determine when the terminations should be enabled (ON) and when it should be disabled (OFF).
6
TABLE 1 — SWITCH SETTINGS
Termination Dipswitch
Data applies to
Port Type 9152DT only 12345678910
DATA Port RS422 Terminated On On On On On Off Off Off
(RJ45)
Unterminated Off On On Off Off Off Off Off
RS485 Terminated On On On On On Off On Off
4-Wire
Unterminated Off On On Off Off Off On Off
RS485 Terminated On On On On On Off On On
2-Wire
Unterminated Off On On Off Off Off On On
Manchester On Off Off On On On Off Off
RS485 Port RS485 Terminated On On
(RJ12) 2-Wire
Unterminated Off Off

7
TABLE 2 — CONNECTIONS AND PINOUTS,DATA PORT
Configurable DATA Port (RJ45) Pin Numbers
Connection 1 2 3 4 5 6 7 8
RS232 Common In Out Common
RS422, RS485 4-Wire, Manchester Out In In Out
(+) (+) (–) (–)
RS485 2-Wire In/Out In/Out
(+) (–)
Note that on the 9152DT (Transmitter) only input connections are active and on the 9152DR (Receiver) only the output connections
are active.
The “RS485” port supports a dedicated 2-wire RS485 channel. The only dipswitch setting required for this
port is the termination setup. Tables 1 (above) and 3 contain switch setting and pinout information.
Connection information is found in Figures 8 and 9. Refer to the next section on Termination Rules to
determine when the terminations should be enabled (ON) and when they should be disabled (OFF).
TABLE 3 — CONNECTIONS AND PINOUTS, RS485 PORT
RS485 Port (RJ12) Pin Numbers
Connection 1 2 3456
RS485 COM In/Out In/Out In/Out In/Out COM
(–) (+) (+) (–)
Note that on the 9152DT (Transmitter) only input connections are active and on the 9152DR (Receiver) only the output connections
are active.

8
Connectingthe RS232 Port
Arrows represent signal flow direction
1
2
3
4
5
6
7
8
Connectingthe RS422/RS485/Manchester Port
Ground is available on either Pin 1 or Pin 8
1
2
3
4
5
6
7
8
Connections for 9152DT/9152DR DataPort (RJ45)
Connecting
Equipment
Common (GND)
RS422/RS485/Man. Output +
RS422/RS485/Man. Output -
Common (GND)
Connecting
Equipment
Common (GND)
RS422/RS485/Man. Input +
RS422/RS485/Man. Input -
Common (GND)
Common (GND)
Common (GND)
Arrows represent signal flow direction
Ground is available on either Pin 1 or Pin 8
9152DT
DATA Port (RJ45)
1
2
3
4
5
6
7
8
RS232 Input
1
2
3
4
5
6
7
8
Connecting
Equipment
Common (GND)
Not Connected
RS232 Output
Common (GND)
9152DR
DATA Port (RJ45)
Connecting
Equipment
Common (GND)
RS232 Input
Common (GND)
Not Connected
Not Connected
9152DT
DATA Port (RJ45)
9152DR
DATA Port (RJ45)
Common (GND)
RS232 Output
Common (GND)
RS422/RS485/Manchester Output +
RS422/RS485/Manchester Output -
Not Connected
Not Connected
Not Connected
RS232 Input
Common (GND)
Common (GND)
Not Connected
Not Connected
Not Connected
RS422/RS485/Manchester Input +
RS422/RS485/Manchester Input -
The DATA connector on the
9152DT and 9152DR supports
two ports, an RS232 Port and a
user programmable port, that can
be configured to be RS422,
RS485, or Manchester via the
dipswitch S1.
Both ports can be used at the
same time and are simplex,
transmitting in the
Transmitter to Receiver direction.
Pinouts for the DATA Port (RJ45)
RS422/RS485/Man. Input +
RS422/RS485/Man. Input -
Common (GND)
RS232 Output
Common (GND)
RS422/RS485/Man. Output -
Not Connected
Not Connected
Not Connected
RS422/RS485/Man. Output +
Common (GND)
Common (GND)
Arrows represent signal flow direction
9152DT
DATA Port (RJ45)
1
2
3
4
5
6
7
8
RS232 Input
1
2
3
4
5
6
7
8
Not Connected
9152DR
DATA Port (RJ45)
Not Connected
Not Connected
RS422/RS485/Man. Input +
RS422/RS485/Man. Input -
Common (GND)
RS232 Output
Common (GND)
RS422/RS485/Man. Output -
Not Connected
Not Connected
Not Connected
RS422/RS485/Man. Output +
DATA Port
RJ45 Front View
Pin 1
Pin 8
FIGURE 4

9
RS485, RS422, AND MANCHESTERTERMINATION RULES
For RS422, RS485, and Manchester connections it is possible that multiple devices may be connected in
parallel. This is usually a transmitter and many receivers connected together or many transceivers in RS485.
When this occurs, this parallel bus must be terminated with the correct impedance. Use the following rules
to determine if the termination resistors should be enabled or disabled.
RS422 and RS485
Enable termination only on the device farthest from the transmitting end, leaving the input termination
disabled on the devices in between.
Manchester
If there are six or more devices, disable all the termination resistors. If there are fewer than six devices,
enable termination only on the device farthest from the transmitting end, leaving the input termination
disabled on the devices in between.
The following diagrams show examples of various system connections.
Connecting the RS485 Port
Arrows represent signal flow direction
1
2
3
4
5
6
1
2
3
4
5
6
Connections for 9152DT/9152DR RS485 Port (RJ12)
Connecting
Equipment
Common (GND)
Common (GND)
Connecting
Equipment
Common (GND)
Common (GND)
9152DT
DATA Port (RJ45)
9152DR
DATA Port (RJ45)
Common (GND)
Common (GND)Common (GND)
Common (GND)
RS485 Input +
RS485 Input -
The RS485 connector on the
9152DT and 9152DR supports
one RS485 two-wire Simplex
port. It is always RS485 and
cannot be reconfigured.
The RS485 port is always
simplex, transmitting in the
Transmitter to Receiver direction.
Pinouts for the RS485 Port (RJ12)
RJ12 Front View
Pin 1
Pin 6
RS485 Port
RS485 Input -
RS485 Input +
Pins 2 and 5 internally connected
Pins 3 and 4 internally connected
RS485 Output
RS485 Output -
RS485 Output +
RS485 Output +
1
2
3
4
5
6
1
2
3
4
5
6
9152DT
RS485 Port (RJ12)
9152DR
RS485 Port (RJ12)
Common (GND)
Common (GND)
Common (GND)
Common (GND)
RS485 Input +
RS485 Input -
RS485 Input -
RS485 Input +
Pins 2 and 5 internally connected
RS485 Output -
RS485 Output -
RS485 Output +
RS485 Output +
RS485 Input -
RS485 Input +
RS485 Output -
RS485 Output +
FIGURE 5

10
Terminating RS422 and Manchester Connections
TX+ (Output)
TX- (Output)
Transmitting Device Receiving Device
RX+ (Input)
RX- (Input)
TX+ (Output)
TX- (Output)
Transmitting Device
Receiving Device #1
RX+ (Input)
RX- (Input)
Termination Resistor
Disabled (OFF)
Receiving Device #2
RX+ (Input)
RX- (Input)
Receiving Device #3
RX+ (Input)
RX- (Input)
Termination Resistor
Enabled (ON)
Termination Resistor
Disabled (OFF)
Simplex 2-Wire RS422 or Manchester Point-to-Point Termination Example
RS422 Simplex 2-Wire and Manchester Daisy Chain Termination Example
Termination Resistor
Enabled (ON)
FIGURE 6
Terminating RS485 Connections
TX+ (Output)
TX- (Output)
Transmitting Device Receiving Device
RX+ (Input)
RX- (Input)
TX+ (I/O)
TX- (I/O)
Control Device
I/O Device #1
Termination Resistor
Disabled (OFF)
I/O Device #2
I/O Device #3
RX+ (I/O)
RX- (I/O)
Termination Resistor
Enabled (ON)
Termination Resistor
Disabled (OFF)
Simplex 2-Wire RS485 Point-to-Point Termination Example
RS485 Simplex 2-Wire Daisy Chain Termination Example
Termination Resistor
Enabled (ON)
RX+ (I/O)
RX- (I/O)
RX- (I/O)
RX+ (I/O)
FIGURE 7

11
HS AUX DATA PORTS
In addition to the “DATA” and “RS485” ports on both the DT and DR units, there are two HS AUX DATA
INPUT ports on the 9152DT and two HS AUX DATA OUTPUT ports on the 9152DR. Each of these ports is
capable of carrying asynchronous RS422 data at rates from DC to 1.5 Mbps (10X oversampled) in one
direction from the transmitter (9152DT) to the receiver (9152DR). These ports can carry synchronous data
utilizing the 15 MHz Transmit Clock and Receive Clock outputs provided.
Although these ports can be used for general purpose RS422 applications, they are primarily configured to
support the Model 9961-C Four Channel and 9962-C Eight Channel Auxiliary Data/Audio Mux/Demux Cards.
When mated with the host Model 9152D units, these cards operate in simplex mode supporting either four
or eight Data/Audio Option Modules. To install, connect a straight through Category 5 jumper cable (provided
with the 996X-C) from the 9961-C or 9962-C to either of the HS AUX DATA PORTS on both the 9152DT and
9152DR. This provides the separate mux/demux card access to the significant data transmission capability of
the 9152DT/DR to transport its data without using extra optical fibers. The shielded Cat5/6e cable used
should not exceed 4 feet (1.3m).
D
A
T
A
PIN 1
PIN 8
PIN 6
PIN 1
RS485, Data, and
High-Speed Simplex Ports
R
S
4
8
5
PIN 1
PIN 8
H
S
A
U
X
D
A
T
A
S
I
M
P
L
E
X
PIN 1
PIN 8
FIGURE 8
TABLE 4 — HIGH SPEED SIMPLEX AUX DATA PORT PINOUTS FOR THE 9152DT
Pin # Function
1 TX Data (+) – Input
2 TX Data (–) – Input
3 TX Clock (+) – Output
4 Not Used
5 Not Used
6 TX Clock (–) – Output
7 Not Used
8 Not Used

12
TABLE 5 — HIGH SPEED SIMPLEX AUX DATA PORT PINOUTS FOR THE 9152DR
Pin # Function
1 Not Used
2 Not Used
3 Not Used
4 RX Data (+) – Output
5 RX Data (–) – Output
6 Not Used
7 RX Clock (+) – Output
8 RX Clock (–) – Output
Operation of the 9152DT and 9152DR
Operation is straightforward. Connect per the directions in the Configuration and Connection Guide section
on page 5. There are no adjustments. Under normal operation, only the green POWER indicator on the
9152DT and the green SYNC indicator on the 9152DR will be illuminated.
Other manuals for 9000 Series
3
This manual suits for next models
2
Table of contents
Other Optelecom-nkf Multiplexer manuals
Popular Multiplexer manuals by other brands

Paradyne

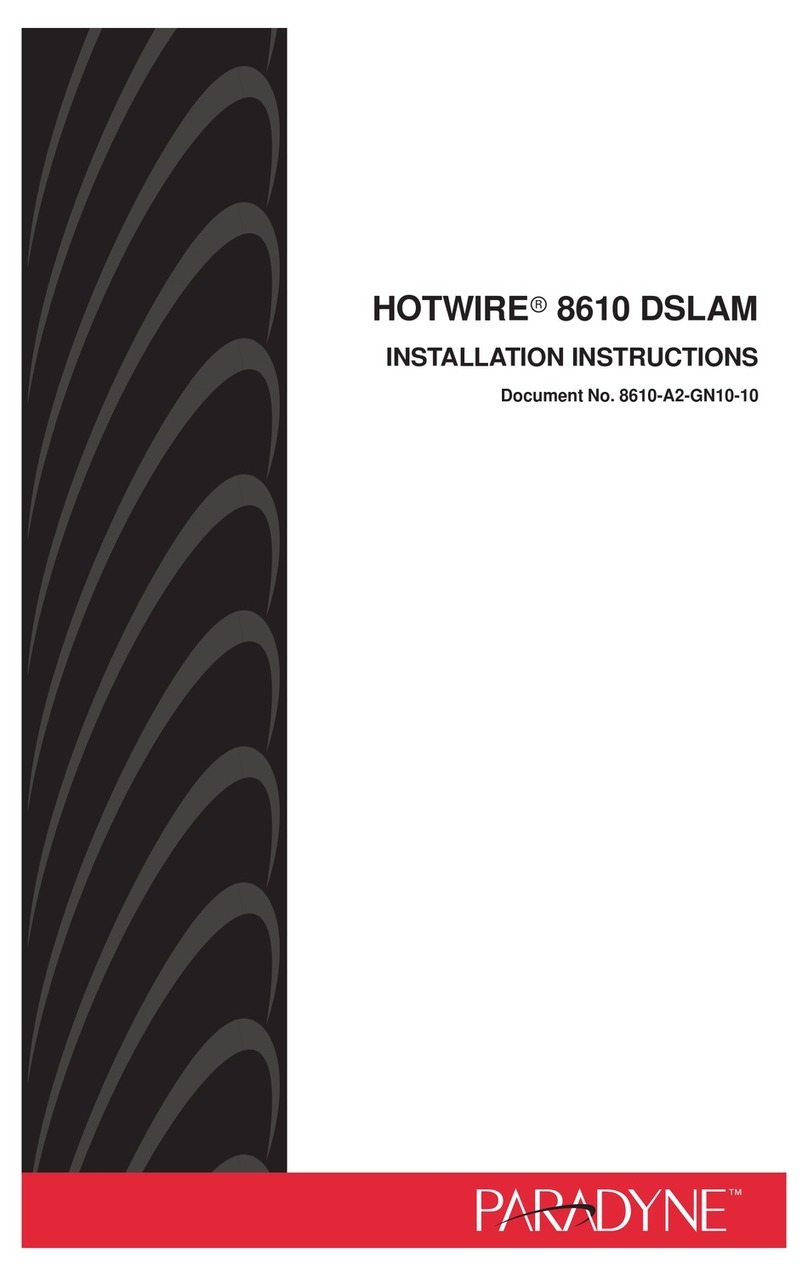

Paradyne HOTWIRE 8610 DSLAM installation instructions

Brainboxes

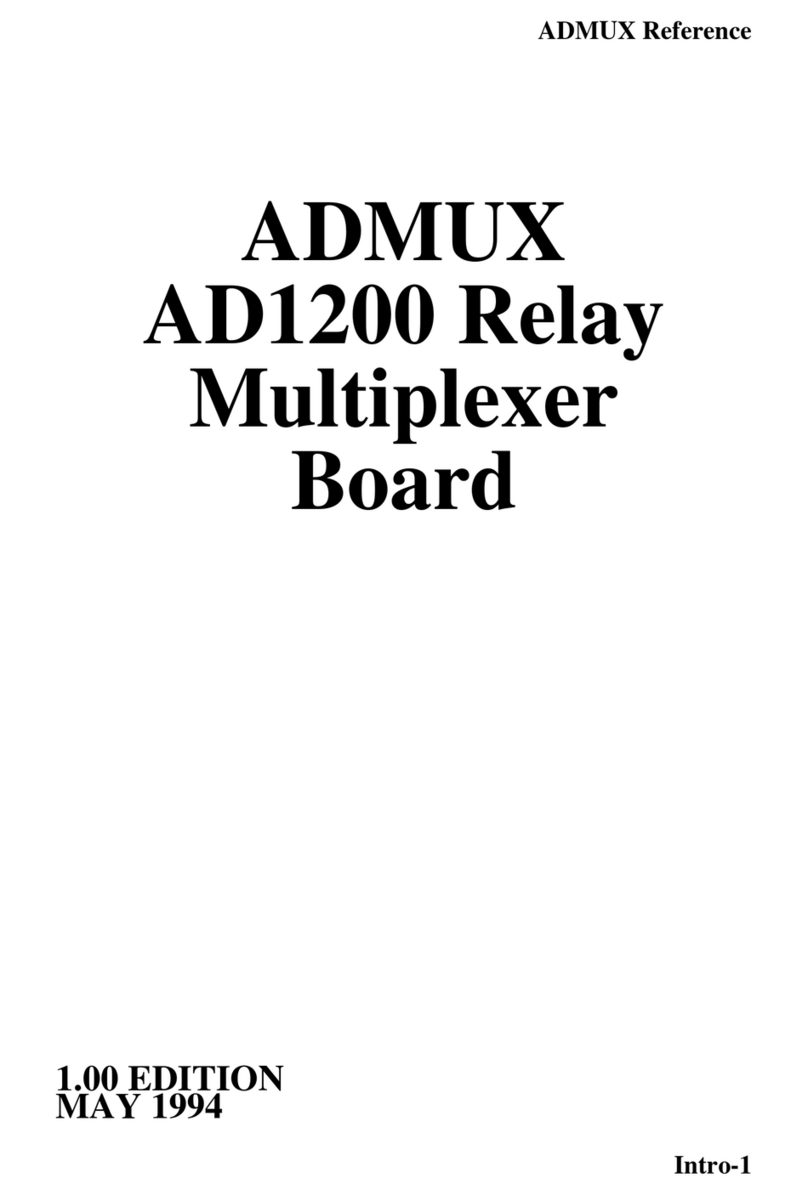

Brainboxes AD-1200 H user guide

Viessmann
Viessmann 52292 Operation manual

Panasonic
Panasonic AJ-FX216 operating instructions

DIGITAL YACHT
DIGITAL YACHT WLN30 Installation and instruction manual

Harris
Harris SELENIO SEL-MDX1-EES Installation and operation manual
