Optoma ES515 User manual

English

Usage Notice...................................................................................................................... 2
Safety Information ........................................................................................................................2
Class B emissions limits................................................................................................................................................................2
Important Safety Instruction........................................................................................................................................................2
Precautions.....................................................................................................................................4
Eye Safety Warnings.....................................................................................................................6
Product Features ...........................................................................................................................7
Introduction ....................................................................................................................... 8
Package Overview ........................................................................................................................8
Product Overview .........................................................................................................................................................................9
Main Unit ........................................................................................................................................................................................9
Control Panel................................................................................................................................................................................10
Rear View......................................................................................................................................................................................11
Remote Control ............................................................................................................................................................................12
Installation........................................................................................................................ 13
Connecting the Projector............................................................................................................13

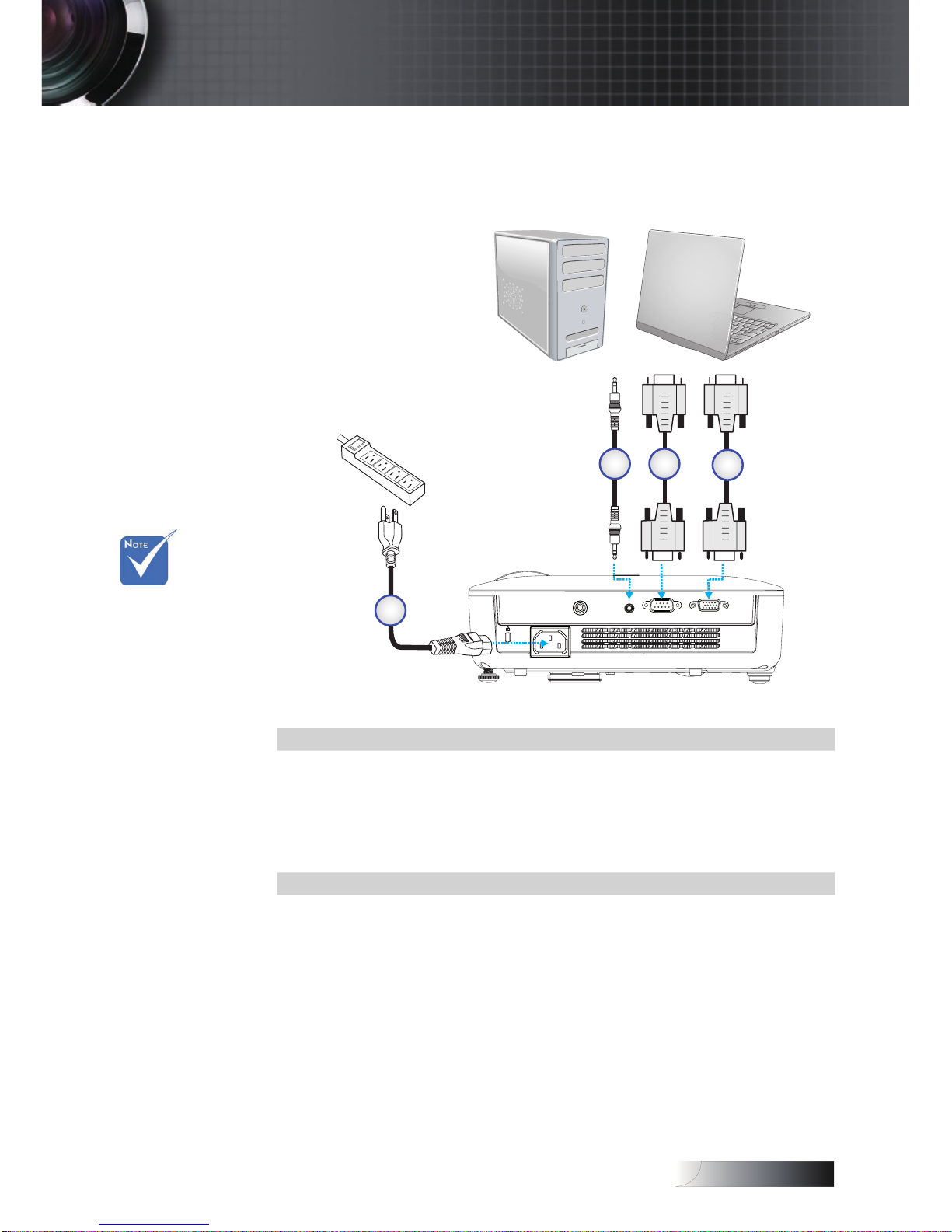

Connect to Computer / Notebook............................................................................................................................................13
Connect to Video Sources...........................................................................................................................................................14
Powering On/Off the Projector ................................................................................................15
Powering On the Projector .........................................................................................................................................................15
Powering Off the Projector.........................................................................................................................................................16
Warning Indicator........................................................................................................................................................................16
Adjusting the Projected Image..................................................................................................17
Adjusting the Projector’s Height ...............................................................................................................................................17
Adjusting the Focus.....................................................................................................................................................................17
Adjusting Projection Image Size................................................................................................................................................18
User Controls................................................................................................................... 19
Control Panel ...............................................................................................................................19
Remote Control ...........................................................................................................................20
On-screen Display Menus..........................................................................................................21
How to operate.............................................................................................................................................................................21
Menu Tree.....................................................................................................................................................................................22
Image ............................................................................................................................................23
Display..........................................................................................................................................28
Setup .............................................................................................................................................30
Options .........................................................................................................................................39
Appendices ...................................................................................................................... 43
Troubleshooting ..........................................................................................................................44
Image .............................................................................................................................................................................................44
Other..............................................................................................................................................................................................47
Projector LED Status Indicatior .................................................................................................................................................48
Remote Control ............................................................................................................................................................................49
Audio Problems ...........................................................................................................................................................................49
Replacing the Lamp.....................................................................................................................................................................50
Cleaning the Projector ................................................................................................................52
Cleaning the Lens ........................................................................................................................................................................52
Cleaning the Case ........................................................................................................................................................................52
Compatibility Modes..................................................................................................................53
RS232 Commands .......................................................................................................................55
RS232 Protocol Function List.....................................................................................................56
Ceiling Installation......................................................................................................................63
Optoma Global Ofces...............................................................................................................64
Regulation & Safety notices.......................................................................................................66
Operation conditions..................................................................................................................67
Table of Contents

English

Usage Notice
Safety Information
The lightning 󰘱ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of su󰘲cient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Important Safety Instruction
. Read these instructions –before using this projector.
. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions :
A. . To ensure reliable
operation of the projector and to protect it from overheating,
put the projector in a position and location that will not
interfere with its proper ventilation. For example, do not
place the projector on a bed, sofa, carpet, or similar surface
that may block the ventilation openings. Do not put it in an
enclosure, such as a bookcase or a cabinet that may keep air
from 󰘱owing through its ventilation openings.
B. . To reduce
the risk of 󰘰re or electric shock, do not expose the projector to
rain or moisture.
C. , such as radiators, heaters,
stoves or other apparatus (including ampli󰘰ers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories speci󰘰ed by the
manufacturer.

English
3
Usage Notice
7. Refer all servicing to quali󰘰ed service personnel. Servicing is
required when the projector has been damaged in any way, such as:
r Power supply cord or plug is damaged.
r Liquids have spilled or objects have fallen into the apparatus.
r The projector has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Do not attempt to service this projector yourself. Opening or
removing covers may expose you to dangerous voltages or
other hazards. Please call Optoma to be referred to an
authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch
dangerous voltage points or short-out parts that could result in a
󰘰re or electric shock.
9. See projector enclosure for safety related markings.
0.The projector should not be adjusted or repaired by anyone
except properly quali󰘰ed service personnel.

English
4
When the
lamp reaches
the end of its
life, the
projector will
not turn back
on until the
lamp
module
has been
replaced. To
replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on page 50.
v
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■ Warning - Do not look into the projector’s lens when the lamp is
on. The bright light may damage your eyes.
▀■ Warning - To reduce the risk of 󰘰re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning - Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning - When replacing the lamp, please allow unit to cool down,
and follow all replacement instructions. See page 50.
▀■ Warning - This projector will detect the life of the lamp itself. Please
be sure to change the lamp when it shows warning
messages.
▀■ Warning - Use the “Lamp Reset” function from the on-screen display
“Options | Lamp Settings” menu after replacing the lamp
module (see page 4).
▀■ Warning - When switching the projector o󰘯, please ensure the
cooling cycle has been completed before disconnecting
the power. Allow 90 seconds for the projector to cool
down.
▀■ Warning - When the lamp is approaching the end of its life, the
message “Lamp is approaching the end of its useful
life” displays on the screen. Please contact your
local reseller or service center to change the lamp
as soon as possible.
▀■ Warning - To reduce the risk of injury to the eyes, do not look
directly into the laser beam on the remote control and
do not point the laser beam into anyone’s eyes. This
remote control is equipped with a Class II laser that emits
radiation.
Usage Notice

English
5
Do:
v Turn o󰘯 the product before cleaning.
v Use a soft cloth moistened with a mild detergent to clean the
display housing.
v Disconnect the power plug from the AC outlet if the product
is not being used for a long period of time.
Do not:
v Block the ventilation slots and openings on the unit.
v Use abrasive cleaners, waxes or solvents to clean the unit.
v Use under the following conditions:
- In extremely hot, cold or humid environments. Ensure that
the ambient room temperature is within 5-40 °C and relative
humidity is 0-85% (max.), non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic 󰘰eld.
- In direct sunlight.
Usage Notice

English
6
Eye Safety Warnings
▀■ Avoid staring directly into the projector’s beam of light at all times.
▀■ Minimize standing facing into the beam. Keep your back to the
beam as much as possible.
▀■ Using a stick or laser pointer is recommended to avoid the need
for the presenter to enter the beam.
▀■ Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters
look at the audience, they do not also have to stare at the
projector lamp. The best way to achieve this is by ceiling-
mounting the projector rather than placing it on 󰘱oor or table
top.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power needed, use room blinds to
reduce ambient light levels.
Usage Notice

English
7
Product Features
This product is a single chip 0.55” SVGA DLP® projector.
Outstanding features include:
u Texas Instruments Single chip DLP® Technology
u Computer Compatibility:
Apple Macintosh, iMac, and VESA Standards:
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA
u Video Compatibility:
■ NTSC, NTSC4.43
■ PAL/PAL-M/PAL-N/SECAM
■ SDTV and EDTV compatible
■ HDTV compatible (70p, 080i, 080p)
u Auto source detection with user de󰘰nable settings
u Fully featured IR remote control
u User friendly multilingual On Screen Menu
u Advanced digital keystone correction and high
quality full screen image re-scaling
u One built-in speaker  Watt ampli󰘰er
u Macintosh and PC compatible
u Closed Captioning equipped
Usage Notice

English

Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immediately if
anything is missing.
Projector
3
V
O
L
T
S
CR2025
IR Remote Control
(with 3V Battery) Power Cord 1.m VGA Cable 1.m
Documentation:
þ User’s Manual
þ Warranty Card
þ Quick Start Card
þ WEEE Card
Due to the
di󰘯erence in
applications
for each
country, some
regions may
have di󰘯erent
accessories.
v
Introduction

English
9
Product Overview
Main Unit
. Control Panel 6. Front IR Receiver
. Focus 7. Input/Output Connections
3. Tilt-Adjustment Foot 8. Power Socket
4. Lens 9. Kensington™ Lock
5. Elevator foot
2
1
3
4
5
6
VIDEO RS−232
AUDIO IN VGA
89 7
Due to the
di󰘯erence
application for
each model.
Function is
dependent
on the model
purchased.
v
Introduction

English
0
Control Panel
. Power LED 3. POWER Button
. Lamp LED
13
2
Introduction
