Widescreen 60” image from just 68cm away
Shadow - free images on interactive whiteboards
Bright images, vivid colours – 3100 ANSI Lumens
HDMI
Crystal-clear images – HDMI connectivity
Crestron RoomView®– RJ45 network control and monitoring
Impressive sound quality – integrated 10W speaker
3D Ready technology – DLP®-Link™ enabled
Environmentally friendly design – less than 1W standby mode
�
Optoma EW610ST filter-free design
– reduced maintenance costs
EW610ST
DLP®Projector
Engaging widescreen
3D projection in the
smallest of spaces
www.optoma.co.uk
3D
Ready
3D
Ready
3D-XL
Ready
3D-XL
Ready

SECURE
Kensington™ Lock, security
bar and password protection act
as a theft deterrent by preventing
unauthorised use. Keypad lock
prevents unauthorised adjustments
and ensures the projector can
only be controlled via the
remote control.
3D projection in the smallest of rooms with the widescreen, HD Ready EW610ST
The short throw, 3D Ready EW610ST is designed to display bright, rich, colourful, crystal-clear images
for both the education and business environments.
Perfect for installations with interactive whiteboards. Ensure teaching and business environments have the right
tools for engaging and presenting to their audience without shadows and screen glare.
The EW610ST at 3100L incorporates extensive connectivity, powerful 10W stereo speakers and RJ45 network control
to maintain and monitor the projectors over the network.
The environmentally friendly EW610ST has energy saving features including less than 1W standby mode and auto
power off saving you both time and money. Long lamp life of 4000hrs combined with our unique Optoma Colour
guarantee ensures hassle-free, long-lasting projection.
EW610ST
PERFECT FOR
TEACHING
Maximise space in the classroom
for teachers and students. The teacher
can stand close to the interactive
whiteboard without having the
intense light from the projector
shining directly into their
eyes.
SAVES MONEY
DLP®ensures lower total cost of
ownership, Crystal-clear graphics and
improved reliability compared to other
technologies.
Up to 4000 hours lamp life
Fewer lamp replacements = lower running costs.
Filter-Free
Designed without filters for hassle
-free operation.
ENERGY EFFICIENT
= ENVIRONMENTALLY
FRIENDLY
Running costs are reduced thanks to reduced
power consumption and standby mode
less than 1W. When the projector is no
longer required in the classroom it
will automatically turn off, saving
energy and prolonging the
life of the lamp.
EASY TO
MONITOR
Free network software enables
all projector settings to be
controlled and monitored over
a network (LAN) from a PC/
laptop.
3D READY FOR
THE CLASSROOM
Engage and inspire your students
with 3D lessons in Biology,
Maths, Geography and
many more.







EW610ST
SHORT THROW LENS
The EW610ST can project an impressive 60” diagonal image from just 68cm from the screen. Standalone or wall mounted, the EW610ST
eliminates shadows on the screen and allows you to present with ease.
BRIGHT, DETAILED & COLOURFUL PROJECTION
Grab your audience’s attention with bright, vivid projected images thanks
to the BrilliantColor™ technology incorporated within the EW610ST.
Once you’ve purchased an Optoma DLP®projector, we guarantee
that the colours, compared to other leading technologies, will not
fade for a minimum of 5 years.
Preset display modes allow you to achieve a perfect image on
a variety of surfaces including screens and interactive whiteboards.
5
Diagonal Image
Size (inch/m) Projection
Distance (m)
61 / 1.54 0.68
71 / 1.79 0.79
80 / 2.04 0.90
90 / 2.29 1.01
0.68m
60”
Screen
THE DIFFERENCE IS WIDESCREEN
The EW610ST is the perfect companion for widescreen laptops.
Your presentations will appear as sharp and detailed as they
do on your widescreen laptop in WXGA (1280 x 800). WXGA
resolution gives 30% more pixels than XGA.
CLEAR, FOCUSED IMAGES
Lessons in the classroom and presentations in the boardroom
demand sharp, flawless images. DarkChip3™ technology from
Texas Instruments produces a stunning 3000:1 contrast ratio for
pin sharp graphics and Crystal-clear text. Crisper whites & ultra
-rich blacks make images come alive and text easier to read.

CRESTRON ROOMVIEW®- NETWORK CONTROL
RoomView®software provides a custom configurable interface
to monitor, manage and control every device in every room
remotely from any computer.
Manage up to 250 projectors at the same time (via master PC).
Control and alter the projector settings using a simple web
browser page including OSD menu control.
Set up email alerts for warning messages.
Ideal for large installations in both the educational and
business environments.
Projector 2
Projector 1
PC
Centralised
management PC
Projector 3
Example:
College LAN
Download Crestron RoomView®Express software from:
www.crestron.com/getroomview
Projectors purchased before December 2010 may require
a simple firmware update to support Crestron RoomView®.
Contact your dealer or an Optoma representative for details.
RS232 CONTROL
The extensive RS232 command set makes it simple and easy
to control the EW610ST with any RS232 control system.
AMX Compatibility – Dynamic Discovery
Protocol is incorporated into the EW610ST. This
feature allows for easy installation with AMX
control systems.
SAVING MONEY
Virtually Maintenance FREE = Lower Total Cost of Ownership
EW610ST provides lower cost of ownership, longer life and improved
reliability. The filter-free projector design does not require regular
filter cleaning or filter replacement, saving you time and money.
CARING FOR THE ENVIRONMENT
The EW610ST incorporates energy saving features to conserve
power and extend the lamp life:
To achieve the maximum 4000hrs2lamp life time the
projector should be operating in STD mode and the shut
down timer should be enabled to automatically switch
off the projector if it is accidentally left on when
no longer required.
Optoma’s low energy standard mode cuts ALL standard
power consumption in half, enabling environmentally
friendly power management and lower cost of ownership.
It takes less than 10 seconds for the projector to power
up and shutdown, saving both time and energy.
CONNECT WITH EASE
The EW610ST easily connects to multiple devices such as DVD
players and games consoles. Powerful 10W speaker, loud enough
for an average classroom or meeting room eliminating the need for
costly external speakers. Simply connect, power up and project for
the big screen viewing experience.
EW610ST
EXTRA FEATURES
Direct power on - start up time is significantly reduced
as standby mode is bypassed when the power cable is
inserted into an active power outlet. This eliminates the
need to use the ‘Power’ button on the remote control
or the projector keypad.
Auto power off - if after a pre-determined time the projector
does not receive a signal, it will turn itself off automatically,
conserving power and extending the life of the lamp.
Keypad lock - once enabled, prevents unauthorised
adjustments ensuring the projector can only be controlled via
the remote control.
+12v Trigger - electric screen control
Logo Capture - customise your start-up screen

EW610ST
DISCOVER THE ADVANTAGES
OF TEACHING IN 3D!
1
3
2
The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D
educational or 3D design and modelling systems. Support for 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games
from the Sony®PS3 or Microsoft®Xbox 360 will require the Optoma 3D-XL that is available separately. See website for updates.
3D-XL
Ready
3D
Ready
INSPIRE YOUR STUDENTS
Teaching in 3D is the latest innovation in education technology, opening up new avenues of learning for both
educators and students alike. Engage and inspire your students with lessons taught in 3D – explore the world,
travel through space, see inside the body and bring new ideas to life. Optoma 3D projectors take teaching
to a whole new level of immersion and enjoyment… at no extra cost!
HOW DOES 3D WORK?
Using the inherent speed of DLP®technology, Optoma 3D Ready projectors can output video and images at an astonishing rate
of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D.
The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP®Link™technology, the
3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams
to make them jump into life.

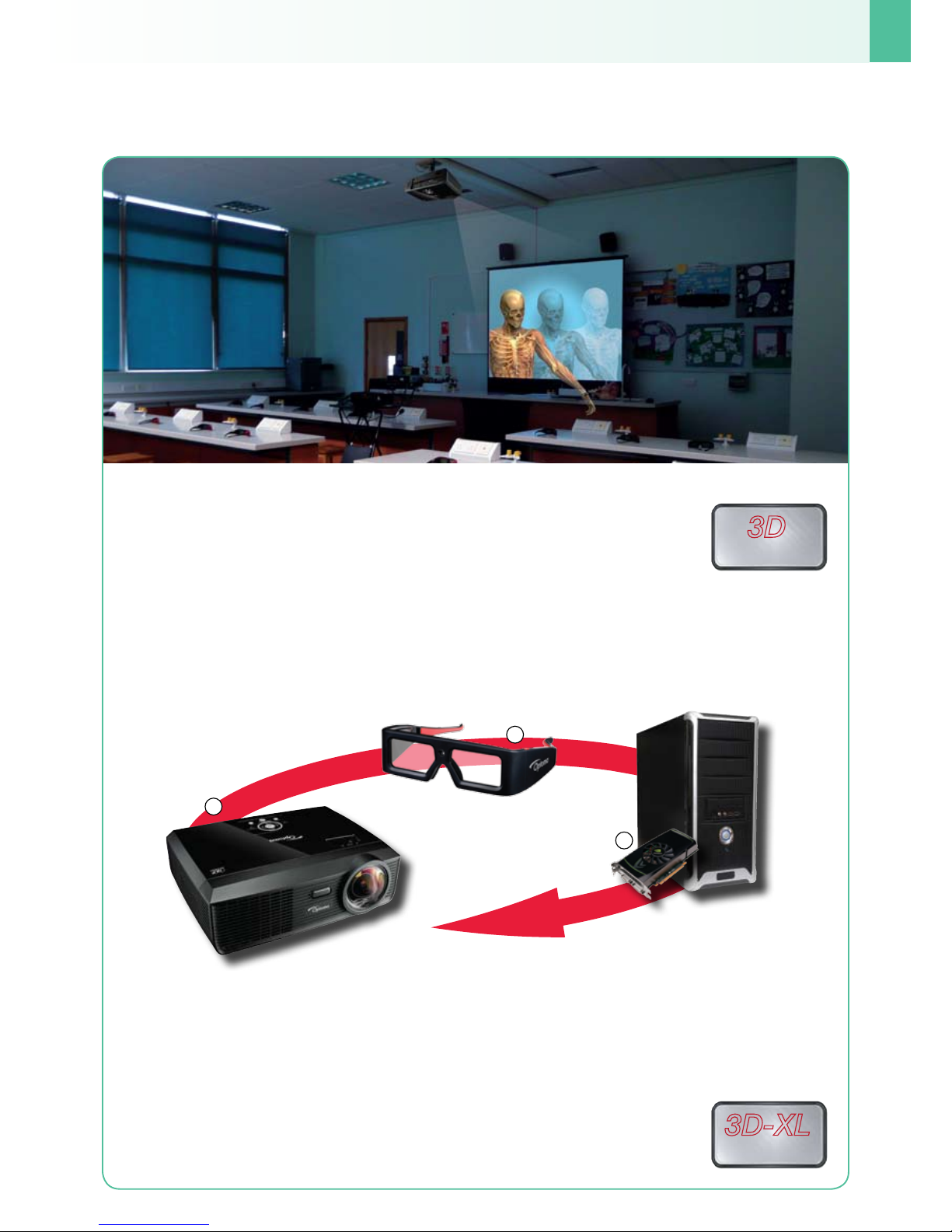

WHAT YOU NEED
Optoma EW610ST1.
Optoma ZD101 3D Glasses2.
Quad-buffered graphics card (installed in a PC) and 3D educational software3.
For more information please visit www.optoma.co.uk/3deducation.aspx

EW610ST Projection Distance 0.5 - 2.5m (16:10 Aspect Ratio)
Projection
Distance (m)
Horizontal Image
Size (m)
Vertical Image
Size (m)
Diagonal Image
Size (m)
Diagonal Image
Size (inch) Image Offset (m)
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.40
1.50
2.00
2.50
0.96
1.15
1.35
1.54
1.73
1.92
2.12
2.31
2.50
2.69
2.88
3.85
4.81
0.60
0.72
0.84
0.96
1.08
1.20
1.32
1.44
1.56
1.68
1.80
2.40
3.00
1.13
1.36
1.59
1.81
2.04
2.27
2.49
2.72
2.95
3.17
3.40
4.54
5.67
44.64
53.57
62.50
71.43
80.35
89.28
98.21
107.14
116.07
125.00
133.92
178.57
223.21
0.07
0.09
0.10
0.12
0.13
0.15
0.16
0.18
0.19
0.21
0.22
0.30
0.37
For guide purposes only
EW610ST is capable of 16:9/4:3 aspect ratio projection. When projecting
a 16:9/4:3 image the image sizes, screen height and offset information will
differ from the above.
Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.co.uk
1
Brightness and lamp lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime.
2
Typical lamp life achieved through testing. Will vary
according to operational use and environmental conditions.
3
Optoma guarantees that in normal use, Optoma DLP
®
colour quality will be indistinguishable from when new. Exclusions: (a) Guarantee is voided if the projector is subject to damage through misuse. (b)
Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is excessive (c) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (d) Over time worn lamps
within all projector types will show a slight colour variance. Copyright © 2012, Optoma Europe Ltd. All other product names and company names used herein are for identification purposes only and may be trademarks or registered trademarks of their respective
owners.
Crestron®, the Crestron and RoomView®logo are registered trademarks of Crestron Electronics, Inc. Errors and omissions excepted, all specifications are subject to change without notice. DLP
®
, BrilliantColor™ and the DLP logo are registered trademarks
of Texas Instruments. All images of products are for representation purposes only.Whilst every care is taken to provide accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us
to add an Optoma logo to the front panel. Optoma reserves the right to amend or alter actual product or product images without notice. Some images may be simulated.
EW610ST
EW610ST SPECIFICATIONS
Native Resolution WXGA 1280 x 800
Display Technology Single 0.65” WXGA DC3 DMD chip DLP®Technology
by Texas Instruments
Brightness - BRIGHT mode13100 ANSI Lumens
Contrast 3000:1
Noise Level 29dB (STD mode)
Lamp Life24000/3000 (STD/BRIGHT mode)
Projections Lens F Number 2.8
Focus Length 7.35mm
Focus / Zoom Type Manual Focus / 2.0x Digital Zoom
Throw Ratio 0.52:1 (Projection Distance:
Image Width)
Projection Distance 0.5 - 2.5m
Image Size 1.13 – 5.67m (44.64” – 223.21”) Diagonal 16:10
Offset 112.4% ±5%
Weight / Dimensions (W x D x H) 3.1 kg / 306 x 243 x 113mm
Remote Control Full function remote with direct source selecting
INPUTS HDMI (HDCP) - audio supported
2 x 15 Pin D-Sub VGA
S-Video 4 Pin Mini Din
Composite RCA
3.5mm Audio Mini Jack - Audio computer inputs
2 x Stereo RCA - Audio video inputs
USB (remote mouse)
Microphone
CONTROL RS232 - 3 Pin Mini DIN
RJ45
[Operation during standby mode - ECO standby must
be set to off]
OUTPUT 3.5mm Audio Mini Jack
15 Pin D-Sub VGA
[Supported through VGA 1 only. Operation during standby
mode - ECO standby must be set to off]
+12v Trigger
Audio 10W Speaker
Aspect Ratio 16:10 Native, 16:9/4:3 Compatible
Keystone Correction ± 40° Vertical
On Screen Display 19 Languages: English, German, French, Italian, Spanish,
Portuguese, Polish, Dutch, Russian, Finnish, Swedish,
Greek, Norwegian/Danish, Hungarian, Czech, Turkish,
Farsi, Arabic & Romanian
Compatible Resolutions UXGA, SXGA, WXGA, HD, XGA, SVGA
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
Uniformity 85%
Displayable Colours 1.07 Billion
Horizontal Scan Rate 15 - 91kHz
Vertical Scan Rate 25 - 85Hz (120Hz for 3D)
Power Supply 100 - 240V, 50 - 60Hz
Power Consumption 295W BRIGHT mode < 1W Standby mode
250W STD mode < 1W Standby mode
Operating Conditions
Operating: 5 - 40˚C, 85% Humidity (Max), 3000m Altitude (Max)
Security Security Bar, Kensington™Lock Port, Password Protection
Standard Accessories Lens Cover, AC Power Cord, VGA Cable, Full Function
Remote, Batteries x 2, Quick Start Guide, CD User
Manual, Warranty Card, WEEE Card
RoHS Compliant
Lamp Warranty 6 months or 1000 hours - whichever comes sooner
Warranty Warranty may vary by country. Please see
www.optomaeurope.com or ask your local supplier for details
Colour Guarantee35 Years
3D Support 120Hz frame sequential 3D for resolutions up to 720p.
60Hz field sequential 3D for resolutions up to 480i
3D Viewing Requires Optoma DLP®Link™active shutter glasses
– sold separately
3D Compatibility The 3D features of Optoma projectors can only be used
with compatible 3D content. Typical applications include
use with 3D educational or 3D design and modelling
systems. Support for 3D TV broadcast systems,(SKY in the
UK), Blu-ray 3D™ and 3D games from the Sony®PS3 or
Microsoft®Xbox 360 will require the Optoma 3D-XL that is
available separately. See website for updates.
EASY TO USE REMOTE CONTROL
34
5
8
EW610ST Remote Control
1Remote Mouse
2Page Up/Down control
3Vertical Keystone Correction
4Volume Control
5Brightness Adjustment
63D Control
7Direct Input Source Selection
8AV Mute
EW610ST Connections
9RJ45
10 USB (Remote Mouse)
11 HDMI (audio supported)
12 VGA Out
13 VGA 1- Scart & Component
14 S-Video
15 Composite Video
16 RS232
17 Audio In (VGA 1 & 2)
18 +12v Trigger
19 VGA 2- Component
20 Microphone
21 Audio In (S-Video & Composite)
22 Audio Out
23 Kensington™ Lock
24 Security Bar
Exceptional Connectivity / Multiple Terminals
9 11 1412 13 1810
19 20 22
15 16 17
21
23
2
24
1
6
7
Optoma Accessories
Projector Wall Mount - Part number: OPCWM835
Wall mount for the EW610ST
Telescopic mount with height adjustment plate
for versatile installation.
Maximum projector image of 110” diagonal with
the EW610ST.
Lamp - Part number: 23.8BW15G004
Optoma genuine lamp modules are designed
and tested to work specifically with your Optoma
projector to ensure quality, good performance
and longevity.
V8 - 17/05/12
