Optoma H56 User manual

1
English
Usage Notice
Precautions ........................................................................................................ 2
Introduction
Product Features ............................................................................................... 4
Package Overview ............................................................................................. 5
Product Overview............................................................................................... 6
Main Unit ...................................................................................................... 6
Panel Control ................................................................................................ 7
Connection Ports .......................................................................................... 8
Full Function Wireless emote Controller ................................................... 9
Installation
Connecting the Projector ................................................................................... 10
Powering On/Off the Projector ........................................................................... 11
Powering On the Projector ........................................................................... 11
Powering Off the Projector ........................................................................... 12
Adjusting the Projected Image ........................................................................... 13
Adjusting the Projector Height...................................................................... 13
Adjusting the Projector Zoom/Focus ............................................................ 14
Adjusting Projection Image Size .................................................................. 14
User Controls
Panel Control & emote Control ........................................................................ 15
On-Screen Display Menus ................................................................................ 18
How to Operate ............................................................................................ 18
Menu Tree .................................................................................................... 19
Picture .......................................................................................................... 20
Image ........................................................................................................... 22
System ......................................................................................................... 24
Display ......................................................................................................... 25
Appendices
Troubleshooting ................................................................................................. 27
Changing the Lamp ............................................................................................ 30
Specifications ..................................................................................................... 31
Compatibility Modes........................................................................................... 32
Table of Contents
2
English
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom-
mended in this users guide to maximize the life of your unit.
Warning- Do not look into the lens. The bright light may hurt
your eyes.
Warning- To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
Warning- After changing a new lamp, please reset the lamp life
from O D menu.
Warning- Before switching off the product, please keep the
cooling fan running for a few minutes.
Warning- Turn on the projector first and then the signal sources.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the lamp,
follow the procedures listed under Changing the
Lamp.
3
English
Do:
vTurn off the product before cleaning.
vUse a soft cloth moistened with mild detergent to clean the
display housing.
vDisconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Dont:
vBlock the slots and openings on the unit provided for
ventilation.
vUse abrasive cleaners, waxes or solvents to clean the unit.
vUse under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Usage Notice
4
English
Product Features
This product is an XGA single chip .7 DLPTM projector. The
outstanding features of it are listed as follows:
uTrue XGA, 1024 x 768 addressable pixels
u6.4 lbs (2.9 kgs) compact design
uingle chip DLPTM technology
uPureProgressiveTM processing technology for artifact-free
film materials.
uHDTV compatible (480P,576P,1080i,720P)
uNT C/NT C4.43/PAL/PAL-M/PAL-N/ ECAM and
HDTV compatible
uHigh-tech DVI-I connection for digital and analog video
connectivity
uFull function wireless remote controller
uUser friendly multilingual on-screen display menu
uAdvanced electronic keystone correction
uUser friendly control panel
uXGA compression and VGA, VGA re-sizing
u200 Watts replaceable UHP
uMac compatible
Introduction
5
English
Introduction
Wireless Remote
Controller
DVI to RCA Cable for
HDTV/Component
Battery x 2
Users Guide
Projector with lens cap

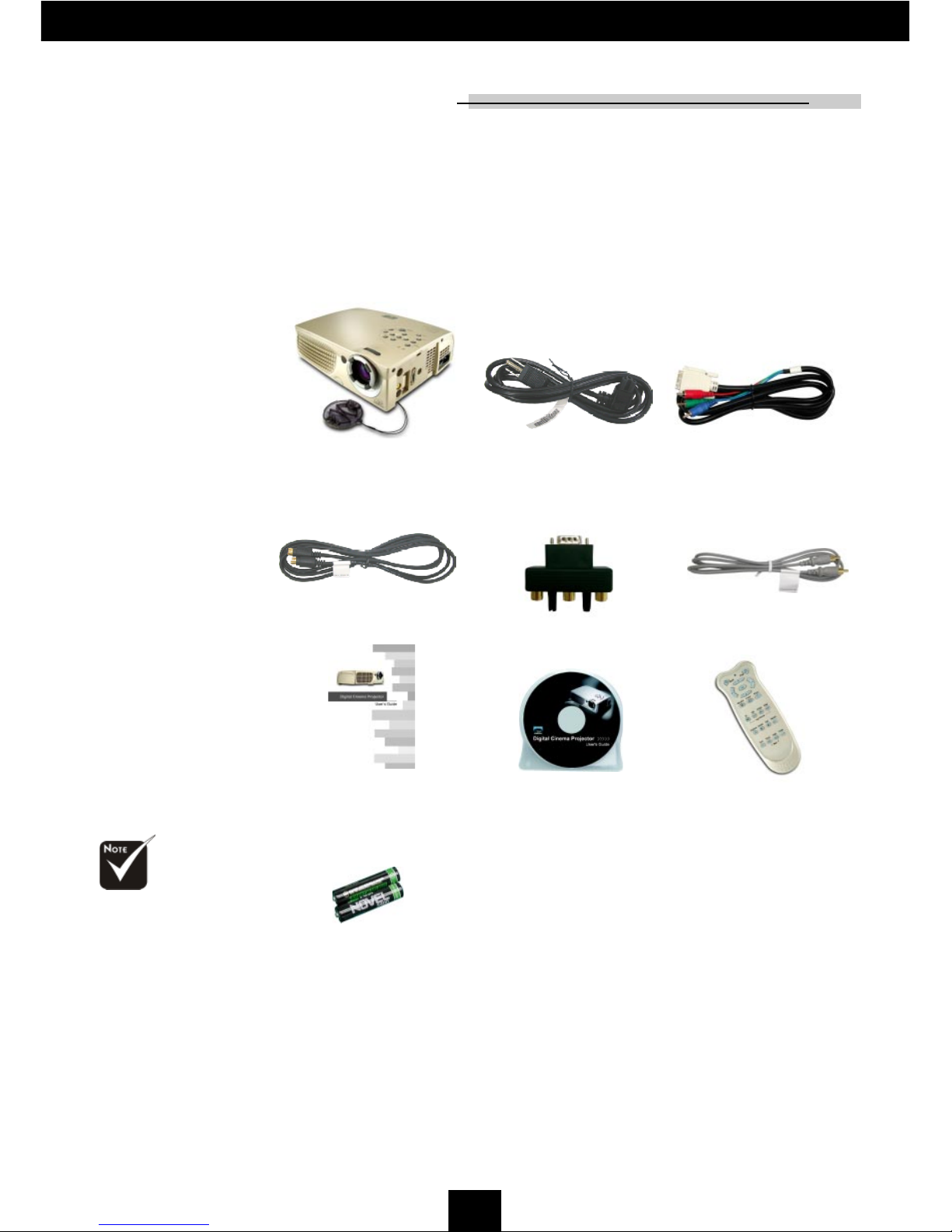

Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immedi-
ately if anything is missing.
Users Manual
Power Cord
-Video Cable D-15 to RCA Adapter
for YPbPr
vDue to the difference
in applications for each
country, some regions
may have different
addessories.
Composite Video Cable
6
English
Introduction

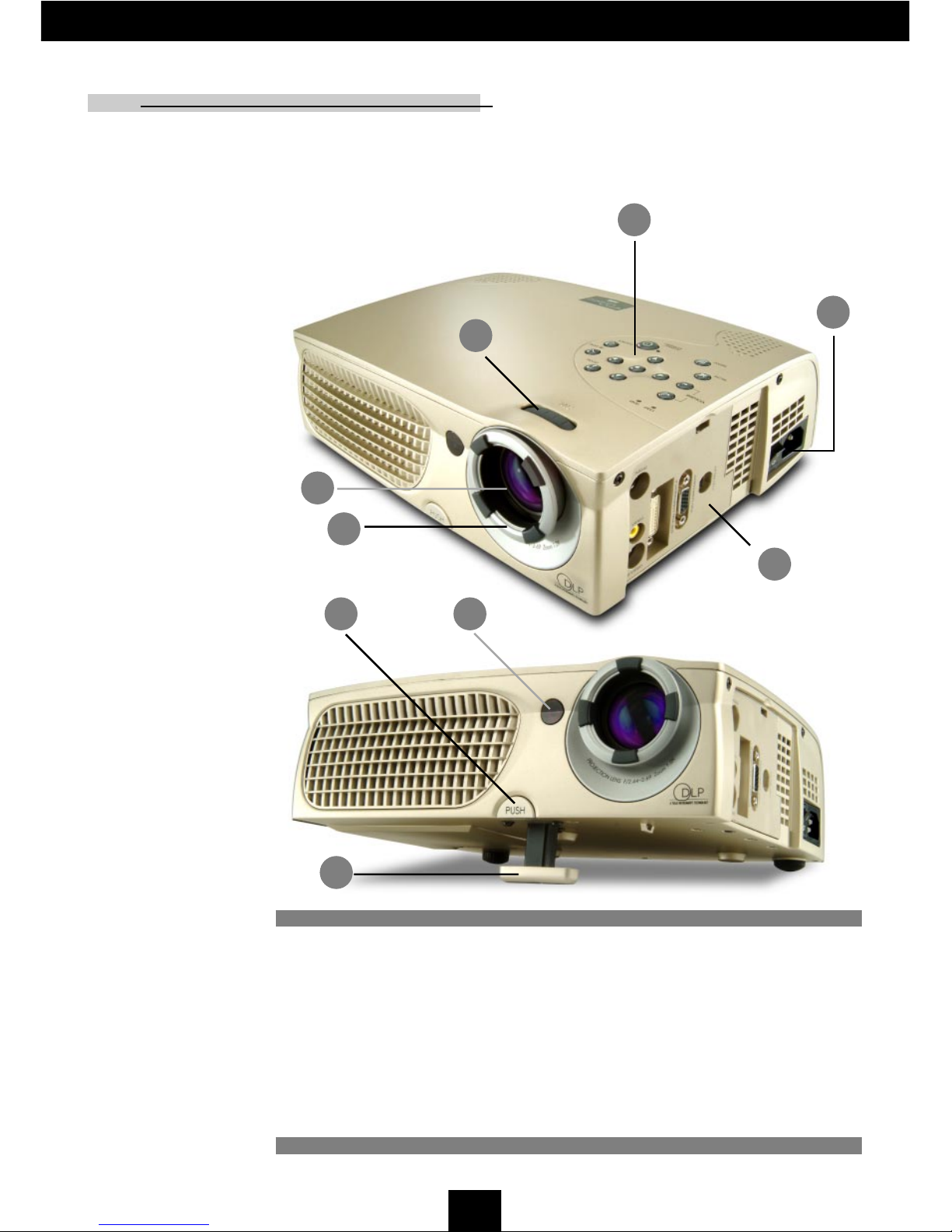

Main Unit
Product Overview
1. Panel Control
2. Power Connector & Power witch
3. Connection Ports
4. Focus Ring
5. Zoom Lens
6. Zoom Ring
7. Remote Control Receiver
8. Elevator Button
9. Elevator Foot
1
2
3
4
5
7
6
8
7
English

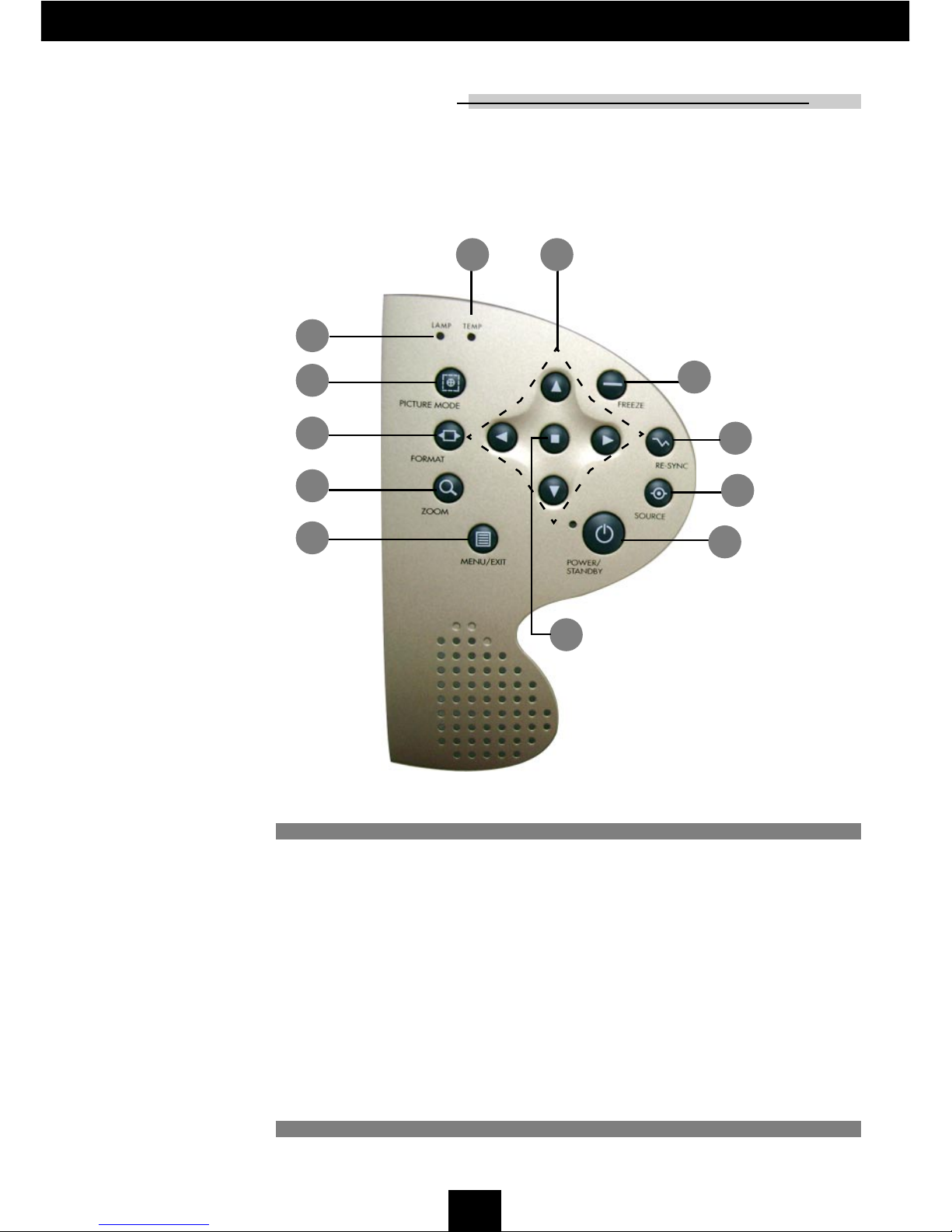

Panel Control
1
3
5
612
11
10
7
2
8
1. Lamp Warning LED
2. Temperature Warning LED
3. Picture Mode
4. Format
5. Zoom
6. Menu/Exit
7. Four Directional elect Keys
8. Enter
9. Freeze
10. Re-sync
11. ource
12. Power / tandby
Introduction
4
8
English
Introduction

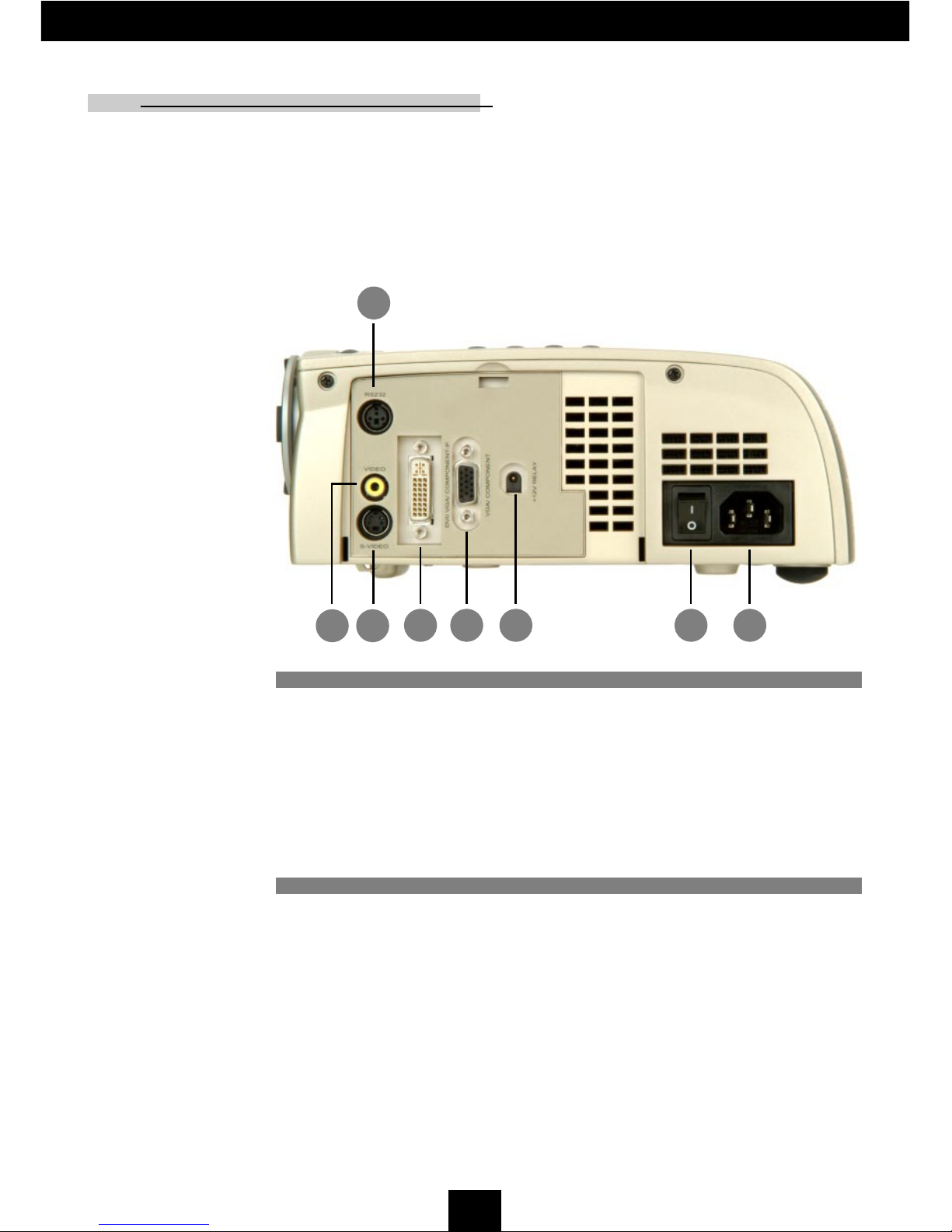

Connection Ports
1 R 232 Input Connector
2. Composite Video Input Connector
3. -Video Input Connector
4. DVI Input Connector
5. PC Analog ignal/HDTV/Component Video Connector
6. 12V Relay Connector
7. Power witch
8. Power Connector
23456 8
1
7
9
English
Full Function Wireless Remote Controller
Re-sync
Video ource
Menu
Four Directional
elect Keys
-Video ource
Format
Backlight Power
DVI ource
VGA ource
Gamma
Color
Brightness
Contrast
Freeze
Zoom
Enter
Introduction
10
English
3
2
1
4
Connecting the Projector
-Video Output
Video Output
DVD Player
Digital Tuner Output Antenna
RGB
R 232
1. Power Cord
2. DVI to RCA Cable for HDTV/
Component
3. -Video Cable
4. D-15 to RCA Adapter for YPbPr
5. Composite Video Cable
Installation
vTo ensure the projector works well with your computer, please
configure the display mode of your graphic card to make it less
than or equal to 1 24 X 768 resolution. Make sure timing of the
display mode is compatible with the projector. Refer to the
Compatibility Modes section on page 32.
5
11
English
1
3
2
Installation
Lens cap
Power / tandby

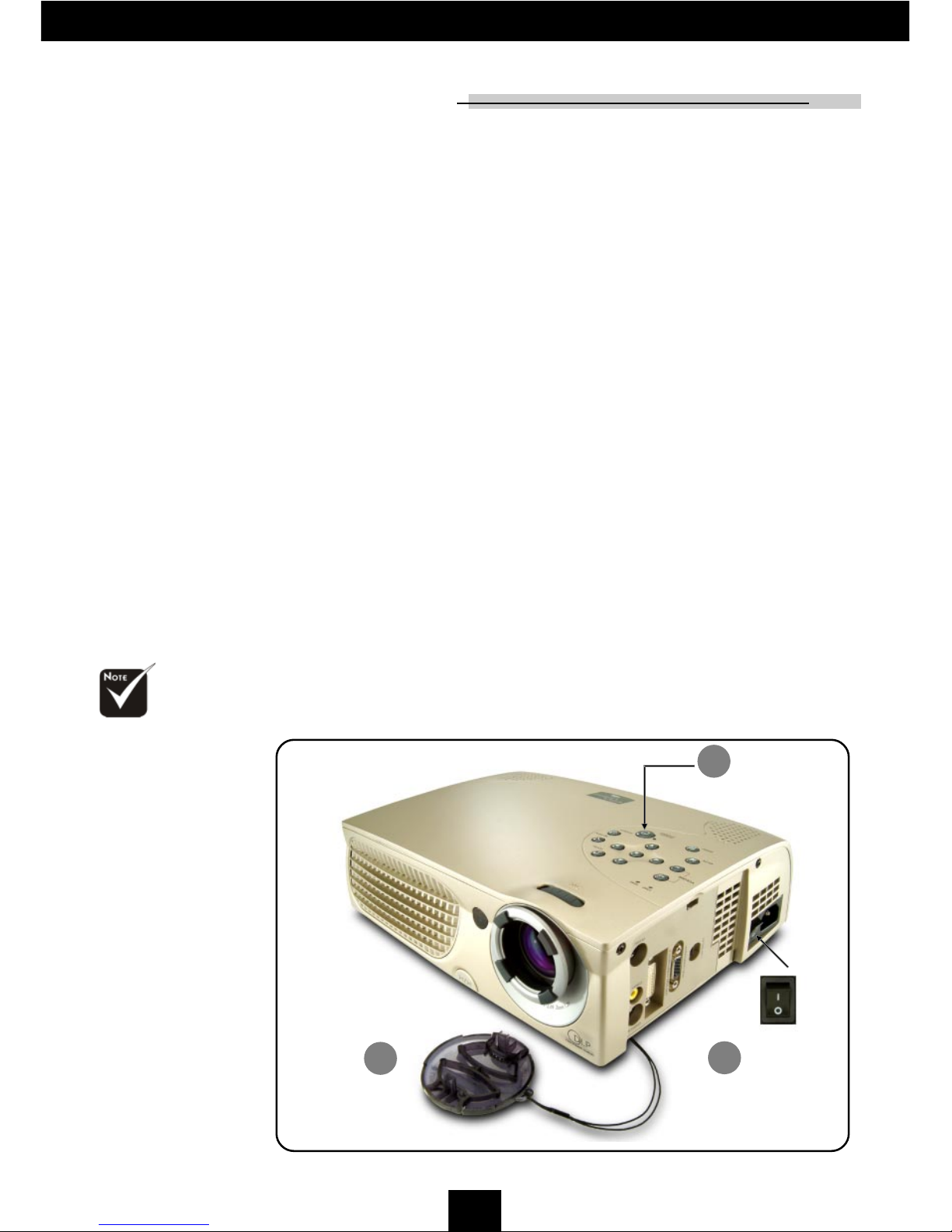

Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely
connected.
3. Turn on the main power switch on the side of the projector
and allow the projector to warm up for 1-2 minutes. 
4. Turn on the lamp by pressing Power/ tandby button on
the control panel. 
The startup screen will display and count down for 20
seconds and thePower/ tandby indicator will light solid
amber.
The LAMP LED indicator will light solid green.
5. Turn on your source (computer, notebook, or video player ,
etc...) The projector will detect your source automatically.
vIf the screen displays No Signal , please make sure the signal
cables are securely connected.
vIf you connect multiple sources at the same time, use the Source
button on the Remote Control or Panel Control to switch.
Powering On/Off the Projector
vTurn on the projector
first and then the signal
sources.
Power witch
12
English
Installation
Powering Off the Projector
1. Press the Power/ tandby button to turn off the projector
lamp.
2. After pressing the Power/ tandby button, you will see a
message Power off the lamp? on the on-screen display.
Press the Power/ tandby button again to confirm.
Otherwise the message will disappear after 5 seconds.
3. Power/ tandby LED indicator will light solid amber for
about 30 seconds. After the Power/ tandby indicator
starts flashing, you can turn off the main power switch on
the side of the projector.
If you want to turn on the projector, you must press the
Power/ tandbybutton within 90 seconds of the start of the
indicator flashing.
4. Do not turn on the projector immediately following a power
off procedure.
vWhen the LAMP indicator flashes green for about 1 seconds,
you will see a message Fan Fail on the on-screen display. Please
contact your local reseller or service center.
vWhen the TEMP indicator lights solid orange, it indicates the
projector has been overheated. You will see a message Over
Temperature on the on-screen display. The projector will
automatically shut itself down.
Under normal conditions, the projector can be switched on again
for your presentation. If the problem persists, you should contact
your local reseller or service center.
13
English
Elevator Button
Elevator Foot
Installation
The projector is equipped with an elevator foot for adjusting the
projector height.
To raise the projector:
1. Press the elevator button .
2. Raise the projector to the desired display angle , then
release the button to lock the elevator foot into position.
3. Use  to fine-tune tilt-adjustment.
To lower the projector:
1. Press the elevator button.
2. Lower down the projector, then release the button to lock the
elevator foot into position.
3. Use  to fine-tune tilt-adjustment.

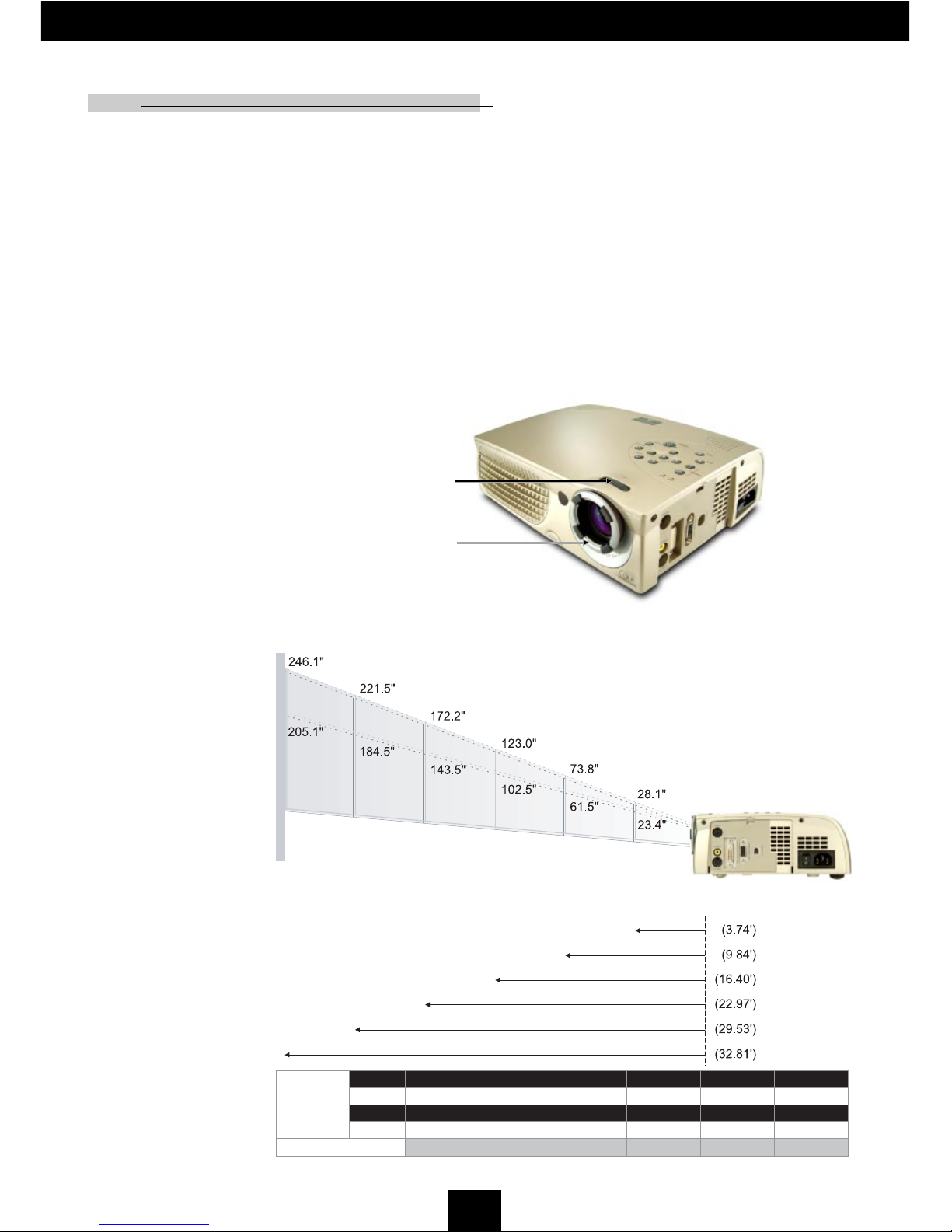

Adjusting the Projected Image
Adjusting the Projector Height
1
2
3
14
English
.xaM "1.82 "8.37 "0.321 "2.271 "5.122 "1.642
.niM"4.32"5.16"5.201"5.341"5.481"1.502
)HxW(.xaM "68.61x"84.22 "82.44x"40.95 "8.37x"4.89 "23.301x"67.731 "09.231x"02.771 "66.741x"88.691
)HxW(.niM"40.41x"27.81"09.63x"02.94"05.16x"00.28"01.68x"08.411"07.011x"06.741"60.321x"80.461
'47.3 '48.9 '4.61 '79.22 '35.92 '18.23
Focus Ring
Zoom Ring
Adjusting the Projector Zoom / Focus
You may adjust zoom ring to zoom in / out. Rotate the zoom ring
counter-clockwise to zoom in and clockwise to zoom out. To
focus the image, rotate the focus ring until the image is clear. The
projector will focus at distances from 3.74 feet to 32.81 feet (1.14m
to 10.00m).
Adjusting Projection Image Size
Screen
(Diagonal)
Screen
Size
Distance
vThis graph is for users reference only.
Installation
15
English

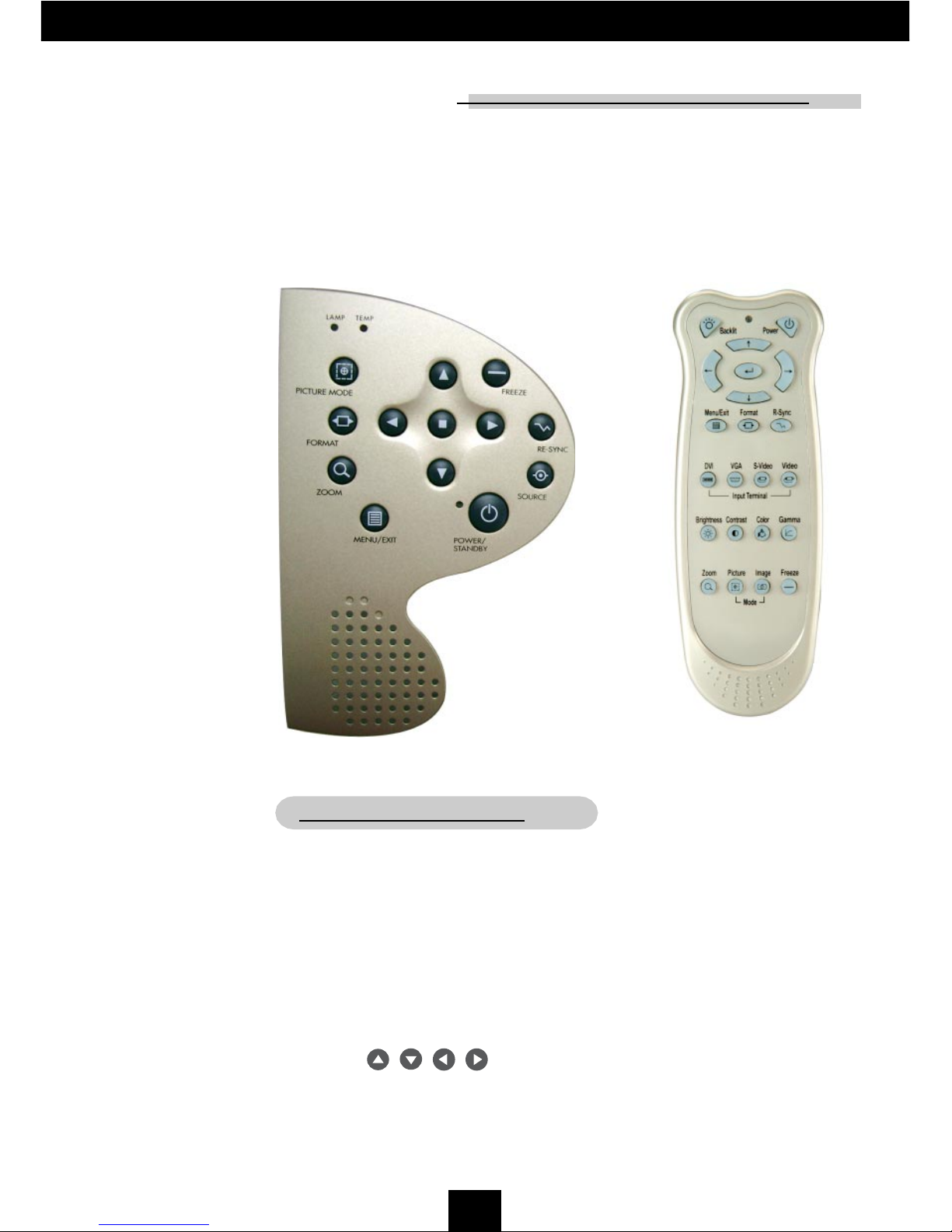

Remote ControlPanel Control
User Controls
Panel Control & Remote Control
There are two ways for you to control the functions: Remote
Control and Panel Control.
Use the Remote Control
Backlit
4When you press Backlit button, all buttons on remote
controller will flash fluorescent yellow. Return to normal mode,
press Backlit button again.
Power
4Refer to the Power On/Off the Projector section on page
11~12.
Four Directional Select Keys
4Use to select items or make adjustments for
your selection.
Enter
4Confirm your selection of items.
16
English
User Controls
Menu
4Displays or exit the on-screen display (O D) menus.
Format
4Displays the format item of the on-screen display (O D) menu
and selects your desired aspect ratio.
Re-Sync
4Automatically synchronizes the projector to the input source.
DVI
4Press DVI to choose Analog RGB, Analog DVI, Digital DVI,
Digital RGB, Component-p and HDTV sources.
VGA
4Press VGA to choose Analog RGB, Analog YPbPr, Component
and HDTV sources.
S-Video
4Press  -Video to choose -Video source.
Video
4Press Video to choose Composite video source.
Brightness
4Adjusting the brightness of the image.
Contrast
4The contrast controls the degree of difference between the
lightest and darkest parts of the picture.
Color
4The color setting adjusts a video image from black and white to
fully saturated color.
Gamma
4Press the Gamma button to adjust scale.
Zoom
4When you press Zoom button, the zoom icon appears on the
screen. Press or button to zoom in or zoom out of the
image.
Picture Mode
4Displays the mode item of the Pictures on-screen display (O D)
menu.
Image Mode
4Displays the image mode item of the on-screen display (O D)
menu.
17
English
Freeze
4Press the Freeze button to still the screen image.
Use the Panel Control
Power / Standby
4Refer to the Power On/Off the Projector section on page
11~12.
Source
4Press  ource to choose RGB, DVI-Digital, DVI-Analog,
-Video, Composite, Component and HDTV sources.
Re-Sync
4Automatically synchronizes the projector to the input source.
Zoom
4When you press Zoom button, the zoom icon appears on the
screen. Press or button to zoom in or zoom out of the
image.
Four Directional Select Keys
4Use to select items or make adjustments for
your selection.
Enter
4Confirm your selection of items.
Menu/Exit
4Displays or exit the the on-screen display (O D) menus.
Picture Mode
4Displays the picture menu of the on-screen display (O D)
menu.
Format
4Displays the format item of the on-screen display (O D) menu
and selects your desired aspect ratio.
Freeze
4Press the Freeze button to still the screen image.
User Controls
18
English
User Controls
How to operate
4The Projector has multilingual On- creen Display(O D) menus
that allow you to make image adjustments and change a variety of
settings. The projector will detect the source automatically.
4To open the O D menu, press the Menu button on the Remote
Control or Panel Control.
4When O D is displayed, press key to select main
menu. While making selection on a particular icon, press Enter
key to go into sub-menu.
wTo exit the O D, press the Menu button.
4When sub-menu is displayed, press key to select the
required item and adjust the settings by key.
wTo go to main menu, press the Menu button.
4After using key to adjust the parameter or required func-
tion in the items of the sub-menu, press Enter button to confirm
your change and the screen will be back to the sub-menu at once.
wPress the Menu button to go back sub-menu. If you dont
press Enter button to confirm your change and exit the
screen at once, the items will not to be modified.
On-Screen Display Menus
Main menu Sub-menu
Item
19
English
User Controls
Menu Tree
PICTURE............... Mode
Contrast
Brightness
Color
Tint
harpness
Gamma
Reset
White Peaking
Color Temp
Image Mode
Advanced Adjustment
ignal
De-Interlacing
Reset
Language
Bulb
Auto Image
Auto hutdown
Blanking
Projection
creen
Format
Keystone
Zoom Mode
Cinema/Normal/Vivid/
User 1/User 2
Current/All
Film/Video/Graphics/PC
R Contrast/G Contrast/B Contrast/
R Brightness/G Brightness/
B Brightness
Horizontal/Vertical/Frequency/
Phase
Auto/Film
Current/All
Lamp Hour/LampReminding
On/Off
On/Off
Blue/Black
Front Desktop/Front Ceiling/Rear
Desktop/Rear Ceiling
4:3=>Native/4:3/16:9
16:9=>Native/Window/16:9/Letter
Box
4:3/16:9
IMAGE...................
Y TEM.................
DI PLAY...............
1/2/3
20
English
Mode
There are 3 factory presets optimized for various types of pictures,
or you can set 2 user adjustable settings. When selecting User 1 or 2,
the submenu below will be displayed. You can customize each
contrast, brightness, intensity, color, tine, sharpness, and gamma.
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
4Press the to decrease the contrast.
4Press the to increase the contrast.
Brightness
Adjusting the brightness of the image.
4Press the to darken image.
4Press the to lighten the image.
Color
The color setting adjusts a video image from black and white to
fully saturated color.
4Press the to decrease the amount of color in the image.
4Press the to increase the amount of color in the image.
Tint
The tint adjusts the color balance of red and green.
4Press the to increase the amount of green in the image.
4Press the to increase the amount of red in the image.
Sharpness
Adjusting the sharpness of the image.
4Press the to decrease the sharpness.
4Press the to increase the sharpness.
User Controls
vThe Color sub-
menu is not supported
under the Digital RGB
input source.
vThe Tint sub-menu
is not supported under
the Digital RGB,
Component Video and
Analog RGB input
sources.

Other manuals for H56

2

Other Optoma Projector manuals

Optoma PlayTime PT110 User manual

Optoma

Optoma PlayTime PT110 User manual

Optoma TX778W User manual

Optoma

Optoma TX778W User manual

Optoma Optoma EP747 User manual

Optoma

Optoma Optoma EP747 User manual

Optoma H55 User manual

Optoma

Optoma H55 User manual

Optoma W316 User manual

Optoma

Optoma W316 User manual

Optoma EW610ST User manual

Optoma

Optoma EW610ST User manual

Optoma HD151X User manual

Optoma

Optoma HD151X User manual

Optoma WU337 User manual

Optoma

Optoma WU337 User manual

Optoma ZH507 User manual

Optoma

Optoma ZH507 User manual

Optoma EP910 SXGA+ User manual

Optoma

Optoma EP910 SXGA+ User manual

Optoma EW695UT User manual

Optoma

Optoma EW695UT User manual

Optoma TW330 User manual

Optoma

Optoma TW330 User manual

Optoma DLP 11695 User manual

Optoma

Optoma DLP 11695 User manual

Optoma Optoma EP730 User manual

Optoma

Optoma Optoma EP730 User manual

Optoma ZH510T User manual

Optoma

Optoma ZH510T User manual

Optoma EP739 User manual

Optoma

Optoma EP739 User manual

Optoma TW610 User manual

Optoma

Optoma TW610 User manual

Optoma Projector with lens cap User manual

Optoma

Optoma Projector with lens cap User manual

Optoma TX700 User manual

Optoma

Optoma TX700 User manual

Optoma Optoma DX606V User manual

Optoma

Optoma Optoma DX606V User manual

Optoma ZK450 User manual

Optoma

Optoma ZK450 User manual

Optoma W505 User manual

Optoma

Optoma W505 User manual

Optoma Data Projector User manual

Optoma

Optoma Data Projector User manual

Optoma ZU820TST User manual

Optoma

Optoma ZU820TST User manual

Popular Projector manuals by other brands

Acer K330 user guide

Acer

Acer K330 user guide

Sony VPL-SW125 Brochure & specs

Sony

Sony VPL-SW125 Brochure & specs

ECO Spot C20PCE user manual

ECO Spot

ECO Spot C20PCE user manual

Panasonic PT-LM1 Spec file

Panasonic

Panasonic PT-LM1 Spec file

Barco D-Cine Premiere DP90P Specifications

Barco

Barco D-Cine Premiere DP90P Specifications

WE-EF FLD121 #1 nstallation and Maintenance Instructions

WE-EF

WE-EF FLD121 #1 nstallation and Maintenance Instructions

NEC MultiSync MT810 user manual

NEC

NEC MultiSync MT810 user manual

Dukane 8980WUSS user manual

Dukane

Dukane 8980WUSS user manual

Sony KP-53XBR200 - 53" Projection Tv Service manual

Sony

Sony KP-53XBR200 - 53" Projection Tv Service manual

Sharp XG-NV6XM Operation manual

Sharp

Sharp XG-NV6XM Operation manual

Acer H6510BD quick guide

Acer

Acer H6510BD quick guide

Epson EH-TW480 Spesification

Epson

Epson EH-TW480 Spesification

LG BX503 owner's manual

LG

LG BX503 owner's manual

BenQ MW821ST datasheet

BenQ

BenQ MW821ST datasheet

PROEL Sagitter BATI 4DL-H user manual

PROEL

PROEL Sagitter BATI 4DL-H user manual

Epson AP-60 - Projector Sound Solution Product support bulletin

Epson

Epson AP-60 - Projector Sound Solution Product support bulletin

Epson 7800p - PowerLite XGA LCD Projector Product support bulletin

Epson

Epson 7800p - PowerLite XGA LCD Projector Product support bulletin

Dukane 6528 installation guide

Dukane

Dukane 6528 installation guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
