Optoma HD23 User manual

The Optoma HD23 is designed
to bring your home theater
experience alive with high-denition.
This projector delivers robust
performance that provides bright
and detailed images even in ambient
light. Excellent color saturation and
superior image quality enhances
subtle details to please even the
most demanding viewer. Sleekly
designed and portable, the Optoma
HD23 offers a perfect answer for
sharing movies and sporting events
on a big screen, or for bringing video
gaming to an entirely new level.
HOME THEATER PROJECTOR
HD23
LET HD TRANSFORM YOUR VIEWING
CONNECTIVITY (May require optional accessories)
Add excitement and realism to
movies, sporting events, concerts,
video games and more with
crystal-clear high denition
Designed to deliver excellent
color, subtle details and superb
brightness
Share big-screen experiences with
even a large group
Connect quickly and easily to a
variety of sources including game
consoles, Blu-ray players and more
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES
BLU-RAY/DVD PLAYERS
USB WIRELESS SD CARD
BATTERY
PACK
microSD
HD

HOME THEATER PROJECTOR — HD23
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.65” 1080p DMD DLP Technology
by Texas Instruments
Native Resolution Native 1080p (1920 x 1080)
Brightness 2500 ANSI lumens
Contrast Ratio 5000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type* 4000/3000 Hours (STD/bright) 230W P-VIP
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ± 5° Vertical
Uniformity > 85%
Offset 116%
Aspect Ratio 16:9 Native, 4:3 and LBX compatible
Throw Ratio 1.5 to 1.8:1 (Distance/width)
Projection Distance 4.92’ to 32.8’ (1.5 to 10 m)
Image Size 37.6” to 301.1” (0.95 to 7.64 m)
Projection Lens F= 2.55–2.87, f= 22.4–26.8 mm,
1.2x manual zoom and focus
Noise Level 29dB/31dB
Remote Control Backlit remote control
Operating Temperature 41° to 95° F (5° to 35° C), 80% Max humidity
Power Supply AC input 100-240V, 50-60 Hz,
auto-switching
Power Consumption 308W (bright), 254W (STD),
< 0.5W (standby)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility HD, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh compatible
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
Vertical Scan Rate 24 to 85 Hz
Horizontal Scan Rate 15.3 to 91.1 KHz
User Controls Complete on-screen menu adjustments in
21 languages
I/O Connection Ports Two HDMI, VGA-in, component video,
composite video and 12V trigger
PHYSICAL SPECIFICATIONS
Security Kensington® Lock Port, security bar and
keypad lock
Weight 6.4 lbs (2.9 kg)
Dimensions (W x H x D) 12.76” x 3.82” x 9.21” (324 x 97 x 234 mm)
*Lamp life is dependent on many factors, including lamp mode, display mode, us-
age, environmental conditions and more. Lamp brightness can decrease over time.
Warranty
One-year limited parts and labor, 90-day on lamp
In the Box (Standard Accessories)
AC power cord, composite video cable, remote control, batteries for remote,
lens cap, user’s manual, quick start card and warranty card
Optional Accessories
Ceiling mount, component cable, HDMI cable, composite video cable and
Optoma screens
Part Numbers
Lamp: BL-FP230J Remote: BR-3042B
UPC: 796435 81 148 8
www.OptomaUSA.com
© Copyright 2012 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of
Texas Instruments. All other trademarks are the property of their respective owners. All specications
subject to change at any time.

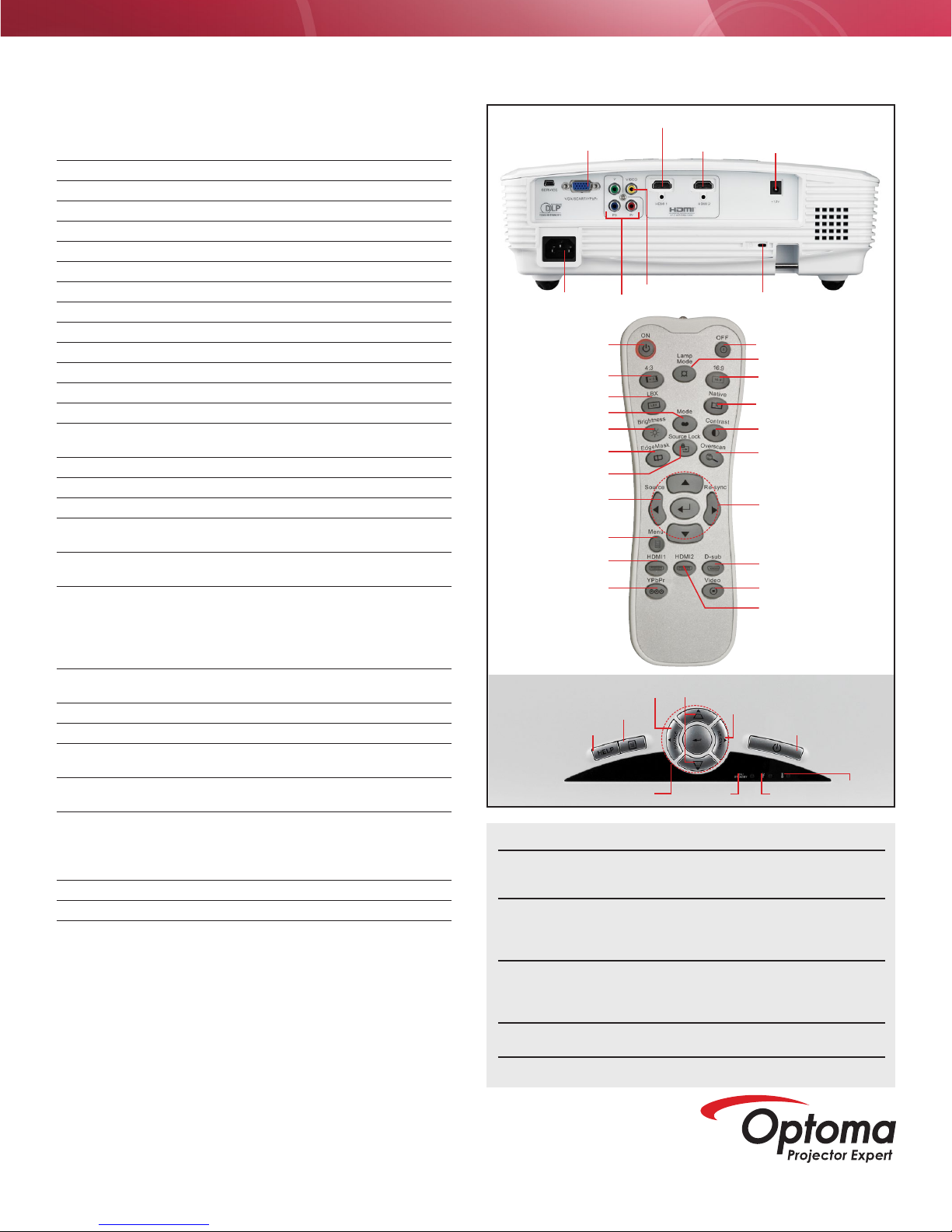

HDMI 1
