The native 1080p TH1020 DLP projector unleashes the
power of your presentation to engage your audience
with stunning graphics, high-resolution images and
razor-sharp presentations. Lightweight at 6.4 lbs. and
bright at 3000 ANSI lumens, the TH1020 is loaded with
a wide range of convenient connectivity options
including HDMI. The TH1020 transcends the ordinary to
deliver extraordinary projection performance.
TH1020 | Multimedia Projector
High Resolution,
High Flexibility for
Demanding Applications
www.optoma.com
TH1020 FEATURES
❏Native 1080p DLP®by Texas Instruments with
BrilliantColor™ Technology
❏Bright images and high contrast ratio –
3000 ANSI lumens and 2200:1 contrast
ratio (full on/full off)
❏Rapid power-on and shutdown – saving
you time and money
❏Filter-free design means low cost of
ownership
❏Protect your investment – control panel
lock and password protection allow you
to customize security settings
❏Wide range of connectivity options
including HDMI
HDMI
Menu
Volume
Zoom
Keystone Correction
Re-Sync
Power/Standby
S-Video
AV Mute
Source
Page Up/Down
Freeze
Video
Brightness
VGA
Select/Help
Laser
Right Mouse
Left Mouse
Mouse Controller/
Multi-Directional
Selector
VGA-Out
Composite
Video
HDMI RS-232
Stereo RCA
Audio-In
AC Power
Kensington
Lock
VGA-In S-Video
Stereo
Audio-Out
Stereo
Audio-In
+12V
Trigger
USB
Security
Bar

TH1020 | Multimedia Projector
All Specifications are subject to change without notice. ©2010 Optoma Technology, Inc. DLP®and the DLP logo are
registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
Data-TH1020-0211
BL-FP230D
BM-5001U
BR-5030L
BC-DDHMXX08
BC-HMHMXX05
BC-VGCRXY00
BC-CRCRXX02
BC-COCOXX02
DS-9092PMG+
BC-PUPIXY11
Optional Accessories
Lamp:
Mount:
Remote:
HDMI Cable (7.5m):
HDMI Cable (5m):
VGA to Component Adapter:
Component Cable (2m):
Composite Cable (2m):
92" Matte White 16:9 Manual Pull-Down Screen:
Power Cord (11m):

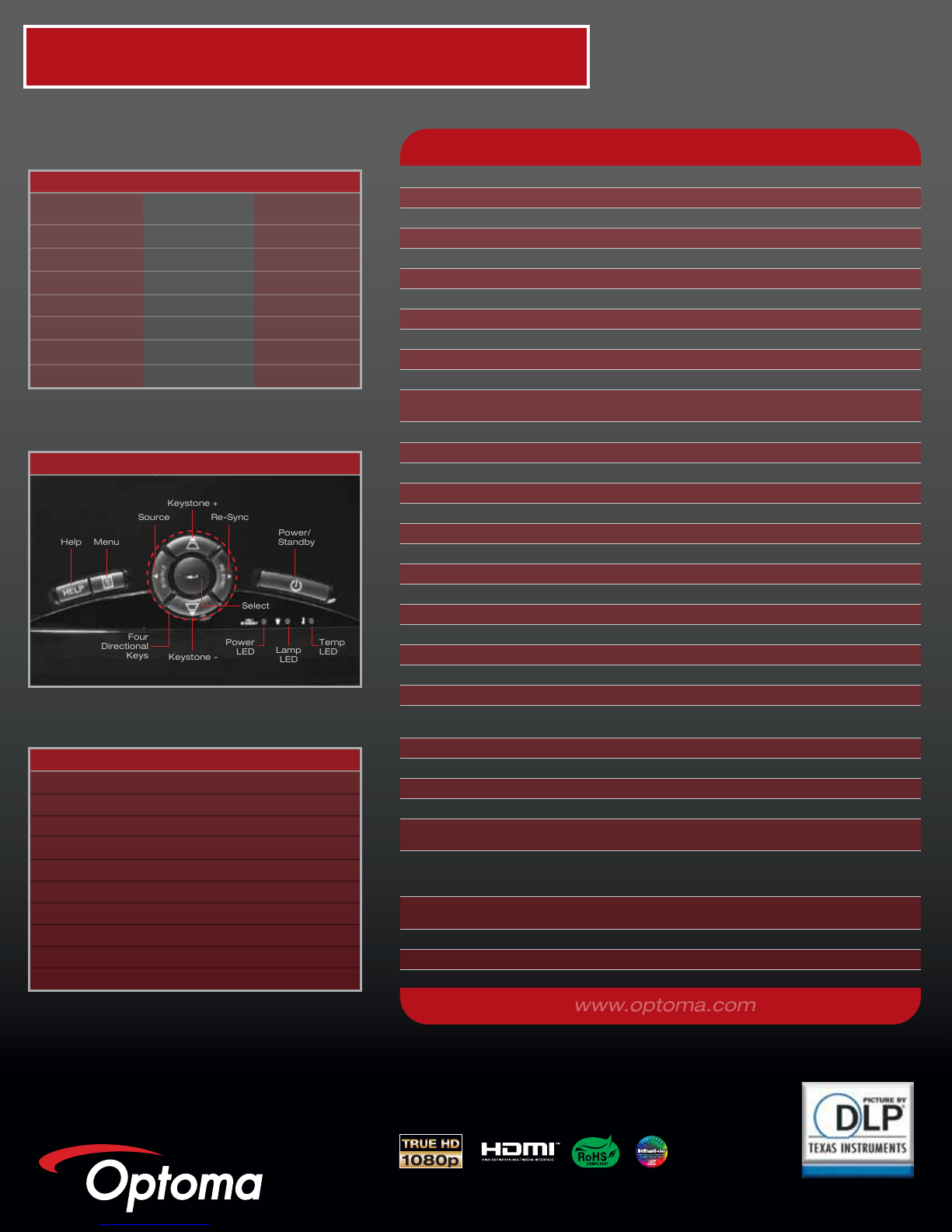

Menu
Power/
Standby
Lamp
LED
Select
Re-Sync
Source
Temp
LED
Four
Directional
Keys
Help
Power
LED
Keystone +
Keystone -
Control Panel
Projection Distance
(Feet)
6
8
10
12
14
16
18
Maximum Diagonal
(Inches)
55
73
92
110
129
147
165
Minimum Diagonal
(Inches)
46
61
76
92
107
122
138
Projection Distance/Image Size
www.optoma.com
Specifications
Single 0.65” DMD DLP®Technology by Texas Instruments
Native HD (1920 x 1080)
3000 ANSI Lumens
2200:1 (Full On/Full Off)
230W P-VIP
Estimated at 4000/3000 Hours
1.5 to 1.8:1 (Distance/Width)
37.6” to 301.1” (0.92 to 9.21 m)
4.92’ to 32.8’ (1.5 to 10 m)
28dB/30dB
IR Remote with Mouse and Laser Pointer
HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC
and Macintosh Compatible
NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
16:9 Native, 4:3 Compatible
F=2.55-2.87, f=22.41-26.82, 1.2x Manual Zoom and Focus
116%
D-Sub 15-Pin VGA Output (Functional in Both Normal and Standby Modes)
Complete On-Screen Menu Adjustments in 23 Languages
8-Watt Speaker
± 20° Vertical
24 to 85 Hz
15.3 to 91.1 KHz
AC Input 100-240V, 50-60 Hz, Auto-Switching
339 Watts (Bright), 281 Watts (STD) <1 Watt (Standby)
6.4 lbs (2.9 kg)
12.76” x 3.82” x 9.21” (324 x 97 x 234 mm)
41° to 104°F (5° to 40°C), 85% Max Humidity, Adjustable Fan Speed for
High Altitude Application
1.07 Billion
Front, Rear, Ceiling Mount, Table Top
85%
Kensington®Lock, Keypad Lock and Security Bar
HDMI, VGA-In, VGA-Out, S-Video, Composite Video, Stereo RCA Audio-In,
Stereo Audio-In, Stereo Audio-Out, RS-232, USB and +12V Trigger
AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for
Remote, Carrying Case, Lens Cap, Multilingual CD-ROM User’s Manual,
Quick Start Card and Warranty Card
HDMI Cable, Ceiling Mount, VGA to Component Adapter, S-Video Cable,
Composite Video Cable, RS-232 Cable and Panoview™ Series Screens
3 Years Limited Parts and Labor, 1 Year on Lamp
796435 41 151 0
Display Technology:
Resolution:
Brightness (Typical):
Contrast Ratio:
Lamp Type:
Lamp Life (STD/Bright)*:
Throw Ratio:
Image Size (Diagonal):
Projection Distance:
Noise Level (STD/Bright):
Remote Control:
Computer Compatibility:
Video Compatibility:
Aspect Ratio:
Projection Lens:
Offset:
Monitor Loop Through
User Controls:
Audio:
Keystone Correction:
Vertical Refresh Rate:
Horizontal Scan Rate:
Power Supply:
Power Consumption:
Weight:
Dimensions (W x H x D):
Operating Temperature:
Displayable Colors:
Projection Method:
Uniformity:
Security:
I/O Connectors:
Standard Accessories:
Optional Accessories:
Warranty:
UPC:
*Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
