Optoma HD700X User manual

1English
Table of Contents ...................................................................................1
Usage Notice..........................................................................................2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings.....................................................................................5
Introduction.............................................................................................6
Product Features...........................................................................................6
Package Overview.........................................................................................7
Product Overview..........................................................................................8
Main Unit................................................................................................................8
Control Panel.........................................................................................................9
Connection Ports .................................................................................................10
Remote Control.................................................................................................... 11
Installation............................................................................................12
Connecting the Projector.............................................................................12
Powering On/Off the Projector.....................................................................13
Powering On the Projector...................................................................................13
Powering Off the projector...................................................................................14
Warning Indicator.................................................................................................14
Adjusting the Projected Image.....................................................................15
Adjusting the Projector’s Height...........................................................................15
Adjusting the Projector’s Zoom / Focus...............................................................16
Adjusting Projected Image Size...........................................................................16
User Controls .......................................................................................17
Control Panel & Remote Control.................................................................17
On-screen Display Menus...........................................................................20
How to operate ....................................................................................................20
Menu Tree............................................................................................................21
Image...................................................................................................................22
Display.................................................................................................................28
Setup....................................................................................................................31
Options.................................................................................................................34
Appendices...........................................................................................37
Troubleshooting...........................................................................................37
Image Problems ..................................................................................................37
Intermission Problems ........................................................................................40
Projector Status Indication ..................................................................................40
Remote Control Problems ...................................................................................42
Replacing the Lamp.....................................................................................43
Compatibility Modes....................................................................................45
Ceiling Mount Installation ............................................................................47
Optoma Global Ofces ................................................................................48
Regulation & Safety notices ........................................................................50
Table of Contents

2
English
Usage Notice
Safety Informations
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient magni-
tude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Inter-
ference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions :
A. Do not block any ventilation openings. To ensure reliable
operation of the projector and to protect it from overheating, put the
projector in a position and location that will not interfere with its proper
ventilation. For example, do not place the projector on a bed, sofa,
carpet, or similar surface that may block the ventilation openings. Do not
put it in an enclosure, such as a bookcase or a cabinet that may keep air
from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce
the risk of re or electric shock, do not expose the projector to rain or
moisture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way, such as:
Power supply cord or plug is damaged.
Liquids have spilled or objects have fallen into the apparatus.
The projector has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Do not attempt to service this projector yourself. Opening or removing
covers may expose you to dangerous voltages or other hazards. Please
call Optoma to be referred to an authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch
dangerous voltage points or short-out parts that could result in a re or
electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone except prop-
erly qualied service personnel.

3English
Usage Notice
When the lamp
reaches the end
of its life, the
projector will
not turn back on
until the lamp
module has
been replaced.
To replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on pages 43-44.
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may damage your eyes.
▀■Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■Warning- When replacing the lamp, please allow unit to cool
down, and follow all replacement instructions.
See pages 43-44.
▀■Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■Warning- Use the “Lamp Reset” function from the on-screen
display “Options|Lamp Settings” menu after
replacing the lamp module (refer to page 36).
▀■Warning- When switching the projector off, please ensure the
cooling cycle has been completed before
disconnecting the power. Allow 90 seconds for the
projector to cool down.
▀■Warning- Do not use the lens cap when projector is in opera-
tion.
▀■Warning- When the lamp is approaching to the end of its life,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■Warning- To reduce the risk of injury to the eyes, do not look
directly into the laser beam on the remote control
and do not point the laser beam into anyone’s eyes.
This remote control is equipped with a Class II laser
that emits radiation.

4
English
Usage Notice
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with a mild detergent to clean the
display housing.
Disconnect the power plug from the AC outlet if the product
is not being used for a long period of time.
Don’t:
Do not block the ventilation slots and openings on the unit.
Do not use abrasive cleaners, waxes or solvents to clean the
unit.
Do not use under the following conditions:
- In extremely hot, cold or humid environments.
 Ensure that the ambient room temperature is within 5
- 35°C
 Relative Humidity is 5 - 35°C, 80% (Max.), non-condens-
ing
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.

5English
Usage Notice
Eye Safety Warnings
▀■Avoid staring directly into the projector’s beam of light at all
times.
▀■Minimize standing facing into the beam. Keep your back to
the beam as much as possible.
▀■Using a stick or laser pointer is recommended to avoid the
need for the presenter to enter the beam.
▀■Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters
look at the audience, they do not also have to stare at the pro-
jector lamp. The best way to achieve this is by ceiling-mount-
ing the projector rather than placing it on oor or table top.
▀■When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.

6
English
Introduction
Product Features
This product is a 720p single chip 0.62” DLP®projector.
Outstanding features include:
Native 16:9 720p DLP® Technology
 HDMI & component support.
 Computer Compatibility:
Apple Macintosh, iMac, and VESA Standards:
UXGA, SXGA+, SXGA, XGA, SVGA, VGA
 Video Compatibility:
■NTSC M/J, NTSC4.43
■PAL B/D/I/G/H, PAL M, PAL N
■SECAM B/D/G/K/L
■SDTV compatible (480i/p, 576i/p)
■HDTV compatible (720p, 1080i, 1080p)
Auto source detection with user denable settings
Full function IR remote control with back light.
User friendly multilingual On Screen Menu
Advanced digital keystone correction and high quality
full screen image re-scaling
User friendly control panel
Macintosh and PC compatible
TrueVividTM and Brilliant ColorTM Image technology
HDMI supports
HDCP function.

7English
Introduction
Power Cord 1.8m
IR Remote Control

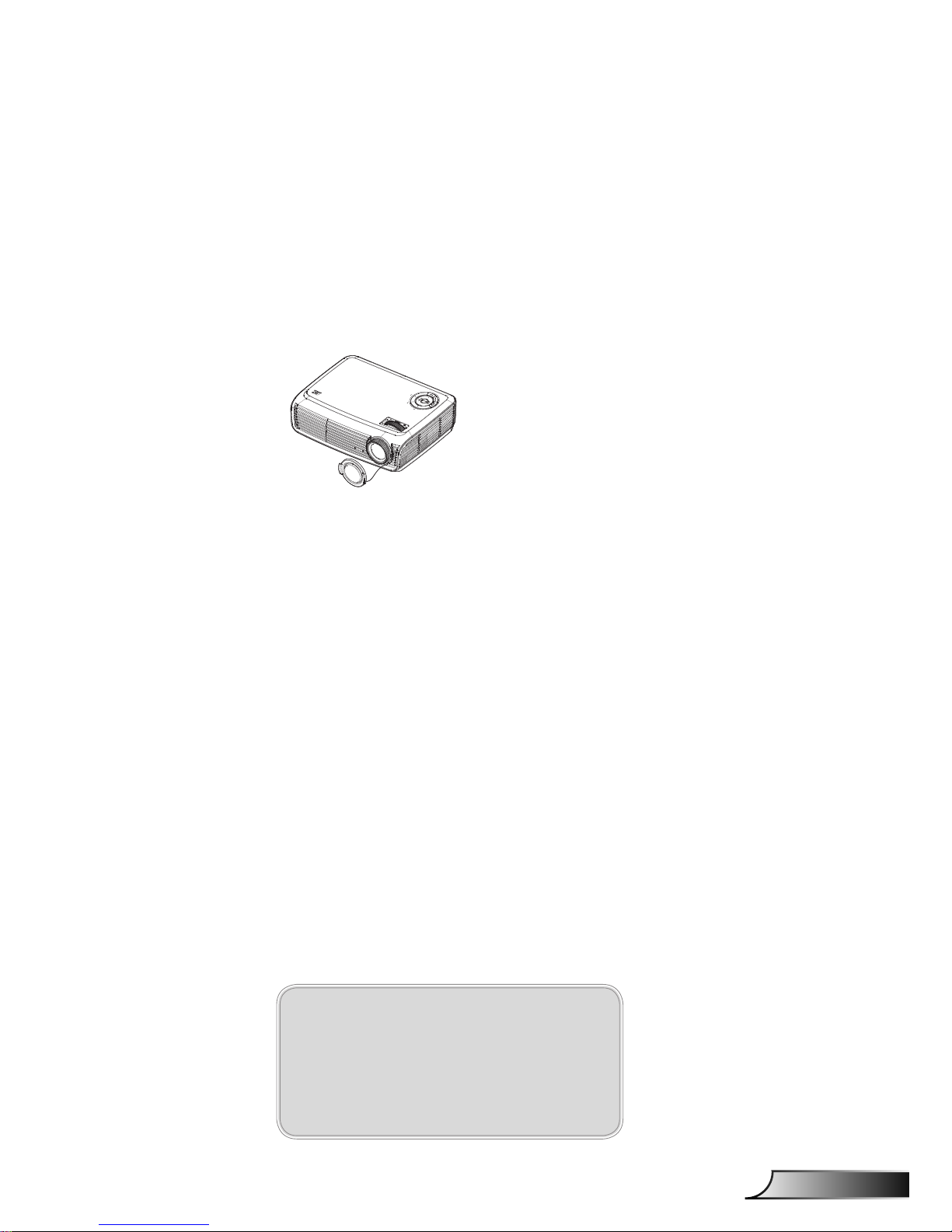

Package Overview
This projector comes with all the items shown
below. Check to make sure your unit is complete.
Contact your dealer immediately if anything is
missing.
Documentation :

User’s Manual

Warranty Card

Quick Start Card
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
2 x AAA Batteries
Projector with lens cap
VGA Cable 1.8m
(Available in EMEA only)
S-Video Cable 1.8m
(Available in EMEA and
Asia only)
RCA Component Cable
for YPbPr 1.8m
SCART RGB/S-Video
Adapter
(Available in EMEA only)
Composite Video Cable
1.8m
(Available in Asia and US
only)

8
English
Introduction
1. Control Panel
2. Zoom
3. Focus
4. Zoom Lens
5. IR Receivers
Main Unit
Product Overview
6. Elevator Button
7. Connection Ports
8. Power Socket
9. Tilt-Adjustment Foot
78
9
1
2
3
4
5
6

9English
Introduction
Control Panel
1. Enter
2. Menu
3. Power
4. AV Mute
5. Source
6. Re-Sync
7. Four Directional Select Keys
8. Temp LED
9 Lamp LED
10. Power LED
2
7
4
3
10
5
6
1
8
9

10
English
Introduction
12V
TRIGGER
Connection Ports
1. S-Video Input Connector
2. VGA/SCART/Component Input Connector
3. Component Video Input Connector
4. Composite Video Input Connector
5. HDMI Connector
6. Service Connector
7. +12V Trigger Relay Connector
8. KensingtonTM Lock Port
9. Power Socket
1 6542
9 8
3 7
