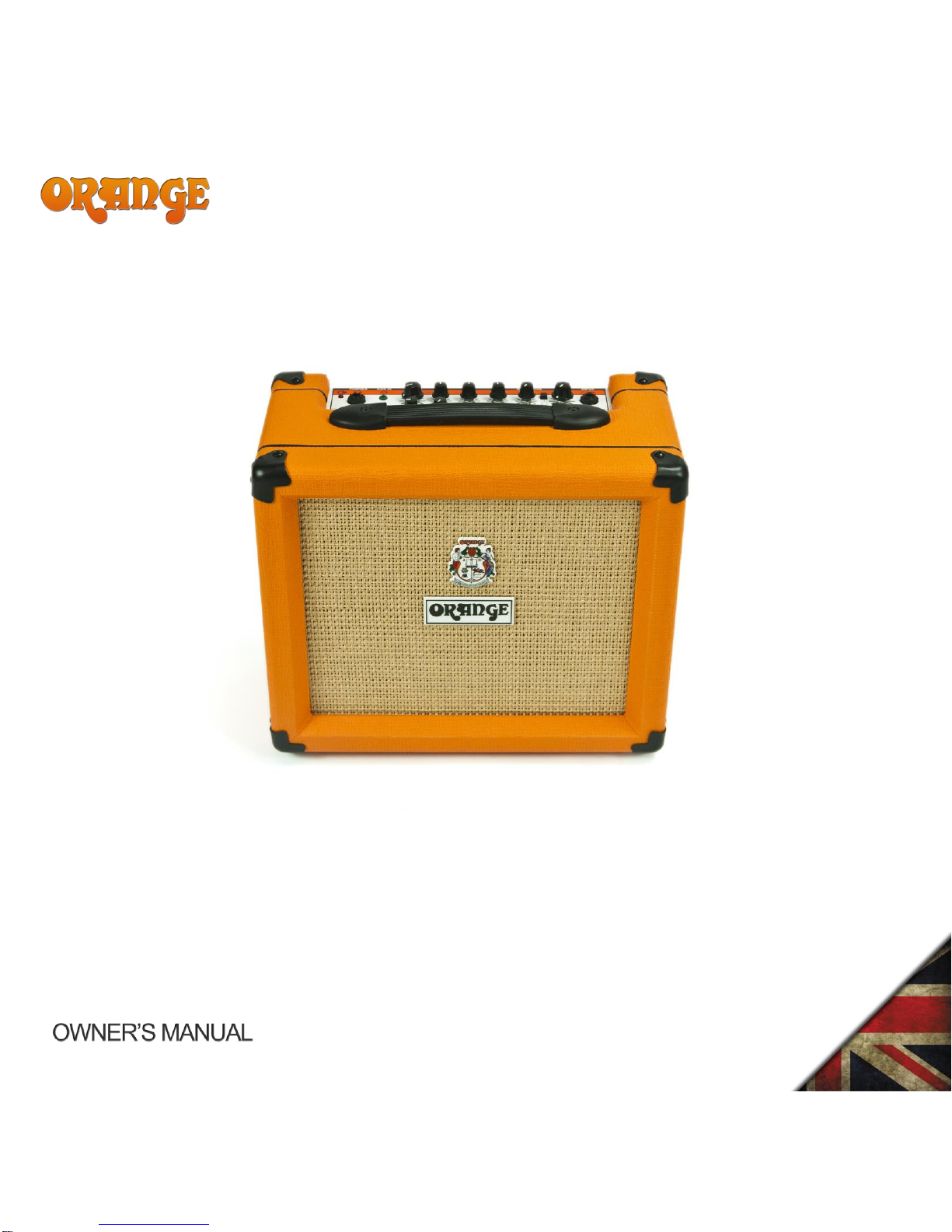

ORANGE Crush PiX 20LDX User manual

9
1
Crush PiX 20LDX

9
2
Crush PiX 20LDX
THANK YOU!
Thank you for choosing Orange. You are now a member of the
‘Legendary British Guitar Amplifier’ owners club!
Since 1968 when the company was founded, Orange has been a
pioneering force in the guitar amplification industry. Today, with a
team of the world’s finest engineers, Orange continues to push
back the boundaries of conventional amplifier design.
Our commitment to craftsmanship and quality control has allowed
our amplifiers to stand the test of time, giving their owners as
much pleasure now, as the day they were bought. To maintain this level of excellence, each Orange
amplifier is put through many rigorous test procedures before leaving the factory.
This booklet contains valuable technical and safety information. Please take the time to read this manual
as the information may enhance the sound and performance of your amplifier. We are confident that
you will be delighted with your new purchase and that it will provide you with many years of enjoyment.

9
3
Crush PiX 20LDX
CONTENTS
CONTACT DETAILS ...................................................................................................................................4
IMPORTANT SAFETY INFORMATION.......................................................................................................5
EMI ..........................................................................................................................................................8
USING YOUR AMPLIFIER .........................................................................................................................9
FRONT PANEL FEATURES ......................................................................................................................10
REAR PANEL FEATURES.........................................................................................................................13
SPECIFICATIONS ....................................................................................................................................14
FREE EXTENDED WARRANTY OFFER .....................................................................................................15
The contents of this manual may be subject to change without notice. The latest version is
available for download on the official Orange Amplification website:
http://www.orangeamps.com/support/downloads/

9
4
Crush PiX 20LDX
CONTACT DETAILS
Global Headquarters
Orange Amplification
OMEC House
108 Ripon Way
Borehamwood
Hertfordshire
WD6 2JA
ENGLAND
Tel: [phone]
Fax: [phone]
[email protected]
Orange USA
2065 Peachtree Industrial Ct.
Suite 208
Atlanta, GA 30341
USA
Tel: [phone]
Fax: [phone]
[email protected]m

9
5
Crush PiX 20LDX
IMPORTANT SAFETY INFORMATION
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un-insulated ‘dangerous
voltage’ within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons. Terminals labelled as
“Speaker Outputs” must be connected to a speaker cabinet of the
designated load rating using an un-shielded two conductor cable for speaker use at all times
during operation
The exclamation point within an equilateral triangle and "WARNING" are
intended to alert the user to the presence of important operating
instructions. Failure to heed the instructions will result in severe injury or
death.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near liquid.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

9
6
Crush PiX 20LDX
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades, one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Servicing: Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
• Refer all servicing to qualified service personnel.
• Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions: (a) When the power-supply cord or
plug is damaged; (b) If liquid has been spilled, or objects have fallen into the product; (c) If the
product has been exposed to rain or water; (d) If the product does not operate normally by
following the operating instructions. Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal
operation; (e) if the product has been dropped or damaged in any way; (f) when the product
exhibits a distinct change in performance - this indicates a need for service.
• Replacement Parts: When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

9
7
Crush PiX 20LDX

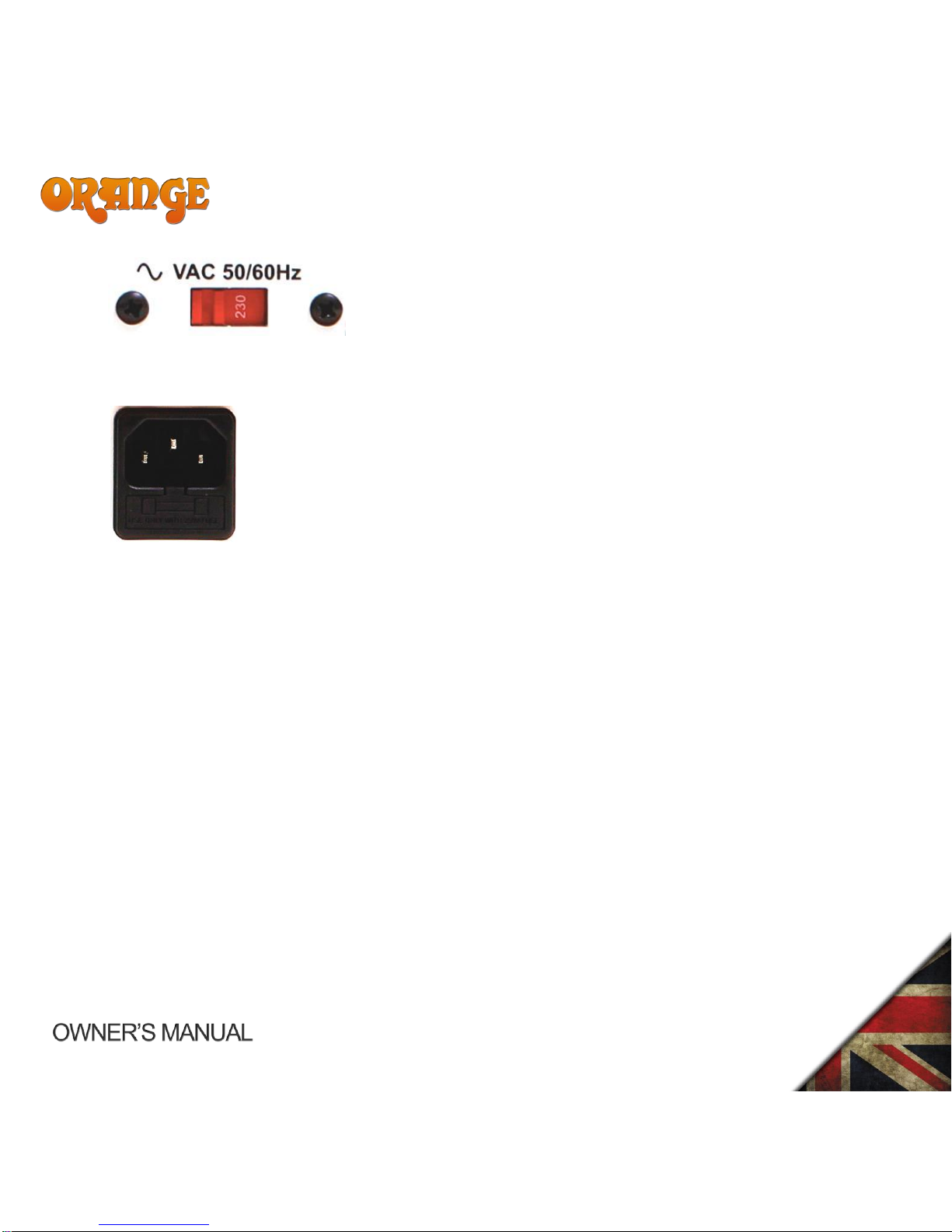

The voltage selector switch and mains fuse are factory set for the
region in which your amplifier is intended to be sold. Do not
tamper with this switch without express permission from
Orange Music Electronic Company Ltd.
Connect the supplied mains cord to the AC Mains Input on the amplifier to your
AC mains wall outlet. This Class I electrical equipment must be earthed. The
correct mains fuse value for your region are displayed on the unit, close to
the AC Mains Input. Replace only with the same type and value. If the mains
fuse repeatedly blows, contact your Orange dealer.

9
8
Crush PiX 20LDX
EMI
To reduce the possibility of outside electrical interference during performance, operate your
amplifier and instrument away from appliances/equipment that generate high levels of
electronic/electromagnetic noise. This may include, but is not limited to: fluorescent lighting,
refrigerators, motors, mobile phones, radios, computers etc.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try and correct the interference by
one or more of the following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.

9
9
Crush PiX 20LDX
Note: Changes or modifications to this equipment not expressly approved by Orange Amplification
may void the user’s authority to operate this equipment.
This Class B digital apparatus complies with Canadian Interference Regulations CAN ICES-3(B)/NMB-
3(B). Cet appareil numérique de classe B est conforme aux règlements CAN ICES-3(B)/NMB-3(B).

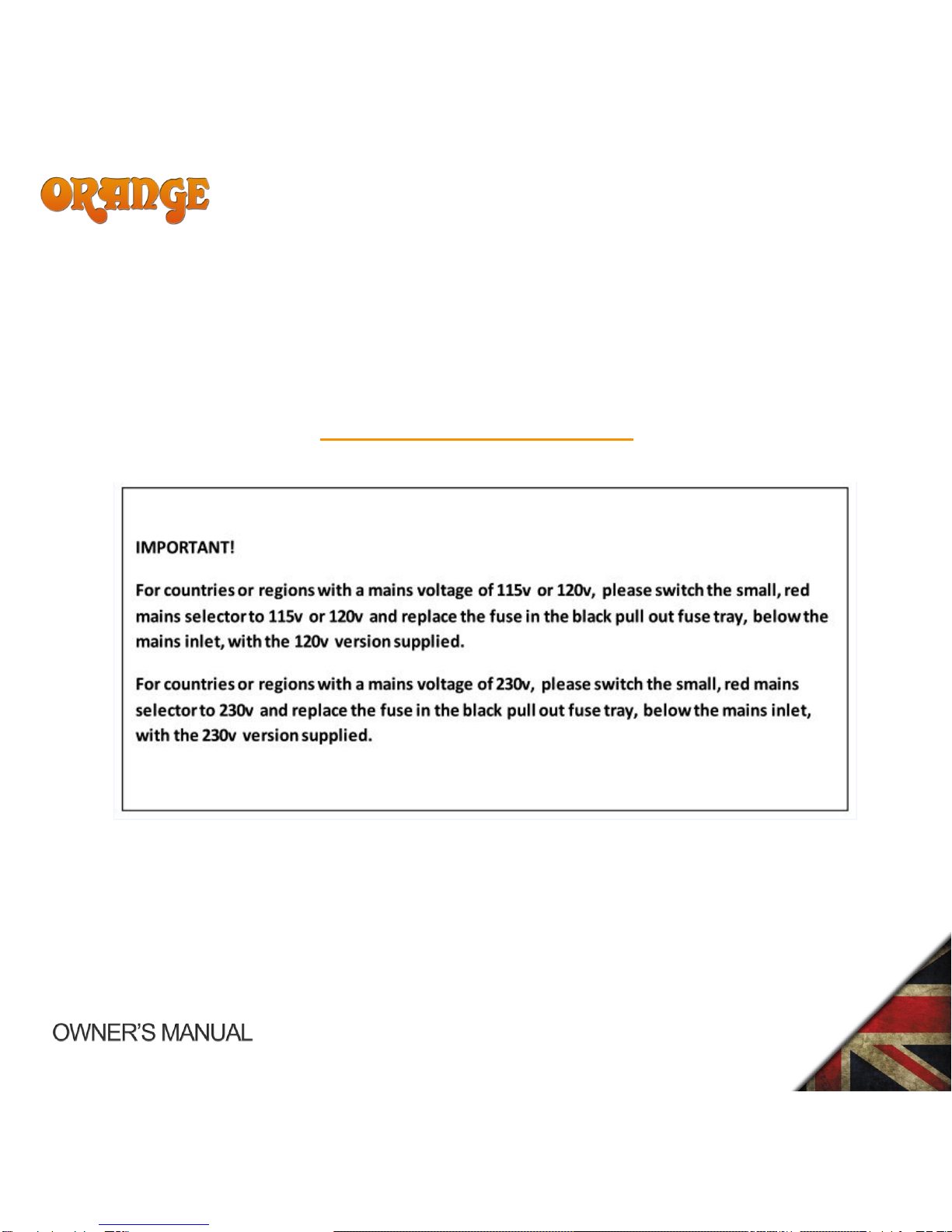

USING YOUR AMPLIFIER
FUSES:
100V/120V: T630mA
230V/240V: T315mA

9
10
Crush PiX 20LDX
FRONT PANEL FEATURES
1. Input Jack Socket
Plug your instrument cable into this jack socket.
2. Gain Control
This controls pre-gain level.
3. Overdrive Switch
Use this switch to engage the Overdrive circuit (switch depressed) or the Clean channel (switch
in the out position).
4. Overdrive Level
This controls the amount of distortion ranging from overdrive to high gain.

9
11
Crush PiX 20LDX
5. High
Provides high frequency equalization if required.
6. Mid
Provides middle frequency equalization with cut and boost.
7. Low
Provides low frequency equalization as required.
8. Volume
Controls the overall volume of the amplifier.
9. Aux In
Use this 1/8" stereo mini jack to connect the output from CD or MP3 player, laptop, etc., to the
amp. The jacks are internally summed to a mono signal.
10. Phones
For use with most stereo headphones.
CAUTION: To avoid possible damage to your hearing, do not use headphones for extended
periods of time at extremely loud levels.
11. Power Indicator
LED indicates whether the power switch is ON or OFF.

9
12
Crush PiX 20LDX
12. FX mode
Use this control select the type of FX applied to the output signal. Each effect type and its
location is indicated by the markings around the control.
13. FX Level
Use this control to set the amount of digital effect applied to the output signal.
14. Tuner LED
Play a note on your guitar. The appropriate red LED will illuminate on the display to indicate the
note being played. If the green #LED also illuminates, this indicates a chromatic note, e.g.
F Sharp (#).
The >arrow LED indicates the note is tuned flat (too low in pitch).
The <arrow LED indicates the note is tuned sharp (too high in pitch).
Adjust the string until the green OK LED between the two arrows is lit.
15. Tuner
Depress this button to activate the tuner.

9
13
Crush PiX 20LDX

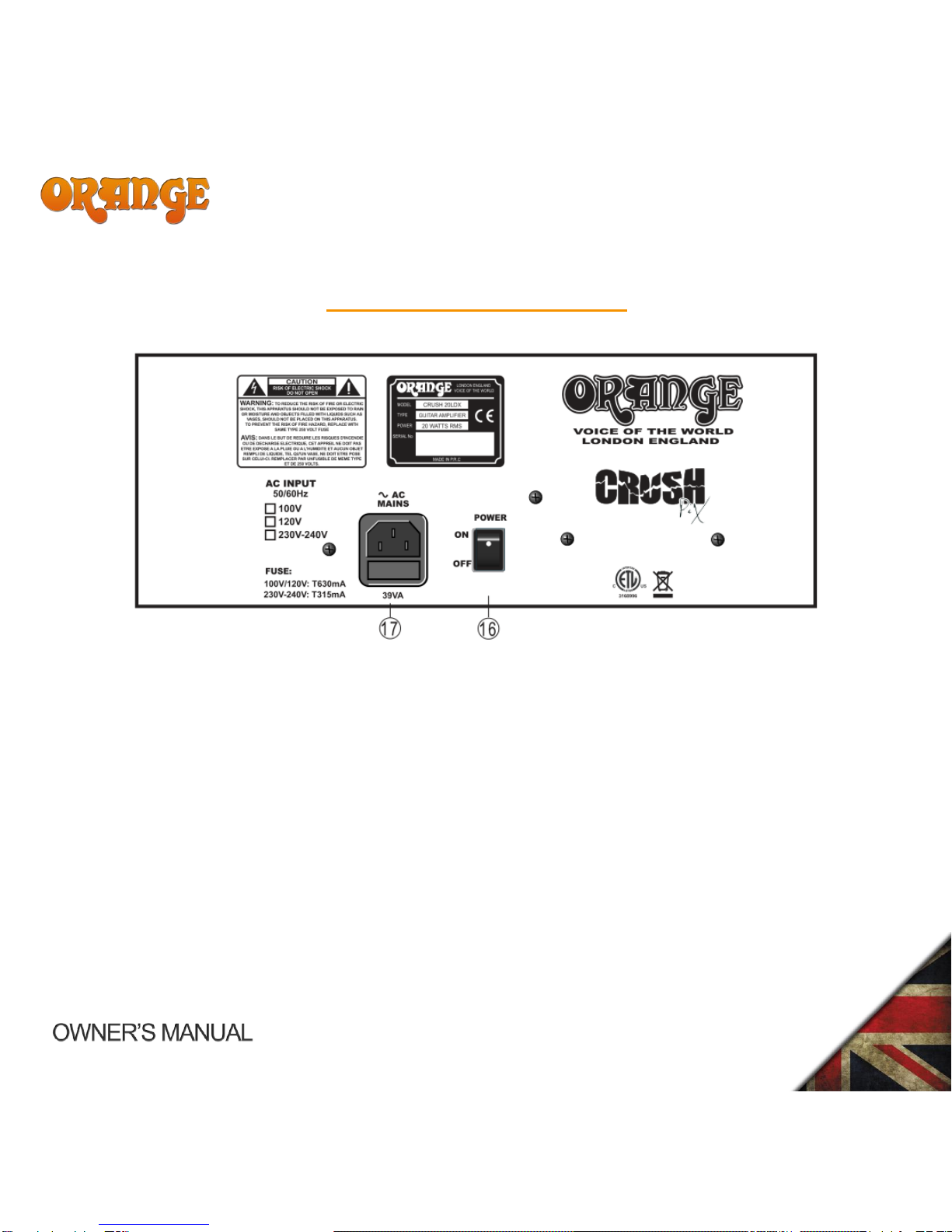

REAR PANEL FEATURES
16. A/C Main Power Switch
This switch turns the AC MAIN power on/off.
17. AC Inlet and Fuseholder
Connect the supplied standard 3-pin “IEC” plug here.

9
14
Crush PiX 20LDX
SPECIFICATIONS
Specifications may be subject to change without notice.
16 Programs
DFX

9
15
Crush PiX 20LDX
FREE EXTENDED WARRANTY OFFER
Orange amplifiers are under warranty for one year subject to consumer protection laws in the
country of purchase and distributor’s terms and conditions. An additional year can be added by
registering online.
Valves and speakers supplied with an Orange amp or purchased separately at our online store are
covered for 90 days from the date of purchase.
The warranty status of any Orange product is subject to its being used for its intended purpose in
suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange
product which has been misused in any way whatsoever.
REGISTER RIGHT NOW AT www.orangeamps.com
