Orbit Merret OM 602RS User manual

OM 602RS
6 DIGIT PROGRAMABLE
INSTRUMENT
RS 232/RS 485
GUARANTEE
YEARS

2|INSTRUCTIONS FOR USE OM 602RS
SAFETY INSTRUCTIONS
Please, read the enclosed safety instructions carefully and observe them!
These instruments should be safeguarded by isolated or common fuses (breakers)!
For safety information the EN 61 010-1 + A2 standard must be observed.
This instrument is not explosion-safe!
TECHNICAL DATA
Measuring instruments of the OM 602 series conform to the European regulation 89/336/EWG and the Ordinance
168/1997 Coll.
The instruments are up to the following European standards:
EN 55 022, class B
EN 61000-4-2, -4, -5, -6, -8, -9, -10, -11
The instruments are applicable for unlimited use in agricultural and industrial areas.
CONNECTION
Supply of energy from the main line has to be isolated from the measuring leads.
ORBIT MERRET, spol. sr.o.
Vodnanska 675/30
19800 Prague 9
Czech Republic
Tel: +420 - 281040200
Fax: +420 - 281040299
e-mail: [email protected]
www.orbit.merret.cz

INSTRUCTIONS FOR USE OM 602RS |3
1CONTENTS
1. Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Instrument description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Instrument connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Instrument setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols used in the instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the DP and the (-) sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control keys function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Setting/permitting items into “USER” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5. Setting “LIGHT” menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.0 Description “LIGHT” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting Baud, addresse and protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting analog output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Selection of programming menu „LIGHT“/„PROFI“. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Restoration of manufacture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Selection of instrument menu language version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Setting new access password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Instrument identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6. Setting “PROFI” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.0 Description of “PROFI” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.1 “PROFI” menu - INPUT
6.1.1 Resetting internal values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.1.2 Selection of measuring range and parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.1.3 External input function selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6.1.4 Optional accessory functions of the keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.2 “PROFI” menu - CHANNEL
6.2.1 Setting measuring parameters (projection, filters, decimal point, desc) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6.2.2 Setting mathematic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
6.2.3 Selection of evaluation of min/max. value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6.3 “PROFI” menu - OUTPUT
6.3.1 Setting Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
6.3.2 Setting analog output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
6.3.3 Selection of display projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
6.4 “PROFI” menu - SERVICE
6.4.1 Selection of programming menu „LIGHT“/„PROFI“ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
6.4.2 Restoration manufacture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6.4.3 Selection of instrument menu language version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6.4.4 Setting new access password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
6.4.5 Instrument identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
7. Setting items into “USER” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
7.0 Configuration “USER” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
8. Data protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
9. Error statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
10. Table of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
11. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
12. Instrument dimensions and instalation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
13. Certificate of guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

4|INSTRUCTIONS FOR USE OM 602RS
2.1 Description
The OM 602RS type is a 6 digit panel display device for data from serial lines of RS 232 and RS 485 standard. Com-
munication with ASCII or MessBus protocol.
All ASCII symbols may be displayed which are usable for 14-segment display.
PROGRAMMABLE PROJECTION
Setting: manual
Projection: -99999…999999
LINEARIZATION
Linearization: by linear interpolation in 50 points (solely via OM Link)
DIGITAL FILTERS
Plovoucí průměr: z 2…30 measurements
Exponen.average: from 2…100 measurements
Rounding: setting the projection step for display
MATHEMATIC FUCTIONS
Min/max. value: registration of min./max. value reached during measurement
Tare: designed to reset display upon non-zero input signal
Peak value: the display shows only max. or min. value
Mat. operations: polynome, 1/x, logarithm, exponential, power, root, sin x
EXTERNAL CONTROL
Lock: control keys blocking
Hold: display/instrument blocking
Tare: tare activation/resetting tare to zero
Resetting MM: resetting min/max value
Memory: data storage into instrument memory
INSTRUMENT DESCRIPTION2

INSTRUCTIONS FOR USE OM 602RS |5
2.2 Operationn
The instrument is set and controlled by five control keys located on the front panel. All programmable settings of the instrument
are performed in three adjusting modes:
LIGHT Simple programming menu
- contains solely items necessary for instrument setting and is protected by optional number code
PROFI Complete programming menu
- contains complete instrument menu and is protected by optional number code
USER User programming menu
- may contain arbitrary items selected from the programming menu (LIGHT/PROFI), which determine
the right (see or change)
- acces without password
All programmable parameters are stored in the EEPROM memory (they hold even after the instrument is switched off).
Complete instrument operation and setting may be performed via OM Link communication interface,
which is a standard equipment of all instruments.
The operation program is freely accessible (www.orbit.merret.cz) and the only requirement is the
purchase of OML cable to connect the instrument to PC. It is manufactured in version RS 232 and USB and is compatible
with all ORBIT MERRET instruments. Another option for connection is with the aid of data output RS 232 or RS 485 (without
the need of the OML cable).
The program OM LINK in „Basic“ version will enable you to connect one instrument with the option of visualization and
archiving in PC. The OM Link „Standard“ version has no limitation of the number of instruments connected.
2.3 Options
Excitation is suitable for supplying power to sensors and transmitters. It has a galvanic separation.
Comparators are assigned to monitor one, two, three or four limit values with relay output. The user may select limits regime:
LIMIT/DOSING/FROM-TO. The limits have adjustable hysteresis within the full range of the display as well as selectable
delay of the switch-on in the range of 0...99,9 s. Reaching the preset limits is signalled by LED and simultaneously by the
switch-on of the relevant relay.
Data outputs are for their rate and accuracy suitable for transmission of the measured data for further projection or directly
into the control systems. We offer an isolated RS232 and RS485 with the ASCII or DIN MessBus protocol.
Analog outputs will find their place in applications where further evaluating or processing of measured data is required in
external devices. We offer universal analog output with the option of selection of the type of output - voltage/current. The
value of analog output corresponds with the displayed data and its type and range are selectable in Menu.
Measured data record is an internal time control of data collection. It is suitable where it is necessary to register measured
values. Two modes may be used. FAST is designed for fast storage (40 records/s) of all measured values up to 8 000
records. Second mode is RTC, where data record is governed by Real Time with data storage in a selected time segment
and cycle. Up to 250 000 values may be stored in the instrument memory. Data transmis sion into PC via serial interface
RS232/485 and OM Link.
2INSTRUMENT DESCRIPTION

6|INSTRUCTIONS FOR USE OM 602RS
The instrument supply leads should not be in proximity of the incoming low-potential signals.
Contactors, motors with larger input power should not be in proximity of the instrument.
The leads into the instrument input (measured quantity) should be in sufficient distance from all power leads and appliances.
Provided this cannot be secured it is necessary to use shielded leads with connection to ground (bracket E).
The instruments are tested in compliance with standards for use in industrial area, yet we recommend to abide by the above
mentioned principles.
+
-
54
8 9 10
L
N POWER SUPPLY
E
1 2 3
11 12 13
5 6 7 14 15 16 17
IV V VI
III II I
L4
L3
L2 L1
EXT. 1 EXT. 3 EXT. 2
RxD/L+
TxD/L-
GND
AO-I
AO-U
GND
TxD
RxD
A B C D E F G H
Excitation
GND
+
-
L+
L-
RS 232
RS 485
INSTRUMENT CONNECTION3

INSTRUCTIONS FOR USE OM 602RS |7

8|INSTRUCTIONS FOR USE OM 602RS
• For trained users
• Only items necessary for instrument
setting
• Access is password protected
• Possibility to arrange items of the
„User“ menu
• Linear menu structure
• For expert users
• Complete instrument menu
• Access is password protected
• Possibility to arrange items of the
„User“ menu
• Tree menu structure
Setting PROFISetting LIGHT
• For user operation
• Menu items are set by the user
(Profi/Light) as per request
• Access is not password protected
• Optional menu structure either tree
(PROFI) or linear (LIGHT)
Setting USER
INSTRUMENT SETTING4

INSTRUCTIONS FOR USE OM 602RS |9
4INSTRUMENT SETTINGJE
4.1 Setting
The instrument is set and controlled by five control keys located on the front panel. All programmable settings of the instrument
are performed in three adjusting modes:
LIGHT Simple programming menu
- contains solely items necessary for instrument setting and is protected by optional number code
PROFI Complete programming menu
- contains complete instrument menu and is protected by optional number code
USER User programming menu
- may contain arbitrary items selected from the programming menu (LIGHT/PROFI), which determine
the right (see or change)
- acces without password
All programmable parameters are stored in the EEPROM memory (they hold even after the instrument is switched off).
Complete instrument operation and setting may be performed via OM Link communication interface, which is a standard
equipment of all instruments.
The operation program is freely accessible (www.orbit.merret.cz) and the only requirement is the purchase of OML cable
to connect the instrument to PC. It is manufactured in version RS 232 and USB and is compatible with all ORBIT MERRET
instruments.
Another option for connection is with the aid of data output RS 232 or RS 485 (without the need of the OML cable).
User data protocol
12
Address
Data Stop
Start
Position Position Position
Signum
Position

10 |INSTRUCTIONS FOR USE OM 602RS

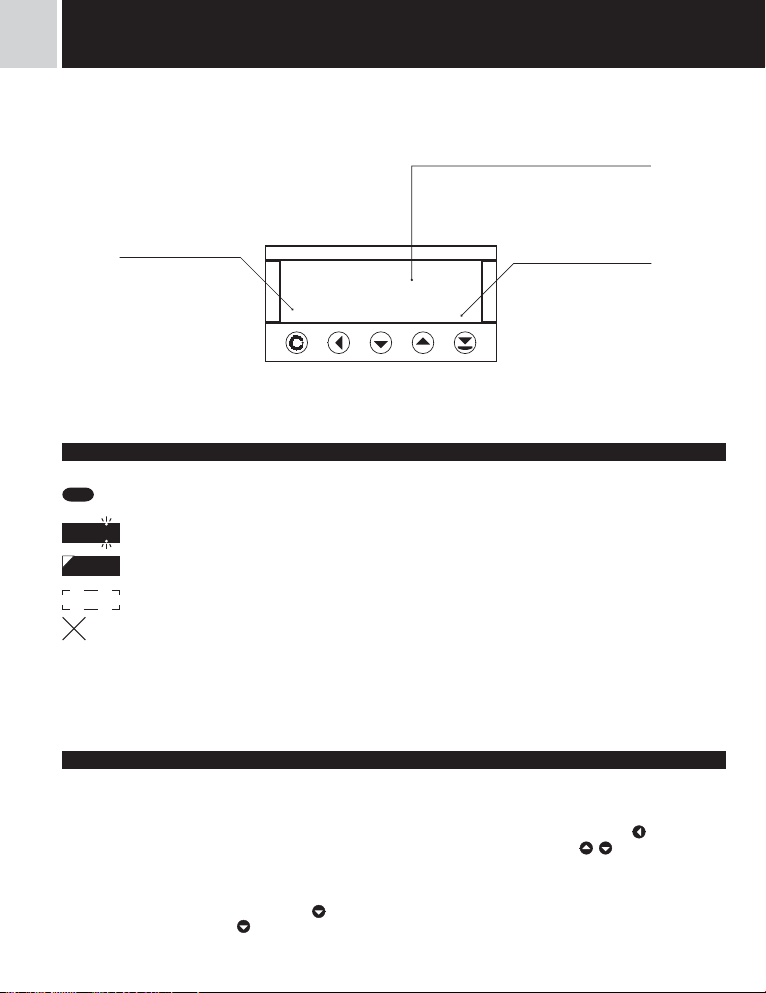

Setting and controlling the instrument is performed by means of 5 control keys located on the front panel. With the aid of
these keys it is possble to browse through the operation menu and to select and set required values.
Symbols used in the instructions
DEF values preset from manufacture
42symbol indicates a flashing light (symbol)
MIN inverted triangle indicates the item that can be placed in USER menu
MEMORY broken line indicates a dynamic item, i.e. it is displayed only in particular selection/version
after pressing the key the set value will not be stored
after pressing the key the set value will be stored
30
continues on page 30
Setting the decimal point and the minus sign
DECIMAL POINT
Its selection in the menu, upon modification of the number to be adjusted it is performed by the control key with transition
beyond the highest decade, when the decimal point starts flashing . Positioning is performed by /.
THE MINUS SIGN
Setting the minus sign is performed by the key on higher decade. When editing the item substraction must be made from
the current number (e.g..: 013 > , on class 100 > -87)
1T2M
4285.42
Ralay status
ON the digit is lit
OFF the digit is not lit
OFF the digit is flashing
limits withrestriction
(hysteresis, delay)
Function
M Min/max. value
T Tare
Measured value
the last two places may display
measuring units
INSTRUMENT SETTING4

INSTRUCTIONS FOR USE OM 602RS |11
Control keys functions
Setting items into „USER“ menu
• in LIGHT or PROFI menu
• no items permitted in USER menu from manufacture
• on items marked by inverted triangle
NO item will not be displayed in USER menu
YES item will be displayed in USER menu with the option of setting
SHOW item will be solely displayed in USER menu
4INSTRUMENT SETTING
Key Measurement Menu Setting numbers/selection
access into USER menu exit menu quit editing
programmable key function back to previous level move to higher decade
programmable key function move to previous item move down
programmable key function move to next item move up
programmable key function confirm selection confirm setting/selection
+numeric value is set to zero
+access into LIGHT/PROFI menu
+direct access into PROFI menu
+configuration of an item for
“USER” menu
+determine the sequence of items
in “USER - LIGHT” menu


--- +NO YES SHOW ---
return to item
legend is flashing - current setting is displayed

12 |INSTRUCTIONS FOR USE OM 602RS
5.0 Setting “LIGHT”
LIGHT Simple programming menu
- contains only items necessary for instrument setting and is protected by optional number code
5
light
light
• For capable users
• Only items necessary for instrument
setting
• Access is password protected
• Possibility to arrange items of the
„User“ menu
• Linear menu structure
Setting LIGHT
SETTING
Password “0”
Menu LIGHT
USER menu off
Setting the items DEF
Preset from manufacture
Upon delay exceeding 60 s the programming mode
is automatically discontinued and the instrument
itself restores the measuring mode
!

INSTRUCTIONS FOR USE OM 602RS |13
5SETTING
light
light
Option - Analog output
TY P . A . O . MIN A . O . MAX A. O. 1000I 20
Option - comparator
142. 8 PASSW.0
Access password
LIM . L.1 20 LIM . L. 2 40 LIM . L.3 60 LIM . L.4 80
Return to measur-
ing mode
Identification
142. 8IDENT.YES OM602RS 64
Instrument type SW number
Setting - Float
100.00MAX.9F000.00MIN .9F
Setting - Float
Selection input range - min
000.00MIN A
Selection input range - max
100.00MAX A
Setting - Integer Setting - Integer
0
MAX. 2
0MAX. 10MAX. 0
Setting - Integer Setting - Integer
100MAX. 3
0000.ooFO RM . A
Projection
Instrument address Data protocol
ASCIIPROT.0ADDR.9600BAUD
Baud rate Commaand
0COMMA.
Setting - Integer Setting - Integer
0MIN . 20MIN . 10MIN . 0
Setting - Integer Setting - Integer
0MAX. 3
MENU LIGHT RE.SET.FIRM LANG.EN GL.
Menu type Return to manufacture setting Language selection
PAS.LI.0
New password
MAX. 2
Setting - Request (REQ.1…REQ.8) Setting - Communi. failure
DASHESMOD T. O.REQ. 1REQUES.ST O P 1STO P
Setting - closing sequence Setting - Timeout
1.0TIMEOU.
Setting - Signum position Signum supression
YESPL.SUP.0SI.POS.49AD R . 2
Setting - 2.address symbol Setting - Data position
0DA.POS.
Setting - 2.innitial sequence Setting - Adrress position
0AD .POS.0STA RT. 22STA RT.1
Setting - 1.innitial sequence Setting - 1.address symbol
48Adr. 1
+

14 |INSTRUCTIONS FOR USE OM 602RS
142. 8
PASSW. 0 Entering access password
for access into the menu
PASSW.Access into instrument
menu
PAS = 0
- access into menu is unrestricted, after
releasing keys you automaticaly move to first
item of the menu
PAS > 0
- access into menu is protected ny number
code
Set “Password” = 42 Example
0 1 2 0212
42
22
32BAUD
5
light
light
SETTING
BAUD Selection of transmission
rate of the data output
- selection of range: 600/1200/2400/960
0/19200/38400/57600/115200/2304
00 Baud
DEF = 9600


BAUD
Selection of rate 115200 Baud > BAUD = 115200 Example
9600 3840019200 11 5 2 0 0 57600 ADDR.
600 1200 2400 57600 11 5 2 0 0 230400

INSTRUCTIONS FOR USE OM 602RS |15
5
light
light
SETTING


0
ADDR.Setting instrument address
DEF = 0
Setting instrument
address
ADDR.
Address 10 > ADDR. = 10 Example
01000PROT.
PROT.Selection of data protocol
DEF = ASCII
PROT.
Menu Description
ASCII Data protocol ASCII
M. BUS Data protocol DIM MessBus
MASTER
Instrument solicits data from subordinate system
- instrument controls data tansmission from subordinate system
- “COMMAN” may be used for selection of received data (for commands see data protocol)
- instrument asks 10 questions/s, if no response arrives within 2 sthe display shows “ - - - -
SLAVE Passive display - slave is used where there is communication of other isntruments or a computer in the “MASTER” mode. If “COMMAND” is correctly received, the instrumetns will display
the data.
UNIVER.
Universal protocol
- in dynamic v dynamických items (Start, Adr-Un, Num Sign, Data, Stop, Request) cutom
protocol can be set up.
PROT.ASCII M . BUS MASTER SLAVE
Data protocol = ASCII > ASCII Example
COMMA.ASCII
UNIVER.

* subsequent item on the menu depends on instrument setting

16 |INSTRUCTIONS FOR USE OM 602RS
Command > uu Example
MIN . 0
0
COMMA.Setting - Command
DEF = uu (two spaces)
Setting - Command
COMMA.
uu * subsequent item on the menu depends on instrument setting
If is „COMMAND“ „uu“ (two spaces) is broadcast
query on data #AA<CR>.
Else #AA<<COMMAND>><CR> will wait on
confirmation „!AA“ and after it will send out request
about data #AA<CR>
!
MIN . 0 Selection integer input
range - min - MSB
- setting minimum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
Selection integer input range > MIN.0 = 0 Example
0Selection of integer intput
range - min 0 

MIN . 0
0MIN . 1


5
light
light
SETTING

INSTRUCTIONS FOR USE OM 602RS |17
MIN . 2 Selection of float input
range - min
- setting minimum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
MIN . 1 Selection of integer input
range - min
- setting minimum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
Selection integer input range > MIN.1 = 0 Example
0Selection of integer intput
range - min 1 

MIN . 1
0MIN . 2
Selection integer input range > MIN.2 = 0 Example
0Selection of integer intput
range - min 2 

MIN . 2
0MIN . 3
5
light
light
SETTING

18 |INSTRUCTIONS FOR USE OM 602RS
MAX. 0 Selection of integer input
range - max - MSB
- setting maximum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
MIN . 3 Selection of integer input
range - min - LSB
- setting minimum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
Selection integer input range > MIN.3 = 0 Example
0Selection of integer intput
range - min 3 

MIN . 3
0MAX. 0
Selection integer input range > MAX.0 = 0 Example
0Selection of integer intput
range - max 0 

MAX. 0
0MAX. 1
5
light
light
SETTING

INSTRUCTIONS FOR USE OM 602RS |19
MAX. 1 Selection of integer input
range - max
- setting maximum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
MAX. 2 Selection of integer input
range - max
- setting maximum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
Selection integer input range > MAX.1 = 0 Example
0Selection of integer intput
range - max 1 

MAX. 1
0MAX. 2
Selection integer input range > MAX.1 = 0 Example
0Selection of integer intput
range - max 2 

MAX. 2
0MAX. 3
5
light
light
SETTING

20 |INSTRUCTIONS FOR USE OM 602RS
MAX. 0 Selection of integer input
range - max - MSB
- setting maximum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
MIN . 3 Selection of integer input
range - min - LSB
- setting minimum value of input data, it is
entered by individual bytes in range 0…255
- the input data format is sign integer 32 bits
- range: -2147483648…2147483647
(0x80000000…0x7FFFFFFF)
DEF = 0
Selection integer input range > MIN.3 = 0 Example
0Selection of integer intput
range - min 3 

MIN . 3
0MAX. 0
Selection integer input range > MAX.0 = 0 Example
0Selection of integer intput
range - max 0 

MAX. 0
0MAX. 1
5
light
light
SETTING
