OVERVIEW
FRONT VIEW
1. CHANNEL: toggle between indoor and outdoor
channels (1-3); activate / deactivate / auto-toggle
2. : indoor temperature / humidity is displayed
3. : main unit batteries low
4. MIN/MAX: indicates type of data being displayed
5. : sensor batteries low
6. : remote sensor reception indicator and outdoor
channel selected
7. MIN.MAX.: view current, maximum and minimum indoor
/ outdoor temperature and humidity; clear records
8. Temperature
9. Humidity
10. Ice alert LED indicator
BACK VIEW
1. Magnets for mounting
2. Wall mount hole
1
2
3
4
5
6
7
8
9
10
+-
+-
1
2
3
4
5
6
7

EN
3
3. °C / °F: select temperature unit
4. RESET: reset unit to default settings
5. SENSOR: initiate search for sensor
6. Pole compartment
7. Battery compartment
SENSOR
12
5
3
4
+-
1. LED indicator: ashes when remote unit transmits a
reading
2. Wall mount hole
3. RESET: reset unit to default settings
4. CHANNEL switch
5. Battery compartment
GETTING STARTED
MAIN UNIT INSTALLATION
Insert batteries:
1. Slide open the battery compartment cover.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.
4. Replace the battery compartment cover.
NOTE Batteries should not be exposed to excessive heat
such as sunshine or re.
SENSOR INSTALLATION
1. Slide open the battery compartment cover.
2. Insert the batteries matching the polarities (+/-).
SYNCHRONISING WITH SENSOR
1. Press CHANNEL on main unit to select a channel.
2. On sensor, slide channel switch to corresponding
channel. (For additional sensors, select a different
channel). Press RESET.
3. Press SENSOR on main unit to initiate search.

EN
4
The sensor reception icon shows the status:
ICONS MEANING
Main unit is searching for
sensor(s)
A sensor channel has been
found and logged on
and “--.-”
No sensor found
4. Secure the sensor in the desired location using the
wall mount hole.

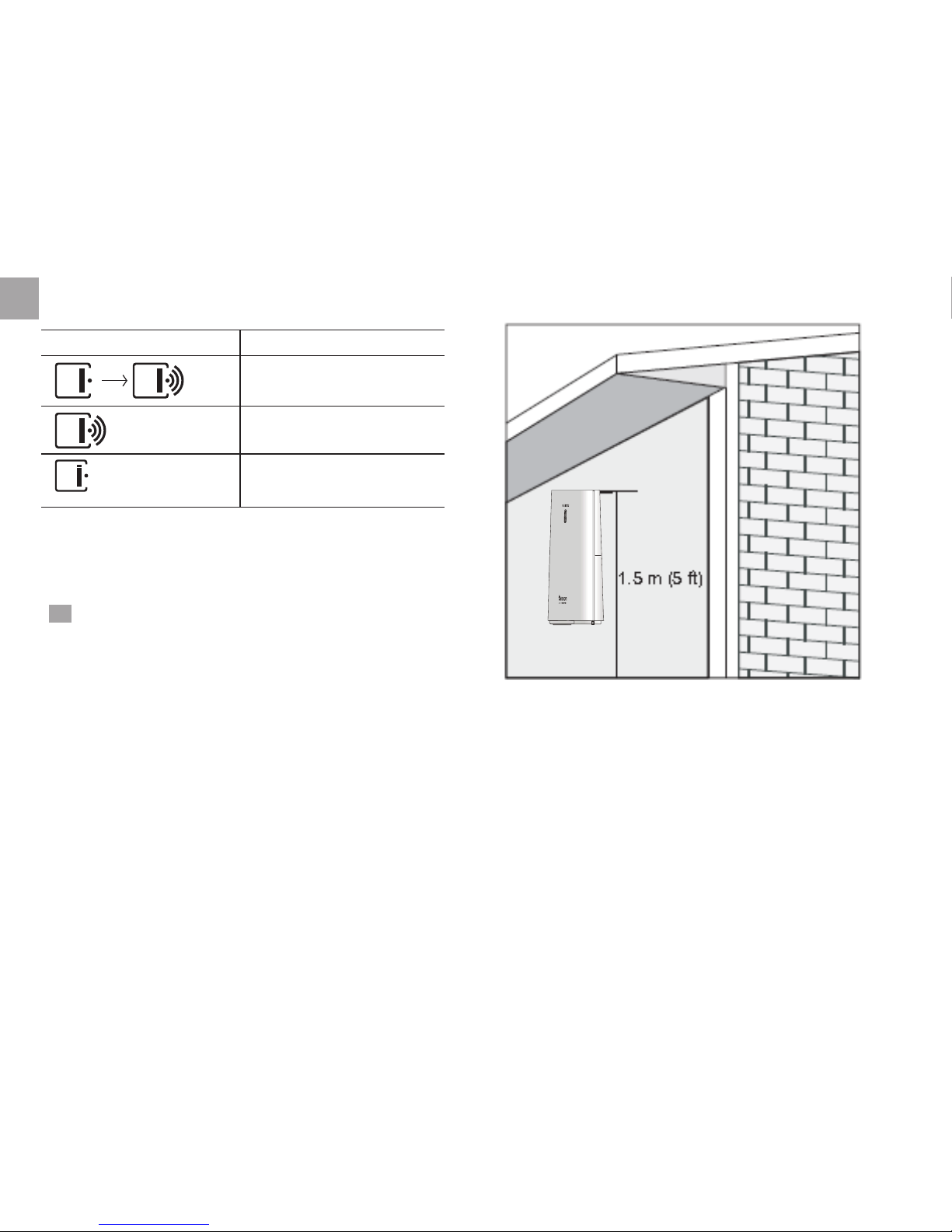

TIP Ideal placements for the sensor would be in any location
on the exterior of the home at a height of not more than
1.5 m (5 ft) and which can shield it from direct sunlight or wet
conditions for an accurate reading.
For best results:
• Place the sensor within 30m (100 ft) of the main unit.
• Place the sensor out of direct sunlight and moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to the sky,
away from metallic / electronic objects.

EN
5
• Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
TIP The transmission range may vary depending on many
factors. You may need to experiment with various locations
to get the best results.
NOTE Use alkaline batteries for longer usage and consumer
grade lithium batteries in temperatures below freezing.
TEMPERATURE AND HUMIDITY
To select temperature unit:
Slide °C / °Fswitch.
To toggle between each sensor’s readings:
Press CHANNEL repeatedly
OR
Press and hold CHANNEL for 2 seconds to initiate auto
toggle of channel readings.
To end, press CHANNEL.
To toggle between current, minimum and maximum
records for the past 24 hours:
Press MIN. MAX. repeatedly.
To clear the records:
Press and hold MIN. MAX.
ICE WARNING
If temperature recorded falls between -2°C to 3°C (29°F to
37°F), LED indicator will ash and will stop ashing once the
temperature is out of this range.
PLACING OF UNIT
Mounting on metallic surface:
Place onto surface.
Mounting on wall:
Use wall mount hole.

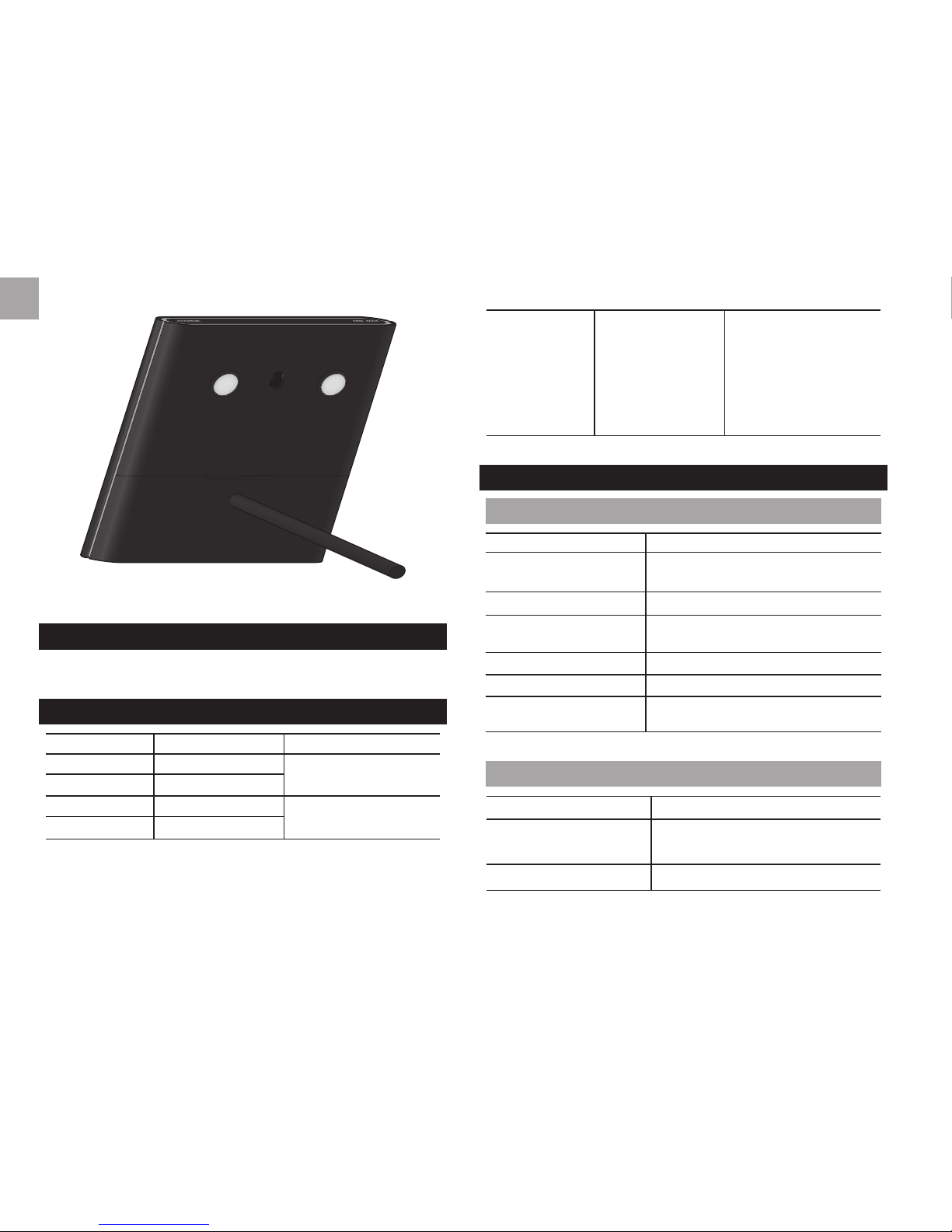

Placing on a at surface:
1. Remove battery compartment cover.
2. Remove pole from casing.
3. Replace battery compartment cover.
4. Insert pole through hole and place in desired position.

EN
6
RESET
Press RESET to return to default settings.
TROUBLESHOOTING
DISPLAY AREA PROBLEM
LL.L Temperature Reading is
below range
LL Humidity
HH.H Temperature Reading is
above range
HH Humidity
-- Humidity Temperature
is out of range
for calculating
relative humidity;
sensor does not
have humidity
function
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 105 x 16 x 112 mm (4.1 x 0.6
x 4.4 in)
Weight 136g (4.8 oz) without battery
Temperature
range
-5°C to 50°C (23°F to 122°F)
Humidity range 20% - 90%
Signal frequency 433 MHz
Power 2 x UM-4 (AAA) 1.5 V
batteries
SENSOR
TYPE DESCRIPTION
L x W x H 57 x 27 x 100
2.2 x 1.1 x 3.9 in
Weight 54g (1.9 oz) without battery

EN
7
Temperature
range
-20°C to 60°C (-4°F to
140°F)
Humidity range 20% - 90%
Transmission
range
30 m (100 ft) unobstructed
Power 2 x UM-4 (AAA) 1.5 V
batteries
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity.
• Do not cover the ventilation holes with any items such as
newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer’s care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a battery
safety strip. Remove the strip from the battery
compartment before rst use.
• Should there be any discrepancy between the English
and other language versions, the English version shall
apply and prevail.
NOTE The technical specications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
