Oregon PS250 User manual

Original Instruction Manual
Pole Saw Model PS250
Manuel d’Instructions Original
Scie à Long Manche Modèle PS250
Manual de Instrucciones Original
Sierra De Poste Modelo PS250
Manual De Instruções Original
Moto-Poda Modelo PS250

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WARNING: Read and understand all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings
and instructions for future reference.
This instruction manual contains translations of a manual drafted in English and are provided to assist those
who do not speak English as their first language. Being a technical writing, some terms may not have a like or
equivalent meaning as translated. Therefore, you should not rely on this translation, and should cross-reference
the English version, where relying on the translated instructions could result in harm to your person or property.
Français. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
AVERTISSEMENT : Prenez connaissance de tous les avertissements et consignes de sécurité.
L’inobservation de ces avertissements et consignes comporte des risques d’électrocution, d’incendie
et/ou de lésions graves. Rangez ces consignes et avertissements en lieu sûr afin de pouvoir les
consulter ultérieurement.
Ce manuel d’utilisation contient plusieurs traductions d’un document rédigé en anglais. Ces traductions visent
à aider les utilisateurs dont l’anglais n’est pas la langue maternelle. Comme il s’agit d’un document technique,
certains termes sont susceptibles de prendre une signification différente après traduction. Par conséquent,
vous ne devez pas vous fier aveuglément à cette traduction. Reportez-vous à la version anglaise si vous
percevez que le respect des consignes traduites pourrait occasionner des dommages matériels ou des lésions
corporelles.
Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
ADVERTENCIA: Lea y entienda todas las advertencias de seguridad e instrucciones. El
incumplimiento de las advertencias e instrucciones puede dar lugar a descargas eléctricas, incendios
o lesiones graves. Guarde todas las advertencias e instrucciones para referencia futura.
Este manual de instrucciones contiene traducciones de un manual redactado en inglés y se ofrece para ayudar
a aquellos que no hablan inglés como primer idioma. Al tratarse de un texto técnico, algunos términos pueden
no tener un significado similar o equivalente en la traducción. Por lo tanto, no debe confiar en esta traducción, y
debería ir consultando la versión inglesa en aquellos puntos donde la confianza en las instrucciones traducidas
pueda causar daños a su persona o a la propiedad.
Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
ADVERTÊNCIA: Leia e entenda todas as advertências e instruções de segurança. A falha em seguir
todas as advertências e instruções pode resultar em choque elétrico, incêndio e/ou lesão pessoal
séria. Guarde todas as advertências e instruções para consultá-las no futuro.
Este manual de instruções contém traduções de um manual escrito em inglês e tem a finalidade de ajudar
quem não fala inglês como idioma nativo. Como se trata de escrita técnica, alguns termos podem não ter um
significado semelhante ou equivalente quando traduzidos. Portanto, não confie unicamente nesta tradução.
Consulte a versão em inglês quando confiar na tradução em português puder resultar em danos pessoais ou à
propriedade.

4Pole Saw Model PS250
Table of Contents
©  Blount, Inc. Pricing and specifications subject to change without notice. All rights reserved. Oregon® is a registered trademark of Blount, Inc.
in the United States and/or in other countries.
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety Signal Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
General Power Tool Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Work Area Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Electrical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Personal Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Extended Reach Pole Saw Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Power Tool Use and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Battery Tool Use and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Pole Saw Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Storage, Transporting, and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Battery Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Charger Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Symbols and Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pole Saw Names and Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Assembling the Extendable Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Filling the Bar and Chain Oil Reservoir. . . . . . . . . . . . . . . . . . . . . . . . . . .17
Assembling the Guide Bar and Saw Chain . . . . . . . . . . . . . . . . . . . . . . . . 18
Tensioning the Saw Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Operating the Pole Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Battery Pack and Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cutting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Sharpening the Saw Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Maintaining the Guide Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacing a Worn Saw Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacing a Worn Guide Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacing the Drive Sprocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Tensioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Additional Maintenance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Specifications and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warranty and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Table of Contents

5
Pole Saw Model PS250
Important Safety Instructions
Important Safety Instructions
Introduction
The pole saw is designed for regular maintenance and cutting of branches  in ( cm) or less
in diameter. Other uses may cause injury and are not recommended. However, even with this
technology, it is recognized that residual risk, such as thrown objects, still exist. The operator is
directed to closely read, understand, and follow all safety precautions to reduce potential injury
from these risks.
Safety Signal Definitions
SYMBOL SIGNAL MEANING
WARNING Indicates a potential hazard which could result in serious injury.
CAUTION Indicates a potential hazard which could seriously damage the
tool or cause minor to moderate injury.
IMPORTANT Following this instruction will increase satisfaction with the tool.
General Power Tool Safety Warnings
WARNING: Read and understand all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference. The term “Power Tool” in the warnings
refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.
Work Area Safety
•Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
•Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while
operating a power tool (Fig. ). Distractions
can cause you to lose control.
CAUTION: Establish a bystander safety
zone of  ft ( m) prior to operation of
this equipment. Bystander safety zone is
a  ft ( m) circle around the operator that
must remain free from bystanders, children,
and pets.
30 ft (9 m)
FIG. 1

6Pole Saw Model PS250
Important Safety Instructions
Electrical Safety
•Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
•Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
•Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
•Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
•When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
•If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply or
ground fault circuit interrupter (GFCI). Use
of a RCD (GFCI) reduces the risk of electric
shock.
Personal Safety
•Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
•Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger on
the switch or energizing power tools that have
the switch on invites accidents.
•Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
•Do not overreach. Keep proper footing and
balance at all times (Fig. ). This enables
better control of the power tool in unexpected
situations.
FIG. 2

7
Pole Saw Model PS250
Important Safety Instructions
•Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
•If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
Extended Reach Pole Saw Safety
•Keep all parts of the body away from the
saw chain. Do not remove cut material
or hold material to be cut when blades
are moving. Make sure the switch is off
when clearing jammed material. Saw chain
continues to move after the switch is turned
off. A moment of inattention while operating
the extended-reach pole saw may result in
serious personal injury.
•Carry the extended-reach pole saw by the
handle with the saw chain stopped. When
transporting or storing the extended-
reach pole saw, always fit the saw
chain device cover. Proper handling of the
extended-reach pole saw will reduce possible
personal injury from the saw chain.
•Hold the extended-reach pole saw by
insulated gripping surfaces only, because
the saw chain may contact hidden wiring.
A saw chain contacting a “live” wire may make
exposed metal parts of the extended-reach
pole saw “live” and could give the operator an
electric shock.
•Do not use the extended-reach pole saw
in bad weather conditions, especially
when there is a risk of lightning. This
decreases the risk of being struck by lightning.
•To reduce the risk of electrocution, never
use near any electrical power lines.
Contact with or use near power lines may
cause serious injury or electric shock resulting
in death.
•Always use two hands when operating
the extended-reach pole saw. Hold the
extended-reach pole saw with both hands to
avoid loss of control.
•Always use head protection when
operating the extended-reach pole saw
overhead. Falling debris can result in serious
personal injury.
Power Tool Use and Care
•Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
•Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
•Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
•Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.

8Pole Saw Model PS250
Important Safety Instructions
•Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power
tool repaired before use. Many accidents
are caused by poorly maintained power tools.
•Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
•Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
Battery Tool Use and Care
•Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of battery pack may
create a risk of fire when used with another
battery pack.
•Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
•When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
•Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
Service
Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
Pole Saw Safety Warnings
DANGER: Contact with a moving saw
chain will result in serious personal injury.
Keep hands and body away from moving saw
chain.
DANGER: Contact with electrical wiring
during use may cause exposed metal parts
of the tool to become live, resulting in
serious personal injury. Always hold the pole
saw by the insulated gripping surfaces during
operation.
WARNING: The use of an improperly
assembled pole saw may result in serious
personal injury. Only use this tool after it
has been properly assembled according to
“Unpacking and Assembly” in this manual.
WARNING: Moments of inattention
during operation of the pole saw may result
in serious personal injury. Before starting the
pole saw, minimize all distractions, keep body
parts away from saw chain, and make sure the
chain is not in contact with any objects.

9
Pole Saw Model PS250
Important Safety Instructions
WARNING: Using one hand to operate
the pole saw can result in personal injury.
Use both hands when operating the pole saw
(see Fig. ).
CAUTION: Contact from flying debris,
or accidental contact with the saw chain,
may result in personal injury. Always wear
protective equipment for head, hands, legs and
feet.
CAUTION: Limbs under tension can
“spring back” and contact the operator or
throw the pole saw out of control, resulting
in personal injury. Always be alert for wood
under tension which may strike the operator or
pole saw when cut.
CAUTION: Improper chain tension or
lubrication may increase the chance of
injury due to kickback. Always follow the
instructions in “Tensioning the Saw Chain” in
this manual.
CAUTION: Wet or greasy gripping
surfaces may cause a loss of control of the
tool, resulting in personal injury. Always
keep handles dry, clean, and free of oil and
grease.
CAUTION: Using the pole saw for
applications other that its designed
purpose may result in a hazardous
condition. The pole saw is designed solely for
cutting small wood branches.
CAUTION: To prevent accidental contact
with the saw chain during transport,
always fit the blade cover and keep hands
and fingers away from trigger area (Fig. ).
CAUTION: Prolonged use of power
tools has been reported to cause vascular,
muscular, or neurological disorders (such
as vibration white finger or Raynaud’s
syndrome). To reduce the risk of injury, follow
these instructions:
–Wear gloves and keep hands and body
warm.
–Maintain a firm grip on the pole saw,
but do not use prolonged, excessive
pressure.
–Take frequent breaks.
The vibration in normal use can differ from the
stated values depending on the material being
cut, maintenance of the cutting system, and
other factors.
Total hand vibration has been measured in
accordance with the relative standard test
method and may be used to compare one tool
to another.
Total hand vibration values may also be used
for a preliminary assessment of exposure.
FIG. 3 FIG. 4

10 Pole Saw Model PS250
Important Safety Instructions
Storage, Transporting, and
Disposal
WARNING: A battery operated tool with
the battery pack inserted is always on and
can start accidentally. Remove the battery
pack from the pole saw before attaching
the extendable shaft, bar, and chain.
STORING THE POLE SAW
•Remove the battery pack from the pole saw.
•Clean pole saw thoroughly.
•Install the blade cover.
•Store in a dry place.
•Keep out of reach of children or pets.
•It is normal for a small amount of oil to seep
from the guide bar when the pole saw is not
in use. To protect against seepage, install the
blade cover and place an absorbent pad under
the bar.
STORING THE BATTERY PACK
When storing the battery pack longer than nine
months, follow these guidelines:
•Remove the battery pack from the pole saw
or charger.
•Store in a cool, dry place.
•Keep out of reach of children or pets.
•To prolong battery life, never store battery
pack in a completely discharged condition
(with no indicator lights lit) (Fig. ).
•For maximum battery life, make sure the
battery pack is charged once per year or when
the LED indicator shows only one light.
•Store at a temperature between -°F to °F
(-°C and °C).
STORING THE CHARGER
•Remove battery pack from the charger.
•Disconnect charger from power source.
•Store in a dry place.
•Keep out of reach of children or pets.
See “Maintenance and Cleaning” for more
information.
TRANSPORTING THE POLE SAW
•Remove battery pack from the pole saw.
•Install the blade cover.
•If desired, drain the bar and chain oil to reduce
seepage.
•Tools can shift during transport. Ensure the
tool is secure and cannot fall or move into
contact with people or property.
TRANSPORTING THE BATTERY PACK
Observe respective local and national
regulations when shipping lithium ion batteries,
compulsory labeling may be required.
POLE SAW AND CHARGER DISPOSAL
The Oregon® product is designed and
manufactured with high quality materials
and components which can be recycled and
reused. Please dispose of this equipment in
an environmentally correct manner at a local
community waste collection/recycling center.
FIG. 5
INDICATOR LIGHTS

11
Pole Saw Model PS250
Important Safety Instructions
BATTERY PACK DISPOSAL
Do not dispose of battery pack in household
garbage or incinerate. Local waste
management and recycling agencies have
information on proper recycling or disposal
instructions. Battery packs can be collected in
the United States or Canada through
Rechargeable Battery Recycling Corporation.
Oregon® has already paid the costs involved to
recycle battery packs. Return end of life battery
packs to participating retailer or recycling
center. Return locations and more information
can be found at www.callrecycle.org or
--BATTERY.
Battery Safety
WARNING: Improper battery care
can cause the battery to leak hazardous
chemicals, overheat, emit smoke, burst,
flare, explode, and/or ignite. Follow these
safety rules.
CAUTION: Do not dispose of the
battery pack in the household waste or
fire. Lithium ion battery packs should be
recycled by a local authorized recycler.
IMPORTANT: Exposure to excessive heat
can cause a loss in performance and/or
service life. Do not expose battery pack to
excessive heat, such as the interior of a
vehicle in hot weather.
•Do not attempt to recharge a non-
rechargeable battery pack.
•Do not disassemble or modify the battery
pack. This can damage safety features.
•Do not connect the positive (+) and negative
(-) terminals with metal objects or store the
battery pack with metal objects such as coins
or screws. This can cause short-circuiting and
generate enough heat to cause burns.
•Do not incinerate the battery pack or expose
to excessive heat. This can melt insulation or
damage safety features.
•Do not use, charge, or store near heat higher
than °F (°C). This can cause overheating
and internal short-circuiting.
•Do not expose to extremely wet conditions.
This can damage safety features, cause
extremely high current and voltage charging,
and lead to abnormal chemical reactions.
•Use only the charger specifically designed
for the battery pack, and follow the safety
precautions described in “Charger Safety”.
Using another charger can damage safety
features, cause extremely high current and
voltage charging, and lead to abnormal
chemical reactions.
•Do not use Oregon® branded battery packs in
non-Oregon® branded tools.
•Do not strike, pierce, or throw the battery
pack, and do not use a damaged or deformed
battery pack.
•If recharging fails, do not attempt to recharge.
•If the battery pack gives off an odor, generates
heat, or is discolored, deformed, or abnormal
in any way during use, recharging, or storage,
immediately remove from the pole saw or
charger.
•Any liquid leaking from the battery is
corrosive, can damage eyes and skin, and may
be toxic if swallowed.

12 Pole Saw Model PS250
Important Safety Instructions
Charger Safety
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Risk of Electric Shock. When
used outdoors, install only to a covered
“Class A” GFCI protected receptacle
that is weatherproof with the power unit
connected to the receptacle. If one is not
provided, contact a qualified electrician
for proper installation. Ensure that the
power unit and cord do not interfere with
completely closing the receptacle cover.
IMPORTANT: This appliance is not intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of knowledge, unless
they have been given supervision or
instruction by a person responsible for
their safety. Children should be supervised
to ensure that they do not play with the
appliances.
IMPORTANT: Use this charger only with the
supplied power cord, making sure that the
input plug correctly mates to the output
receptacle.
When using electrical products, basic
precautions should always be practiced
including the following:
•Read and follow all safety instructions
before use. Read and follow all instructions
that are on the product or provided with the
product.
•Save these instructions.
•Do not use an extension cord.
•Damaged or entangled cords increase
the risk of electric shock. Do not abuse the
cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts.
•Do not expose the charger to rain. For
indoor use only.
•Do not use within  feet ( m) of a pool.
•Do not use in a bathroom.

13
Pole Saw Model PS250
Symbols and Labels
Symbols and Labels

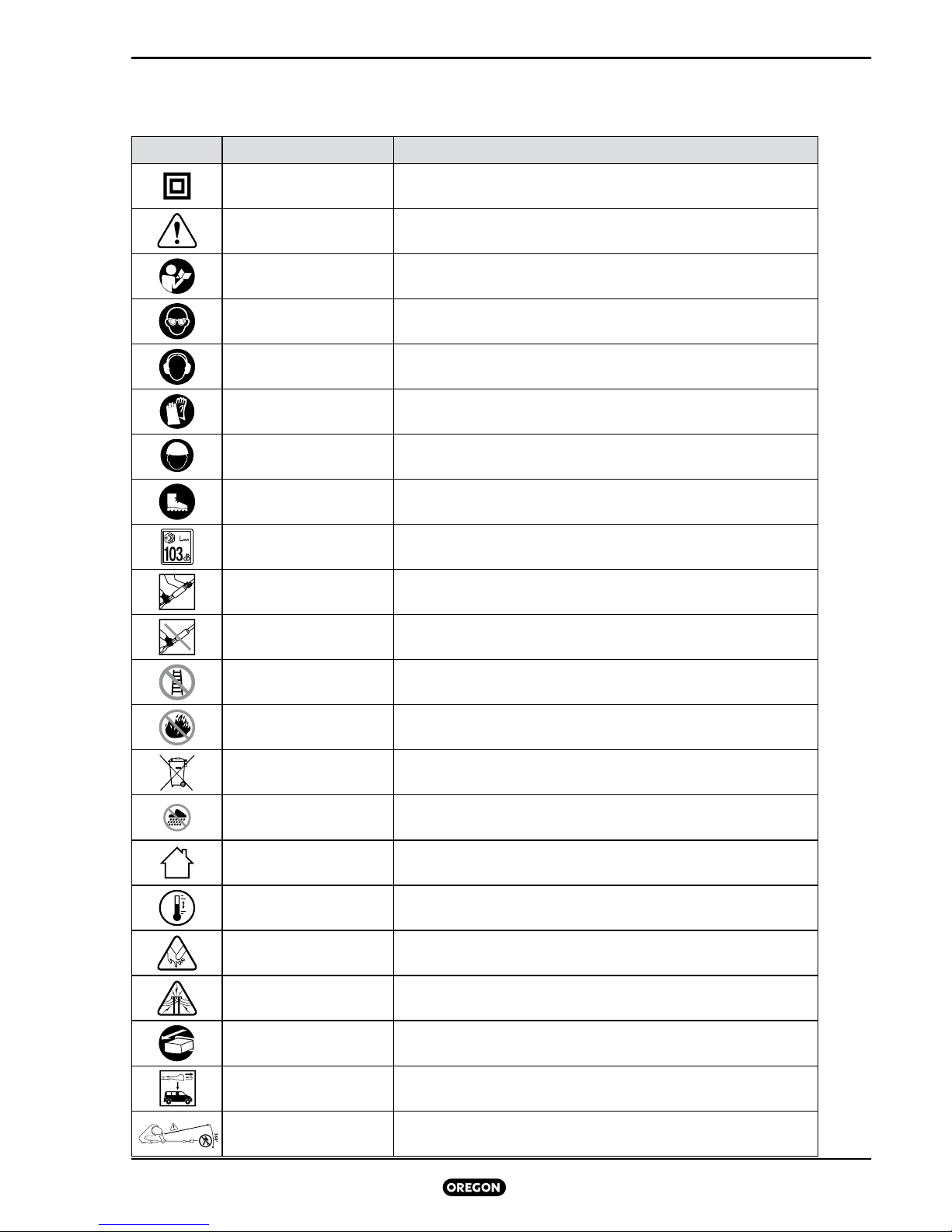

These symbols and labels appear on the pole saw, battery, and charger.
SYMBOL NAME EXPLANATION
Class II construction Designated double insulated construction tools
Safety alert symbol Indicates that the text that follows explains a danger, warning,
or caution.
Read instructions The original instruction manual contains important safety and
operating information. Read and follow the instructions carefully.
Wear eye protection Wear eye protection when operating the pole saw.
Wear hearing
protection Wear hearing protection when operating the pole saw.
Wear hand protection Wear gloves when operating the pole saw and when handling the
saw chain.
Wear head protection Wear a hard hat when using the pole saw.
Wear foot protection Wear appropriate closed-toe work boots when operating the
pole saw.
Sound power Sound power level is 103 dB.
Two-handed hold Hold pole saw with both hands.
One-handed hold Do not hold the pole saw with one hand.
Do not use a ladder Never stand on a ladder when using the pole saw.
Do not incinerate Do not dispose in flames.
Do not dispose Do not throw in household waste. Take to an authorized recycler.
Do not expose to rain Do not operate the charger in wet conditions.
Indoor use only Intended for indoor use only.
Operating temperature Only use the battery pack at a temperature between 32°F to
104°F (0°C and 40°C).
Cutting tool Cutting tool. Do not touch the chain without first deactivating the
pole saw by removing the battery pack.
Use care around
electrical lines
Never operate the pole saw near any wires that may be carrying
electric current.
Remove battery Remove the battery before performing any maintenance.
Remove battery prior
to transport
Remove the battery pack from the pole saw prior to storage,
transportation or disposal.
30 ft (9 m)
Bystander safety zone Establish a bystander safety zone of 30 ft (9 m) around the
operator.

14 Pole Saw Model PS250
Pole Saw Names and Terms
Pole Saw Names and Terms
Alignment flange: The protrusion on the bar
pad that fits into the bar slot.
Automatic oiler: The system that
automatically lubricates the guide bar and saw
chain.
Bar pad: The mounting pad on the cutting
head that helps ensure proper alignment of the
guide bar.
Bar slot: The cutout portion of the guide bar
that fits onto the alignment flange and the
mounting stud.
Blade cover: The plastic cover that protects
the guide bar and saw chain when the pole saw
is not in use.
Branch removal hook: A curved metal part
on the end of the cutting head used for pulling
loose limbs from trees.
Bystander safety zone: A  ft ( m) circle
around the operator that must remain free from
tripping hazards, bystanders, children, and pets.
Chain gauge: The thickness of the saw
chain drive link, indicated by the part number
stamped on the drive links.
Chain pitch: The distance between any
three rivets on the saw chain divided by two,
indicated by the part number stamped on the
drive links.
Debris deflector: A plastic trough on the
cutting head that channels dust and wood
chips away from the operator during cutting.
Depth gauge tool: A tool that, when placed on
top of the saw chain during sharpening, ensures
that the cutting depth is set correctly.
Drive link: The fin-shaped link of the saw chain
that fits into the groove on the guide bar.
Drive sprocket: The toothed part that drives
the saw chain.
Extendable shaft: The shaft between the
powerhead and the cutting head that can be
lengthened to reach limbs higher in trees.
Extension collar: A rotating plastic part on
the extendable shaft that is loosened to allow
extension and tightened to keep the extendable
shaft in place.
File guide: A tool that, when combined with
the proper saw chain file, ensures that saw
chain cutters are sharpened at the correct
angle.
Guide bar: A railed structure that supports and
guides the saw chain. Sometimes simply called
the “bar”.
Harness: A safety device worn by the operator
and connected to the pole saw that helps
distribute the weight of the pole saw.
Motor housing: The plastic sheath into which
the extendable shaft is fitted during assembly.
Pole saw powerhead: A pole saw without the
extendable shaft, saw chain, or guide bar.
Rear handle: The support handle located at or
toward the rear of the saw.
Saw chain: A loop of chain with cutting
teeth that cuts the wood and is driven by the
powerhead and is supported by the guide bar.
Sometimes simply called the “chain”.
Side cover: The plastic cover on the cutting
head that covers the drive sprocket and
tensioning screw.
Tensioning pin: The metal part attached to
the tensioning screw that fits through the hole
on the guide bar.
Tensioning screw: The threaded part inside
the cutting head that is adjusted to control the
tension of the saw chain.
Trigger lock-out: A movable stop that
prevents the unintentional operation of the
trigger switch until manually actuated.
Trigger switch: A device that turns the pole
saw on and off.
Wear parts: Parts such as the saw chain and
guide bar that wear during use and can be
replaced by the user.

15
Pole Saw Model PS250
Product Identification
Product Identification

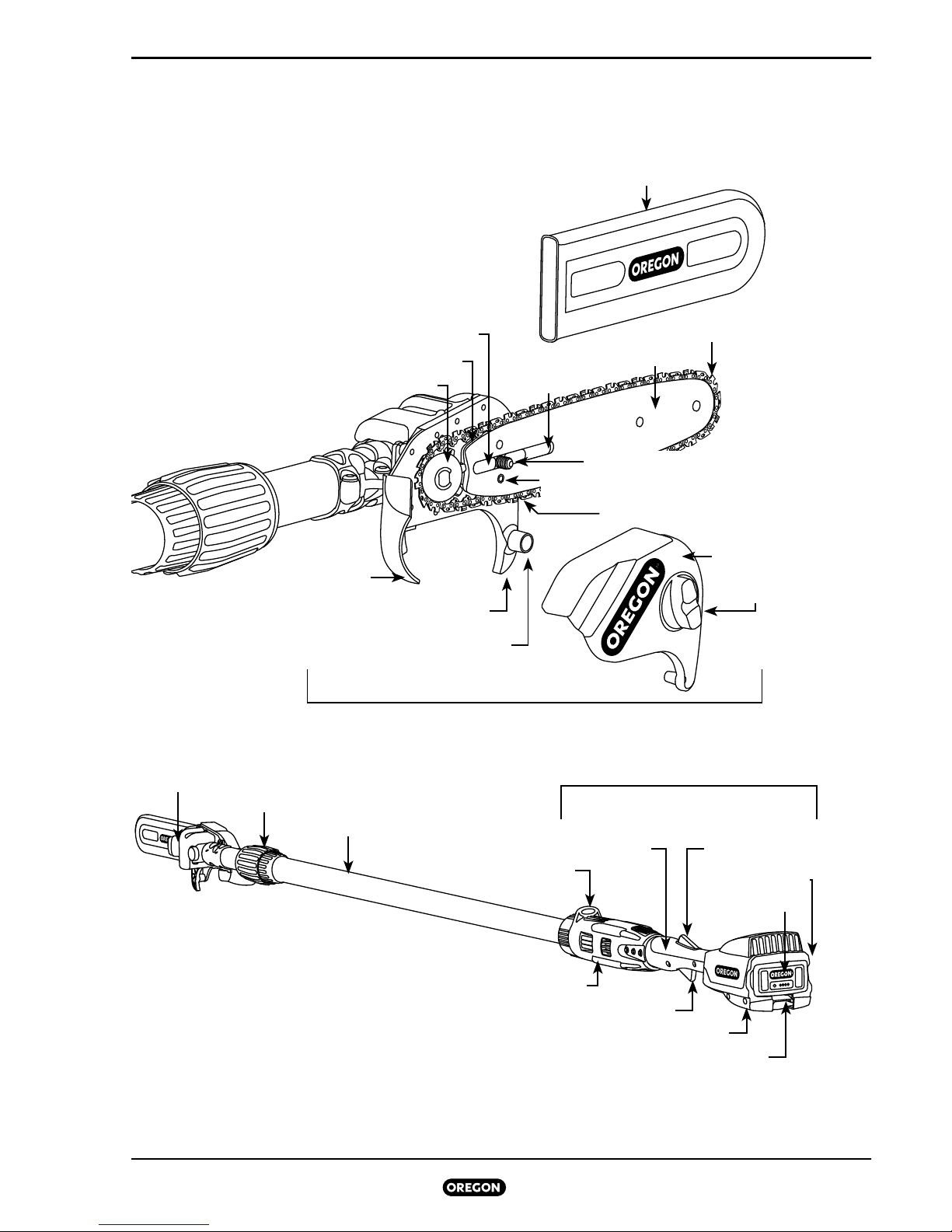

Know the Pole Saw
NOTE: See “Unpacking and Assembly” for a list of included items.
BRANCH REMOVAL HOOK
CUTTING HEAD
SIDE COVER
SIDE COVER
KNOB
CHAIN CATCH
BLADE COVER
DRIVE SPROCKET
BAR PAD
ALIGNMENT FLANGE
BAR SLOT
TENSIONING PIN
GUIDE BAR
SAW CHAIN
DEBRIS DEFLECTOR
MOUNTING STUD
TENSIONING SCREW
REAR HANDLE GRIP TRIGGER SWITCH
LOCKOUT
TRIGGER SWITCH
HARNESS ATTACHMENT RING
MOTOR HOUSING
EXTENDABLE SHAFT
EXTENSION COLLAR
PRODUCT NAME PLATE
BATTERY PORT
BATTERY PACK
BATTERY RELEASE
OIL TANK CAP POWERHEAD

16 Pole Saw Model PS250
Unpacking and Assembly
Unpacking and Assembly
Unpacking
What’s in the box?
The pole saw requires some assembly before
use. These items ship with the pole saw:
•Powerhead
•Extendable shaft with attached cutting head
•Guide bar
•Saw chain
•Blade cover
•Harness
•Screwdriver
•Allen wrench
•Two Allen screws
•Bar and chain oil
•Charger and power cord (if so equipped)
•Battery (if so equipped)
After removing the pole saw from the box,
inspect it carefully to ensure no damage has
occurred during shipping, and that no parts are
missing. If any parts are damaged or missing,
do not use the pole saw. Contact Oregon®
Cordless Tool System at .. to obtain
replacement parts.
Assembly
DANGER: To avoid serious personal
injury, do not operate the pole saw without
the extendable shaft, guide bar, saw chain,
and side cover properly assembled.
WARNING: A battery operated tool with
the battery pack inserted is always on and
can start accidentally. Remove the battery
pack from the pole saw before attaching
the extendable shaft, bar, and chain.
Assembling the Extendable Shaft
The extendable shaft fits into the motor
housing on the powerhead (Fig. ).
•It is important to ensure that the internal
drive shaft is properly seated. To ensure
proper seating, use a clean rag to pull the
aluminum drive shaft out from the fiberglass
pole—approximately  in ( cm). Using the
rag, turn the aluminum shaft while pushing
down slightly. This will allow the drive shaft to
properly seat on the shaft inside of the motor
housing. The cylindrical end of the drive shaft
will be completely hidden below the rim of the
motor housing once properly seated.
FIG. 6

17
Pole Saw Model PS250
Unpacking and Assembly
•After properly seating the aluminum drive
shaft, push down on the fiberglass pole so
that is slides into the opening of the motor
housing.
•Locate the provided Allen screws and place
them into the holes on the red cap. The red
cap on the motor housing acts as compression
fit to hold the pole in place.
•Use the supplied  mm Allen wrench to
partially tighten the Allen screws. Continue
tightening the screws by alternating between
screws until both of the screws are tight.
Note: You may need to press the red cap
tighter onto the motor housing to allow the
screws to make contact with the internal
threads.
Filling the Bar and
Chain Oil Reservoir
IMPORTANT: Bar and chain oil prevents
premature wear. Never operate the pole
saw if oil is not visible. Check oil level
frequently and fill as needed.
Bar and chain oil is required to properly
lubricate the guide bar and saw chain. The
pole saw is equipped with an automatic oiler
that deposits oil on the bar and chain when
running, keeping them properly lubricated. Use
Oregon® bar and chain oil for best results. It is
specially designed to provide low friction and
faster cuts. NEVER use oil or other lubricants
not specifically designed for use on the bar and
chain. This can lead to a clogged oil system,
which may cause premature wear of the bar
and chain.
•Place the pole saw on its side on a firm, flat
surface, so that the oil cap is on top (Fig. ).
•Clean any debris from the cap area.
•Remove the cap.
•Carefully pour the bar and chain oil into the
reservoir.
•Replace the cap and make sure oil is visible in
the reservoir.
If oil is not visible in the reservoir, additional bar
and chain oil is necessary.
FIG. 7

18 Pole Saw Model PS250
Unpacking and Assembly
Assembling the Guide Bar and Saw
Chain
WARNING: A battery operated tool with
the battery pack inserted is always on and
can start accidentally. Remove the battery
pack from the pole saw before attaching
the extendable shaft, bar, and chain.
Wear gloves and remove the battery. Make sure
the bar pad, drive sprocket, and tensioning pin
are free of debris.
•Adjust the tensioning screw as far back
toward the rear of the cutting head as it will
go.
•Place the guide bar on the bar pad by sliding
the bar slot over the alignment flange (Fig. ),
making sure the tensioning pin is inserted in
the bottom hole in the tail of the bar.
•Loop the saw chain onto the drive sprocket so
that the cutting edges of the teeth along the
top of the bar face away from the cutting head
(Fig. ).
•Feed the chain into the groove of the bar and
slide the bar away from the motor to remove
slack from the chain (Fig. ). Adjust the
position of the tensioning pin until it engages
the hole in the bar.
•Install the side cover, making sure the chain
catch is properly seated in its hole, then
lightly tighten the side cover knob (Fig. ).
IMPORTANT: The saw chain must be
properly tensioned before using. See
“Tensioning the Saw Chain”.
MOUNTING
STUD
ALIGNMENT
FLANGE
BAR PAD
TENSIONING
SCREW
TENSIONING
PIN
FIG. 8
FIG. 9
FIG. 10
FIG. 11

19
Pole Saw Model PS250
Unpacking and Assembly
Tensioning the Saw Chain
WARNING: A battery operated tool with
the battery pack inserted is always on and
can start accidentally. Remove the battery
pack from the pole saw before attaching
the extendable shaft, bar, and chain.
Wear gloves.
•Remove the battery before tensioning.
•Loosen the side cover knob.
•Hold up the nose of the guide bar (Fig. ), and
tighten the tensioning screw.
•Tighten the tensioning screw until the lowest
cutters underneath the bar solidly contact the
bar (Fig. ).
•Tighten the side cover knob.
•Saw chain tension is correct when, with some
effort, a gloved hand can pull the chain
smoothly around the bar. The chain should
touch the underside of the bar rail (Fig. ).
After a short period of use, allow the chain to
cool and once again check the tension (remove
the battery first). Watch tension carefully
for the first half-hour of use and periodically
throughout the life of the chain, readjusting as
required when the chain and bar are cool to the
touch. Never tighten chain when it is hot.
Chain will stretch as a result of normal use,
but insufficient oil, aggressive use, or failure to
perform recommended maintenance can lead
to premature stretching.
FIG. 12
FIG. 13
FIG. 14

20 Pole Saw Model PS250
Operating the Pole Saw
Operating the Pole Saw
Battery Pack and Charger
WARNING: To reduce the risk of shock,
do not charge the battery pack in the rain.
BATTERY PACK LED CHARGE-LEVEL
INDICATOR
The lithium ion battery pack is equipped with an
LED charge-level indicator. To test the charge
level of the battery pack, press the indicator
button on the battery pack’s face (Fig. ).
No lights: recharge.
One steady green light:
less than  charged.
Charge battery pack before use.
Two steady green lights:
– charged.
Three steady green lights:
– charged.
Four steady green lights:
– charged.
CONNECTING THE CHARGER
If the charger includes a separate power cord,
connect the charger cord to the charger and to
the proper electrical outlet (Fig. ).
Only use the cord set that was supplied with
the charger. At first use, verify that the plug
type matches the receptacle.
CHARGER LED CHARGE-STATE INDICATOR
The battery charger is equipped with an LED
charge-state indicator that indicates the
state of charging as well as conditions that
may delay or prevent charging (Fig. ).
Note: Until a battery pack is inserted, no lights
will be visible.
Blinking orange light: a fault condition
exists. There are several potential
causes. See “Troubleshooting” in this
manual.
Steady orange light: the battery pack
temperature is beyond the acceptable
range (°F/°C to °F/°C). Allow
the battery pack to reach the
acceptable temperature range before
charging. The pack may be left on the
charger as the temperature adjusts.
Charging will begin when the proper
temperature is reached.
Blinking green light: battery pack is
charging.
Steady green light: battery pack is
ready for use.
FIG. 15
INDICATOR LIGHTS
INDICATOR BUTTON
FIG. 16
FIG. 17
