OSEE WVT-501 User manual

WVT-501
Wireless Video
Transmitter and Receiver
User Manual

Product Information
Model: WVT-501
Version: V010000
Release Date: September 26th, 2017
Company
OSEE TECHNOLOGY CO., LTD.
Contact Information
OSEE TECHNOLOGY CO., LTD.
Post Code: 100094
Tel: [phone]
Fax: [phone]
Web: http://www.osee-dig.com.cn/

About this manual
Important
The following symbols are used in this manual:
yThe further information or know-how for described subjects above which
helps user to understand them better.
yThe safety matters or operations that user must pay attention to when
using this product.
yAny Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment .
This transmitter must not be co‐located or operating in conjunction with
any other antenna or transmitter.
This equipment should be installed and operated with minimum distance
20cm between the radiator &you body.


Note: This equipment has been tested and found to comply with the limits
device, pursuant to part 15 of the FCC Rules.
limits are designed to provide reasonable protection against harmful
sidential installation. This equipment generates
can radiate radio frequency energy and,if not installed and used in accordance
the instructions, may cause harmful interference to radio communications.
that interference will not occur in a particular
cause harmful interference to radio or television
reception, which can be determined by turningthe equipment off and on, the user
try to correct the interference by one or more of the following
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
connected.
—Consult the dealer or an experiencedradio/TV technician for help.
Contents
The user manual applies to the following device types:
yWVT-501
The images and descriptions of WVT-501 are adopted as examples in the
following document.
Before reading the manual, please confirm the device type.
for a Class B digital These
interference in a re uses and
with
However, there isno guarantee
is encouraged to
measures:
the receiver is
installation. If this equipment does

Overview
1
Chapter 1 Overview
The OSEE WVT-501 wireless video transmitter and receiver provide a simple signal
connection solution for shooting on site, it can realize up to 1000m wireless video
transmission of 1080 video signal with no compression and no delay in optimal line-of
sight situations. The WVT-501 transmitter supports a SDI input or a HDMI input, and
the SDI input with loop out, besides, the WVT-501 receiver supports two SDI outputs,
a HDMI output.
The OSEE WVT-501 has compact structure, and provides flexible power supply and
installation modes, it is convenient for supervision on site and signal transmission in
film & TV production and broadcasting industries.
Figure 1-1 WVT-501 Transmitter and Receiver
Features
Maximum transmission distance 1000m
Highest resolution 1920*1080, no delay and no compression
Support HD-SDI and HDMI Input/Output

Overview
2
User configurable frequency bands
Support SDI/HDMI interleaving output
With internal battery to achieve power switch for uninterrupted work
Provide battery plate as standard configuration
CNC aluminum, laser lithography, ruggedized
Support TALLY input/output

Safety
3
Warnings:
Read, keep and follow all of these instructions for your safety. Heed all warnings.
Device
yInstall in accordance with the manufacturer's instructions.
yDo not beat with a hard object or scratch the unit.
yRefer all servicing to qualified service personnel. Servicing is required if any of
the following occurs:
The unit has been exposed to rain or moisture.
Liquid had been spilled or objects have fallen onto the unit.
The unit has been damaged in any way, such as when the power-supply
cord or plug is damaged.
The unit does not operate normally, or has been dropped.
yClean only with dry cloth.
yDo not block any ventilation openings. Leave enough space around the unit
for ventilation.
yDo not use this unit near water.
yA nameplate indicating operating voltage, etc., is located on the rear panel.
yThe socket-outlet shall be installed near the equipment and shall be easily
accessible.
yTo reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture.
yTo avoid electrical shock, do not open the cabinet. Refer all servicing to
qualified service personnel.
yIf the product needs replacement parts, make sure that the service person use
replacement parts specified by the manufacture, or those with the same
characteristics and performance as the original parts. Use of unauthorized
parts can result in fire, electric shock and/or other damage.
yThe panel used in this produce is made of glass. Therefore, it can break when
it is dropped or applied with impact. Be careful not to be injured by broken
glass pieces.
ySpecifications are subject to change without notice.

Unpack and Installation
4
Chapter 2 Unpack and Installation
Unpack:
When unpacking the WVT-501, pleased verify that none of the components listed in
Table 3.1 are damaged or missing. If there are any components missing, please
contact your distributors or OSEE for it.
Table 2-1 Packing List2
No. Item Quantity
1 WVT-501 Transmitter(with battery plate) 1
2 WVT-501 Receiver(with battery plate) 1
3 Antenna 8
4 User Manual 1
5 Warranty Card 1
Installation:
1. Prepare for installation
Please follow the procedures below before installing WVT-501:
yCheck the package and equipment for any visible damage that may have
occurred during transit.
yConfirm all the items listed on the packing list have been received.
yRemove all the packing material including electrostatic-resistant packing.
yRetain these packing materials for future use.
2. Connect the antennas to the top side of the unit, each needs four
antennas, as shown in Figure3-1. Put the antennas as fan arrangement to
transmit or receive signals more steadily.
3. Connect required signal cables to the corresponding interfaces.
Figure 2-1 Antenna Interfaces
4. Connect the 7～17VDC power source to DC IN interface.

Unpack and Installation
5
5. As the final step, power on the device.
Battery Powered
WVT-501 provides not only DC powered supply mode, but also battery powered
supply mode.
WVT-501 provides one battery slot to connect to the battery plug on the battery
plate, as shown in Figure2-2. Then connect a battery to the battery plate, thus
power on the unit by battery.
Figure 2-2 Battery Plate
yPlease use the power adapter supplied to avoid unnecessary trouble.
yMake sure the power cord grounding well.

Locations and Function of Parts and Control
6
Chapter 3 Locations and Function
of Parts and Control
3.1 Parts and Functions
The parts of WVT-501 is shown as below, there are various input and output
interfaces:
WVT-501 Transmitter

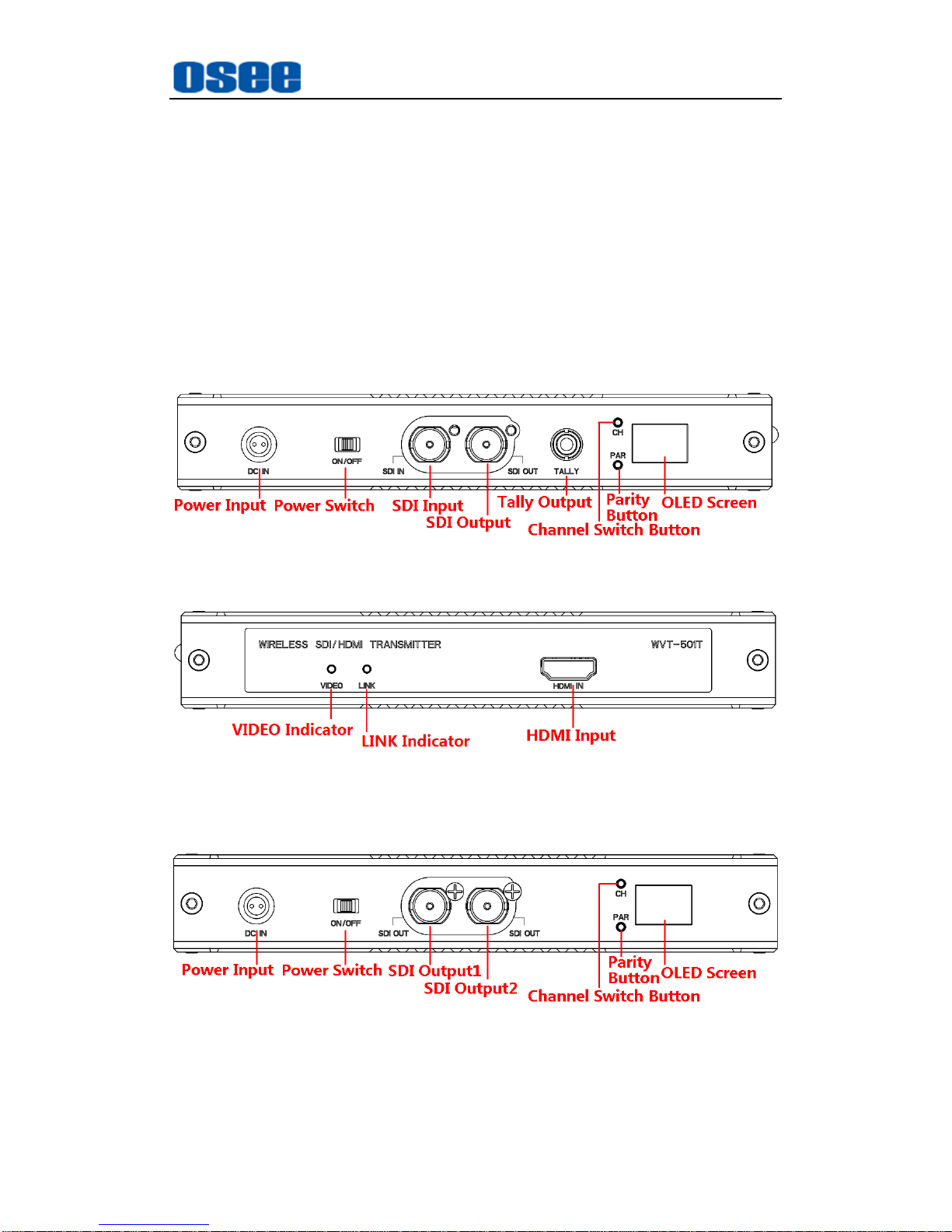

Figure 3.1-1 Left View of WVT-501 Transmitter
Figure 3.1-2 Right View of WVT-501 Transmitter
WVT-501Receiver
Figure 3.1-3 Left View of WVT-501 Receiver

Locations and Function of Parts and Control
7
Figure 3.1-4 Right View of WVT-501 Receiver
WVT-501 Transmitter WVT-501 Receiver
Interface
SDI IN(BNC) SDI1 OUT(BNC)
SDI OUT(BNC, loop out) SDI2 OUT(BNC)
HDMI IN(Type A) HDMI OUT(Type A)
Antenna (PR-SMA Male) Antenna(PR-SMA Male)
DC IN(2pins LEMO) DC IN(2pins LEMO)
TALLY OUT(3.5mm) TALLY IN (3.5mm)
1. Power Input
Plug the power supply to this interface to provide power to the device.
The DC input voltage range is 7～17VDC.
2. Power Switch
Press this part to switch on or switch off the power.
Push the button to the “ON” side to switch on the power, and the OLED
screen is lit up.
Push the button to the “OFF” side to switch off the power, and the OLED
screen is lit off.
yIt lasts about one minute for starting operation, and please don’t do any
operations during starting the device.
yThere are four antenna interfaces at the top of WVT-501 unit, and five
1/4” inch thread interfaces at the bottom.

Locations and Function of Parts and Control
8
3.2 OLED Screen and Buttons
It provides an OLED screen and some buttons, the details are as below:

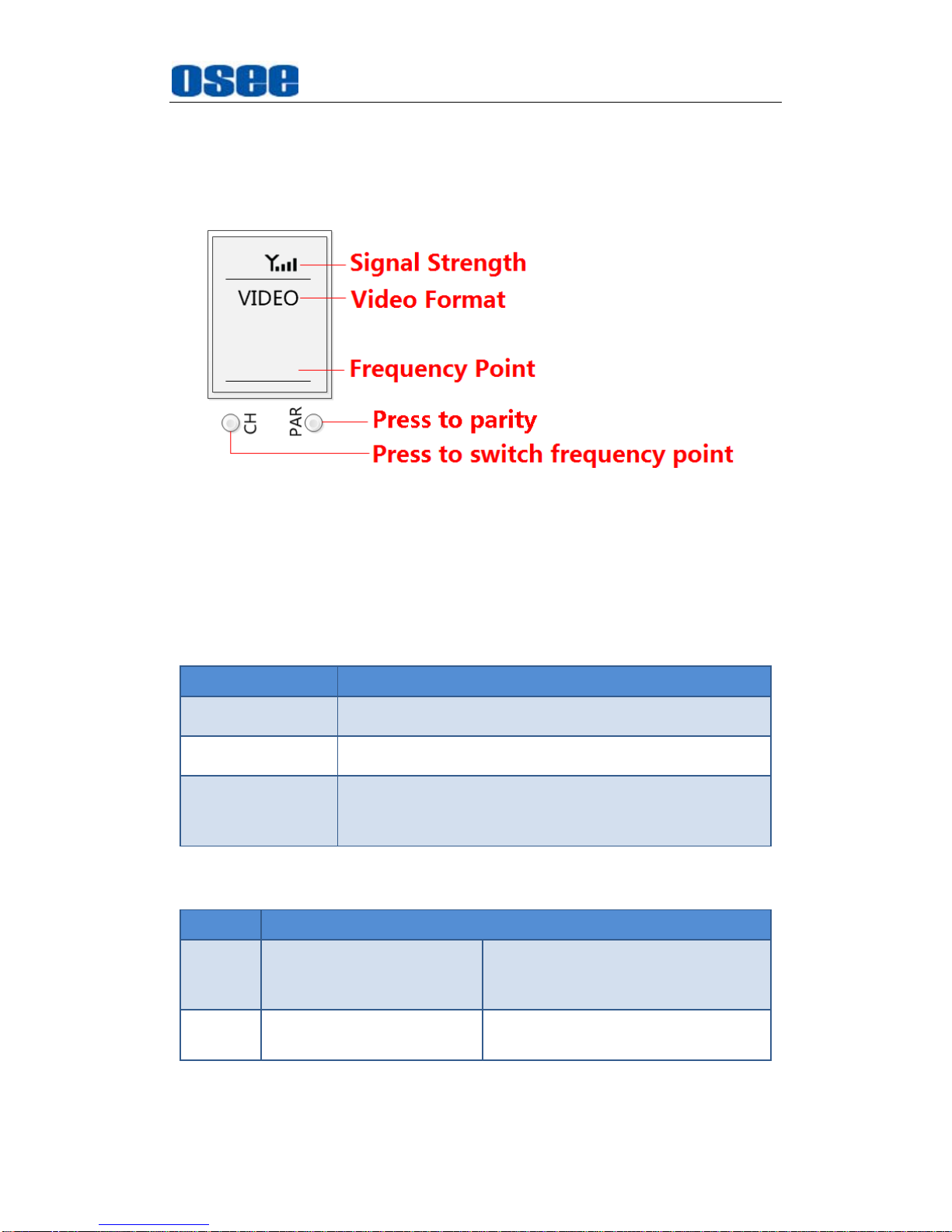

Figure 3.2-1 OLED Screen and Buttons
3.2.1 OLED Screen
As shown in Figure 3.2-1, there is an OLED screen at the top right side of the
unit, and it will display the signal strength, frequency point and video format.
Items Description
Signal Strength It displays the signal strength.
Frequency Point It displays the frequency point.
VIDEO It displays the video format if there is a video input,
otherwise, it displays nothing at this position.
3.2.2 Frequency Point and Parity
Buttons Operation
CH Short press for 3 seconds Press this button to switch
frequency point
PAR Long press for 6 seconds Press this button to achieve WPS
parity
5190

Locations and Function of Parts and Control
9
3.2.3 Indicator Status
There are a VIDEO indicator and a LINK indicator at the bottom of WVT-501.
The different combinations of these two indicators and the different status of
the unit are as the table below:
Operation Indicator Status Description
Switch Channel VIDEO and LINK flash quickly and alternately
(Green)
Parity VIDEO and LINK flash quickly at the same
time(Green)
Communication normally,
but no video LINK constant light(Green), VIDEO flash(Green)
Both communication and
video displays normally VIDEO constant light (Green), LINK constant light
(Green)
3.2.4 Start Up
Press the power button at the side of the unit, the position of the power button
is as shown in Figure 3.2-2:

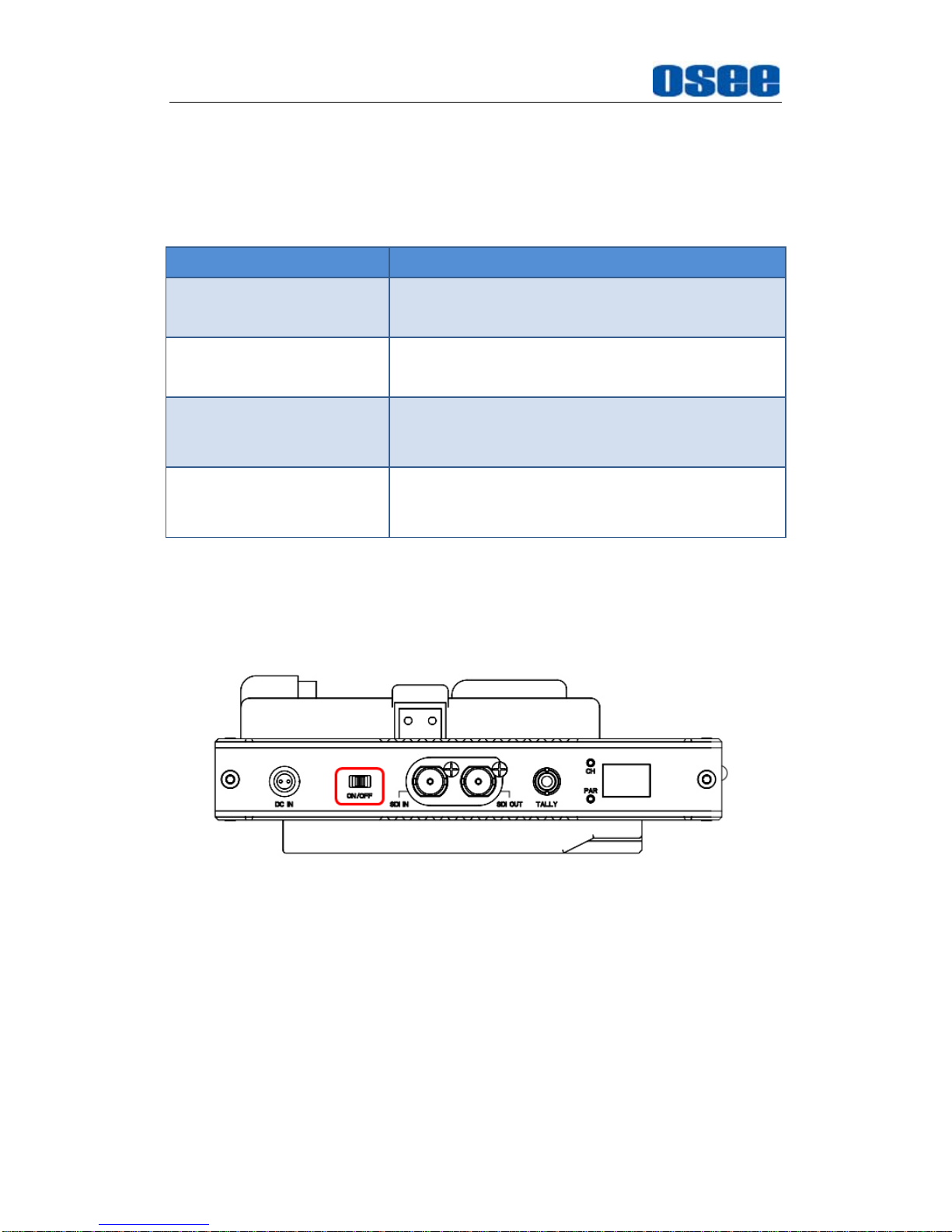

Figure 3.2-2 The Position of Power On Switch
Push the button to the “ON” side to switch on the power, and the OLED
screen is lit up.
Push the button to the “OFF” side to switch off the power, and the OLED
screen is lit off.

Locations and Function of Parts and Control
10
3.3 Supported Signal Format
Supports the following signal format for this device is as shown in Table 3.3-1:
Table 3.3-1 Supported Signal Format
SDI HDMI
480P60 {
576P50 {
720P50 {{
720P60 {{
1080I50 {{
1080I60 {{
1080p24 {{
1080P25 {
1080P30 {{
1080P50 {{
1080P60 {{

Specifications
11
Chapter 4 Specifications
4.1 Production Details
Specification Values
Model Wireless Video Transmitter Wireless Video Receiver
Interface
SDI IN(BNC) SDI1 OUT(BNC)
SDI LOOP OUT(BNC) SDI2 OUT(BNC)
HDMI IN(Type A) HDMI OUT(Type A)
Antenna(PR-SMA male) Antenna(PR-SMA male)
DC IN(2pins LEMO) DC IN(2pins LEMO)
TALLY OUT(3.5mm) TALLY IN (3.5mm)
Indicators LINK-Green;
VIDEO-Green; TALLY-Red LINK-Green; VIDEO-Green
Network Standard 802.11n /
Receiver Sensitivity / -70dBm
Working Frequency 5190MHz, 5230 MHz, ,
5755 MHz 5795 MHz
Status Display OLED screen, displaying signal strength and current
frequency
Modulation Mode OFDM
Occupied Bandwidth 40MHz
Video Format HDMI: 576P, 480P, 720p 50/60, 1080i 50/60,
1080p24/25/30/50/60
SDI: 720p 50/60,1080i 50/60,1080p24/30/50/60
Internal Battery
Charging Current 500mA 8.4V
External Voltage Range 7-17V DC
Power Consumption
<9W

Specifications
12
Specification Values
Physical Characters
Operating Temperature 0~40°
C
Dimension (L x W x H) 168x107.1x27mm(without antennas)
Weight 540g
*The unit about the appearance attributes in above table is mm.
4.2 Dimensions
The description of the WVT-501 dimensions are as shown in the following figures
(Unit: mm):
Wireless Video Transmitter
Without Battery Plate With Battery Plate
Figure 4.2-1 Front View(Unit: mm)

Specifications
13
Figure 4.2-2 Back View(Unit: mm)
Figure 4.2-3 Side View(Unit: mm)

Specifications
14
Figure 4.2-4 Top View (Unit: mm)
Wireless Video Receiver
Without Battery Plate With Battery Plate
Figure 4.2-5 Front View(Unit: mm)

Specifications
15
Figure 4.2-6 Back View(Unit: mm)
Figure 4.2-7 Side View(Unit: mm)

Specifications
16
Figure 4.2-8 Top View (Unit: mm)
ySpecifications are subject to change without notice.
------------------No Text Below------------------
