City Theatrical Multiverse 5905 User manual

Multiverse®Studio Receiver
2.4GHz
P/N 5905
User’s Manual
Rev 1.1
© 2021 City Theatrical, Inc.
Multiverse Transmitters are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1,
and other patents pending.
Made in USA

Table of Contents
Compliance..............................................................................................................................3
Safety Notices..........................................................................................................................3
Introduction..............................................................................................................................4
5905 Multiverse Studio Receiver Features.......................................................................4
Installation ...............................................................................................................................5
User Interface Screen.......................................................................................................5
SHoW ID...........................................................................................................................6
User Interface Icons..........................................................................................................7
RDM Settings ...................................................................................................................9
Updating Firmware ..........................................................................................................9
Troubleshooting ...............................................................................................................9
Specifications...........................................................................................................................9
What’s Included .....................................................................................................................10
Face Panel.............................................................................................................................11
Mounting................................................................................................................................12
List of Tables
Table 1: Selecting Your Multiverse SHoW ID...........................................................................6
Table 2: SHoW IDs and SHoW Keys .......................................................................................7
Table 3: Troubleshooting Guide...............................................................................................9
Table 4: Physical Characteristics.............................................................................................9
Table 5: Included Item Descriptions and Part Numbers..........................................................10
Table 6: SHoW DMX Neo SHoW IDs.....................................................................................12
List of Figures

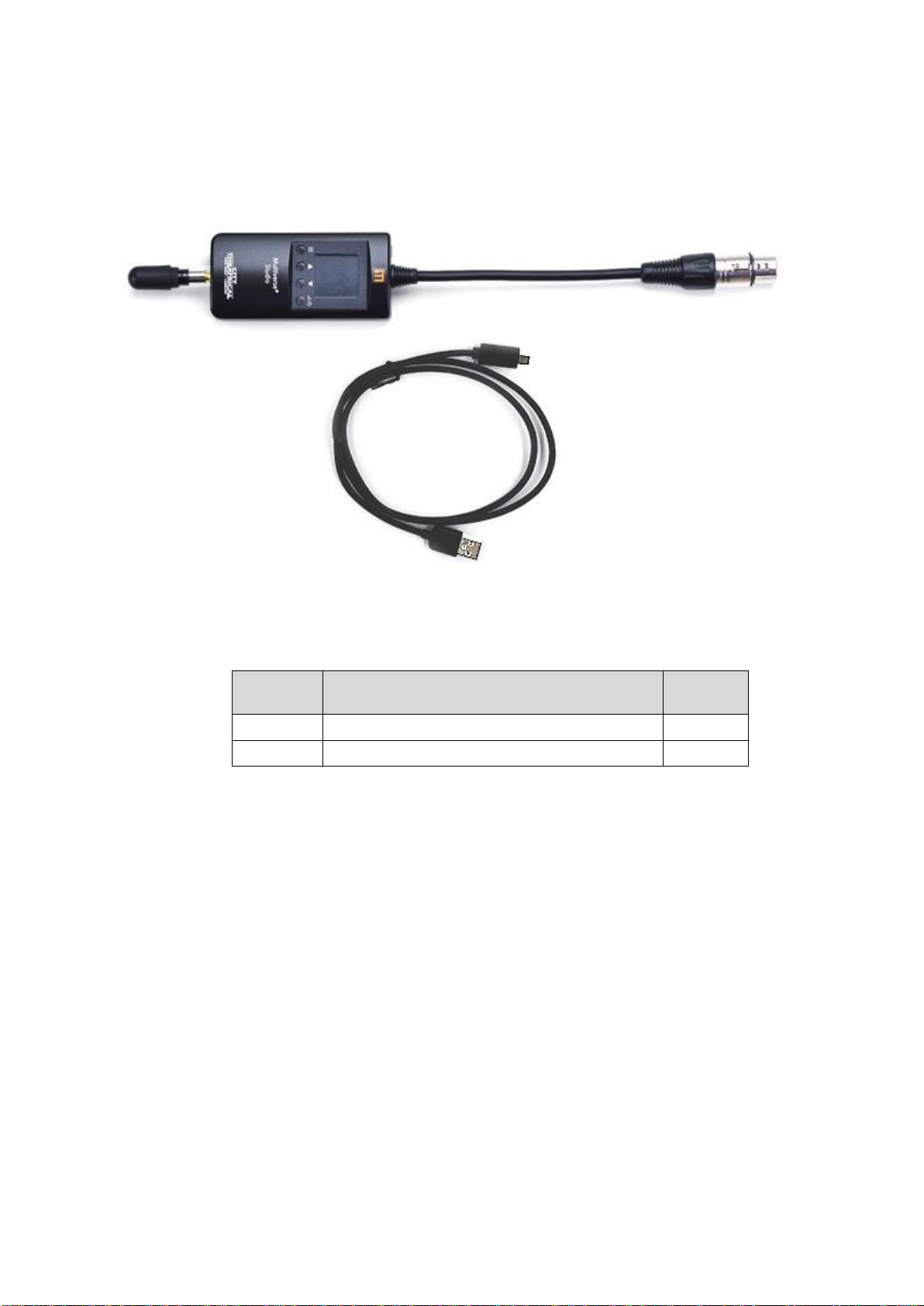

Figure 1: What’s Included ......................................................................................................10
Figure 2: Face Panel..............................................................................................................11

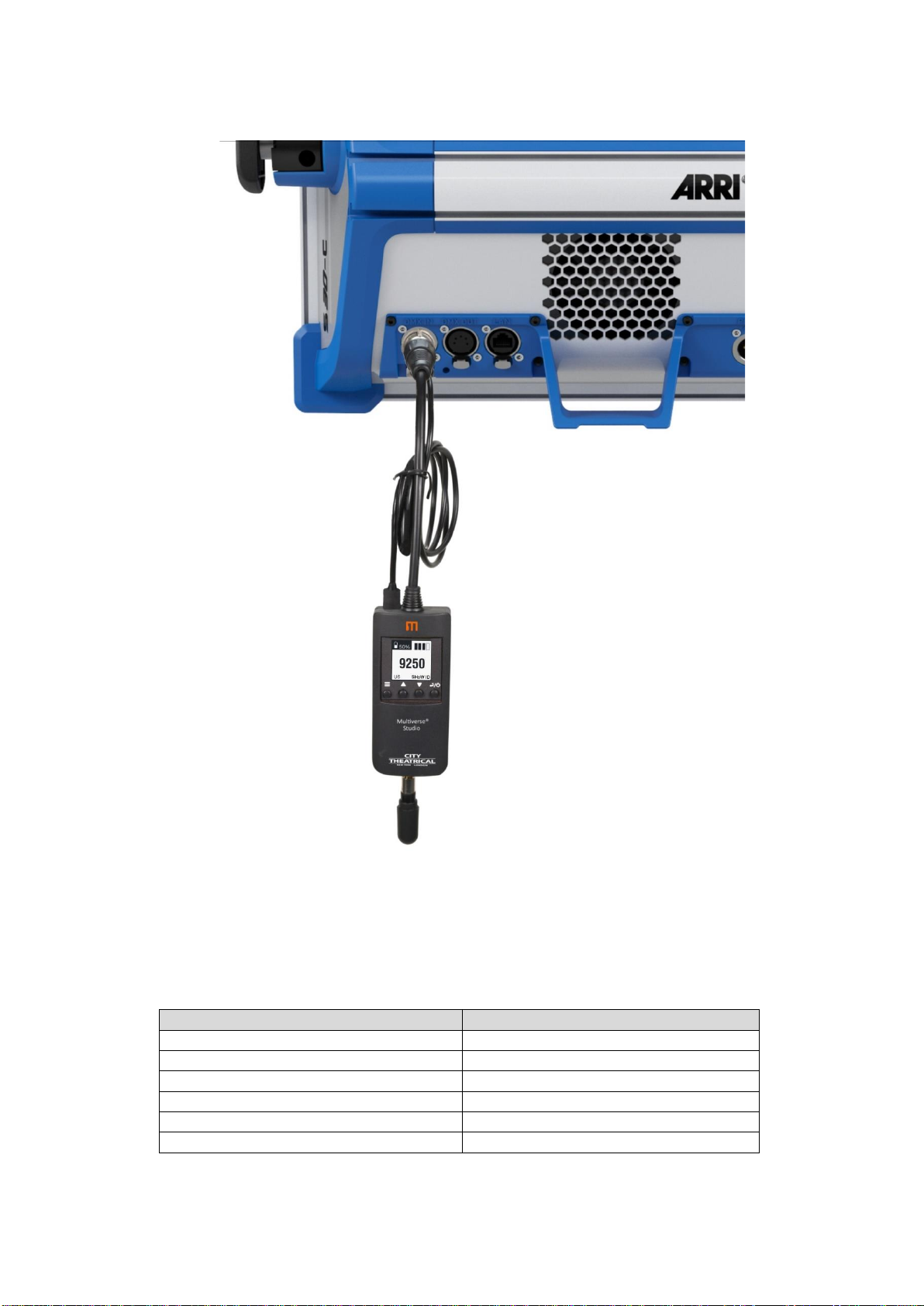

Figure 3: Connected to Light Fixture......................................................................................12

Page 3 of 12
Compliance
FCC Compliance Statement (United States)
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
IC Statement
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the
following two conditions:
1. This device may not cause interference; and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Safety Notices
Please read this entire manual before using your new equipment. Please keep the manual in a safe
place so you can refer to it in the future as required.
The Multiverse wireless DMX/RDM System is intended for use only by qualified professionals.
Connection, installation, and hanging of this equipment must be performed in accordance with all
pertinent local, regional, and national safety codes and regulations.
Do not operate in excessive heat/direct sunlight. Be sure installation provides adequate ventilation.
There are no user-serviceable parts inside! Refer to qualified service personnel!
RF Exposure: The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20cm from all persons and must not be collocated or operating in conjunction with
any other antenna or transmitter.

Page 4 of 12
Introduction
City Theatrical’s 5905 Multiverse
®
Studio Receiver 2.4GHz brings the advanced features of
the Multiverse wireless DMX/RDM system to the film and video world, where fast setup
and reliability are key objectives. The weather resistant Multiverse Studio Receiver
contains a long-life lithium-ion polymer battery giving 20 hours of use. The Multiverse
Studio Receiver has a full four button user interface with a backlit LED display that makes
setup easy and gives feedback on system performance.
The 5905 Multiverse Studio Receiver contains a 2.4GHz radio, and allows the user to
select which single universe to receive, and which radio band to use via the Multiverse
SHoW ID.
The DMX corded connector allows the Multiverse Studio Receiver and external antenna
to hang below the lighting fixture, giving improved data fidelity.
5905 Multiverse Studio Receiver Features
•2.4GHz Broadcast Radio
Transmit and receive on the 2.4GHz band.
•Long Life Rechargeable Battery
20 hour battery life with default settings
•Rugged and Splashproof
The IP61 rated plastic case makes it splashproof and rainproof (but not for
permanent outdoor use).
•User Selectable SHoW IDs
City Theatrical has always produced wireless DMX products that allow the user to
select the optimum transmission method. Users may select full bandwidth hopping,
hopping limited to a section of the spectrum (including areas of the spectrum
outside of the Wi-Fi range), or adaptive hopping.
•mDMX (Multiverse SHoW IDs only)
mDMX is a form of DMX optimized for wireless broadcast that dramatically reduces
data being broadcast, thereby reducing unneeded radio energy.
•mRDM (Multiverse SHoW IDs only)
Multiverse is able to broadcast RDM information without disrupting the DMX
broadcast. This feature is not available even in wired RDM systems.
•SHoW Key Security (Multiverse SHoW IDs only)
SHoW Key is an additional three-digit code that can be added to the Multiverse
SHoW ID that will prevent any other system set on the same SHoW ID from
interfering with your system.
•Forward Error Correction (Multiverse SHoW IDs only)
Allows the Receiver to detect and correct errors that may occur in the wireless
transmission of data.
•Ultra Low Latency
Total average system latency of 4ms.
•Adaptive Spread Spectrum Frequency Hopping
Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping
channels that contain interference, replacing them in the hop sequence with

Page 5 of 12
alternate channels.
•Adjustable Output Power
Sometimes an application calls for the most available broadcast power, but many
entertainment systems can utilize lower output power to reduce detrimental effects
on other radio systems in the venue, reduce reflections, and improve performance.
• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
• Compatible with all Multiverse and SHoW DMX Neo products
• User can select a single universe to receive
• A very simple user interface to set SHoW ID, universe, and other features
• RDM proxy and responder functions
• Firmware updateable via USB port
• USB-Power Adaptor and USB-A to USB-C cable included
• Selectable display timeout and brightness level
• Selectable Auto Off Timeout
• Battery Time Remaining displayed in both hours/minutes and percent
• Contactless charging
Installation
Multiverse Studio Receiver can either be powered with its internal battery, or with 5VDC power
into its USB-C connector from its included external power supply (100-240VAC in, 5VDC out)
or from another external power supply (such as a lighting fixture) providing 5VDC. Turn the
Receiver on or off by pushing and holding the Power/Enter button.

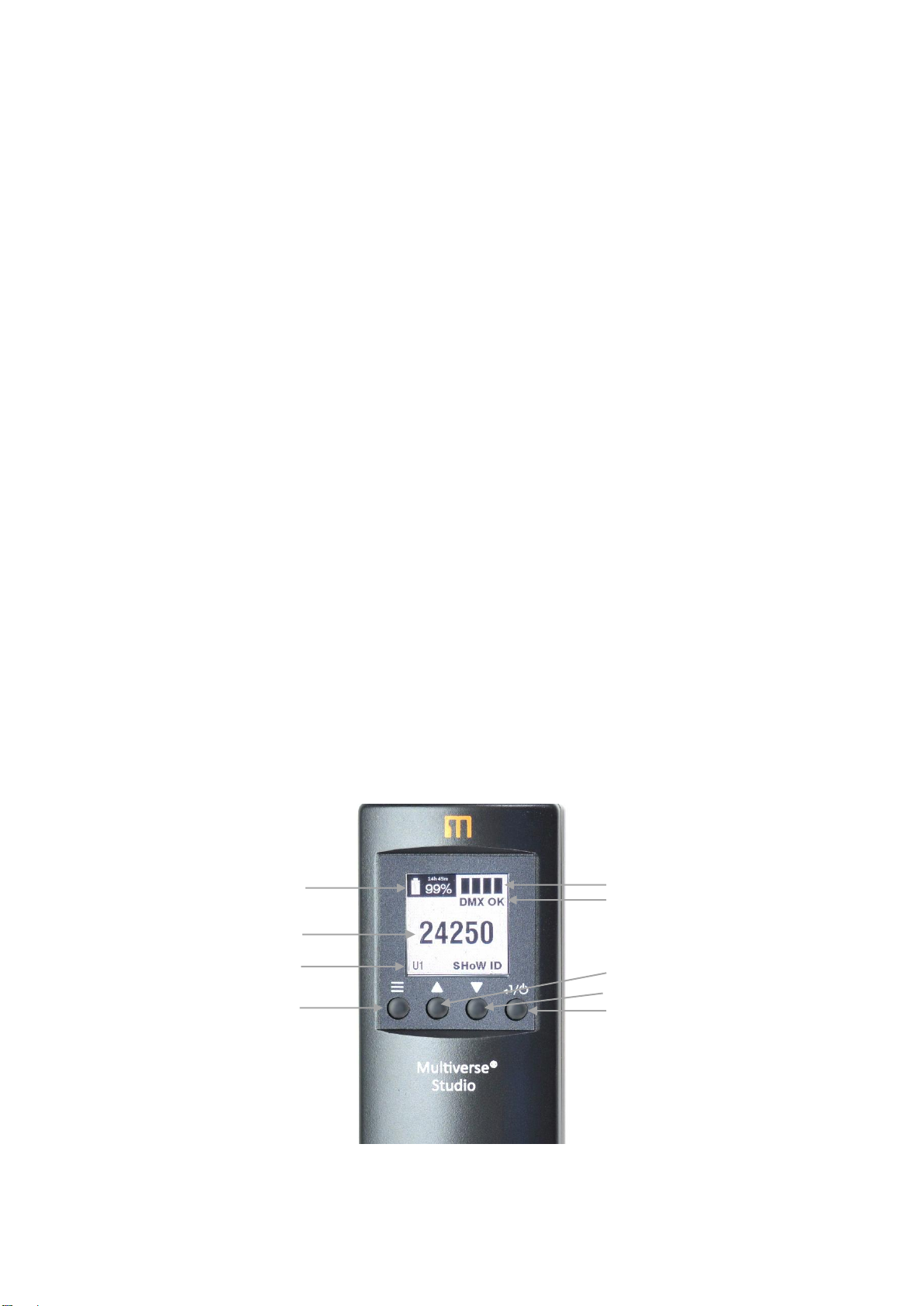

User Interface Screen
Upon power up, the Multiverse Studio Receiver displays the SHoW ID, universe, radio signal
quality, and DMX connection status. Pressing the “Up” or “Down” button will take you to the
universe selection screen. Pressing “Enter” will select SHoW ID or universe for editing and will
commit the change when done.
Pressing the “Menu” button will take you to the Menu screen. Holding the Menu button will
cancel the current edit. See page 7 for a full explanation of Menu items.
SHoW ID
Default SHoW ID is 24250.
Signal quality bars
DMX status
Up button
Down button
Power/Enter button
Battery life
(hours/minutes
and percentage)
SHoW ID
Universe
Menu button

Page 6 of 12
It is recommended that users perform a site survey using City Theatrical’s RadioScan™
Spectrum Analyzer before choosing a SHoW ID, to insure optimum radio performance.
Use the default SHoW ID, or choose a SHoW ID and enter that SHoW ID into the user
interface of your Multiverse transmitter (Multiverse SHoW Baby, Multiverse Node, or
Multiverse Transmitter) and all receivers. The SHoW ID and universe number (and SHoW
Key, if used) must match on your transmitter and all receivers.
Multiverse Studio is backwards compatible with SHoW DMX Neo products when using SHoW
DMX Neo SHoW IDs. See Table 6 on page 12 for a list of SHoW DMX Neo SHoW IDs.
Here is further explanation of the Multiverse SHoW ID numbering system:
Table 1: Selecting Your Multiverse SHoW ID
Multiverse SHoW ID Example: 24 3 0 2
Prefix
Data Rate
Band
Hop Pattern
24 2.4GHz
Faster data rates provide more
DMX universes. Slower data
rates travel longer distances and
provide more immunity to
interference.
2.4GHz:
Universes
Range
1
1
1500’ Outdoor
300’ Indoor
2
2
1500’ Outdoor
300’ Indoor
3
5
1000’ Outdoor
100’ Indoor
Specifies which sections
of the wireless band the
frequency hopping
utilizes.
0
Use full range of
2.4GHz band.
1 Use only lowband
channels.
2 Use only mid band
channels (availablefor
Data Rate 1 only).
3 Use only highband
channels.
4 Use only extreme high
band to avoid WiFi
(2.4GHz only).
5 Adaptive hopping.
Avoids busy channels
by analyzing
spectrum.
If multiple wireless
systems need to operate
with the same data rate
and band this value will
change the hopping
pattern to minimize
overlapping between the
two systems. Can be any
number from 0 –9 (not all
bands have all Hop
Patterns).
Note: Not all combinations of digits are possible and unused numbers are reserved for future
use.
Universe
Default universe is 1.
When the Multiverse Studio Receiver is a receiver in a multi universe system with a Multiverse
Transmitter you can select the universe the Multiverse Studio Receiver will receive and output.
The selected universe must match a valid universe being transmitted.
Note: If universe selected is not being broadcast by the transmitter, the universe number will
be shown in a color opposite of the background color on the user interface to alert you to the
incorrect selection.

Page 7 of 12
Signal Quality Bars
The signal quality bars give a visualization of signal quality as seen at the Receiver. Four bars
is excellent signal quality, three bars is good signal quality, two bars is marginal, and one bar
is low.
DMX
When no DMX is present “NO DMX” is displayed in red type, and “DMX” is displayed in black
type when DMX is present. These colors can vary if colored backgrounds are selected.
Battery
Battery life remaining is shown in both percentage, and in hours and minutes remaining.
SHoW ID/Universe
If the SHoW ID is displayed prominently, the universe is displayed in smaller type at the
bottom of the screen, and vice versa.
Menu Screen
Pressing the “Menu” button takes you to the Menu screen.
•Power
Output power may be user selected as Low, Med, Hi, or Max. It is a best practice to
use the least amount of output power to achieve a successful broadcast. This helps
to reduce reflections which can reduce signal fidelity and to reduce any potential
negative effect on other radio users in the area. You can monitor signal strength
via RDM. Default is Maximum.
•Antenna
If a panel (P/N 5981) or Yagi (P/N 5982) antenna is used instead of the default
omni antenna, choose it on this menu for optimum performance and to remain in
compliance with FCC and other radio compliance regulations. An (P/N 5638)
adapter cable is required to use a panel or Yagi antenna.
•SHoW Key (Multiverse SHoW IDs only)
The SHoW Key setting allows a user to enter a key to privatize their SHoW ID from
another system on the same SHoW ID. SHoW IDs and SHoW Keys need to match
in order for receivers and transmitters to talk to each other. Keeping your SHoW
Key private will provide a level of security to your Multiverse system from
unauthorized use. The range is 0 (Default) to 500.
Table 2: SHoW IDs and SHoW Keys
•Display Color
The background color of the display can be changed from white to magenta, cyan,
green, yellow, or red. Default is white.
•RDM Traffic
The RDM Traffic setting determines whether RDM data is passed downstream of
the Multiverse Studio Receiver. It does not affect whether the Multiverse Studio
Receiver is detectable by devices upstream. Default is On.
Situation
Condition
Outcome
Same SHoW Key
With
Different SHoW IDs
OK
Different SHoW Keys
With
Same SHoW IDs
Not OK
Different SHoW Keys
With
Different SHoW IDs
OK

Page 8 of 12
•Auto Off Time
Auto Off allows the user to set a time to turn off the Multiverse Studio if no radio
signal is detected from a Multiverse Transmitter while battery power is being used.
Settings are 30 minutes to 10 hours, or off. Default is 8h 00m. Whenever a radio
signal is received, or when the user presses a button, the time counter begins
again.
•Backlight Time
The Backlight Timeout setting determines how long the LCD backlight will remain
on after the last button press. The timeout can be set to off (backlight will never
timeout) or any interval from 10 seconds to 30 minutes. Default is off. After a
screen timeout, pushing any button will wake up the screen without changing the
screen selection.
•Backlight Level
Controls Backlight brightness. Range is 25%-100%. Default is 70%, which allows
20 hour battery life. 100% brightness allows 16 hours battery life.
•Lock Screen
The user interface screen can be locked to prevent accidental or malicious
changes, while leaving the SHoW ID/Universe display visible. To unlock the
screen, use a long press on the menu button.
•Factory Defaults
Resets all settings to factory defaults.
•Battery Info
Provides information on battery status
•Multiverse Info
Provides information on Multiverse Studio’s radio
•Firmware Info
Lists all firmware versions loaded
•Update Firmware
Puts Multiverse Studio into firmware update mode
RDM Settings
The Multiverse Studio Receiver can be configured remotely with a compatible RDM controller,
such as DMXcat®. All of the settings available through the menu can be set via RDM. Aside
from settings, you can also view the Device Model, Manufacturer, Firmware Versions, RDM
UID, RF Signal Quality, RF Signal Strength, and Battery Charge %. You can also give each
device a unique RDM Device Label to help with identification for configuration and
troubleshooting.
Updating Firmware
Firmware updates and instructions for performing them are available on the product pages of
the City Theatrical website.

Page 9 of 12
Troubleshooting
Table 3: Troubleshooting Guide
Specifications
Table 4: Physical Characteristics
Symptom
Solution(s)
Unit does not power up.
Check that battery has sufficient charge
Check that power cable is properly installed using external
power
Fixtures connected to the
receiver are not responding.
Check that the Tx symbol on transmitters is solid, and that DMX
symbol is shown on Multiverse Studio Receiver.
Check that SHoW ID, Universe, and SHoW Key (if used) match
on all transmitters and receivers.
Product Information
Product Name
Multiverse Studio Receiver 2.4GHz
Part Number
5905
Maximum Concurrent Universes
1
Frequency Range:
2400 –2480 MHz
Physical Specifications
Length
95.25mm (3.75 in)
Length with antenna
139.7mm (5.5 in)
Width
46.0mm (1.812 in)
Height
25.4mm (1.0 in)
Antenna
2.4GHz 3.8dBi
User Interface
4 Button/Backlit LCD display
Construction
ABS plastic
Electrical
Power
Internal battery; included external power supply 100-240VAC
input, 5VDC output USB-A
Battery
Internal lithium-ion polymer, 20-hour life on default operating
settings
Charge time
- Contactless charger: 3.5 hours
- USB-C: 2.5 hours
Radio Technology
Latency
4 ms average
RF Sensitivity
-95dBm
Loss of Data Behavior
Output stops
Broadcast Power
3.2mW, 10mW, 32mW, 100mW EIRP
Broadcast Modes
Adaptive, Full, Low, Mid, High, Max
Show IDs
Multiverse: 217; Neo: 70
RDM Features
RDM Proxy, RDM Responder
Product Information
Use Environment
Indoor, Outdoor (splashproof, but not for permanent outdoor use)
Operating Temperature
-20º to 50ºC, 0 to 40ºC when charging
IP Rating
IP61
Compliance
FCC, IC, CE, UKCA, ARIB, RoHS
Warranty
One year

Page 10 of 12
What’s Included
Figure 1: What's Included
Table 5: Included Item Descriptions and Part Numbers
Label in
Figure
Item Description
Part
Number
1
Multiverse Studio Receiver 2.4GHz
5905
2
USB-A to USB-C cable, 1m
5987
1.
2.

Page 11 of 12
Face Panel
Figure 2: Face Panel
5.5"
(139.7mm)
3.75"
(95.25mm)
1.812"
(46mm)

Page 12 of 12
Mounting
Figure 3: Connected to and Being Powered by USC Cable to Lighting Fixture
Table 6: Commonly Used SHoW DMX Neo SHoW IDs for Use with the 2.4GHz Radio in Single Universe
Systems
SHoW DMX Neo SHoW ID
Broadcast Location
201
Adaptive hopping
102
Full bandwidth hopping
117
Low band hopping
133
Mid band hopping
149
High band hopping
165
Max band hopping
