Outland Living FMPPC2E User manual

FMI BRANDS INC.
309-19133 26th Avenue | Surrey, B.C. Canada V3Z 3V7 | Toll Free 1-888-514-1663 | Fax [phone]
D.400.000.V0
Owner’s
Manual
Model number FMPPC2E
Series number 400

1D.400.000.V0
Owner & Safety Manual
OUTLAND LIVING™FIRE TABLE OWNER & SAFETY MANUAL
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire
department.
WARNING:
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
WARNING:
For outdoor use only.
Model number FMPPC2E, Series number 400 - Tested by CSA International
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.

5D.400.000.V0
Owner & Safety Manual
OUTLAND LIVING™FIRE TABLE OWNER & SAFETY MANUAL
Philips Screw Driver
Required Tools
(Not Supplied):
Supplied parts & hardware list:
PART NUMBER DESCRIPTION QUANTITY PICTURE
1Table Top and Frame 1
2End Panel with
Gas Knob & Valve 1
3End Panel 1
4M6x20 16
5/6 Cross Bar 2
7Cylinder Base 1
8/9 Side Panel 2

6
1-888-514-1663 | WWW.OUTLANDFIREBOWL.COM
SECTION 1: ASSEMBLY
1. END PANEL ASSEMBLY:
a.) Lay Part 1 on a flat non-marking
surface. Install parts 2 and 3 to part 1
using supplied hardware 4 (8x Screws).
IMPORTANT: PRIOR TO FASTENING ENSURE
THE GAS VALVE (PART 2) IS INSERTED IN TO
THE BURNER TUBE (PART 1) AS SHOWN.
b.) Attach igniter cable to gas valve.
Push-fit as shown in diagram.
2. CROSS BAR ASSEMBLY:
Install parts 5 and 6 to parts 2 and 3 using supplied
hardware 4 (8x Screws).
3. CYLINDER BASE ASSEMBLY:
Turn Fire Table right side up. Locate the 4x studs
approximately 50mm (2 inches) from floor. Install part 7 to
parts 2 and 3 by dropping in and press-fitting to studs.
A
4
2
3
1
DETAIL A
BURNER TUBE
GAS VALVE
GAS VALVE
IGNITER CABLE
B
6
4
5
DETAIL B
7
DETAIL C
4x STUDS

7D.400.000.V0
Owner & Safety Manual
OUTLAND LIVING™FIRE TABLE OWNER & SAFETY MANUAL
SECTION 1: ASSEMBLY (continued)
NOTE: Rocks are not to exceed 7kg or 15.5lbs.
NOTE: Never use a lid or cover to extinguish the flame on
your Fire Table.
5. SIDE PANEL ASSEMBLY:
Assemble Side Panels (parts 8 and 9) by fitting side panel tabs in tab
slots (part 7) and pushing closed. To remove, simply use pull rings and
lift panel away.
6. GLASS ROCKS ASSEMBLY:
Open bag of Glass Rocks and arrange neatly and evenly in the
burner tray. Take care to keep rocks out of the igniter cover. Keep
igniter clean of dust. For best flame results adjust the rocks to
expose the burner tube holes.
Our preferred configuration is pictured here.
7. FIRE TABLE ASSEMBLY:
Your OUTLAND Fire Table is assembled and ready for use.
4. PROPANE CYLINDER ASSEMBLY:
Place an approved 20lb propane cylinder in to cylinder ring
(Part 8); Couple the supplied gas regulator to the propane
cylinder (see section labeled “Connection”). Perform LEAK
TEST on all gas couplings (see section labeled “Leak Test”).
Once all connections are verified to be secure, hand tighten
the cylinder collar to affix cylinder.
WARNING:
Avoid glass dust. Always wear gloves to handle rocks;
caution for glass dust when handling; use a rag to wipe
glass dust. Glass dust may result during shipping.
WARNING:
Never handle glass rocks which have not been allowed to
cool from exposure to flame. Never attempt to rearrange
rocks while unit is ignited.
A
Detail A
8
9

8
1-888-514-1663 | WWW.OUTLANDFIREBOWL.COM

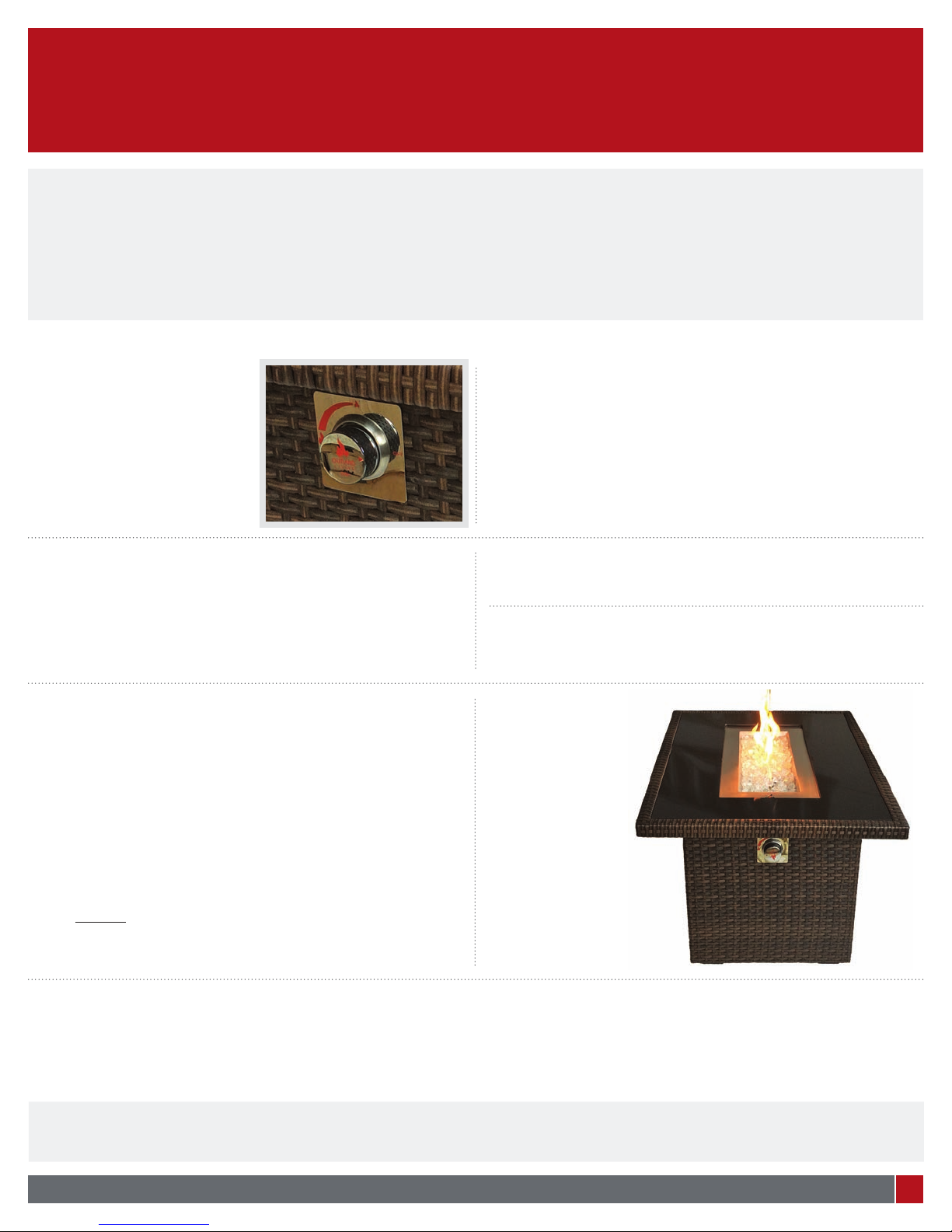

SECTION 2: IGNITION
STEP 1
Ensure that unit valve dial is in the
“OFF” position by pushing and
turning clockwise until the dial
stops.
STEP 2
Connect the LP gas cylinder. See section labelled ‘Connection’.
STEP 3
Ensure the gas hose is not contacting the top of the Fire Table
enclosure and the tank is stabilized in the collar with the wing
nut. Caution: Always ensure the gas valve orifice and burner tube
venturi is clear of all debris including spider webs. STEP 5
Leak Test all connections. See section labeled “Leak Test”.
STEP 4
Slowly turn cylinder valve to the open position.
STEP 7
Once the unit is
burning normally set
the dial to desired
flame height.
STEP 6
Your Fire Table is equipped with an auto spark ignition. Push the
knob in and slowly turn counter-clockwise to the high position. The
ignitor will spark and ignite the gas. Should the appliance fail to
ignite on the first try, promptly repeat the ignition attempt within
5 seconds. If the second attempt fails to ignite the Fire Table then
rotate the knob to the “off” position and wait 5 minutes before
attempting to ignite again. Turn the gas valve off at the cylinder and
inspect the ignition electrode to ensure it is free from debris. After
waiting for 5 minutes visually inspect the spark by rotating the knob
to high without turning the gas back on at the cylinder. Ensure the
spark gap is 1/8” from the burner port and has a clear path. Once you
ensure the ignitor is operating properly repeat the ignition sequence.
STEP 8
GOT A LOW FLAME?: If your Fire Table experiences low flame, or flame height does not appear to be normally adjusted by the gas knob, it
is likely that the CSA excess flow safety device has been tripped in the hose regulator.
CORRECTIVE ACTION: Close propane cylinder valve. Open and then close Fire Table gas knob valve to release pressure. Disconnect and
reconnect the propane cylinder valve connection. Slowly open propane cylinder valve. Perform Leak Test and follow Ignition sequence.
NOTE TO USER:
Before igniting the unit for the first time, follow steps one through 5 in the below Ignition section.
Mix a solution of liquid soap and water in a spray bottle, and apply to the gas fittings you have just connected.
If parts of the fitting begin to produce bubbles, spray liquid, or if you smell liquid propane gas, immediately close the valve on
the tank, and leave the unit for at least an hour undisturbed to allow excess gas to escape.
After an hour, disconnect the hose and take the unit to a certified propane technician for consultation.
WARNING: Ensure that no parts of your body, clothing, or any other combustible material are above the burner before, during and after
ignition. Ensure the cover is stored safely away from the Fire Table when the Fire Table is in use.
