Oversteel IRON User manual

IRON

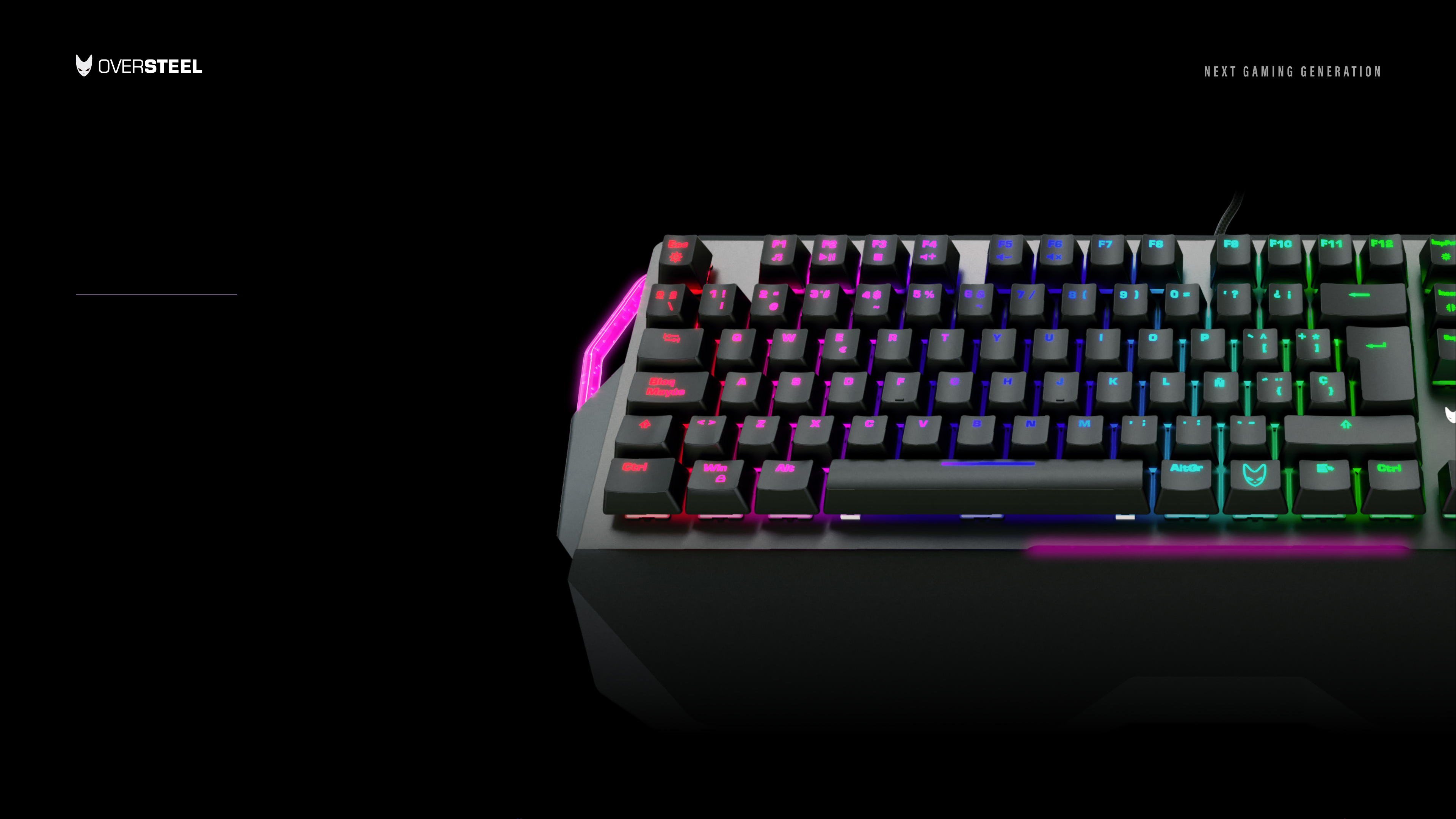

RGB MECHANICAL GAMING KEYBOARD
USER MANUAL

IRON
Thank you for purchasing Oversteel IRON Keyboard.
Oversteel IRON is a plug and play usb interface RGB keyboard.
For more functions, you can install the software from our website:
www.oversteelgaming.com
TECHNICAL SPECIFICATION
• PRODUCT NAME : Oversteel IRON
• Switch: KAILH replaceable mechanical switches
• Lifespan: Up to 70 million keystrokes
• Backlit Mode: RGB 13 modes
• Side Backlit Mode: RGB 15 modes (cant be turn o)
• Total Keys: 105 Full Anti-ghosting
• Polling Rate: 1000Hz Ultrapolling
• Multimedia Keys: Fn + conbination keys for multimedia
• Cable Type: 1.8m braided-fiber USB cable
• Size/Weight: 485x223x40mm / 1022gr
• Material: Aluminium Cover + ABS
• Package include: Keyboard, Wrist-rest
• System Requirements: Windows 10/8/7 or Mac OS X 10.8-10.10

IRON
RGB MODES MULTIMEDIAADJUSTING BRIGHTNESS AND SPEED
RGB SIDE ILLUMINATION
RGB ON/OFF Media Player Brightness +
Change light color
RGB color Stop
Speed +
Change RGB modes Play / Pause
Brightness -
Reset Mode Volume +
Mute
Speed -
RGB custom mode Volume -
Windows key lock
Esc F1
Ins
Scroll
Lock F3
Print
Screen F2
Del F4
F6
Win
Pause
Break F5
F1+1-2-3 is RGB costum mode. To record, press FN+1 and
FN+PB, recordingstart when two indicator light are blinking.
Press the selected buttons and press FN+PB to end recording.

IRON
MACRO EDITING & SETTING
KEY EDITING & SETTING
• To make a new macro, right click on macro list and input the macro
key name and then input the action.
• The command recording will start just after you press the Record
button.
• You can edit the delay time before saving the macro.
• Press Stop record button and the save button to save your macro
and then it will be ready to use.
• Select each key for function replacement. Make sure “Light”
checkbox leave unchecked.
• You can choose 3 function Key Assignment, Macro and Media.
• After choosing your desire function, Press OK.

IRON
