Oxford PRECISION OXD-316-2630K User manual

LED/UV BENCH MAGNIFIER
3 DIOPTER1.75X
12.6W + 4.2W
OPERATOR’S MANUAL
ORDER CODE: OXD-316-2630K
· Dimming switch
·1.75XMagnication
· 7" Diameter lens
·Suitableforinspectionwork,
hospitals,laboratoriesand
beautysalons

2
1.Turn off/unplug and allow to cool before replacing lamp.
2.Lamp gets HOT quickly! Only contact switch/plug when turning on.
3.Do not touch hot lens, guard, or enclosure.
4.Do not rerain in light if skin feels warm.
5.Do not look directly at lighted lamp.
6.Keep lamp away from materials that may burn.
7.If the external cord is damaged, it should be replaced with the manufacturer's replacement part by a certified service
agent to the manufacturer to avoid any sort of hazard.
8.Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp.
9.Do not operate the lamp with a missing or damaged guard, lamp containment barrier.
10.Never tilt backwards.
To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
Description
This magnifier light is great for doing precision work and as a low vision aid. The mounting clamp easily secures the
magnifying lamp to the edge of your desk or work table. Spring balanced tension bare allows the lamp to adjust and lock
into numerous positions. Ideal for work on jewelry, as a low vision aid, reading"fine print", photography touch up, hobby
work, electronic installations, needle work, etc.
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping damage claim must be filed with carrier
CONTENTS
Magnifier Light
Mounting Clamp
(Recommend Replacement Clamp:OXD3981620K)
Allen wrench
Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instructions for future reference.
OXD3162630K OXD3162630K
OXD3162630K
OXD3162630K
OXD3981620K
Unlocking the plastic
circle and take out.
Take out the lens.
Put the plastic circle
into lamphead and lock.
OPERATING INSTRUCTIONS
Please read and save these instructions. Read through this owner’s
manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.
DESCRIPTION
This magnier light is great for doing precision work and as a low vision
aid. The mounting clamp easily secures the magnifying lamp to the edge
of your desk or work table. Spring balanced tension bare allows the lamp
to adjust and lock into numerous positions. Ideal for work on jewellery, as
a low vision aid, reading”ne print”, photography touch up, hobby work,
electronic installations, needle work, etc.
UNPACKING
After unpacking unit, inspect carefully for any damage that may have
occurred during transit. Check for loose, missing, or damaged parts.
Shipping damage claim must be led with carrier
CONTENTS
Magnier Light
Mounting Clamp
(Recommend Replacement
Clamp:OXD3981620K)
Allen wrench
Operating Instructions
1.Turn off/unplug and allow to cool before replacing lamp.
2.Lamp gets HOT quickly! Only contact switch/plug when turning on.
3.Do not touch hot lens, guard, or enclosure.
4.Do not rerain in light if skin feels warm.
5.Do not look directly at lighted lamp.
6.Keep lamp away from materials that may burn.
7.If the external cord is damaged, it should be replaced with the manufacturer's replacement part by a certified service
agent to the manufacturer to avoid any sort of hazard.
8.Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp.
9.Do not operate the lamp with a missing or damaged guard, lamp containment barrier.
10.Never tilt backwards.
To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
Description
This magnifier light is great for doing precision work and as a low vision aid. The mounting clamp easily secures the
magnifying lamp to the edge of your desk or work table. Spring balanced tension bare allows the lamp to adjust and lock
into numerous positions. Ideal for work on jewelry, as a low vision aid, reading"fine print", photography touch up, hobby
work, electronic installations, needle work, etc.
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping damage claim must be filed with carrier
CONTENTS
Magnifier Light
Mounting Clamp
(Recommend Replacement Clamp:OXD3981620K)
Allen wrench
Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instructions for future reference.
OXD3162630K OXD3162630K
OXD3162630K
OXD3162630K
OXD3981620K
Unlocking the plastic
circle and take out.
Take out the lens.
Put the plastic circle
into lamphead and lock.

3
SPECIFICATIONS
ASSEMBLY INSTRUCTIONS
Figure 1 Fix the clamp to a sturdy surface and x the magnier
light to the clamp
Model Volts Adaptor Input Watts Magnication Diopter Colour
OXD3162630K DC24V 100-240V 12.6W LED+
4.2W UV LED 1.75X 3D White
1.Turn off/unplug and allow to cool before replacing lamp.
2.Lamp gets HOT quickly! Only contact switch/plug when turning on.
3.Do not touch hot lens, guard, or enclosure.
4.Do not rerain in light if skin feels warm.
5.Do not look directly at lighted lamp.
6.Keep lamp away from materials that may burn.
7.If the external cord is damaged, it should be replaced with the manufacturer's replacement part by a certified service
agent to the manufacturer to avoid any sort of hazard.
8.Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp.
9.Do not operate the lamp with a missing or damaged guard, lamp containment barrier.
10.Never tilt backwards.
To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
Description
This magnifier light is great for doing precision work and as a low vision aid. The mounting clamp easily secures the
magnifying lamp to the edge of your desk or work table. Spring balanced tension bare allows the lamp to adjust and lock
into numerous positions. Ideal for work on jewelry, as a low vision aid, reading"fine print", photography touch up, hobby
work, electronic installations, needle work, etc.
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping damage claim must be filed with carrier
CONTENTS
Magnifier Light
Mounting Clamp
(Recommend Replacement Clamp:OXD3981620K)
Allen wrench
Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instructions for future reference.
OXD3162630K OXD3162630K
OXD3162630K
OXD3162630K
OXD3981620K
Unlocking the plastic
circle and take out.
Take out the lens.
Put the plastic circle
into lamphead and lock.
1.Turn off/unplug and allow to cool before replacing lamp.
2.Lamp gets HOT quickly! Only contact switch/plug when turning on.
3.Do not touch hot lens, guard, or enclosure.
4.Do not rerain in light if skin feels warm.
5.Do not look directly at lighted lamp.
6.Keep lamp away from materials that may burn.
7.If the external cord is damaged, it should be replaced with the manufacturer's replacement part by a certified service
agent to the manufacturer to avoid any sort of hazard.
8.Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp.
9.Do not operate the lamp with a missing or damaged guard, lamp containment barrier.
10.Never tilt backwards.
To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
Description
This magnifier light is great for doing precision work and as a low vision aid. The mounting clamp easily secures the
magnifying lamp to the edge of your desk or work table. Spring balanced tension bare allows the lamp to adjust and lock
into numerous positions. Ideal for work on jewelry, as a low vision aid, reading"fine print", photography touch up, hobby
work, electronic installations, needle work, etc.
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping damage claim must be filed with carrier
CONTENTS
Magnifier Light
Mounting Clamp
(Recommend Replacement Clamp:OXD3981620K)
Allen wrench
Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instructions for future reference.
OXD3162630K OXD3162630K
OXD3162630K
OXD3162630K
OXD3981620K
Unlocking the plastic
circle and take out.
Take out the lens.
Put the plastic circle
into lamphead and lock.
Figure 2 Connect the power cord and DC adapter

4
ASSEMBLY INSTRUCTIONS
Figure 5 Put the plastic circle into
lamphead and lock.
1.Turn
2.Lamp
3.Do n
4.Do n
5.Do n
6.Keep
7.If the
agen
8.Do n
9.Do n
To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJU
Unlocking the plastic
circle and take out.
ake out the lens.
Put the plastic circle
into lamphead and lock. Take out the lens.
Figure 4
Take out the lens.
Figure 3
Unlocking the plastic
circle and take out.

5
ASSEMBLY INSTRUCTIONS
Knob
Lampshade
White Lighting
Switch Button
UV lighting
Switch Button
Clamp
Arm

6
ASSEMBLY INSTRUCTIONS
Allen Key
HexagonScrew
A & B
Figure 6
LAMPSHADE ADJUSTMENT
If the lampshade loosens, tighten the A&B
hexagon screw with the Allen Key(included).
White Lighting Switch Button
UV Lighting Switch Button
Figure 7

7

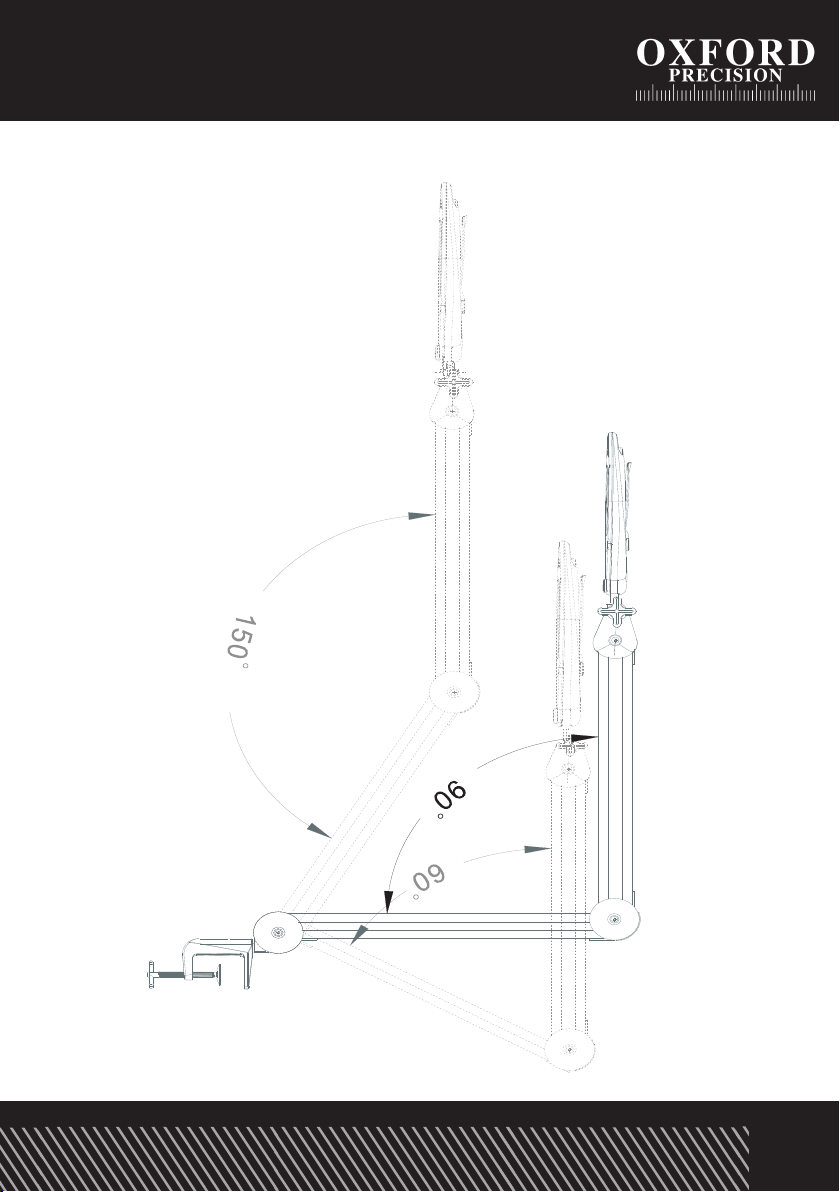

ASSEMBLY INSTRUCTIONS Important: Maximum angle of swing arm is 150 degrees WARRANTY One year warranty should this product satisfactorily due to a defect or poor workmanship within one year from the date of purchase, return it to the place of purchase and it will be replaced, free of change. Incidental or consequential damages are excluded from this warranty

8

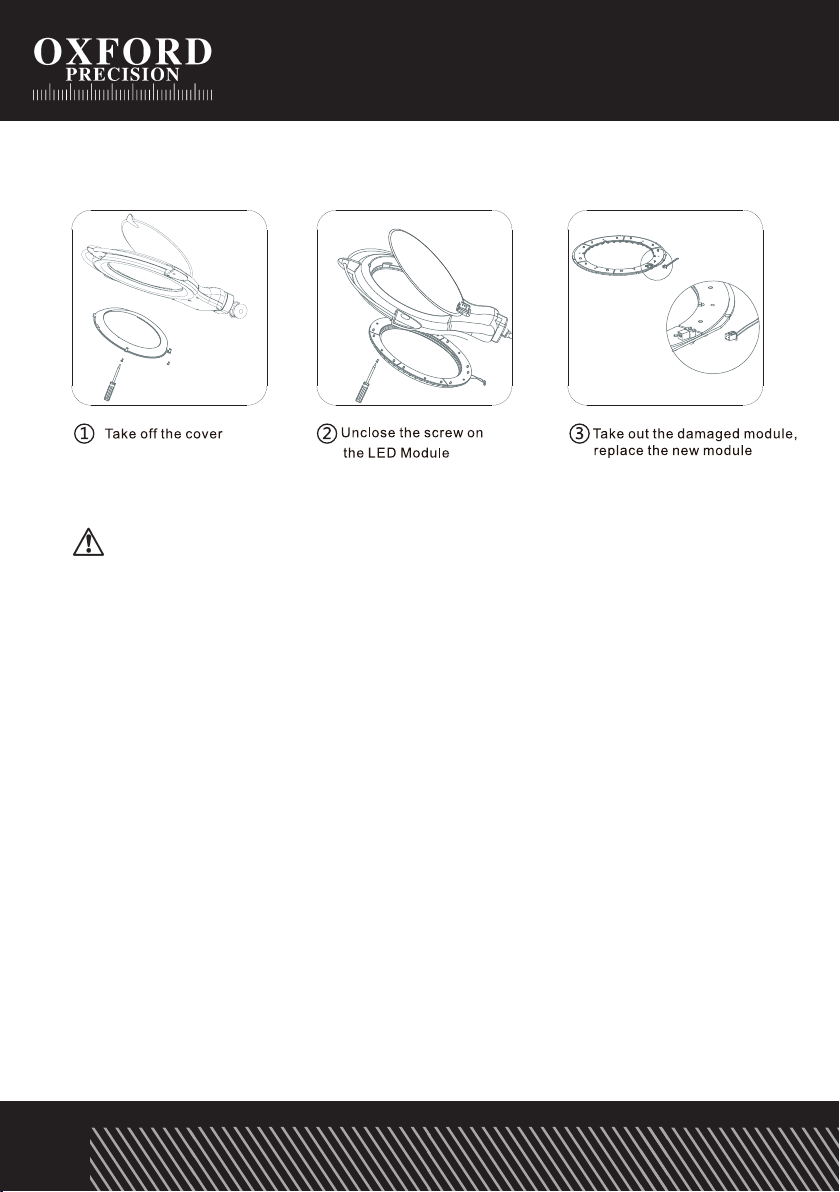

LED MODULE REPLACEMENT
1.Turn off/unplug and allow to cool before replacing lamp.
2.Lamp gets HOT quickly! Only contact switch/plug when turning on.
3.Do not touch hot lens, guard, or enclosure.
4.Do not rerain in light if skin feels warm.
5.Do not look directly at lighted lamp.
6.Keep lamp away from materials that may burn.
7.If the external cord is damaged, it should be replaced with the manufacturer's replacement part by a certified service
agent to the manufacturer to avoid any sort of hazard.
8.Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp.
9.Do not operate the lamp with a missing or damaged guard, lamp containment barrier.
10.Never tilt backwards.
To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
Description
This magnifier light is great for doing precision work and as a low vision aid. The mounting clamp easily secures the
magnifying lamp to the edge of your desk or work table. Spring balanced tension bare allows the lamp to adjust and lock
into numerous positions. Ideal for work on jewelry, as a low vision aid, reading"fine print", photography touch up, hobby
work, electronic installations, needle work, etc.
Unpacking
After unpacking unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping damage claim must be filed with carrier
CONTENTS
Magnifier Light
Mounting Clamp
(Recommend Replacement Clamp:OXD3981620K)
Allen wrench
Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instructions for future reference.
OXD3162630K OXD3162630K
OXD3162630K
OXD3162630K
OXD3981620K
Unlocking the plastic
circle and take out.
Take out the lens.
Put the plastic circle
into lamphead and lock.
ToreducetheriskofFIRE,ELECTRICSHOCK,ORINJURYTOPERSONS:
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly!
3. Do not touch hot lens, guard, or enclosure.
4. Do not remain in light if skin feels warm.
5. Do not look directly at lighted lamp.
6. Keep lamp away from materials that may burn.
7. If the external cord is damaged, it should be replaced
with the manufacturer’s replacement part.
By the manufacturer to avoid any sort of hazard.
8. Do not touch the lamp at any time. Use a soft cloth.
Oil from skin may damage lamp.
9. Do not operate the lamp with a missing, damaged guard
or lamp containment barrier.
10. Never tilt backwards.
WARNING
LED Module Code: OXD3981616K

9
NOTES

10
NOTES

11
NOTES

THE ENVIRONMENT
DECLARATION OF CONFORMITY
WeherebycertifythattheDELUXUV/LEDBENCHMAGNIFIER
(ORDER CODE: OXD-316-2630K)
complieswithalltherelevantprovisionsofthe
EMCElectromagneticCompatibilityDirective2014/30/EU
StandardsApplied:EN55015:2013,EN55015:2013+A1:2015
EN61547:2009,EN61000-3-2:2014,EN61000-3-3:2013
LowVoltageDirective2014/35/EU
StandardsApplied:EN60598-1:2015,EN60598-2-4:1997
EN62471:2008,EN62493:2015
RoHSRestrictionofHazardousSubstancesDirective2011/65/EU
Signed:
Date: 25th March 2020
Name:Toni Johnson
Position:Compliance Director
Always dispose of unwanted tools, accessories and packaging materials in an
environmentally friendly manner.
In observance of European Directive on Waste Electrical and Electronic Equipment (WEEE)
and its implementation in accordance with national law, electrical goods that have reached
the end of their life must be collected separately and returned to an environmentally
compatible recycling facility.
Do not dispose of electrical goods with domestic waste materials as inappropriate disposal
may cause potential hazards to the environment and human health.
For further information, please contact your local authority or the retailer from
whom you purchased the product.
QUALITY GUARANTEE & WARRANTY
OXFORD PRECISIONcarryaoneyearmanufacturer’swarranty.
OXFORDPRECISIONaredesigned&manufactured
tothehigheststandards&specications.
Assuring the quality and performance required by all sectors of industry.
OXFORDPRECISIONarefullyguaranteedagainstfaultymaterials&workmanship.
Should they be found to be defective, they will either be repaired or replaced
free of charge (fair wear and tear and/or misuse excepted).
Pleaseretainsupplierinvoiceasproofofpurchase.
OXFORDPRECISION,P.O.BOX14,WIGSTON,LEICESTER,ENGLAND,LE181AT.
