HIMS SenseView DUO User manual

2"
"
Table of Contents
"
1. What is the SenseView DUO? ....................4
2. Safety precaution ..........................................5
3. Package .........................................................6
4. Configuration..................................................7
5. After purchasing ............................................9
(1) Charging ................................................9
(2) Remove LCD protection film .............10"
6. How to use .................................................11
(1) Starting the SenseView DUO ............11"
① Power on/off .................................11
② Changing the camera mode........12"
③ Confirming the camera location ..12"
(2) Zoom-in/out .........................................13"
(3) Changing color....................................15"
(4) Changing brightness ...........................16"
(5) Capturing/storing images ....................16"
① Capturing an image .....................16"
② Storing an image..........................17"
(6) Handwriting mode ...............................17"

"
"
(7) Using the Distance camera ...............18"
"
"
"
(8) Using the menu ..................................19"
(9) Additional features ..............................25"
① Power saving mode .....................25"
② Checking the battery status ........26"
7. Zoom rate table ..........................................27
(1) Close-up/handwriting camera .............27"
(2) Distance camera .................................28"
8. Troubleshooting ...........................................28
9. Technical Specifications..............................31
10. Warranty ....................................................31

"
"
1. What is the SenseView DUO?
The SenseView Duo is a new designed
portable magnifier. Whether in the long or short
distance, all you need is Duo to magnify text.
Duo offers a built-in distance and a close-up
camera.
With the close-up camera, you can magnify
and read newspapers, books, telephone books,
receipts, flyers, or name cards. If you tilt the
close-up camera, you can use handwriting mode
for memo or signature.
With the distance camera, you can recognize
traffic sign, subway map or sign over 1m
distance.
You can store images up to 20. You can
magnify stored images, so that it is useful to
store subway map, phonebook, and so on.

User manual –SenseView DUO
5"
2. Safety precaution
To protect both yourself and the equipment,
observe the following precautions.
Do not use damaged power plug or
unsuitable outlet to prevent electronic shock
or fire.
Do not touch power plug with wet hands to
prevent electronic shock.
Only the power adapter supplied by Hims
should be used. Other adapter may damage
the unit.
Do not use this unit in moisture environment
like a bathroom or shower room to prevent
any damage.
Do not put any heavy object on the unit to
prevent any damage.
Do not disassemble, remodel, or repair. It
may damage the unit and void the warranty
on its product.
After 6 months usage, the lifespan of the
battery may be shortened.

User manual –SenseView DUO
6"
3. Package
(1) SenseView DUO
(2) AC adapter
(3) Carrying bag
(4) Strap
(5) User manual

User manual –SenseView DUO
7"
4. Configuration
(1) Power switch
(2) AC Jack (connect to a power adapter)
(3) Strap hole
(4) Battery charging indicator
(5) Menu button
(6) Panning button
(7) LCD screen
(8) Color mode button
(9) Brightness button
(5
)$
(6
)$
(7
)$
(3
)$
(9
)$
(8
)$
(4
)$
(1
)$
(2
)$

User manual –SenseView DUO
8"
"
(10) Close-up/handwriting camera indicator
(11) Zoom-in button
(12) Zoom-out button
(13) Image capture button
(14) Camera selection switch
(15) Distance camera indicator
(16) Focus knob for distance camera
(16)$
(15)$
(10)$
(11
)$
(13)$
(14)$
(12
)$

User manual –SenseView DUO
9"
(17)
5. After purchasing
(1) Charging
Battery must be fully charged approximately for
3 hours prior to initial use.
To charge the battery, plug the supplied AC
adapter into the AC adapter jack on the left of
the front.
When connect the adapter, the Battery
charging indicator is on. It is red color while it
is charged and it will be changed to green
color when it is fully charged.
A full charge takes about 3 hours.
"

User manual –SenseView DUO
10"
(2) Remove LCD protection film
A protection film is covered on the LCD. Make
sure to take it off before using the unit.

User manual –SenseView DUO
11"
6. How to use
(1) Startingthe SenseView DUO

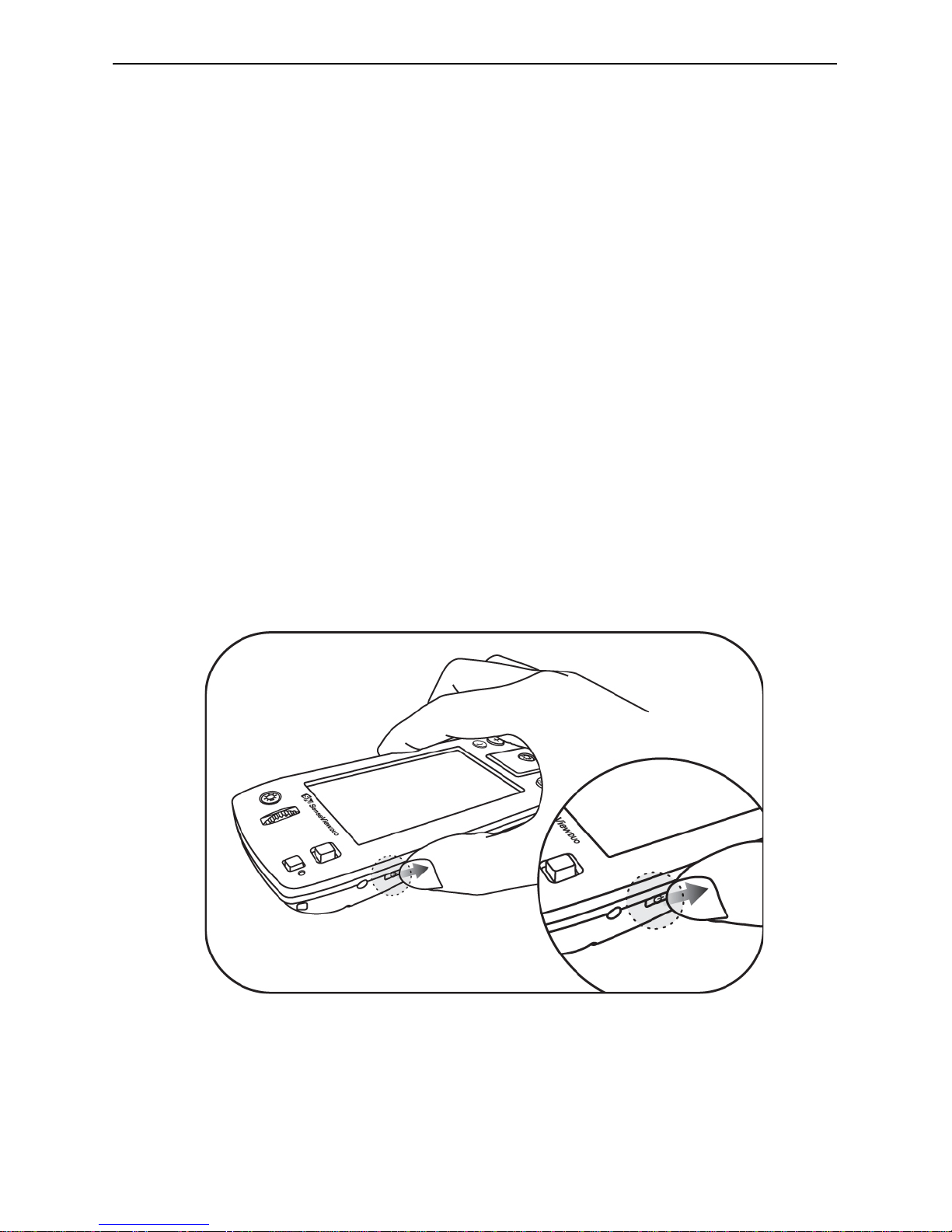

①Power on/off
The Power switch is at the left of the front
panel. (When you hold the unit with your
hands, you can touch it with your left thumb.)
To turn on, slide Power switch to the right.
The magnified image will show up.
To turn off, slide power switch to the right
once again.
※Do not turn on in a minute after turning off.
The unit might be damaged.

User manual –SenseView DUO
12"
②Changing the camera mode
You can use the Close-up/handwriting camera
for small text such as a regular book and use
the Distance camera for objects in the long
distance.
You can select the camera by using the
Camera mode switch.
The Camera mode switch is at the center of
the rare panel.
To use the Close-up/handwriting camera,
move the camera mode switch to the right.
To use the Distance camera, move the
camera mode switch to the left.
③Confirming the camera location
To magnify the exact spot of the object, be
aware of the camera location.
The Close-up/handwriting camera indicator
is the bulb-shaped icon at the center right of
the top panel.
The Distance camera indicator is the bulb-
shaped icon at the upper left of the top panel.
When you turn on the unit, the Camera
indicator will be on. If the image is displayed

User manual –SenseView DUO
13"
inaccurately, check the indicator whether the
camera is selected correctly.

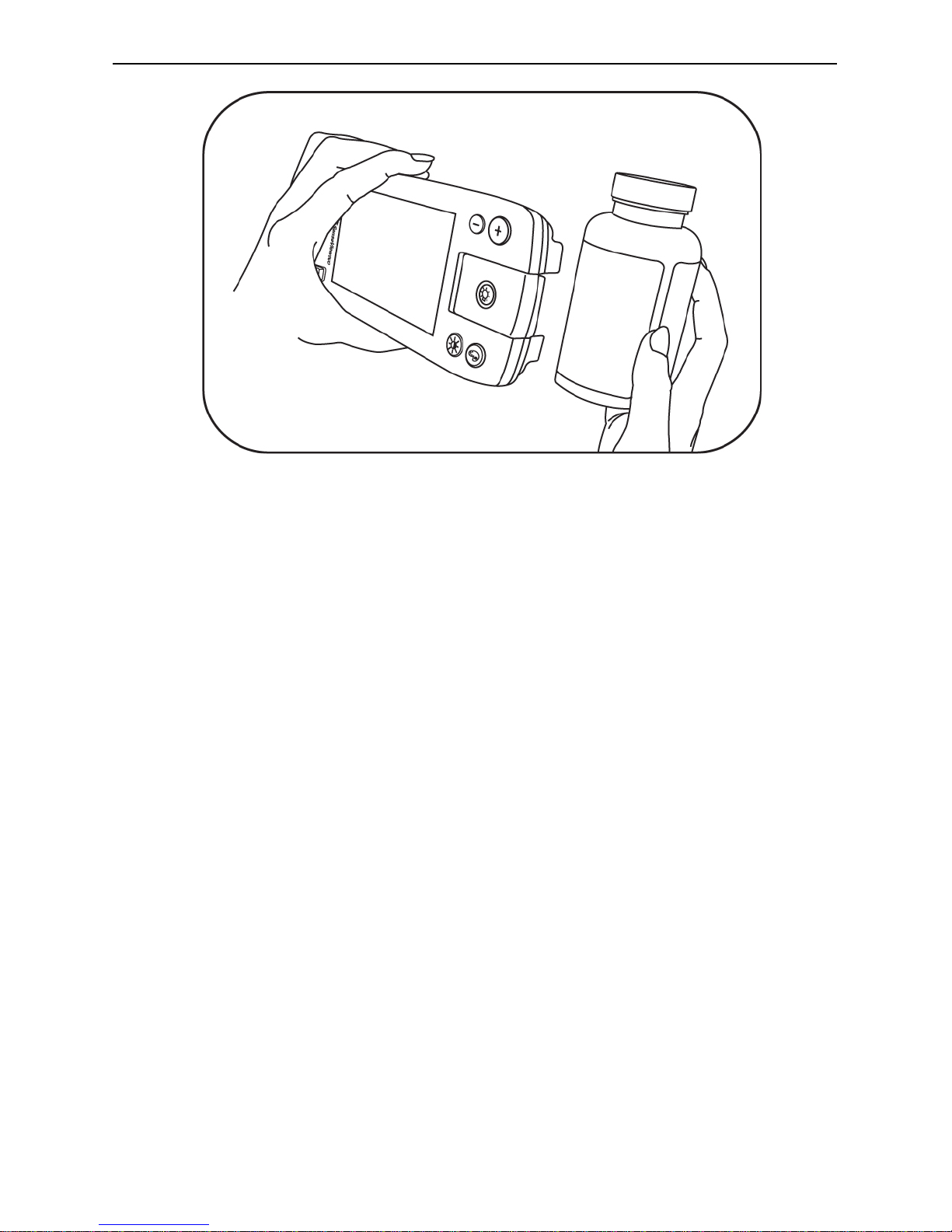

When you use the Close-up/handwriting
camera, put the camera on the object that
you want to magnify.
(2) Zoom-in/out
You can adjust the magnification rate, depending
on the text size.
The Zoom-in/out button are at the upper right
of the top. The Zoom-in button is the right
button with (+) sign on it. The Zoom-out
button is the left button with (-) sign on it.
To increase the magnification rate, press the
Zoom-in button.
To decrease the magnification rate, press the
Zoom-out button.
There are 10 magnification levels. When you
put this unit on the object, it can magnify from
3.5X to 13.4X. (Refer to 7. Zoom rate table for
the more details.)
※You can use it in semi-distance. In this case,
its rate is lower than above. (Refer to 7.
Zoom rate table for the more details.

User manual –SenseView DUO
14"

User manual –SenseView DUO
15"
(3) Changing color
The image on the LCD screen can be viewed in
7color modes in the Close-up/handwriting mode
and 6 color modes in the Distance mode.
The Color mode button is the right button
between two buttons at the lower right of the
top panel.
Close-up/
handwriting
camera
Distance camera
Level 1
Full color
Full color
Level 2
Enhanced color
Black on white
Level 3
Black on white
White on black
Level 4
White on black
Yellow on black
Level 5
Yellow on black
Yellow on blue
Level 6
Yellow on blue
Blue on white
Level 7
Blue on white
-

User manual –SenseView DUO
16"
(4) Changing brightness
You can adjust brightness for the darker and
lighter images depending on material viewing
on the LCD.
The Brightness button is the left button
between two buttons at the lower right of the
top panel.
Repeatedly pressing the button will take it
through the 4 brightness levels.
(5) Capturing/storing images
The feature of still image is useful to read
small letters such as address, and phone
number. You can store the images for future.
①Capturing an image
The Image capture button is at the right of
the rare panel. (When you hold its right side
with your right hand, you can touch it with
your right fore-finger.)
To capture an image, press the Image
capture button.
To escape this mode, press the Image
capture button once again.

User manual –SenseView DUO
17"
②Storing an image
After capturing an image, press the Image
capture button once again more than 1.5
seconds to store the image. After storing the
image, it returns to the normal viewing mode.
You can store images up to 20. It will be
saved and numbered in sequence.
You can open the stored images using the
menu. (Refer to 6. (8) How to use the menu)
(6) Handwriting mode
You can use the Handwriting mode to take notes
or sign.
Put your hand into the space at the bottom of
the right part and lift up the Close-up/handwriting
camera until you here a click sound.
The camera will focus the part you take notes
and display the magnified image.

User manual –SenseView DUO
18"
(7) Using the Distance camera
With the Distance camera, you can magnify
objects over 1m distance.
To use the Distance camera, move the
Camera selection switch to the left.
To get a clear view, you need to focus the
object as its distance.
The Focus knob is under the Distance
camera indicator at the upper left of the top
panel. It is a toothed wheel.
To focus objects in the short distance, rotate
the Focus knob to the left. To focus objects in
the long distance, rotate the Focus knob to
the right.
※Do not block the Distance camera at the
bottom of the Distance camera indicator.

User manual –SenseView DUO
19"
(8) Using the menu
You can see and delete the stored images, turn
on/off the light and sound, and check the storage.
①How to use the menu
You can open and close the menu by using
the Menu button and set options by using
the Panning/selection button.
There are two buttons at the lower left of the
top panel. The left one is the Menu button
and the right one is the Panning/selection
button. The Panning/selection button is used
for five actions: up, down, left, down and
select.
When you press the Menu button, the menu
will pop up. There are five icons. These
backgrounds are yellow color. When an icon
is focused, it changes to orange color.
[Menu" icons]"

User manual –SenseView DUO
20"
To focus next or previous icon, movethe
Panning/selection button to the left or right.
To execute the focused icon, press the
Panning/selection button.
②Opening stored images
You can open stored images. You can magnify
and change the color of the stored images as
well.
Press the Menu button to call the menu.
Move to the first icon, Opening stored
images, by using the Panning/selection
button.
Press the Panning/selection button on it, the
recent stored images will show up.
※You will hear alarm sound and see flickering
number of “00” when there is no stored
image.
