OxyGo Next User manual

1
USER MANUAL
Where will you go NEXT?

2

Chapter 1
Glossary of Symbols 1
Chapter 2
Introduction 2
Intended Use 2
Contraindications and General Precautions 2
Cautions and Warnings 2
Chapter 3

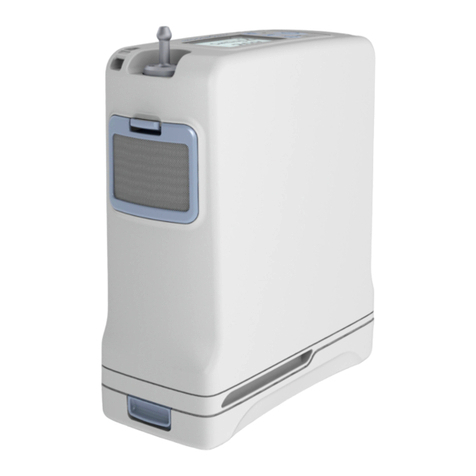

Description of the OxyGo NEXT Oxygen Concentrator 5
User Controls 5
User Interfaces 5
Input/Output Connection 6
Chapter 4
Operating Instructions 6
General Instructions 6
Power Supply Options 8
OxyGo NEXT Accessories 10
Traveling with OxyGo NEXT 12
Chapter 5
Audible and Visible Signals 12
Chapter 6
Troubleshooting 18
Chapter 7
Cleaning, Care and Maintenance 19
Cannula Replacement 19
OxyGo NEXT Column Change Procedure 20
Chapter 8
Specications 23
Disposal of Equipment and Accessories 24
Table of Contents

1
1. Glossary of Symbols
ONLY
ONLY
ONLY
ONLY
U.S. Federal Regulation
Restricts this Device to
Sale by order of Physician.
May also be applicable in
other Countries
Type BF Applied Part
Class II Device
No Open Flames
(Concentrator); Do not
incinerate (Battery).
No smoking
No oil or grease
Do Not Disassemble
Electrical Safety Agency
Certicate
The manufacturer of this
POC has determined this
device conforms to all
applicable FAA
requirements for POC
carriage and use on board
aircraft.
Compliant with the Waste
Electrical and Electronic
Equipment/Restriction
of the Use of Certain
Hazardous Substances in
Electrical and Electronic
Equipment (WEEE/RoHS)
recycling directive
Keep Dry
Indoor or Dry Location
Use Only, Do Not Get Wet
AC Power
DC Power
Refer to instruction
manual/booklet.
Manufacturer
This symbol indicates use
of the automobile DC input
power cable (1400-1050)
ONLY
ONLY
Symbol Key
ONLY
ONLY

2
2. Introduction
Intended Use
The OxyGo NEXT Oxygen Concentrator is used
on a prescriptive basis by patients requiring
supplemental oxygen. It supplies a high
concentration of oxygen and is used with a
nasal cannula to channel oxygen from the
concentrator to the patient. The OxyGo NEXT
may be used in home, institution, vehicle and
various mobile environments.
Intended Life
The expected life for the OxyGo NEXT Oxygen
System is 5 years, with the exception of the
sieve beds (metal columns) which have an
expected life of 1 year and the batteries,
which have an expected life of 500 full
charge/discharge cycles.
Contraindications and
Precautions
• This device is NOT INTENDED to be life
sustaining or life supporting.
• Under certain circumstances, the use of
non-prescribed oxygen therapy can be
hazardous. This device should be used
only when prescribed by a physician.
• USA Federal law restricts this device to
sale by or on the order of a physician.
May also be applicable in other
countries.
• Nasal cannula should be rated for 6 liters
per minute (e.g. Salter Labs 16SOFT) to
ensure proper patient usage and oxygen
delivery.
• Availability of an alternate source of
oxygen is recommended in case of
power outage or mechanical failure.
Consult your equipment provider for
type of back-up system recommended.
• It is the responsibility of the patient to
make back-up arrangements for
alternative oxygen supply when
traveling; OxyGo assumes no liability
for persons choosing not to adhere to
manufacturer recommendations.
Cautions and Warnings
Cautions
• A caution indicates that a precaution
or service procedure must be followed.
Disregarding a caution could lead to a
minor injury or damage to equipment.
• Additional monitoring or attention
may be required for patients using this
device who are unable to hear or see
alerts or communicate discomfort. If the
patient shows any signs of discomfort,
a physician should be consulted
immediately.
• The OxyGo NEXT is not designed or
specied to be used in conjunction
with a humidier, nebulizer or
connected with any other equipment.
Use of this device with a humidier,
nebulizer or connected with any other
equipment may impair performance
and/or damage the equipment. Do not
modify the OxyGo NEXT Concentrator.
Any modications performed on the
equipment may impair performance or
damage equipment and will void your
warranty.
• Do not use oil, grease, or petroleum-
based products on or near the OxyGo
NEXT.
• Do not use lubricants on the OxyGo
NEXT or its accessories.
• Never leave the OxyGo NEXT in an
environment which can reach high
temperatures, such as an unoccupied
car in high temperature environments.
This could damage the device.
• Avoid touching the recessed electrical
contacts of the External Battery Charger;
damage to contacts may aect charger
operation.
• Do not obstruct air intake or exhaust
when operating the device. Blockage
of air circulation or proximity to a
heat source may lead to internal heat
buildup and shutdown or damage to the
concentrator.

3
• The OxyGo NEXT Concentrator is
designed for continuous use. For
optimal sieve bed (columns) life, the
product should be used frequently.
• Do not operate the OxyGo NEXT without
the particle lter in place. Particles
drawn into the system may damage the
equipment.
• The OxyGo NEXT battery acts as a
secondary power supply in the event
of a planned or unexpected loss of the
AC or DC external power supply. When
operating the OxyGo NEXT from an AC
or DC external power supply, a properly
inserted OxyGo NEXT battery should be
maintained in the unit. This procedure
will ensure uninterrupted operation and
will operate all alerts and alerts in the
event of a loss of the external power
supply.
• Ensure the power supply is in a well
ventilated location as it relies on air
circulation for heat dissipation. The
power supply may become hot during
operation. Make sure the power supply
cools down before handling.
• Do not disassemble the power supply.
This may lead to component failure
and/or safety risk.
• Do not place anything in the power
supply port other than the supplied
wall cord. Avoid the use of electrical
extension cords with the OxyGo NEXT. If
an extension cord must be used, use an
extension cord that has an Underwriters
Laboratory (UL) Mark and a minimum
wire thickness of 18 gauge. Do not
connect any other devices to the same
extension cord.
• To ensure oxygen ow, ensure that the
nasal cannula is properly connected to
the nozzle tting and that the tubing is
not kinked or pinched in any way.
• Replace the nasal cannula on a regular
basis. Check with your equipment
provider or physician to determine how
often the cannula should be replaced.
• The OxyGo NEXT is designed to provide
a ow of high purity oxygen.
An advisory alert, “Oxygen Low”, will
inform you if oxygen concentration
drops. If alert persists, contact your
equipment provider.
• Ensure the power supply is powered
from only one power source (AC or DC)
at any given time.
• Ensure the automobile power socket is
clean of cigarette ash and the adapter
plug ts properly, otherwise overheating
may occur.
• Do not use the power supply with
a cigarette plug splitter or with an
extension cable. This may cause
overheating of the DC power input
cable.
• Do not jump start the automobile with
the DC power cable connected. This may
lead to voltage spikes which could shut
down and/or damage the DC power
input cable.
• When powering the OxyGo NEXT in an
automobile ensure the vehicle’s engine
is running rst before connecting DC
cable into cigarette lighter adapter.
Operating the device without the
engine running may drain the vehicle’s
battery.
• A change in altitude (for example, from
sea level to mountains) may aect total
oxygen available to the patient. Consult
your physician before traveling to higher
or lower altitudes to determine if your
ow settings should be changed.
Warnings
• A warning indicates that the personal
safety of the patient may be involved.
Disregarding a warning could result in
injury.
• The device produces enriched oxygen
gas, which accelerates combustion.
• Do not allow smoking or open ames
within 10 feet of this device while in use.

4
•• Avoid use of the OxyGo NEXT in
presence of pollutants, smoke or fumes.
Do not use the OxyGo NEXT in presence
of ammable anesthetics, cleaning
agents or other chemical vapors.
• Do not submerse the OxyGo NEXT
or any of the accessories in liquid.
• Do not expose to water or precipitation.
Do not operate in exposed rain. This
could lead to electrical shock and/or
damage.
• Do not use cleaning agents other than
those specied in this User Manual.
Do not use alcohol, isopropyl alcohol,
ethylene chloride or petroleum based
cleaners on the cases or on the particle
lter.
• Never leave the OxyGo NEXT in an
environment which can reach high
temperatures, such as an unoccupied
car in high temperature environments.
This could damage the device.
• Do not use power supplies, power
cables or accessories other than those
specied in this user manual. The use
of non-specied power supplies, power
cables or accessories may create a
safety hazard and/or impair equipment
performance.
• Do not wrap cords around power supply
for storage. Do not drive, drag or place
objects over cord. Doing so may lead to
damaged cords and a failure to provide
power to the concentrator.
• To avoid danger of choking or
strangulation hazard, keep cords away
from children and pets.
• If you begin to feel ill or are experiencing
discomfort while using this device,
consult your physician immediately.
• Ensure that the automobile power
socket is adequately fused for the
OxyGo NEXT power requirements
(minimum 10Amp, preferred 15Amp).
If the power socket cannot support a
10Amp load, the fuse may blow or the
socket may be damaged.
• The tip of the Cigarette Adapter Plug
becomes HOT when in use. Do not touch
the tip immediately after removal from
an auto cigarette lighter socket.
• It is the responsibility of the patient
to periodically check the battery and
replace as necessary. OxyGo assumes
no liability for persons choosing
not to adhere to manufacturer
recommendations.
• Audible notications, ranging from
68dBA to 78dBA depending on the
users position, are to warn the user
of problems. To insure that audible
notications may be heard, the
maximum distance that the user can
move away from it must be determined
to suit the surrounding noise level.
Make sure the OxyGo NEXT is in a
location where the alerts can be heard
or will be recognized if they occur.
• Do not use any columns other than
those specied in this user manual.
The use of non-specied columns may
create a safety hazard and/or impair
equipment performance and will void
your warranty.
• Do not disassemble the OxyGo NEXT or
any of the accessories or attempt any
maintenance other than tasks described
in this user manual; disassembly creates
a hazard of electrical shock and will
void your warranty. Do not remove the
tamper evident label. For events other
than those described in this manual,
contact your equipment provider for
servicing by authorized personnel.

5
3. OxyGo NEXT Oxygen Concentrator Description
User Controls
Item Description Function
1ON / OFF Button Press once to turn“ON”; Press and hold for one second to turn“OFF”.
2 Flow Setting
Control Buttons
Use the – or + ow setting control buttons to select the setting as shown
on the display. There are six settings, from 1 to 6.
3 Volume Control
Button
Pressing this button will change the volume level, from 1 to 4.
4 Audible Alert
Button
Pressing this button will toggle the OxyGo NEXT’s breath detection
audible alert on and o.
Breath Detection Alert Mode. The OxyGo NEXT will alert with audible and
visual signals for“no breath detected”when this mode is enabled and no
breath has been detected for 60 seconds.
At 60 seconds, the device will enter into auto pulse mode and once
another breath is detected, the device will exit auto pulse mode and
deliver normally on inspiration. The display’s mode indication area will
show a bell icon, ashing yellow light and display message when the alert
is enabled.
If power is lost, the breath detection audible alert remains set in the user
preferred mode.
User Interfaces
Item Description Function
5 Display This screen displays information regarding ow setting, power status,
battery life and errors. Display appearance will vary. Before use, remove
the static cling FCC label from the screen.
6 Indicator Lights A green light indicates breath detection. A yellow light indicates either a
change in operating status or a condition that may need response (alert).
A ashing light is higher priority than non-ashing.
7 Audible Signals An audible signal (beep) indicates either a change in operating status or
a condition that may need response (alert). More frequent beeps indicate
higher priority conditions. The default volume is set at level 1 and can be
adjusted to higher settings but it can not be silenced. If power is lost, the
audible signal remains set in the user preferred adjusted setting.
8 Backlight A backlight will illuminate the screen for 15 seconds when the on/o
button is briey pressed.
4
1
5
8
3
6
7
2

6
Input / Output Connections
Particle Filter
The lters must
be in place at the
intake ends of
the concentrator
during operation
to keep input air
clean.
Cannula Nozzle
Fitting
The nasal cannula
connects to this
nozzle for OxyGo
NEXT output of
oxygenated air.
USB Port
For service use only.
DC Power In
Connection for
external power
from the AC power
supply or DC power
cable.
4. Operating Instructions
General Instructions
1. Place the OxyGo NEXT in a well
ventilated location.
2. Air intake and exhaust must have clear
access. Locate the OxyGo NEXT in such
a way that any auditory alerts may be
heard. Always operate the OxyGo NEXT
in an upright position (see image for
proper orientation).
3. Ensure particle lters are in place at both
ends of device.
4. Insert the OxyGo NEXT battery by sliding
battery into place until the latch returns
to the upper position.
5. Connect the AC input plug to the power
supply. Connect the AC power plug
to the power source and connect the
power output plug to the OxyGo NEXT.
The green LED on the power supply will
be illuminated and a beep will sound
from the concentrator.
Intake
Vent Intake
Vent
1., 2., 3.
4.
Intake
Vent
Intake
Vent
Exhaust
Vent

7
6. Connect the nasal cannula tubing
to the nozzle tting. Nozzle tting is
located on the top of the OxyGo NEXT.
Use of a single lumen cannula up to
25 feet in length is recommended to
ensure proper breath detection and
oxygen delivery. Additional titration
may be needed to ensure proper
oxygen delivery when using a particular
cannula, consult your physician.
7. Turn on your OxyGo NEXT by pressing
the ON/OFF Button. A single short beep
will sound after poweing on. Please
wait icon ( ) will appear while the
concentrator starts up. The display will
indicate the selected ow setting and
power condition. Following a brief
start-up sequence, a warm up period
up to 2 minutes will initiate. During this
time period the oxygen concentration
is building to but may not have reached
specication. Additional warm up time
may be needed if your OxyGo NEXT
has been stored in extremely cold
temperatures.
8. Set the OxyGo NEXT Concentrator to the
ow rate prescribed by your physician or
clinician. Use the + or – setting buttons
to adjust the OxyGo NEXT to the desired
setting. The current setting can be
viewed on the display.
9. Position the nasal cannula on your
face and breathe through your nose.
The OxyGo NEXT will sense the onset
of inhalation and deliver a burst of
oxygen at a precise time when you
inhale. The OxyGo NEXT will sense each
breath and continue to deliver oxygen
in this manner. As your breathing rate
changes, the OxyGo NEXT will sense
these changes and deliver oxygen only
as you need it. At times, if you inhale
very quickly between breaths the OxyGo
NEXT may ignore one of the breaths,
giving the appearance of a missed
breath. This may be normal as the
OxyGo NEXT senses and monitors the
changes in your breathing pattern.
The OxyGo NEXT will normally sense
the next breath and deliver oxygen
accordingly.
5., 6.
7., 8.

8
DC power cable
(1400-1050)
AC power supply
(1400-3040)
Single battery (1400-3010-8)
and double battery (1400-3010-16)
10. A green light will ash each time a
breath is detected. Make certain that
the nasal cannula is properly aligned
on your face and you are breathing
through your nose.
Power Supply Options
Single and Double Rechargeable
Lithium Ion Batteries
The battery will power the OxyGo NEXT
without connection to an external power
source. When fully charged, a single battery
will provide up to 6.5 hours of operation; a
double battery will provide up to 13 hours of
operation. The battery recharges when
properly installed in the OxyGo NEXT and the
concentrator is connected to AC or DC power.
Recharging time is up to 3 hours for a single
battery and 6 hours for a double battery.
While the OxyGo NEXT is operating on battery
power, the battery will discharge. The display
will indicate the estimated remaining
percentage (%) or minutes of use.
When the concentrator detects that the
battery life is low, with less than 10 minutes
remaining, a low priority alert will sound.
When the battery is empty, the alert will
change to a high priority.
When battery life is low, do one of the
following:
• Plug the OxyGo NEXT into an AC or
DC power source using the AC power
supply or DC cable.
• Replace the battery with a charged
battery after turning o the OxyGo
NEXT (by pressing the ON/OFF button).
To remove battery press and hold the
battery latch button and slide battery o
the concentrator.
• If the battery is drained, charge
the battery or remove it from the
concentrator.
If the OxyGo NEXT is being powered by the
AC power supply or DC power, batteries will
charge during operation. Leaving your OxyGo
NEXT plugged in past the full charge time will
not harm the concentrator or the battery.
To ensure that your battery is properly
charging, inspect that the correct AC and DC
power output plug adapter is being used and
10.

9
that the adapter is properly inserted into the power outlet. Observe the display or lights that
indicate charging status.
NOTE: When starting to charge a fully discharged battery, the charging process may start and
stop during the rst few minutes.
Always keep liquids away from batteries. If batteries become wet, discontinue use immediately
and dispose of battery properly.
To extend the run-time of your battery, avoid running in temperatures less than 41˚F (5˚C) or
higher than 95˚F (35˚C) for extended periods of time.
• Store battery in a cool, dry place. Store with a charge of 40-50%.
• If using multiple batteries, make sure that each battery is labeled (1, 2, 3 or A, B, C, etc.)
and rotate on a regular basis. Batteries should not be left dormant for more than
90 days at a time.
Battery Charge Indicator Gauge
When the single or double battery is not
attached to the OxyGo NEXT Concentrator, you
can check the battery gauge on the battery to
determine the amount of charge available.
Determine the amount of battery charge
available by pressing the green battery icon
button and observing how many LEDs
illuminate.
4 LEDs Light: 75% to 100% full
3 LEDs Light: 50% to 75% full
2 LEDs Light: 25% to 50% full
1 LED Lights: 10% to 25% full
1 LED Blinks: Battery is less than 10% full
and needs to be recharged
Power Supply Overview
The OxyGo NEXT AC power supply (1400-3040) is used to power the OxyGo NEXT
concentrator from an AC power source.
The OxyGo NEXT AC power supply is specically designed for use with the OxyGo NEXT Oxygen
Concentrator (IO-500). The AC power supply provides the precise current and voltage
required to safely power the OxyGo NEXT and is designed to operate from specied AC power
sources. When used with AC power sources, the power supply automatically adapts to input
voltages from 100V to 240V (50-60HZ) permitting use with most power sources
throughout the world.
The AC power supply will charge the OxyGo NEXT Batteries when used with AC input power.
Due to aircraft power limitations, the AC Power Supply cannot be used to charge the OxyGo
NEXT Battery when used on an aircraft.
The AC power supply is used with the following components:
1. Power supply with attached power output cable to connect to the OxyGo NEXT.
2. AC power input cable to the power source.
The DC power cable (1400-1050) is designed for use with the OxyGo NEXT Oxygen
Concentrator (IO-500). The DC power input cable connects directly to the automobile
cigarette lighter or auxiliary DC power supply.

10
OxyGo NEXT Accessories
Nasal Cannula
A nasal cannula must be used with the
OxyGo NEXT to provide oxygen from the
concentrator. A single lumen cannula up to
25 feet in length is recommended to ensure
proper breath detection and oxygen delivery.
Carry Bag (1170-3410)
The Carry Bag provides a protective cover with
a handle and shoulder strap to enable you to
carry the OxyGo NEXT. The OxyGo NEXT can
be operated using battery power
during transport with the Carry Bag.
1. Insert the OxyGo NEXT into the carry
bag through the bottom zippered
opening with the cannula barb facing
up on the right front side. Attach the
desired sized single or double battery
and zip up the bottom ap.
2. The cannula barb will be exposed at the
top of the bag for proper attachment.
The display screen can be accessed by
grabbing the short material pull tab at
the top ap, just above the grab handle
on the back top section of the bag.
3. Both intake vents should be visible
through the open mesh panels on
both sides of the bag. The exhaust vent
should be visible from the open mesh
panel on the front bottom panel of the
bag just above the zippered seam.
4. There is a small cut-out on the back
bottom section of the bag to plug
into AC or DC outlet for charging
accessibility.
5. There is a slim pocket under the front
ap of the bag with a zipper closure for
storage of small items such as ID cards
and currency. The extra cannula tubing
can be tucked into the open pocket on
the front ap of the bag.

11
6. There is one additional feature for
attaching the bag to a luggage or cart
handle for ease of not having to carry
the bag while also pulling luggage or a
cart.
7. The carry strap has a removable
shoulder pad and has an adjustable
strap from 24”to 48”in length.
8. For washing instructions, clean with
a damp cloth and mild detergent and
wipe dry.
Optional Accessories
Backpack (1170-3420)
Alternative/optional way of carrying
your OxyGo NEXT, hands free, more comfort,
out of your way with extra pockets for
additional accessories. To order please call
your equipment provider.
External Battery Charger (1400-3030)
The OxyGo NEXT external battery charger will
charge the OxyGo NEXT single and double
batteries.
1. Plug the External Battery Charger AC
power supply cord into an electrical
outlet.
2. Plug the External Battery Charger AC
power supply into the battery charger.
3. Slide your charger onto the OxyGo
NEXT Battery by clicking and locking
into the charger.
4. When the battery is in the correct
position, a solid red light will indicate
that the battery is charging.
5. When the green light illuminates, the
battery is fully charged.
NOTE: These contacts are not powered unless a battery is in place and charging.
To completely remove power from the external battery charger, remove the plug.

12
Traveling with your OxyGo NEXT System
The FAA allows the OxyGo NEXT onboard all U.S. aircraft, here are a few points to make air travel
easy.
• Ensure your OxyGo NEXT is clean, in good condition and free from damage or other signs
of excessive wear or abuse.
• Bring enough charged batteries with you to power your OxyGo NEXT for no less than
150% of the expected duration of your ight, ground time before and after the ight,
security screenings, connections and a conservative estimate for unanticipated delays.
• FAA regulations require that all extra batteries to be individually wrapped and protected to
prevent short circuits and carried in carry-on baggage onboard aircraft only.
• Some airlines may equip their aircraft with onboard electrical power. However, availability
varies by airline, type of aircraft and class of service. You must check with your airlines
for availability and any specic requirements for battery life duration 48 hours before
traveling. In this case, the following procedure regarding transition from battery power to
aircraft electrical power must be followed:
º Remove the battery from the OxyGo NEXT.
º Connect the DC power plug to the OxyGo NEXT and plug into available airline power.
NOTE: The AC Power Supply cannot be used to charge the OxyGo NEXT battery when
onboard aircraft. Traveling by bus, train or boat, contact your carrier to nd out about power
port ability.
5. Audible and Visible Signals
Display
The OxyGo NEXT display contains power status icons, mode icons, informational icons and
notication icons.
Power Status Icons
These icons are examples of those shown in the display’s window when the OxyGo NEXT
is operating on battery power.
Battery is Empty
Battery has less than 10% charge
remaining. The icon ashes.
Battery has approximately 40% to 50% charge remaining.
Battery is full.

13
!C
The mode icons below are examples of those shown when the OxyGo NEXT is operating from
an external power supply and charging the battery. The lightning bolt indicates that an external
power supply is connected.
The battery is fully charged and is charging as necessary to
maintain its charge.
Battery is charging with charge level between 60% and 70%.
Battery is charging with charge level less than 10%.
The OxyGo NEXT is operating from an external power source
with no battery present.
Mode Icons
These are the mode icons shown in the display’s window.
The breath detection audible alert has been enabled.
The breath detection audible alert is disabled. This is the default
condition.
Sound Level 1
Sound Level 2
Sound Level 3
Sound Level 4
Display Icons
The icons below are examples of those shown when pertaining to Bluetooth functionality.
Bluetooth turned o.
Bluetooth turned on.
Pairing with My OxyGo application.
Concentrator unpaired from mobile device.

14
Informational Icons
The following displayed icons are not accompanied by any audible feedback or any visual
change in the indicator lights.
Description Display Icons Condition/Action/Explanation
Setting X
Please Wait
Displayed during warm up. “X”represents the
selected ow setting (eg., Setting 2).
Setting X
Battery
Hours:Minutes
Default display when operating on battery
power.“X” represents the selected ow
setting (e.g., Setting 2).“HH:MM”represents the
approximate time remaining on the
battery charge (e.g., 1:45).
Setting X
Battery
Charging XX%
Default display when operating on an external
power supply and the battery is charging.
“xx%” represents the percent battery charge
(e.g., 86%).
Setting X
Battery XX%
Default display when the battery is not
charging or when the time remaining is not
available from the battery.
Battery
Charging XX%
Displayed when the concentrator is plugged in
and being used to charge a battery (not being
used for oxygen production). It is normal to see
a fully charged battery read between 95% and
100% when external power is removed. This
feature maximizes the useful life of the battery.
Sieve Reset Displayed when column maintenance is
required and once the replacement columns
have been installed.
Sieve Reset
Success
Displayed once the columns have been
successfully reset.
Data log transfer in
progress
OR
SW Update in
progress (app only)
This icon is displayed during all data log
transfers and software updates initiated
through the My OxyGo app.
Data Log transfer
success (app only)
This icon is displayed after data log transfers
have been successfully completed through the
My OxyGo app.
%
HH:MM

15
HH:MM
Vx.x:SN
O2
!C
Notication Icons
The OxyGo NEXT monitors various parameters during operation and utilizes an intelligent alert
system to indicate a malfunction of the concentrator. Mathematical algorithms and time delays
are used to reduce the probability of false alerts while still ensuring proper notication of an
alert condition.
If multiple alert conditions are detected, the highest priority alert will be displayed.
Note that failure to respond to the cause of an alert condition for low, medium and high priority
alerts potentially will result in discomfort or reversible minor injury only and develop within a
period of time sucient to switch to a backup source of oxygen.
The following notication icons are accompanied by a single, short beep.
Description Display Icons Condition/Action/Explanation
Please Wait
Shutting Down
On/O button has been pressed for two
seconds. Concentrator is performing
system shut down.
Hours:Minutes
Software Version:
Serial Number
Audible Alert button has been pressed for ve
seconds.
Low Priority Alerts
The following low priority alerts are accompanied by a double beep and a solid yellow light.
Description Display Icons Condition/Action/Explanation
Battery Low
Attach Plug
Battery power is low, with less than 10
minutes remaining. Attach external power
supply or power down and insert a fully
charged battery.
Replace Columns Column maintenance is required within 30 days.
Contact your equipment provider to arrange for
service.
Check Battery Battery error has occurred. Check the
connection of your battery and ensure that it is
properly attached and latched on concentrator.
If battery error recurs with same battery, stop
using the battery and switch to a new battery or
remove battery and operate concentrator using
external power supply.
Oxygen Low Concentrator is producing oxygen at a
slightly low level (<82%) for a period of
10 minutes. If condition persists, contact
your equipment provider.

16
O2
O2
Description Display Icons Condition/Action/Explanation
Remove Battery
to Cool
Battery has exceeded its charging temperature
and charging has stopped. The battery will not
charge while this alert is present but will begin
to charge when the battery temperature
returns to the normal operating range. If
battery charging is desired sooner, remove the
battery from the concentrator and allow it to
cool in an open area for approximately 10-15
minutes. Then, re-insert the battery into the
OxyGo NEXT. If the problem still persists, contact
your equipment provider.
Service Soon The concentrator requires servicing at the
earliest convenience. The concentrator is
operating to specication and may continue to
be used. Contact your equipment provider to
arrange for service.
Sensor Fail The concentrator’s oxygen sensor has
malfunctioned. You may continue to use the
concentrator. If the condition persists, contact
your equipment provider.
Medium Priority Alerts
The following medium priority alerts are accompanied by a triple beep, repeated every
25 seconds, and a ashing yellow light.
Description Display Icons Condition/Action/Explanation
No Breath Detect
Check Cannula
Concentrator has not detected a breath for 60
seconds. Check that cannula is connected to
concentrator, there are no kinks in tubing and
cannula is positioned properly in your nose.
Oxygen Error Oxygen output concentration has been below
50% for 10 minutes. If condition persists, switch
to your backup oxygen source and contact your
equipment provider to arrange for service.
O2 Delivery
Error
A breath has been recognized, but proper
oxygen delivery has not been detected.
Low Priority Alerts (Continued)

17
Medium Priority Alerts (Continued)
!C
Description Display Icons Condition/Action/Explanation
Battery HOT
Warning
Battery has exceeded temperature limit while
concentrator is running on battery power.
If possible, move concentrator to a cooler
location or power unit with an external power
supply and remove battery. If condition
persists, contact your equipment provider.
System Hot
Warning
Concentrator temperature has exceeded
temperature limit. If possible move
concentrator to a cooler location. Ensure air
intake and outlet vents have clear access and
particle lters are clean. If condition persists,
contact your equipment provider.
High Priority Alerts
The following high priority alerts are accompanied by a ve beep pattern, repeated every
10 seconds and a ashing yellow light.
Description Display Icons Condition/Action/Explanation
Battery Empty
Attach Plug
Concentrator has insucient battery power to
produce oxygen. Attach external power supply
or exchange battery, then restart unit if
necessary by pressing On/O button.
Battery HOT Battery has exceeded temperature limit while
concentrator is running on battery power.
Concentrator has stopped producing oxygen.
If possible, move concentrator to a cooler
location, then turn power o and back on.
Ensure air intake and outlet vents have clear
access and particle lters are clean. If condition
persists, switch to a backup source of oxygen and
contact your equipment provider.
System HOT Concentrator temperature is too high and
oxygen production is shutting down. Ensure air
intake and outlet vents have clear access and
particle lters are clean. If condition
persists, switch to a backup source of oxygen
and contact your equipment provider.
