4x10 beam
2x 4x6 rafter
2x 4x6 web
4x6 king post
2x6 beam
2x 4x10 beam
56619 Truss Base Fan Calculator
8:12
56619 Truss Base Fan Calculator 1

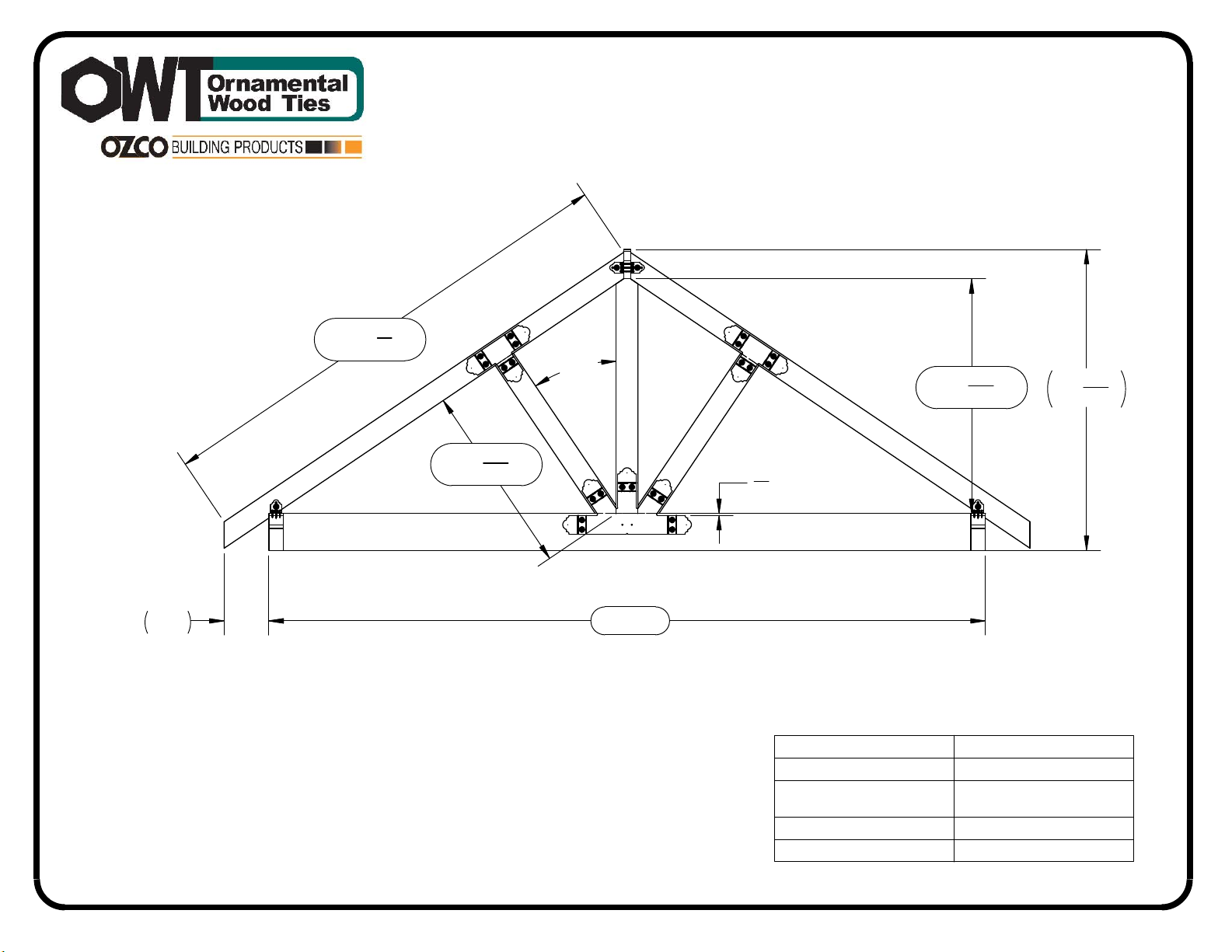

Truss Construction
56618
56611 & 56612
56618
56611 & 56619
56618
V2.00 - Installation Instructions, Specifications and Project Plans are effective 6/23/2017 . This information is updated periodically
and should not be relied upon after 2 years from 6/23/2017 . Please visit OZCOBP.com to get current information.
56619 Truss Base Fan Calculator
2
56619 Truss Base Fan Calculator
Truss Construction
Beam(in) KingPost(in) Rafter(in) Web(in) Beam(in) KingPost(in) Rafter(in) Web(in)
96 30.54 75.19 24.23 145 47.06 104.75 37.93
97 30.88 75.79 24.51 146 47.39 105.36 38.21
98 31.21 76.40 24.79 147 47.73 105.96 38.49
99 31.55 77.00 25.07 148 48.07 106.56 38.77
100 31.89 77.60 25.35 149 48.41 107.17 39.05
101 32.23 78.21 25.63 150 48.74 107.77 39.33
102 32.56 78.81 25.91 151 49.08 108.37 39.61
103 32.90 79.41 26.19 152 49.42 108.98 39.89
104 33.24 80.02 26.47 153 49.75 109.58 40.17
105 33.57 80.62 26.75 154 50.09 110.18 40.45
106 33.91 81.22 27.03 155 50.43 110.79 40.73
107 34.25 81.83 27.31 156 50.77 111.39 41.01
108 34.59 82.43 27.59 157 51.10 111.99 41.28
109 34.92 83.03 27.86 158 51.44 112.60 41.56
110 35.26 83.64 28.14 159 51.78 113.20 41.84
111 35.60 84.24 28.42 160 52.11 113.80 42.12
112 35.93 84.84 28.70 161 52.45 114.41 42.40
113 36.27 85.45 28.98 162 52.79 115.01 42.68
114 36.61 86.05 29.26 163 53.12 115.61 42.96
115 36.94 86.65 29.54 164 53.46 116.22 43.24
116 37.28 87.26 29.82 165 53.80 116.82 43.52
117 37.62 87.86 30.10 166 54.14 117.42 43.80
118 37.96 88.46 30.38 167 54.47 118.03 44.08
119 38.29 89.07 30.66 168 54.81 118.63 44.36
120 38.63 89.67 30.94 169 55.15 119.23 44.64
121 38.97 90.27 31.22 170 55.48 119.84 44.92
122 39.30 90.88 31.50 171 55.82 120.44 45.20
123 39.64 91.48 31.78 172 56.16 121.04 45.48
124 39.98 92.08 32.06 173 56.50 121.64 45.76
125 40.32 92.69 32.34 174 56.83 122.25 46.04
126 40.65 93.29 32.62 175 57.17 122.85 46.32
127 40.99 93.89 32.90 176 57.51 123.45 46.60
128 41.33 94.50 33.18 177 57.84 124.05 46.88
129 41.66 95.10 33.46 178 58.18 124.66 47.16
130 42.00 95.70 33.74 179 58.52 125.26 47.44
131 42.34 96.31 34.02 180 58.86 125.86 47.72
132 42.68 96.91 34.30 181 59.19 126.46 47.99
133 43.01 97.51 34.57 182 59.53 127.07 48.27
134 43.35 98.12 34.85 183 59.87 127.67 48.55
135 43.69 98.72 35.13 184 60.20 128.27 48.83
136 44.02 99.32 35.41 185 60.54 128.87 49.11
137 44.36 99.93 35.69 186 60.88 129.48 49.39
138 44.70 100.53 35.97 187 61.21 130.08 49.67
139 45.03 101.13 36.25 188 61.55 130.68 49.95
140 45.37 101.74 36.53 189 61.89 131.28 50.23
141 45.71 102.34 36.81 190 62.23 131.89 50.51
142 46.05 102.94 37.09 191 62.56 132.49 50.79
143 46.38 103.55 37.37 192 62.90 133.09 51.07
144 46.72 104.15 37.65 193 63.24 133.69 51.35
8:12OZCOTr ussFanCalculator
V2.00 - Installation Instructions, Specifications and Project Plans are effective 6/23/2017 . This information is updated periodically
and should not be relied upon after 2 years from 6/23/2017 . Please visit OZCOBP.com to get current information.
56619 Truss Base Fan Calculator
8:12
Last updated: 6/23/2017
56619 Truss Base Fan Calculator 3
Weight: 385.93 LBS
Scale: 1:24
Truss Construction
3'2 "
5
8
10'0"
2'6 15
16 "
7'1 16 "
3
4'8 8"
34°
1'0"
11
1
2"
Board Length
Beam 10'0"
Rafter 7'1 11/16"
King Post 3'2 5/8"
Web Post 2'6 15/16"
V2.00 - Installation Instructions, Specifications and Project Plans are effective 6/23/2017 . This information is updated periodically
and should not be relied upon after 2 years from 6/23/2017 . Please visit OZCOBP.com to get current information.
56619 Truss Base Fan Calculator
8:12
Last updated: 6/23/2017
56619 Truss Base Fan Calculator 4
Weight: 443.03 LBS
Scale: 1:24
Truss Construction
Board Length
Beam 12'0"
Rafter 8'4 3/16"
King Post 3'10 3/4"
Web Post 3'1 5/8"
3'10 "
3
4
12'0"
3'1 5
8"
1
5'4 2"
34°
3
8'4 16 "
1
2"
1'0"
V2.00 - Installation Instructions, Specifications and Project Plans are effective 6/23/2017 . This information is updated periodically
and should not be relied upon after 2 years from 6/23/2017 . Please visit OZCOBP.com to get current information.
56619 Truss Base Fan Calculator
8:12
Last updated: 6/23/2017
56619 Truss Base Fan Calculator 5
Weight: 557.23 LBS
Scale: 1:30
Truss Construction
Board Length
Beam 16'0"
Rafter 10'9 1/8"
King Post 5'2 15/16"
Web Post 4'3 1/16"
5'2 "
15
16
16'0"
4'3 1
16 "
10'9 8"
11
6'8 16 "
34°
1'0"
1
1
2"
V2.00 - Installation Instructions, Specifications and Project Plans are effective 6/23/2017 . This information is updated periodically
and should not be relied upon after 2 years from 6/23/2017 . Please visit OZCOBP.com to get current information.
56619 Truss Base Fan Calculator
8:12
Last updated: 6/23/2017
56619 Truss Base Fan Calculator 6
Weight: 500.13 LBS
Scale: 1:24
Truss Construction
Board Length
Beam 14'0"
Rafter 9'6 11/16"
King Post 4'6 13/16"
Web Post 3'8 5/16"
4'6 "
13
16
14'0"
3'8 5
16 "
9'6 16 "
9
6' 16 "
34°
1'0"
11
1
2"
