Ozito CDR-012 User manual


Battery power: 12V
Charge time: 3 - 5 hours
No load speed: 0 – 580RPM
Chuck: 10mm, keyless
Torque: 12Nm
Batteries: 1
Weight with 1 battery: 1.5kg
Features: Adjustable torque
20+1 torque settings
Accessories included
1

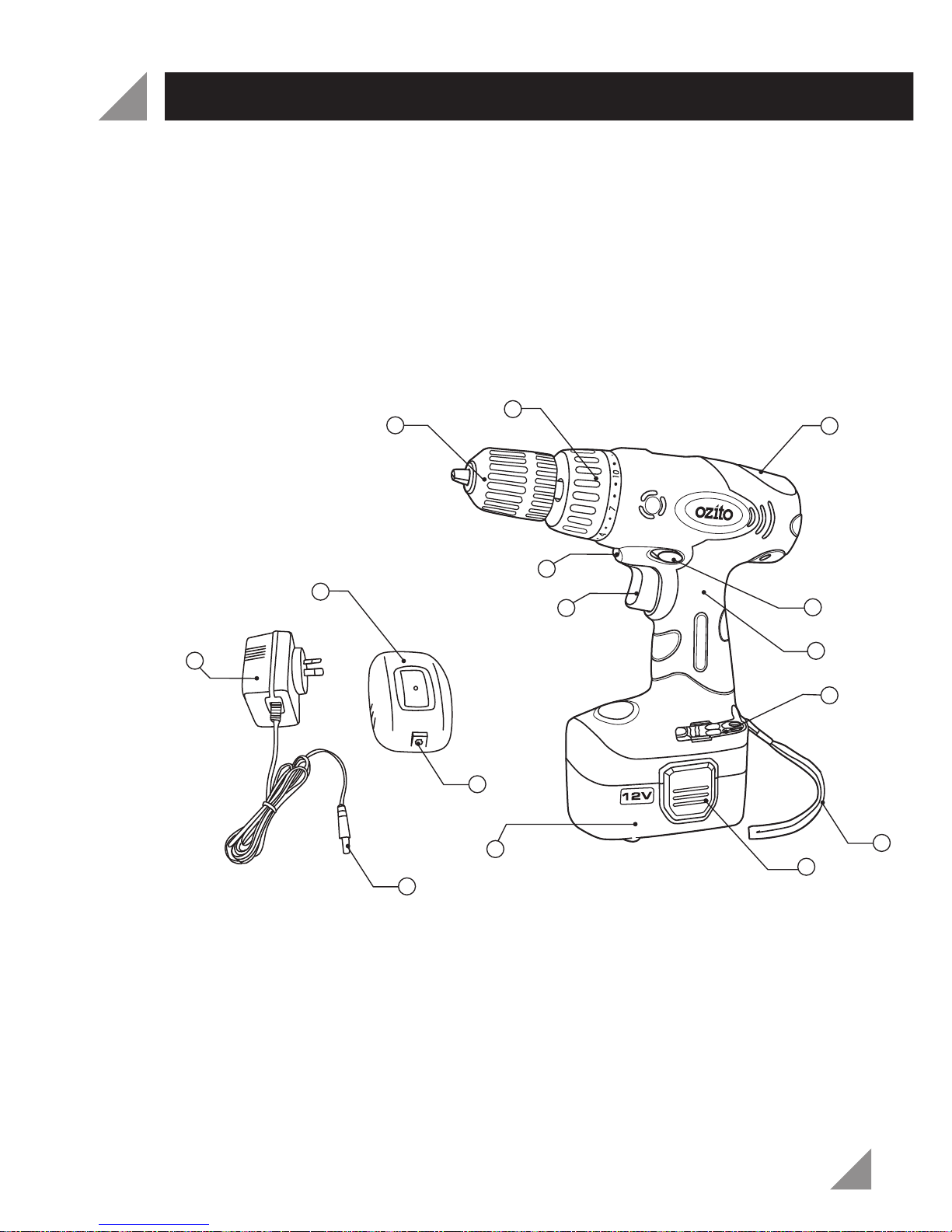

SPECIFICATIONS – MODEL NO. CDR-012
1. Keyless Chuck
2. Torque Adjustment Collar
3. Level Indicator
4. Work area LED light
5. Variable Speed Switch
6. Forward / Reverse Selector
7. Rubber Over-moulding Handle
8. Double-ended Screwdriver Bit
9. Carry Strap
2
6
7
10
11
12
1
10. Battery Pack Release Button
11. 12V Battery
12. AC Charger Adaptor
13. Charger Cradle
14. Charger Jack
15. Charger Cradle Socket
15
14
13
9
8
4
5
3

TABLE OF CONTENTS
2
SPECIFICATIONS ………………………………………..
TABLE OF CONTENTS…………………………………..
INTRODUCTION…………………………………………
SAFETY INSTRUCTIONS………………………………..
DRILL OPERATION ……………………………………..
MAINTENANCE …………….…………………………..
SPARE PARTS …………….………………………………
DESCRIPTION OF SYMBOLS ………………………….
CONTENTS ……………………………………………...
WARRANTY………………………………………………
Page 1
Page 2
Page 3
Page 3
Page 9
Page 11
Page 11
Page 12
Page 13
Page 14

3
Warning! A battery operated tool with integral batteries or a separate battery
pack must be recharged only with the specific charger for the battery. A
charger that may be suitable for one type of battery may create a risk of fire
when used with another battery.
• Avoid accidental starting. Make sure the switch is in the locked OFF position
before inserting the battery pack. Carrying a tool with your finger on the switch or
inserting the battery pack into a tool with the switch on invites accidents.
• Disconnect the battery pack from the tool or place the switch in the locked OFF
position before making any adjustments, changing accessories, or storing the tool.
Such preventative safety measures reduce the risk of starting the tool accidentally.
• When the battery pack is not in use, keep it away from other metal objects.
Read the whole manual carefully and make sure you know how to switch the tool OFF,
in an emergency, before operating the tool. Save these instructions and other
documents supplied with this machine for future reference.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Congratulations on purchasing an Ozito 12V Cordless Drill CDR-012.
We aim to provide quality tools at an affordable price.
We hope you will enjoy using this tool for many years. Your
Ozito Cordless Drill has been designed for general purpose
drilling or screwdriving around the home. The torque control
allows you to drive screws to a predetermined depth and the
reversing feature allows you to remove them with ease. The
built in LED light provides added lighting when using in dark
areas. It is intended for DIY use only.
INTRODUCTION
SAFETY INSTRUCTIONS
!
!

4
GENERAL SAFETY RULES
Warning! Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term "power tool" in
all of the warnings listed below refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
Save these instructions
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such
as a dust mask, non-skid safety shoes, a hard hat, or hearing protection used
for appropriate conditions will reduce the risk of personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.

GENERAL SAFETY RULES (cont.)
5
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can get
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices
can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power supply and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventative safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a
hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.

!
!
!
!
6
CHARGER AND BATTERY PACK SAFETY INSTRUCTIONS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING
INSTRUCTIONS FOR YOUR BATTERY CHARGER.
• Before using the charger, read all instructions and cautionary markings on
charger, battery pack and product using the battery pack.
Danger! If the battery pack case is cracked or damaged, do not insert
into charger. There is a danger of electric shock or electrocution.
Warning! Don’t allow any liquid to get inside charger. Electric shock may
result. To facilitate cooling of the battery pack after use, avoid placing the
charger or battery pack in a warm environment such as in a metal shed, or
an uninsulated trailer.
• This charger is not intended for any uses other than charging rechargeable
batteries. Any other use may result in risk of fire, electric shock or electrocution.
• Do not place any object on top of the charger or place the charger on a soft
surface that may result in excessive internal heat. Place the charger in a
position away from any heat source.
• To reduce risk of damage to the electric plug and cord, pull by the plug rather
than the cord when disconnecting the charger.
• Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
• An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in the risk of fire, electric shock or electrocution.
• Do not operate charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Have it checked by an electrician or power
tool repairer.
•Do not disassemble charger. Take it to an electrician or power tool repairer
when service or repair is required. Incorrect reassembling may result in a risk of
electric shock, electrocution or fire.
• To reduce risk of electric shock, unplug charger from the outlet before
attempting any cleaning. Removing the battery pack will not reduce this risk.
•Never attempt to connect 2 chargers together.
• DO NOT store or use the tool and battery pack in locations where the
temperature may reach or exceed 40ºC (such as outside sheds or metal
buildings in summer).
•The charger is designed to operate on standard household electrical power
(240 volts). Do not attempt to use it on any other voltage!

!
!
7
ADDITIONAL SAFETY RULES FOR CHARGER AND BATTERY
The battery pack is not fully charged out of the carton. First read the safety instructions
and then follow the charging notes and procedures.
• The longest life and best performance can be obtained if the battery pack is
charged when the air temperature is between 18 - 24ºC. Do not charge the battery
pack in an air temperature below 10ºC or above 40ºC. This is important and will
prevent damage to the battery pack.
• Do not incinerate the battery pack even if it is seriously damaged or is completely
worn out. The battery can explode in a fire.
• Never attempt to open the battery pack for any reason. If the plastic housing of the
battery pack breaks or cracks, immediately discontinue use and do not recharge.
Always switch off the drill before insertion or removal of the battery pack.
To Install the Battery Pack
•Place battery pack on a hard surface like a bench/table. Align slots on the base of
the drill handle with the battery. Slide the drill onto the battery, ensuring the
battery release button locks into place.
• Do not use excessive force when inserting the battery pack. If the battery pack
does not slide in easily, it is not being inserted correctly. It is also possible that
there could be damage to the battery, battery terminals or drill.
To Remove the Battery Pack
• Depress both the release buttons on the battery and slide the drill off the battery.
This tool has been shipped in a low charge condition. You should charge it prior to use.
•Plug the charger into a 240V power outlet. Connect the charger jack to the charger
cradle socket.
• With the battery sitting flat on a bench/table, slide the charging cradle into the
recess of the battery terminals ensuring a firm connection. Upon proper contact,
the red light will illuminate.
• The batteries will take 3-5 hours to charge. This may vary up to 9 hours due to the
level of charge left in the batteries and also the ambient temperature.
CAUTION: Charger does not automatically turn off when the battery is fully
charged. Please take care not to leave the tool on the charger for excessive
periods of time. Switch off the charger at mains when charging is complete.
INSTALLING OR REMOVING THE BATTERY PACK
CHARGING YOUR BATTERIES

8
CHARGING YOUR BATTERIES (cont.)
NOTE: If light on the charger cradle fails to come on.
• Check the adaptor is securely plugged into the wall outlet and is switched on.
• Check battery is firmly seated onto the charger cradle.
• Check that the charger jack is securely connected into the charger cradle socket.
Initial Charge
• Charge your battery for 8-12 hours then use it until it runs down and only
slowly operates the drill.
• Connect your battery pack to the charger and recharge for 8-12 hours again.
• Once again run your drill until only a small amount of charge remains.
• Repeat the above cycle about 4 or 5 times. This should set the battery
“memory”, then charge for 3-5 hours.
• Charger will not turn off when battery is fully charged.
• Red LED light will not go out when battery is fully charged.
Important Charging Notes
• The charger and battery pack may become warm to touch while charging. This
is a normal condition, and does not indicate a problem.
• Use the charger at normal room temperatures whenever possible. To prevent
overheating, do not cover the charger and do not charge the battery pack in
direct sunlight or near heat sources.
•If the battery pack does not charge properly:-
1. Check current at power outlet by plugging in a lamp or other appliance.
2. If charging problems persist, have the complete tool checked by an
electrician or a power tool repairer.
Battery
The length of service from each charging cycle will depend on the type of work you
are doing. The batteries in this drill have been designed to provide maximum
trouble free life. However, like all batteries, they will eventually wear out.
To obtain the longest possible battery life, we suggest the following:
• Store and charge your batteries in a cool area. Temperatures above or below
normal room temperature will shorten battery life.
•Never store batteries in a discharged condition. Recharge them immediately
after they are discharged.
• All batteries gradually lose their charge. The higher the temperature the
quicker they lose their charge. If you store your drill for long periods of time
without using it, recharge the batteries every month or two. This practice will
prolong battery life.

DRILL OPERATION
9
The ON/OFF Switch
Turn the drill ON by depressing the variable speed switch (6). To turn the drill OFF,
release the variable speed switch (6).
Speed Control
The speed can be varied from 0 to maximum, depending on the pressure applied to
the variable speed switch. This way you can select the best possible speed for the job
being done.
Changing the Direction of Rotation
The direction of rotation can be changed with the forward/reverse selector (7) above
the variable speed switch (6).
To select the forward drilling position, push the forward/reverse selector (7) hard left. To
select the reverse drilling position, push the forward/reverse selector (7) hard right.
The variable speed switch (6) can be locked off by pushing the forward/reverse
selector (7) into the middle of both the forward and reverse positions.
Do not change the direction of rotation while the chuck (1) is in motion.
Torque Settings (Tightening Power of Your Cordless Drill)
When using your drill for various driving applications, it becomes necessary to increase
and decrease the power and torque in order to prevent the possibility of damaging
screw heads, threads, work pieces, etc.
In general, power and torque should correspond to the difficulty of the screw to be
driven. If torque is too high, the screws can be damaged or broken.
To Adjust Torque
•Locate the arrow on the front of the drill housing.
•Identify the torque settings and 1 drill setting on the torque adjustment collar (2).
• Rotate the torque adjustment collar (2) to the desired setting, aligning the required
number on the adjustment collar (2) with the arrow on the drill housing.
• To increase or decrease torque, rotate the torque adjustment collar (2). The lower
the number, the lower the torque setting. The higher the number, the higher the
torque setting.
Always check that the correct torque is selected by practising on scrap material prior to
carrying out a job.
Level Indicator
Use the level indicator (4) for accurate drilling.
Keyless Chuck
A keyless chuck (1) has been included with your drill to allow for easy installation and
removal of bits. The chuck is divided into two parts, the rear is called the collar and the
front is the body. To open and close the keyless chuck (1), grasp and hold the collar of
the chuck with one hand and rotate the chuck body with your other hand. The arrows
on the chuck indicate in which direction to rotate the chuck body in order to GRIP
(tighten) or RELEASE (unlock) the drill bit.

!
!
DRILL OPERATION (cont.)
10
Warning! Do not hold the chuck body with one hand and use power of
the drill to tighten or loosen the chuck jaws. The chuck body could slip
and your hand could come in contact with a rotating accessory. This could
cause an accident resulting in personal injury.
Installing Drill/Driver Bits
• Remove the battery (12) from the drill.
• Open or close the keyless chuck (1) to a point where the opening is slightly
larger than the drill bit you intend to use.
• Insert the drill bit into the keyless chuck (1) ensuring the end of the drill bit
does not touch the screw inside the keyless chuck (1).
• Tighten the keyless chuck (1) onto the drill bit as described above.
Removing Drill/Driver Bits
• Remove the battery (12) from the drill.
•Loosen the keyless chuck (1) as described above.
•Remove the drill bit from the keyless chuck (1).
Note: Do not handle drill bits without gloves as drill bits and other accessories are
sharp and can cause personal injury.
General Hints for Drilling in all Materials
• Always use sharp drill bits.
• Mark the place where you would like the hole to be drilled.
• Commence with a slow rotation speed to start the hole.
•Reduce your pressure on the drill when the drill bit is about to break through
the material.
Metal Drilling
• Support thin material with a wooden plate.
• Use a punch to mark the position of the hole.
• If drilling a large hole, use a small drill first to establish a pilot hole then use the
required large size drill bit.
• Use only HSS (high speed steel) drill bits or those recommended for metal use.
•When drilling into iron or steel, use a cooling lubricant such as thin oil. With
aluminium, use turpentine or paraffin. With brass, copper and cast iron, use no
lubricant but withdraw the drill regularly to assist cooling.
Wood Drilling
•Mark the place where you want to drill with a punch or a nail.
• To avoid splintering on breakthrough either clamp a piece of scrap wood to the
back of the wood or continue the hole from the back of the wood when the
drill bit first breaks through.

11
MAINTENANCE AND CARE
• When not in use the drill should be stored in a dry, frost free location, out of reach
of children.
• Keep ventilation slots of the drill clean at all times and prevent any foreign matter
from entering.
• If the housing of the drill requires cleaning, do not use solvents but a moist soft
cloth only.
• Blow out the ventilation slots with compressed air periodically .
Note: Ozito Industries will not be responsible for any damage or injuries caused by
repair of the drill by an unauthorised person or by mishandling of the tool.
SPARE PARTS
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Chuck Screw SPCDR012-01
Battery Pack SPCDR012-45
Charging Stand SPCDR012-46
Adaptor SPCDR012-47

DESCRIPTION OF SYMBOLS
12
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
Warning Read instruction manual
VVolts Hz Hertz
~ Alternating current WWatts
dc Direct current
ø
Diameter
mA Milliamperes
n
o No load speed
Recycle battery Do not put in the rubbish
Isolation transformer Polarity
Do not incinerate Donot get battery wet
Thermal cut-out
protection at 130ºC
Transformer Energy
Rating (MEPS)
Double insulated
RPM Revolutions or
reciprocation per minute
Indoor use only
Nickel-cadmium battery Do not use or store battery in
temperatures exceeding 50ºC
Electrical Emissions
Conformity (EMC)

1 x 12V, 1.2Ah, Ni-Cad Battery
1 x 12V Cordless Drill
1 x AC Charger Adaptor
1 x Charging Cradle
2 x Double Ended Screw Driving Bits
1 x Instruction Manual
AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: 1800 069 486
Facsimile: +61 3 9238 5588
Website: www.ozito.com.au
CONTENTS
OZITO INDUSTRIES PTY LTD
13

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD
BE RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt.
PURCHASED FROM:________________________________________________
DATE PURCHASED: ________________________________________________
3 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 36 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
• Trade, professional, industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on
the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as carbon brushes, batteries, drill
bits and collets.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
Table of contents
Other Ozito Drill manuals

Ozito
Ozito PXBHS-100 User manual

Ozito
Ozito HDR-3000 User manual

Ozito
Ozito OZHD850WA User manual

Ozito
Ozito PXHDK-200U User manual

Ozito
Ozito Home ZLDDS-012 User manual

Ozito
Ozito PXBRHS-200 User manual

Ozito
Ozito CDG-340HK User manual

Ozito
Ozito SDL-3100 User manual

Ozito
Ozito RHD-9035 User manual

Ozito
Ozito CDL-7100 User manual

Ozito
Ozito HOME 12 VOLT ZLHDS-012 User manual

Ozito
Ozito CDR-018 User manual

Ozito
Ozito Power X Change PXRHS-300 User manual

Ozito
Ozito PXDDK-215B User manual

Ozito
Ozito HDR-710 User manual

Ozito
Ozito CDL-1800 User manual

Ozito
Ozito PXECDS-110 User manual

Ozito
Ozito HDR-3000 User manual

Ozito
Ozito PXDDK-301U User manual

Ozito
Ozito DDC-280 User manual
